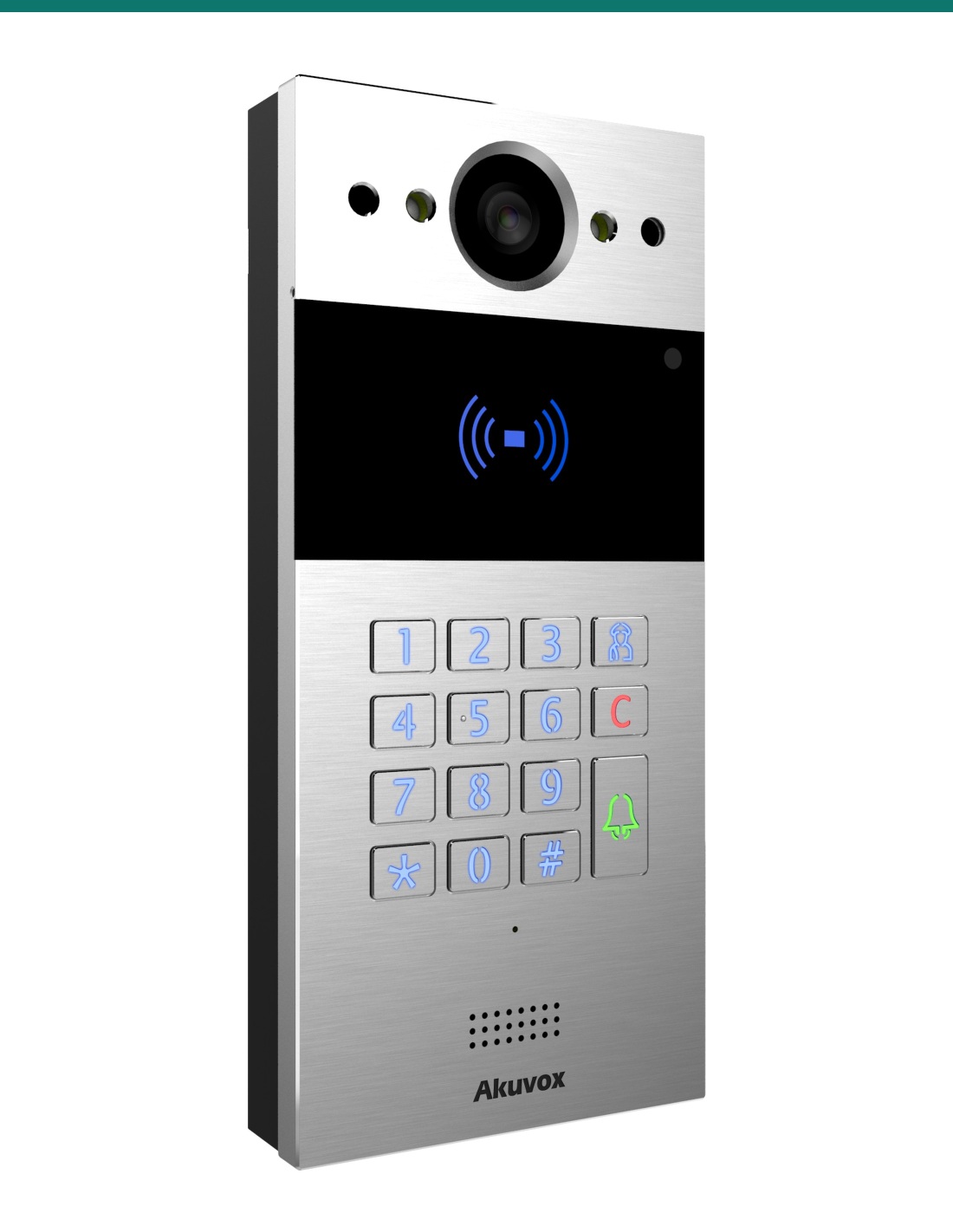

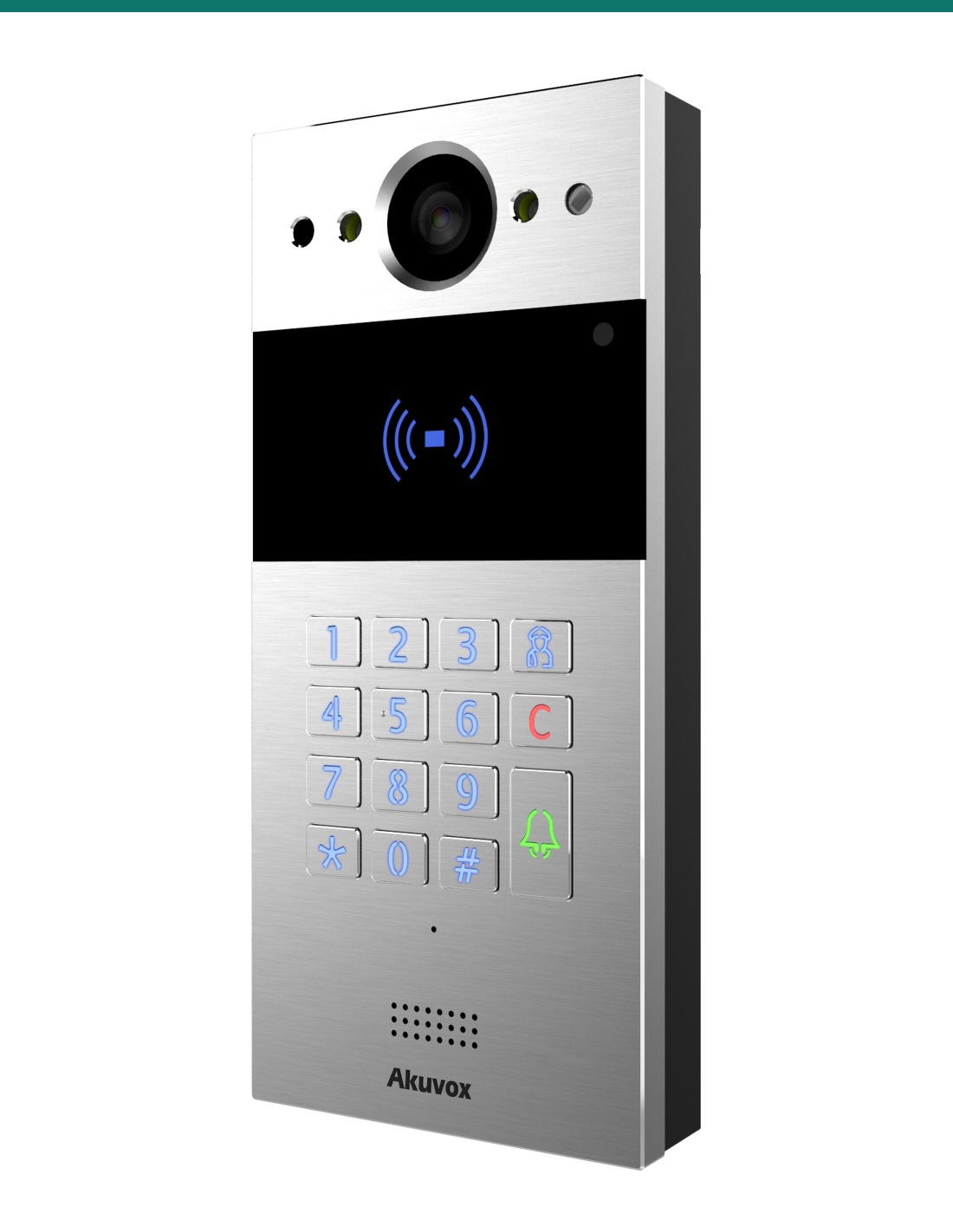

Akuvox R20K silver door phone — left three-quarter view

Akuvox R20K silver door phone — right three-quarter view

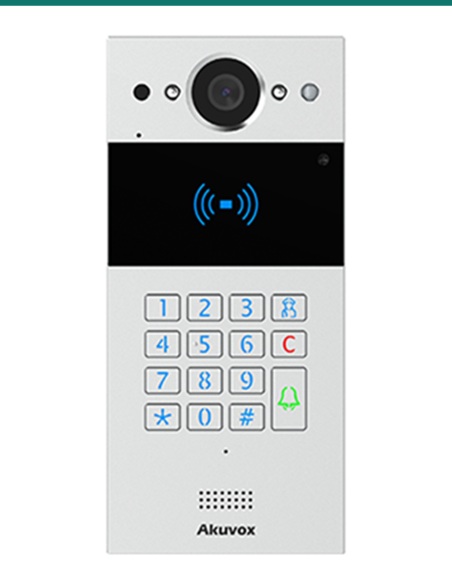

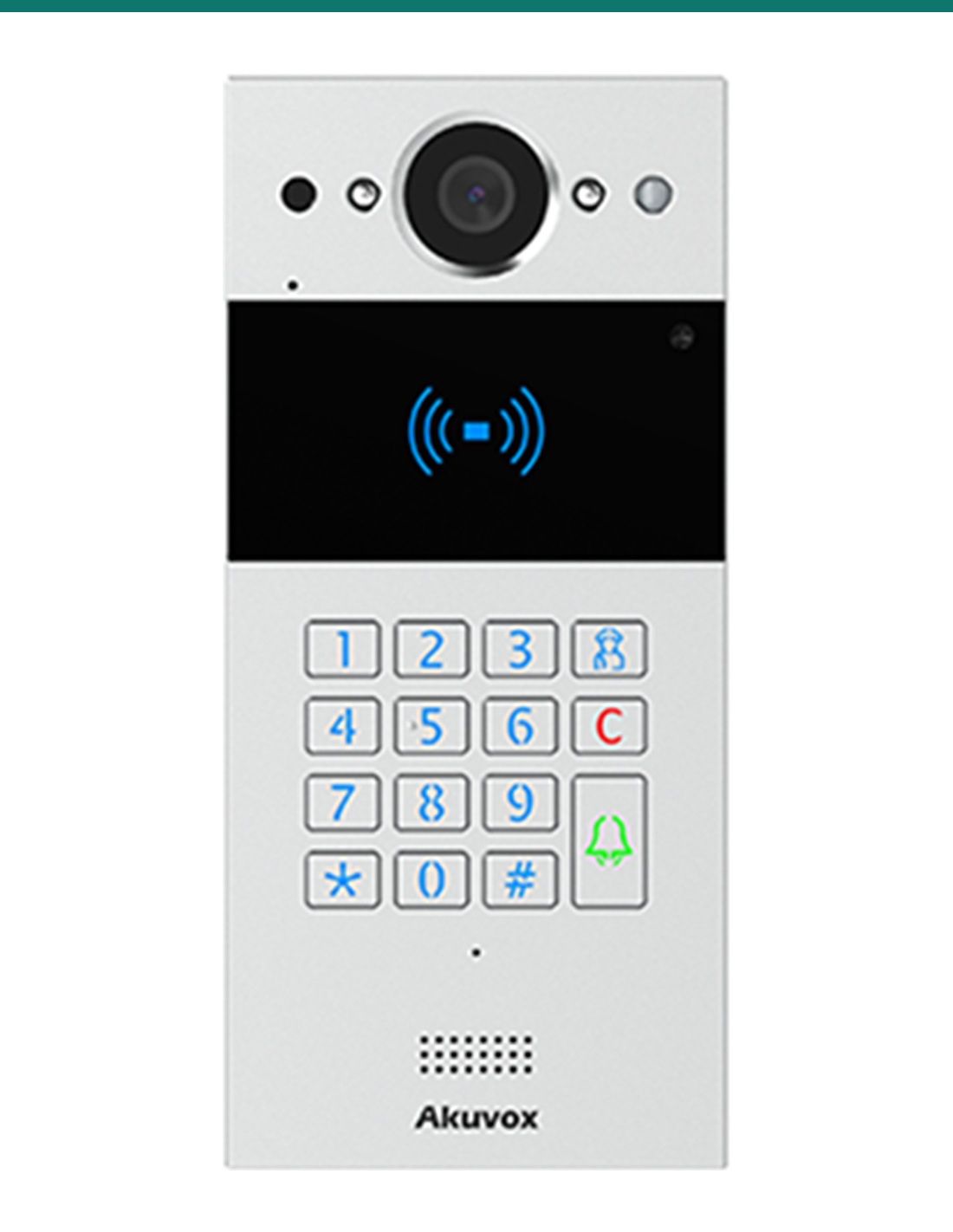

Akuvox R20K silver SIP video door phone with keypad — front

Akuvox R20K Silver SIP Video Door Phone with Keypad and Card Reader — AK-R20K-SILVER

Name: Akuvox R20K Silver SIP Video Door Phone with Keypad and Card Reader — AK-R20K-SILVER
Brand: Akuvox
SKU: AK-R20K-SILVER
Price: 496.5 AUD
Availability: InStock

Reference: AK-R20K-SILVER

In Stock - Ready to Ship

$ 496.50

inc-GST

or 4 interest-free payments of $124.12 with

Akuvox R20K in silver is a compact keypad SIP video door phone for apartment and office entries. A 2 MP wide-angle camera, PIN, card and NFC entry, two lock relays and an IP65 aluminium front in a plate just 85 mm wide. PoE powered. Stocked in Australia by Infront Technologies.

✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting
✓Numeric keypad plus 13.56 MHz / 125 kHz card reader and NFC (Android)
✓2 relays, 2 inputs, Wiegand and RS485 for access-control integration
✓PoE 802.3af · IP65 · 185 × 85 × 24 mm · SIP and ONVIF

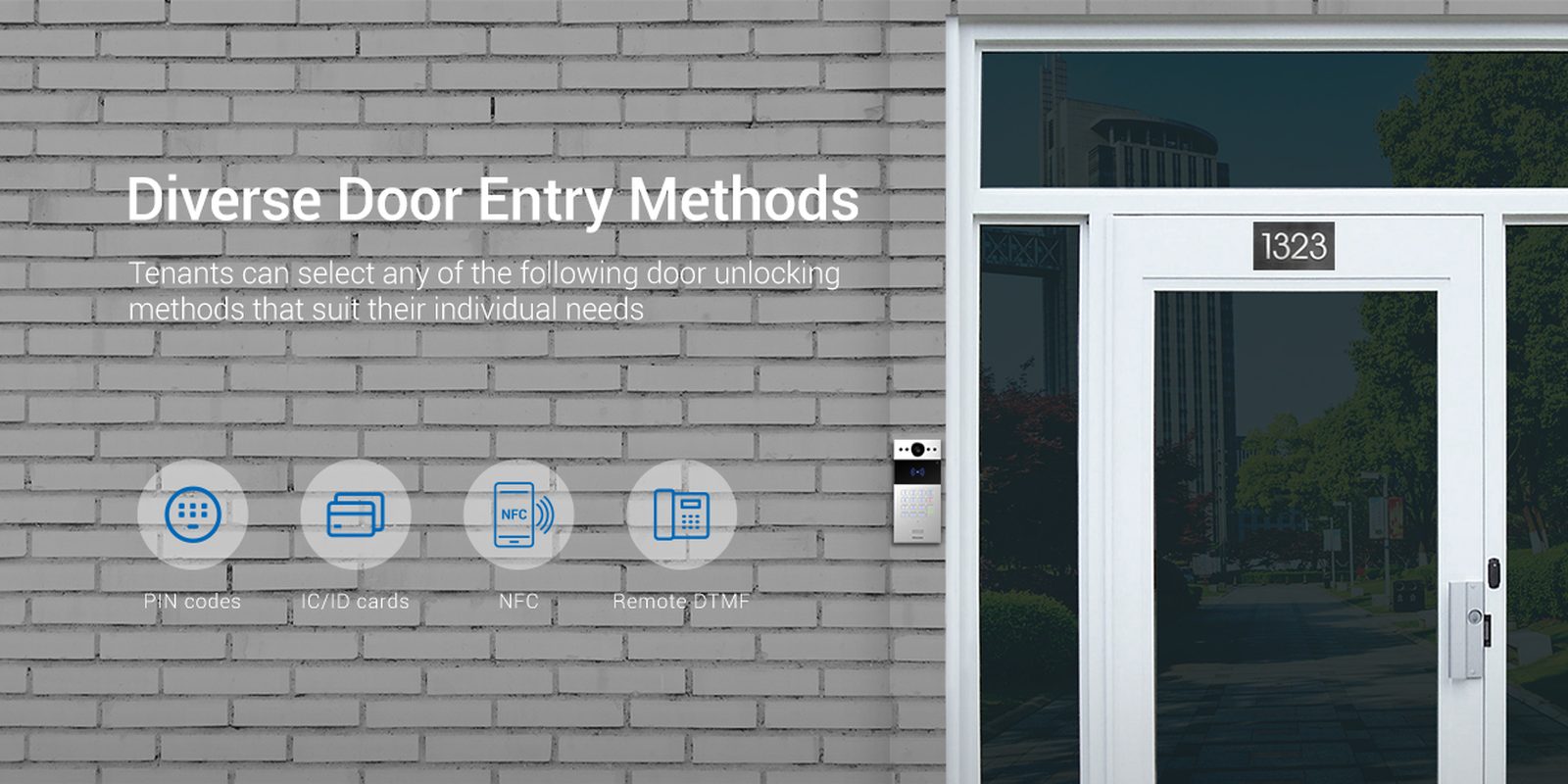

Akuvox R20K silver door phone beside an apartment entry door

Akuvox · R20K · Silver keypad door station

A full keypad entry in a palm-size plate.
85 mm wide, IP65 aluminium.

The AK-R20K-SILVER is Akuvox’s R20K in silver aluminium alloy. It packs a numeric keypad, a dual-frequency card reader and a 2 MP camera into a plate small enough for a narrow door frame — the go-to keypad station for apartment blocks and office entries.

This SKU is the door station only.

You receive the silver R20K surface-mount door phone. Indoor monitors, in-wall box, rain hood, PoE switch and lock hardware are sold separately.

In the box

Akuvox R20K door phone (silver)
Surface-mount hardware
Quick-start guide

What you also need(sold separately)

Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
PoE 802.3af switch or injector
Electric lock / maglock and lock PSU if the door is released
R20K in-wall kit for flush mounting

Every resident, every way in.

Visitors key in a flat number and the resident sees them before opening up. Residents skip the call — tap a card, enter a PIN, hold up an Android phone or unlock from the SmartPlus app.

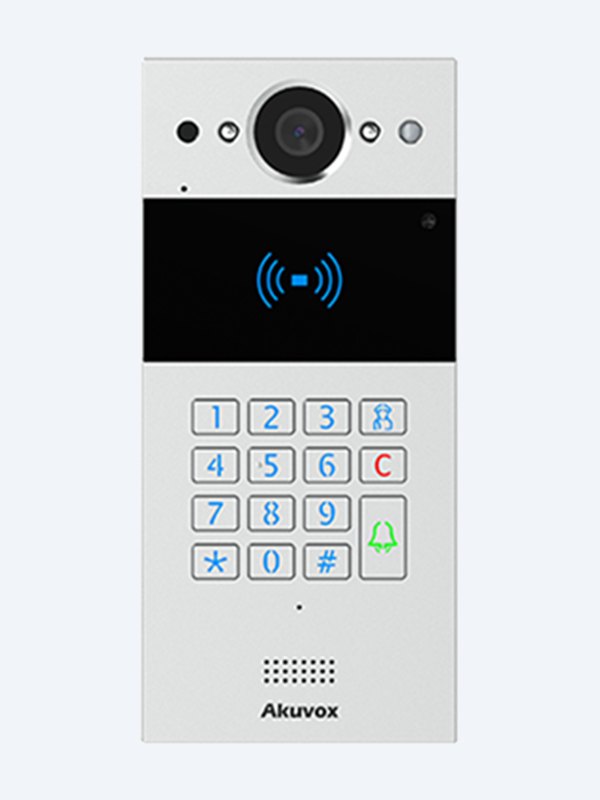

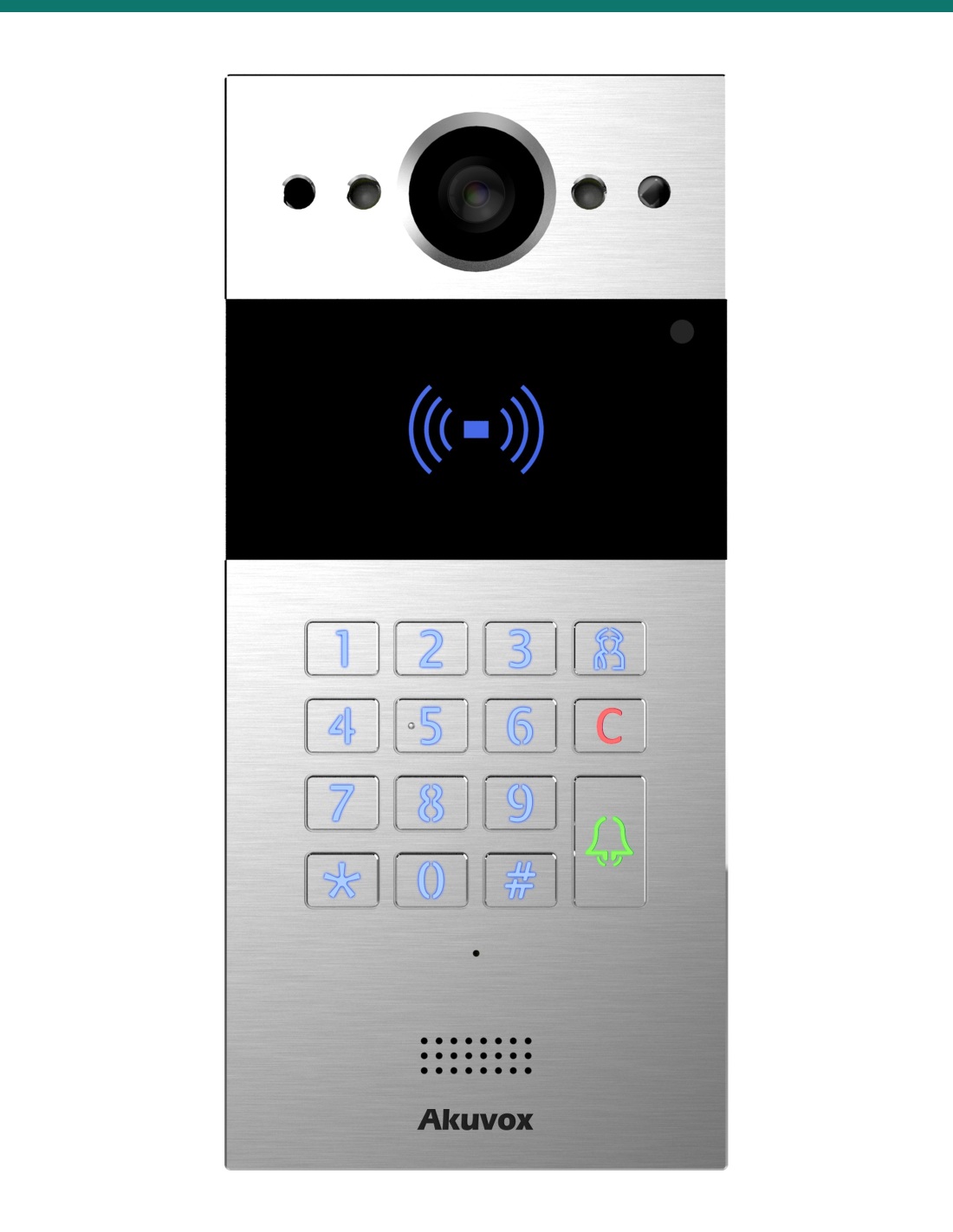

Akuvox R20K silver door phone front view

Camera

See who is calling, day or night.

2 MP 1/2.8″ CMOS camera with a 110° horizontal and 58° vertical view. Video streams in H.264 at up to 1920 × 1080, 1080p at 30 fps.

IR LEDs, a light sensor and 0.1 lux minimum illumination keep night calls usable, and a motion sensor wakes the station as visitors approach. ONVIF and RTSP let you record the door on your NVR.

Built for outside

IP65 aluminium, −30 °C to +60 °C.

Silver aluminium alloy front, IP65 rated against rain and dust, and a tamper alarm. 185 × 85 × 24 mm, so it fits mullions and narrow frames.

Surface-mounts as supplied. For a flush finish add the R20K in-wall kit, and fit a rain hood on exposed elevations.

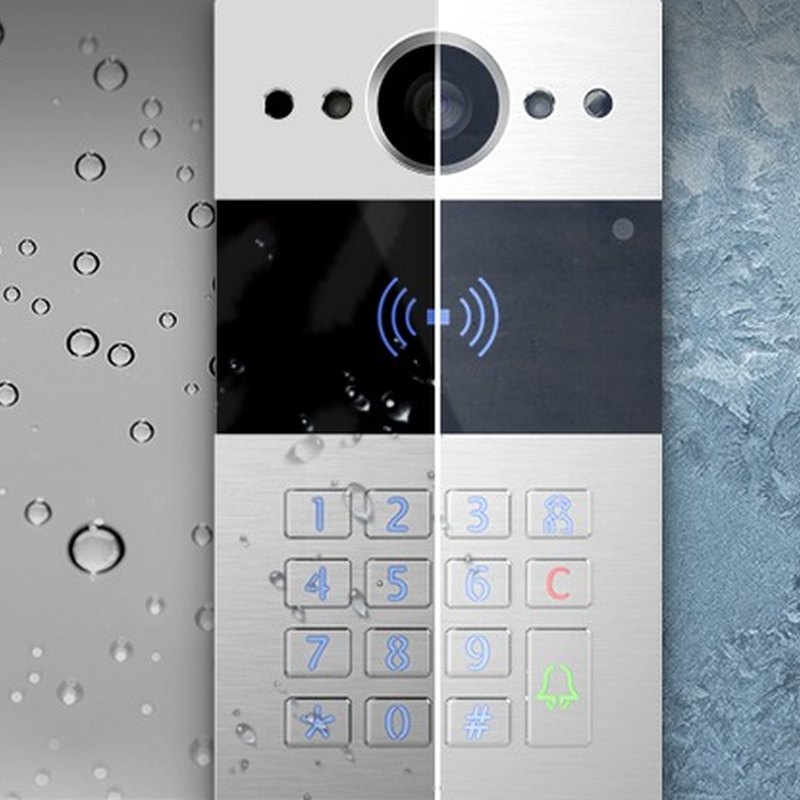

Akuvox R20K silver door phone in the rain

Access

PIN, card, NFC or app.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 credentials, plus NFC from Android phones. Up to 20,000 cards and 4,000 PINs.

Two relays drive two doors or a door and a gate. Two inputs, selectable Wiegand in/out and RS485 connect exit buttons, door sensors and access controllers.

How it works

From keyed-in flat to open door.

Mount

Surface-mount as supplied, or fit the R20K in-wall kit for flush. Add a rain hood where the door is exposed.

PoE and SIP

Run 802.3af PoE to the RJ45, then register the station to Akuvox indoor monitors, SmartPlus or your SIP PBX.

Enrol credentials

Load cards, PINs and room numbers in the web portal: up to 20,000 cards and 4,000 PINs.

Test the door

Place a call, check the picture day and night, and confirm each relay releases the right lock.

At a glance

Key specs — AK-R20K-SILVER

Brand: Akuvox
Reference: AK-R20K-SILVER
Finish: Silver aluminium alloy
Camera: 2 MP, 1/2.8″ CMOS, automatic lighting
Field of view: 110° (H) / 58° (V)
Video: H.264, up to 1920 × 1080, 1080p at 30 fps
Night: IR LED, light sensor, 0.1 lux minimum
Keypad: Numeric keypad with extra function keys
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3
Unlock: Card, PIN, NFC, SmartPlus app, DTMF
Capacity: 20,000 cards · 4,000 PINs · 4,000 users · 1,000 contacts
I/O: 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, ONVIF, RTSP
Power: PoE IEEE 802.3af
Protection: IP65
Mounting: Surface mount; flush with in-wall kit
Size: 185 × 85 × 24 mm (H × W × D)
Working temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete door entry system

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from a compatible Akuvox SIP indoor station or the SmartPlus app.

Weather

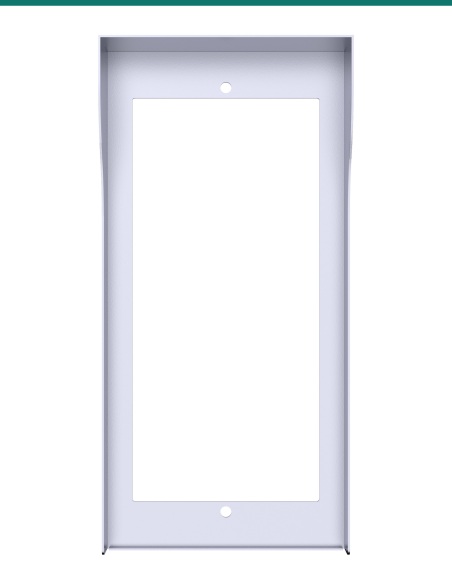

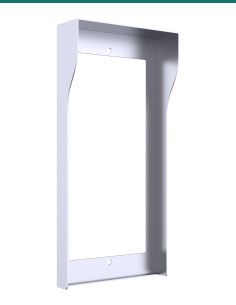

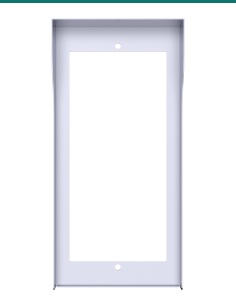

R20K in-wall rain hood (silver)

Shields a flush-mounted R20K on exposed doors and matches the silver panel.

Angle

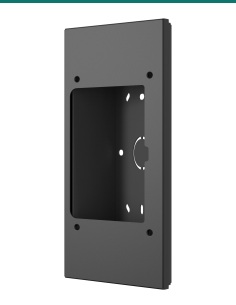

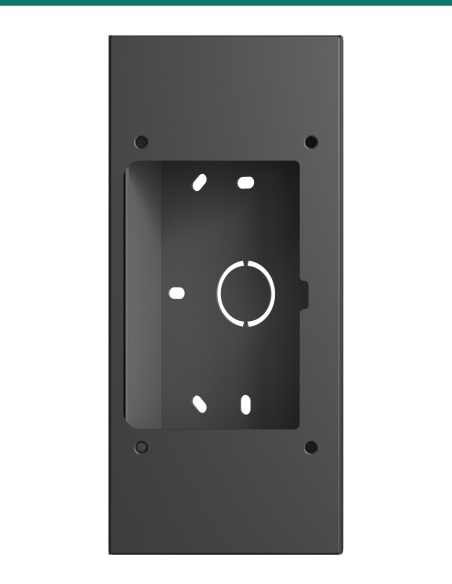

R20K/R20B angle bracket

Tilts the station towards visitors where the wall runs alongside the approach.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards and key fobs work with the R20K reader once enrolled.

Watch

See it in action

Akuvox R20K video door phone overview

Answers

Common questions

How is the silver R20K different from the black R20K?

Only the finish. Both have the same keypad, 2 MP camera, card reader, relays and IP65 housing; choose the colour that suits the entry.

Can I open the door from my phone?

Yes. Akuvox SmartPlus app users can answer calls and unlock, and Android phones can also unlock over NFC.

What power does it need?

IEEE 802.3af PoE from a switch or injector.

Can it be flush-mounted?

Yes, with the R20K in-wall installation kit, which is sold separately.

Is an indoor monitor included?

No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.

The compact keypad station, local stock.

Choose the silver R20K for a bright, classic aluminium finish; the black R20K has identical electronics in a dark panel. Order through Infront Technologies for Australian stock and pairing advice.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20K datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
