Akuvox AK-E21ONH is the on-wall mounting rain cover for the E21A and E21V emergency intercoms. The E21 is designed to flush-mount; this silver housing lets you fix it to the wall surface instead, with a built-in hood over the top and sides.
The AK-E21ONH is Akuvox’s E21 on-wall mounting rain cover. The E21A and E21V are flush-mount only; this silver housing carries the unit on the face of the wall and its hood keeps rain off the faceplate.
This SKU is the on-wall housing only.
You receive the silver E21 on-wall mounting rain cover. The E21A or E21V is sold separately.
Precast concrete, tiled walls, posts and existing car-park structures often can’t take a 60 mm-deep cut-out. The on-wall housing puts an E21 there anyway, with weather protection built in.
Housing

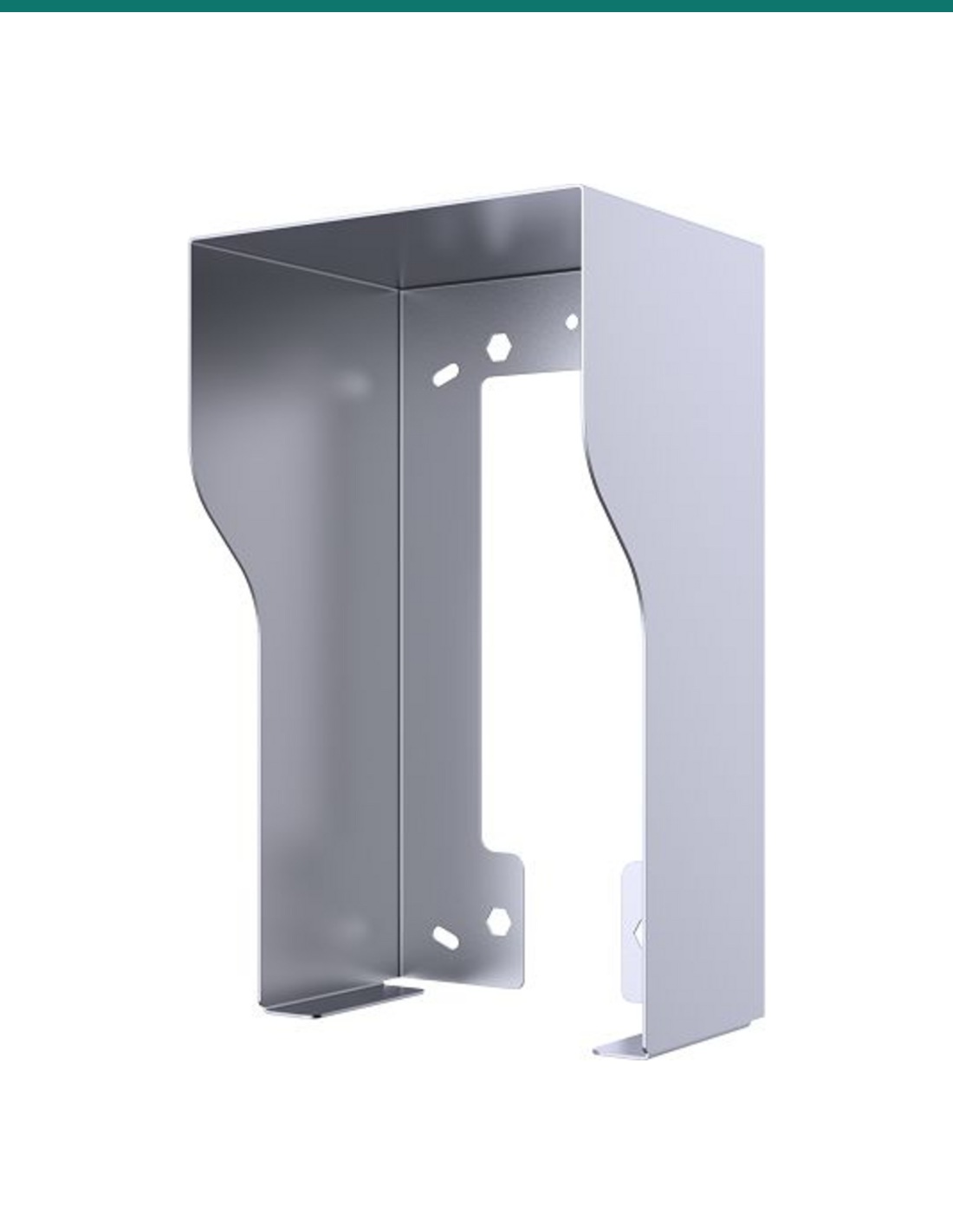

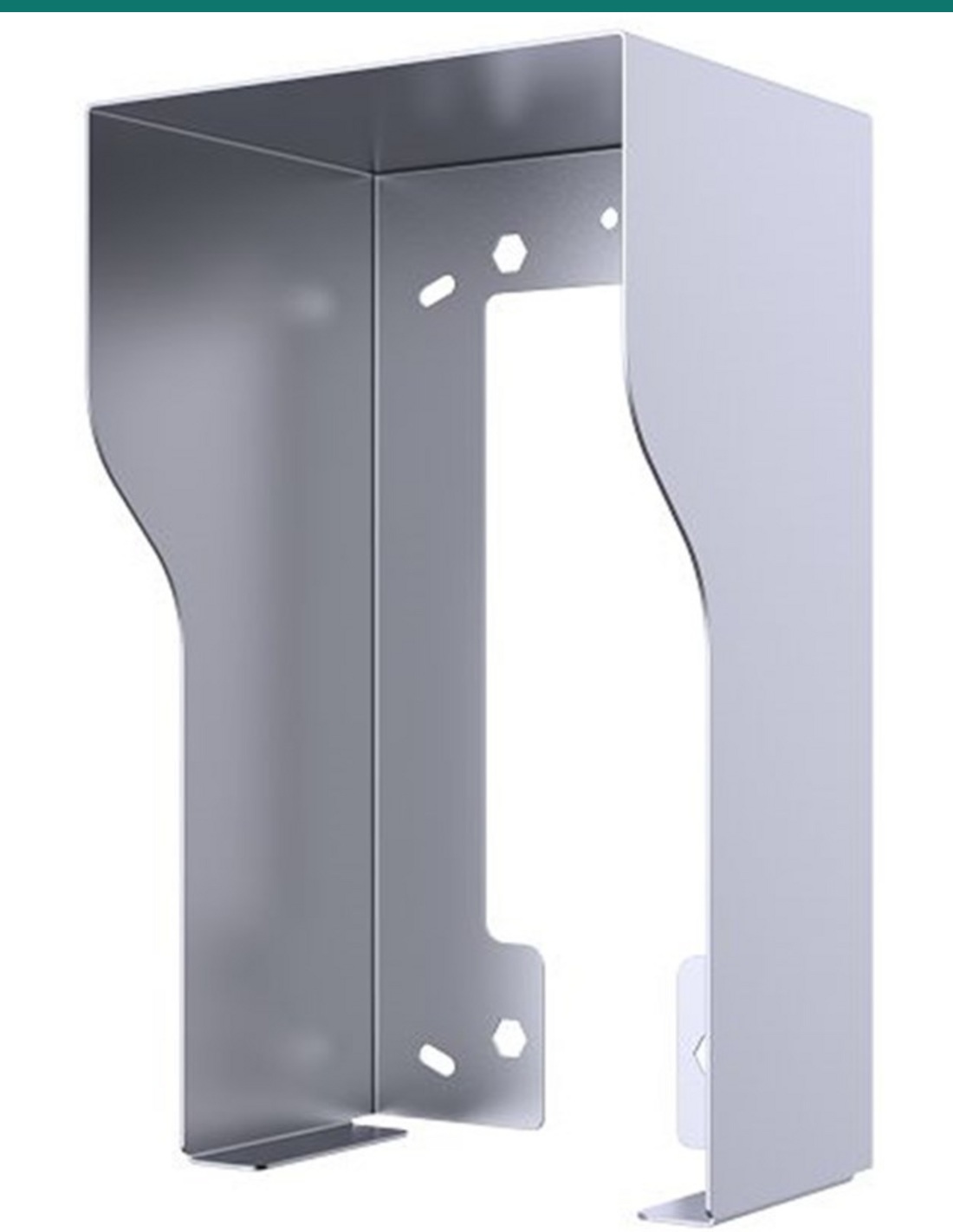

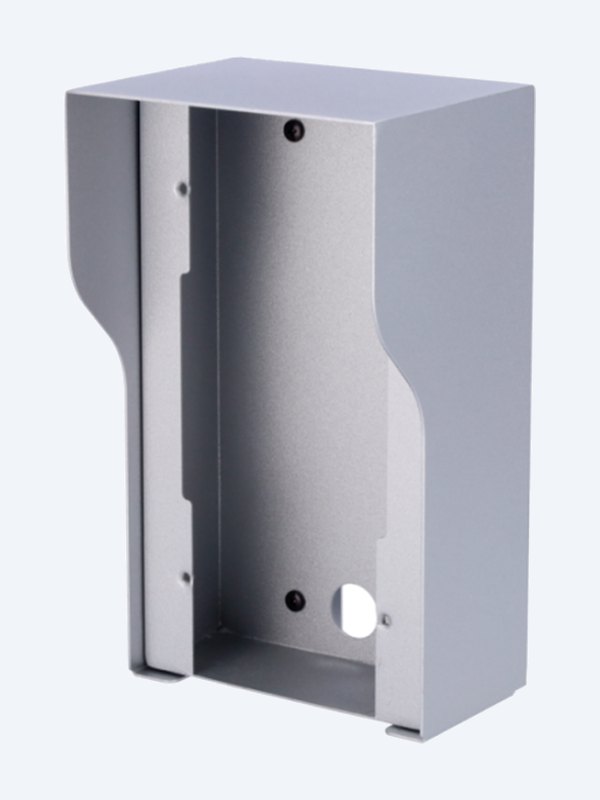

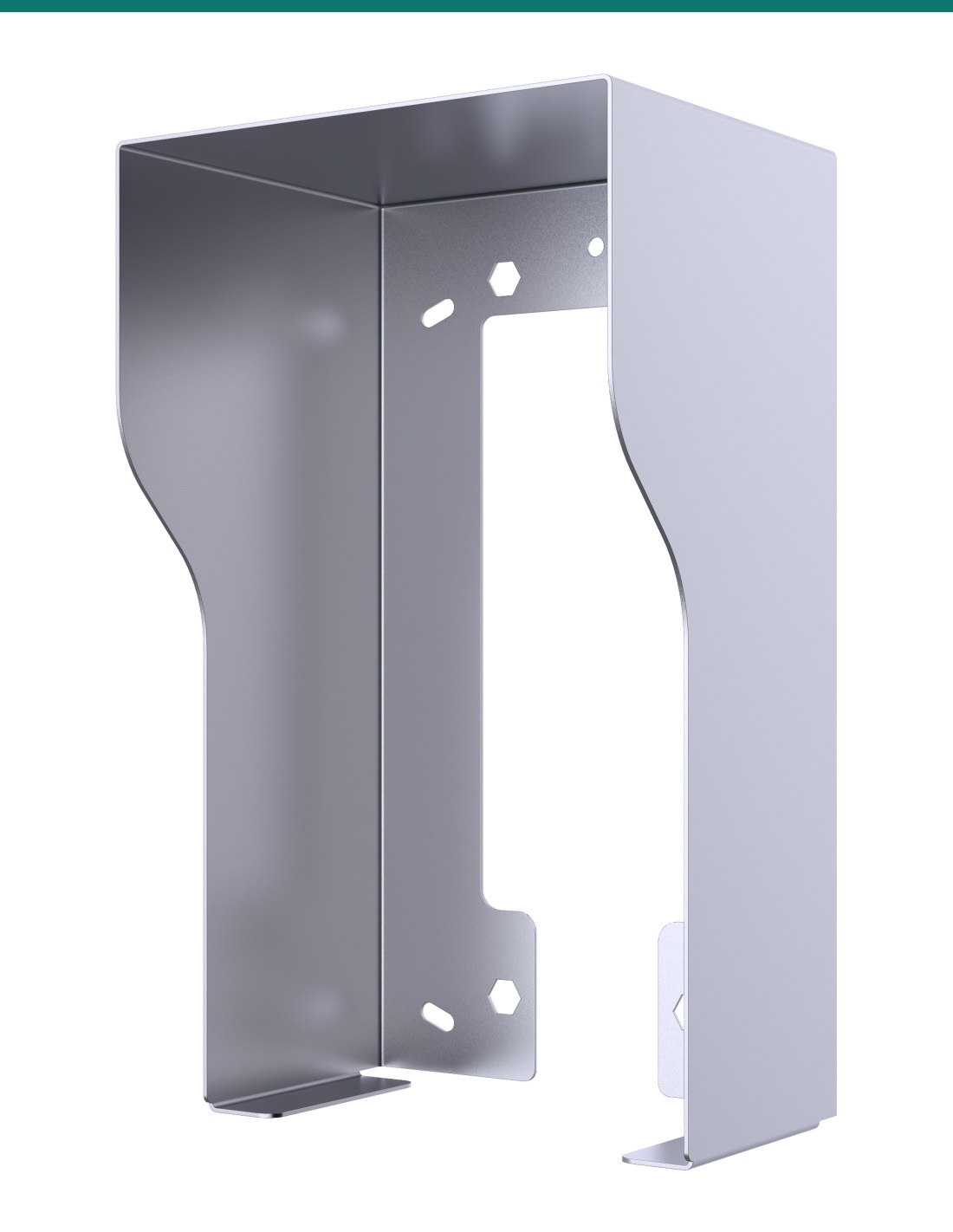

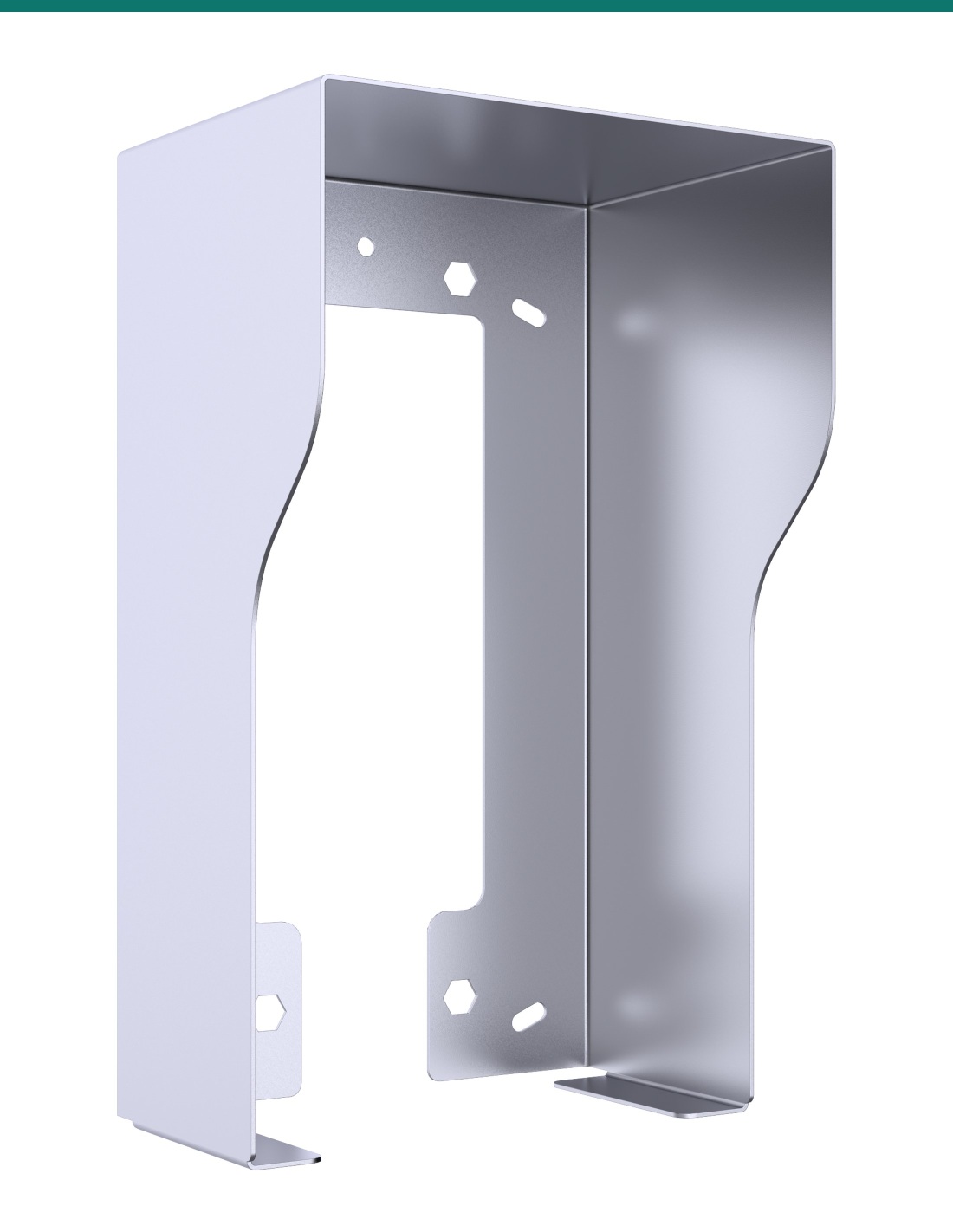

The housing fixes to the wall and the E21 mounts into it, so the flush-only unit can go on a surface. The hood covers the top and sides of the faceplate.

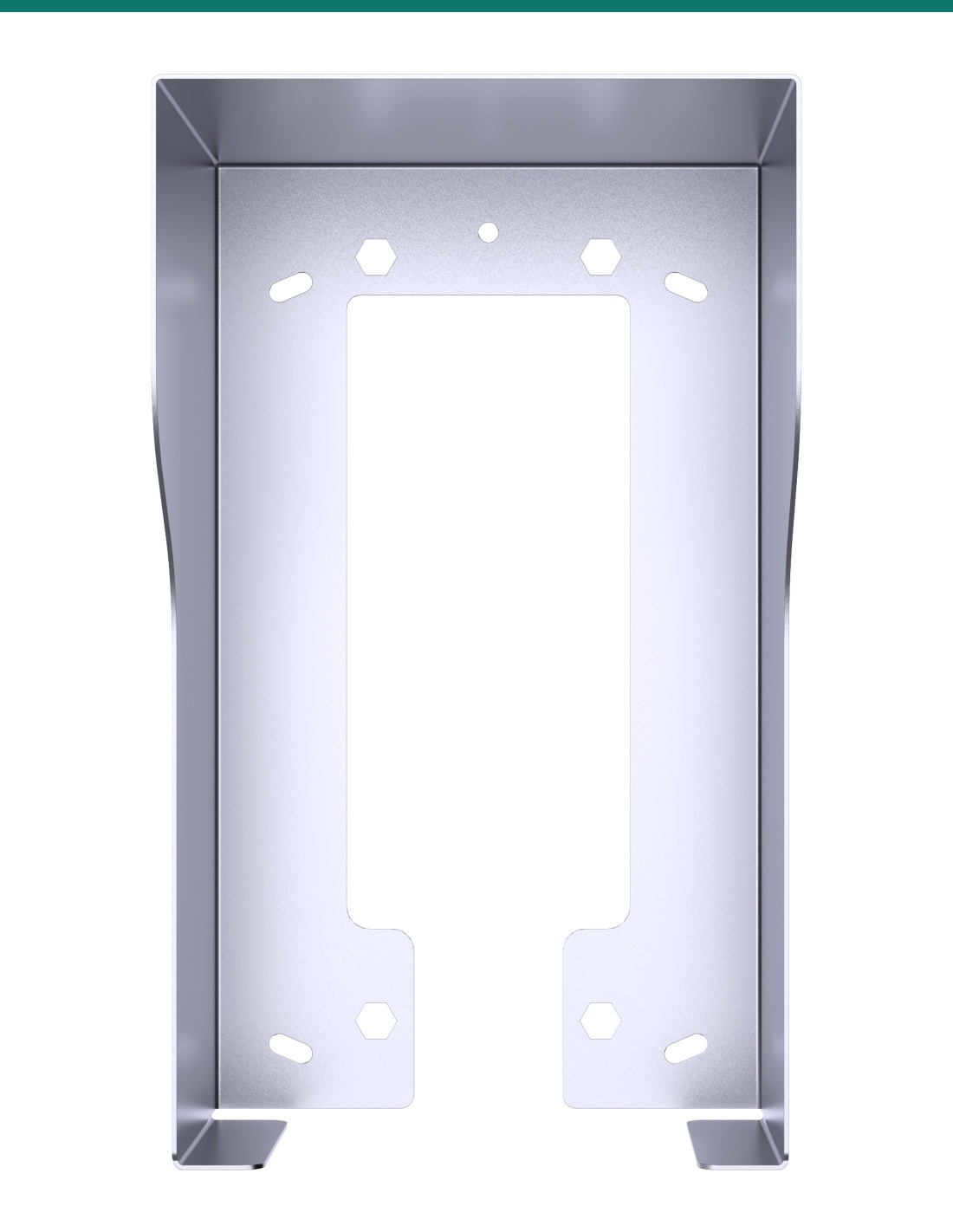

A cable entry in the back lets the network cable come straight out of the wall.
Fit
Both E21 models share a 210 × 120 × 45.6 mm stainless steel faceplate, so the same housing suits the audio-only E21A and the camera-equipped E21V.
Where you can cut the wall, the E21 in-wall box gives a flush finish instead.
At a glance
Show all specifications
Pair it with
Audio
Vandal-resistant stainless steel SIP emergency intercom, IK10.
Video
The same help point with a 2 MP camera.
Flush
For walls you can cut into.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
The Akuvox E21A and E21V, which share the same 210 × 120 mm faceplate.
The E21 is designed to flush-mount. This housing lets you fix it to the face of precast concrete, tiles, posts or other walls you can't cut, with a hood built in.
No. Use either this on-wall housing or the in-wall box, not both.
Akuvox's placement drawing keeps the E21 button centre no higher than 1,200 mm above ground.
Silver, to suit the stainless steel E21 faceplate.
No. This SKU is the on-wall housing only.
Use this housing for surface installs, or the E21 in-wall box where the wall can be cut.
