Akuvox X910 5 MP Single-Button SIP Video Door Phone with Package Detection — AK-X910
$1,008.50 inc GST

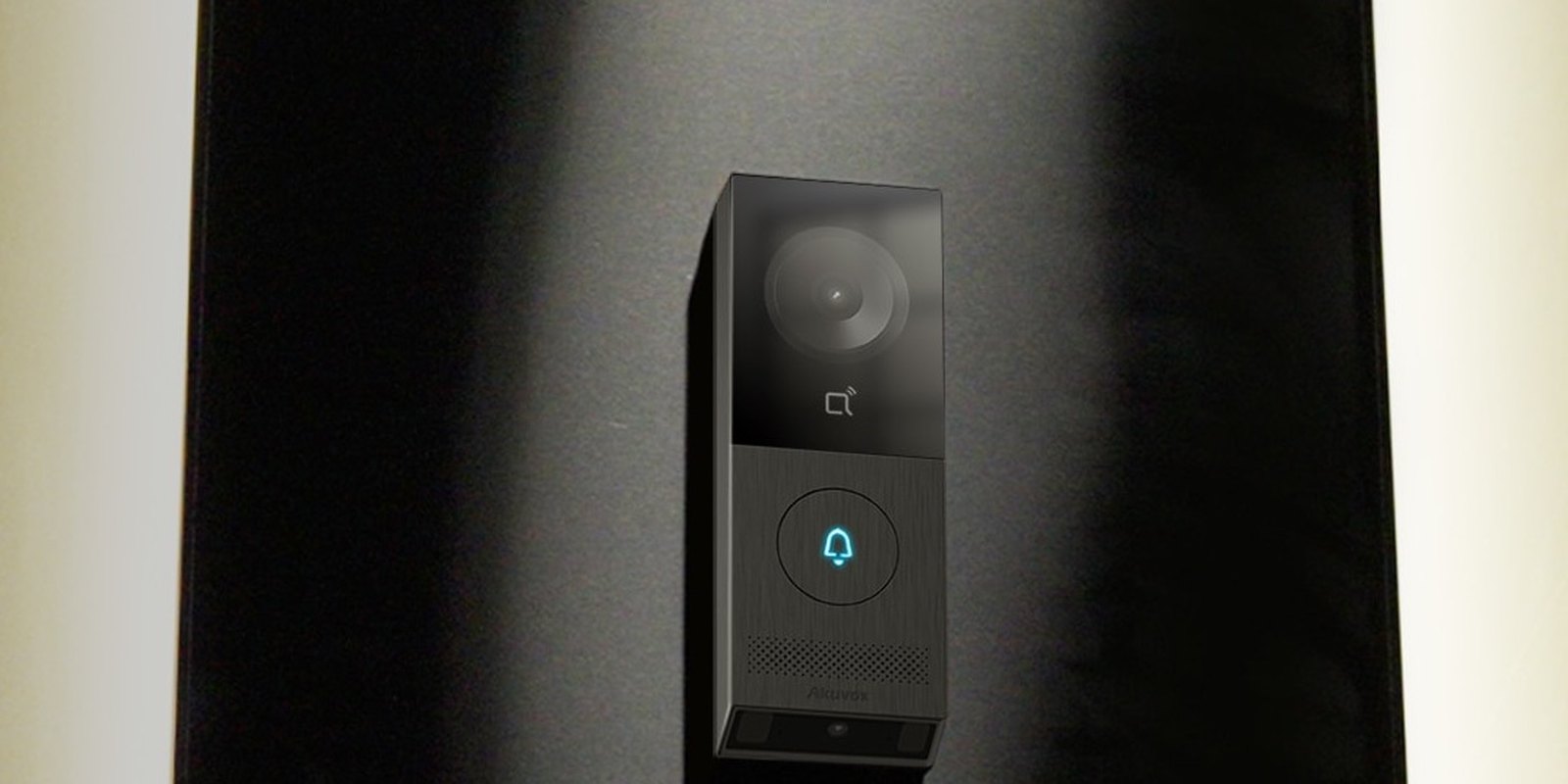

Akuvox X910 is a compact single-button SIP video door phone for homes, townhouses and small offices. A 5 MP 150° camera with a 2 MP auxiliary camera below covers the visitor head to toe and spots parcels left at the door. Card, NFC, BLE and QR entry, IP66 / IK08, PoE.
- ✓One backlit call button in a slim 192 × 70 × 27 mm aluminium panel
- ✓5 MP main camera, 150° (H) / 116° (V), H.264 up to 2592 × 1944 at 30 fps
- ✓2 MP auxiliary camera for package detection at the doorstep
- ✓MIFARE / DESFire / FeliCa, NFC, BLE and QR entry · PoE+ or 12 / 24 V DC · IP66 / IK08
Akuvox · X910 · Single-button video door phone
One button. Every angle of the doorstep.
A compact door phone that watches your parcels.
The AK-X910 is Akuvox’s compact single-button door station (datasheet model X910S). A 5 MP wide-angle main camera, a 2 MP auxiliary camera, a 13.56 MHz card reader with NFC and Bluetooth sit in a 192 × 70 × 27 mm dark-tone aluminium panel.
This SKU is the X910 door station only.
You receive the X910 door station with its wall-mounting bracket, template, wiring cover, cables and fixings. Indoor monitors, PoE switch, lock hardware and cards are sold separately.
In the box
- Akuvox X910 door station
- Wall-mounting bracket and drilling template
- Wiring cover, rubber cable plugs (small, medium, large), 8-pin and 9-pin cables
- 4 × ST4×20 screws with anchors, 2 × 6#-32×20 machine screws, 4 × M3×4 screws
- Security screw, Allen wrench and 2 diodes
What you also need(sold separately)
- PoE 802.3at (PoE+) switch, or a 12 V DC 2 A / 24 V DC 1 A supply
- Akuvox indoor monitor, SmartPlus app or SIP endpoint
- Electric lock, strike or gate controller
- 13.56 MHz MIFARE or DESFire cards / fobs
Sized for a front door.

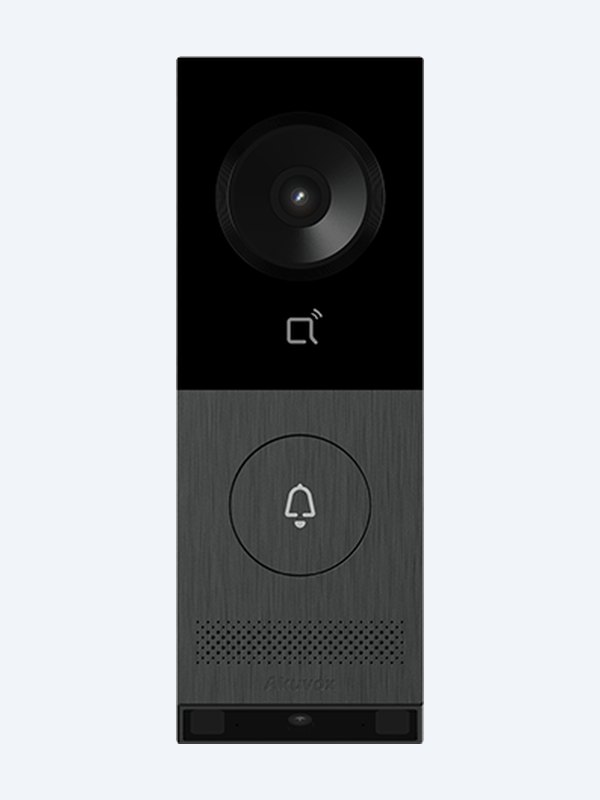

Visitors press one blue-lit button to call your indoor monitor or phone. Residents unlock with a card, NFC phone, Bluetooth proximity, QR code or the SmartPlus app.
Cameras
5 MP wide-angle, plus a second look down.
The 5 MP main camera on a 1/2.78″ CMOS sensor covers 150° horizontally and 116° vertically, streaming H.264 at up to 2592 × 1944 (2K at 30 fps).

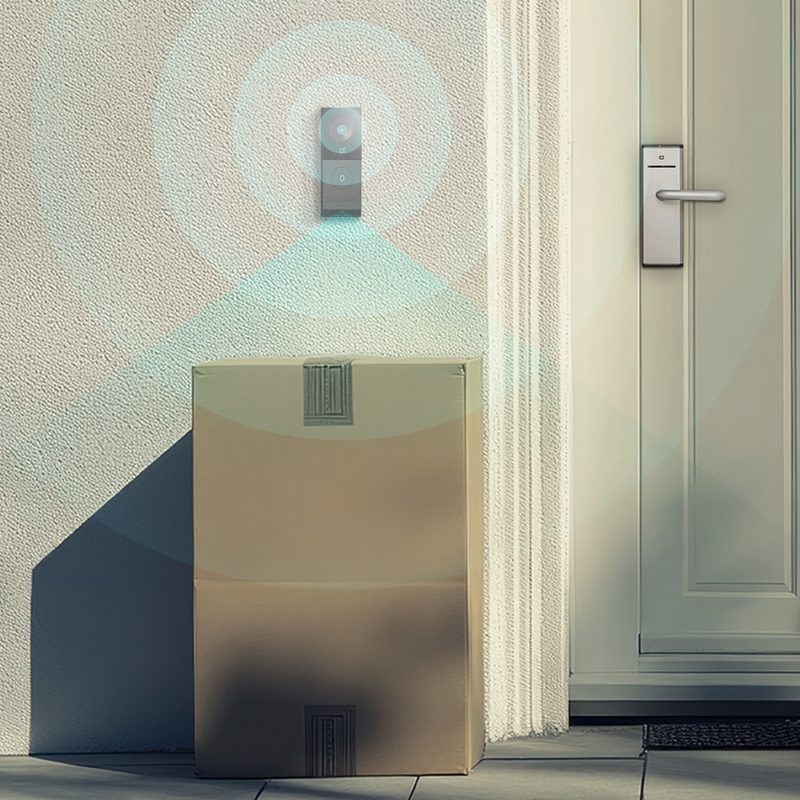

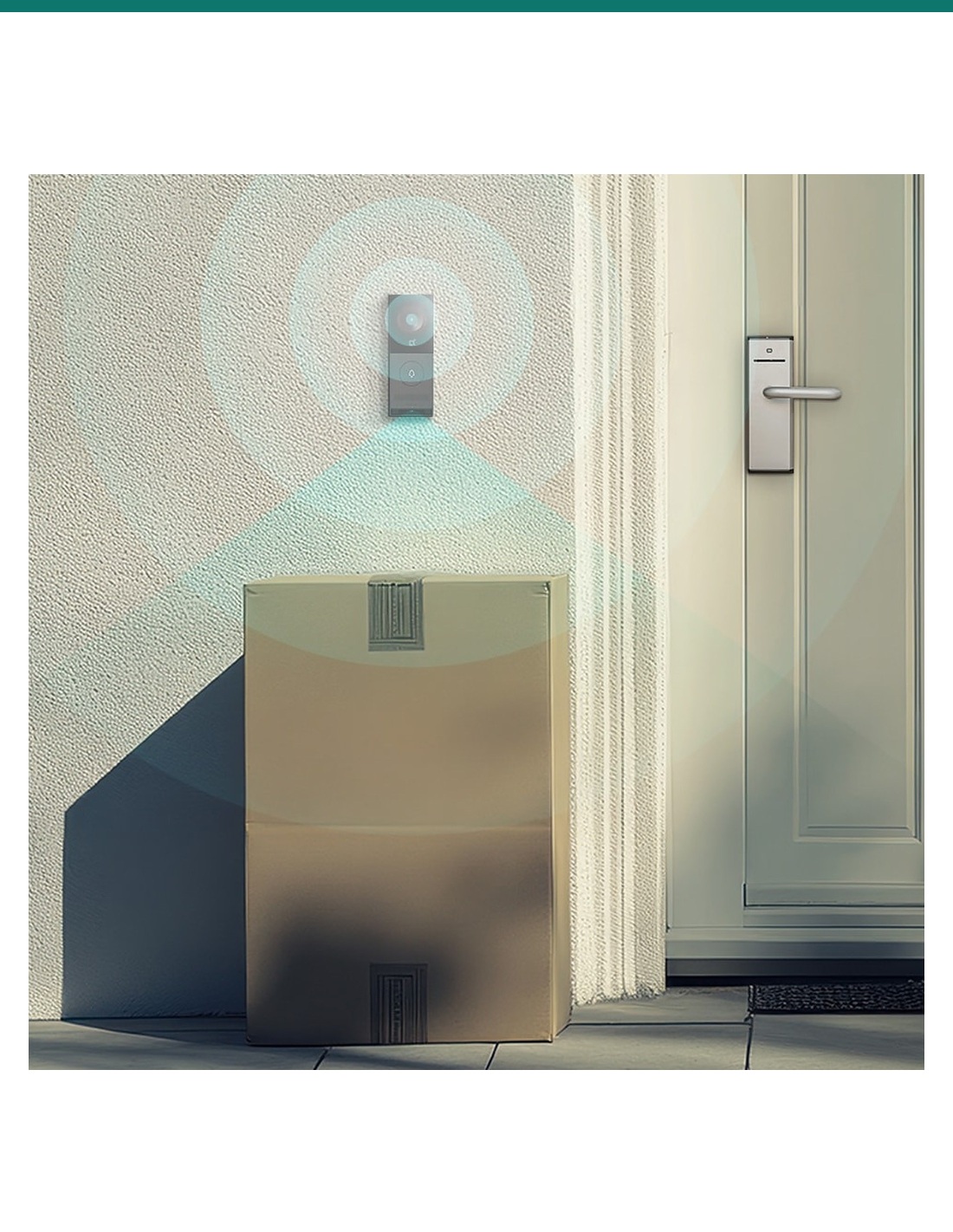

A 2 MP auxiliary camera at the base of the panel looks down at the doorstep for package detection. IR LEDs, a white LED and a light sensor help at night, down to 0.1 lux.
Parcels
Know when a delivery lands.
Package detection watches the doorstep and alerts you through Akuvox indoor monitors or the SmartPlus app when a parcel is left or moved.
QR code scanning lets guests and couriers enter with a code issued from the SmartPlus app.
Access
Card, phone, Bluetooth or QR.
The 13.56 MHz reader handles MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards, and NFC phones. Up to 20,000 users and 100,000 cards are stored on the station.
Two relays and two inputs control a door and a gate, with Wiegand and RS485 for access control panels. IP66 and IK08 ratings and a −40 °C to +55 °C range suit exposed entrances.
How it works
From bare wall to first call.
01
Mount
Fix the supplied wall bracket with four ST4×20 screws and anchors, or onto a single-gang box with the two machine screws. Akuvox shows the camera centre at 1,500 mm.
02
Wire and power
Run PoE+ (or 12 / 24 V DC) and connect the lock to one of the two relays; use the inputs for an exit button and door sensor.
03
Register
Register to an Akuvox indoor monitor, SmartPlus or your SIP PBX, then add cards and users.
04
Test
Press the call button, check the picture day and night and confirm the relay releases the lock.
At a glance
Key specs — AK-X910
Show all specifications
- Button
- 1 call button, blue backlight
- Cameras
- 5 MP main (1/2.78″ CMOS) + 2 MP auxiliary
- Field of view
- 150° (H) / 116° (V)
- Video
- H.264, up to 2592 × 1944, 2K at 30 fps
- Smart features
- Package detection, QR code scanning
- Unlock
- Card, NFC, BLE, QR code, DTMF
- Capacity
- 20,000 users · 100,000 cards
- I/O
- 2 relays, 2 inputs, Wiegand in/out, RS485
- Power
- PoE 802.3at, or 12 V DC 2 A / 24 V DC 1 A
- Protection
- IP66 · IK08
- Size
- 192 × 70 × 27 mm (H × W × D)
- Working temperature
- −40 °C to +55 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-X910
Physical and power
- Front panel
- Aluminium
- Main camera
- 5 MP with automatic lighting
- Auxiliary camera
- 2 MP with automatic lighting
- Button
- 1 call button with blue backlight
- Sensors
- Light sensor, motion sensor, tamper alarm
- Microphone / speaker
- 2 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- PoE
- IEEE 802.3at
- DC power
- 12 V DC 2 A or 24 V DC 1 A adapter
- With power output in use
- 12 V DC 3 A or 24 V DC 1.5 A adapter
- Ingress protection
- IP66
- Impact rating
- IK08
- Installation
- Wall mounted on the supplied bracket
- Dimensions (H × W × D)
- 192 × 70 × 27 mm
- Bracket (H × W)
- 191 × 69 mm
- Working temperature
- −40 °C to +55 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces and wireless
- Relay outputs
- 2
- Inputs
- 2
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- RF reader
- 13.56 MHz
- NFC
- Yes (Android phones)
- Bluetooth
- BLE 5.0
Video
- Sensor
- 1/2.78″ CMOS
- Resolutions
- CIF, VGA, 4CIF, 720p, 1080p, 2K
- Maximum resolution
- 2592 × 1944
- Frame rate
- 2K at 30 fps
- Codec
- H.264
- Viewing angle
- 150° (H) / 116° (V)
- Night lighting
- High-intensity IR LEDs with internal light sensor, plus a white LED
- Minimum illumination
- 0.1 lux
- White balance
- Auto
- Smart features
- Package detection, QR code scanning
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, noise suppression, voice activity detection, comfort noise generator
Door entry and capacity
- Unlock methods
- MIFARE card, QR code, BLE
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Card types
- MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
- Users
- 20,000
- Cards
- 100,000
Network and management
- Standards
- SIP and ONVIF
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
Pair it with
Completes your front-door intercom
Indoor
Akuvox indoor monitor
Answer the door, see the visitor and release the lock from an Akuvox SIP monitor or the SmartPlus app.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards and fobs work with the X910 reader once enrolled.
Works with
Platforms and integrations
SIP PBX and softphones
SIP v1 / v2 lets the X910 call Akuvox indoor monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Add the 5 MP doorstep camera to an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Answer the door, unlock, issue QR codes and receive package alerts from the SmartPlus app.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Watch
See it in action
Downloads
Datasheets and guides
PDFX910 DatasheetAkuvox X910S datasheet V3.0, September 2025 edition · 244 KBPDFX910 quick guideOfficial Akuvox X910 quick guide (PDF) · 4.7 MBPDFX910 dimension drawingsPanel and wall-bracket drawings in mm, with mounting height, December 2024 · 386 KB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Does the X910 have facial recognition?
No. It is a single-button door phone with card, NFC, BLE, QR and app entry. For face entry, look at the Akuvox R29C or S538.
What power does it need?
IEEE 802.3at (PoE+), or a 12 V DC 2 A / 24 V DC 1 A adapter. If you use its power output for a lock or reader, Akuvox calls for 12 V DC 3 A or 24 V DC 1.5 A.
Is a mounting bracket included?
Yes. The wall bracket, drilling template, anchors and screws are in the box, plus machine screws for fixing over a single-gang wall box.
Will it read 125 kHz proximity cards?
No. The reader is 13.56 MHz only — MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa — plus NFC on Android phones.
What is package detection?
The 2 MP auxiliary camera watches the doorstep, and the X910 alerts your indoor monitor or SmartPlus app when a parcel is left there.
How many users and cards does it hold?
Up to 20,000 users and 100,000 cards, with access tables exported and imported through the web portal.
Will it record to my NVR?
Yes. The X910 supports ONVIF and RTSP, so ONVIF-capable NVRs can add the 5 MP camera as a channel.
What mounting height does Akuvox show?
The X910 drawings place the camera centre at 1,500 mm and the bottom of the panel at 1,250 mm above ground.
A neat entry point for homes and small sites.
Choose the X910 for houses, townhouses and small offices that want 5 MP video, parcel alerts and phone-based entry in a slim panel.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3at PoE, or a 12 V DC 2 A / 24 V DC 1 A adapter. When the power output is used, Akuvox calls for 12 V DC 3 A or 24 V DC 1.5 A.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Audio
- 2 microphones, 1 speaker, echo cancellation, noise suppression
- Power
- PoE 802.3at, or 12 V DC 2 A / 24 V DC 1 A
- Colour
- Dark grey / black
- Capacity
- 20,000 users · 100,000 cards
- Working Temperature
- −40 °C to +55 °C
- Brand
- Akuvox
- Bluetooth
- BLE 5.0
- Field of View
- 150° (H) / 116° (V)
- Button
- 1 call button with blue backlight
- Protection
- IP66 / IK08
- Camera
- 5 MP main (1/2.78″ CMOS) + 2 MP auxiliary
- Size
- 192 × 70 × 27 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, up to 2592 × 1944, 2K at 30 fps
- Product Type
- Single-button SIP video door station
- Model
- X910
- Finish
- Aluminium front panel
- RF Reader
- 13.56 MHz, NFC (Android phones)
- I/O
- 2 relays, 2 inputs, Wiegand in/out, RS485
- OS
- Linux
- Unlock
- MIFARE / DESFire / FeliCa card, NFC, BLE, QR code, DTMF
- Smart Features
- Package detection, QR code scanning
