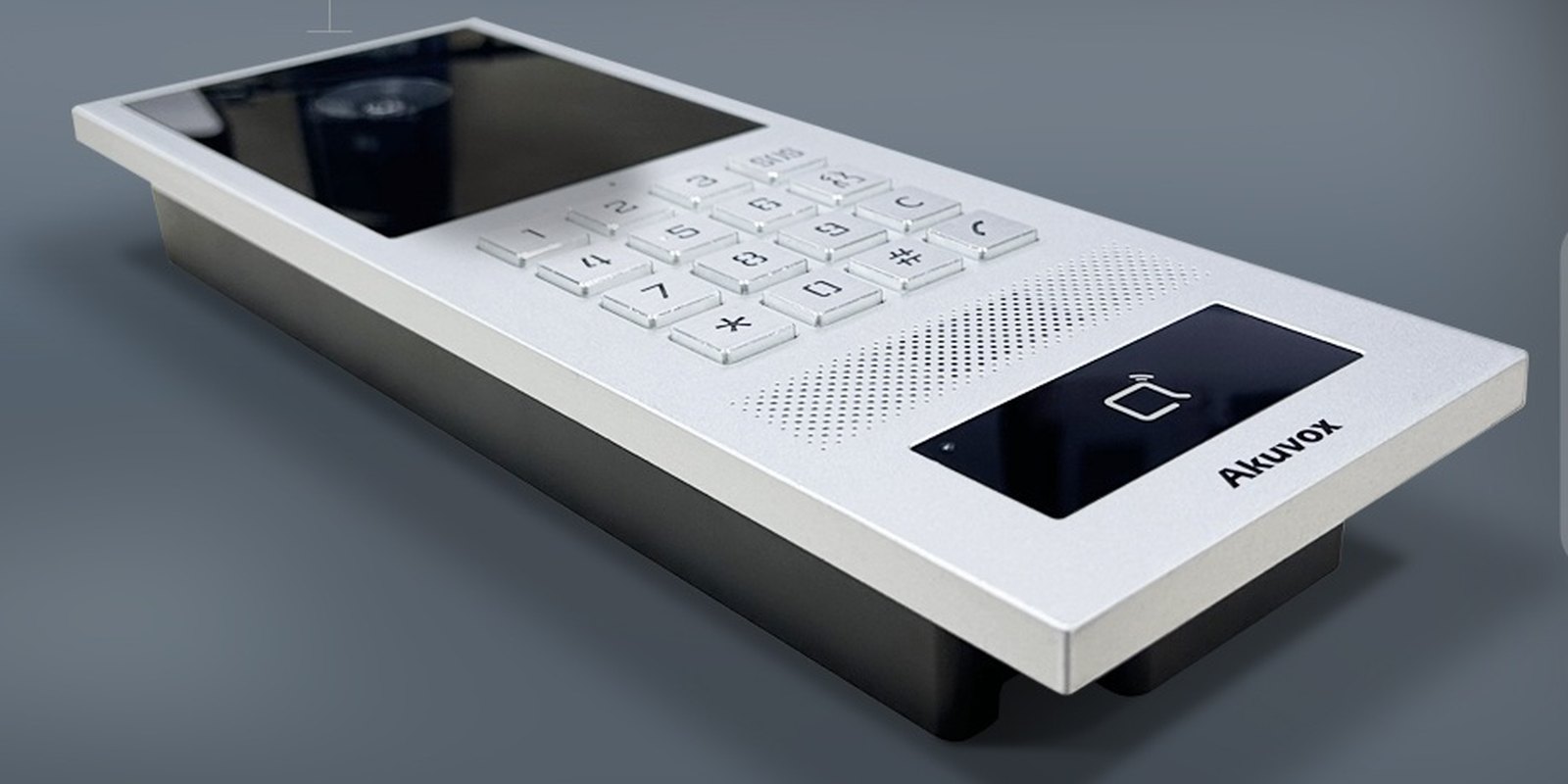

Akuvox S532 keypad door phone — left three-quarter view

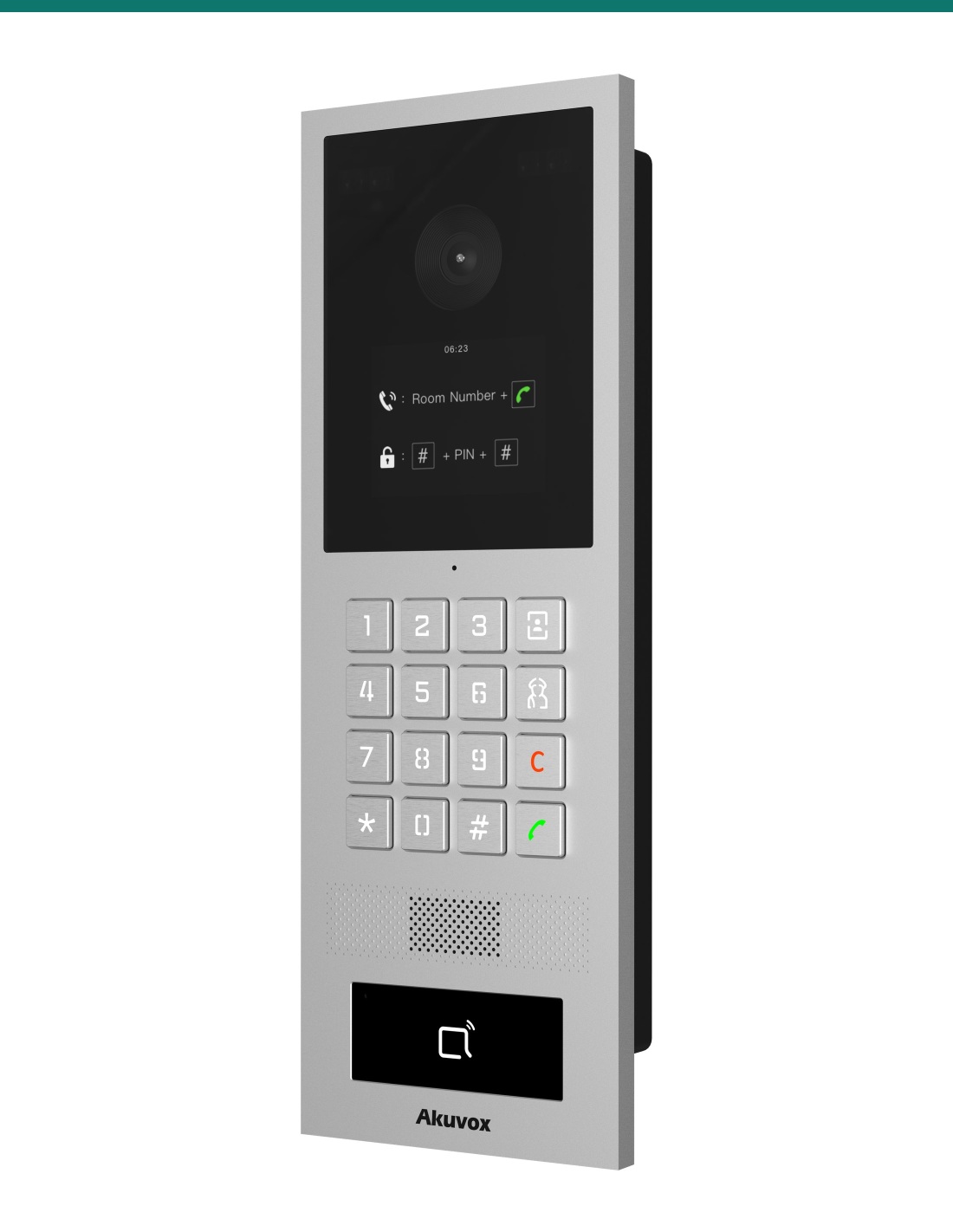

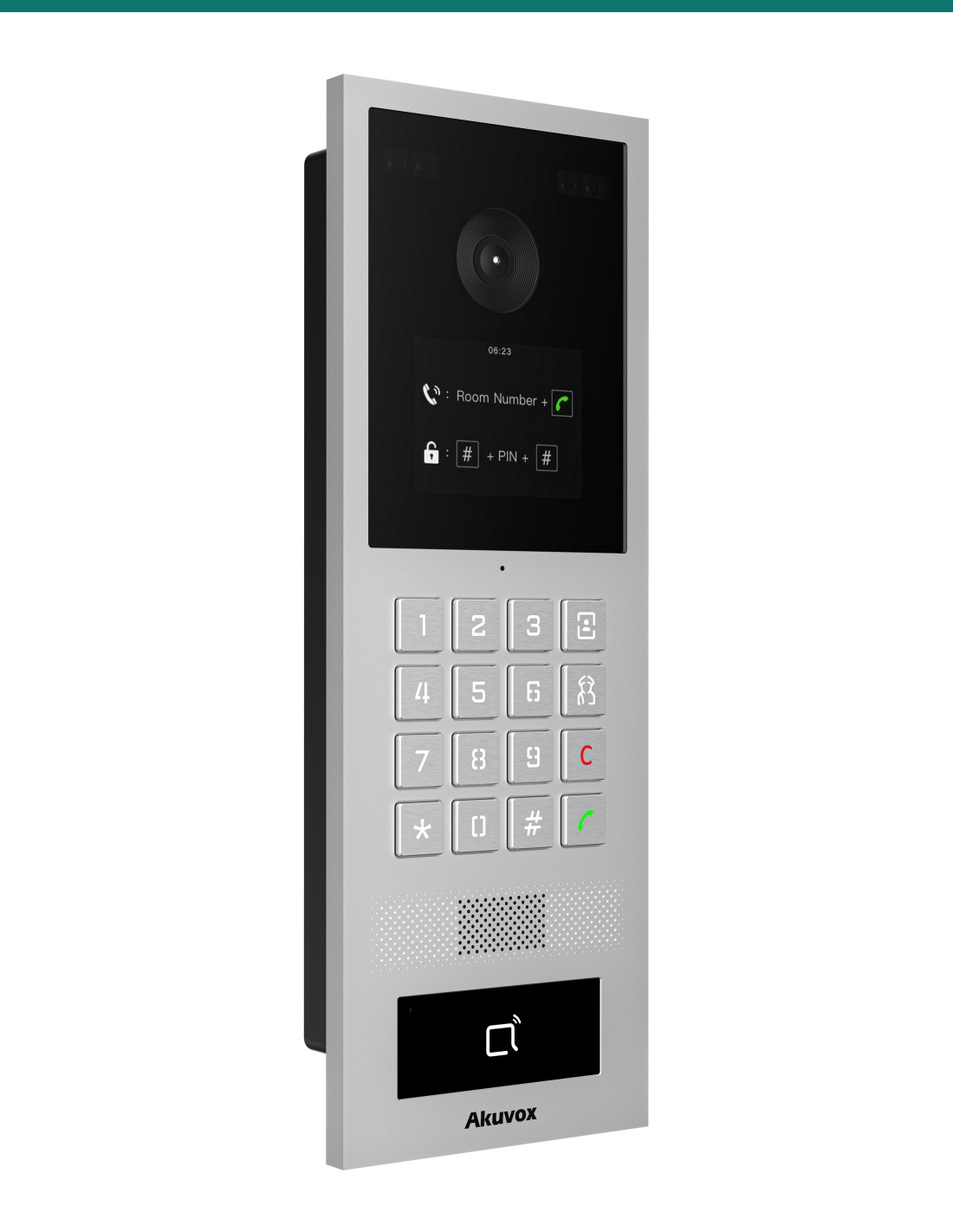

Akuvox S532 keypad door phone — right three-quarter view

Akuvox S532 with its mounting box and card reader panel

Akuvox S532 Keypad SIP Video Door Phone, 2.8″ Display — AK-S532

Name: Akuvox S532 Keypad SIP Video Door Phone, 2.8″ Display — AK-S532
Brand: Akuvox
SKU: AK-S532
Price: 698.5 AUD
Availability: InStock

Reference: AK-S532

In Stock - Ready to Ship

$ 698.50

inc-GST

or 4 interest-free payments of $174.62 with

Akuvox S532 is a keypad SIP video door phone for apartment and building entrances. Visitors dial a room number or browse the directory on the 2.8-inch display; residents enter with a card, PIN, phone or Bluetooth. Aluminium, IP66 / IK08, PoE — stocked in Australia by Infront Technologies.

✓Physical numeric keypad with call, cancel and directory keys
✓2 MP wide-angle camera, 130° (H) / 90° (V), 1080p video
✓Card, PIN, BLE, NFC and SmartPlus app entry · 50,000 cards
✓PoE 802.3at · IP66 / IK08 · −40 °C to +60 °C · 301 × 106 × 35.8 mm

Akuvox · S532 · Keypad door phone

A keypad door phone for the whole building.
Dial a flat, punch a PIN, tap a card.

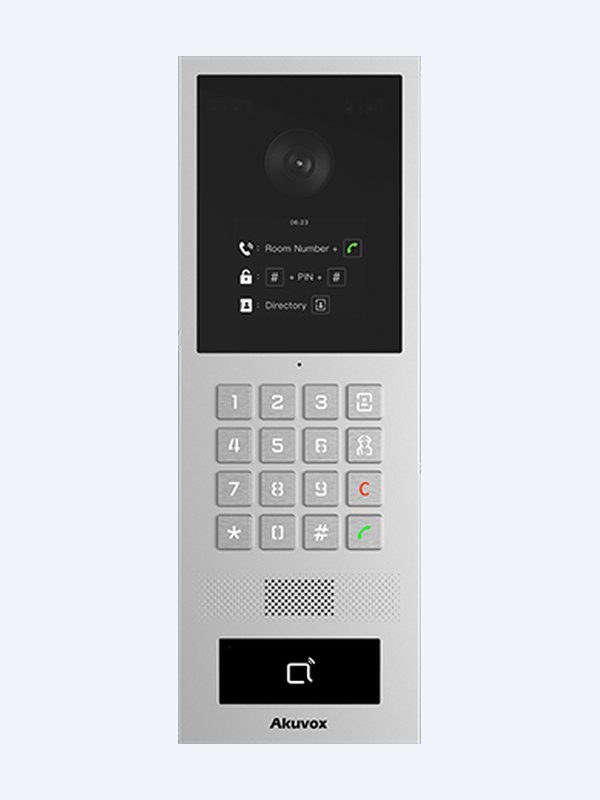

The AK-S532 is Akuvox’s Linux keypad door station. A 2.8-inch display, a 130° 2 MP camera, a full numeric keypad and a dual-frequency card reader sit in a 301 × 106 mm aluminium plate rated IP66 and IK08.

This SKU is the S532 door station only.

You receive the S532 main unit with its wiring accessories. Choose the S532 on-wall or in-wall kit to suit the site — they are sold separately, as are rain covers, indoor monitors, PoE switch and lock hardware.

In the box

Akuvox S532 door station
Akuvox accessory pack and quick guide

What you also need(sold separately)

S532 on-wall or in-wall installation kit
PoE 802.3at switch or injector
Akuvox indoor monitor, SmartPlus app or SIP endpoint
Electric lock / maglock and lock PSU

Familiar for visitors, flexible for residents.

Visitors use the keypad they already know: room number and call, or the on-screen directory. Residents choose a card, a PIN, Bluetooth on their phone, NFC or the SmartPlus app.

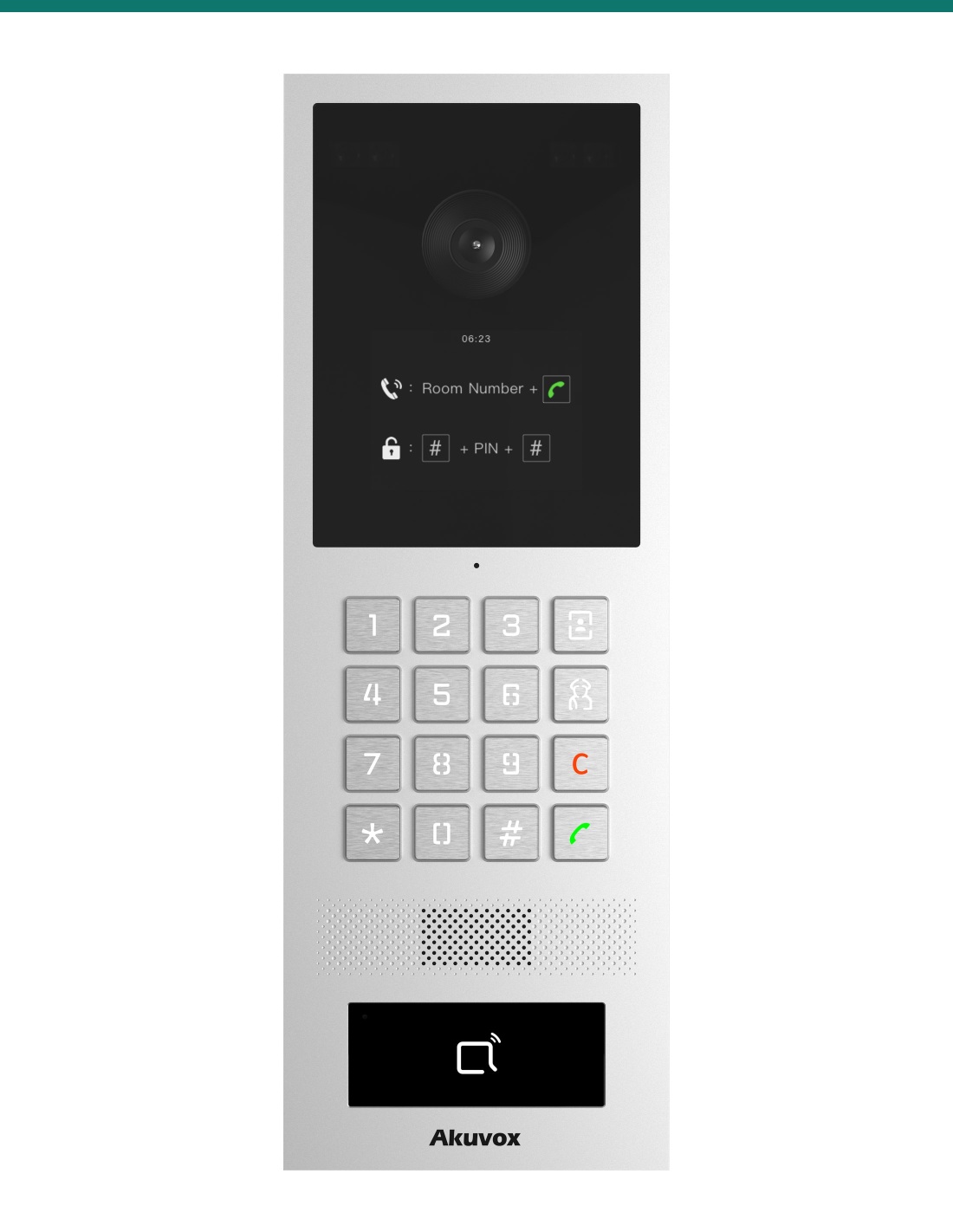

Keypad

Room number, PIN or directory.

The 2.8-inch display (320 × 240) shows the call, PIN and directory prompts above a numeric keypad with call and cancel keys.

The station holds 10,000 users, 500 contacts, 50,000 cards and 10,000 PINs, and reads EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards.

Security

A 130° view of the entrance.

The 2 MP camera covers 130° horizontally and 90° vertically, with IR LEDs, a light sensor and 0.1 lux minimum illumination for night use.

Akuvox pairs radar and image-based motion detection to flag movement at the door and push alerts to the SmartPlus app. Video streams at up to 1080p / 30 fps to compatible NVRs.

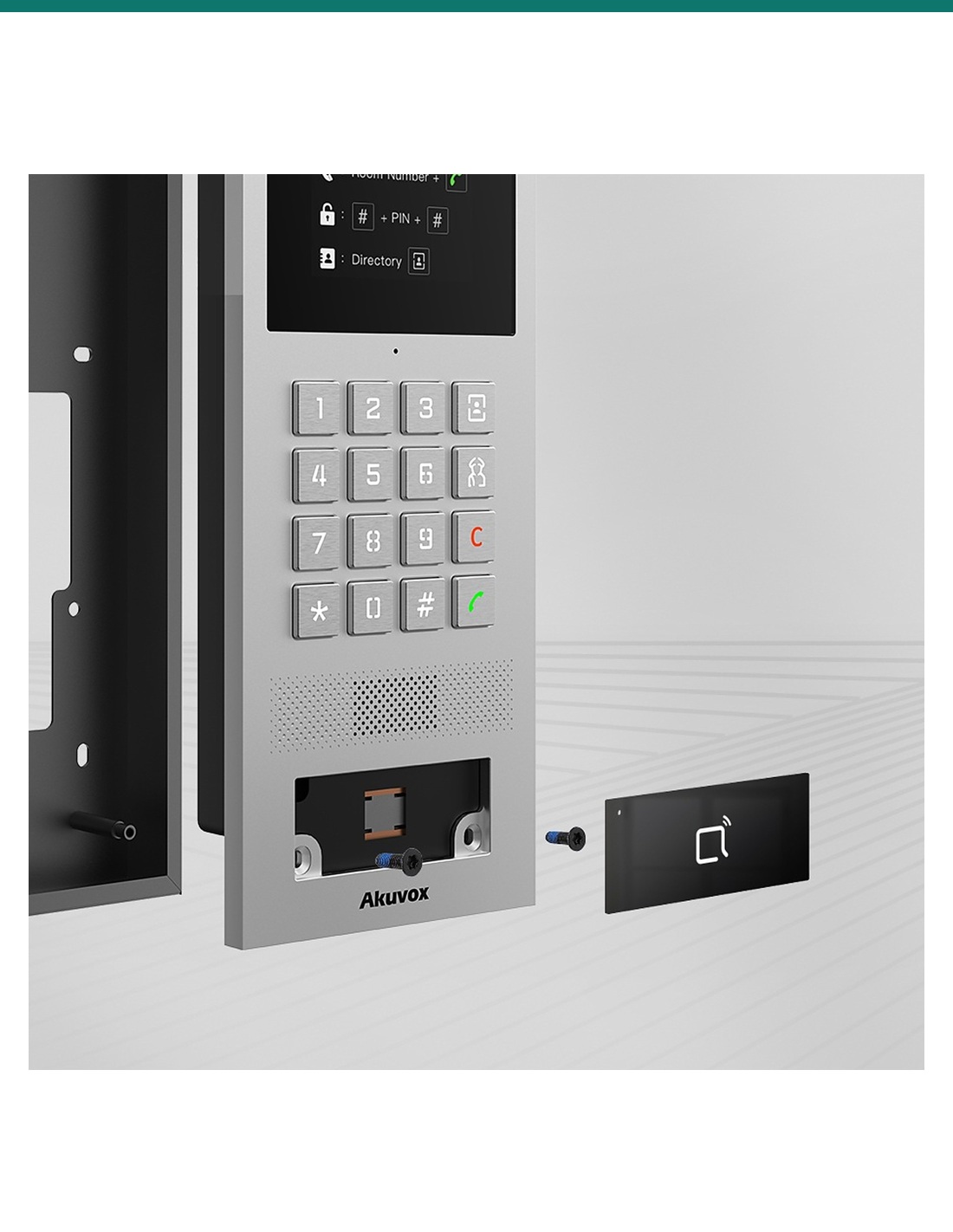

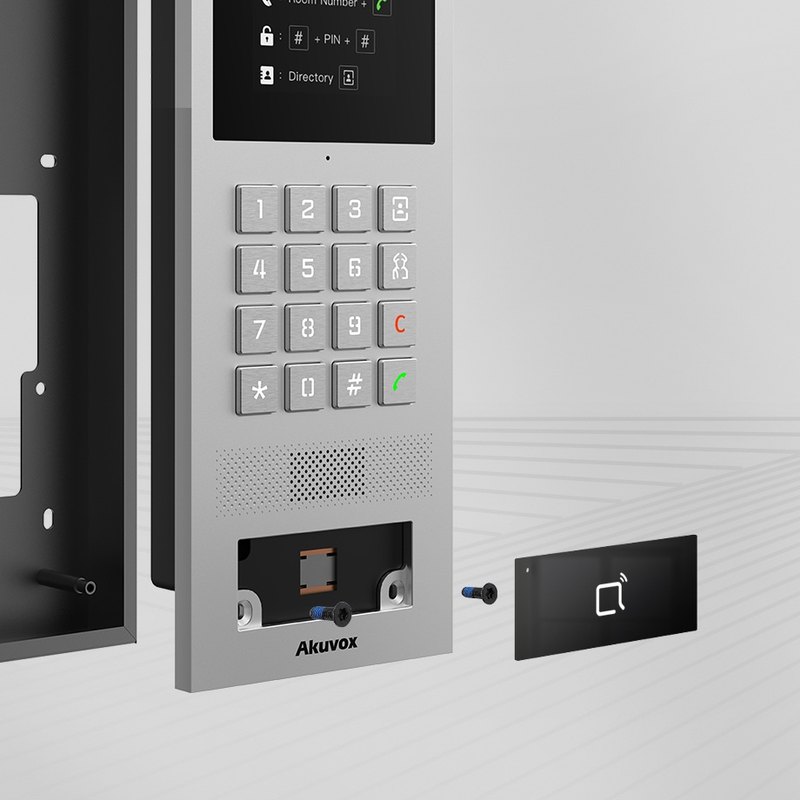

Akuvox S532 mounting box and card reader panel

Install

Concealed fixing, quicker install.

The S532 uses an anti-disassembly concealed mounting design with no screw fixing at the bottom of the plate, which Akuvox says saves installation time.

Flush-mount or surface-mount with the S532 in-wall or on-wall kit, and add the matching rain cover for exposed entrances.

How it works

From bare wall to first call.

Fit the kit

Install the S532 on-wall or in-wall kit, plus rain cover if the entrance is exposed.

Wire and power

Run PoE 802.3at and connect the lock to one of the two relays; use inputs for exit buttons and door sensors.

Register and enrol

Test the door

Make a test call, check the picture day and night and confirm the relay releases the lock.

At a glance

Key specs — AK-S532

Brand: Akuvox
Reference: AK-S532
Front panel: Aluminium
Display: 2.8″, 320 × 240
Keypad: Numeric keypad with extra buttons
Camera: 2 MP, 1/2.8″ CMOS, IR LEDs
Field of view: 130° (H) / 90° (V)
Video: H.264, up to 1920 × 1080 at 30 fps
RF reader: 13.56 MHz and 125 kHz, NFC
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
Unlock: Card, PIN, BLE, NFC, DTMF, SmartPlus app
Capacity: 10,000 users · 50,000 cards · 10,000 PINs · 500 contacts
I/O: 2 relays, 4 inputs, Wiegand in/out, RS485, line out, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, ONVIF, RTSP, BLE 5.0
Power: PoE 802.3at
Protection: IP66 · IK08
Size: 301 × 106 × 35.8 mm (H × W × D)
Working temperature: −40 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete door entry system

Mount

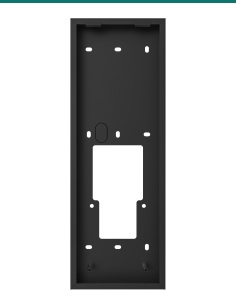

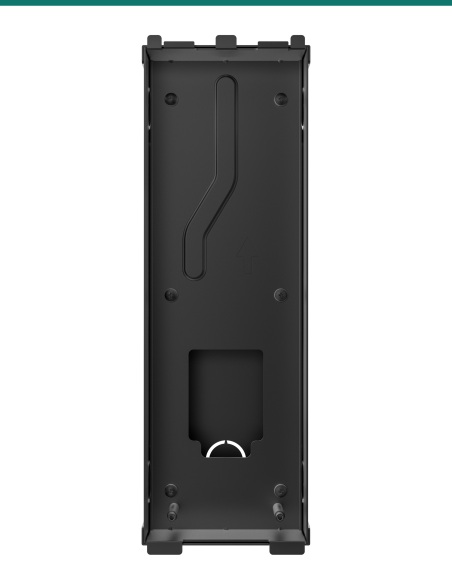

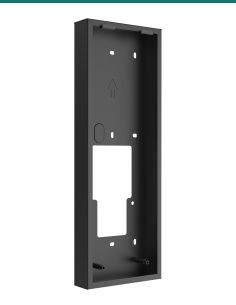

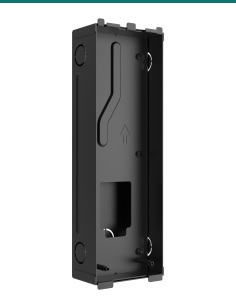

S532 on-wall or in-wall kit

Required to mount the station on the wall surface or flush in a cavity.

Weather

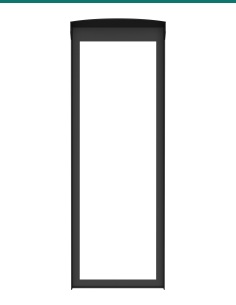

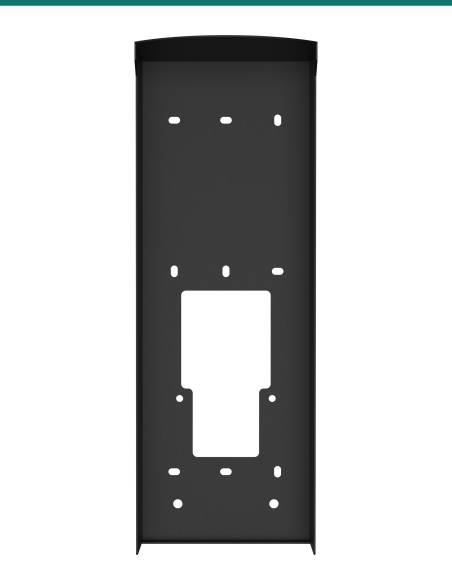

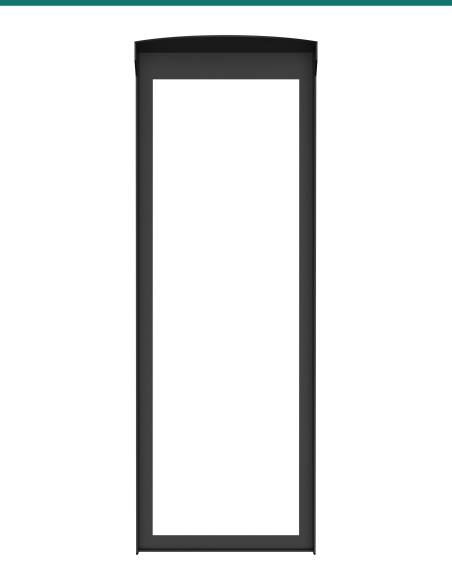

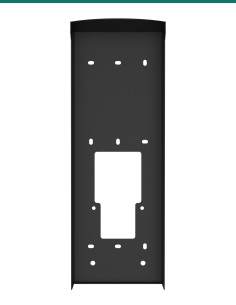

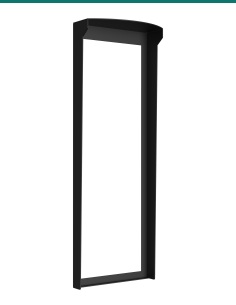

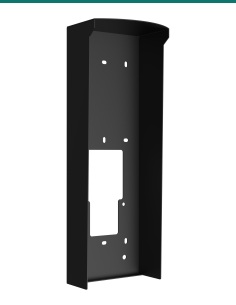

S532 rain cover

On-wall and in-wall rain covers shelter the keypad at exposed entrances.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards work with the S532 reader once enrolled.

Watch

See it in action

Akuvox S532 retrofit-friendly door phone overview

Opening doors and making calls on the S532

Answers

Common questions

Does the S532 have facial recognition?

No. It is a keypad station with card, PIN, BLE, NFC and app entry. For face entry, look at the S535 or S538.

Is a mounting kit included?

No. Use the S532 on-wall or in-wall installation kit, sold separately. Rain covers are also available for both.

What power does it need?

IEEE 802.3at PoE from a switch or injector.

How many residents can it handle?

Up to 10,000 users, 50,000 cards and 10,000 PINs, with 500 contacts in the on-screen directory.

A tough keypad station for busy entrances.

Choose the S532 for apartment blocks, offices and gated sites that want a physical keypad and a large user list. Order through Infront Technologies for Australian stock and help pairing monitors, kits and lock control.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE as stated on the Akuvox S532 datasheet.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
