Akuvox E20S White In-Wall 86 Back Box — AK-E20INWALLK

SKU AK-E20INWALLK In Stock - Ready to Ship
$18.50 inc GST

Akuvox AK-E20INWALLK: the white 86-type in-wall box for the E20S emergency intercom.

  • ✓Made for the Akuvox E20S
  • ✓82.5 × 82.5 mm flange, 50 mm deep
  • ✓60 mm screw centres (86 standard)
  • ✓Knock-outs in the back and all four sides
  • ✓Covered by the E20S's 100 × 100 mm faceplate



Description

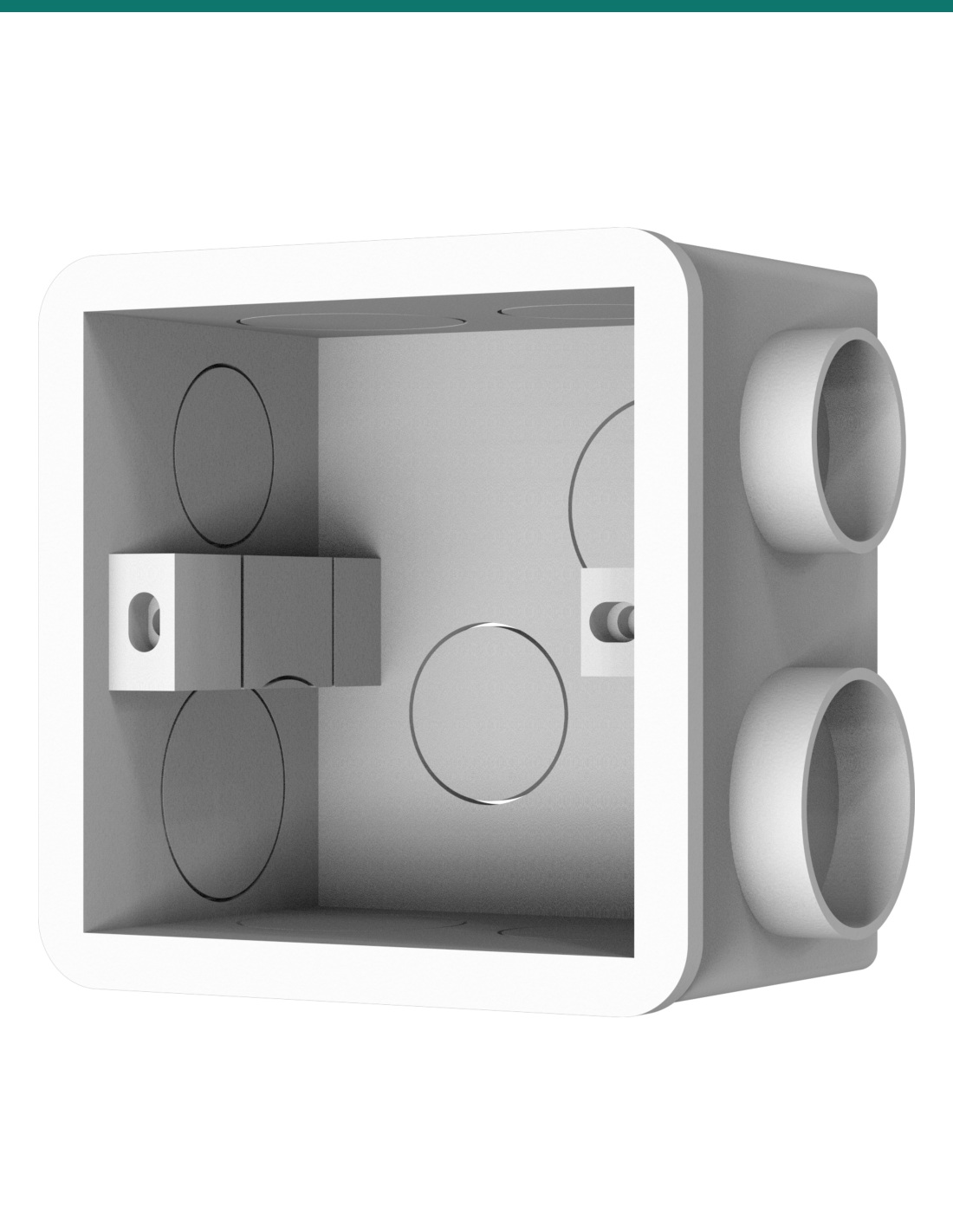

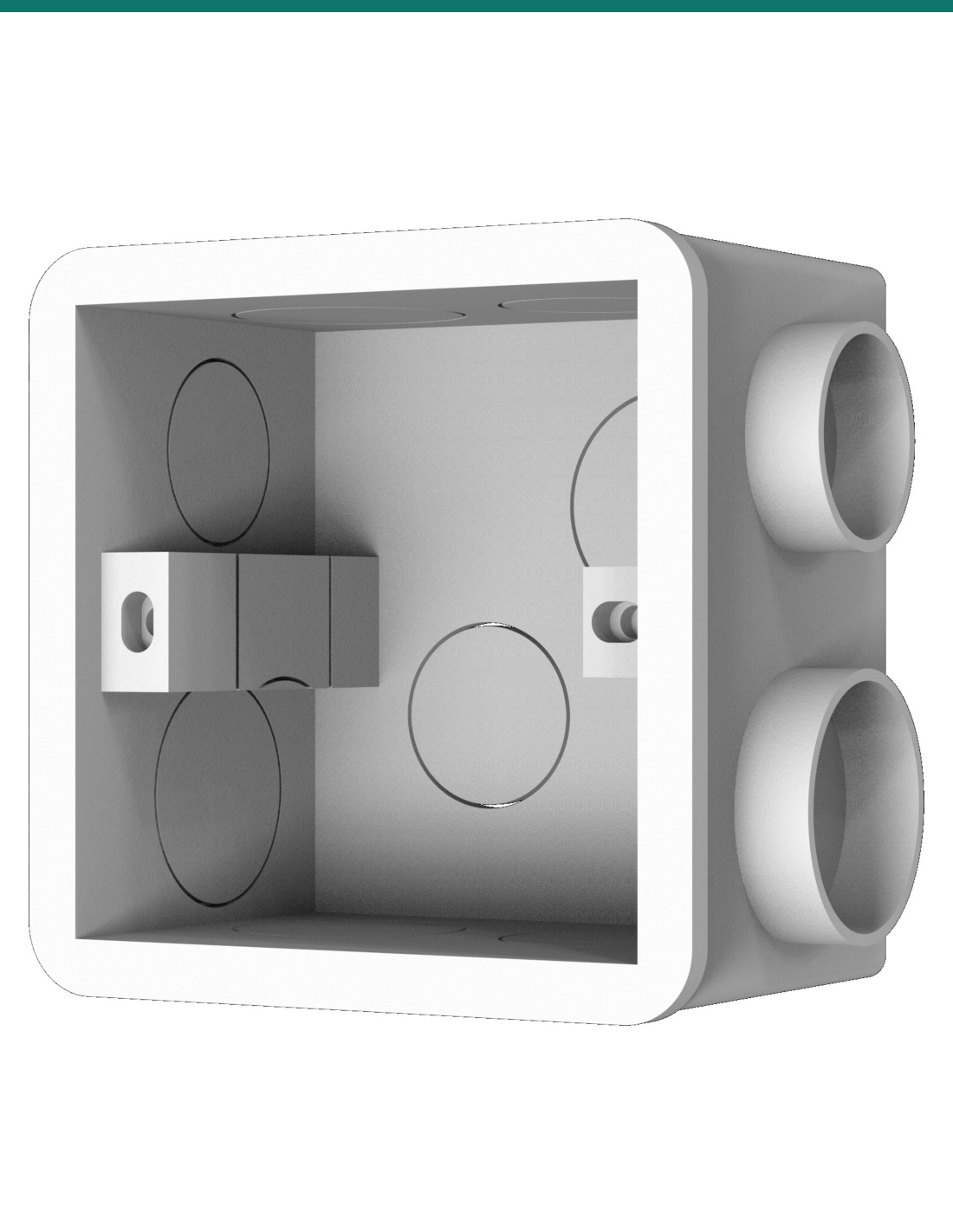

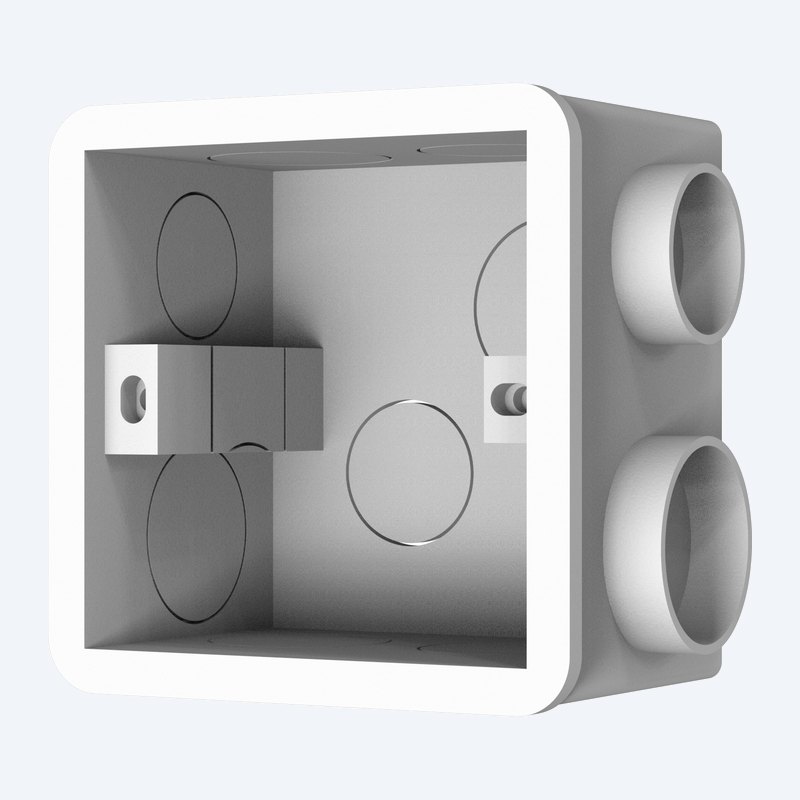

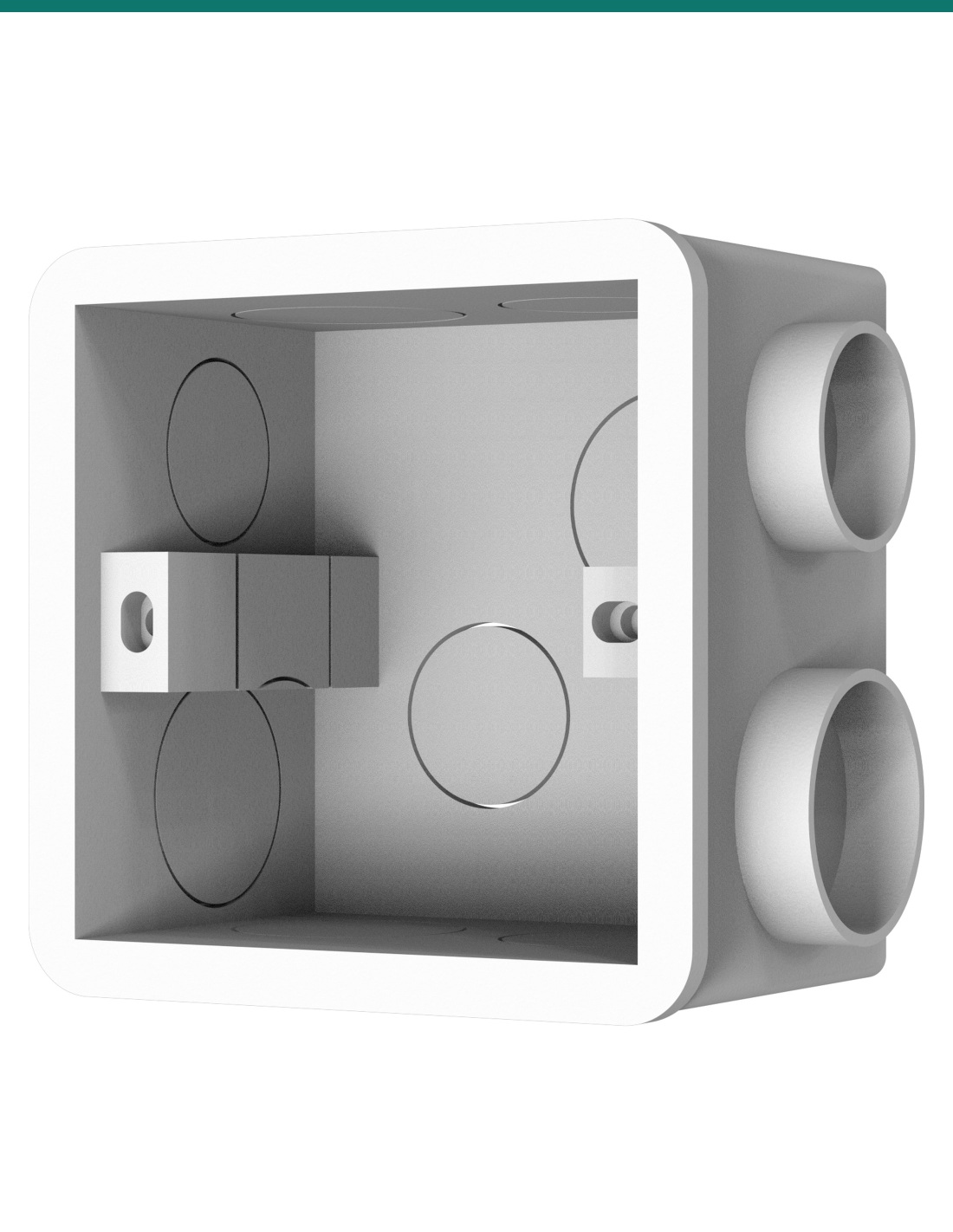

Akuvox white 86-type in-wall back box for the E20S emergency intercom, three-quarter view
Akuvox · E20S · In-wall 86 box

The back box for the E20S.
Standard 86 format, white.

The Akuvox AK-E20INWALLK is the flush-mounting box for the E20S emergency intercom. The E20S is a 100 × 100 mm stainless steel help point that sits on a single 86-type in-wall box, and this is the box Akuvox draws it with.

In one sentence: the AK-E20INWALLK is Akuvox's white in-wall box for the E20S emergency intercom: an 86-type flush box with an 82.5 × 82.5 mm flange, 50 mm deep, 60 mm screw centres and knock-outs for the cable.

Back box only. The E20S is separate.

One in-wall box. The E20S comes with its own tamper-proof screws and Torx wrench. The E20S is for indoor use only.

In the box
  • Akuvox E20S 86-type in-wall box
You also need
  • An Akuvox E20S emergency intercom
  • A wall opening for the 70 × 70 mm box body, at least 52.5 mm deep
  • Cat5e or Cat6 cable from a PoE (802.3af) switch or injector
  • Fixings to suit the wall

Ready for a flush help point.

Lifts, car-park lobbies, accessible toilets and reception counters: wherever an E20S is going in, build this box into the wall and run the network cable to it. The E20S faceplate covers the box completely.

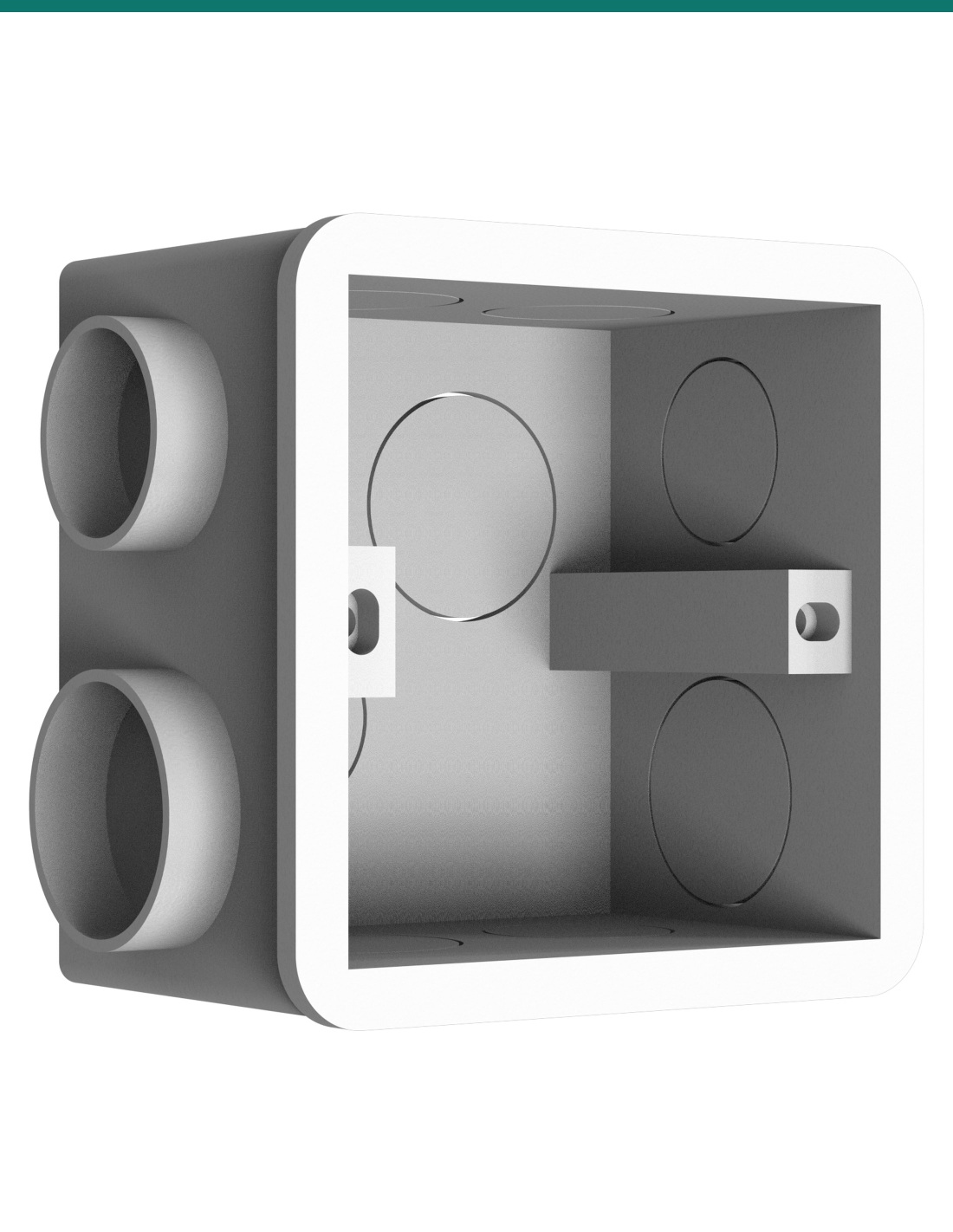

Akuvox E20S in-wall box from the other side showing its knock-outs

The box

82.5 × 82.5 mm flange, 70 × 70 mm inside.

The body is 50 mm deep, 52.5 mm including the flange. Knock-outs in the back and all four sides let the cable in from any direction.

Close-up of the Akuvox E20S in-wall box side lug and knock-outs

Fixing

60 mm screw centres.

The two screw points inside the box are 60 mm apart, the 86 standard. The side lugs take the box to 95 mm across.

How it goes in

From bare wall to flush help point.

01

Set the box

Cut the wall opening and fix the box flush with the wall face, with the button centre planned no higher than 1200 mm.

02

Run the cable

Open a knock-out and bring the network cable from the PoE switch into the box.

03

Connect the E20S

Connect the cable to the E20S as shown in Akuvox's E20 quick guide.

04

Push in and fix

Push the E20S into the box and fix it with two of its tamper-proof screws using the Torx wrench supplied with the E20S.

Pair it with

What goes with the box

Help point

Akuvox E20S

Stainless steel SIP emergency push-button intercom, powered by PoE.

Power

PoE switch or injector

The E20S runs on 802.3af PoE over one network cable.

Answering

Akuvox indoor monitor

An S562, S563 or S567 monitor at reception can answer help-point calls.

Where it is used

Where an E20S box goes in.

Lifts

Help points beside or inside lift lobbies.

Car parks

Covered car-park lobbies and pay stations.

Accessible toilets

Assistance call points that reach a staffed desk.

Reception counters

After-hours call points at unattended counters.

Schools and campuses

Indoor help points in corridors and stairwells.

Hospitals and aged care

Call points in corridors and visitor areas.

This box or an existing 86 box

AK-E20INWALLKExisting 86-type box
Made for the E20SYes, the box on Akuvox's E20 drawingWorks if it is a single 86 box
Screw centres60 mmUsually 60 mm
Depth50 mm (52.5 mm overall)Check the E20S's 37.7 mm body fits
E20S screwsM3.5×30 or M4×30, both supplied with the E20SM3.5×30 or M4×30, both supplied with the E20S

Akuvox's E20 quick guide installs the E20S on an 86 embedded box. Box figures from Akuvox's E20 dimension drawing.

Common questions

Which intercom is it for?

The Akuvox E20S emergency push-button intercom.

What size is the box?

An 82.5 × 82.5 mm flange, 70 × 70 mm inside, 50 mm deep (52.5 mm including the flange), 95 mm across the side lugs.

What screw spacing does it have?

60 mm, the 86 standard.

Does the E20S cover the box?

Yes. The E20S faceplate is 100 × 100 mm, larger than the 82.5 mm flange.

Is the E20S included?

No. This listing is the in-wall box only.

Are screws included?

The E20S comes with M3.5×30 and M4×30 tamper-proof screws and a Torx wrench. Use fixings to suit your wall for the box itself.

Can I use an existing 86 box instead?

Yes. Akuvox's guide installs the E20S on an 86 embedded box, and the two screw sizes supplied with the E20S suit most 86 boxes.

How high should it go?

Akuvox's drawing puts the centre of the button no higher than 1200 mm from the floor.

Can it go outdoors?

No. Akuvox states the E20S is for indoor use and is not waterproof.

How does the cable get in?

Through a knock-out in the back or any of the four sides.

What colour is it?

White. It is hidden behind the E20S once installed.

How is the E20S powered?

By PoE (802.3af) over the network cable.

Supported by InFront Technologies.

Planning help points for a building? Call 1300 736 970 or email [email protected]. Akuvox's E20 quick guide is on the Attachments tab.

Installation and safety

Cutting walls. Check for cables, pipes and studs before you cut the opening.

Indoor only. The E20S is not waterproof. Install it indoors, away from water.

Cabling. Concealed data cabling to the help point is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Mains wiring, including a power point for a PoE switch, needs a licensed electrician.

Emergency use. Test the help point after installation and check it reaches the answering point every time.

Figures. From Akuvox's E20 quick guide and E20 dimension drawings.
