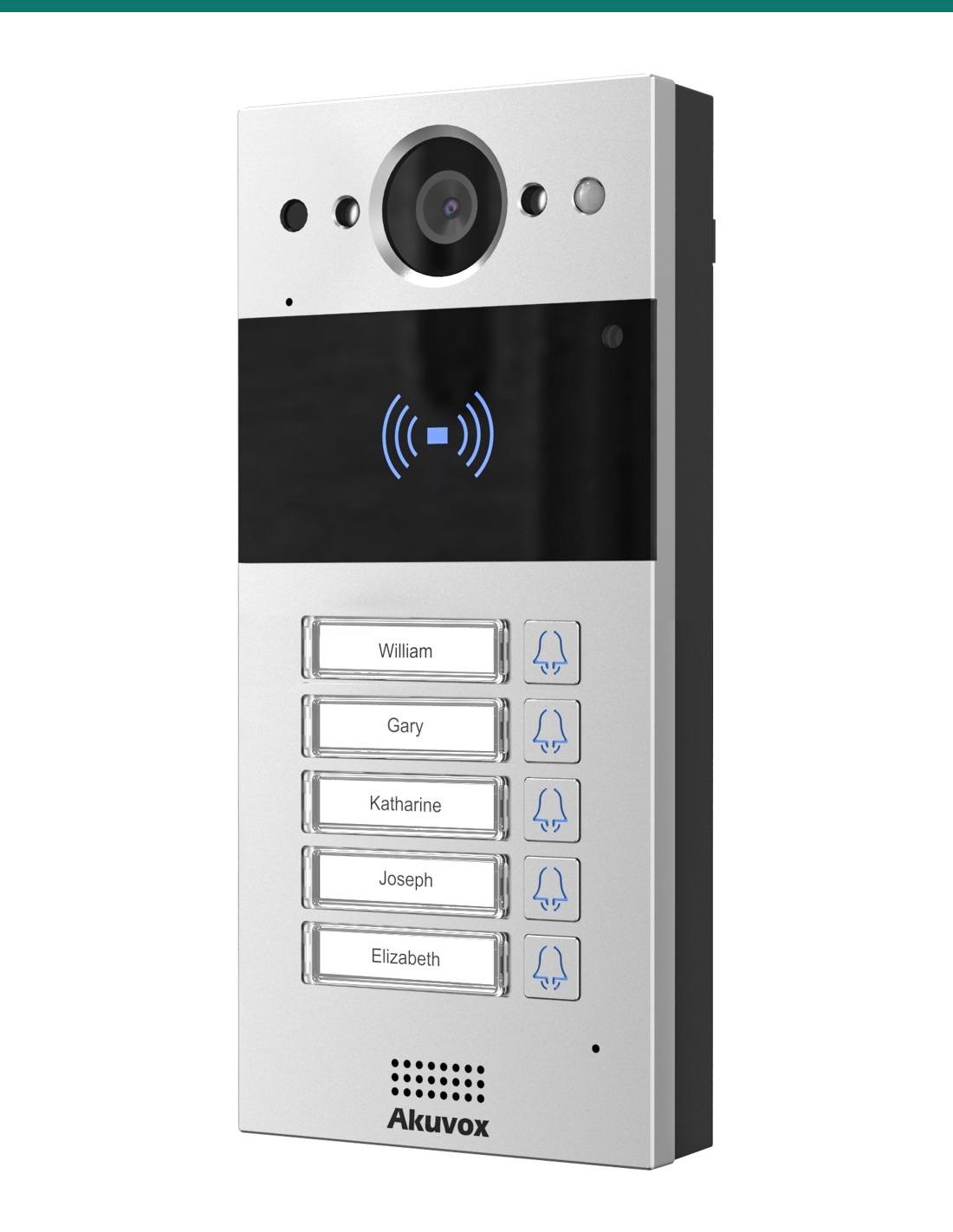

Akuvox R20B 5-button door phone — left three-quarter view

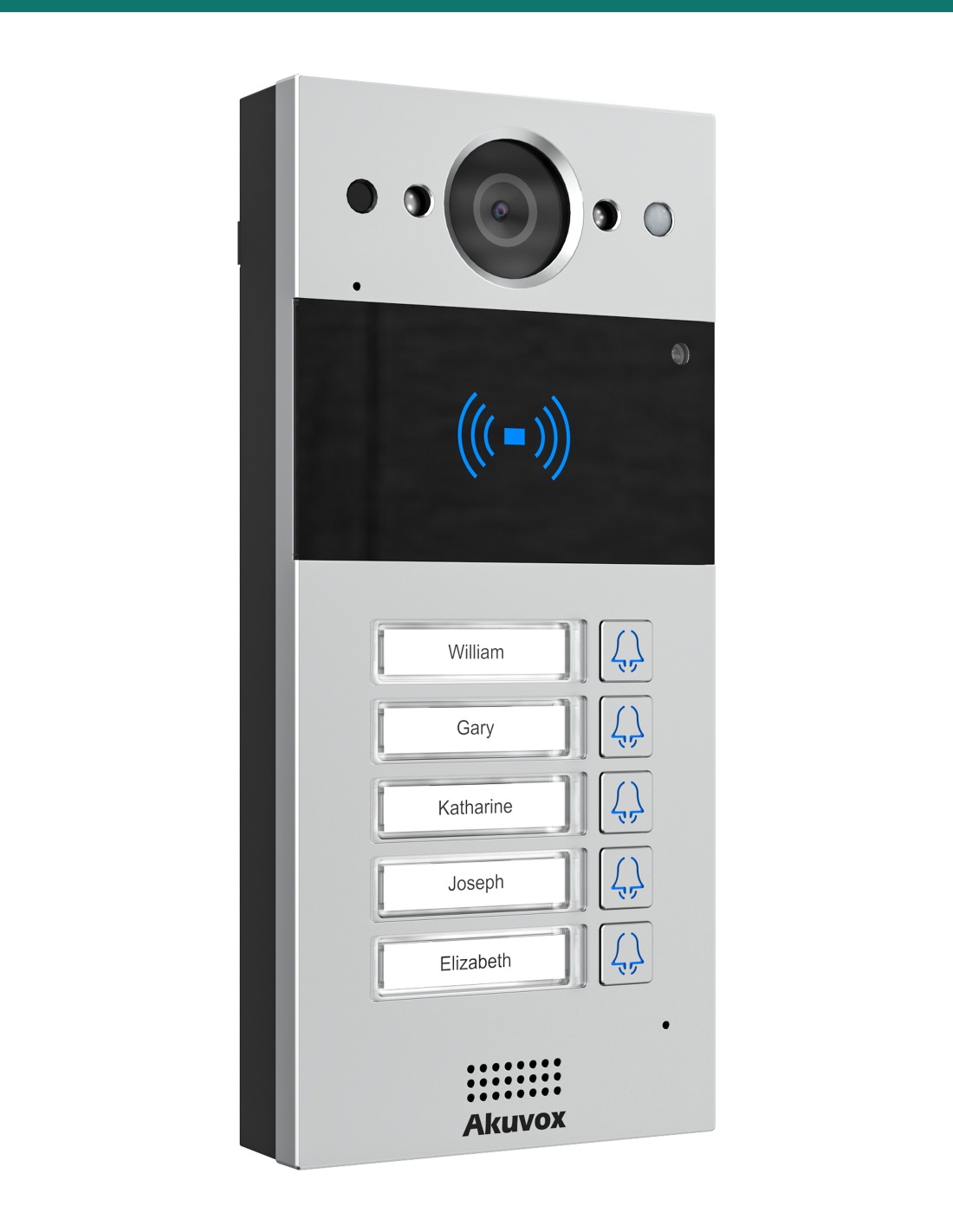

Akuvox R20B 5-button door phone — right three-quarter view

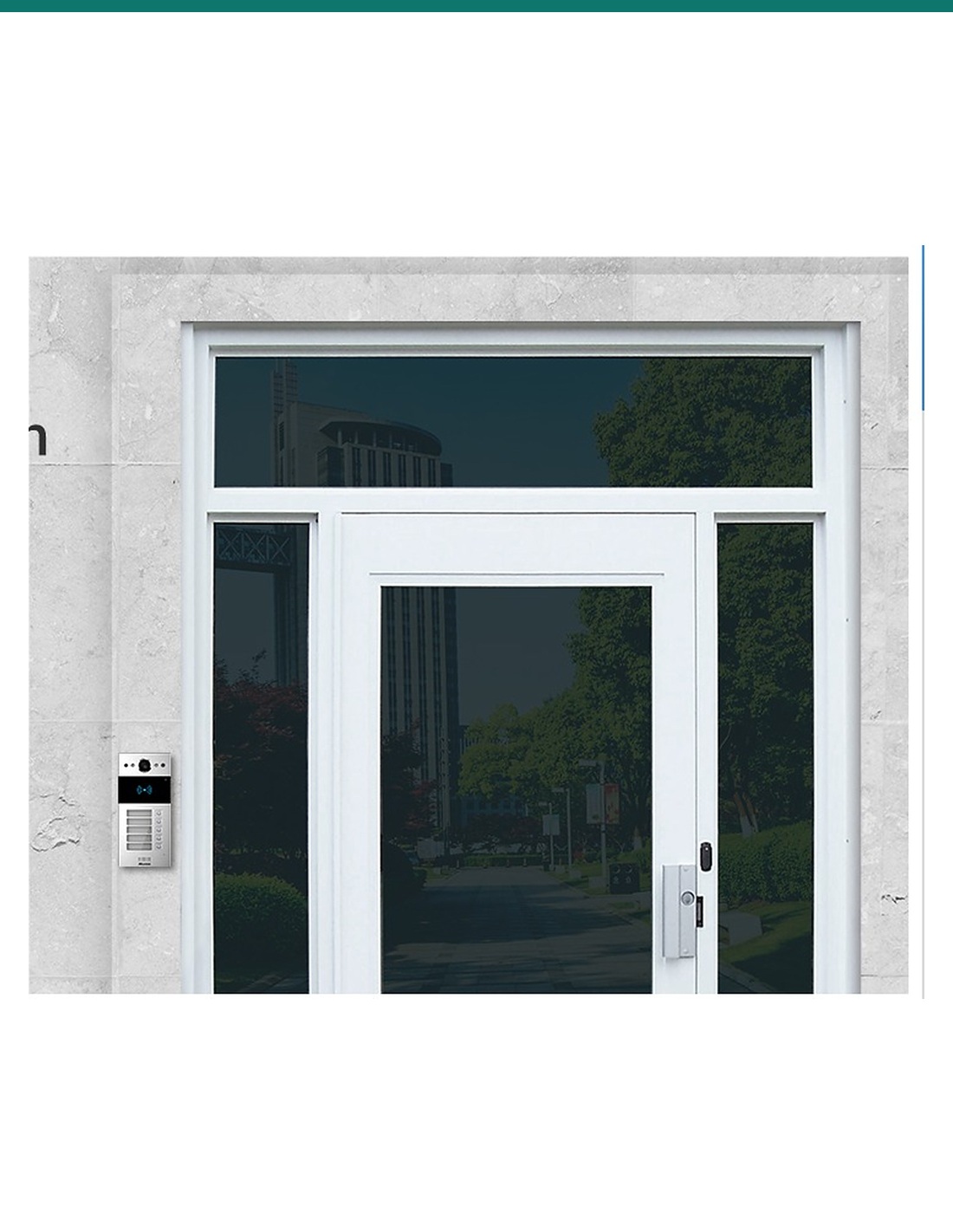

Akuvox R20B door phone mounted beside a narrow entry door

Akuvox R20B 5-Button Silver SIP Video Door Phone with Card Reader — AK-R20B5BONWALL

Name: Akuvox R20B 5-Button Silver SIP Video Door Phone with Card Reader — AK-R20B5BONWALL
Brand: Akuvox
SKU: AK-R20B5BONWALL
Price: 416 AUD
Availability: InStock

Reference: AK-R20B5BONWALL

In Stock - Ready to Ship

$ 416.00

inc-GST

or 4 interest-free payments of $104.00 with

Akuvox R20B with five call buttons is a compact SIP video door phone for small apartment blocks and multi-tenant offices — one labelled button per tenant, no keypad to learn. 2 MP camera, card and NFC entry, two lock relays and an IP65 aluminium front. Surface-mount model, PoE powered. Stocked in Australia by Infront Technologies.

✓5 illuminated call buttons, each with a name plate
✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting
✓13.56 MHz / 125 kHz card reader and NFC (Android), 2 relays, Wiegand, RS485
✓PoE 802.3af · IP65 · 185 × 85 × 24 mm · surface mount

Akuvox R20B door phones with two to five call buttons

Akuvox · R20B · 5-button door station

One button per tenant.
Five labelled calls, one compact plate.

The AK-R20B5BONWALL is Akuvox’s R20BX5: the compact R20 door station with five speed-dial buttons and name plates, in silver aluminium. Visitors press the right name, the right resident answers — simple for guests, tidy for the building.

This SKU is the surface-mount door station only.

You receive the silver R20B 5-button surface-mount door phone. Indoor monitors, rain hood, PoE switch and lock hardware are sold separately.

In the box

Akuvox R20B 5-button door phone (silver)
Surface-mount hardware
Quick-start guide

What you also need (sold separately)

One Akuvox indoor monitor, SmartPlus account or SIP endpoint per button
PoE 802.3af switch or injector
Electric lock / maglock and lock PSU if the door is released
Rain hood on exposed elevations

Press a name. Talk. Open.

Each button dials its own flat or office over SIP, so residents answer on an Akuvox indoor monitor, the SmartPlus app or any SIP phone. Residents let themselves in with a card or an Android phone.

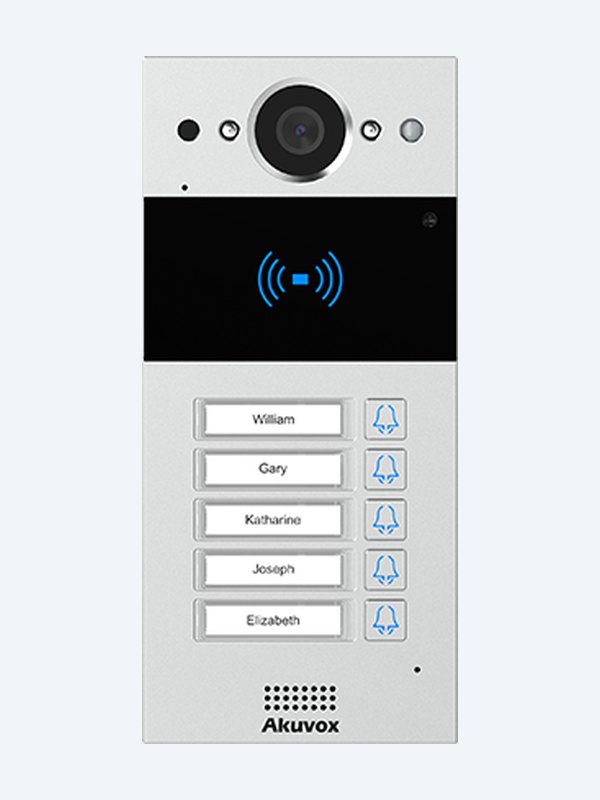

Akuvox R20B 5-button door phone front view

Call buttons

Five names, five direct lines.

Each of the 5 buttons has its own name plate and is set to a SIP number, Akuvox indoor monitor or SmartPlus account in the web portal.

No directory to scroll and no codes to remember — ideal where visitors are couriers and guests.

Compact

Fits where bigger panels can’t.

185 × 85 × 24 mm aluminium, IP65 against rain and dust, −30 °C to +60 °C, with a tamper alarm.

2 MP 1/2.8″ camera, 110° (H) / 58° (V), 1080p at 30 fps, with automatic IR night lighting and a 0.1 lux minimum. ONVIF and RTSP for NVR recording.

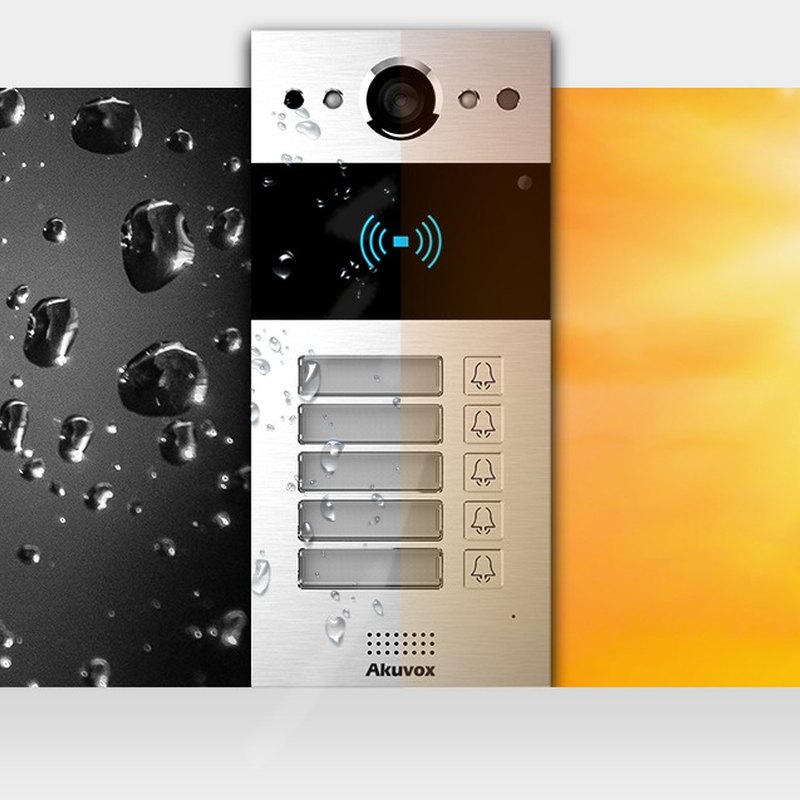

Akuvox R20B 5-button door phone in rain and sun

Access

Card, NFC or app for residents.

The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 cards, plus NFC from Android phones. Up to 20,000 cards and 4,000 users.

Two relays drive two doors or a door and a gate. Two inputs, Wiegand in/out and RS485 connect exit buttons, door sensors and controllers.

How it works

From name plate to open door.

Mount

Surface-mount the station at the entry; add a rain hood if exposed.

PoE and SIP

Run 802.3af PoE to the RJ45 and register the station with your monitors, SmartPlus or SIP PBX.

Assign buttons

Map each of the 5 buttons to a resident, then slide printed names into the plates.

Test the door

Call each button, check the picture day and night, and confirm the relays release the right locks.

At a glance

Key specs — AK-R20B5BONWALL

Brand: Akuvox
Reference: AK-R20B5BONWALL
Model: R20BX5
Finish: Silver aluminium alloy
Call buttons: 5, with name plates
Camera: 2 MP, 1/2.8″ CMOS, automatic lighting
Field of view: 110° (H) / 58° (V)
Video: H.264, up to 1920 × 1080, 1080p at 30 fps
Night: Auto night mode with LED illumination, 0.1 lux minimum
RF reader: 13.56 MHz and 125 kHz, NFC (Android)
Card types: EM, MIFARE, DESFire EV1 / EV2 / EV3
Unlock: Card, NFC, SmartPlus app, DTMF
Capacity: 20,000 cards · 4,000 users · 1,000 contacts
I/O: 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, ONVIF, RTSP
Power: PoE IEEE 802.3af
Protection: IP65
Mounting: Surface mount
Size: 185 × 85 × 24 mm (H × W × D)
Working temperature: −30 °C to +60 °C
OS: Linux
Warranty: Australian warranty via Infront Technologies

Pair it with

Builds a complete multi-tenant entry

Indoor

Akuvox indoor monitor

One per button: residents see the visitor and release the door from a compatible Akuvox SIP indoor station.

Weather

R20B rain hood (silver)

Akuvox R20K/R25K/R20B rain hoods keep driving rain off the buttons.

Angle

R20K/R20B angle bracket

Turns the camera towards visitors where the station sits side-on to the path.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards and fobs work with the R20B reader once enrolled.

Answers

Common questions

How does this differ from the other R20B models?

Only the number of call buttons. The 2- and 3-button R20B models share the same camera, reader, relays and 185 × 85 × 24 mm housing.

Does the R20B have a keypad for PIN entry?

No. Residents use cards, NFC or the SmartPlus app. For PIN entry choose the R20K keypad model.

What power does it need?

IEEE 802.3af PoE from a switch or injector.

Can each button ring a different apartment?

Yes. Each button is programmed to its own SIP number, Akuvox indoor monitor or SmartPlus account.

Is an indoor monitor included?

No. Add one compatible Akuvox indoor monitor, SmartPlus account or SIP endpoint per tenancy.

The right button count, local stock.

Pick the R20B that matches the tenancies: this 5-button model, or the 2- and 3-button versions in the same housing. Need more flats? Step up to the R20K keypad. Order through Infront Technologies for Australian stock.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE as stated on the Akuvox R20BX5 datasheet. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
