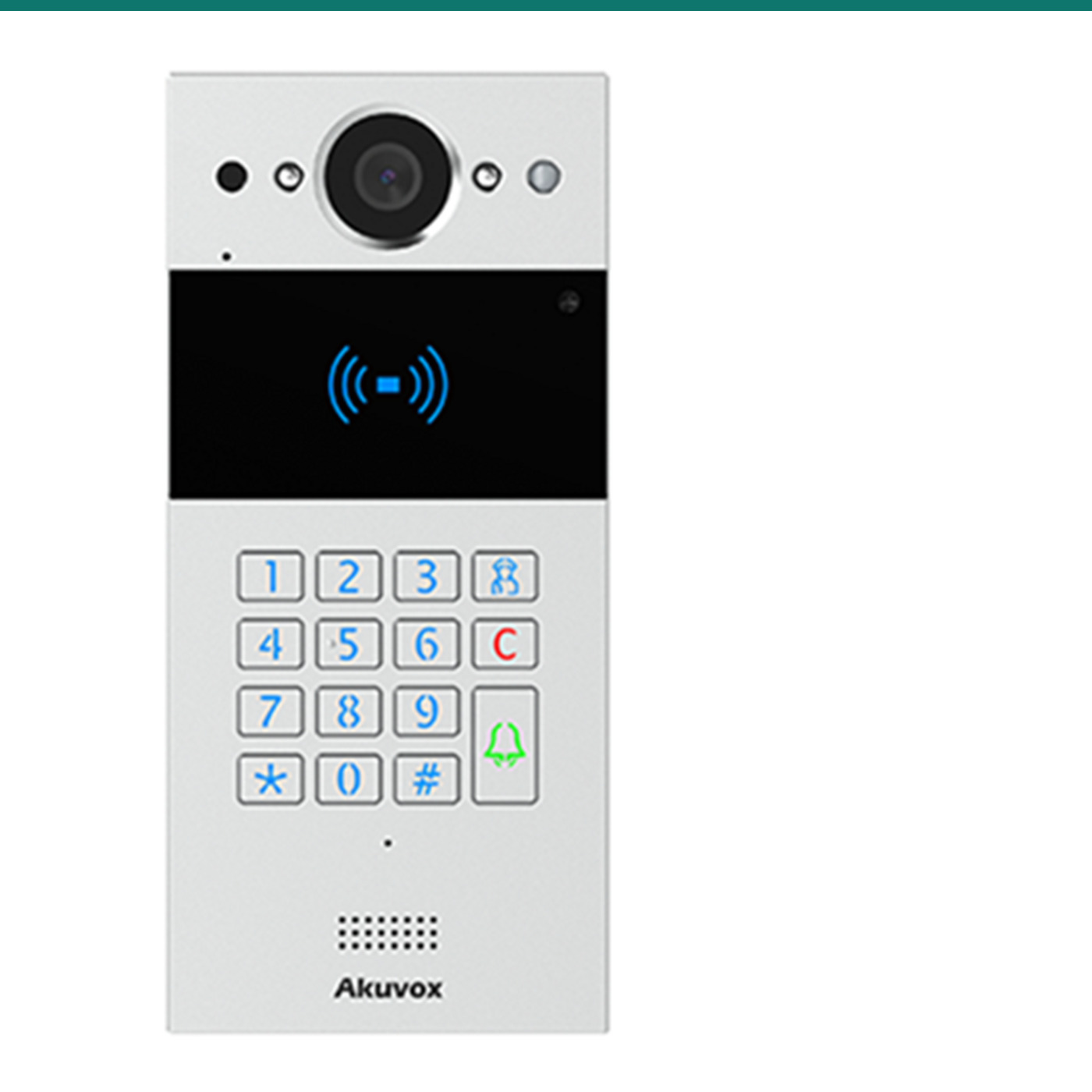

Akuvox R20K-2 silver 2-wire door phone — front

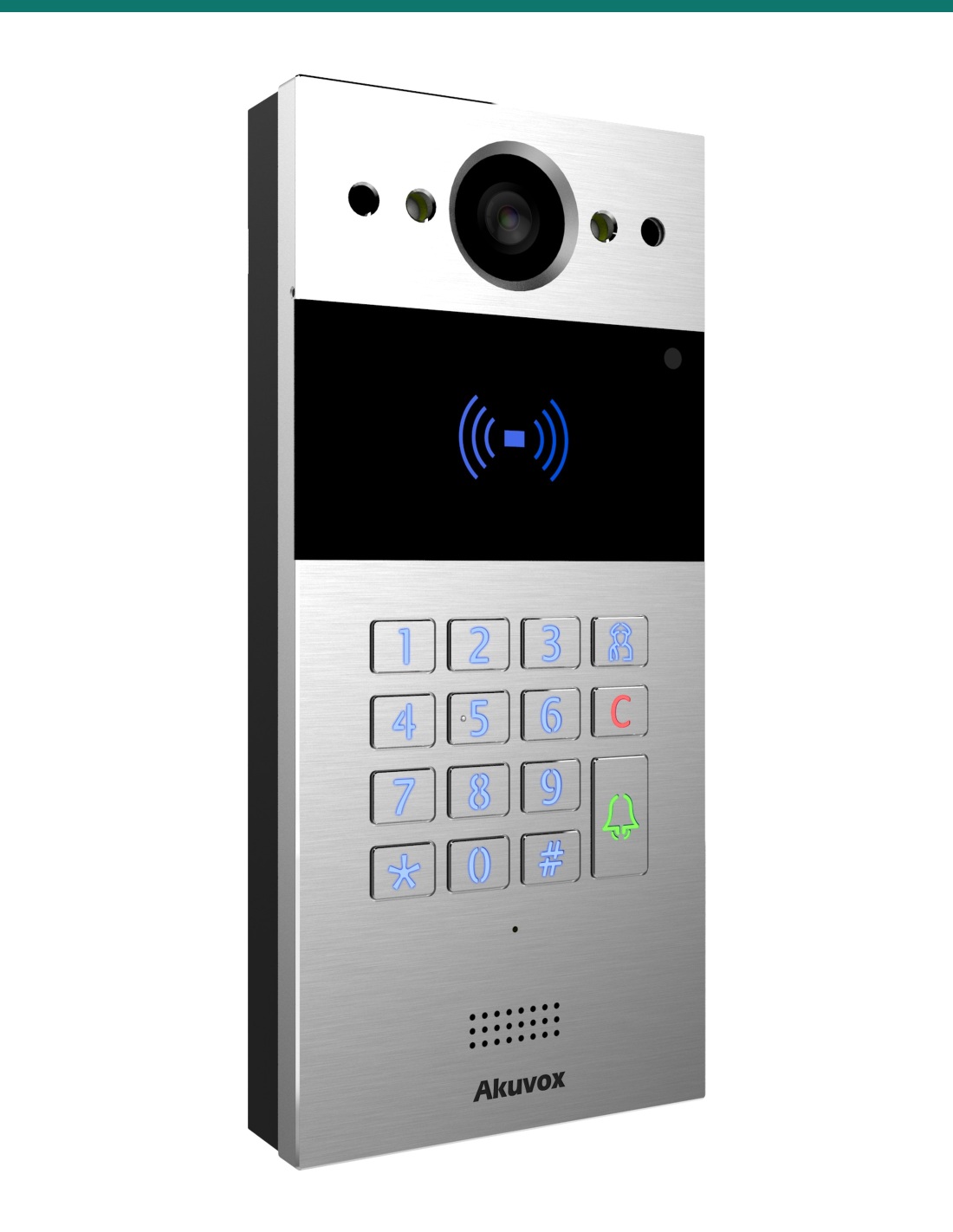

Akuvox R20K-2 silver 2-wire door phone — left three-quarter view

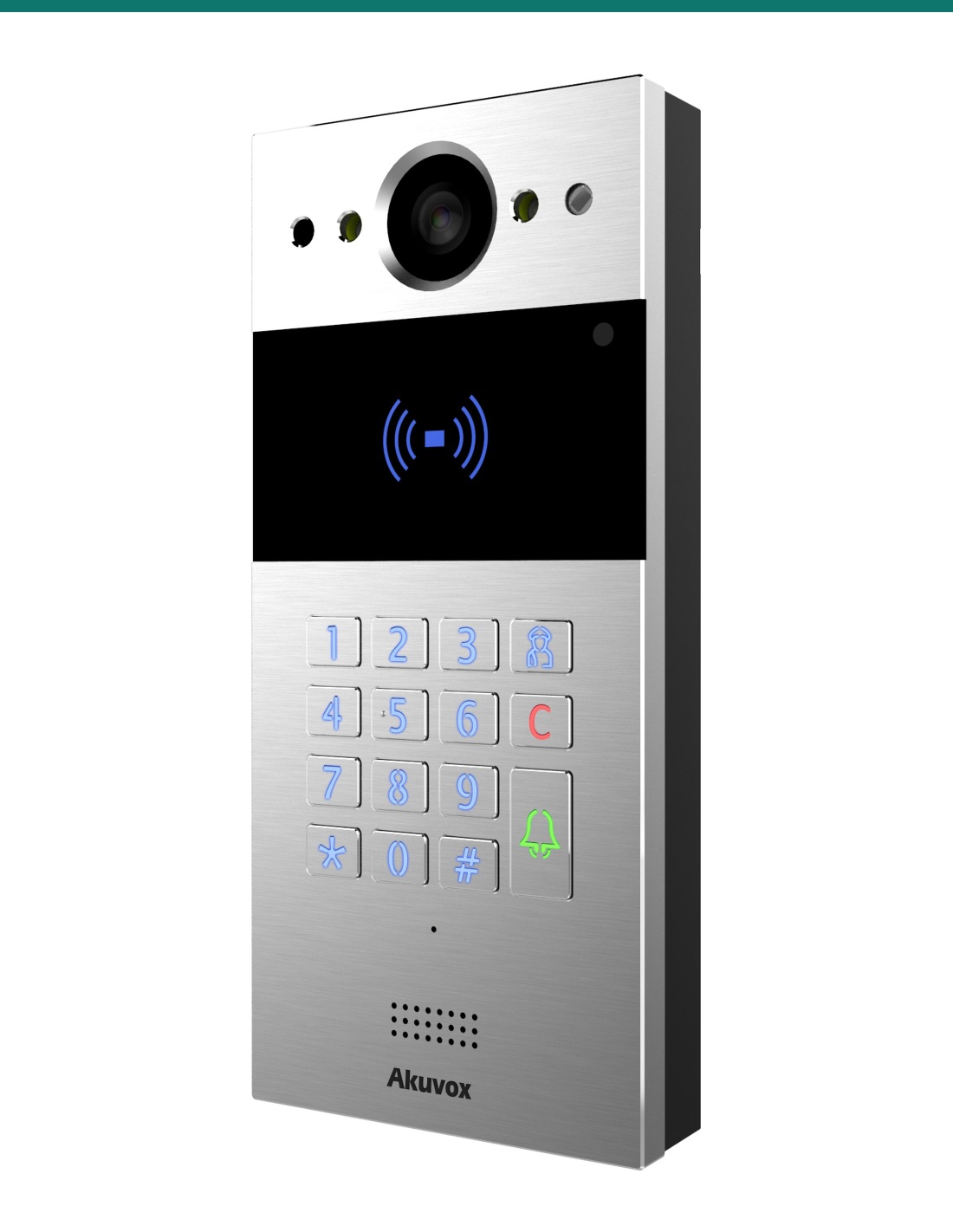

Akuvox R20K-2 silver 2-wire door phone — right three-quarter view

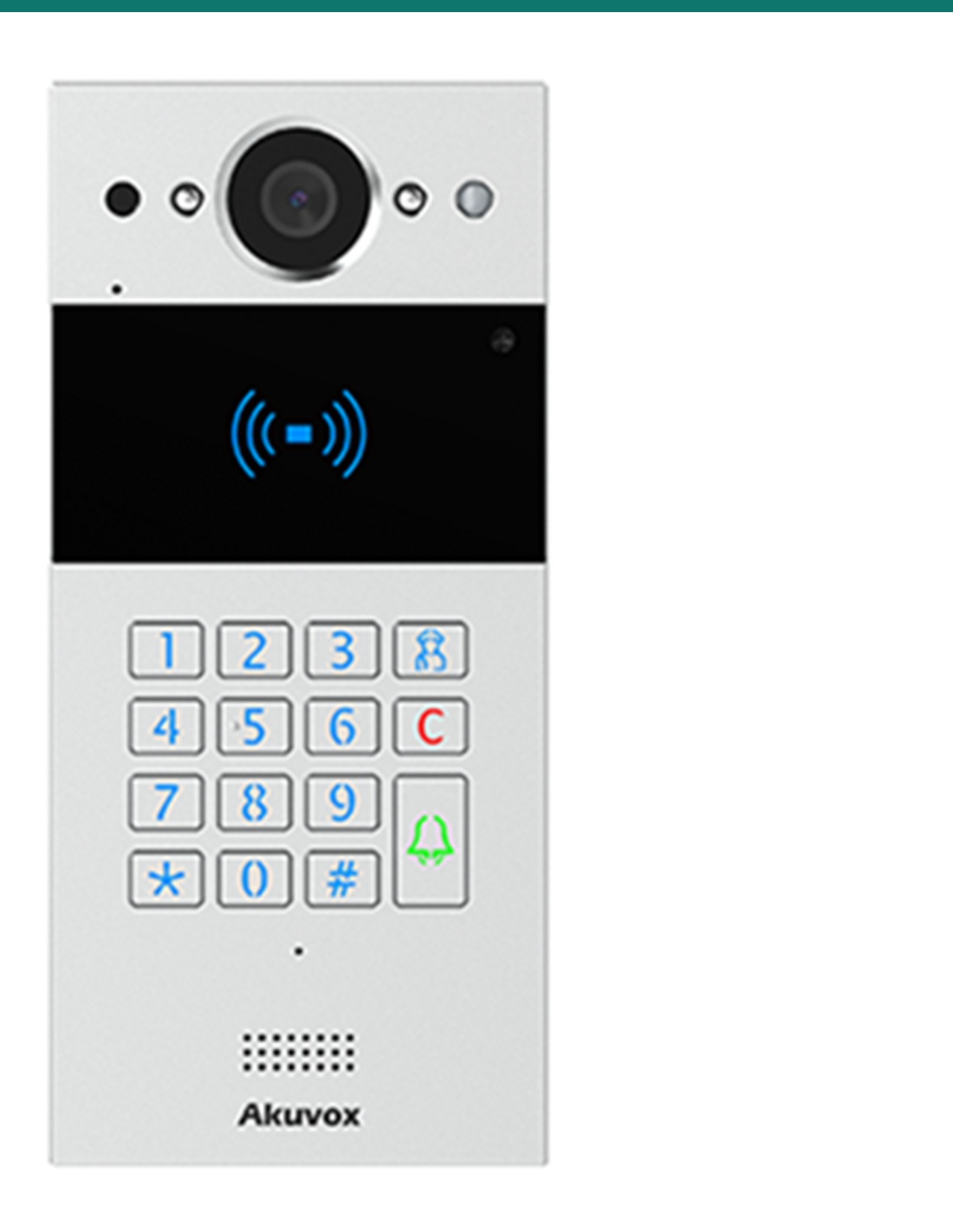

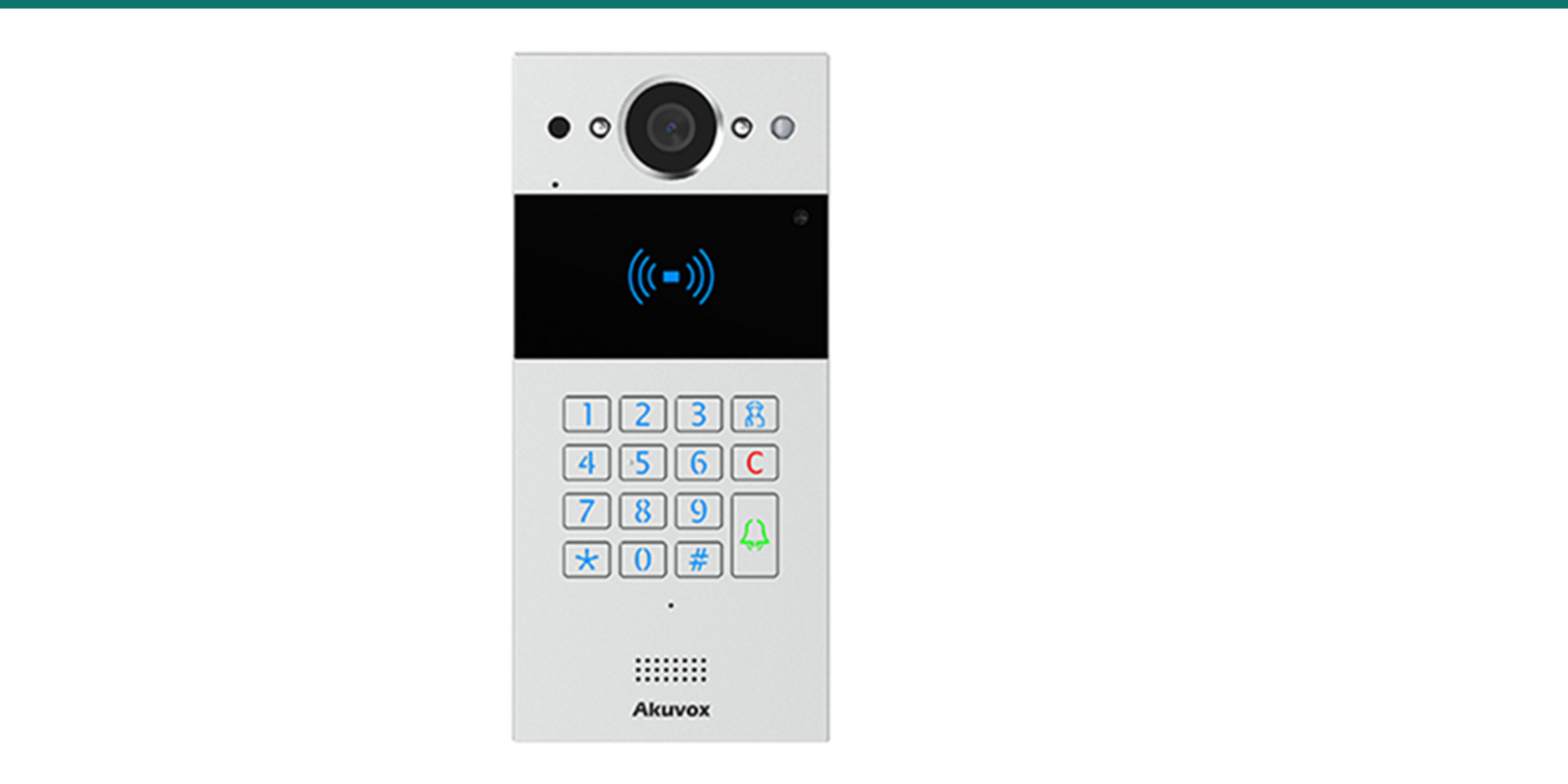

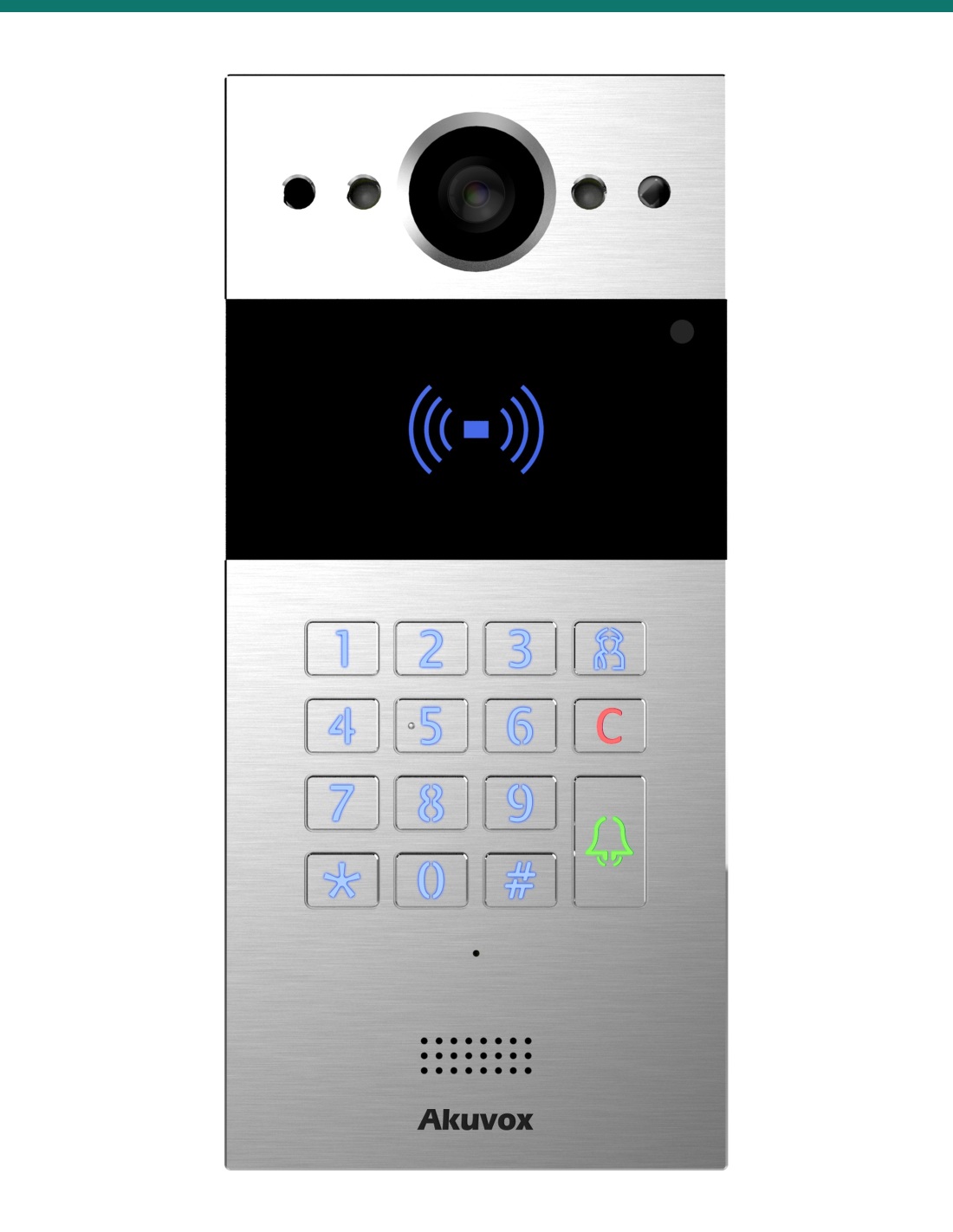

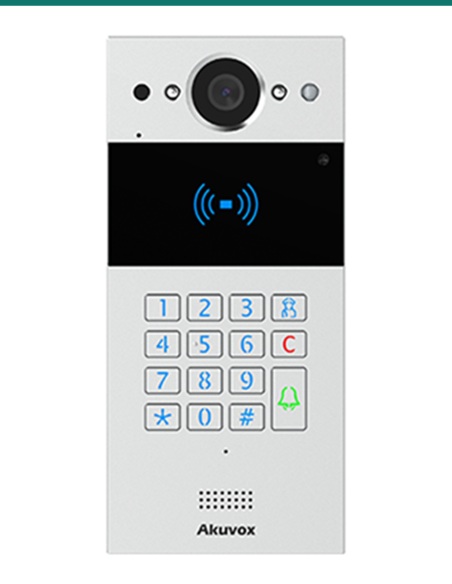

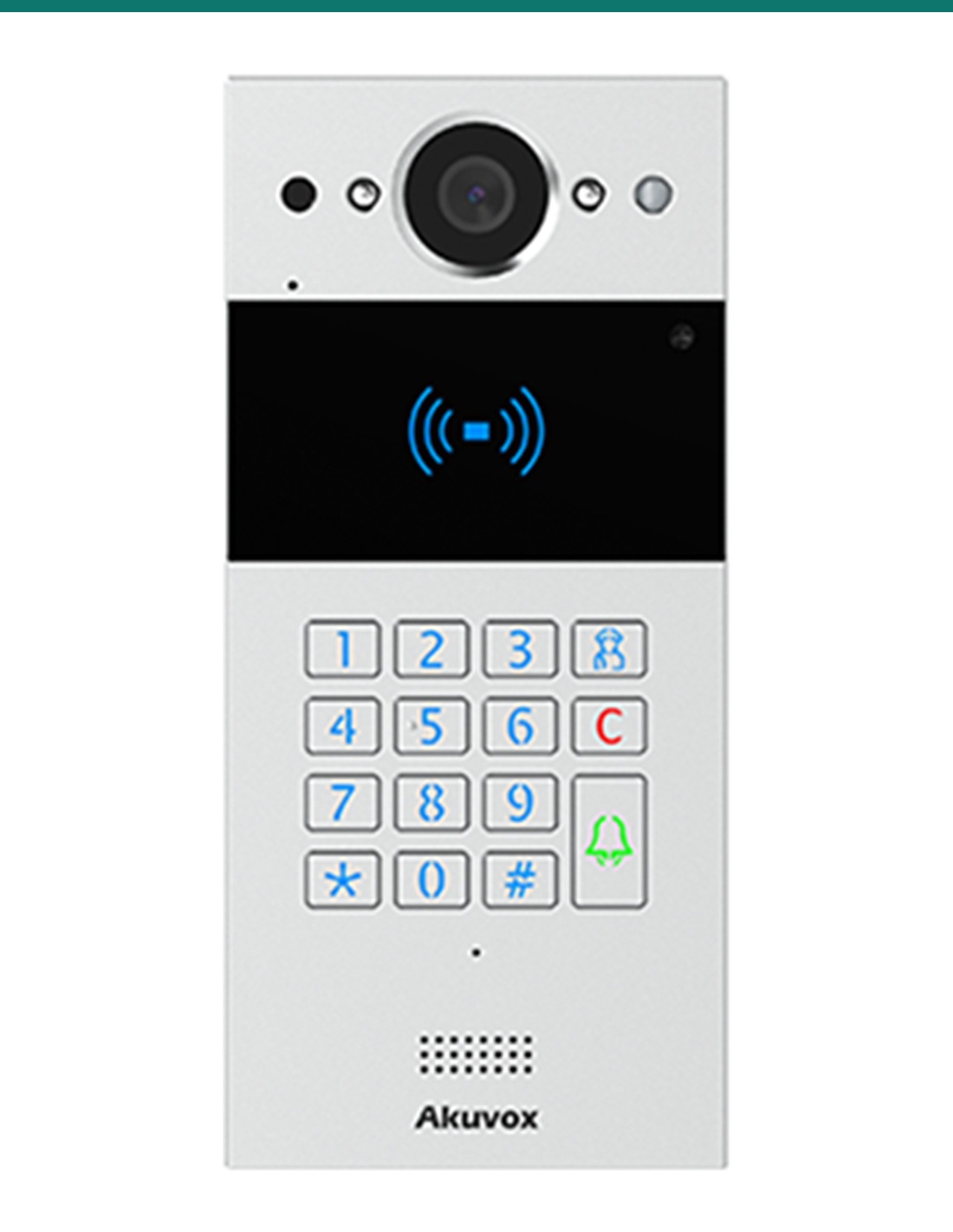

Akuvox R20K-2 2-wire video door phone with keypad — front

Akuvox R20K-2 Silver 2-Wire SIP Video Door Phone with Keypad and Card Reader — AK-R20K-2

AK-R20K-2
In Stock - Ready to Ship
$ 518.50
inc-GST

or 4 interest-free payments of $129.62 with

Akuvox R20K-2 is a palm-size aluminium SIP video door phone with a numeric keypad, built for Akuvox 2-wire systems — power and network both arrive on the existing two-wire intercom cable.

  • ✓2 MP wide-angle camera, 110° × 58°, IR LED for night
  • ✓Keypad PINs, 13.56 MHz & 125 kHz cards and NFC (Android) — 25,000 cards
  • ✓Power and network over 2-wire from an Akuvox NS-2 or 2-wire monitor
  • ✓1 relay, 1 input, Wiegand, RS485 · IP65 · 185 × 84.5 × 24 mm


Akuvox R20K-2 keypad door phone shown in rain and frost
Akuvox · R20K-2 · 2-wire keypad door phone

Keypad entry on the old wires.
No new cable to the gate.

The AK-R20K-2 is Akuvox’s R20K-2: the compact R20K keypad door phone re-engineered for 2-wire. It draws power and data from the same pair an analogue door station used, so apartment and office retrofits keep their existing cable runs.

This SKU is the door phone only.

You receive the R20K-2 with its wiring cover, cables and wall-mounting bracket and fixings. Indoor monitors, an NS-2 switch, power supply and lock hardware are sold separately.

In the box
  • Akuvox R20K-2 door phone
  • Wiring cover, sealing plate, rubber plugs and diode
  • 3-pin and 7-pin cables
  • Wall-mounting bracket, template, screws, anchors and Allen wrench
What you also need (sold separately)
  • Akuvox 2-wire indoor monitor (C313W-2 or S562W-2)
  • Akuvox NS-2 switch with 48 V supply for multi-device sites
  • R20K-2 rain hood or angle bracket for exposed walls
  • Electric strike or maglock with its own power supply

Upgrade the entrance, keep the cabling.

Visitors call, residents answer on a monitor or the SmartPlus app, and staff enter with a PIN or card — all over two wires that were already in the wall.

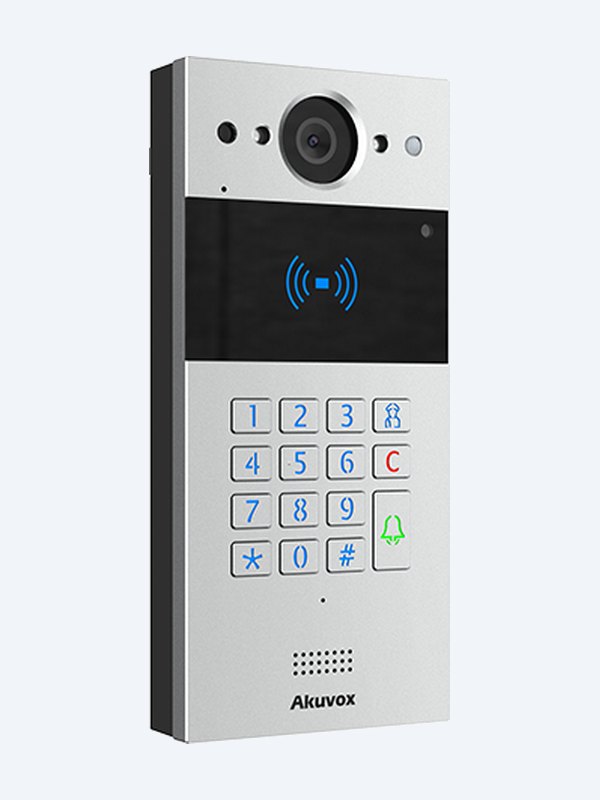

Akuvox R20K-2 aluminium keypad door phone angle view

Entry

PIN, card or phone.

Numeric keypad plus a 13.56 MHz and 125 kHz reader for EM, MIFARE and DESFire (EV1 / EV2 / EV3) cards, with NFC for Android phones.

Holds 5,000 users, 25,000 cards and 5,000 PINs, with one relay, one input, Wiegand and RS485 for access control integration.

2-wire

Power and data on one pair.

A single two-pin connection replaces separate power and network cable. Connect it direct to a 2-wire monitor or to one of the six ports on an NS-2.

With an NS-2 on 48 V, Akuvox rates star runs of up to 300 m on 18–24 AWG cable.

Outdoors

IP65, built for the street.

Aluminium alloy front panel rated IP65, working from −30 °C to +60 °C, with a tamper alarm.

2 MP camera with 110° × 58° view, IR LEDs and light sensor, streaming 1080p H.264 at 25 fps to monitors, apps and third-party NVRs.

How it works

Swapping out an analogue door station.

01

Find the pair

Identify the two wires at the old door station.

02

Mount

Fix the bracket to an 86 mm or 2×3″ box, or flush-mount with the in-wall kit.

03

Connect

Land the pair on the two-pin input and wire the relay to the lock.

04

Configure

Add PINs and cards, register to the monitor and test entry.

Pair it with

Completes a 2-wire video intercom

Monitor

C313W-2 or S562W-2

Akuvox 2-wire indoor monitors answer calls and release the door.

Power hub

Akuvox NS-2

Feeds up to six 2-wire devices from a DIN-rail switch.

Weather

R20K rain hood

Shields the panel on exposed walls.

Works with

Platforms and integrations

Akuvox 2-wire system

Connects straight to an Akuvox 2-wire indoor monitor such as the C313W-2 or S562W-2, or to an NS-2 switch for multi-device sites.

SIP PBX and softphones

The R20K-2 is a SIP device, so once the 2-wire network is bridged to your LAN it can call IP phones and PBX extensions.

NVRs over ONVIF

Third-party NVRs can record the door camera over ONVIF alongside your CCTV cameras.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers and readers.

Watch

See it in action

Setting up the S562W-2 and R20-2 2-wire kit
Akuvox 2-wire SIP video intercom overview
Wiring Akuvox 2-wire devices for a villa

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How is the R20K-2 different from the R20K?

Same keypad, camera and reader, but the R20K-2 takes power and network over a 2-wire pair instead of Ethernet / PoE. It has one relay and one input (the R20K has two of each) and streams at 25 fps rather than 30.

What can it connect to?

Akuvox 2-wire indoor monitors (C313W-2, S562W-2) directly, or an Akuvox NS-2 switch for several devices on one system.

How far can the 2-wire run be?

With an NS-2 on 48 V, Akuvox rates star runs of up to 300 m on 18–24 AWG cable.

Can it open a door?

Yes. One relay drives a strike or maglock, triggered by PIN, card, NFC, the monitor or the SmartPlus app. Power the lock from its own supply and fit the supplied diode across DC lock coils.

How many cards and PINs does it hold?

Up to 25,000 cards, 5,000 PINs and 5,000 users, with EM, MIFARE and DESFire EV1 / EV2 / EV3 cards supported.

Does it fit the R20K mounting accessories?

The panel is the same 185 × 84.5 × 24 mm size as the R20K, and Akuvox offers in-wall and on-wall rain covers for the R20K-2.

Is it weatherproof?

Yes. IP65 with an operating range of −30 °C to +60 °C.

A keypad 2-wire door phone.

Choose the R20K-2 when you want PIN entry at the door; the R20A-2 is the single-button version without a keypad, and the E12S-2 is a slimmer doorbell for houses.

Installation & safety notice

Low-voltage product (SELV). Powered over the 2-wire pair: the two-pin connection carries both power and network, from an Akuvox NS-2 switch or a 2-wire indoor monitor fed by its power adapter.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

The R20K-2 has one relay for a strike or maglock; power the lock from its own supply and fit the supplied diode across DC lock coils.

Audio
SIP v1 / v2, G.711, G.722, echo cancellation, noise suppression
Keypad
Numeric keypad
Colour
Silver
Capacity
25,000 cards, 5,000 PINs, 5,000 users
Installation
Flush or wall-mounted
Working Temperature
−30 °C to +60 °C
Brand
Akuvox
IP Rating
IP65
Camera
2 MP, 1/2.8″ CMOS, 110° (H) / 58° (V)
Size
185 × 84.5 × 24 mm (H × W × D)
Warranty
Australian warranty
Video
H.264, 1080p at 25 fps
Product Type
2-wire SIP video door phone
Model
R20K-2
Finish
Aluminium alloy
RF Reader
13.56 MHz and 125 kHz
I/O
1 relay, 1 input, Wiegand, RS485
Entry Methods
PIN, EM / MIFARE / DESFire cards, NFC (Android)
Network & Power
2-wire: one two-pin connection for power and network
