Akuvox EB12 Silver Aluminium Press-to-Exit Button with Green Push Button — AK-EB12-SILVER

Name: Akuvox EB12 Silver Aluminium Press-to-Exit Button with Green Push Button — AK-EB12-SILVER
Brand: Akuvox
SKU: AK-EB12-SILVER
Price: 28.9 AUD
Availability: OutOfStock

Reference: AK-EB12-SILVER

CALL stock OR Max avail. in cart

$ 28.90

inc-GST

or 4 interest-free payments of $7.22 with

Akuvox EB12 is a square exit button with a large green push button set in a 4 mm brushed aluminium plate. NO and NC outputs suit most access systems, and the IK10 build takes daily knocks. Stocked in Australia by Infront Technologies.

✓Large green mechanical push button, “PRESS TO EXIT” print
✓4 mm brushed aluminium alloy plate
✓NO / NC output · IK10 impact rating
✓DC 12–24 V, 5 A · momentary · 86 × 86 × 33.5 mm

Akuvox · EB12 · Press-to-exit button

A big green button.
Nobody misses it.

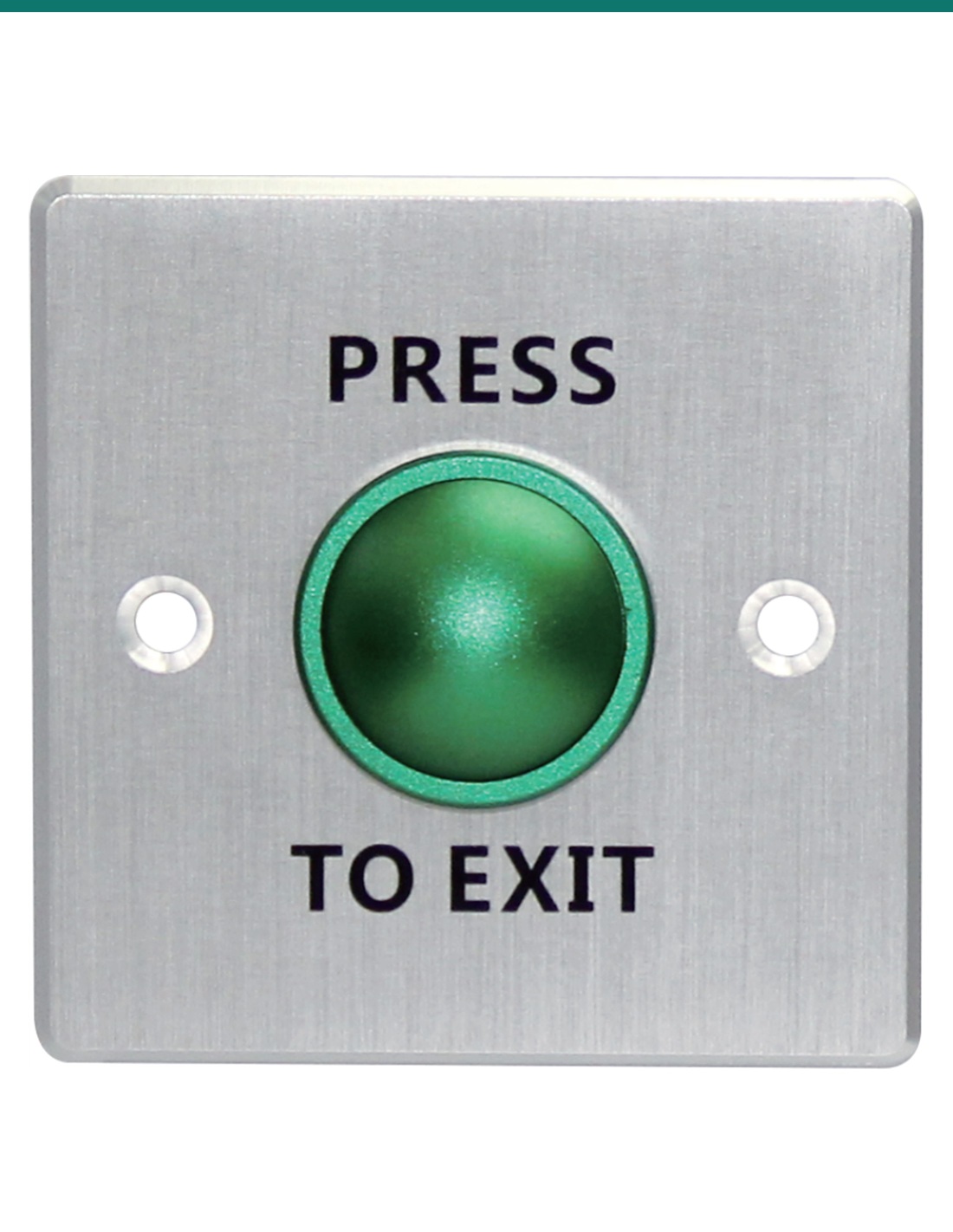

The AK-EB12-SILVER is Akuvox’s EB12: a compact square exit button whose green dome is easy to spot and press, even in a hurry.

This SKU is the exit button only.

You receive the EB12 exit button. The door phone or access controller, electric lock, lock power supply and wall box are sold separately.

In the box

Akuvox EB12 exit button

What you also need(sold separately)

Akuvox door phone or access controller with an exit-button input
Electric lock and suitable lock power supply
Wall box and cabling

Simple and familiar.

Green means go — a clear exit control for lobbies, offices and shared entries.

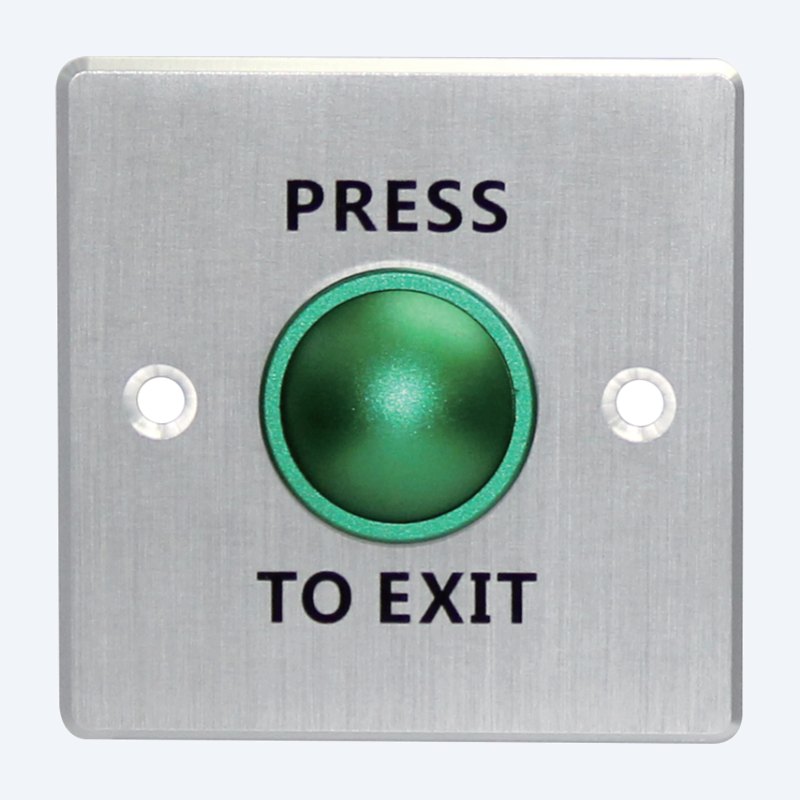

Akuvox EB12 aluminium press-to-exit button with green push button

Wiring

NO or NC, your choice.

The momentary switch offers normally-open and normally-closed contacts, so it suits door phones, controllers and fail-safe lock circuits.

The 4 mm aluminium alloy plate is IK10-rated and measures 86 × 86 × 33.5 mm.

How it works

Wire it in three steps.

Mount

Fix the plate over a wall box on the secure side of the door.

Wire

Run the switch contacts to the exit-button input on the Akuvox door phone or controller.

Test

Set the relay hold time in the device web interface, then press to confirm the lock releases.

At a glance

Key specs — AK-EB12-SILVER

Brand: Akuvox
Reference: AK-EB12-SILVER
Faceplate: 4 mm brushed aluminium alloy
Button: Green mechanical push button
Output: NO / NC
Impact rating: IK10
Size: 86 × 86 × 33.5 mm
Operating voltage: DC 12–24 V
Rated current: 5 A
Switch type: Momentary (self-resetting)
Working temperature: −20 °C to +50 °C
Humidity: 10–90% RH
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes an Akuvox door

Door phone

Akuvox R20K and R25K

Door phones with a door-release input for the button.

Access

Akuvox A08

Access terminal that can take an exit button input.

Credentials

Akuvox cards and fobs

Entry from outside with cards, fobs or Bkey.

Watch

See it in action

Connecting Akuvox exit buttons to a door phone

Answers

Common questions

Does it have NO and NC contacts?

Yes. It supports NO and NC outputs for most access control systems.

Is the button illuminated?

No. The EB12 is a mechanical green button without an LED. Choose EB11 for a lit button.

What size is it?

86 × 86 × 33.5 mm, a square plate for standard 86 mm electrical boxes.

How does it connect to an Akuvox door phone?

Wire the contacts to the door phone’s exit-button input; the door phone then fires its lock relay.

Exit buttons, local stock.

Order the EB12 with your Akuvox door phone or A08 from Infront Technologies for Australian stock and wiring advice.

Installation & safety notice

Low-voltage product (SELV). The button is rated for DC 12–24 V circuits at up to 5 A with a built-in dropper resistor, per the Akuvox EB12 datasheet. Treat as SELV low-voltage equipment; electric locks and their supplies should be installed by a licensed security installer or electrician.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Operating Voltage: DC 12–24 V, 5 A
Colour: Silver plate, green button
Brand: Akuvox
Button: Mechanical, momentary
Size: 86 × 86 × 33.5 mm
Warranty: Australian Warranty via Infront Technologies
Product Type: Press-to-exit button
Model: EB12
Output: NO / NC
Impact Rating: IK10
Faceplate: 4 mm aluminium alloy
