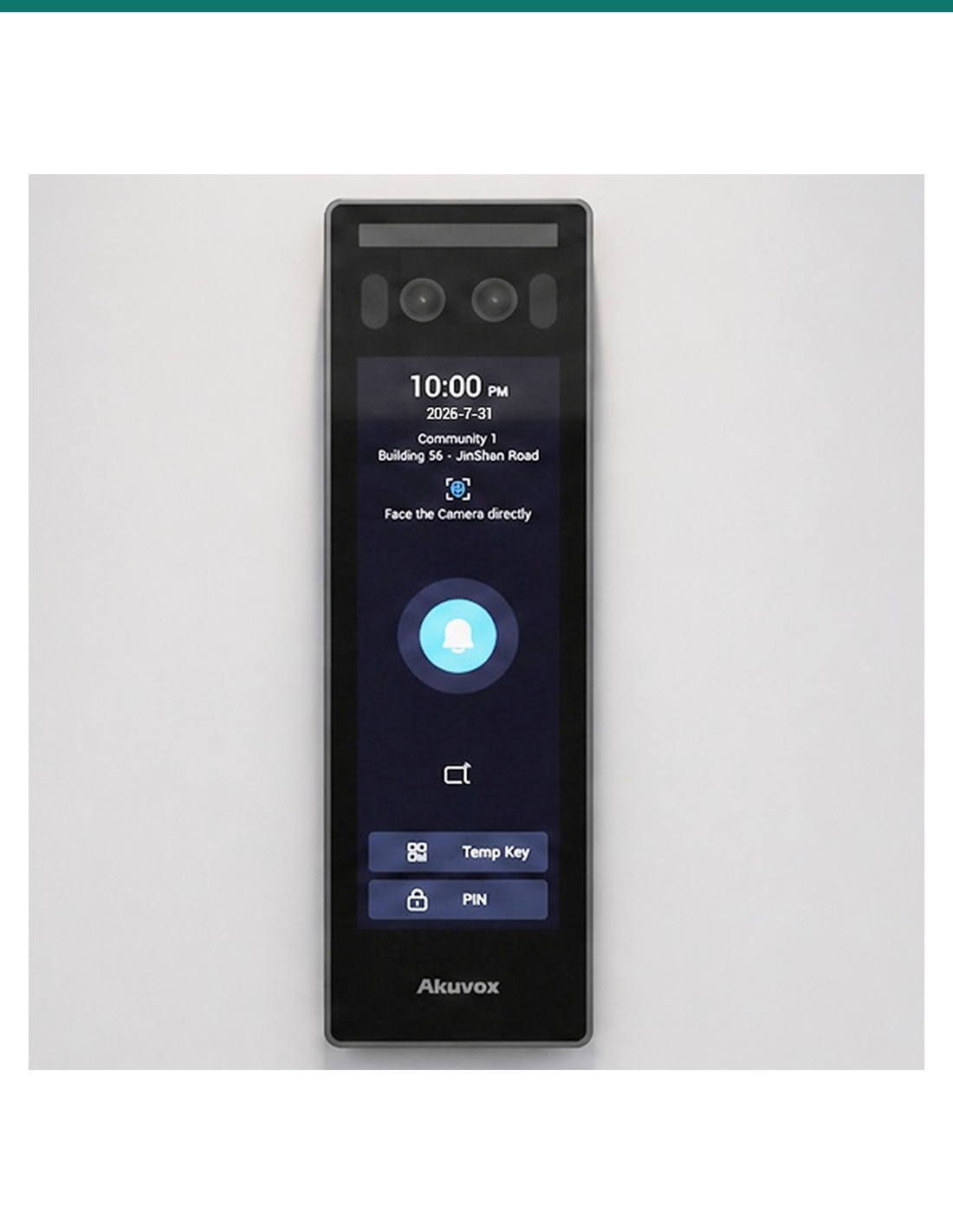

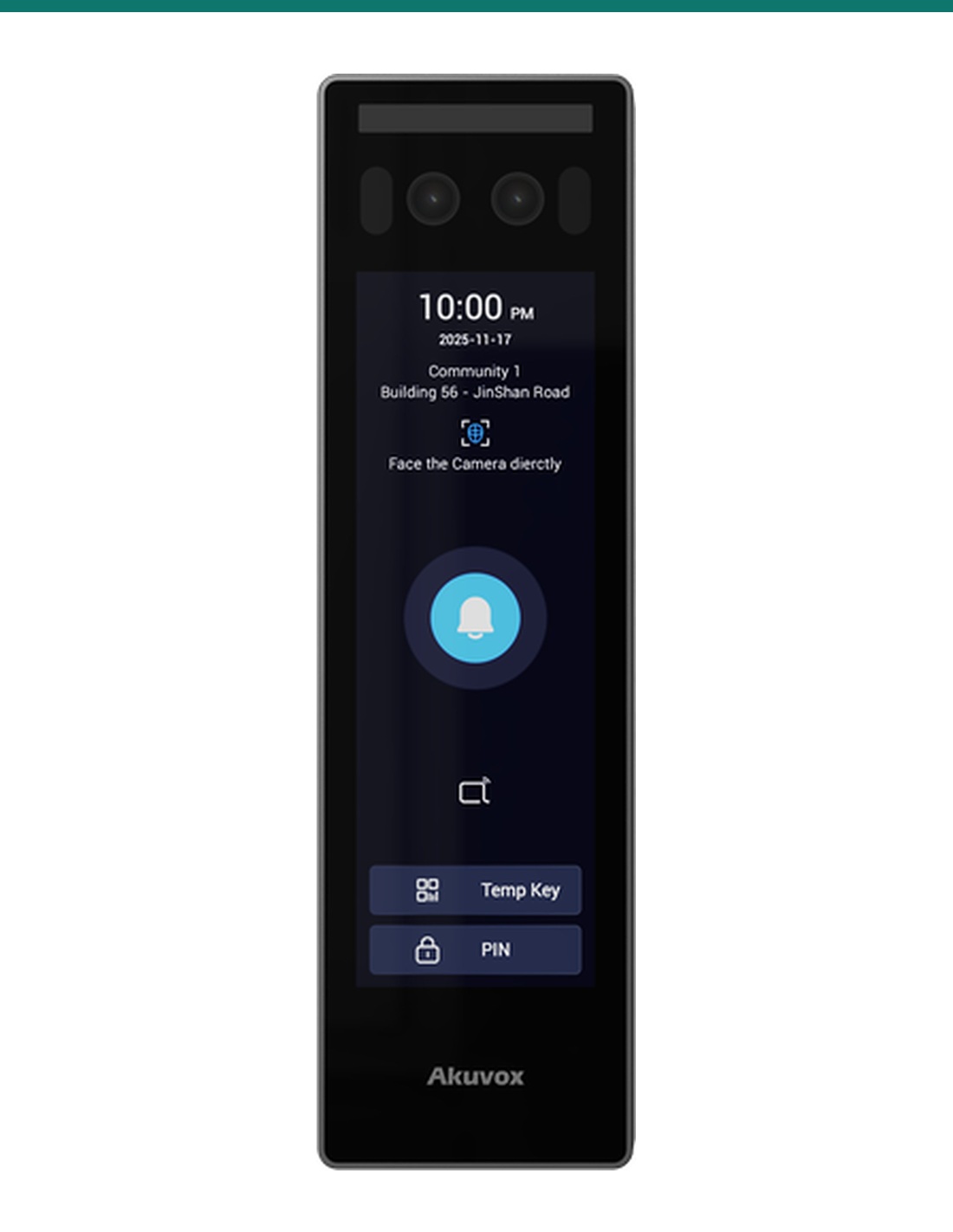

Akuvox A15 access control terminal — front

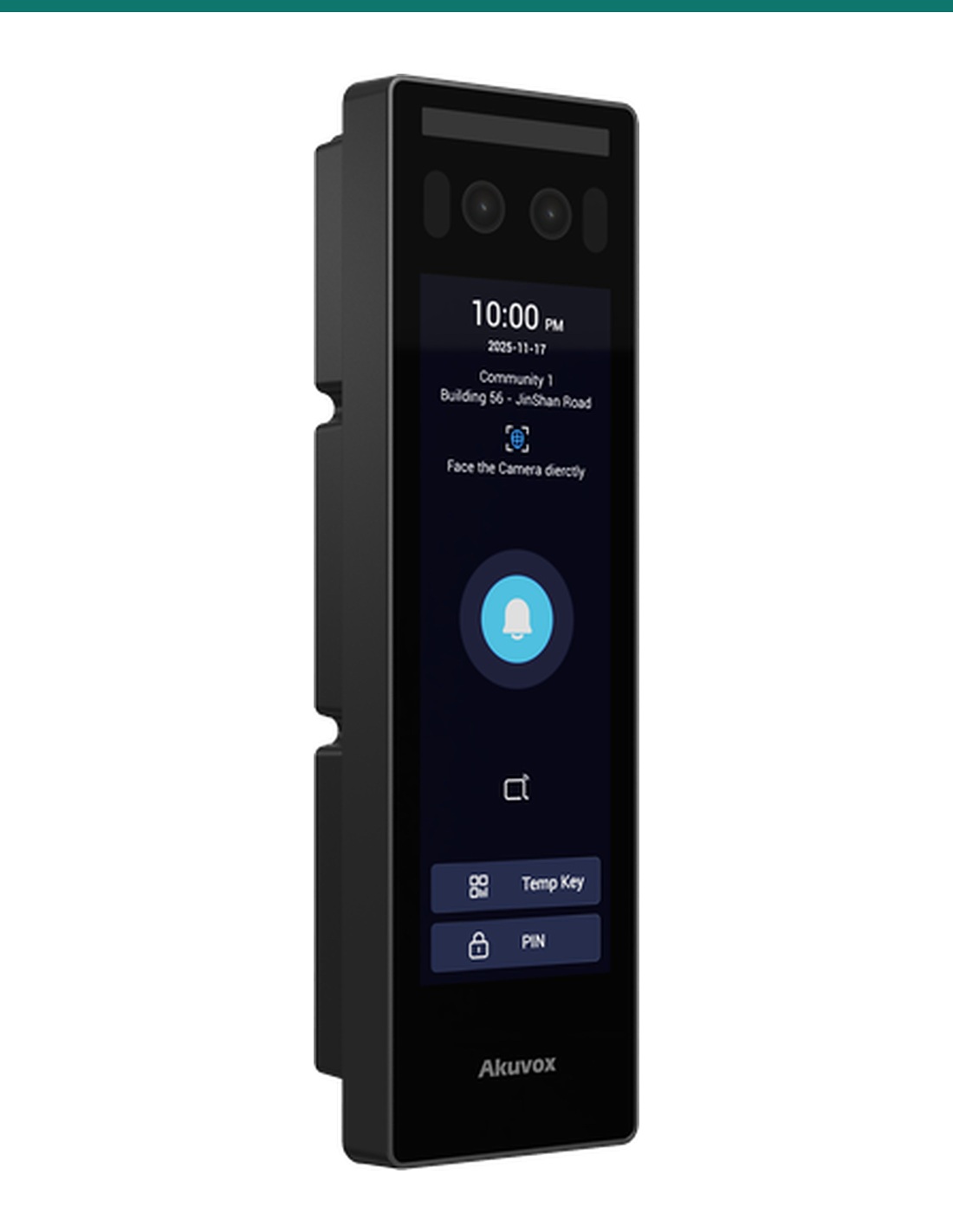

Akuvox A15 terminal — left three-quarter view

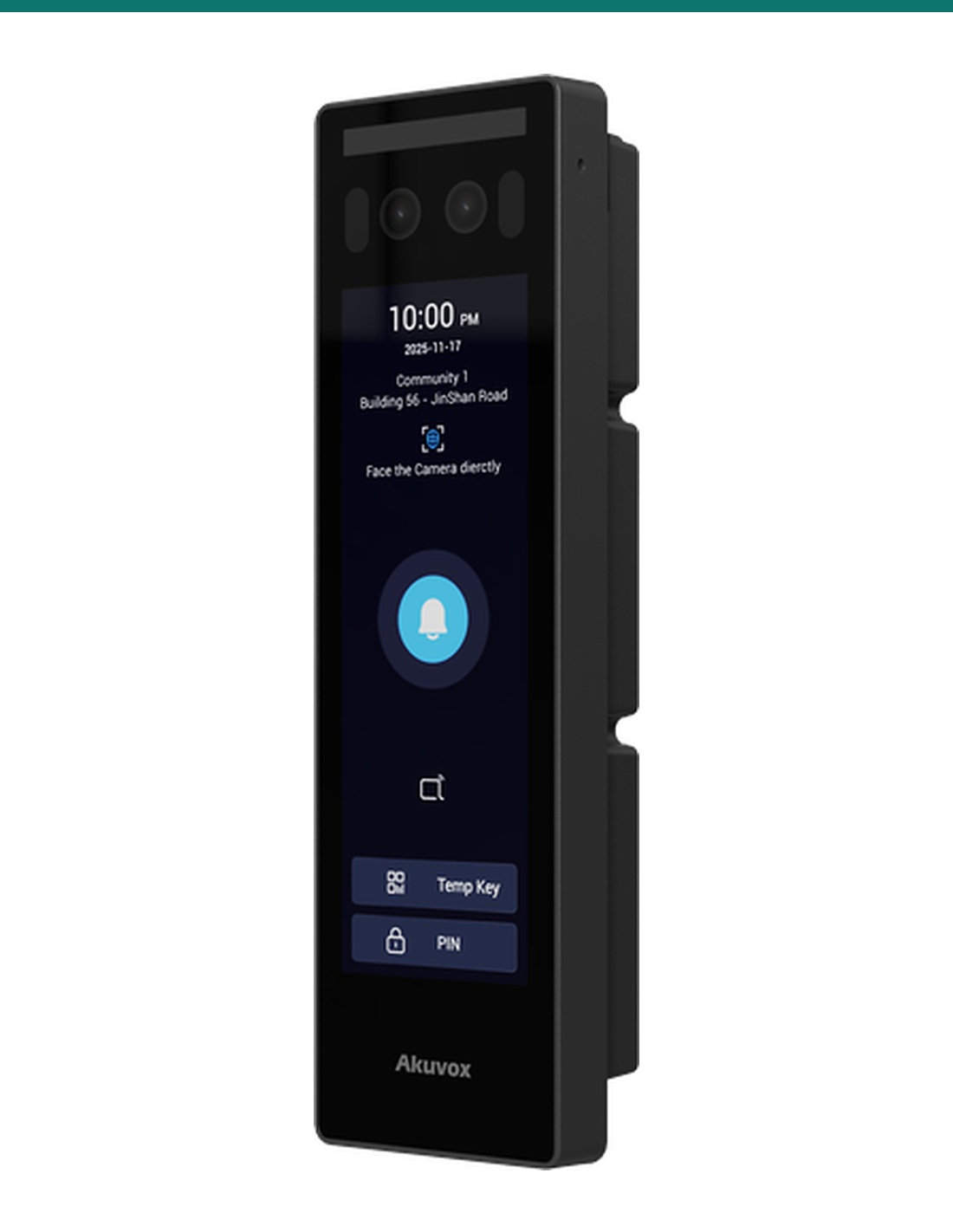

Akuvox A15 terminal — right three-quarter view

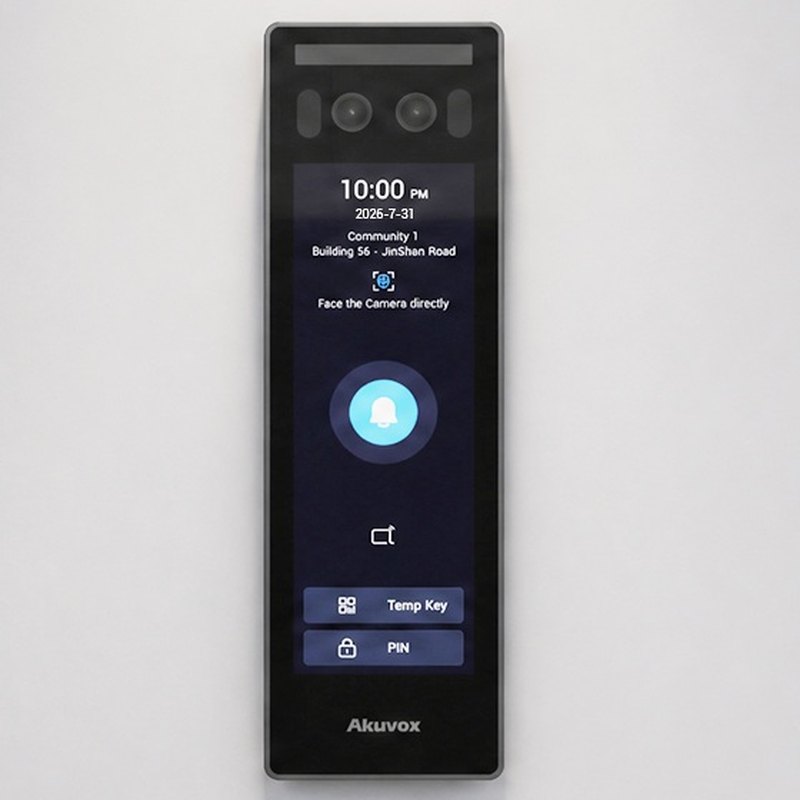

Akuvox A15 access control terminal mounted on a wall

Akuvox A15 Facial Recognition Access Control Terminal, 4.59″ — AK-A15

Name: Akuvox A15 Facial Recognition Access Control Terminal, 4.59″ — AK-A15
Brand: Akuvox
SKU: AK-A15
Price: 628.5 AUD
Availability: InStock

Reference: AK-A15

In Stock - Ready to Ship

$ 628.50

inc-GST

or 4 interest-free payments of $157.12 with

Akuvox A15 is a slim access control terminal that fits facial recognition, a 4.59-inch touchscreen and video intercom into a 50 mm wide body. Users enter by face, card, PIN, QR code, Bluetooth or mobile, and the A15 can power a lock or reader from its own PoE+ or DC supply. From Infront Technologies.

✓4.59″ touchscreen (320 × 960) in a 170 × 50 × 27.9 mm body
✓Face recognition under 200 ms at 99.7% with dual 2 MP cameras
✓5,000 faces · 25,000 cards · 5,000 PINs · 20,000 access logs
✓2 relays, 4 inputs, Wiegand, RS485 · PoE+ or 12 V DC with power out · IP65 / IK07

Akuvox · A15 · Access control terminal

Face recognition for a narrow door frame.
Six ways in, 50 mm wide.

The AK-A15 is Akuvox’s compact access control terminal (datasheet model A15S). An ultra-narrow bezel wraps a 4.59-inch touchscreen, two 2 MP cameras and a 13.56 MHz / NFC reader, with Wiegand, RS485, two relays and four inputs for third-party access systems.

In the box

The A15 ships with a wall-mounting bracket, template, wiring cover, cables and fixings for surface mounting. The in-wall installation box, indoor monitors, PoE switch, lock and cards are sold separately.

In the box

Akuvox A15 terminal
Wall-mounting bracket and template
Wiring cover, rubber plugs and wall anchors
Pin cables, screws, Torx wrench and diode

What you also need(sold separately)

PoE 802.3at switch / injector, or 12 V DC 2 A supply
Electric lock, strike or maglock
13.56 MHz MIFARE / DESFire cards or fobs
Optional Akuvox indoor monitor or SmartPlus app

Access control and intercom in one slim unit.

Fit it on a narrow mullion or beside an office door. Staff walk in by face or Bluetooth; visitors call through the video intercom; contractors use a card, PIN or QR code.

Wiring

Power the lock from the terminal.

Whether fed by PoE+ or a DC adapter, the A15 can pass power through to a peripheral such as a magnetic lock or card reader — 12 V DC / 0.5 A on PoE+, or 12 V DC / 1 A on DC input.

That means one cable to the door instead of separate lock power, cutting material and labour on new installs and retrofits.

Access

Six unlock modes, open interfaces.

Face recognition in under 200 ms at 99.7% accuracy, MIFARE / DESFire EV2 / EV3 / FeliCa cards, PIN, QR code, Bluetooth and mobile entry, with up to 5,000 users and 25,000 cards.

Wiegand, RS485 and two relays connect to third-party access control systems. The body is rated IP65 and IK07, with a −20 °C to +55 °C working range.

How it works

From bare wall to first entry.

Mount

Fix the supplied wall bracket using the template, or install the optional in-wall box for a flush finish.

Wire and power

Connect PoE+ or 12 V DC, the lock to a relay, and exit button or door sensor to the inputs.

Enrol

Use the web portal to add users, faces, cards and PINs, or link the A15 to your access system over Wiegand or RS485.

Test

Check face, card and PIN entry and confirm each relay releases its lock.

At a glance

Key specs — AK-A15

Brand: Akuvox
Reference: AK-A15
Body: Plastic
Display: 4.59″ LCD touchscreen, 320 × 960
Cameras: 2 MP main (1/2.9″ CMOS, HDR) + 2 MP auxiliary
Field of view: 81° (H) / 47° (V)
Video: H.264, up to 1920 × 1080 at 30 fps
Face recognition: Under 200 ms, 99.7% accuracy
RF reader: 13.56 MHz, NFC
Card types: MIFARE, DESFire EV2 / EV3, FeliCa
Unlock: Face, card, PIN, QR code, BLE, mobile, DTMF
Capacity: 5,000 users · 5,000 faces · 25,000 cards · 5,000 PINs · 20,000 logs
I/O: 2 relays, 4 inputs, Wiegand in/out, RS485, tamper
Audio: SIP v1 / v2, G.711, G.722, echo cancellation
Network: RJ45 10/100 Mbps, RTSP, BLE 5.0
Power in: PoE 802.3at or 12 V DC / 2 A
Power out: 12 V DC / 0.5 A (PoE+) or 1 A (DC input)
Protection: IP65 · IK07
Size: 170 × 50 × 27.9 mm (H × W × D)
Working temperature: −20 °C to +55 °C
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes your access point

Credentials

MIFARE cards

Akuvox 13.56 MHz MIFARE Classic cards work with the A15 reader once enrolled.

Credentials

DESFire cards and fobs

DESFire EV3 cards and MIFARE fobs for higher-security sites.

Indoor

Akuvox indoor monitor

Answer intercom calls from the A15 and release the door from an Akuvox SIP monitor.

Watch

See it in action

Installing the A15 access control terminal

Unlocking the A15 with card, PIN and QR code

Answers

Common questions

Is the A15 an intercom or an access reader?

Both. It is an access control terminal with face, card, PIN, QR, BLE and mobile entry, plus SIP video intercom.

Does it read 125 kHz proximity cards?

No. The reader is 13.56 MHz only — MIFARE, DESFire EV2 / EV3 and FeliCa — plus NFC.

Can it power my lock?

Yes, small loads. It outputs 12 V DC up to 0.5 A when powered by PoE+, or up to 1 A when powered by 12 V DC.

Is a mounting bracket included?

Yes, a wall-mounting bracket and template are in the box. A flush in-wall installation box is available separately.

A narrow terminal for real-world doors.

Choose the A15 for offices, shared buildings and retrofit projects that want facial recognition and intercom on a tight frame. Order through Infront Technologies for Australian supply and help with cards, lock power and integration.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE or a 12 V DC / 2 A supply as stated on the Akuvox A15 datasheet. The power output supplies 12 V DC / 0.5 A from PoE+ or 12 V DC / 1 A from a DC input.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
