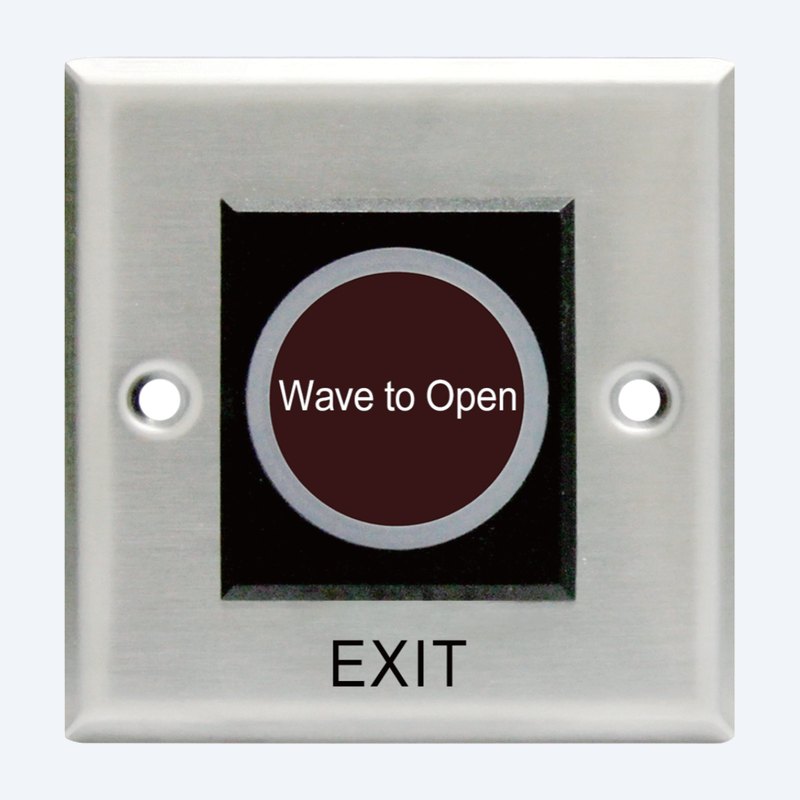

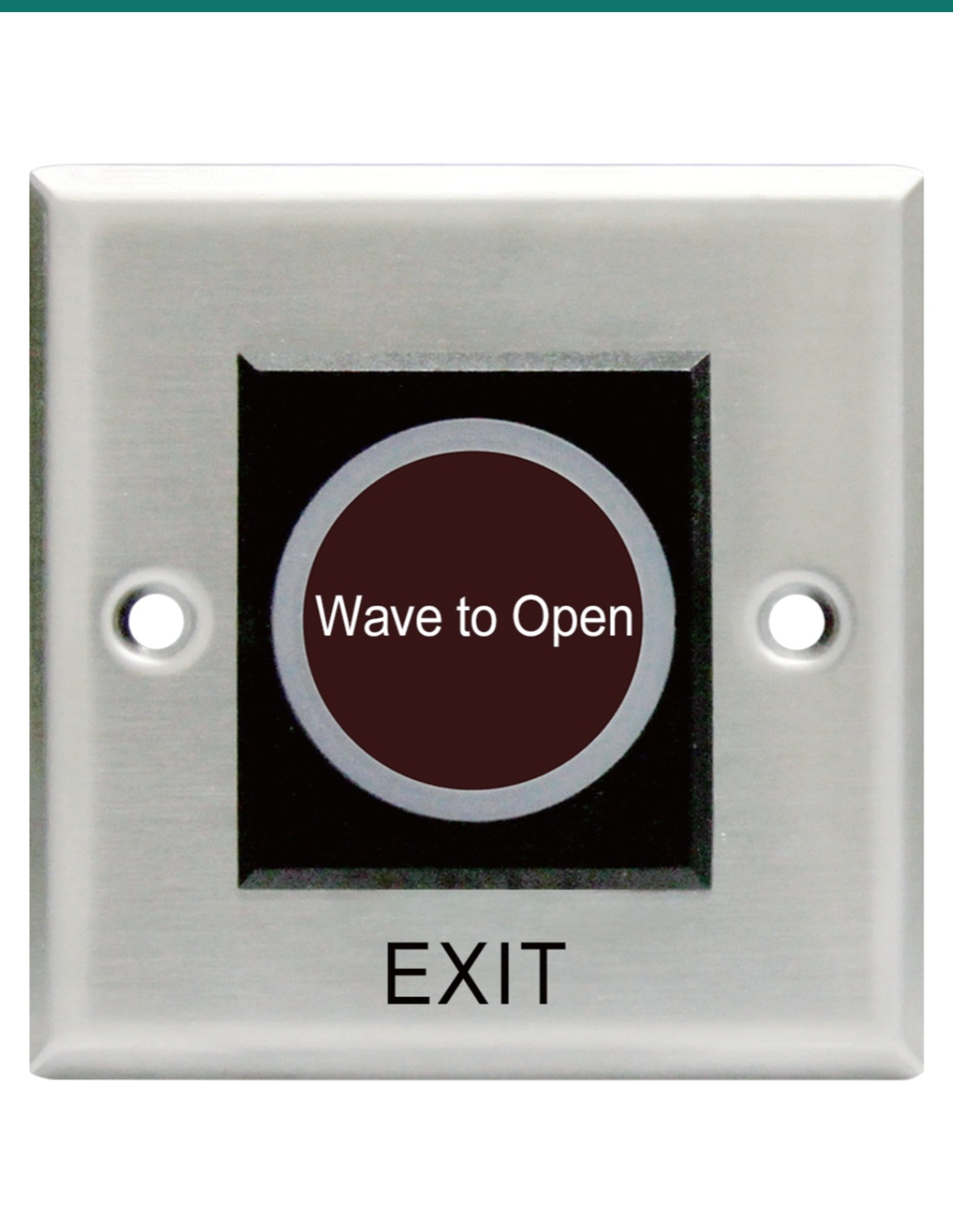

Akuvox EB13 is a touch-free exit sensor. Wave a hand in front of the infrared window and the door releases — no button to touch. Brushed stainless plate, blue and red LED, and an IP55 housing.
The AK-EB13-SILVER is Akuvox’s EB13 infrared exit sensor for doors where hygiene and accessibility matter.
This SKU is the exit button only.
You receive the EB13 exit sensor with two screws and wall anchors. The door phone or access controller, electric lock, 12 V supply and wall box are sold separately.
A good fit for medical rooms, food areas, public buildings and anyone with their hands full.
Sensor
The infrared window detects a hand and gives a momentary output to release the door. Its LED shows blue and red status.
The 1.7 mm stainless plate and IP55 housing suit indoor and semi-outdoor positions, at 86 × 86 × 38 mm.
How it works
01
Set an 86 × 86 mm box into the wall on the secure side of the door.
02
Red and black to 12 V DC; white (COM) with yellow (NO) or green (NC) to the exit-button input.
03
Fix the plate with the two screws, set the relay hold time in the device web interface, then wave a hand in front of the sensor to confirm the lock releases.
At a glance
Show all specifications
Pair it with
Door phone
Door phones with a door-release input for the button.
Access
Access terminal that can take an exit button input.
Credentials
Entry from outside with cards, fobs or Bkey.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
No. A hand wave in front of the infrared sensor triggers the release.
Yes. The sensor runs from 12–24 V DC on the red and black wires; the output contacts are separate.
Wire white (COM) and yellow (NO) to the door phone’s exit-button input; use green (NC) instead for fail-safe circuits that need a normally closed contact.
It is rated IP55 for indoor and semi-outdoor positions. Shelter it from direct rain and sun.
An 86 × 86 mm electrical box, the size used by most EU-style wall boxes.
The sensor plate plus two ST3.5 × 30 self-tapping screws and two plastic wall anchors.
EB11 is a mechanical push button on a tall 115 × 70 mm plate rated IK10. EB13 is touch-free, IP55 and fits an 86 × 86 mm box.
The EB13 wires to the exit input of any Akuvox door phone or A08, so staff and residents can release the door from inside.
Low-voltage product (SELV). The button is rated for DC 12–24 V circuits at up to 5 A, with an LED working voltage of 6–12 V and a built-in dropper resistor. Treat as SELV low-voltage equipment; electric locks and their supplies should be installed by a licensed security installer or electrician.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
