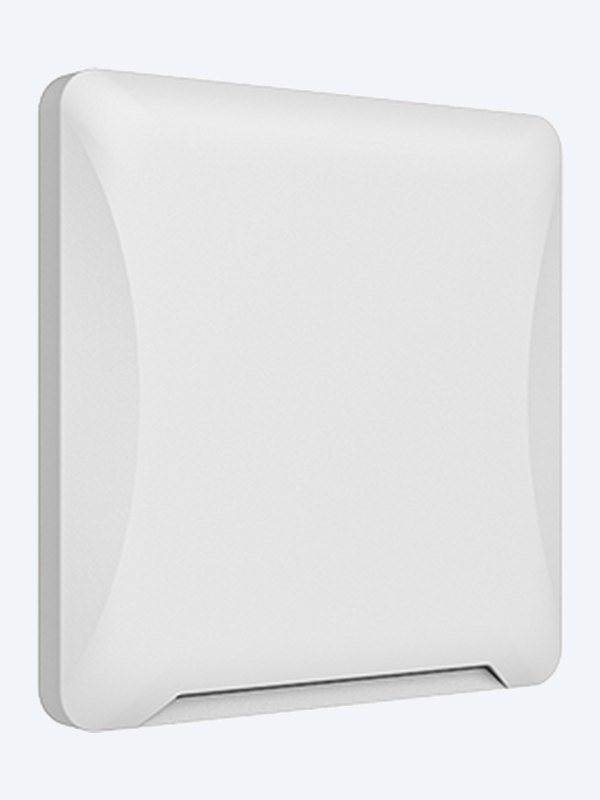

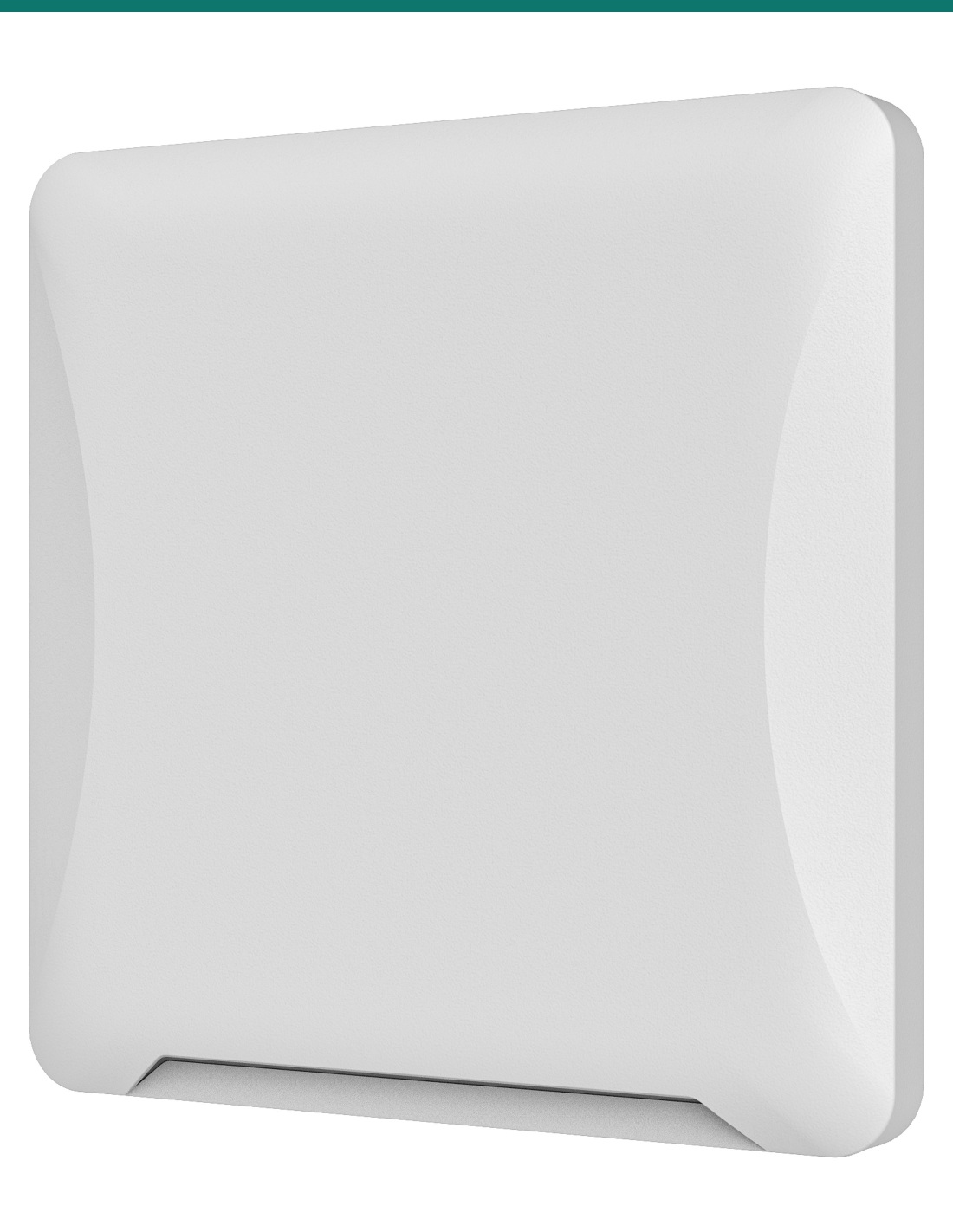

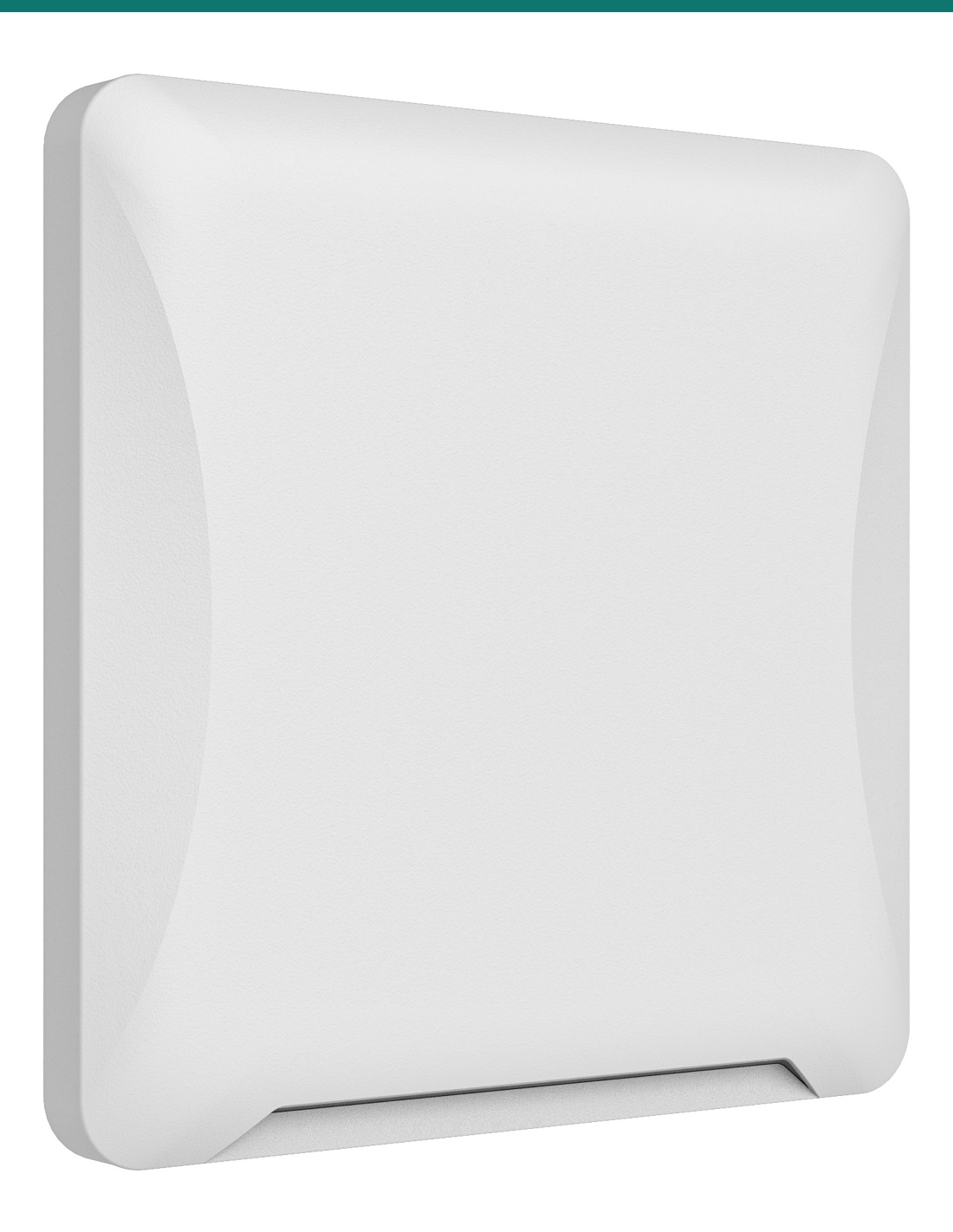

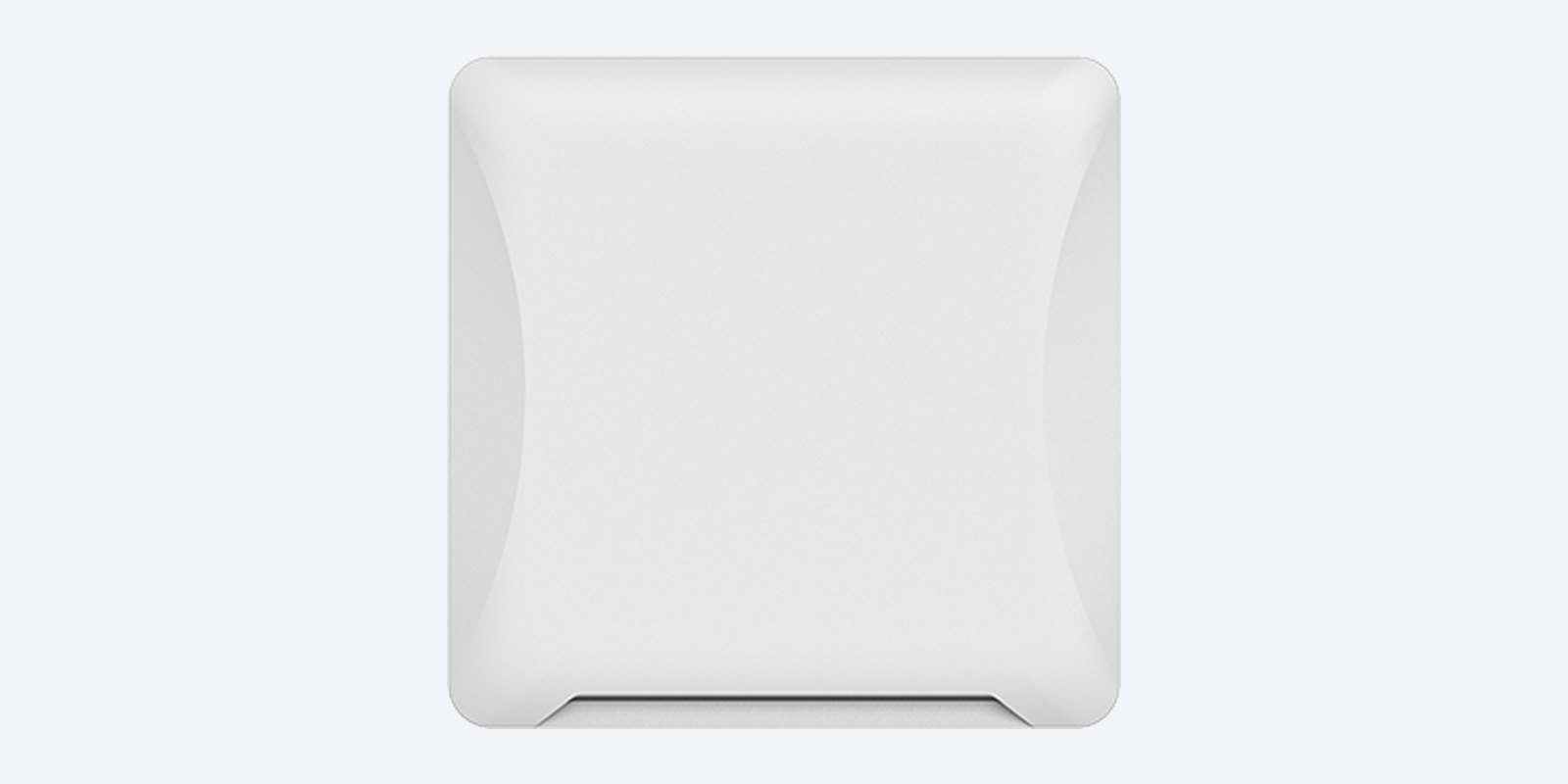

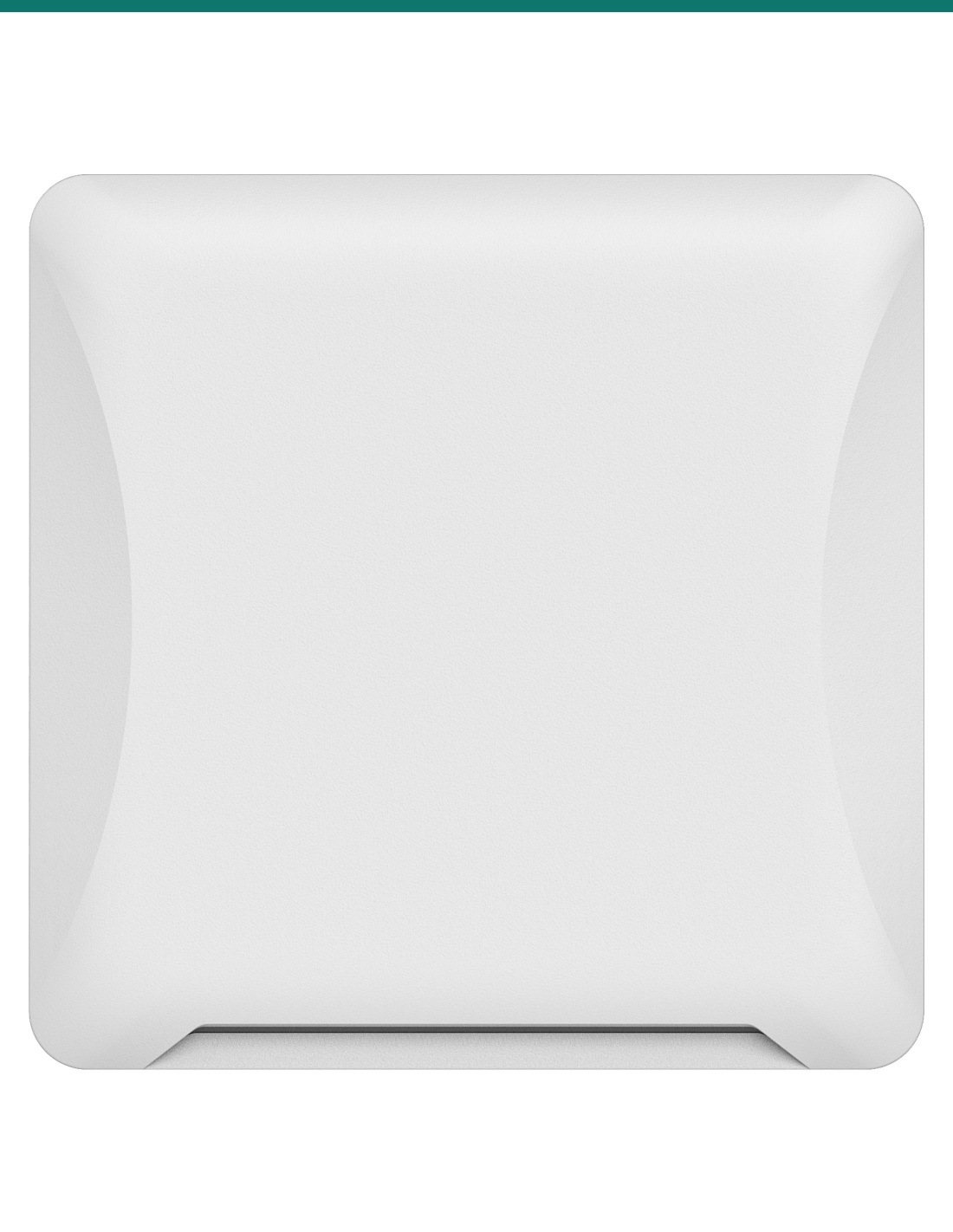

Akuvox ACR-CRP12 White 15 m Long-Range UHF Vehicle Reader — AK-ACR-CRP12
$308.00 inc GST
Akuvox ACR-CRP12 reads UHF windscreen tags from up to 15 m, so residents and staff drive up and the boom gate or garage door opens without winding down a window. 9 dBi antenna, IP66 housing for outdoor posts, and a Wiegand output to the access controller or Akuvox device that drives the gate.
- ✓Reads UHF EPC Class 1 Gen 2 (ISO 18000-6C) tags at up to 15 m
- ✓Wiegand and USB interfaces
- ✓IP66 white housing, −20 °C to +65 °C, seven-colour status light and buzzer
- ✓9–15 V DC · 9 dBi antenna · 308.5 × 308.5 × 67.5 mm
Akuvox · ACR-CRP12 · Long-range UHF reader
Drive up.
The gate opens.
The AK-ACR-CRP12 is Akuvox’s long-range UHF reader for car parks, boom gates and garage doors. It reads windscreen tags from up to 15 m as the vehicle approaches.
This SKU is the long-range reader only.
You receive the ACR-CRP12 reader. UHF tags, the gate or door controller, mounting post and 9–15 V DC power supply are sold separately.
In the box
- Akuvox ACR-CRP12 long-range UHF reader
What you also need(sold separately)
- Akuvox UHF-TAG11 windscreen tags
- Access controller or Akuvox device with a Wiegand input
- 9–15 V DC power supply rated for at least 3 A
Hands-free vehicle access.
The reader identifies the tag on an approaching vehicle and passes its number over Wiegand to the access controller or Akuvox door phone at the entry, which checks it and triggers the gate — ideal for apartment car parks and staff parking.
Outdoor
IP66 for open-air posts.
The sealed white housing is rated IP66 and −20 °C to +65 °C, so it can sit on a post at the gate line.
A 9 dBi antenna reads EPC Gen2 tags in the 902–928 MHz (US) and 865–868 MHz (EU) bands at up to 15 m.
How it works
Three-part vehicle access.
01
Enrol
Read each UHF-TAG11 at the desk with the Akuvox ACR-CID12 and assign it to a user.
02
Fit
Mount the reader facing the approach lane and fix the tag inside the windscreen.
03
Connect
Wire the Wiegand output to the controller or Akuvox device that drives the gate, and power the reader from 9–15 V DC.
At a glance
Key specs — AK-ACR-CRP12
Show all specifications
- Card technology
- UHF, EPC Class 1 Gen 2 / ISO 18000-6C
- Read range
- Up to 15 m
- Frequency
- 902–928 MHz (US) / 865–868 MHz (EU)
- Antenna
- 9 dBi
- Interface
- Wiegand, USB
- Power
- 9–15 V DC; standby under 1 A, reading under 3 A
- Indicators
- Buzzer, seven-colour status light
- Protection
- IP66
- Material / colour
- Plastic, white
- Size
- 308.5 × 308.5 × 67.5 mm
- Working temperature
- −20 °C to +65 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-ACR-CRP12
Reader and power
- Protocol
- EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
- Read range
- Up to 15 m
- Operating frequency
- 902–928 MHz (US standard) or 865–868 MHz (EU standard)
- Antenna gain
- 9 dBi
- Communication interfaces
- Wiegand, USB
- Operating voltage
- 9–15 V DC
- Current
- Standby under 1 A, reading under 3 A
- Buzzer
- 1
- Indicator light
- Red, yellow, green, blue, cyan, purple, white
Physical and environment
- Frame
- Plastic
- Colour
- White
- Dimensions
- 308.5 × 308.5 × 67.5 mm
- Ingress protection
- IP66
- Working temperature
- −20 °C to +65 °C
- Storage temperature
- −20 °C to +80 °C
Pair it with
Builds hands-free vehicle access
Tags

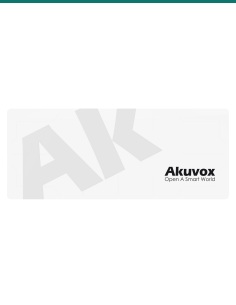

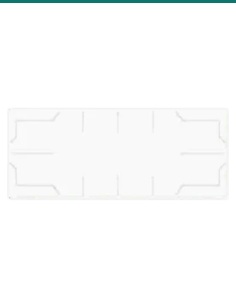

Akuvox UHF-TAG11
Windscreen tags read at up to 15 m.
Enrol
Akuvox ACR-CID12
Desktop reader to capture tags before issue.
Control
Akuvox A08
Access controller option for the Wiegand connection.
Works with
Platforms and integrations
Wiegand access controllers
Sends each tag number over Wiegand to the controller that releases the boom gate or garage door.
Akuvox door phones and terminals
Connects to the Wiegand input of an Akuvox door phone or access terminal at the vehicle entry.
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How far does it read?
Up to 15 m. Real range depends on tag placement, windscreen coatings and mounting angle.
Which tags does it read?
UHF EPC Class 1 Gen 2 (ISO 18000-6C) tags such as the Akuvox UHF-TAG11 windscreen tag.
Can it be mounted outdoors?
Yes. The housing is IP66 and rated −20 °C to +65 °C.
How does it connect to the gate?
Through its Wiegand output to an access controller or compatible Akuvox device, which then switches the gate or door.
What power does it need?
9–15 V DC. Size the supply for up to 3 A while reading (under 1 A on standby).
How are tags enrolled?
Read each tag at the desk with the Akuvox ACR-CID12 USB reader, assign it to the user, then fit it inside the windscreen.
Car park access.
The ACR-CRP12 reads UHF windscreen tags at range, with the ACR-CID12 desktop reader for enrolment.
Installation & safety notice
Low-voltage product (SELV). Runs on 9–15 V DC (standby under 1 A, under 3 A while reading). Treat as SELV low-voltage equipment; gate and barrier motors are a separate electrical install.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
