Akuvox UHF-TAG11 White UHF Windscreen Vehicle Tag — AK-UHF-TAG11

SKU AK-UHF-TAG11 In Stock - Ready to Ship
$4.20 inc GST

Akuvox UHF-TAG11 is a passive UHF tag that fixes inside the windscreen. The Akuvox ACR-CRP12 reads it from up to 15 m, so the gate opens as the car approaches. Sold as a single tag.

  • ✓NXP UCODE 8 chip, ISO/IEC 18000-6C EPC Gen2, 860–960 MHz
  • ✓Read at up to 15 m by the Akuvox ACR-CRP12 long-range reader
  • ✓Passive — no battery to replace
  • ✓PET base with aluminium-etched antenna · 110 × 45 mm · sold singly


Akuvox UHF-TAG11 white windscreen tag
Akuvox · UHF-TAG11 · Windscreen tag

A tag on the glass.
Up to 15 m to the gate.

The AK-UHF-TAG11 is Akuvox’s UHF windscreen tag for hands-free vehicle access with the ACR-CRP12 long-range reader. Each SKU is one tag.

This SKU is one windscreen tag.

You receive a single UHF-TAG11. The ACR-CRP12 long-range reader, ACR-CID12 desktop enrolment reader and gate controller are sold separately.

In the box
  • 1 × Akuvox UHF-TAG11 windscreen tag
What you also need (sold separately)
  • Akuvox ACR-CRP12 long-range UHF reader
  • Akuvox ACR-CID12 to enrol tags at the desk
  • Gate or door controller

Hands-free, battery-free.

The tag is passive, so there is nothing to charge or replace — it is energised by the reader as the vehicle enters the read zone.

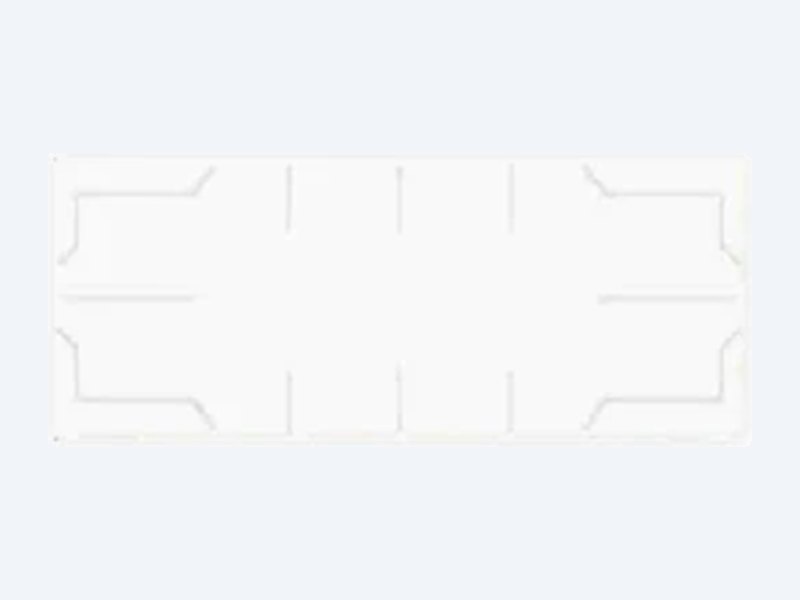

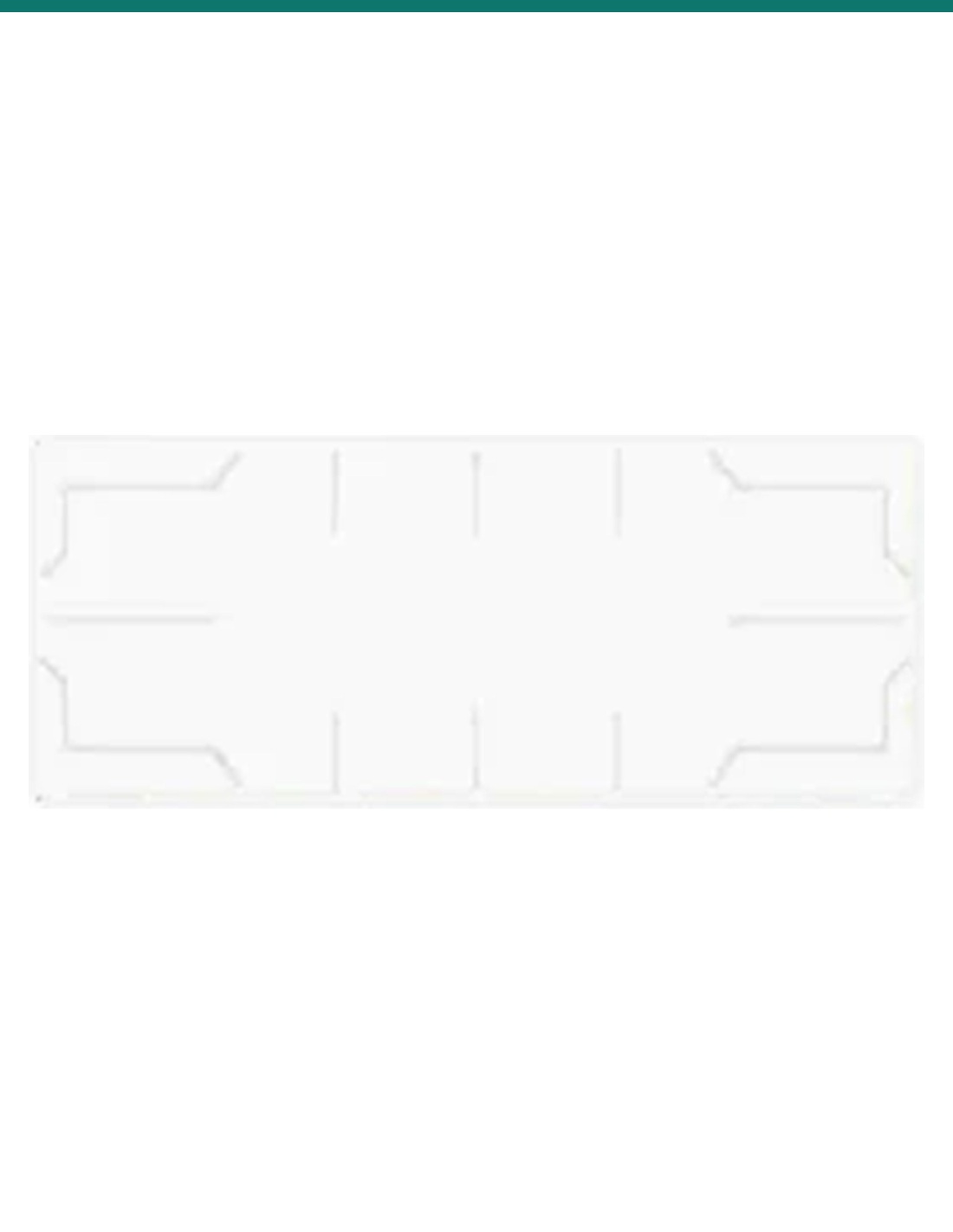

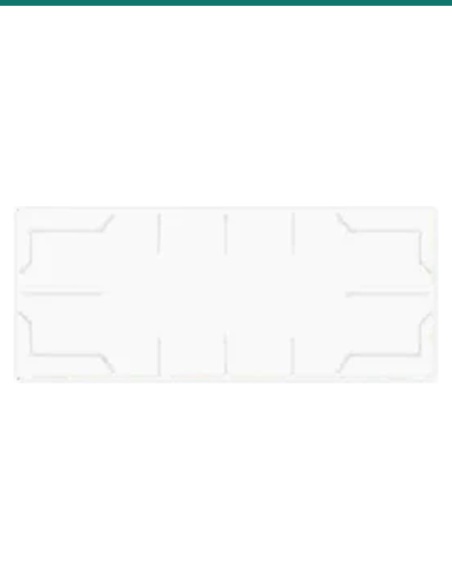

Akuvox UHF-TAG11 windscreen tag rear

Chip

UCODE 8, EPC Gen2.

Inside is an NXP UCODE 8 chip with a 128-bit EPC and 96-bit TID, rated for 100,000 write cycles.

The PET base and aluminium-etched antenna suit an operating range of −20 °C to +50 °C.

Pair it with

Read by Akuvox UHF readers

Gate

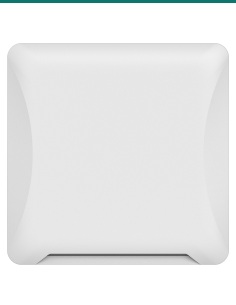

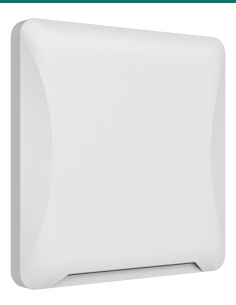

Akuvox ACR-CRP12

Long-range UHF reader for the vehicle entry.

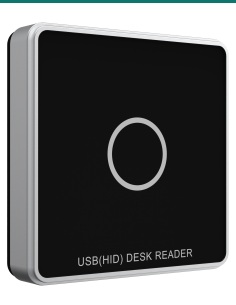

Enrol

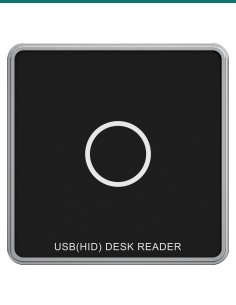

Akuvox ACR-CID12

Desktop UHF reader to capture each tag before issue.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is this one tag or a pack?

One tag. Order one for each vehicle.

Which reader reads it?

The Akuvox ACR-CRP12 long-range reader at the gate, from up to 15 m, and the ACR-CID12 desktop reader for enrolment.

How is it enrolled?

Place the tag on the ACR-CID12 USB reader at the desk to capture its number, assign it to the user, then hand it out.

Does it need a battery?

No. It is a passive UHF tag powered by the reader’s signal.

Where is it fitted?

Stuck directly to the inside of the windscreen, facing the reader. Metallised or heated windscreen films can reduce range.

Will a normal card reader or door phone read it?

No. It is a UHF (860–960 MHz) tag; Akuvox door phones and 125 kHz / 13.56 MHz readers cannot read it.

Tags for every car.

UHF-TAG11 tags read at range by the ACR-CRP12 and enrol on the ACR-CID12 desktop reader.

Installation & safety notice

Passive tag with no wiring or battery. Fit to clean, dry glass inside the vehicle.

Memory
EPC 128 bit, TID 96 bit
Frequency
860–960 MHz
Material
PET base, aluminium-etched antenna
Colour
White
Working Temperature
−20 °C to +50 °C
Brand
Akuvox
Standard
ISO/IEC 18000-6C, EPC Class 1 Gen 2
Size
110 × 45 mm
Warranty
Australian warranty
Product Type
UHF windscreen vehicle tag
Model
UHF-TAG11
Chip
NXP UCODE 8
Pack Quantity
1 tag
Read Range
Up to 15 m with Akuvox ACR-CRP12
