Akuvox HID iCLASS White 13.56 MHz 2k Clamshell Card — AK-CARD-ICLASS
$26.00
inc GST

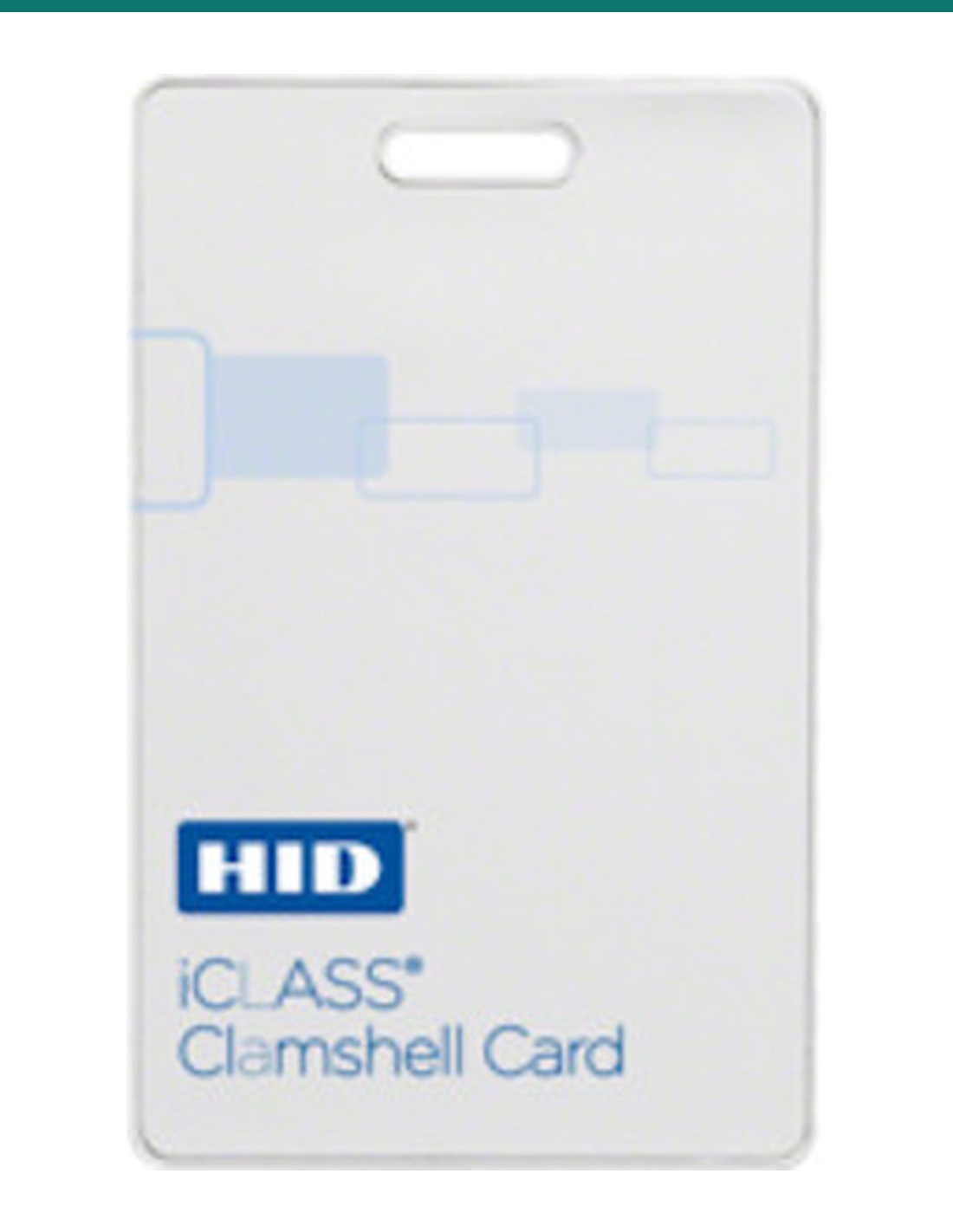

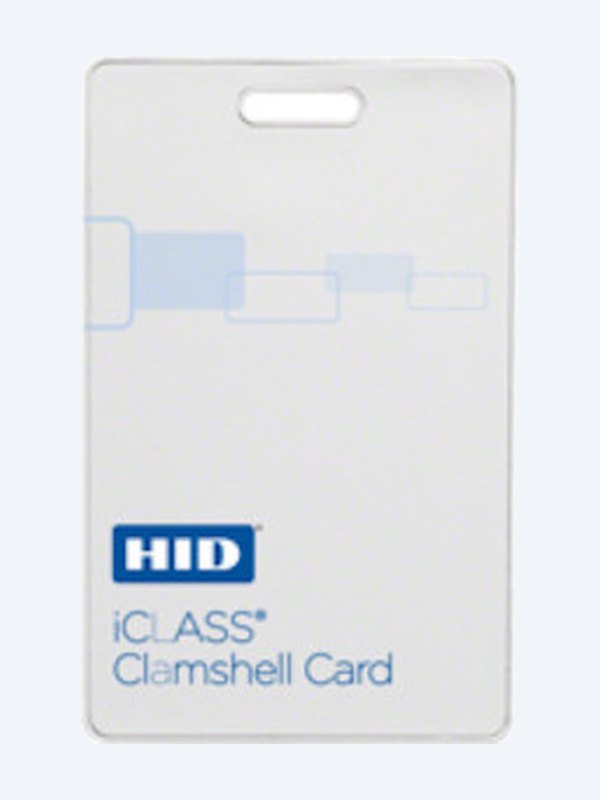

Akuvox HID iCLASS is a genuine HID iCLASS 2k clamshell smart card — 13.56 MHz, not 125 kHz — for the HID iCLASS versions of Akuvox access terminals and door phones, including the A08S HID iCLASS. Sold as a single card.
- ✓Genuine HID iCLASS Clamshell (2080), 13.56 MHz ISO 15693
- ✓2k bit (256 byte) with 2 application areas, mutual authentication
- ✓Read by the HID iCLASS versions of the Akuvox A08S, X915S and X912K
- ✓ABS clamshell, slot-punched · 85.7 × 54 × 1.8 mm · sold singly
Akuvox · HID iCLASS · 13.56 MHz card
HID iCLASS
on Akuvox doors.
The AK-CARD-ICLASS is an HID iCLASS Clamshell card for Akuvox readers built with HID iCLASS technology. Each SKU is one card.
This SKU is one card.
You receive a single HID iCLASS card. The HID iCLASS version of the Akuvox A08S, X915S or X912K is sold separately.
In the box
- 1 × HID iCLASS clamshell card
What you also need (sold separately)
- HID iCLASS version of the Akuvox A08S, X915S or X912K
- Current Akuvox firmware
For HID iCLASS sites.
Keeps one credential for buildings that already run HID iCLASS while Akuvox terminals are added.
Security
Mutual authentication.
iCLASS encrypts the radio link between card and reader and protects each application area with 64-bit diversified keys.
The ABS clamshell has a PVC label and slot punch, and is rated −40 °C to +70 °C with typical transactions under 100 ms.
At a glance
Key specs — AK-CARD-ICLASS
Show all specifications
- Card
- HID iCLASS Clamshell, base part 2080
- Frequency
- 13.56 MHz
- Standard
- ISO 15693 read / write
- Memory
- 2k bit (256 byte), 2 application areas
- Security
- Mutual authentication, 64-bit diversified keys
- Akuvox readers
- A08S, X915S and X912K HID iCLASS versions
- Construction
- ABS shell with PVC label, slot-punched
- Size
- 85.7 × 54 × 1.8 mm
- Weight
- 6.8 g
- Working temperature
- −40 °C to +70 °C
- Pack quantity
- 1 card
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-CARD-ICLASS
Card and security
- Base part number
- HID 2080
- Operating frequency
- 13.56 MHz
- RF interface
- ISO 15693 read / write
- Memory type
- EEPROM, read / write
- Memory
- 2k bit (256 byte), 2 application areas
- Security
- Mutual authentication, encrypted RF link, 64-bit diversified keys; optional DES / triple DES data protection
- Transaction time
- Under 100 ms typical
- Baud rate
- 26 kbps
- Write endurance
- 100,000 cycles minimum
- Data retention
- 10 years
Physical and environment
- Construction
- ABS shell with PVC cover label, slot-punched
- Dimensions
- 54 × 85.7 × 1.8 mm max (2.125 × 3.375 × 0.070 in)
- Weight
- 6.8 g
- Operating temperature
- −40 °C to +70 °C
- Operating humidity
- 5–95%, non-condensing
- Read life
- 100,000 reads minimum (estimated), passive
Pair it with
Reads on Akuvox HID readers
Access
Akuvox A08S HID iCLASS version
Slim access terminal whose 13.56 MHz reader takes HID iCLASS and Seos.
Door
Akuvox X915S and X912K HID iCLASS versions
Door phones with a 13.56 MHz HID iCLASS reader.
125 kHz

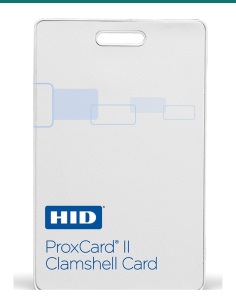

Akuvox HID ProxCard II
HID Prox card for 125 kHz HID sites.
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Is iCLASS 125 kHz?
No. HID iCLASS is a 13.56 MHz smart card technology (ISO 15693). HID Prox is the 125 kHz type.
Is this one card or a pack?
One card. Order the quantity you need.
Which Akuvox devices read it?
The HID iCLASS versions of the Akuvox A08S access terminal, X915S door phone and X912K door phone.
Will a standard Akuvox reader read it?
No. Standard Akuvox 13.56 MHz readers take MIFARE and DESFire cards; iCLASS needs an Akuvox HID iCLASS version.
How is it enrolled?
On the device’s user page click Obtain and hold the card on the reader, or import the card numbers into the access table.
Is it a genuine HID card?
Yes. It is an HID iCLASS Clamshell, base part 2080, with the HID access control application in one of its two areas.
HID cards.
HID iCLASS cards work with the HID iCLASS versions of Akuvox terminals and door phones, so one credential covers existing HID doors and new Akuvox entries.
Installation & safety notice
Passive card with no battery or wiring.
- Weight
- 6.8 g
- Frequency
- 13.56 MHz
- Colour
- White
- Brand
- Akuvox
- Security
- Mutual authentication, 64-bit diversified keys
- Standard
- ISO 15693
- Size
- 85.7 × 54 × 1.8 mm
- Warranty
- Australian warranty
- Product Type
- 13.56 MHz smart clamshell card
- Model
- HID iCLASS Clamshell (2080)
- Card Technology
- HID iCLASS, 2k bit (256 byte), 2 application areas
- Pack Quantity
- 1 card
- Compatible with
- Akuvox A08S / X915S / X912K HID iCLASS versions
