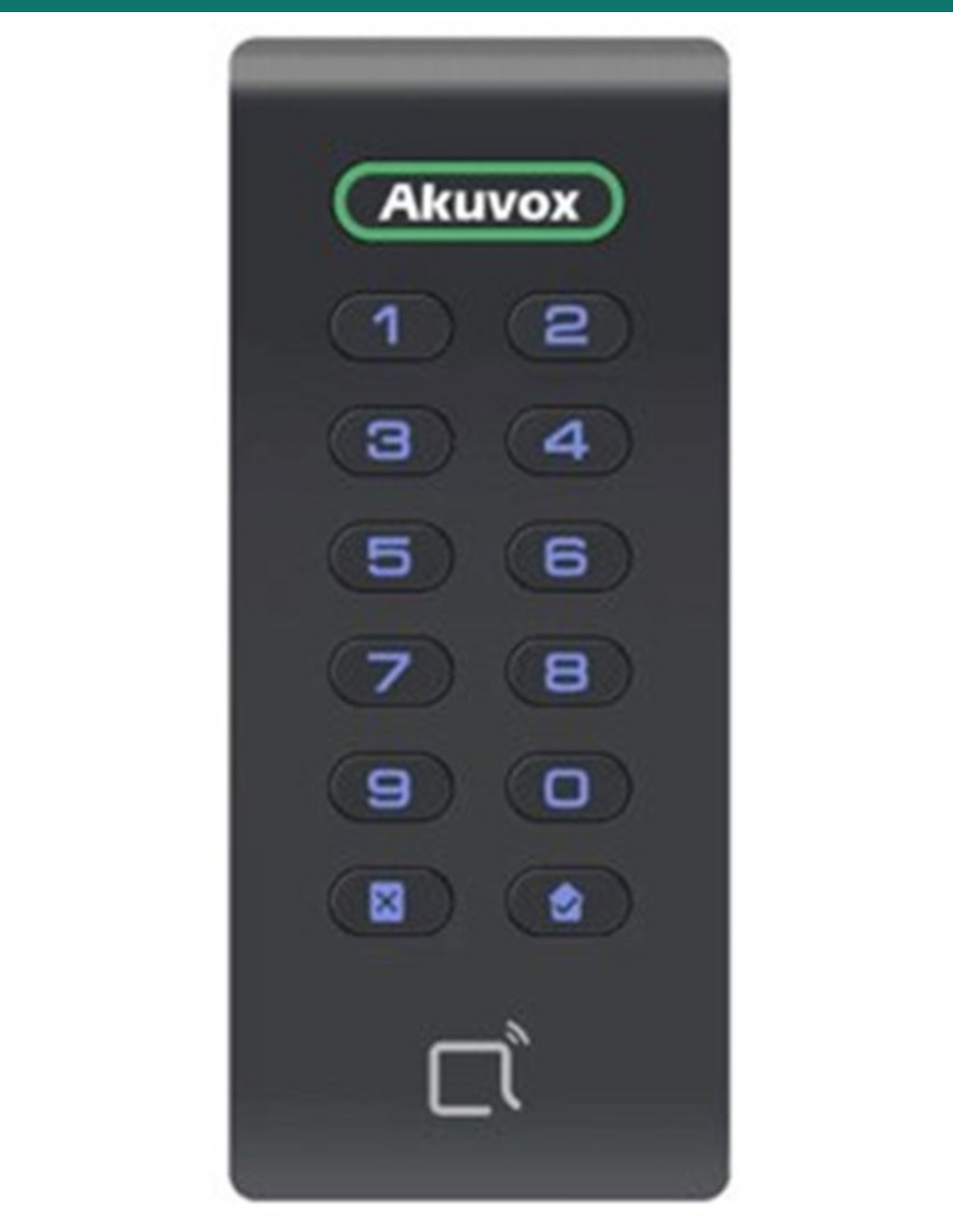

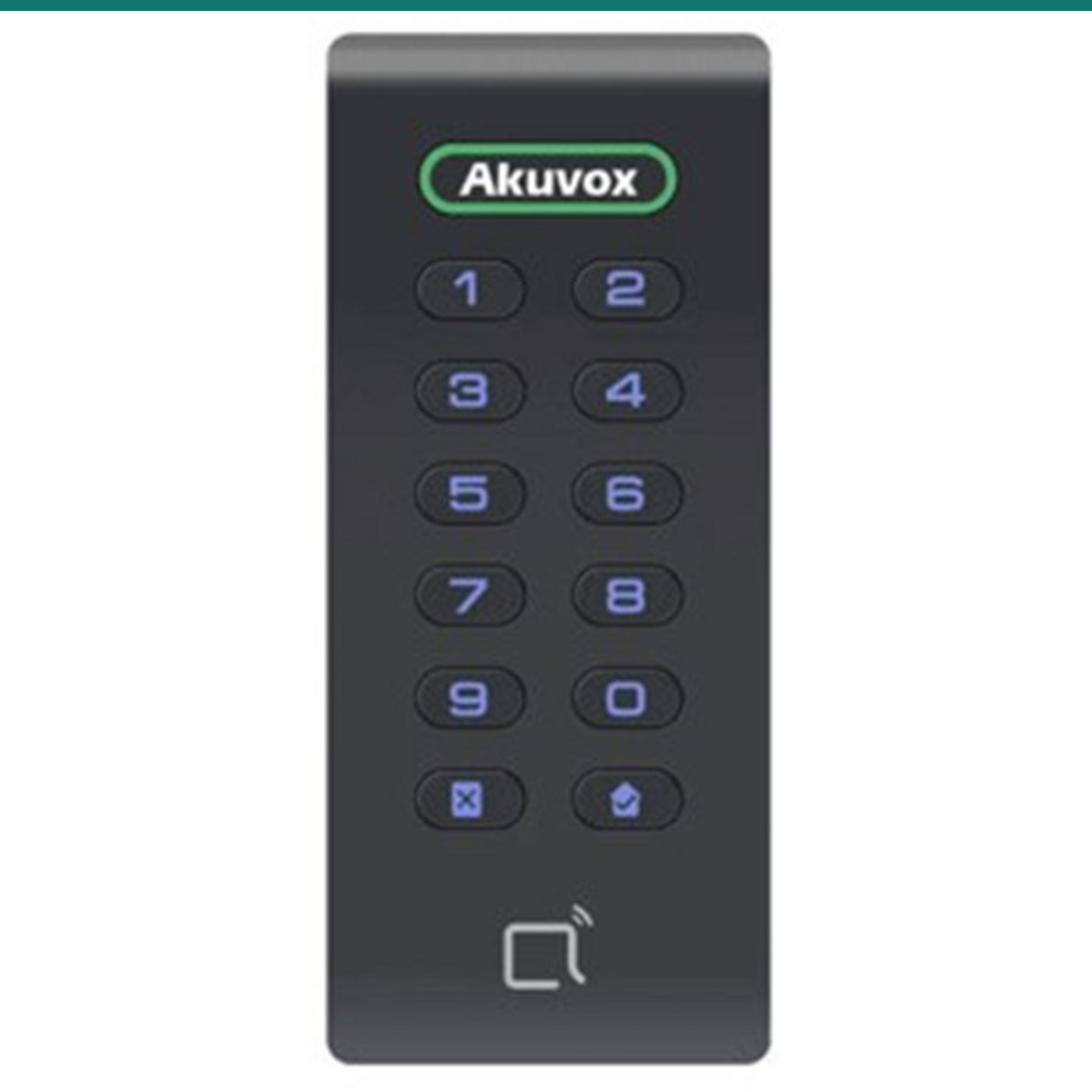

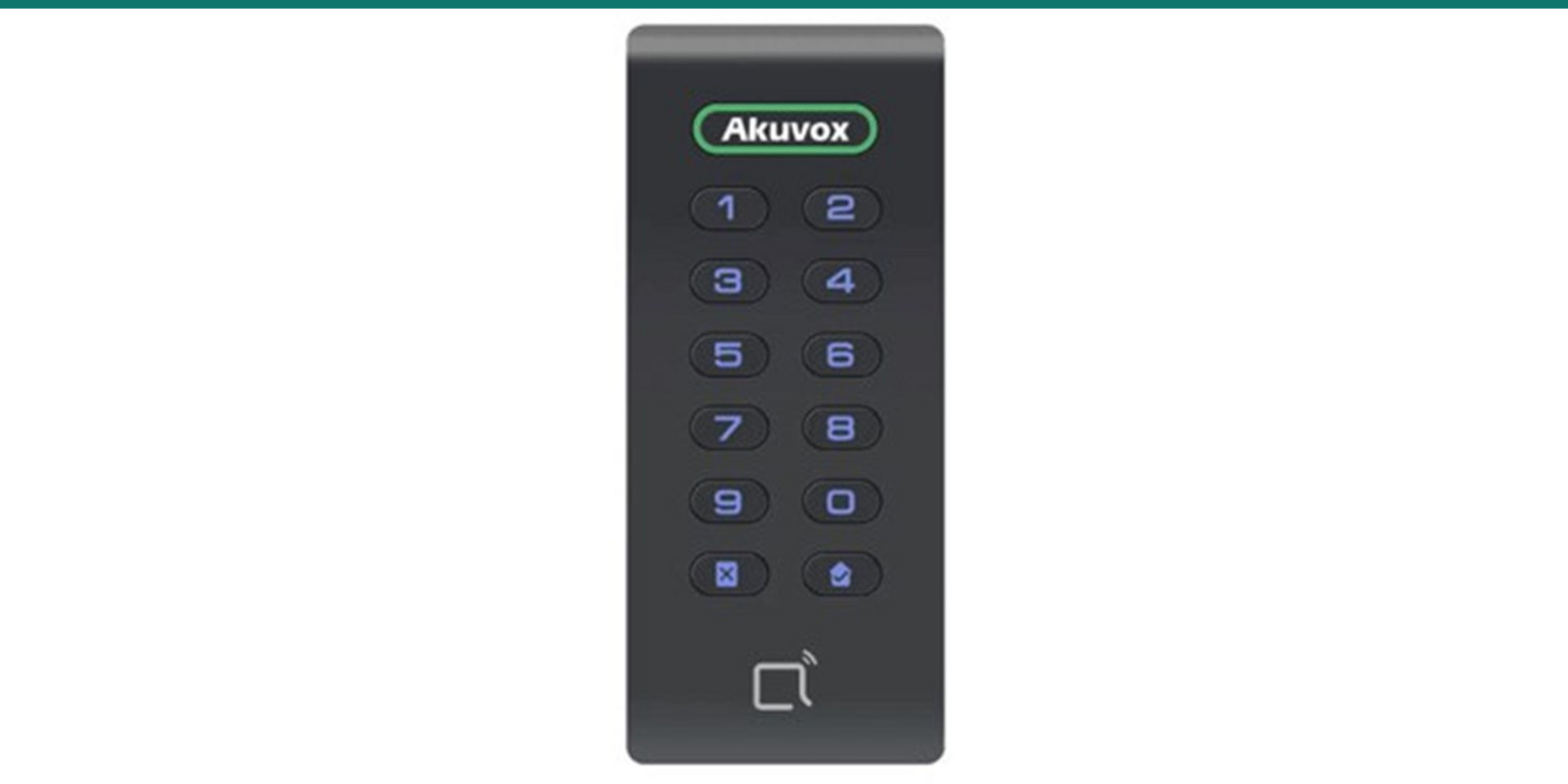

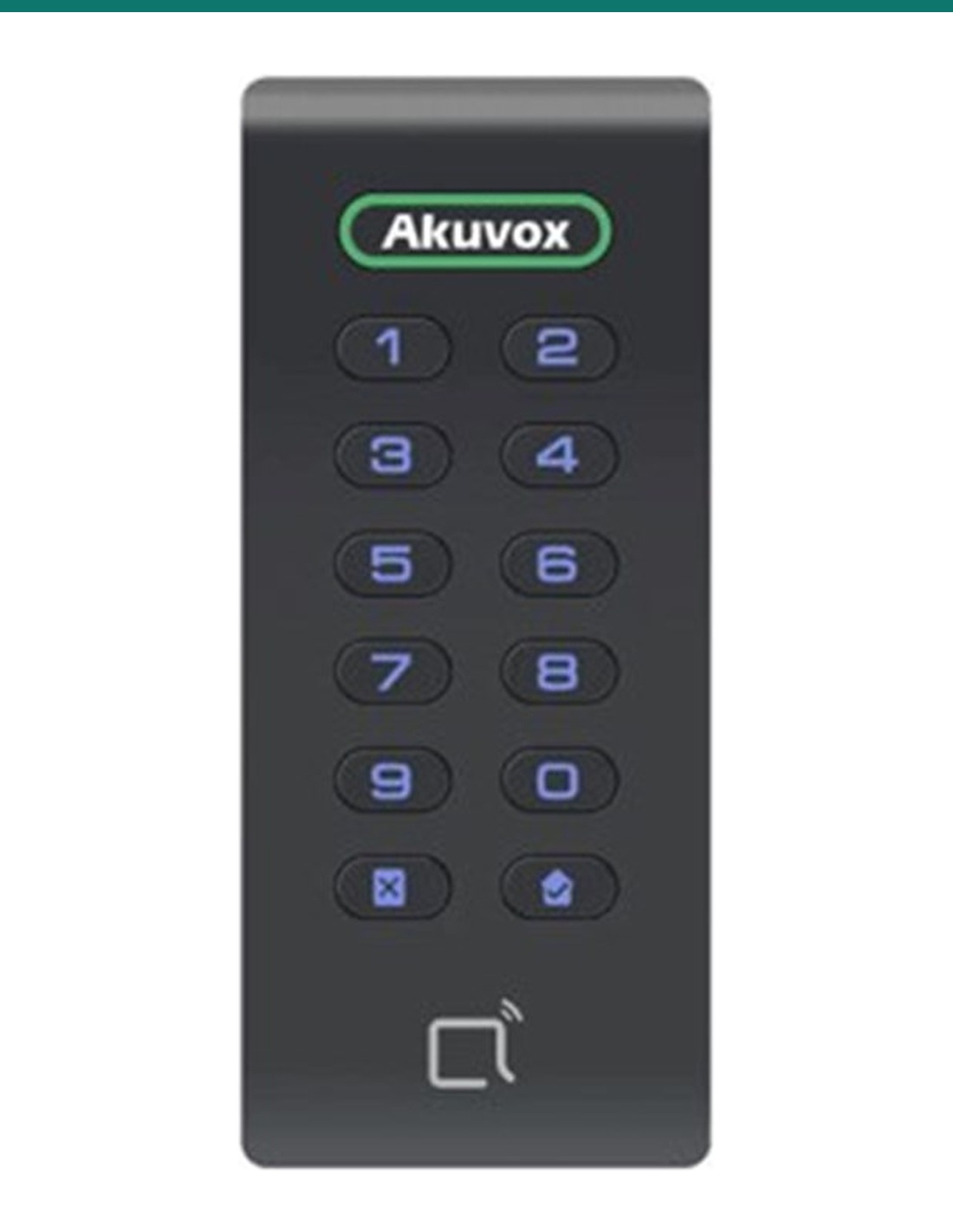

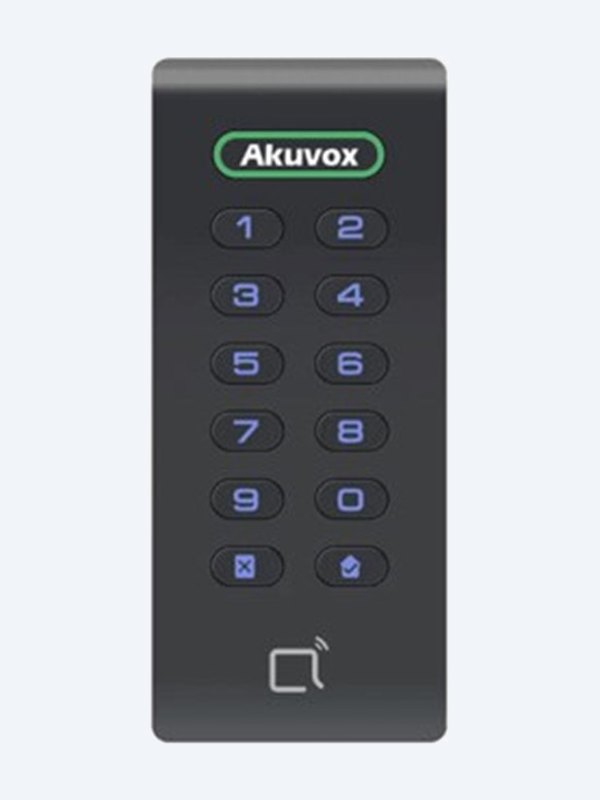

Akuvox ACR-CRP11 Black 13.56 MHz and 125 kHz Wiegand Card Reader with Keypad, IP65 — AK-ACR-CRP11
AK-ACR-CRP11
In Stock - Ready to Ship $ 47.80
inc-GST
or 4 interest-free payments of $11.95 with
Akuvox ACR-CRP11 is a cost-effective Wiegand card reader with a physical keypad. It reads 13.56 MHz and 125 kHz cards, takes PIN entry, and wires to an Akuvox access controller such as the A094S or A095S — or an Akuvox door phone’s Wiegand port — to add an extra entry or exit. IP65, 12 V DC.
- ✓Reads 13.56 MHz and 125 kHz cards and fobs
- ✓Physical keypad for PIN entry, with buzzer and status light
- ✓Wiegand output to Akuvox A094S, A095S, door phones and other controllers
- ✓ABS+PC front · IP65 · 12 V DC 0.2 A · 121 × 52 × 17.5 mm · bracket included
Akuvox · ACR-CRP11 · Keypad card reader
An extra door for the cost of a reader.
Card and PIN, over Wiegand.
The AK-ACR-CRP11 is Akuvox’s ACR-CRP11: a slim card reader with a physical keypad and a plastic (ABS+PC) front. It has no door logic of its own — it reads cards and PINs and passes them over Wiegand to an access controller, which decides who gets in.
This SKU is the reader only.
You receive the reader with its wall bracket and fixings. The access controller, cards, 12 V supply and lock hardware are sold separately.
In the box
- Akuvox ACR-CRP11 keypad card reader
- Mounting bracket
- 2 × ST3.5 × 30 crosshead screws
- 2 × plastic wall anchors
What you also need(sold separately)
- Akuvox A094S / A095S, an Akuvox door phone with Wiegand, or another Wiegand access controller
- 12 V DC supply, 0.2 A or more
- 13.56 MHz or 125 kHz cards or fobs
- Multi-core cable between reader and controller
Add an entry or exit point to an existing system.
Put the ACR-CRP11 on the outside of a door, or the inside for exit tracking, and wire it back to the controller. Users present a card, enter a PIN, or both.
Reader
Two card frequencies and a keypad.
The reader handles 13.56 MHz and 125 kHz cards and fobs, so it suits most existing and new credentials.
Physical keys allow PIN entry or card-plus-PIN at the controller. A buzzer and indicator light confirm each read.
Wiring
Wiegand back to the controller.
The reader sends cards and PINs over Wiegand — 26-bit by default, with 34-bit available — to an Akuvox A094S, A095S or other controller.
It runs from 12 V DC (a 0.2 A supply is enough), often taken from the controller’s reader power output. Optional buzzer and LED wires let the controller confirm each unlock.
Build
ABS+PC front, IP65.
121 × 52 × 17.5 mm, wall mounted, rated IP65 for outdoor doors.
Works from −10 °C to +60 °C.
How it works
From wall to working reader.
01
Mount
Fix the bracket with the two supplied screws and anchors, hang the reader on it and secure the bottom screw.
02
Wire
Red and black to 12 V DC; yellow, green and white to Wiegand GND, D0 and D1 on the controller.
03
Enrol
Add cards and PINs on the controller, in its web portal, Akuvox Cloud or ACMS.
04
Test
Present cards and enter PINs, and check the controller logs each read.
At a glance
Key specs — AK-ACR-CRP11
Show all specifications
- Type
- Wiegand card reader with keypad
- RF reader
- 13.56 MHz and 125 kHz
- Keypad
- Physical numeric keys
- Output
- Wiegand (26-bit default, 34-bit)
- Indicators
- Buzzer, status light
- Power
- 12 V DC (0.2 A adapter recommended)
- Protection
- IP65
- Front panel
- ABS+PC
- Mounting
- Wall mounted on supplied bracket
- Size
- 121 × 52 × 17.5 mm (H × W × D)
- Working temperature
- −10 °C to +60 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-ACR-CRP11
Reader
- Card reader
- 13.56 MHz and 125 kHz
- Keypad
- Physical buttons
- Wiegand
- Yes (26-bit default, 34-bit)
- Buzzer
- 1
- Indicator light
- 1
Physical and power
- Front panel
- ABS+PC
- Colour
- Black
- Dimensions (H × W × D)
- 121 × 52 × 17.5 mm
- Power
- 12 V DC (12 V DC / 0.2 A adapter recommended)
- Ingress protection
- IP65
- Installation
- Wall mounted
- Working temperature
- −10 °C to +60 °C
- Storage temperature
- −20 °C to +80 °C
- Relative humidity
- 20–90%
Wiring
- Red / black
- 12 V DC / GND
- Blue / orange
- GND / Reset — short together to factory reset
- Grey
- LED control, to the relay COM of an Akuvox door phone or terminal
- Purple
- Buzzer control, to the relay COM of an Akuvox door phone or terminal
- Yellow
- Wiegand GND
- Green
- Wiegand D0
- White
- Wiegand D1
In the box
- Reader
- 1 × ACR-CRP11
- Bracket
- 1 × mounting bracket
- Fixings
- 2 × ST3.5 × 30 crosshead screws, 2 × plastic wall anchors
Pair it with
Pairs with an Akuvox access controller
Controller
Akuvox A094S
4-door controller with four Wiegand reader ports.
Controller
Akuvox A095S
Compact PoE+ controller with entry and exit reader ports.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards and fobs for each user.
Works with
Platforms and integrations
Akuvox access controllers
Wires over Wiegand to the A094S four-door or A095S eight-reader controller, which decides who gets in.
Akuvox door phones and terminals
Connects to the Wiegand input of an Akuvox door phone or access terminal to add a second reader on another door.
Third-party Wiegand controllers
Standard Wiegand output (26-bit by default, 34-bit available) suits most access control panels.
Watch
See it in action
Downloads
Datasheets and guides
PDFACR-CRP11 DatasheetAkuvox ACR-CRP11 datasheet, March 2025 edition · 183 KBPDFACR-CRP11 quick guideOfficial Akuvox ACR-CRP11 quick guide (PDF) · 7.2 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Can it open a door by itself?
No. It is a reader only and must connect over Wiegand to an access controller or an Akuvox door phone or terminal, which switches the lock.
Which cards does it read?
13.56 MHz and 125 kHz cards and fobs, such as the Akuvox S50 card and F08 fob.
Which Wiegand format does it send?
26-bit by default, with 34-bit available. Set the controller to the same format.
How is it powered?
From 12 V DC; a 12 V 0.2 A supply is enough. Many controllers can power it from their reader output.
Can it beep or light up when the door unlocks?
Yes. Wire the grey (LED) and purple (buzzer) cores to the relay COM on the Akuvox door phone or terminal and the reader reacts when the relay fires.
Is it weatherproof?
It is rated IP65 and works from −10 °C to +60 °C. Avoid direct sunlight and backlight on the reader face.
How do I factory reset it?
Briefly short the blue (GND) and orange (Reset) wires together.
What comes in the box?
The reader, a wall bracket, two ST3.5 × 30 screws and two wall anchors.
A simple keypad reader.
Choose the ACR-CRP11 for budget-friendly extra doors where card and PIN entry are all that is needed at the reader.
Installation & safety notice
Low-voltage product (SELV). Power from a 12 V DC supply. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
