Akuvox EB11 silver stainless press-to-exit button with blue LED

Akuvox EB11 Silver Stainless Steel Press-to-Exit Button with Blue LED — AK-EB11-SILVER

Name: Akuvox EB11 Silver Stainless Steel Press-to-Exit Button with Blue LED — AK-EB11-SILVER
Brand: Akuvox
SKU: AK-EB11-SILVER
Price: 24.9 AUD
Availability: InStock

Reference: AK-EB11-SILVER

In Stock - Ready to Ship

$ 24.90

inc-GST

or 4 interest-free payments of $6.22 with

Akuvox EB11 is a brushed stainless steel exit button with a vandal-resistant push button and blue LED ring. Clear “PRESS TO EXIT” wording, IK10 impact rating and a tall 115 × 70 mm plate for single-gang wall boxes. Stocked in Australia by Infront Technologies.

✓Vandal-resistant mechanical push button with blue LED
✓Brushed 1.7 mm stainless steel plate, “PRESS TO EXIT” print
✓IK10 impact rating · 40,000-hour LED life
✓DC 12–24 V, 5 A · momentary · 115 × 70 × 29.2 mm

Akuvox · EB11 · Press-to-exit button

Press to exit.
Lit in blue.

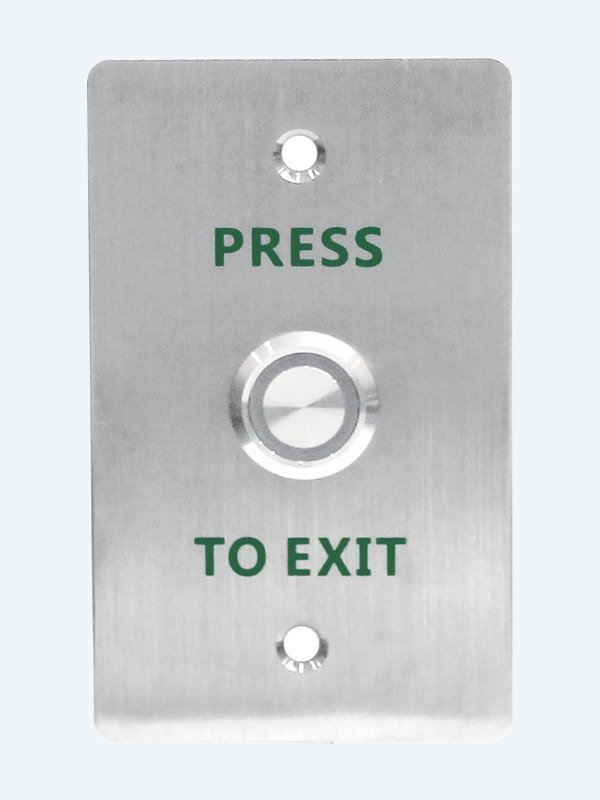

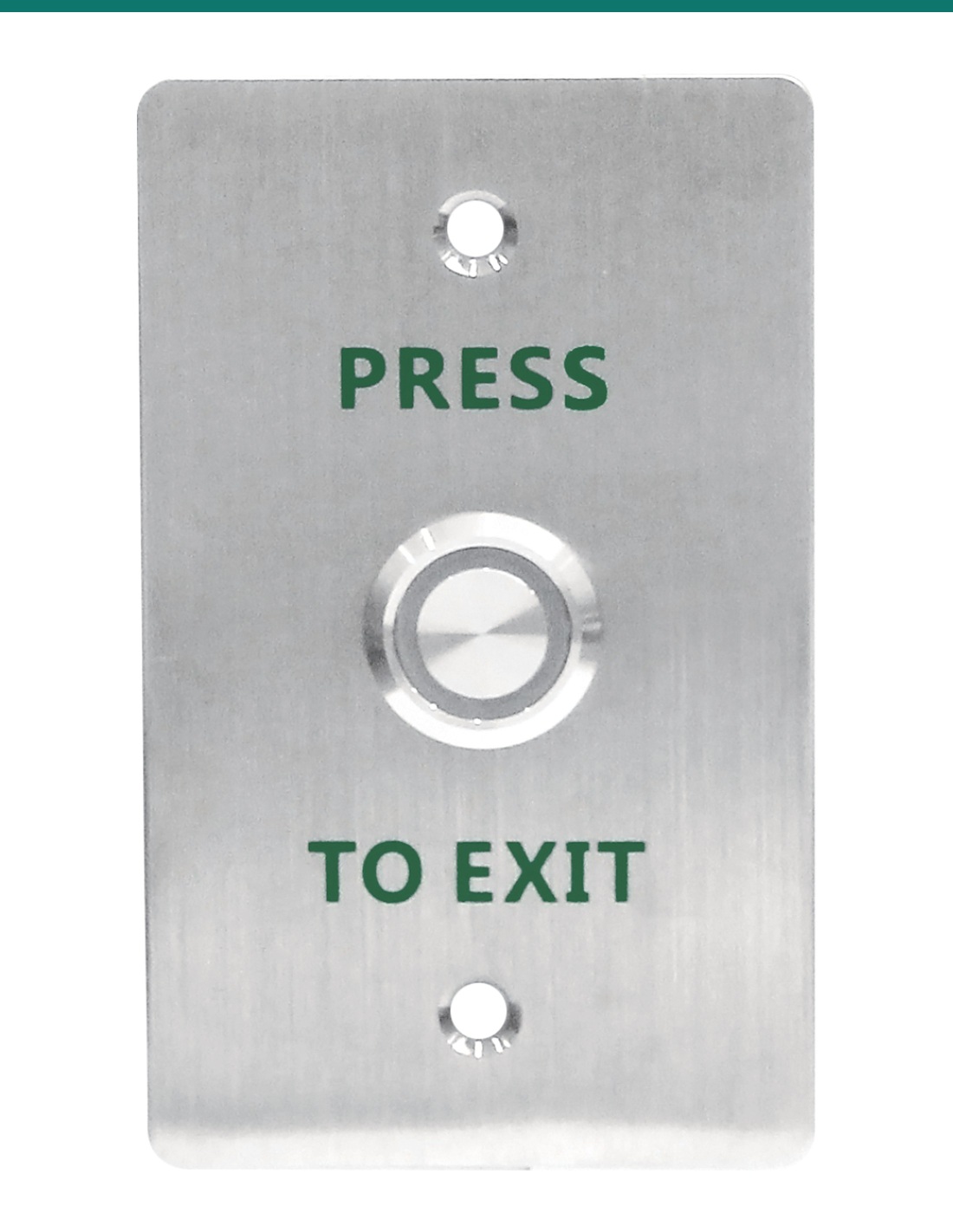

The AK-EB11-SILVER is Akuvox’s EB11 exit button: a tall stainless plate with a metal push button that glows blue so people find it in a dim corridor.

This SKU is the exit button only.

You receive the EB11 exit button. The door phone or access controller, electric lock, lock power supply and wall box are sold separately.

In the box

Akuvox EB11 exit button

What you also need(sold separately)

Akuvox door phone or access controller with an exit-button input
Electric lock and suitable lock power supply
Wall box and cabling

Built for busy doors.

Offices, plant rooms and secure areas get a tough request-to-exit button that matches stainless door hardware.

Button

Metal button, blue ring.

The self-resetting mechanical button sits in a 1.7 mm brushed stainless plate rated IK10 against impact.

Its blue LED is rated for 40,000 hours at 6–12 V, and a built-in dropper resistor suits 12–24 V DC systems.

How it works

Wire it in three steps.

Mount

Fix the plate over a wall box on the secure side of the door.

Wire

Run the switch contacts to the exit-button input on the Akuvox door phone or controller.

Test

Set the relay hold time in the device web interface, then press to confirm the lock releases.

At a glance

Key specs — AK-EB11-SILVER

Brand: Akuvox
Reference: AK-EB11-SILVER
Faceplate: 1.7 mm brushed stainless steel
Button: Mechanical, blue LED
LED life: 40,000 hours (typical)
Impact rating: IK10
Mounting: US single-gang wall box
Size: 115 × 70 × 29.2 mm
Operating voltage: DC 12–24 V
Rated current: 5 A
Switch type: Momentary (self-resetting)
Working temperature: −20 °C to +50 °C
Humidity: 10–90% RH
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes an Akuvox door

Door phone

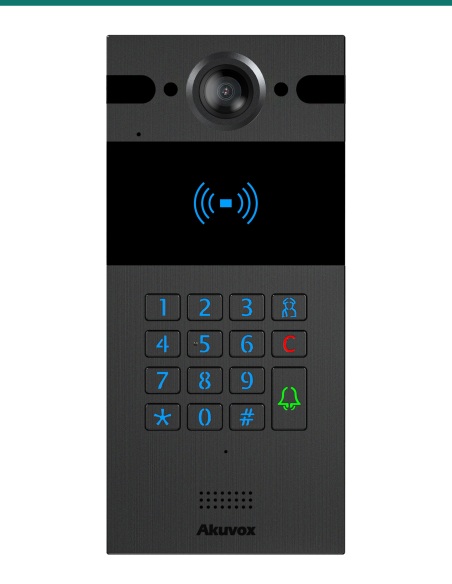

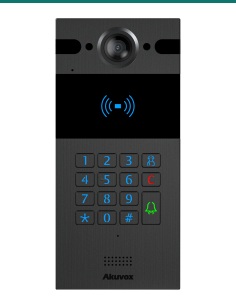

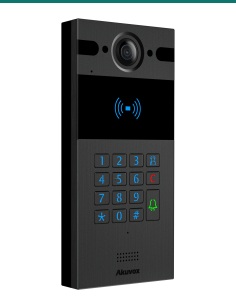

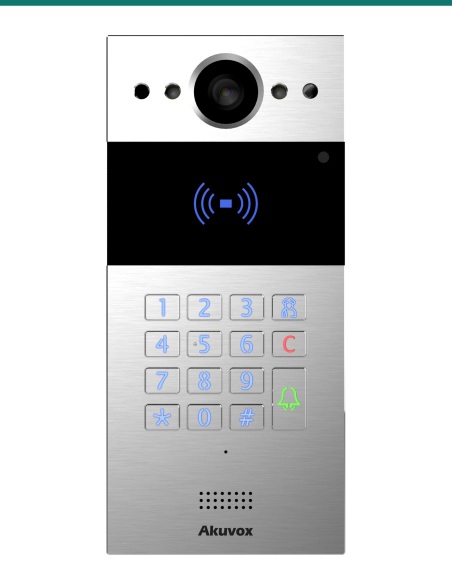

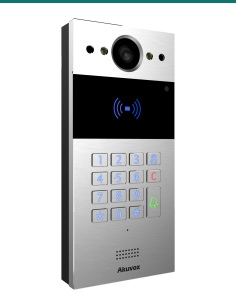

Akuvox R20K and R25K

Door phones with a door-release input for the button.

Access

Akuvox A08

Access terminal that can take an exit button input.

Credentials

Akuvox cards and fobs

Entry from outside with cards, fobs or Bkey.

Watch

See it in action

Connecting Akuvox exit buttons to a door phone

Answers

Common questions

Does the LED need its own supply?

The LED runs at 6–12 V and the button has a built-in dropper resistor for 12–24 V DC systems. Check the wiring diagram in the datasheet.

What size wall box does it fit?

Akuvox designs the 115 × 70 mm plate for standard US single-gang wall boxes.

Is it vandal resistant?

Yes. The stainless plate and button are rated IK10 for impact.

How does it connect to an Akuvox door phone?

Wire the button contacts to the door phone’s exit-button input; the door phone then fires its lock relay.

Exit buttons, local stock.

Order the EB11 with your Akuvox door phone or A08 from Infront Technologies for Australian stock and wiring advice.

Installation & safety notice

Low-voltage product (SELV). The button is rated for DC 12–24 V circuits at up to 5 A, with an LED working voltage of 6–12 V and a built-in dropper resistor, per the Akuvox EB11 datasheet. Treat as SELV low-voltage equipment; electric locks and their supplies should be installed by a licensed security installer or electrician.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Operating Voltage: DC 12–24 V, 5 A
Colour: Silver (brushed stainless steel)
Brand: Akuvox
Button: Mechanical, momentary, blue LED
Mounting: US single-gang wall box
Size: 115 × 70 × 29.2 mm
Warranty: Australian Warranty via Infront Technologies
Product Type: Press-to-exit button
Model: EB11
Impact Rating: IK10
Faceplate: 1.7 mm stainless steel
