Akuvox R20A / R25A black in-wall installation kit — flush box

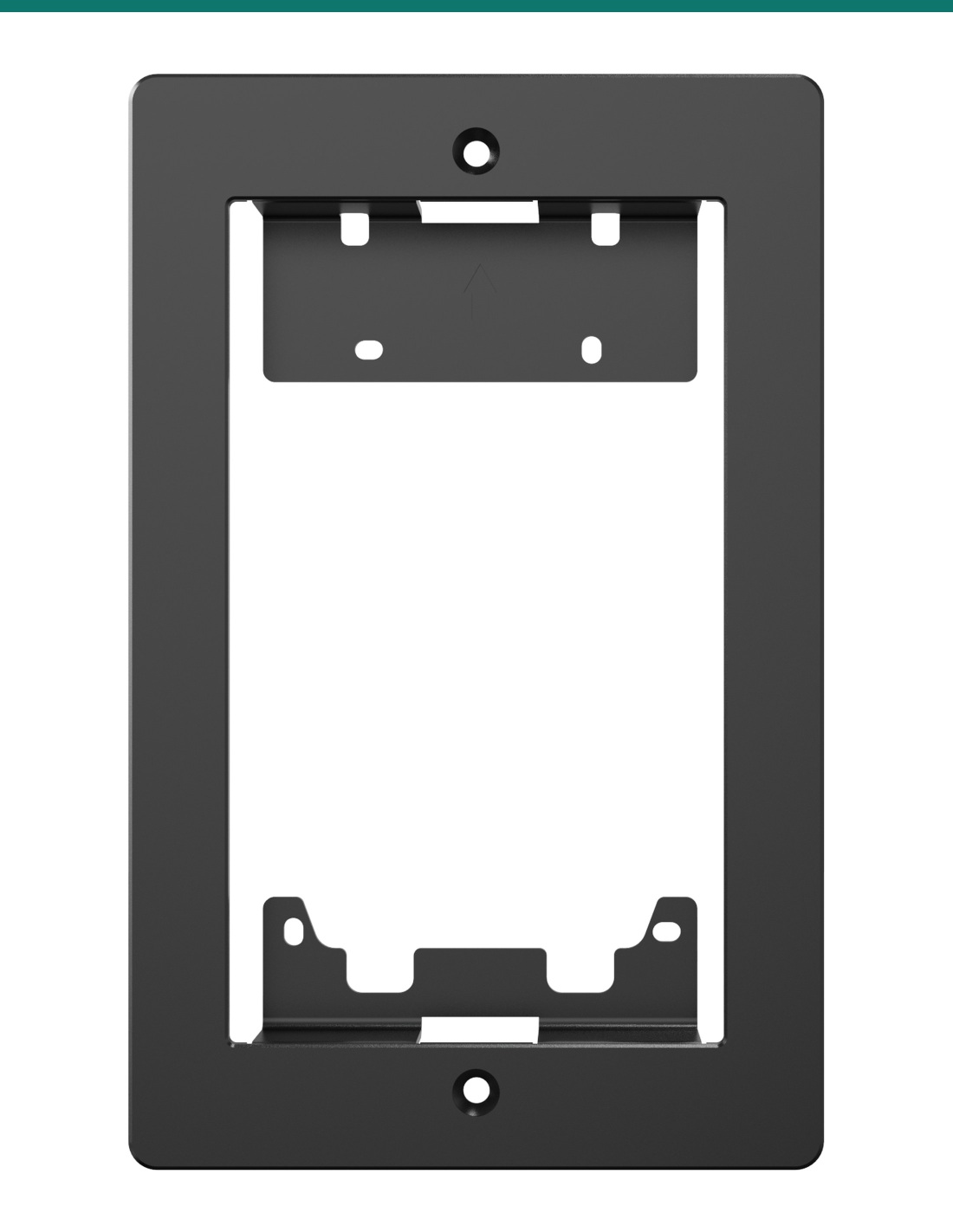

Akuvox R20A / R25A black in-wall installation kit — black decoration panel

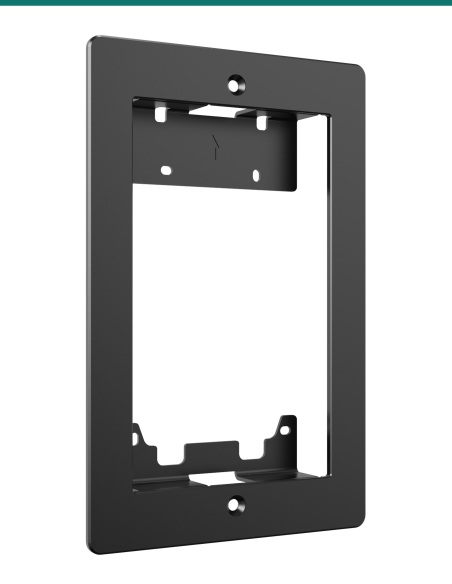

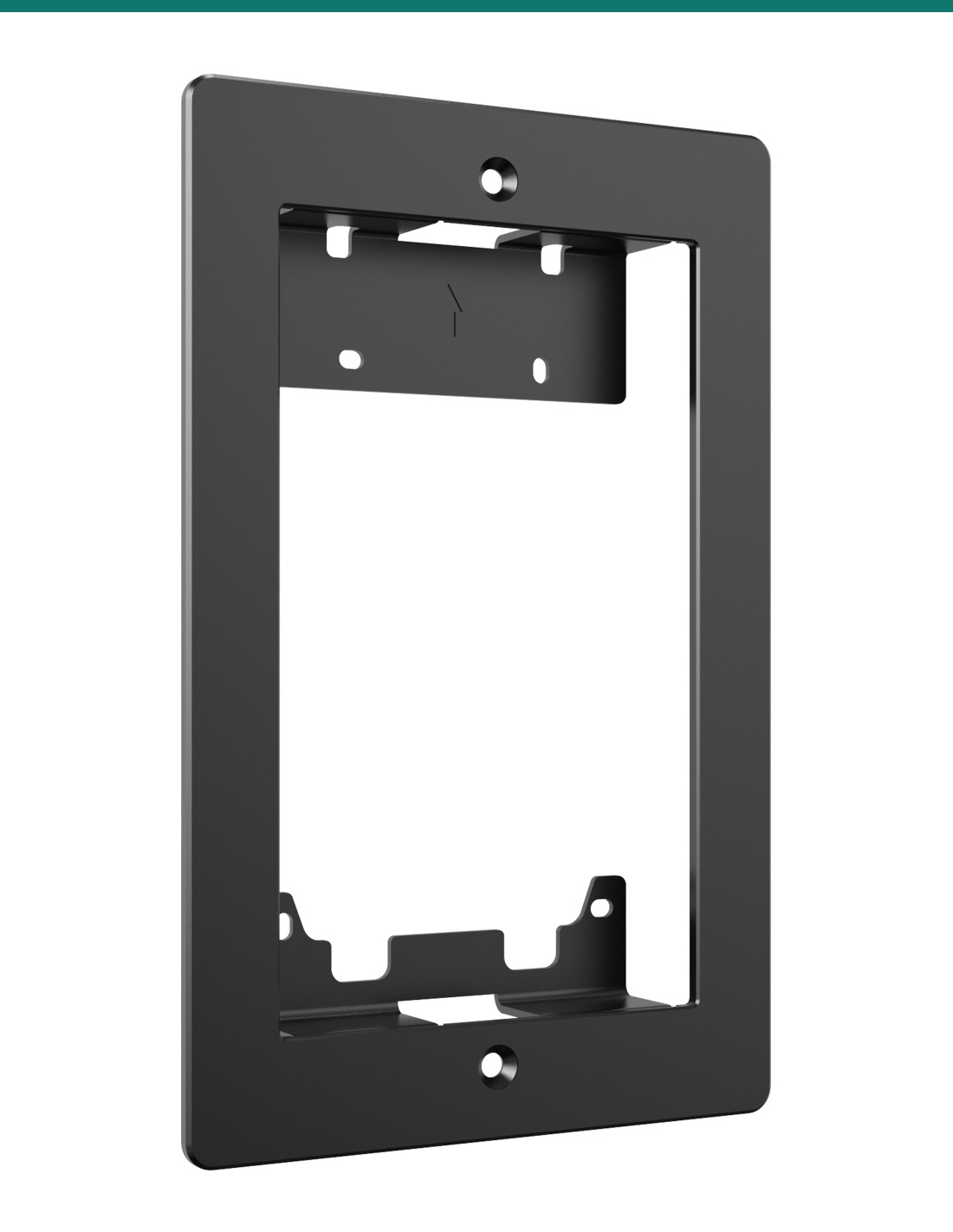

Akuvox R20A / R25A black in-wall installation kit — decoration panel, left view

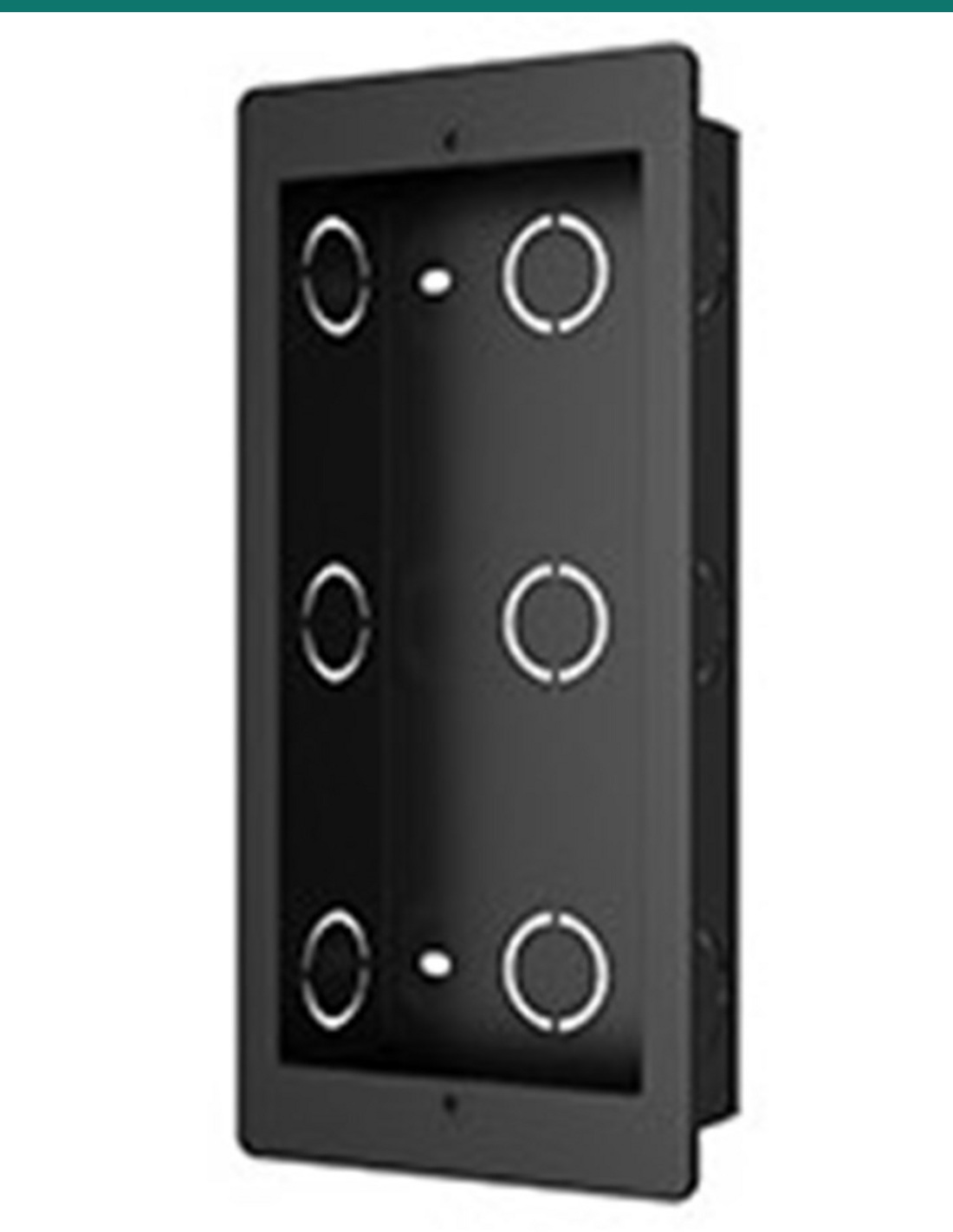

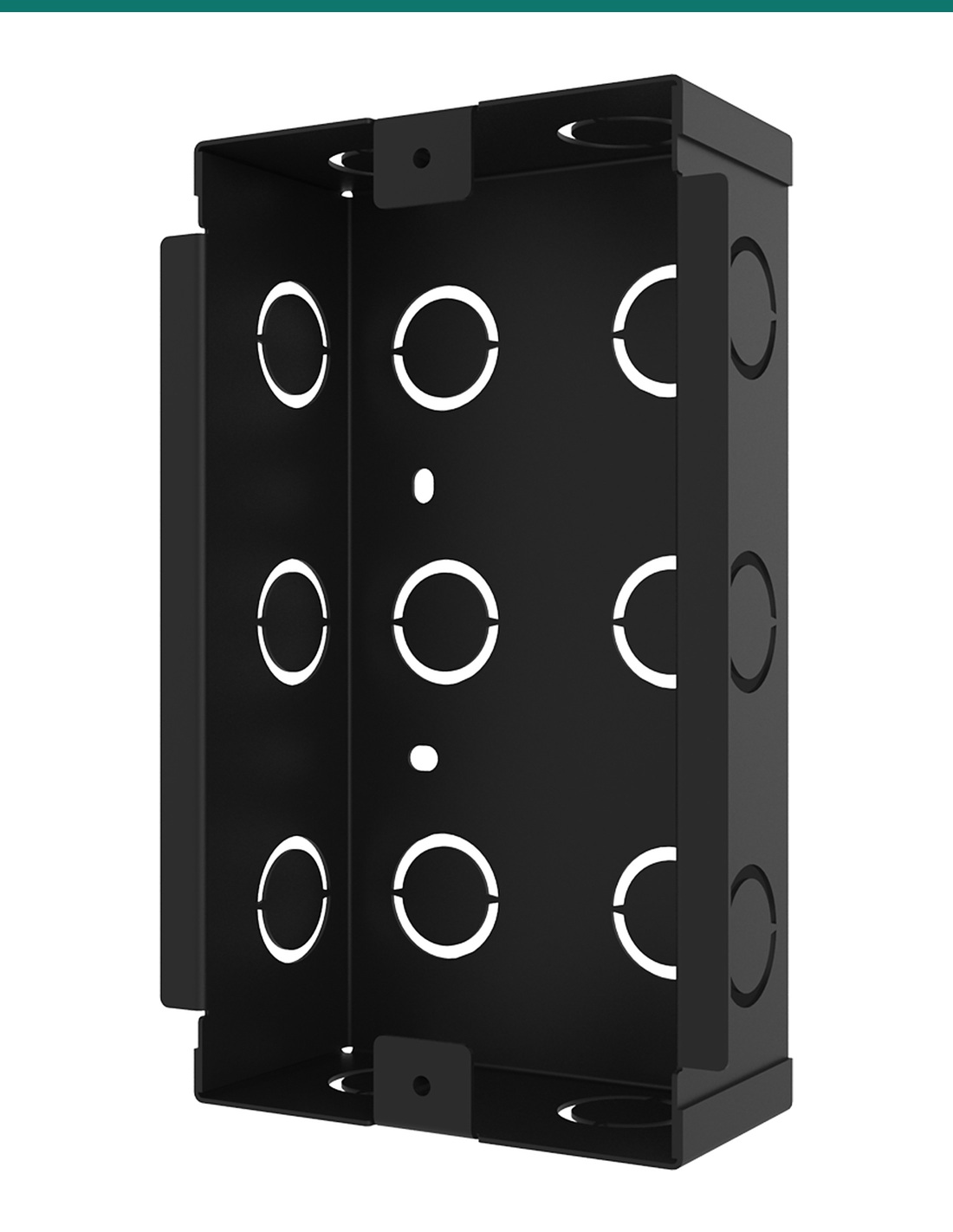

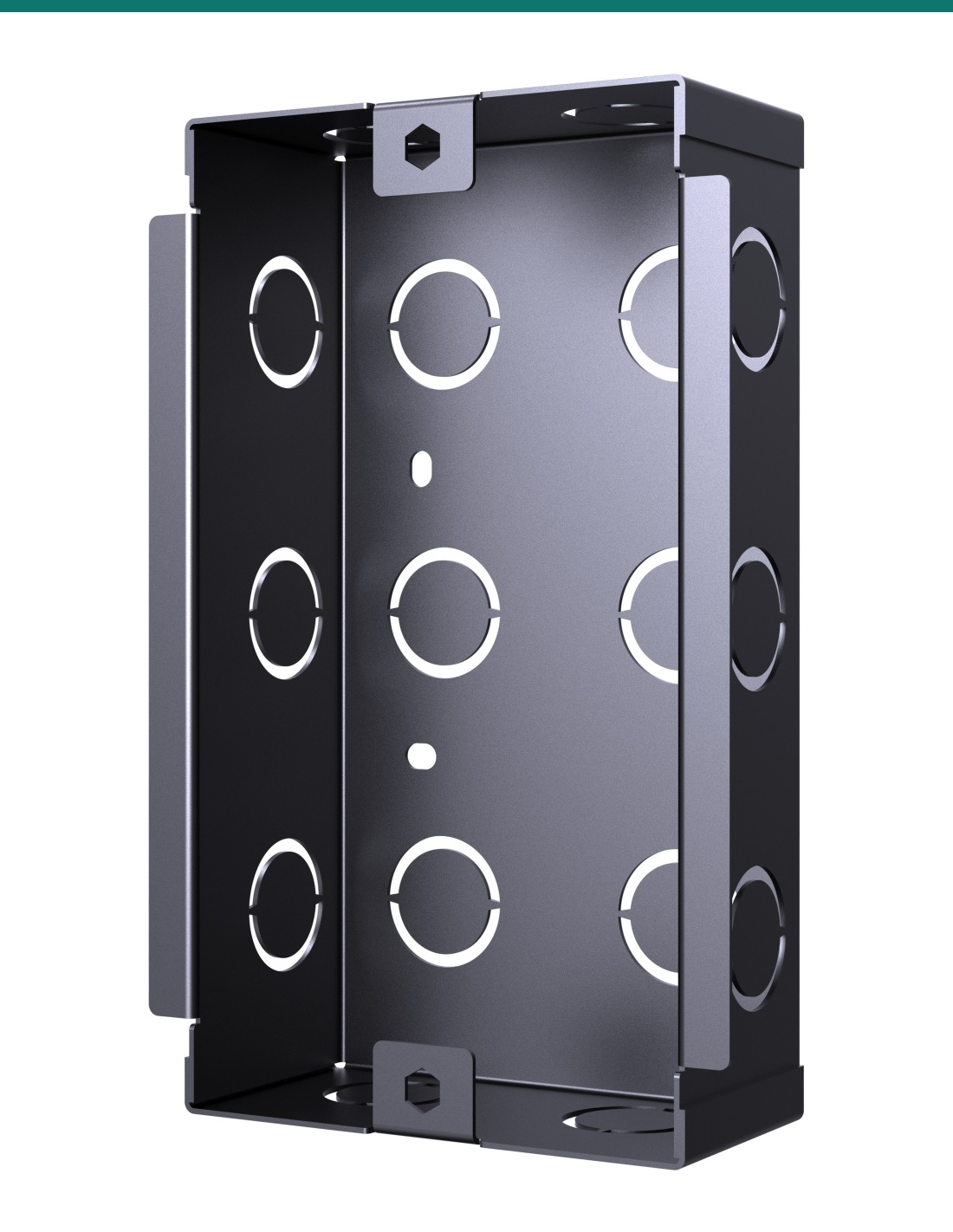

Akuvox R20A / R25A in-wall kit — black flush-mounting box

Akuvox R20A / R25A Black In-Wall Installation Kit with Flush Box — AK-R20INWALLK-BLACK

AK-R20INWALLK-BLACK
In Stock - Ready to Ship
$ 57.10
inc-GST

or 4 interest-free payments of $14.28 with

Akuvox R20A / R25A in-wall kit in black recesses an R20A, R25A or R20A-2 single-button door phone into the wall. You get the flush-mounting box, the black 189 × 120 mm decorative panel that frames the station, and the screws, anchors and Torx wrench to lock it in.

  • ✓Flush-mounting box plus black decorative panel (189 × 120 mm)
  • ✓Fits Akuvox R20A, R25A and R20A-2 (145 × 85 mm door phones)
  • ✓Wall cut-out 180 × 101 × 50 mm (H × W × D)
  • ✓Station locks in with two M4×15 Torx screws — Torx wrench included


Akuvox · R20A / R25A · Black in-wall kit

Set the door phone into the wall.
Black frame, flush finish.

The AK-R20INWALLK-BLACK is the Akuvox flush-mounting kit for the R20A and R25A. The flush-mounting box sits in the wall cavity; the black decorative panel holds the door phone and frames it at the surface, leaving a slim black border around the station.

Mounting hardware only.

The kit contains everything to flush-mount one R20A or R25A. The door phone itself and the in-wall rain hood are sold separately.

In the box
  • Flush-mounting box
  • Decorative panel / flush-mounting bracket (black)
  • 4 × M3×6 crosshead screws
  • 2 × M4×15 Torx screws
  • 4 × ST4×20 screws and 4 plastic wall anchors
  • Torx wrench
What you also need (sold separately)
  • Akuvox R20A, R25A or R20A-2 door phone
  • A 180 × 101 × 50 mm wall recess with cable entry
  • Optional: R20A / R25A in-wall rain hood (black) for exposed doors

Flush, tidy and harder to tamper with.

A recessed station sits almost level with the wall face, keeps cabling hidden and locks in with Torx screws instead of hanging on a surface bracket.

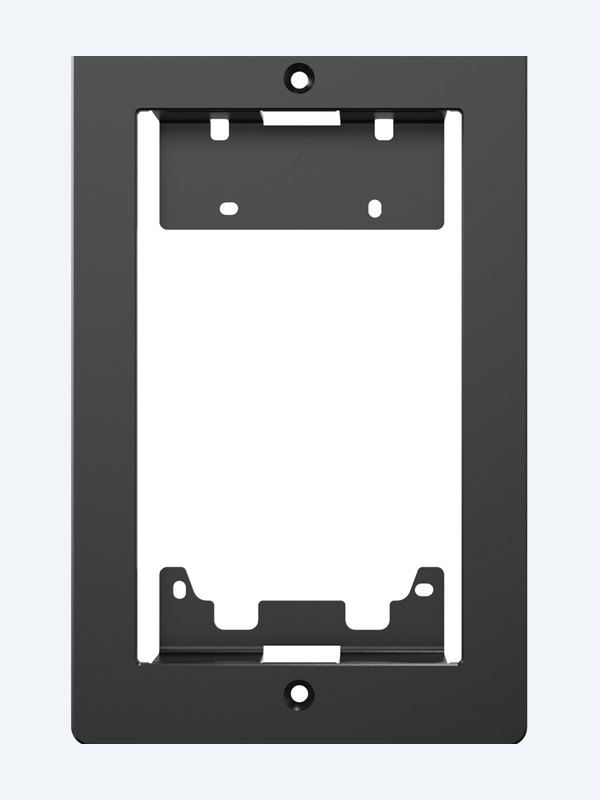

Akuvox R20A / R25A black in-wall installation kit

What you get

Box plus a matching frame.

The flush-mounting box takes the cables and the body of the door phone, with knockouts on every side for conduit. The black decorative panel screws to the station with four M3×6 screws and forms the visible 189 × 120 mm border.

Two M4×15 Torx screws lock the station into the box, so it cannot be lifted off the wall without the Torx wrench.

Fitting

One recess, sized by Akuvox.

Cut a 180 × 101 × 50 mm (H × W × D) recess with the cables inside, fix the box with four ST4×20 screws and anchors, then fill the gap with cement or non-corrosive adhesive.

On an exposed entry, add the R20A / R25A in-wall rain hood — it fits onto the same flush-mounting bracket before the station goes into the box.

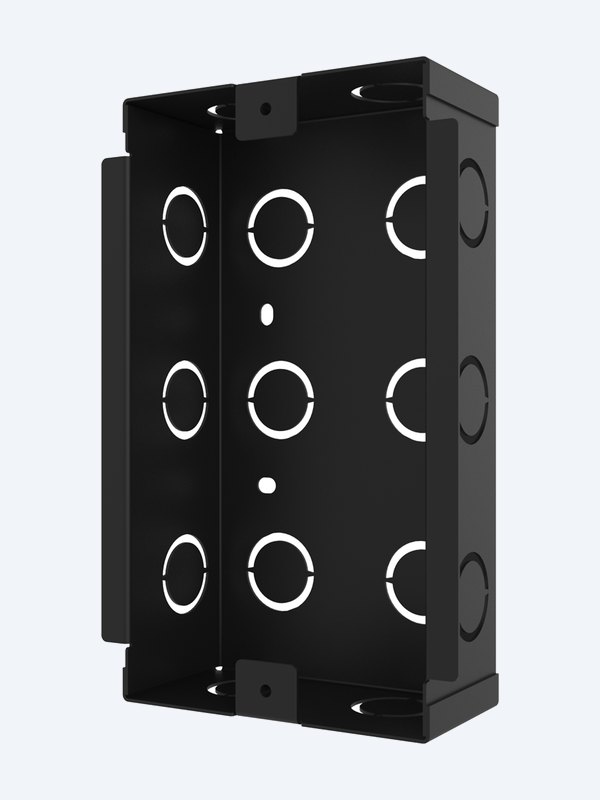

Akuvox R20A in-wall kit parts

How it works

From bare wall to flush door phone.

01

Cut and fix the box

Cut a 180 × 101 × 50 mm (H × W × D) recess, fit the flush-mounting box with four ST4×20 screws and wall anchors, then seal the gap with cement or non-corrosive adhesive.

02

Fit the frame

Screw the door station to the flush-mounting bracket with the four M3×6 screws and connect the cables through the wiring cover.

03

Lock it in

Push the station into the box and lock it with the two M4×15 Torx screws using the Torx wrench supplied.

Pair it with

Completes a flush R20A or R25A install

Door phone

Akuvox R20A, R25A or R20A-2

Single-button SIP door phones in the 145 × 85 mm housing this kit is made for.

Weather

R20A / R25A in-wall rain hood (black)

Fits onto the flush-mounting bracket to shield the camera and button.

Watch

See it in action

Akuvox R25A door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

Akuvox R20A, R25A and R20A-2. All three use the same 145 × 85 mm housing, 180 × 101 × 50 mm cut-out and flush box. It does not fit the taller R20K, R25K or R20B.

What size hole do I need?

180 × 101 × 50 mm (H × W × D), with the cables already inside it or a conduit to it. The box body is 162 × 100 × 50 mm, and the decorative panel covers 189 × 120 mm of wall around the opening.

How high should it go?

Akuvox’s placement drawing puts the camera centre 1500 mm above the ground, with the bottom of the decorative panel at 1375 mm — or 1355 mm when the in-wall rain hood is fitted.

What is different about the silver version?

Only the colour of the decorative panel that frames the station. Box, fixings and fit are the same (AK-R20INWALLK).

Can I add a rain hood?

Yes. The black R20A / R25A in-wall rain hood fits onto the decorative panel before the station goes into the box; it is sold separately.

What is in the box?

The flush-mounting box, the decorative panel, four M3×6 screws for the station, two M4×15 Torx locking screws, four ST4×20 screws with wall anchors, and a Torx wrench.

Match the frame to the door phone.

Choose black to suit the black R20A or R25A; the silver kit (AK-R20INWALLK) has the same box and fixings with a silver frame.

Installation & safety notice

For the strongest result Akuvox recommends screwing the box to the wall and filling the gap with cement or non-corrosive adhesive; setting the box in cement alone is quicker but less vandal-resistant.

Colour
Black frame, black box
Brand
Akuvox
Warranty
Australian warranty
Product Type
Flush-mount installation kit
Model
R20A / R25A in-wall kit
Includes
Flush-mounting box, decorative panel, screws, anchors, Torx wrench
Compatible with
Akuvox R20A, R25A and R20A-2
Wall Cut-out
180 × 101 × 50 mm (H × W × D)
Flush Box
162 × 100 × 50 mm (H × W × D)
Decorative Panel
189 × 120 mm
