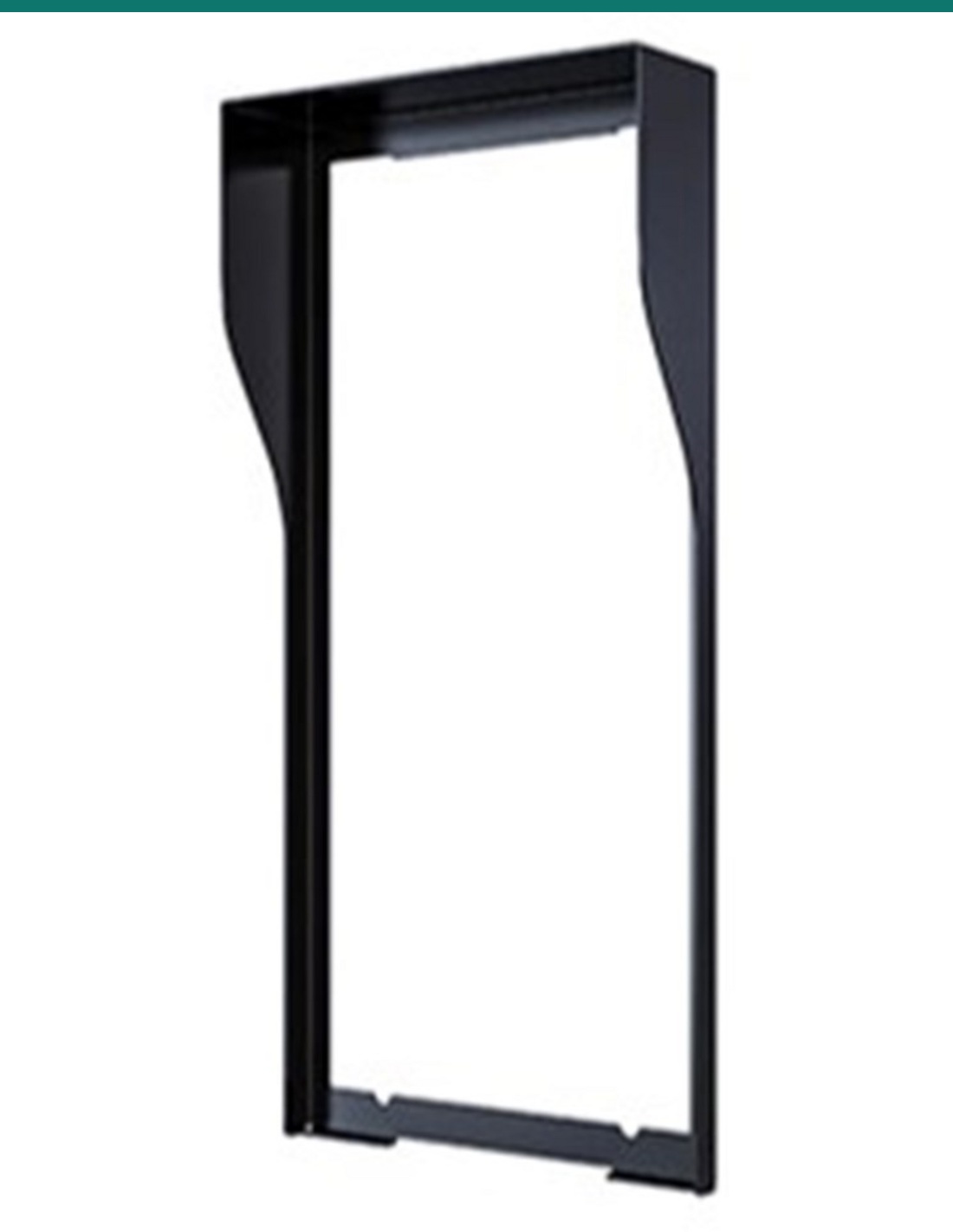

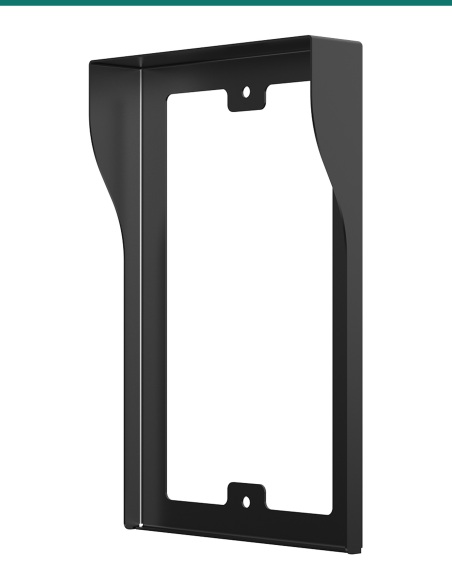

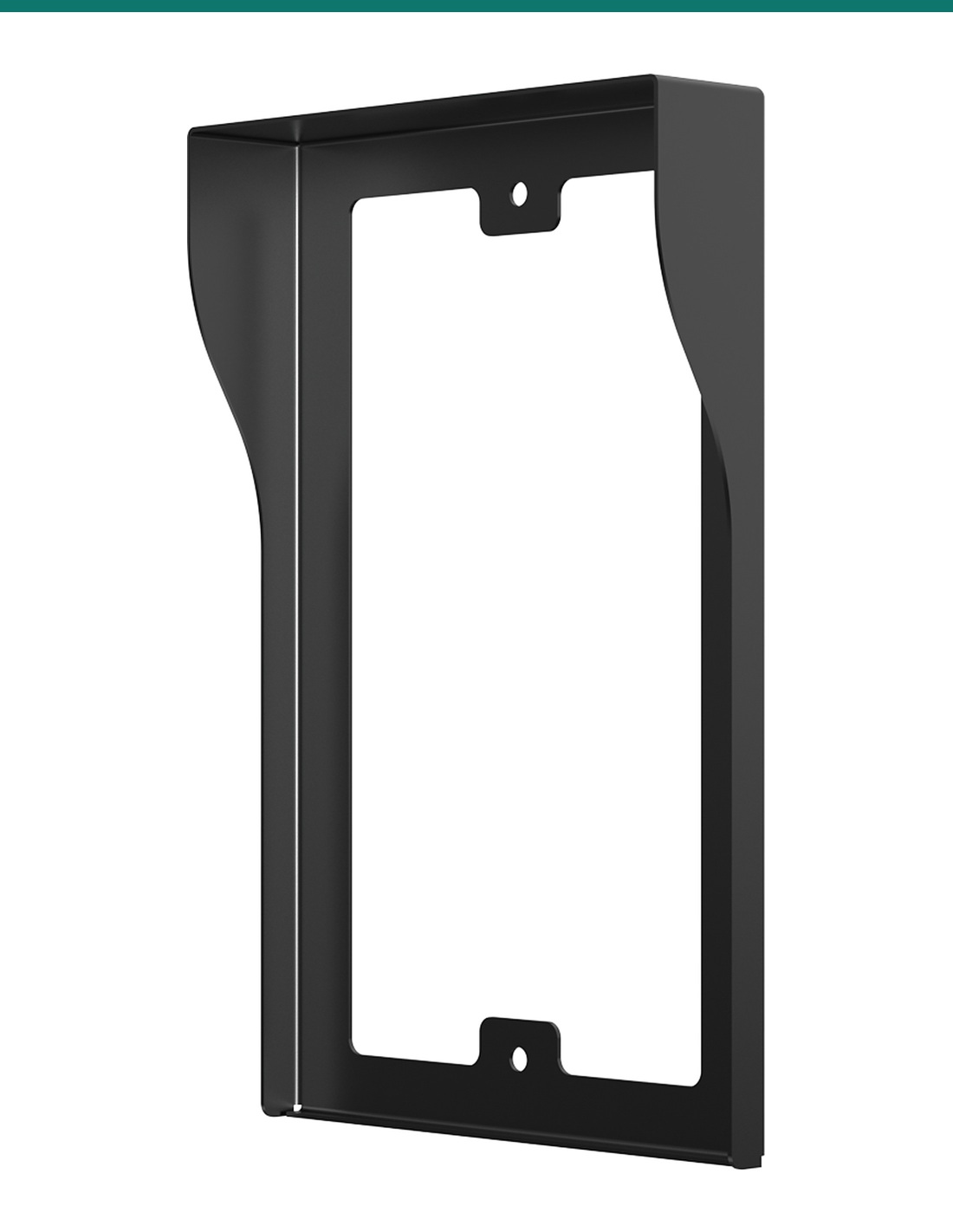

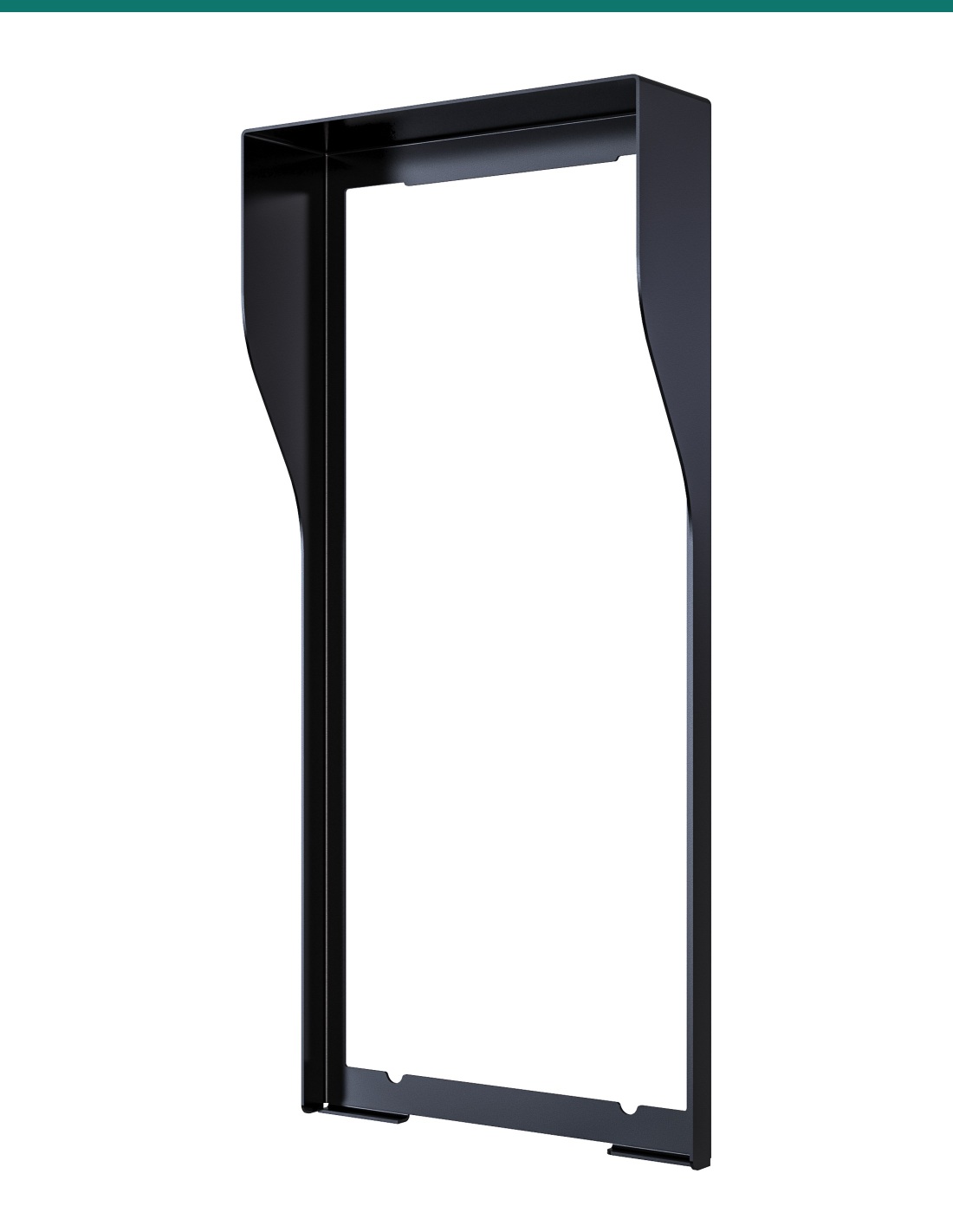

Akuvox R20A / R25A black in-wall rain hood — right three-quarter view
Akuvox R20A / R25A black in-wall rain hood

Akuvox R20A / R25A Black In-Wall Rain Hood — AK-R20INH-BLACK

AK-R20INH-BLACK
In Stock - Ready to Ship
$ 57.10
inc-GST

or 4 interest-free payments of $14.28 with

Akuvox R20A / R25A in-wall rain hood in black is a folded metal canopy that wraps the top and sides of an R20A or R25A door phone, keeping driving rain, dripping water and overhead sun off the camera, card reader and call button. Made for flush-mounted stations.

  • ✓Black in-wall rain hood for Akuvox R20A, R25A and R20A-2
  • ✓192 × 123 × 29 mm canopy shields the camera, reader and call button
  • ✓Fits onto the decorative panel of the R20A / R25A in-wall kit
  • ✓Use the matching on-wall hood for surface-mounted stations (AK-R20ONH-BLACK)


Akuvox · R20A / R25A · Black in-wall rain hood

Keep the weather off the door phone.
Black, made for R20A and R25A.

The AK-R20INH-BLACK is Akuvox’s in-wall rain cover for the 145 × 85 mm R20A and R25A. It fits onto the flush-mounting bracket of the R20A / R25A in-wall kit, so the hood, frame and station lock into the wall box as one.

Rain hood only.

You receive the black in-wall rain hood. The door phone and in-wall kit are sold separately.

In the box
  • Akuvox R20A / R25A in-wall rain hood (black)
What you also need (sold separately)
  • Akuvox R20A, R25A or R20A-2 door phone
  • R20A / R25A in-wall installation kit (black)

A clearer picture in bad weather.

Water on the lens and sun straight down on the camera are the two most common causes of a poor door picture. A hood fixes both and protects the button and reader from the worst of the weather.

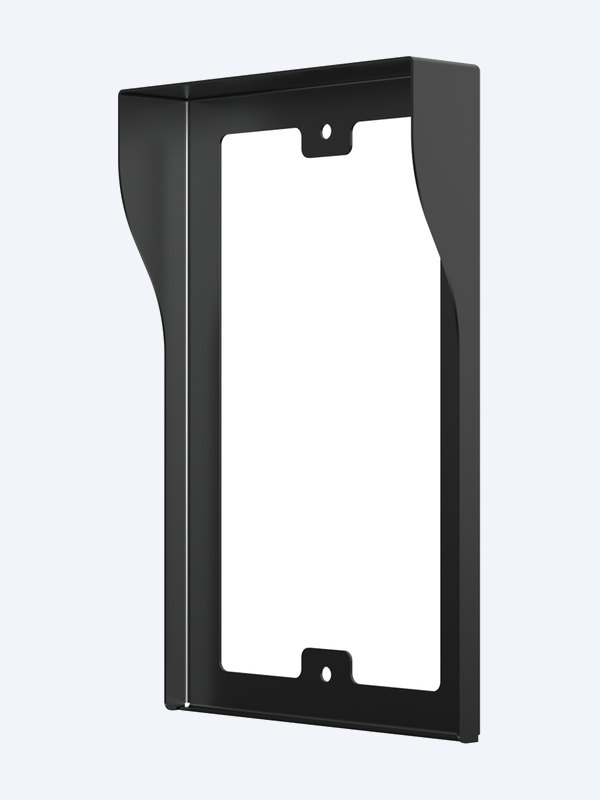

Akuvox R20A / R25A black in-wall rain hood

Protection

Rain and glare stay off the lens.

The hood wraps the top and both sides of the station, so rain runs off the canopy instead of across the camera window and the card-reader area.

It also blocks overhead sun, which helps the camera on north- and west-facing doors.

Fitting

Uses the station’s own fixings.

Fits onto the flush-mounting bracket of the R20A / R25A in-wall kit; the station and hood then slide into the flush box together and lock with two M4×15 Torx screws.

Clamped between the flush-mounting bracket and the in-wall box — no extra screws into the wall.

Pair it with

Pairs with

Door phone

Akuvox R20A or R25A

The single-button door phones this hood is shaped for — pick the black finish to match.

Flush

R20A / R25A in-wall kit (black)

The flush box and frame this hood is designed to sit on.

Watch

See it in action

Akuvox R25A door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

Akuvox R20A, R25A and R20A-2, which share the 145 × 85 mm housing and the same in-wall kit. It is too short for the R20K, R25K and R20B — they have their own hoods.

Do I need the in-wall kit?

Yes. The hood fits onto the decorative panel from the R20A / R25A in-wall installation kit, and the whole assembly locks into its flush box with two M4×15 Torx screws.

How big is it?

192 mm high, 123 mm wide and 29 mm deep, so it sits just beyond the 189 × 120 mm decorative panel of the in-wall kit.

Does it change the mounting height?

Slightly. With the hood fitted Akuvox places the bottom of the decorative panel at 1355 mm (1375 mm without it), keeping the camera centre at 1500 mm above the ground.

What is different about the silver version?

Only the finish. Shape and fit are identical (AK-R20INH).

On-wall or in-wall — which do I need?

Use the on-wall hood (AK-R20ONH-BLACK) when the station is surface-mounted on its wall bracket, and this in-wall hood when it is recessed with the in-wall kit.

The right hood for the right install.

Pick black to match a black R20A or R25A; the silver version is AK-R20INH. For a surface-mounted station use the on-wall hood (AK-R20ONH-BLACK) instead.

Installation & safety notice

Fits onto the flush-mounting bracket of the R20A / R25A in-wall kit; the station and hood then slide into the flush box together and lock with two M4×15 Torx screws.

Colour
Black
Brand
Akuvox
Mounting Height
Panel bottom 1355 mm, camera centre 1500 mm
Mounting
In-wall (flush) installs with the R20A / R25A in-wall kit
Size
192 × 123 × 29 mm (H × W × D)
Warranty
Australian warranty
Product Type
Rain hood
Model
R20A / R25A in-wall rain hood
Compatible with
Akuvox R20A, R25A and R20A-2
Fixing
Clamped between the decorative panel and the flush box; locked by the kit’s two M4×15 Torx screws
