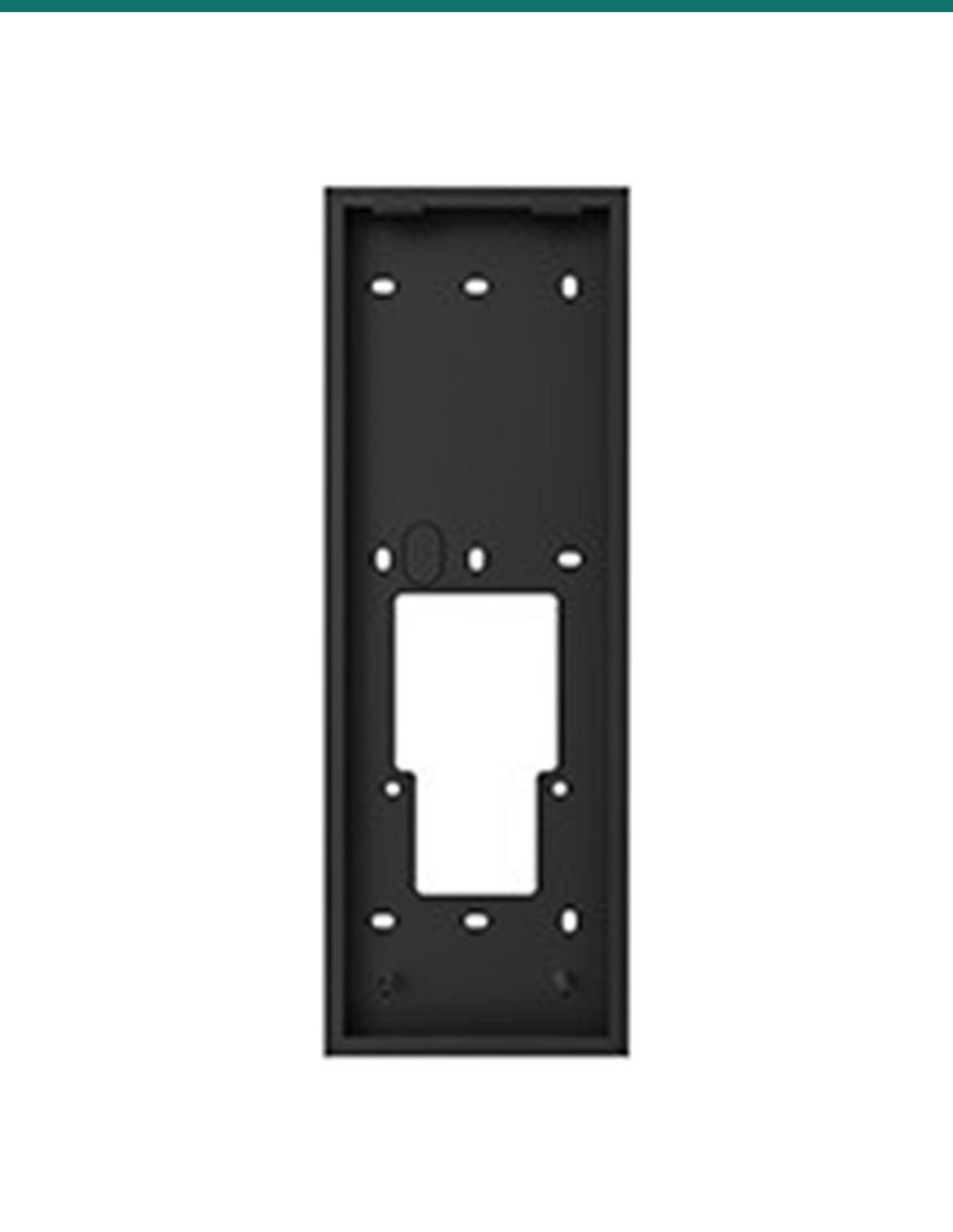

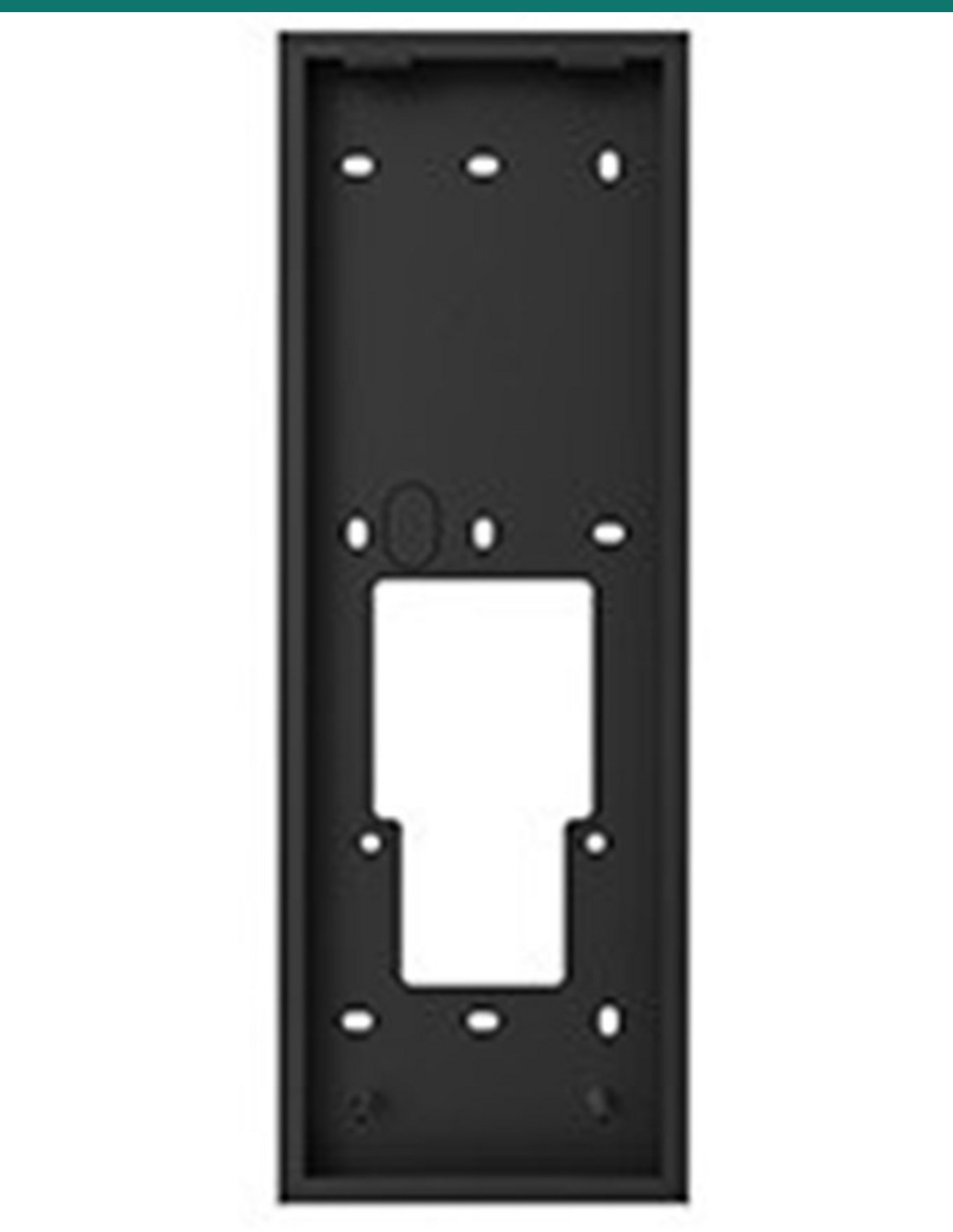

Akuvox S532 Black On-Wall Installation Kit for Surface Mounting — AK-S532ONWALLK

SKU AK-S532ONWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox AK-S532ONWALLK is the on-wall installation kit for the S532 keypad SIP door phone. The S532 ships without a mounting box: this black surface box screws to the wall, the S532 hangs on its hooks and locks in with a Torx screw. Template, screws and anchors are included.

  • ✓Surface-mounts the Akuvox S532 (301 × 106 × 35.8 mm)
  • ✓Black wall box, 300.4 × 105.4 × 29.3 mm (H × W × D)
  • ✓Wall-mounting template, 6 × ST4×20 screws and 6 anchors included
  • ✓2 × M4×30 screws to fix over an existing 86-type wall box


Akuvox · S532 · On-wall installation kit

Mount the S532 on any wall.
Box, template and fixings.

The AK-S532ONWALLK is Akuvox’s surface-mounting kit for the S532. The door phone is supplied without a box, so every S532 needs either this on-wall kit or the in-wall kit.

This SKU is the on-wall installation kit.

You receive the box and fixings listed below, as shown in the Akuvox S532 quick guide. The S532 door phone is sold separately.

In the box
  • Wall-mounting box × 1
  • Wall-mounting template × 1
  • ST4×20 crosshead screws × 6
  • Plastic wall anchors × 6
  • M4×30 crosshead screws × 2
What you also need (sold separately)
  • Akuvox S532 door phone
  • S532 on-wall rain cover for exposed entries (optional)
  • PoE 802.3at switch or 12 V DC 2 A supply

No chasing, no cut-out.

Surface mounting suits brick, block and finished walls where cutting a 289 mm-tall pocket is not practical. Cables come through the box from behind.

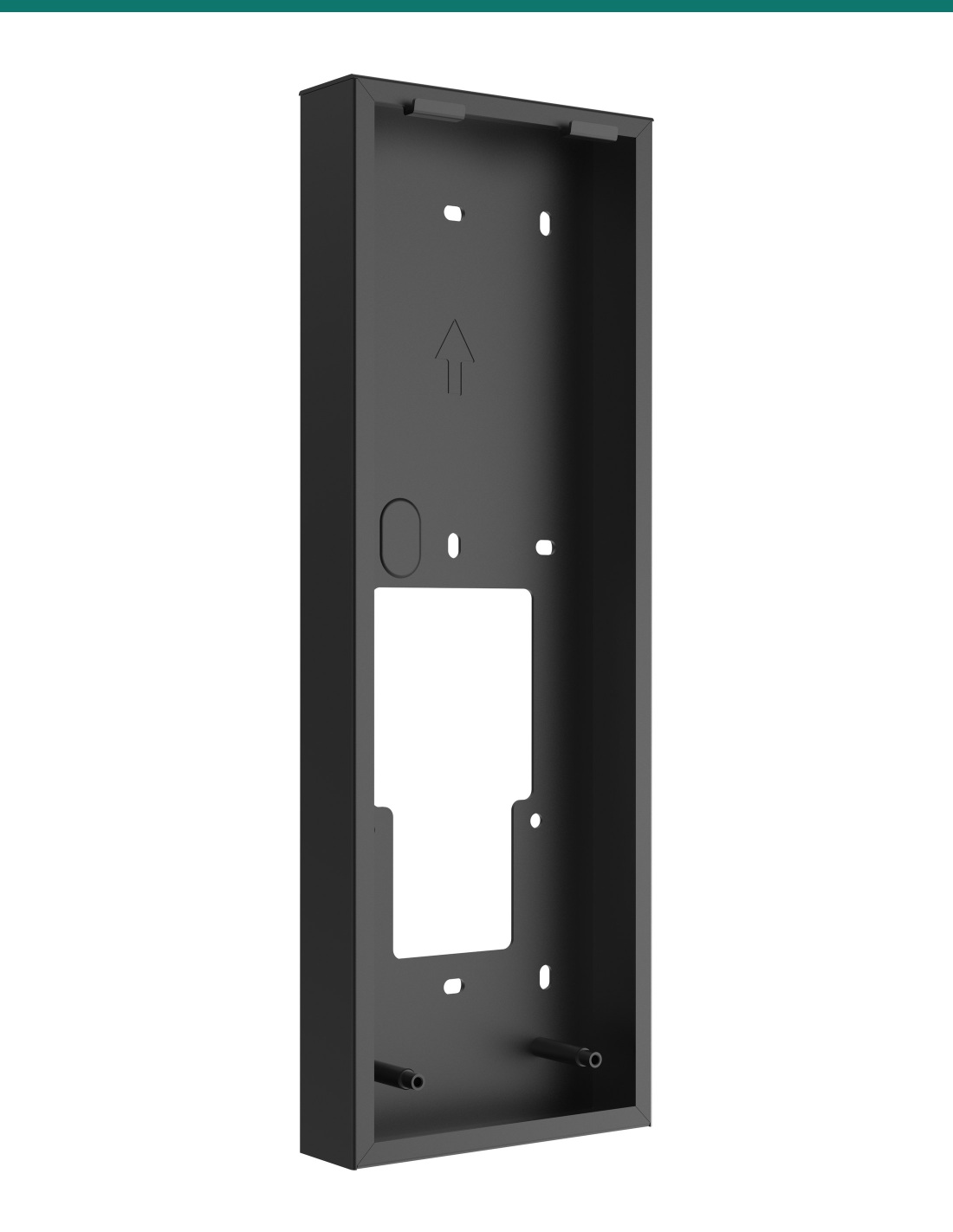

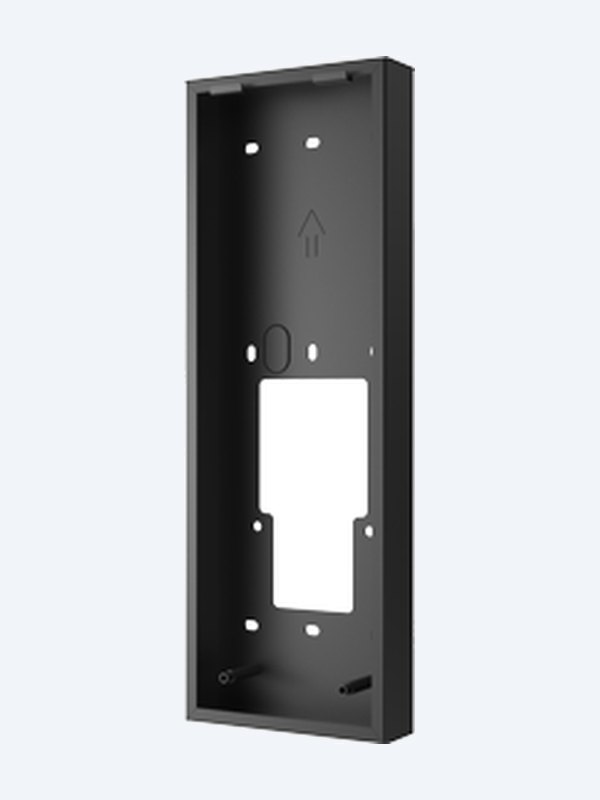

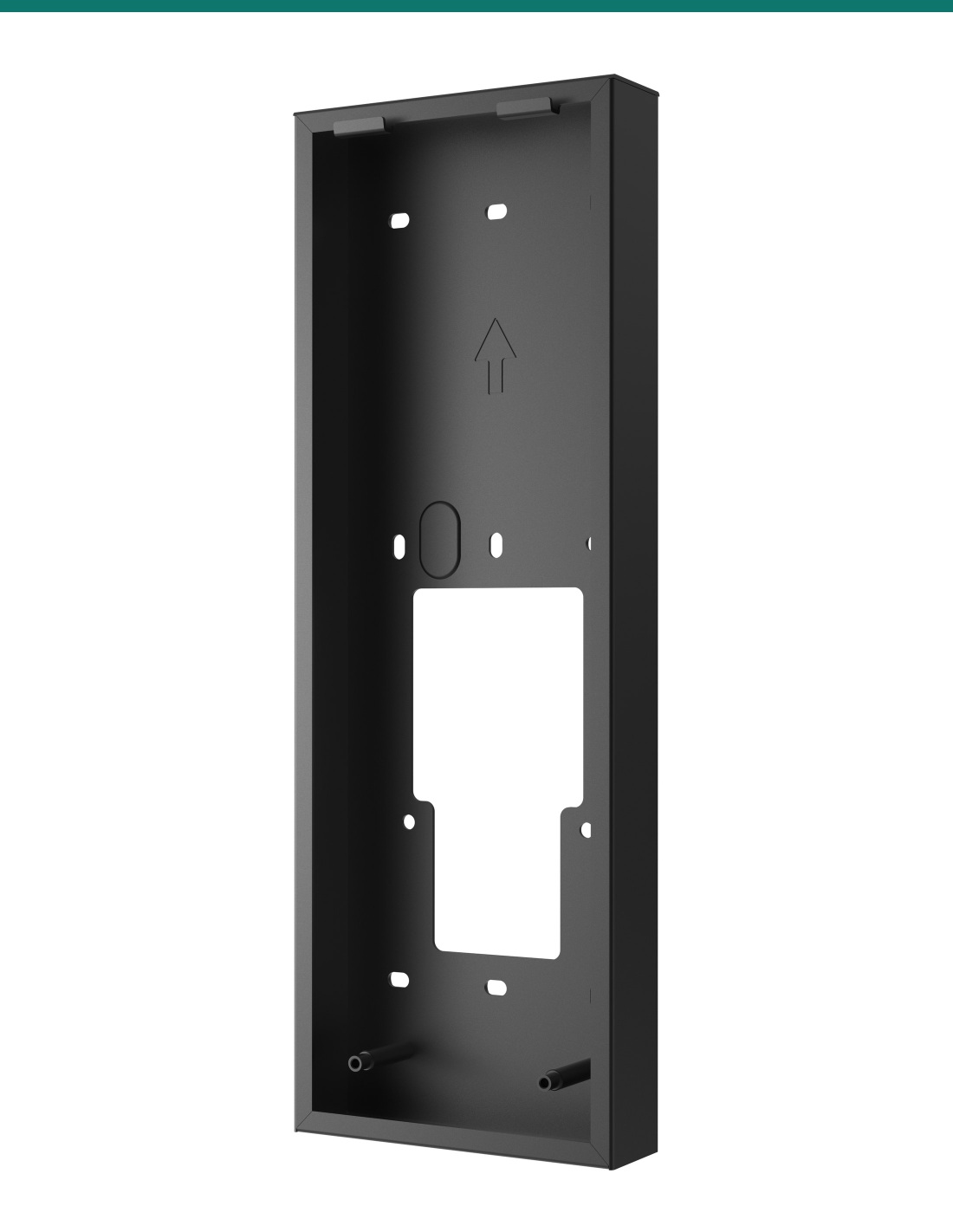

Akuvox S532 on-wall mounting box — three-quarter view

In the kit

A box the S532 hangs on.

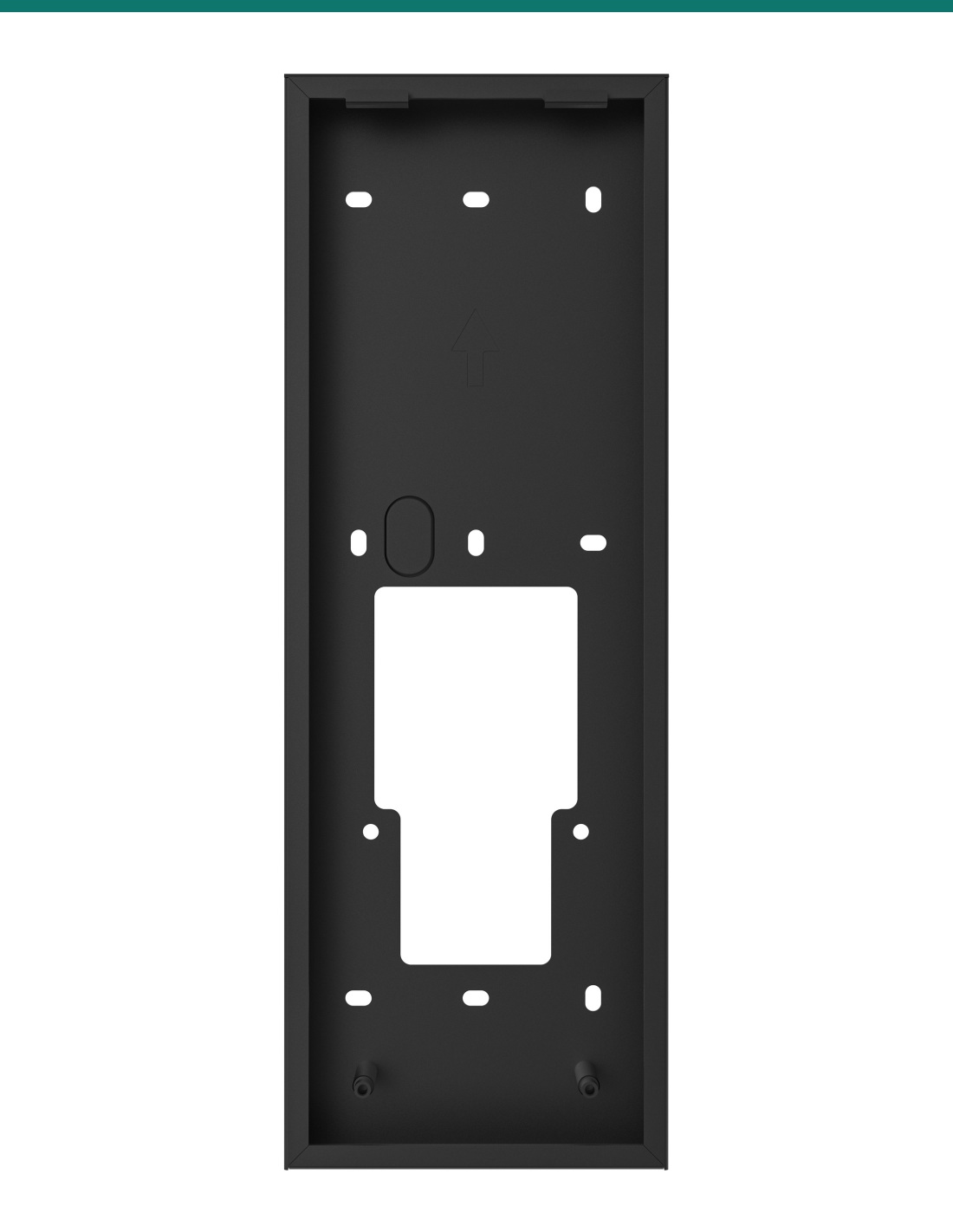

Black metal box with two hooks at the top and a centre cable opening. The S532 hooks on, swings flat and is secured at the bottom with the Torx screw supplied with the door phone.

A drilling template, six ST4×20 screws with anchors, and two M4×30 screws for fixing over an existing wall box are included.

Fit

Made for the S532.

The box measures 300.4 × 105.4 × 29.3 mm, sized to the 301 × 106 mm S532 keypad door phone.

The S532 on-wall rain cover has the same fixing pattern and sits behind the box on exposed walls.

Pair it with

Fits the Akuvox S532

Door phone

Akuvox S532

Keypad SIP video door phone with 2.8″ display, card reader and BLE.

Weather

S532 on-wall rain cover

Black hood that keeps rain off the keypad and camera on exposed walls.

Watch

See it in action

Akuvox S532 retrofit-friendly door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the S532 come with a mounting box?

No. Every S532 needs either this on-wall kit or the S532 in-wall kit.

Can I mount it over an existing wall box?

Yes. Akuvox supplies two M4×30 screws for fixing the box to an 86-type embedded box, with the other screws into the wall.

What drilling does it need?

Six 6 mm holes, 25 mm deep, marked from the supplied template. Screws and anchors are included.

How high should it go?

Akuvox’s placement drawing puts the camera centre 1,500 mm above the ground, with the bottom of the box about 1,246 mm up.

Will the rain cover fit with this kit?

Yes. The S532 on-wall rain cover is designed for surface-mounted S532 units; its back plate sits behind this box.

Is the door phone included?

No. This SKU is the mounting kit only.

Surface-mount S532 installs.

Choose this kit for surface installs; for a recessed finish use the S532 in-wall kit instead. Add the S532 on-wall rain cover where the entry is exposed.

Installation & safety notice

Fitting. Tape the template to the wall with the cables through its cut-out, drill six 6 mm holes 25 mm deep, then fix the box with the ST4×20 screws and anchors. Over an existing 86-type wall box, use the two M4×30 screws into the box. Akuvox’s placement drawing puts the camera centre at 1,500 mm — see the Akuvox S532 quick guide.

Colour
Black
Brand
Akuvox
Size
300.4 × 105.4 × 29.3 mm (H × W × D)
Warranty
Australian warranty
Product Type
On-wall (surface) mounting box
Model
S532 on-wall installation kit
Compatible with
Akuvox S532 door phone
Contents
Wall-mounting box, template, 6 × ST4×20 screws, 6 × anchors, 2 × M4×30 screws
Drilling
6 × 6 mm holes, 25 mm deep
