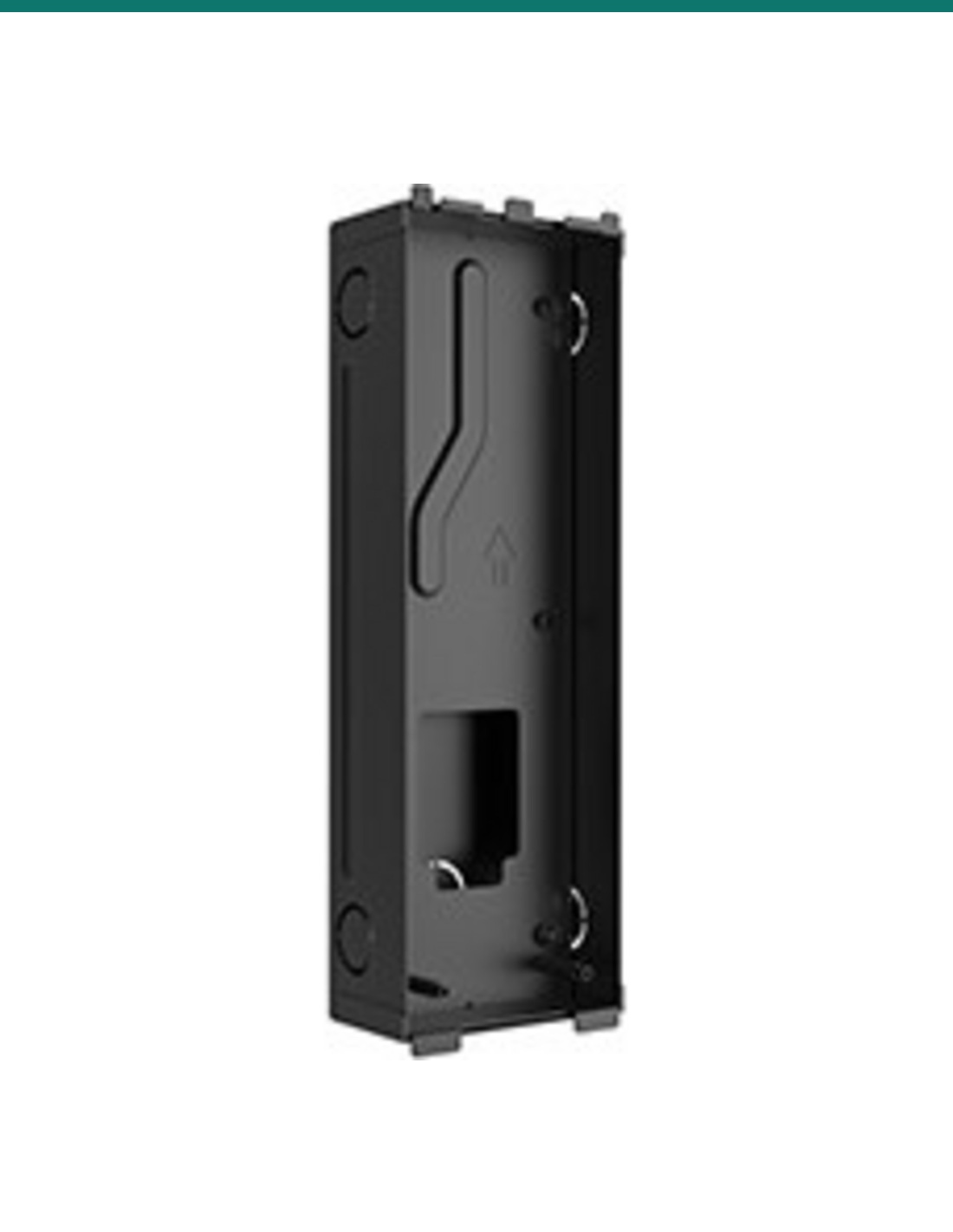

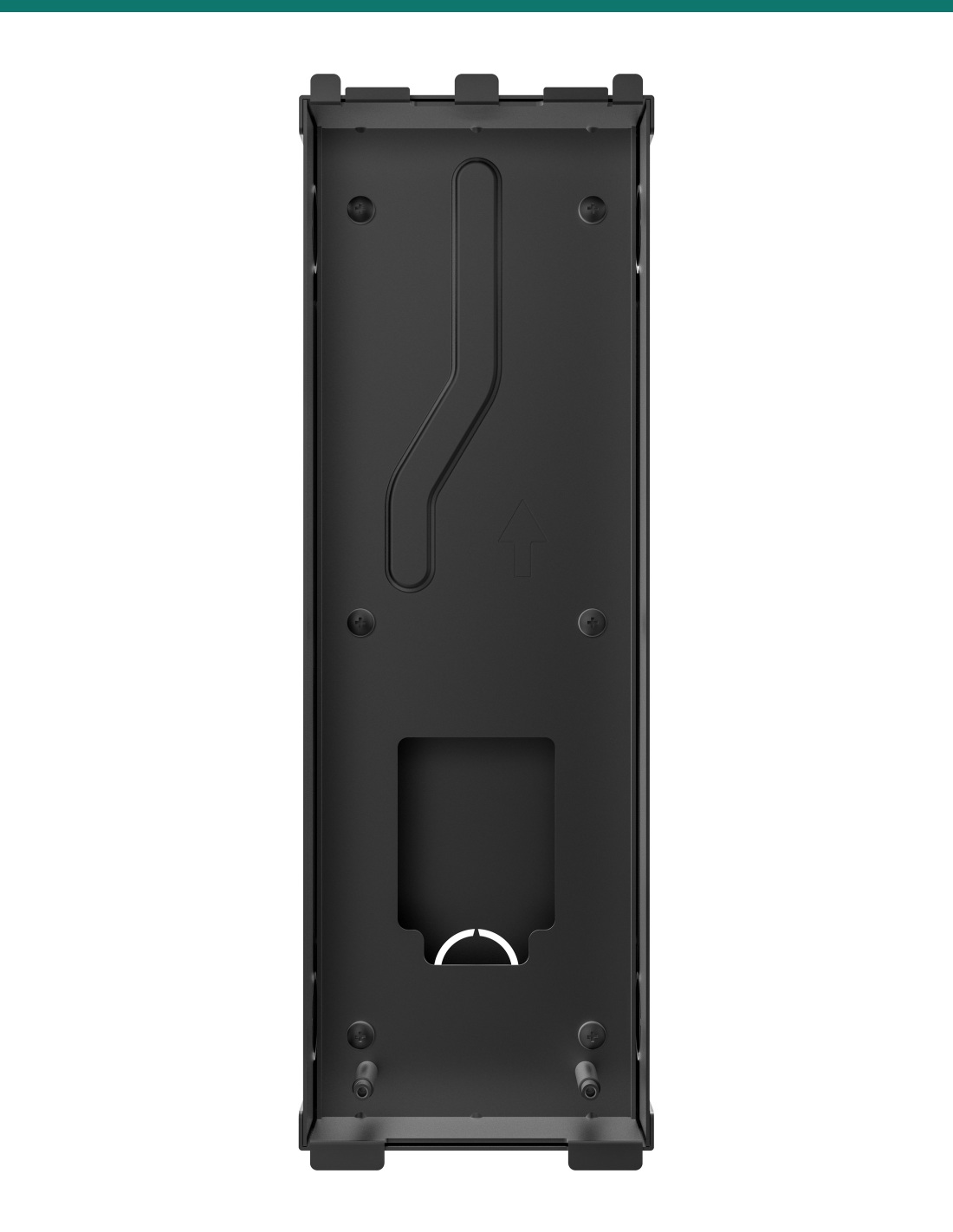

Akuvox S532 in-wall mounting box — front

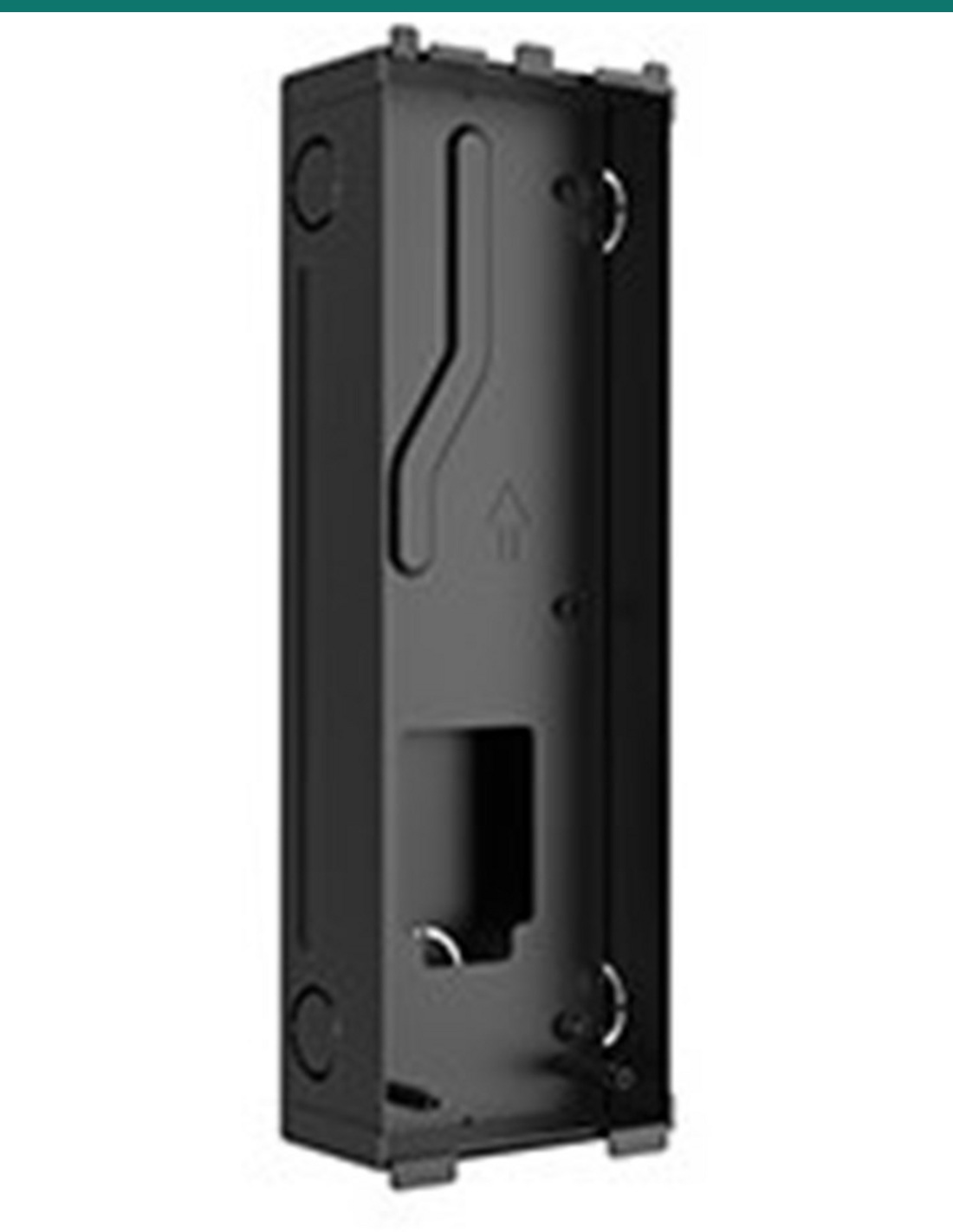

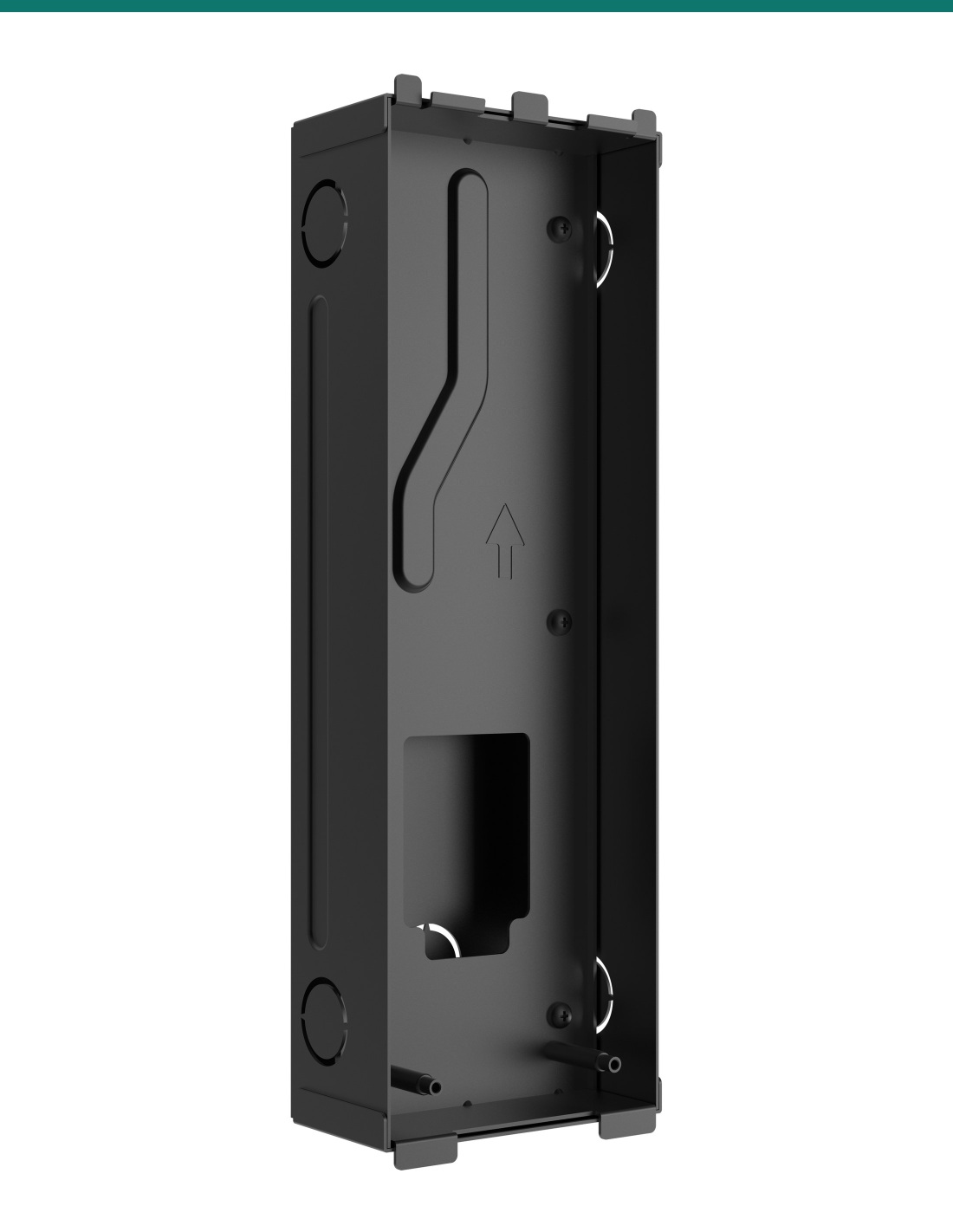

Akuvox S532 in-wall mounting box — left three-quarter view

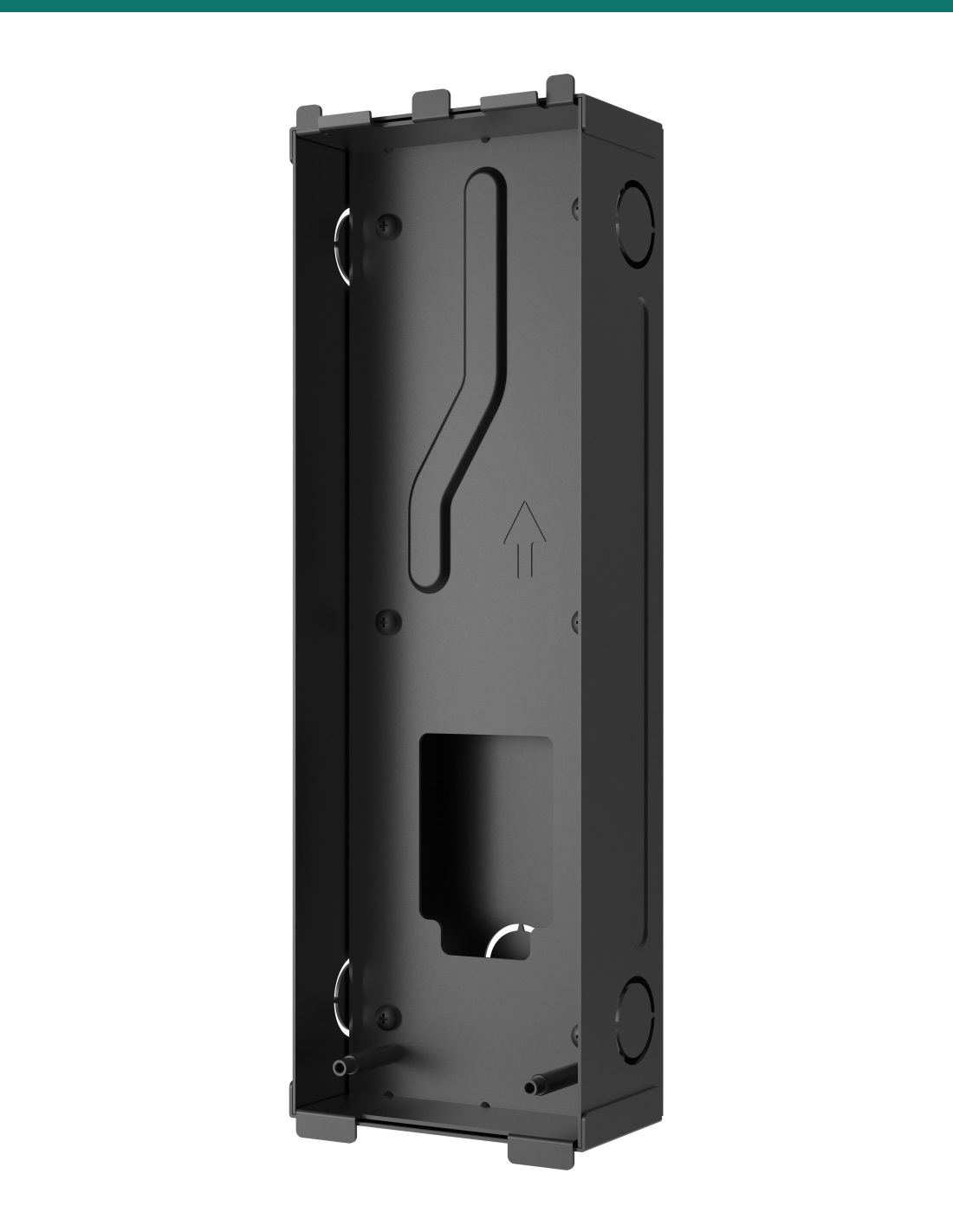

Akuvox S532 in-wall mounting box — right three-quarter view

Akuvox S532 In-Wall Installation Kit for Flush Mounting — AK-S532INWALLK

Name: Akuvox S532 In-Wall Installation Kit for Flush Mounting — AK-S532INWALLK
Brand: Akuvox
SKU: AK-S532INWALLK
Price: 57.1 AUD
Availability: InStock

Reference: AK-S532INWALLK

In Stock - Ready to Ship

$ 57.10

inc-GST

or 4 interest-free payments of $14.28 with

Akuvox AK-S532INWALLK flush-mounts the S532 keypad SIP door phone. The metal back box goes into a 289 × 98 × 52.5 mm wall opening, the bracket screws onto it, and the S532 hangs on the bracket so only the front panel stands proud of the wall. Screws and anchors included. Stocked in Australia by Infront Technologies.

✓Flush-mounts the Akuvox S532 (301 × 106 × 35.8 mm)
✓Wall cut-out 289 × 98 × 52.5 mm (H × W × D)
✓Flush box 287.7 × 96.9 × 52.2 mm with knock-out cable entries
✓Flush bracket, 6 × M4×8, 6 × ST4×20 screws and 6 anchors

Akuvox · S532 · In-wall installation kit

Recess the S532 into the wall.
Box and bracket included.

The AK-S532INWALLK is Akuvox’s flush-mounting kit for the S532. The door phone ships without a box; this kit sets it into the wall for a slim, built-in look on new builds and renovations.

This SKU is the in-wall installation kit.

You receive the box, bracket and fixings listed below, as shown in the Akuvox S532 quick guide. The S532 door phone is sold separately.

In the box

Flush-mounting box × 1
Flush-mounting bracket × 1
M4×8 crosshead screws × 6
ST4×20 crosshead screws × 6
Plastic wall anchors × 6

What you also need(sold separately)

Akuvox S532 door phone
S532 in-wall rain cover for exposed entries (optional)
PoE 802.3at switch or 12 V DC 2 A supply

Built in, not bolted on.

A recessed S532 sits close to the wall face, looks part of the façade and leaves less of the housing exposed to knocks.

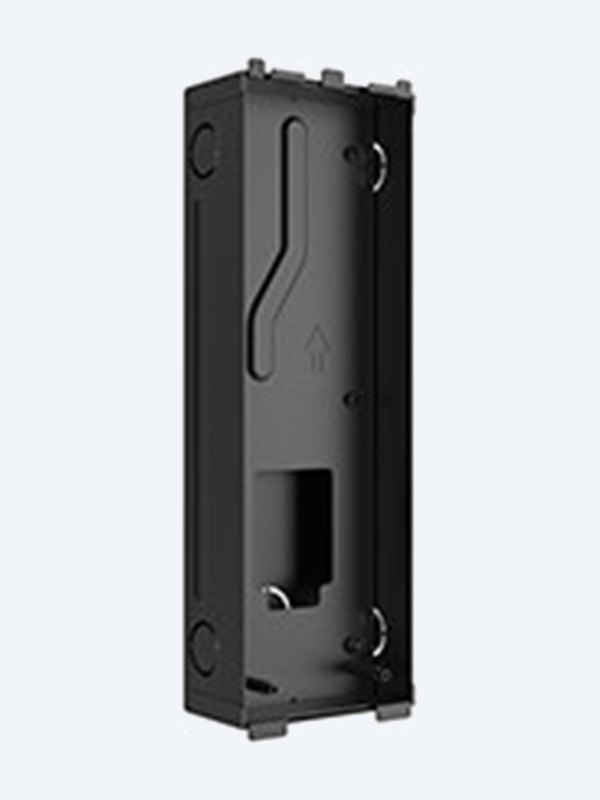

Akuvox S532 in-wall installation kit flush box

In the kit

Back box plus bracket.

The steel flush box has knock-out cable entries on every side and fixes into the wall with six ST4×20 screws and anchors.

The flush bracket screws onto the box with six M4×8 screws and carries the S532, which is secured with the Torx screw supplied with the door phone.

Fit

Sized for the S532.

The box measures 287.7 × 96.9 × 52.2 mm and needs a 289 × 98 × 52.5 mm opening. The 301 × 106 mm S532 front panel covers the opening.

On exposed entries, add the S532 in-wall rain cover around the recessed door phone.

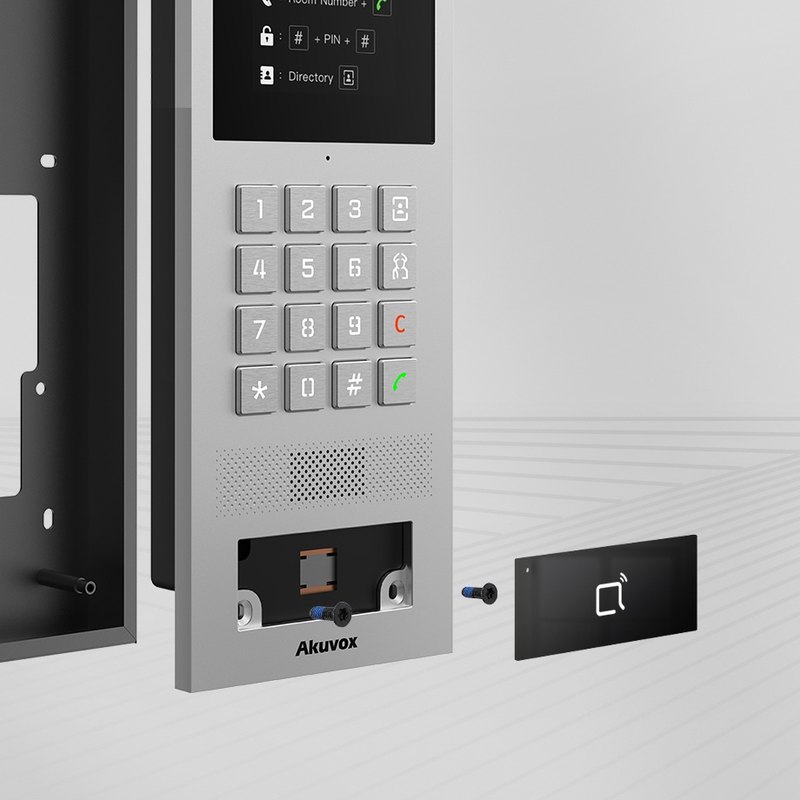

Akuvox S532 door phone being fitted into its in-wall box

At a glance

Key specs — AK-S532INWALLK

Brand: Akuvox
Reference: AK-S532INWALLK
Type: In-wall (flush) installation kit
Compatible with: Akuvox S532
Wall cut-out: 289 × 98 × 52.5 mm (H × W × D)
Box size: 287.7 × 96.9 × 52.2 mm (H × W × D)
Device size (S532): 301 × 106 × 35.8 mm
Contents: Flush box, flush bracket, 6 × M4×8, 6 × ST4×20 + anchors
Shipping weight: 1.05 kg
Warranty: Australian warranty via Infront Technologies

Pair it with

Fits the Akuvox S532

Door phone

Akuvox S532

Keypad SIP video door phone with 2.8″ display, card reader and BLE.

Weather

S532 in-wall rain cover

Black hood frame for a recessed S532 on an exposed entry.

Answers

Common questions

How big a hole do I need?

289 mm high, 98 mm wide and 52.5 mm deep.

Does the S532 come with a mounting box?

No. Every S532 needs either this in-wall kit or the S532 on-wall kit.

Which rain cover goes with a flush install?

The S532 in-wall rain cover. The on-wall rain cover is for surface-mounted units.

Is the door phone included?

No. The kit contains the box, bracket and fixings only.

Flush S532 installs, local stock.

Order one kit per S532 you want recessed, and add the S532 in-wall rain cover on exposed entries. For surface installs use the S532 on-wall kit. Infront Technologies stocks all of them in Australia.

Installation & safety notice

Fitting. Cut a 289 × 98 × 52.5 mm (H × W × D) opening at the cable position, knock out a cable entry, fix the box with six ST4×20 screws and anchors, then fix the bracket to the box with six M4×8 screws. Akuvox notes the box must not sit higher than the wall face or tilt by more than 2° — see the Akuvox S532 quick guide.

Brand: Akuvox
Warranty: Australian Warranty via Infront Technologies
Product Type: In-wall (flush) installation kit
Model: S532 in-wall installation kit
Compatible with: Akuvox S532 door phone
Wall Cut-out: 289 × 98 × 52.5 mm (H × W × D)
Contents: Flush box, flush bracket, 6 × M4×8, 6 × ST4×20, 6 × anchors
Box Size: 287.7 × 96.9 × 52.2 mm (H × W × D)
