- New
Akuvox AK-S532KBONH is the on-wall rain cover for the S532 keypad door phone. A black hood with its own back plate, it fits behind the S532 on-wall box and shelters the camera, display and keypad from rain and overhead sun.
- ✓Rain cover for a surface-mounted Akuvox S532
- ✓312 × 110 mm, projecting 82.3 mm at the top
- ✓Back plate shares the fixing pattern of the S532 on-wall box
- ✓Black finish
Description
Keep the S532 keypad dry.
Hood for surface-mounted units.
The AK-S532KBONH is Akuvox’s rain cover for an S532 mounted on the wall surface. The S532 is weather-rated; the hood keeps driving rain off the glass and keys and cuts the glare that washes out the camera picture.
This SKU is the rain cover only.
You receive the black S532 on-wall rain cover. The S532 door phone and the S532 on-wall installation kit are sold separately.
- Akuvox S532 on-wall rain cover (black)
- Akuvox S532 door phone
- S532 on-wall installation kit
Clear video, rain or shine.
Rain on the lens blurs the picture and overhead sun washes out faces. The hood covers the top and sides of the S532 so visitors are seen clearly and the keypad stays dry.

Design
Hood and back plate in one.

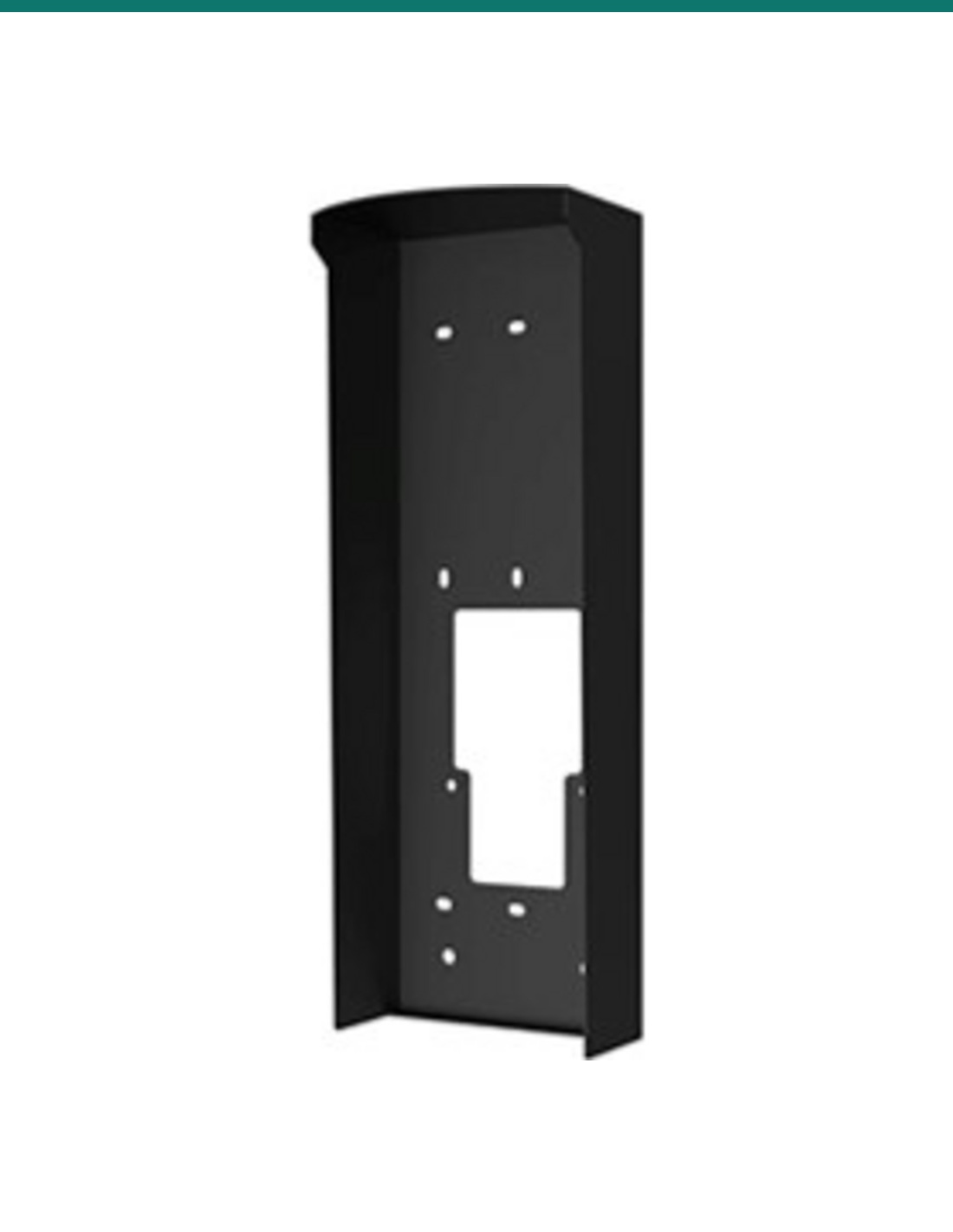

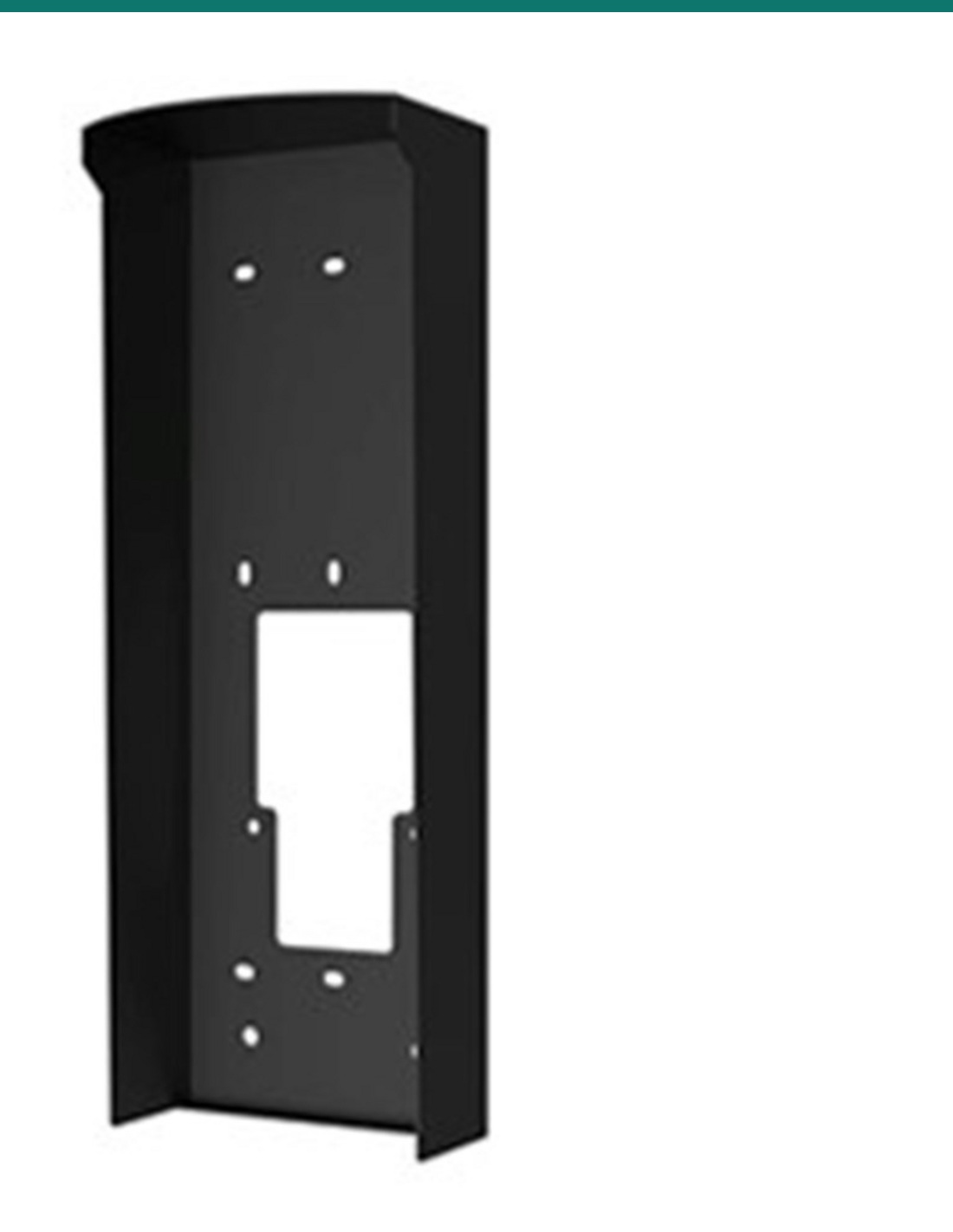

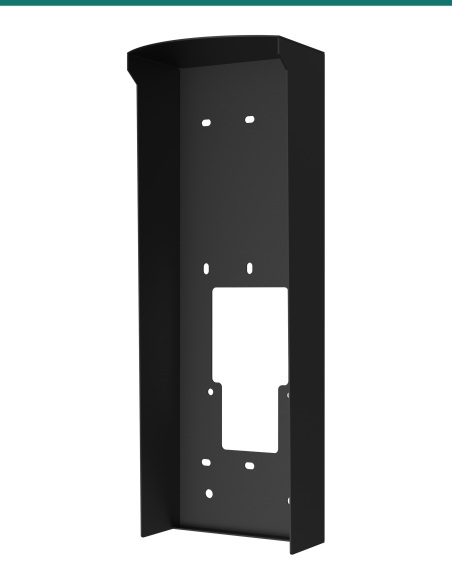

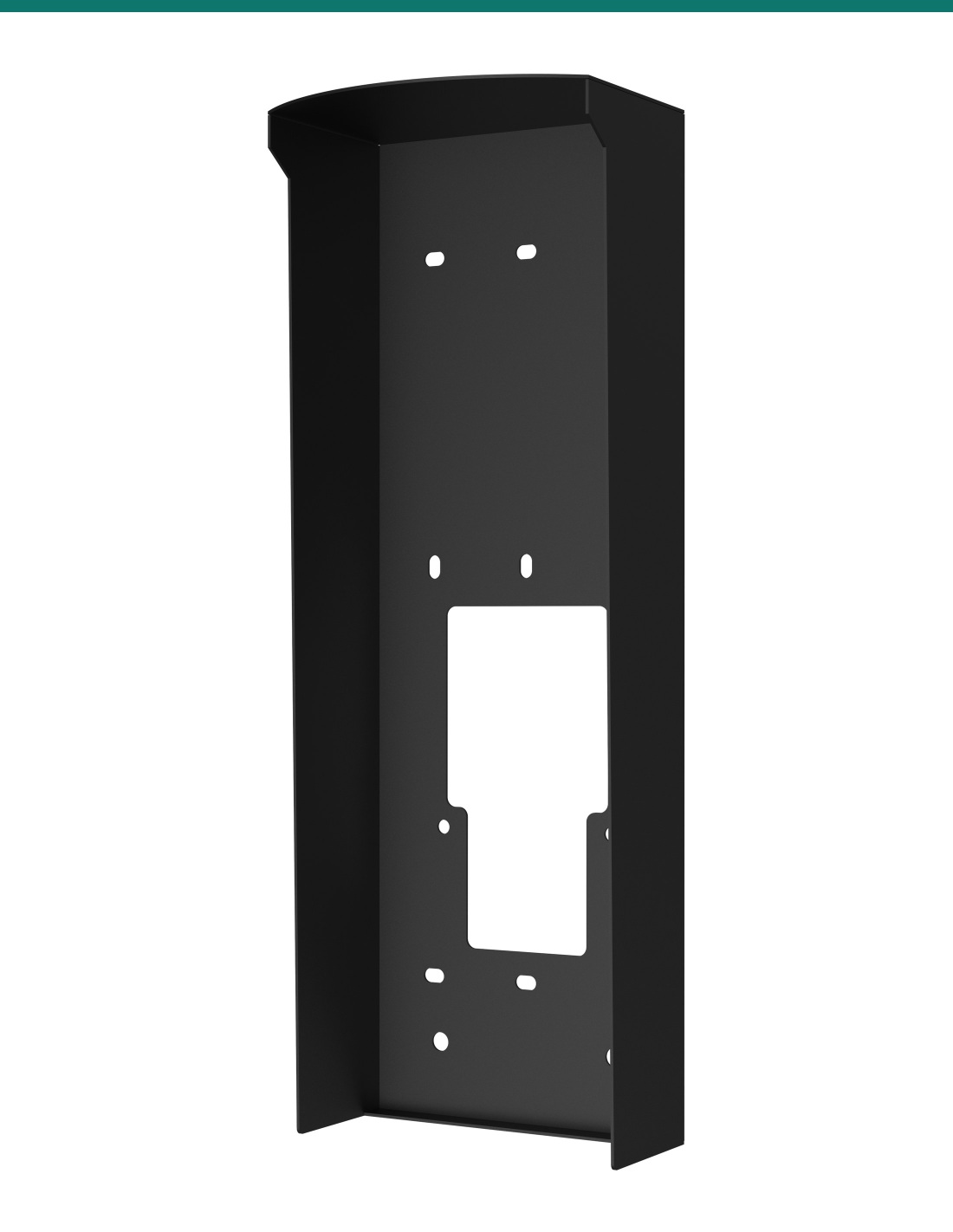

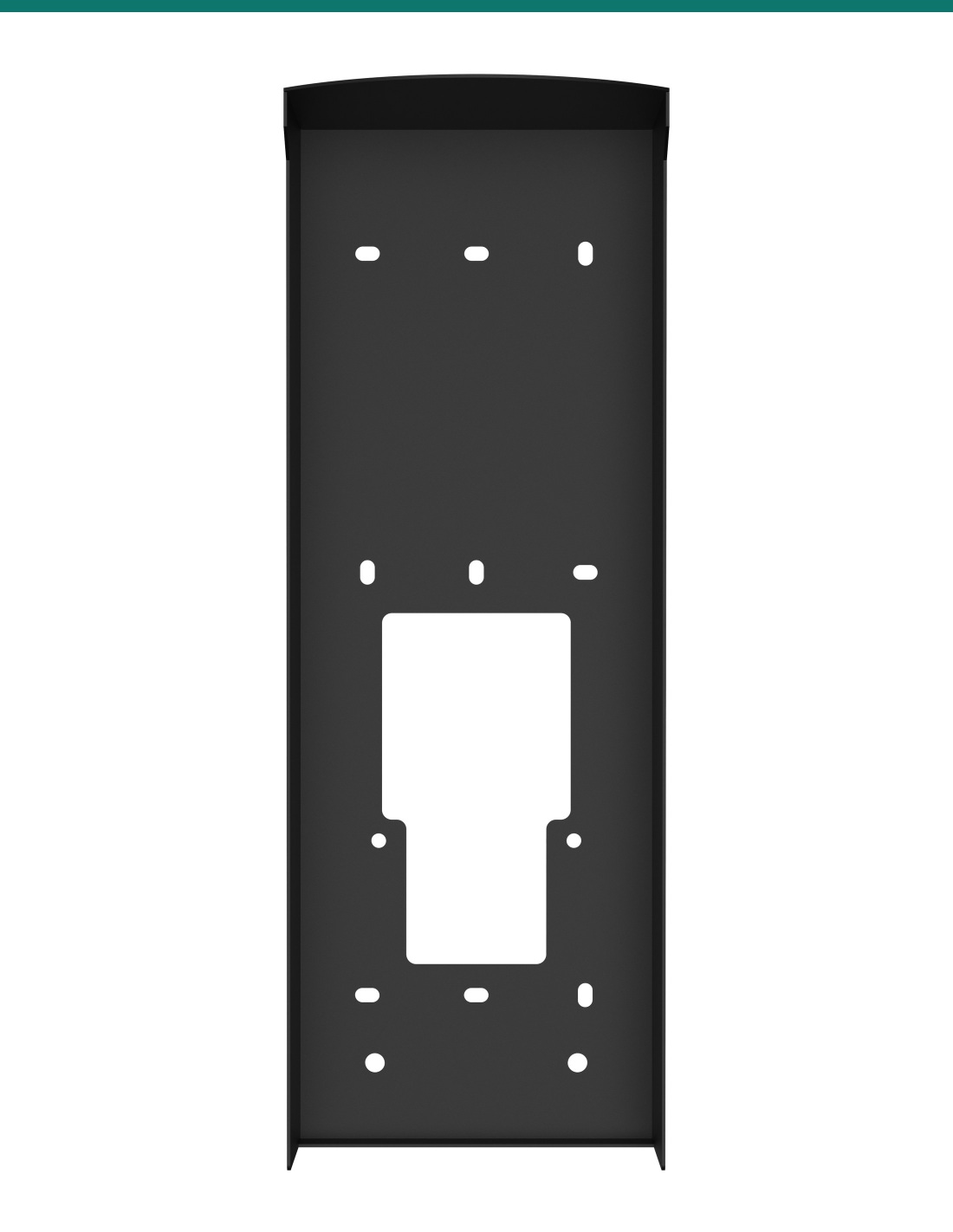

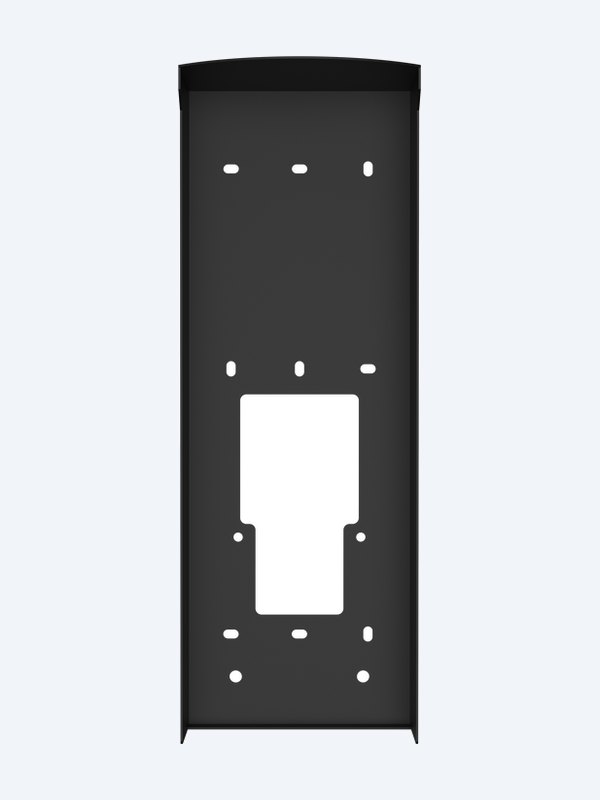

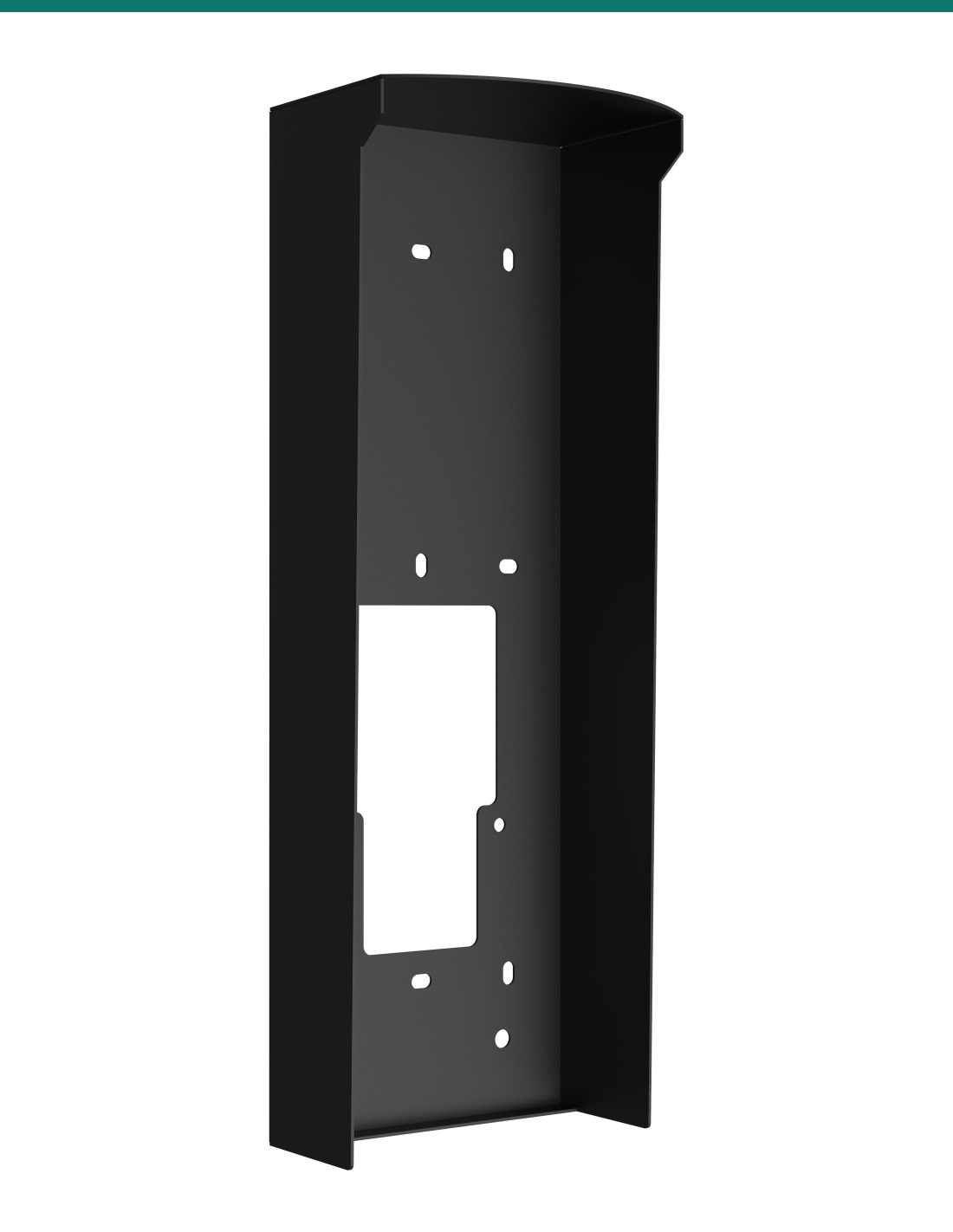

The cover is a single black piece: a back plate with a cable cut-out and slotted fixing holes, and a hood that wraps the top and sides.
Its fixing holes line up with the S532 on-wall box, so the box mounts through the plate and the S532 hangs on the box as normal.
Fit
For the S532 on the wall.
It measures 312 × 110 mm and projects 82.3 mm at the top, enough to shelter the 301 × 106 × 35.8 mm S532 on its 29.3 mm box.
It is not for flush installs — a recessed S532 uses the in-wall rain cover.
At a glance
Key specs — AK-S532KBONH
Show all specifications
- Type
- On-wall rain cover with back plate
- Compatible with
- Akuvox S532, surface-mounted
- Size
- 312 × 110 mm (H × W)
- Projection
- 82.3 mm at the top, 46.6 mm at the bottom
- Use with
- S532 on-wall installation kit
- Colour
- Black
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-S532KBONH
Dimensions
- Height × width
- 312 × 110 mm
- Projection at the top
- 82.3 mm
- Projection at the bottom
- 46.6 mm
- Back-plate fixing slots
- 3 columns 67 mm across; rows 98 mm and 130 mm apart
- Cable cut-out
- 58 mm wide
- Placement
- Camera centre 1,500 mm above ground; cover bottom 1,243 mm
Fit
- Compatible with
- Akuvox S532, surface-mounted
- Use with
- S532 on-wall installation kit
- Design
- One-piece back plate and hood
- Colour
- Black
Pair it with
Fits the Akuvox S532
Door phone
Akuvox S532
Keypad SIP video door phone with 2.8″ display, card reader and BLE.
Mounting
S532 on-wall installation kit
The surface box the S532 hangs on; it mounts through the hood’s back plate.
Watch
See it in action
Downloads
Datasheets and guides
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Can I use it on a flush-mounted S532?
No. This is the on-wall cover. A recessed S532 uses the S532 in-wall rain cover.
Do I still need the on-wall kit?
Yes. The S532 hangs on the on-wall box, which fixes to the wall through the hood’s back plate.
How far does it stick out?
82.3 mm at the top, tapering to 46.6 mm at the bottom.
Does the cable still come through the back?
Yes. The back plate has a 58 mm-wide cable cut-out, so cables still enter the on-wall box from behind.
Does it change the mounting height?
No. Akuvox’s drawing keeps the camera centre at 1,500 mm, with the bottom of the cover about 1,243 mm above the ground.
Is the door phone included?
No. This SKU is the rain cover only.
Protect exposed S532 installs.
Fit it wherever a surface-mounted S532 has no awning. Recessed S532 units use the S532 in-wall rain cover instead.
- Colour
- Black
- Brand
- Akuvox
- Size
- 312 × 110 mm (H × W)
- Warranty
- Australian warranty
- Product Type
- Rain cover (on-wall)
- Model
- S532 on-wall rain cover
- Use With
- S532 on-wall installation kit
- Compatible with
- Akuvox S532 door phone (surface-mounted)
- Projection
- 82.3 mm at the top, 46.6 mm at the bottom
