Akuvox Modular Door Phones
Akuvox R20K / R25K / R20B Black Rotatable Angle Bracket — AK-R20KANGLE
AK-R20KANGLE
In Stock - Ready to Ship $ 59.70
inc-GST
or 4 interest-free payments of $14.93 with

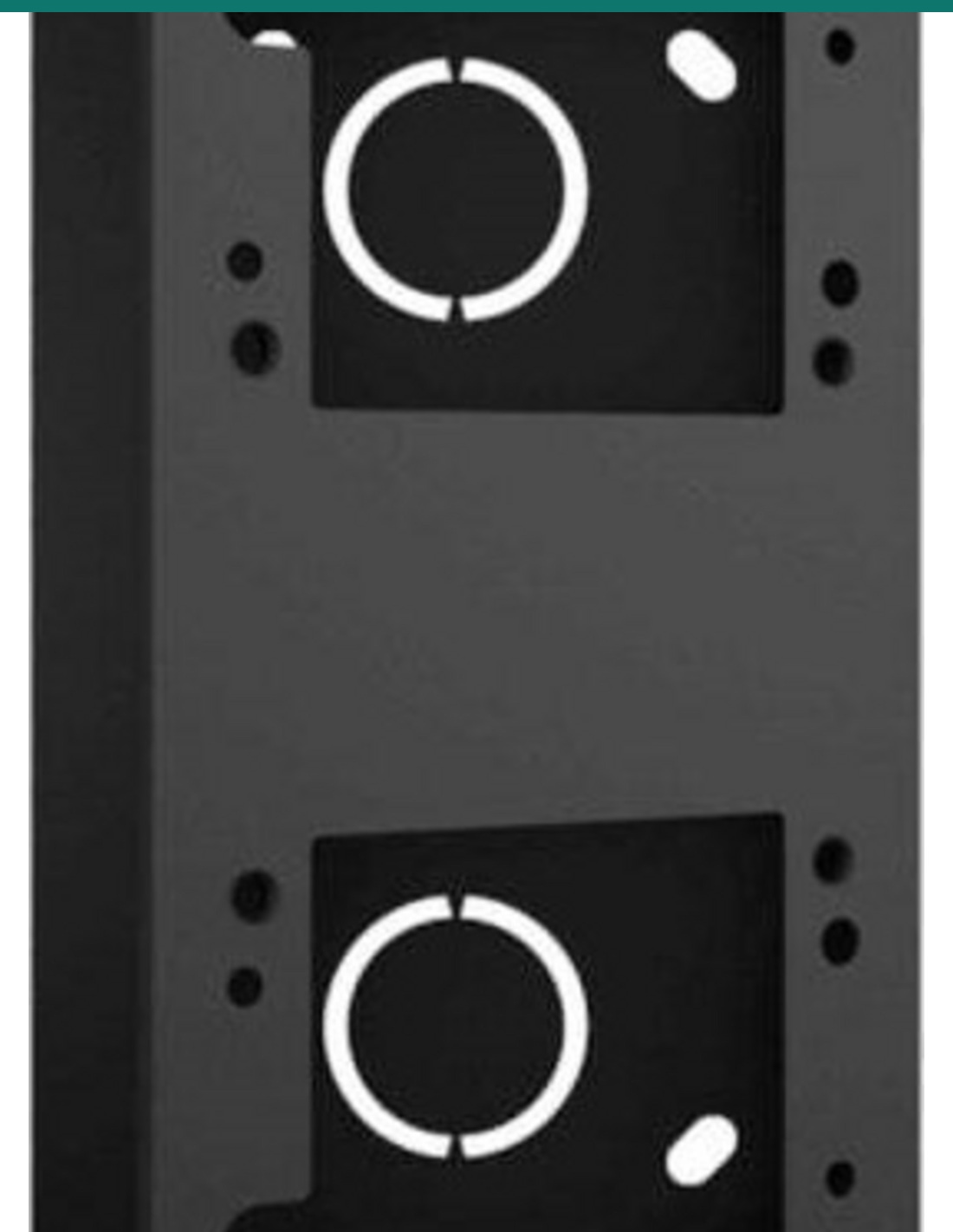

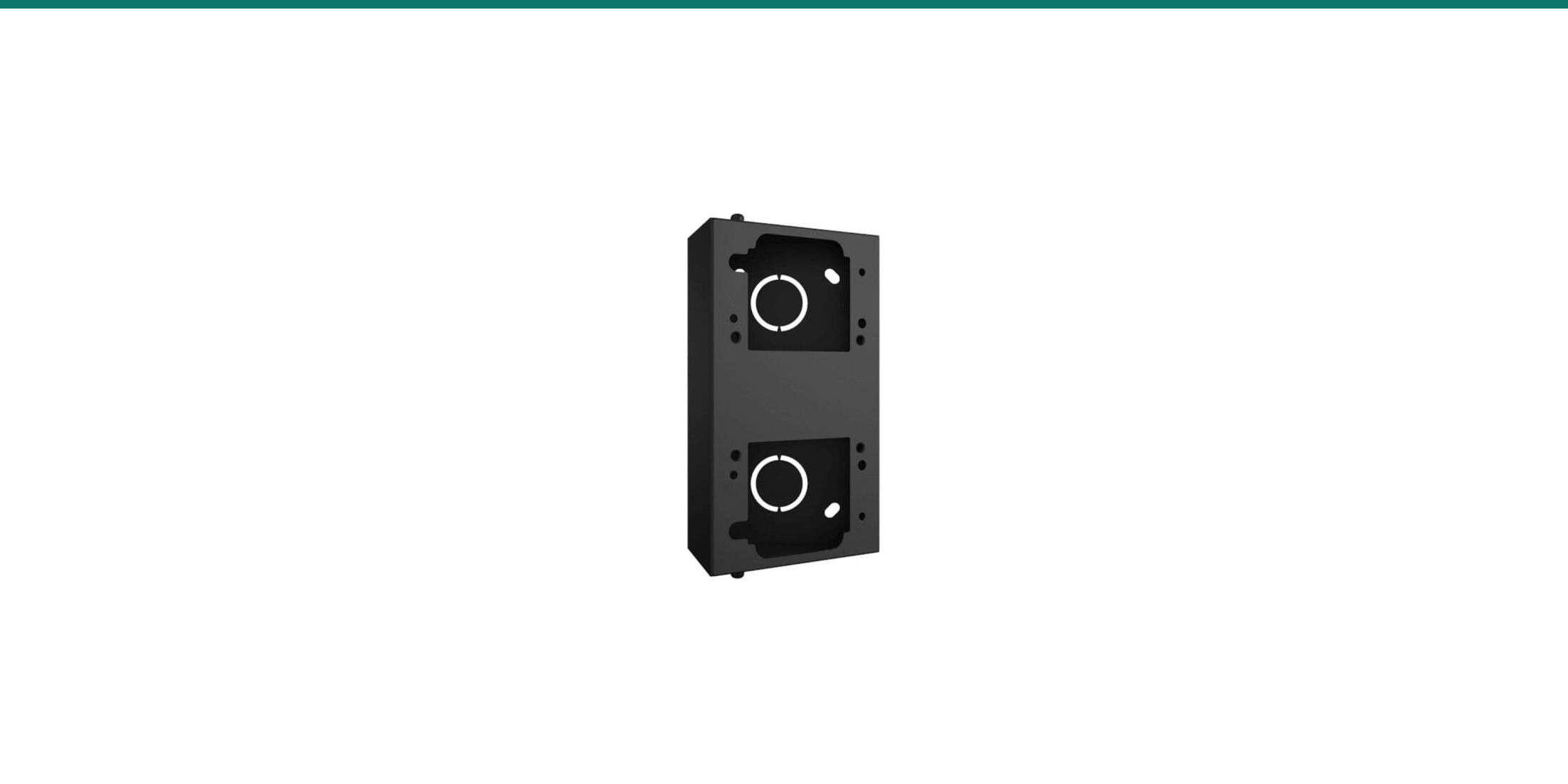

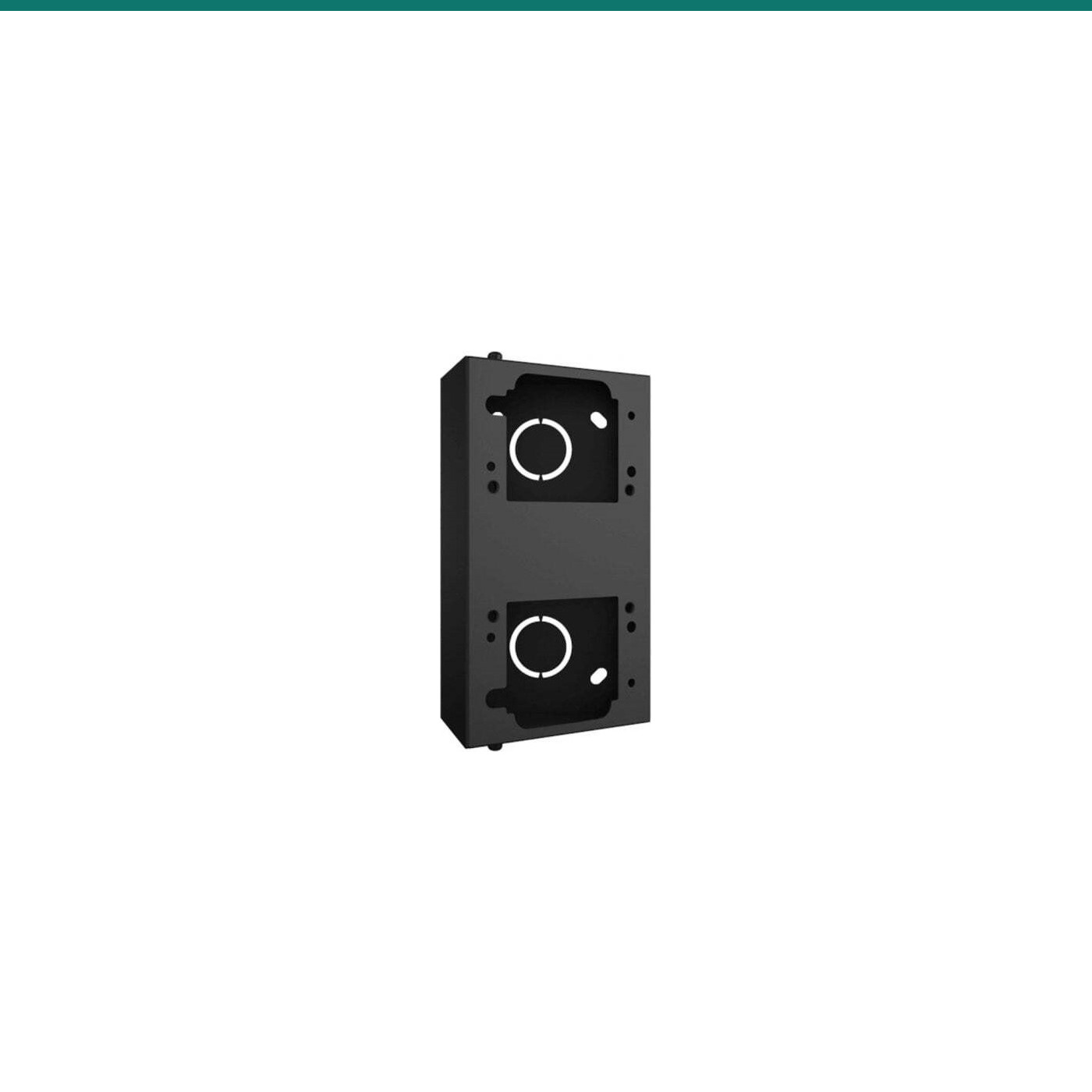

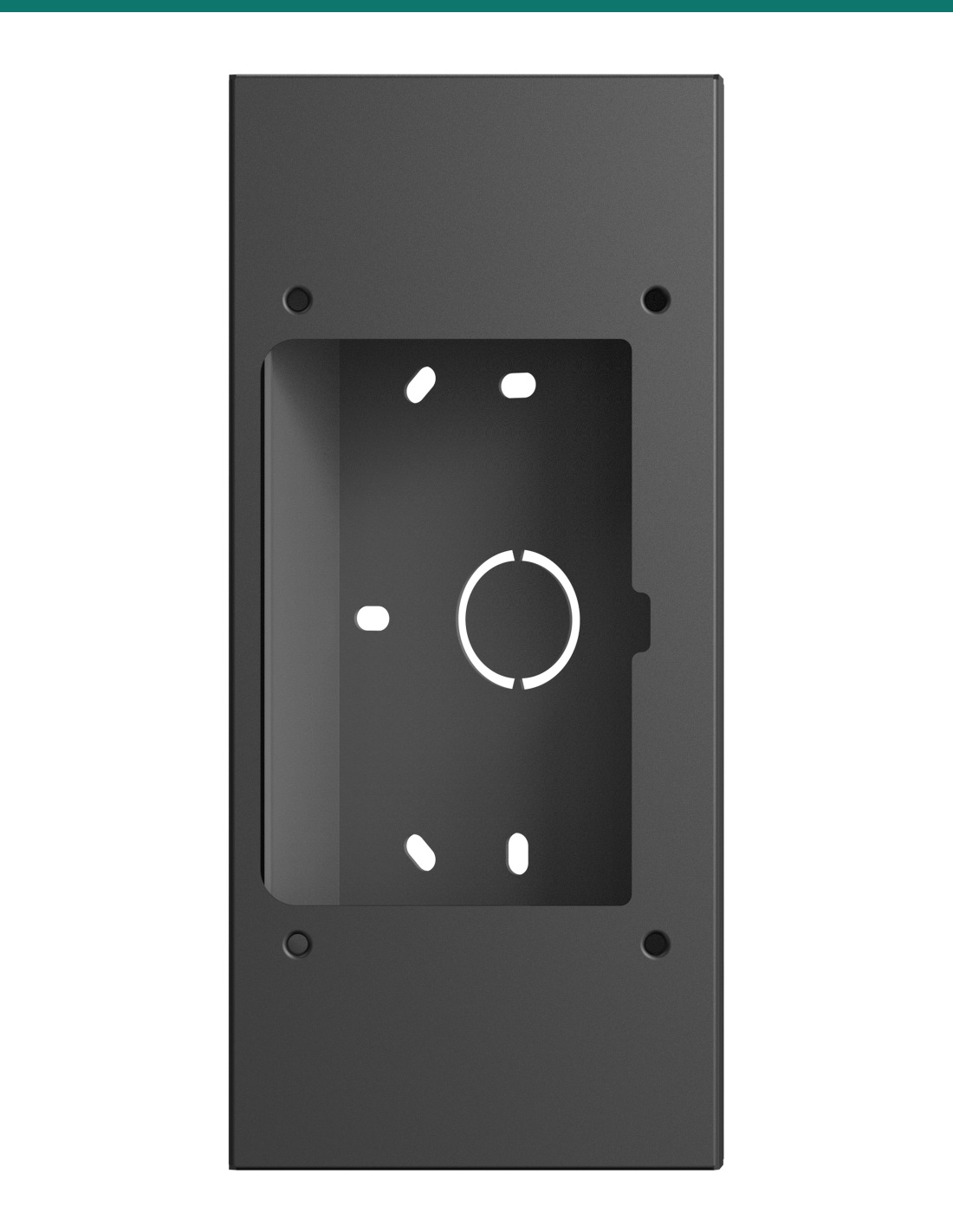

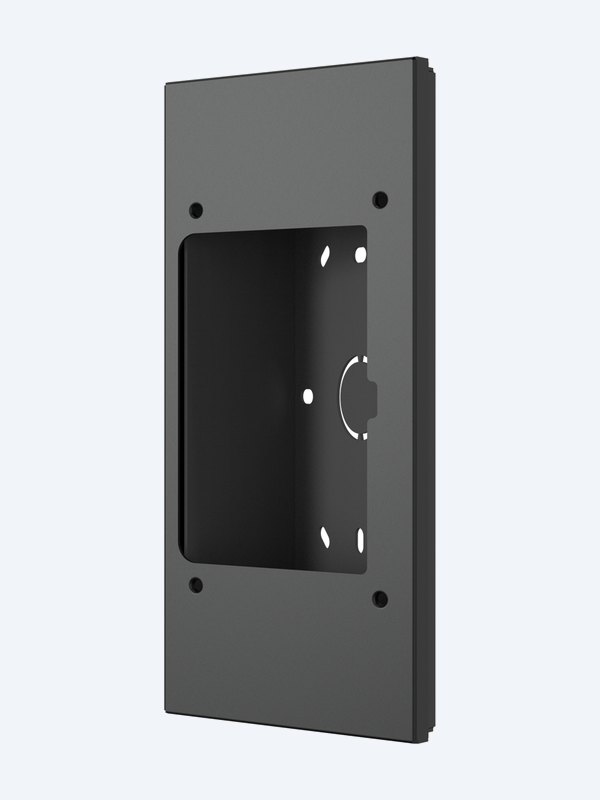

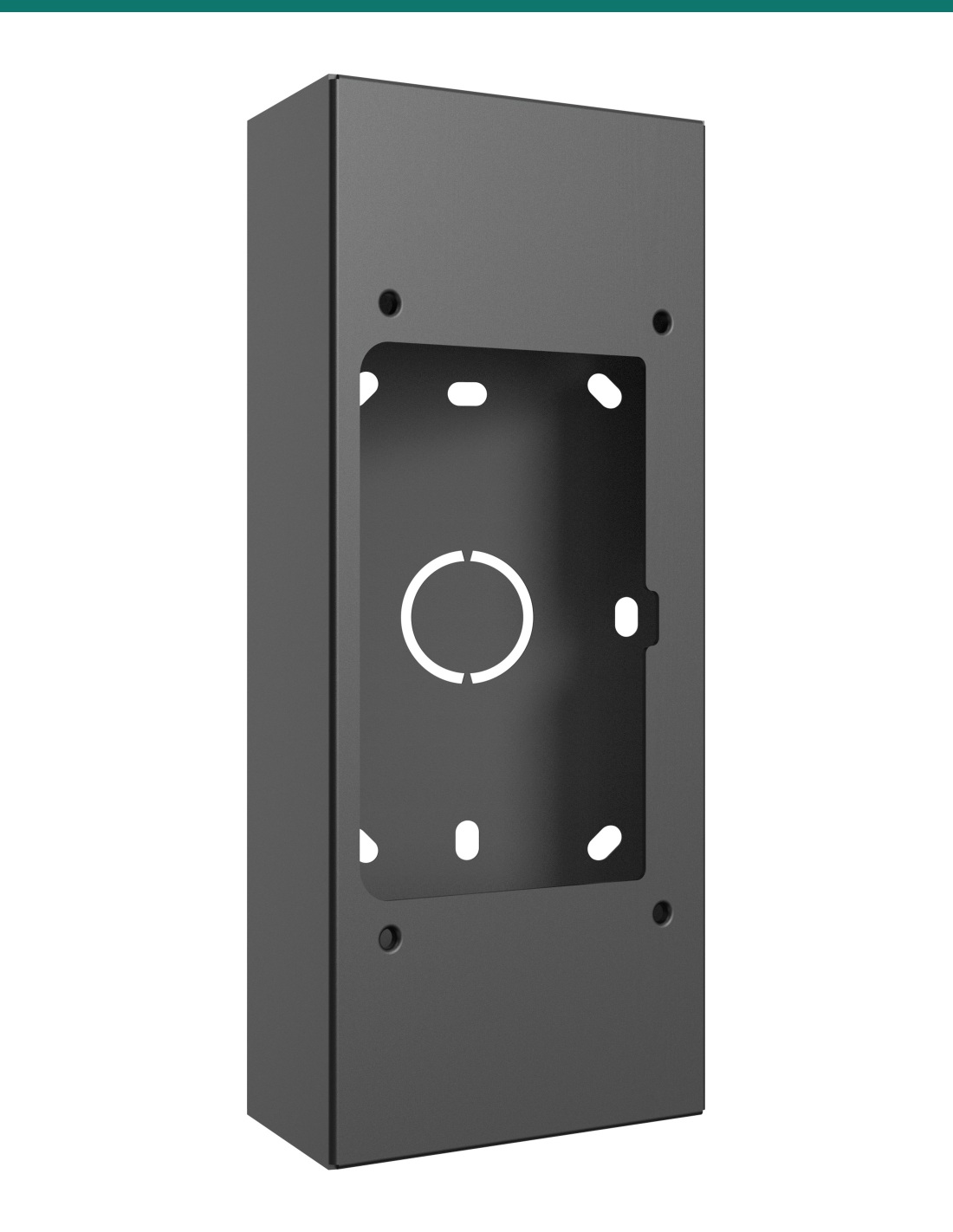

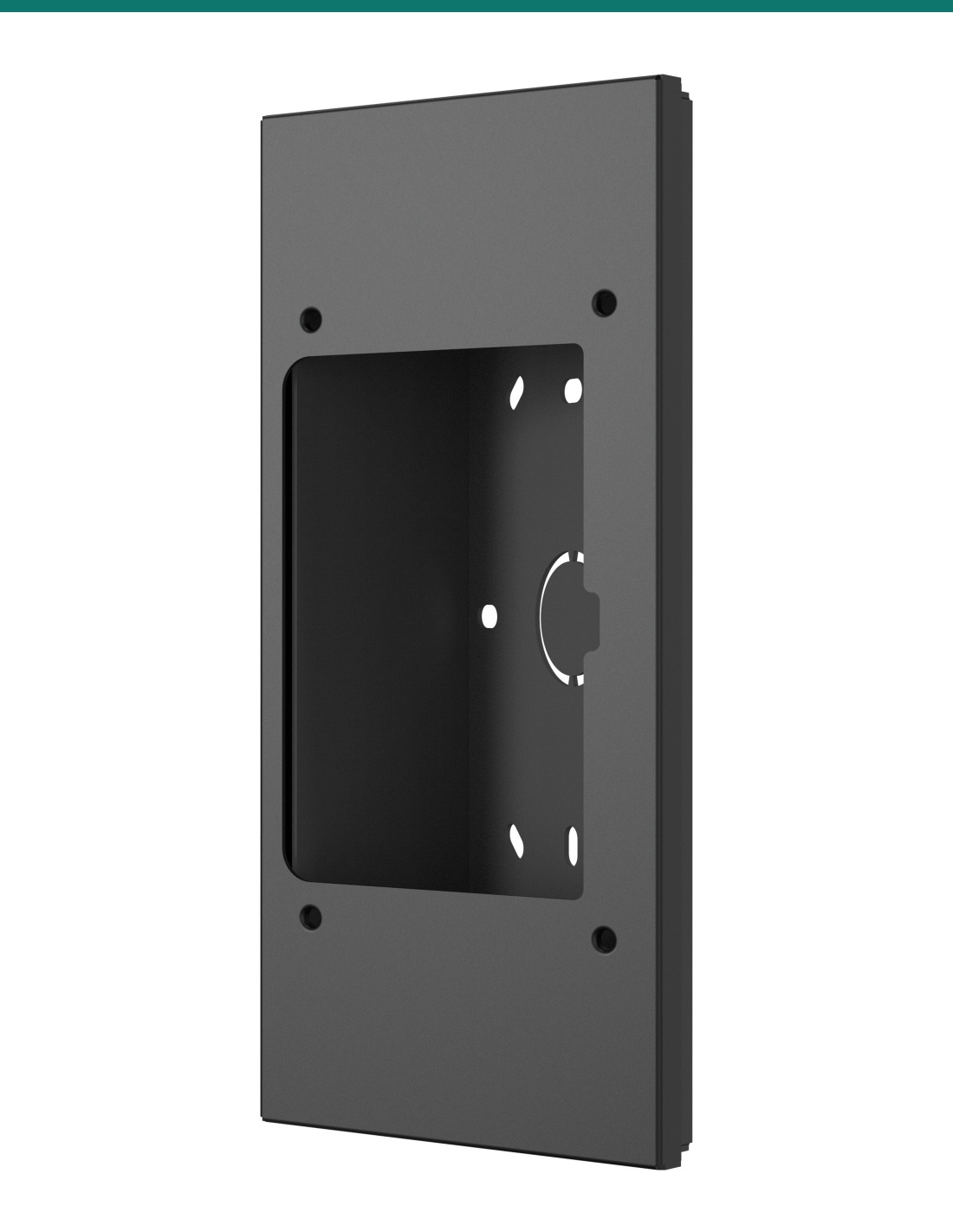

Akuvox R20K / R25K / R20B angle bracket is a black rotatable mount that sits between the wall and a surface-mounted R20K, R25K or R20B, so the door phone can be turned to face visitors on a side path, gate pillar or corner instead of looking across the approach.
- ✓Turns a surface-mounted R20K, R20K-L, R25K or R20B to face the visitor
- ✓184 × 84.3 × 52.2 mm black bracket; left- or right-hand of the door
- ✓Mounts on the wall or over a one-gang 2 × 3″ box
- ✓For the shorter R20A / R25A use AK-R20ANGLE
Akuvox · R20K / R25K / R20B · Angle bracket
Face the door phone to the visitor.
For R20K, R25K and R20B.
The AK-R20KANGLE is the Akuvox adjustable angle bracket for the 185 × 84.5 mm R20 family. It fixes to the wall or a one-gang box, the door phone hangs on its front, and two Torx screws lock the chosen angle.
Bracket only.
You receive the angle bracket. The door phone and its standard wall-mounting bracket are sold separately.
In the box
- Akuvox adjustable angle bracket (black)
- 2 × M4×30 and 4 × ST4×20 screws, 4 screw fixing seats
- 2 × M3×6 Torx screws and Torx wrench
What you also need(sold separately)
- Akuvox R20K, R20K-L, R25K or R20B door phone (surface mount)
Better faces at side entries.
A keypad station flat on a side wall sees visitors in profile and is awkward to type on. Angling it towards the path gives a face-on picture and a keypad that is easy to reach.
Fit
Made for the 185 × 84.5 mm housing.
R20K and R20K-L keypad, R25K fisheye keypad and R20B 2–5 button stations share the same housing, so the one bracket covers them all.
The station’s own wall-mounting bracket fixes to the angle bracket, so the door phone hangs and locks as normal.
Where to use it
Gates, side paths and corners.
Use it where the only practical wall runs alongside the approach — gate pillars, side entries and recessed porches.
Fit it on the left or right of the door so the camera and keypad turn towards the approach.
At a glance
Key specs — AK-R20KANGLE
Show all specifications
- Type
- Adjustable angle bracket, surface mount
- Colour
- Black
- Compatible with
- Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons)
- Size (H × W × D)
- 184 × 84.3 × 52.2 mm
- Mounting
- Wall (4 × ST4×20) or one-gang 2 × 3″ box (2 × M4×30)
- Angle lock
- M3×6 Torx screw at top and bottom
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-R20KANGLE
Dimensions
- Overall size (H × W × D)
- 184 × 84.3 × 52.2 mm
- Rear fixing holes
- 46 mm and 60.4 mm across, 85 mm vertical
- Cable entries
- 3 × Ø25 mm in the back, 4 × Ø14 mm in the top and bottom
Fit and fixings
- Compatible with
- Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons)
- Hand
- Left or right side of the door
- Wall fixing
- 4 × ST4×20 screws with screw fixing seats
- Box fixing
- One-gang 2 × 3″ junction box with 2 × M4×30 screws
- Angle lock
- 2 × M3×6 Torx screws, Torx wrench included
Pair it with
Pairs with
Door phone
Akuvox R20K, R25K or R20B
Keypad and multi-button door phones in the 185 × 84.5 mm housing, including the R20K-L.
Watch
See it in action
Downloads
Datasheets and guides
PDFR20K-series mounting drawingsAkuvox R20K-series dimension drawings (in-wall box, rain covers, brackets), March 2026 · 1.8 MBPDFR20K angle mounting guideOfficial Akuvox R20K angle mounting guide (PDF) · 3 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Which door phones does it fit?
Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons), all in the 185 × 84.5 × 24 mm housing.
Does it fit the R20A or R25A?
No — they are shorter. Use the R20A / R25A rotary bracket, AK-R20ANGLE.
Can it go over a junction box?
Yes. It fixes to a one-gang 2 × 3″ box with two M4×30 screws, or straight to the wall with four ST4×20 screws and fixing seats.
How is the angle set?
Swing the station towards the path, then tighten the M3×6 Torx screws at the top and bottom of the bracket with the supplied Torx wrench.
Can it be used for flush mounting?
No. It is for surface-mounted stations; recessed installs use the in-wall kit.
Angle the 185 mm R20 family.
For the R20A and R25A use the rotary bracket AK-R20ANGLE instead.
Installation & safety notice
The door phone’s wall-mounting screws slide into the slots on the front of the angle bracket and are locked with the Allen wrench, exactly as on the standard bracket. Fit it on the left or right of the door so the camera turns towards the approach.
- Colour
- Black
- Brand
- Akuvox
- Mounting
- Between the wall and the door phone
- Size
- 184 × 84.3 × 52.2 mm (H × W × D)
- Warranty
- Australian warranty
- Product Type
- Rotatable angle bracket
- Model
- R20K / R20B angle bracket
- Includes
- Bracket, screws, screw fixing seats, Torx wrench
- Compatible with
- Akuvox R20K, R20K-L, R25K and R20B (2–5 buttons)
- Junction Box
- Fits a one-gang 2 × 3″ box with M4×30 screws
