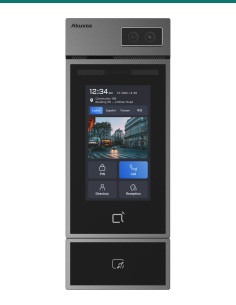

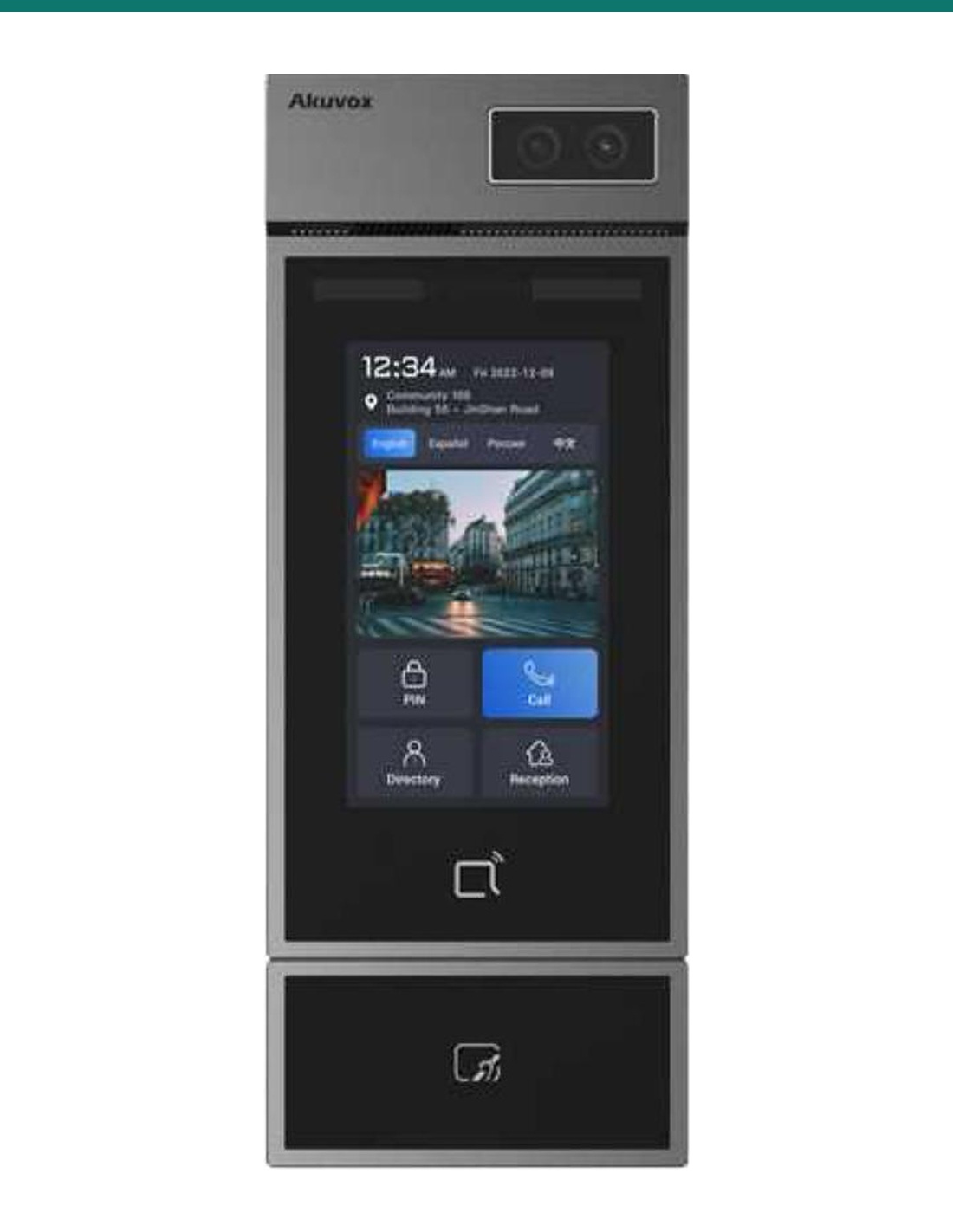

Akuvox S535 Induction Loop Expansion Module — AK-S535-IL

SKU AK-S535-IL In Stock - Ready to Ship
$76.40 inc GST

Akuvox S535 induction loop module adds a hearing loop to the S535 facial recognition door phone, so visitors and residents with hearing aids hear the call clearly. It plugs into the expansion port under the screen — module only, the door station is sold separately.

  • ✓Fits the Akuvox S535 expansion port — no extra cabling
  • ✓Sends call audio to hearing aids on their T (telecoil) setting
  • ✓Takes the S535 plate from 210 mm to 260 mm tall
  • ✓Use with the S535 box made for expansion modules


Akuvox · S535 · Induction Loop module

Make your S535 hearing-aid friendly.
An induction loop under the screen.

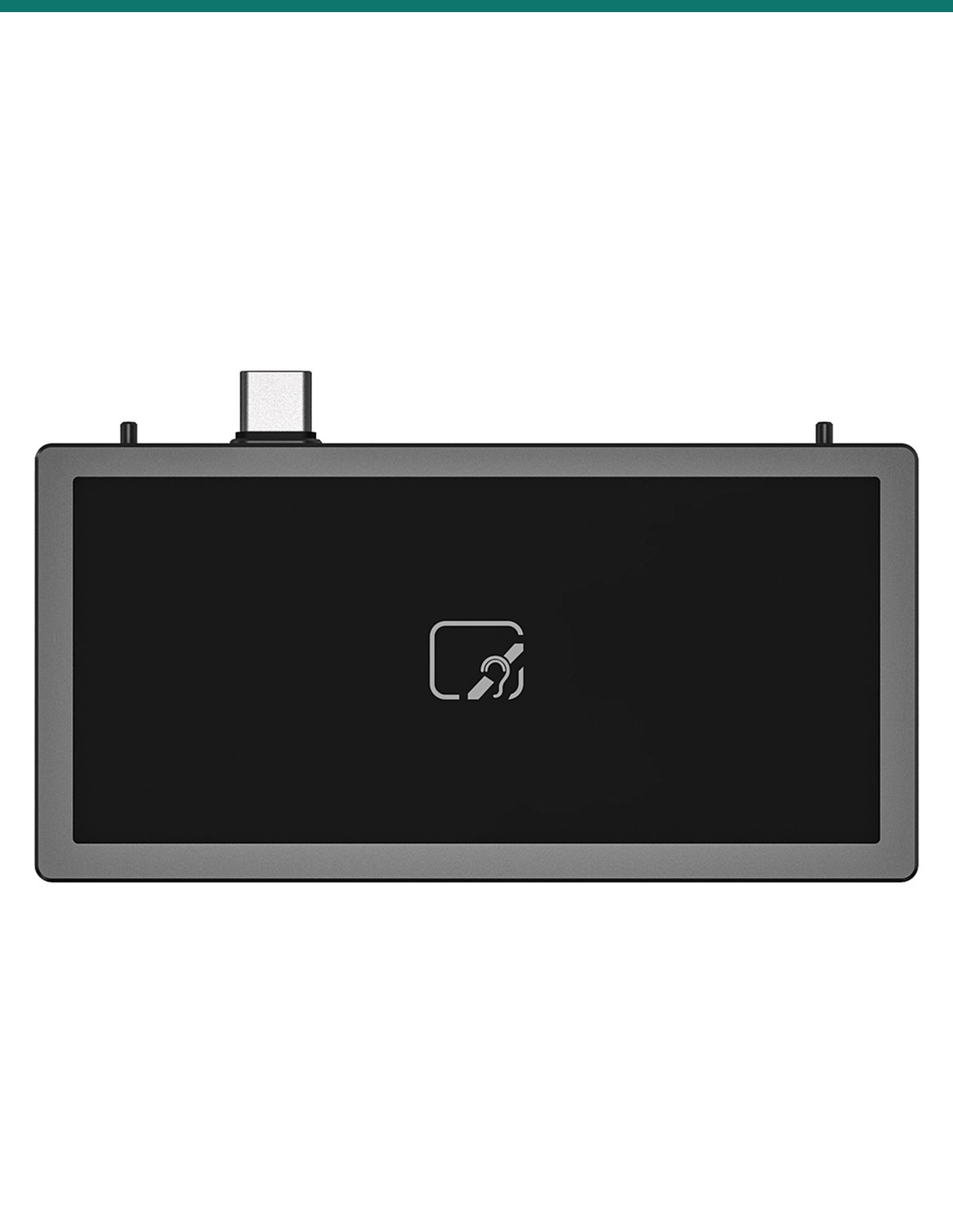

The AK-S535-IL is the induction loop expansion unit for Akuvox’s S535 door phone. It fits the expansion port under the screen and couples call audio directly to hearing aids switched to their telecoil setting.

This SKU is the induction loop module only.

You receive the S535 induction loop expansion module with its fixing screws. It needs an Akuvox S535 door station; for a new install, the S535 induction loop kit (AK-S535-IL-KIT) includes both.

In the box
  • Akuvox S535 induction loop expansion module
  • 2 × D3×45×M2.5×6 shoulder screws
What you also need (sold separately)
  • Akuvox S535 door station
  • S535 on-wall or in-wall box for use with a module

Clear calls for hearing-aid users.

Street noise and a small speaker make door calls hard for people with hearing loss. The loop delivers the conversation straight to the hearing aid, so the entrance works for everyone.

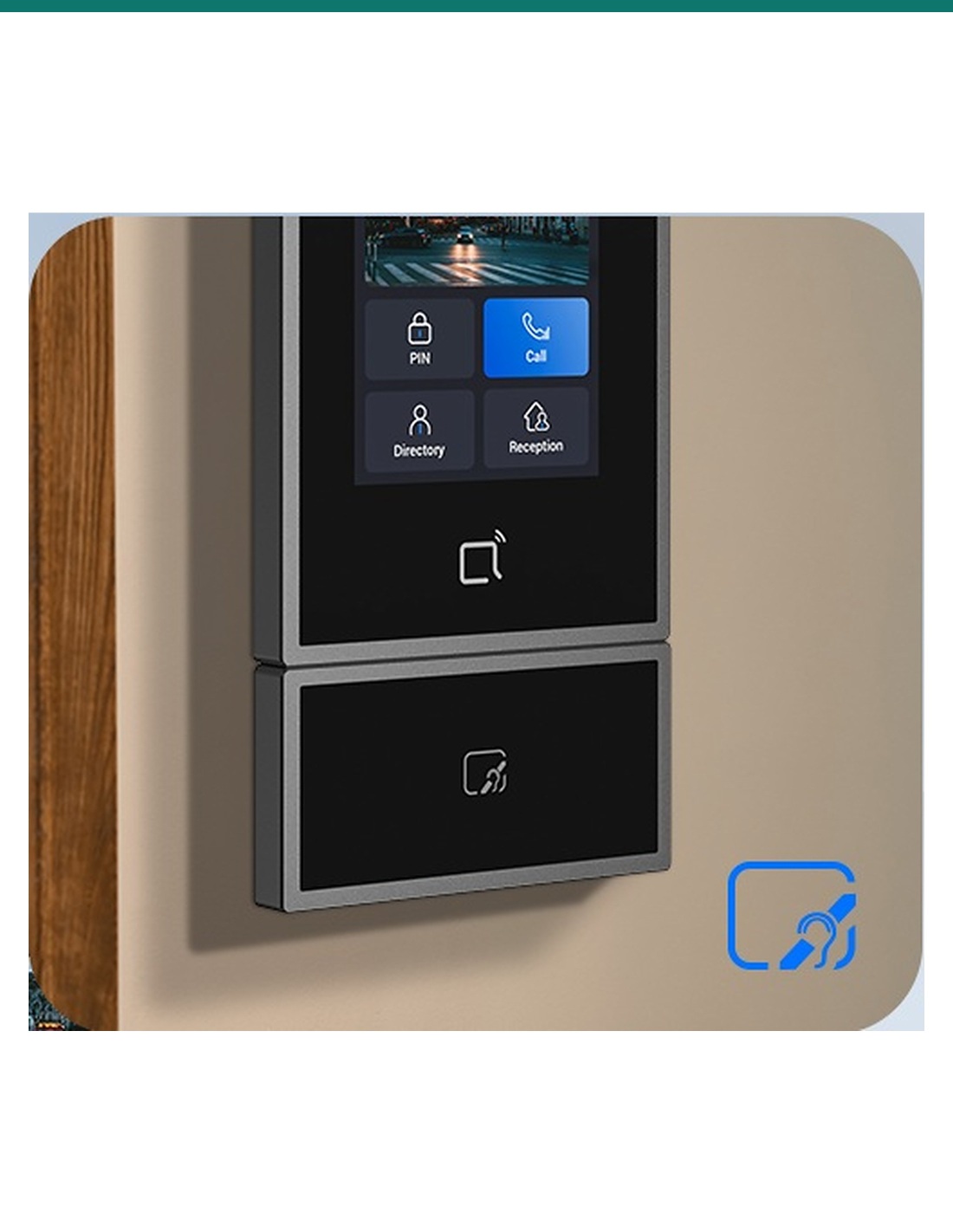

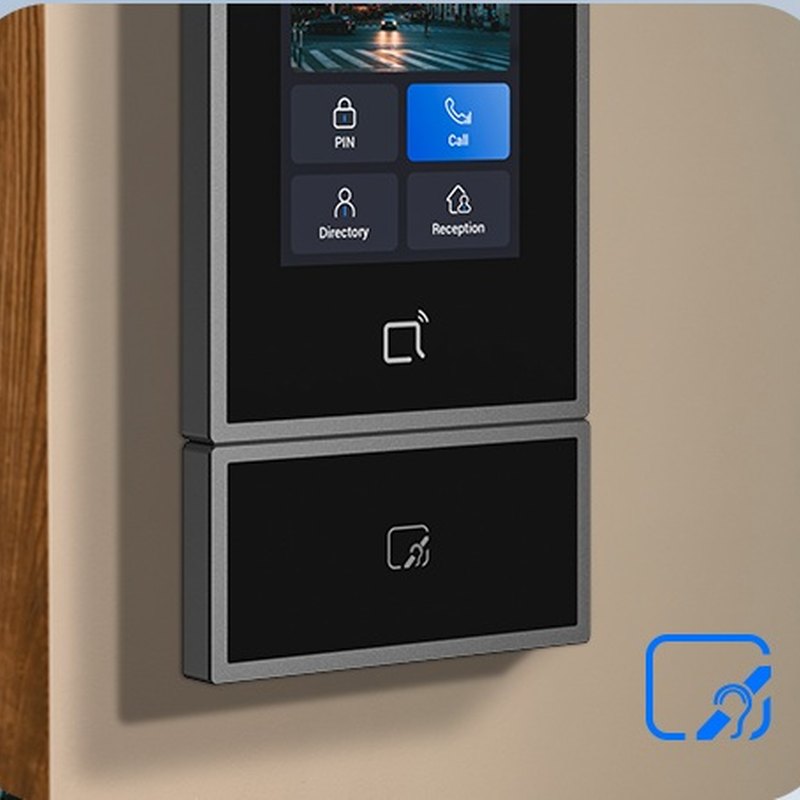

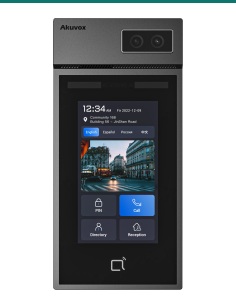

Akuvox S535 induction loop module fitted under the door phone on a timber wall

Induction loop

Audio straight to the hearing aid.

The module connects to the S535 expansion port, so there is no separate loop amplifier or cable to run at the door.

Users switch their hearing aid to its T (telecoil) setting and hear the call directly. The S535’s face, card, PIN, BLE and QR entry carry on as normal.

Mounting

Plan for the extra 50 mm.

With the module fitted the S535 measures 260 × 100 × 27 mm instead of 210 × 100 × 27 mm. The standard S535 box is too short.

Use the S535 in-wall or on-wall box made for expansion modules. The assembly keeps the S535’s IP66 and IK08 ratings.

Pair it with

Fits the S535

Door station

Akuvox S535

The 5-inch facial recognition door phone this module fits.

Mount

S535 box for use with modules

The taller in-wall box sized for the S535 plus one module.

Watch

See it in action

Installing the S535 with an expansion module
Akuvox S535 face recognition door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does this include the S535 door phone?

No, it is the module only. AK-S535-IL-KIT includes the S535 and the induction loop module together.

Who benefits from the induction loop?

People whose hearing aids or cochlear implants have a T (telecoil) setting. Call audio is delivered straight to the device.

Can I fit more than one module?

No. The S535 has one expansion port, so choose fingerprint, induction loop or LTE.

Do I need a different mounting box?

Yes. The S535 with a module is 260 mm tall, so use the S535 box made for modules. A flush install needs a 255.5 × 94 × 34 mm opening.

Can it be fitted while the S535 is powered?

No. Power the station off, remove the expansion port cover, plug the module in and fasten the two shoulder screws.

Does it change the power the S535 needs?

On 12 V DC, Akuvox specifies 3 A with the loop module, or 4 A if the 12 V / 500 mA output also powers a lock or reader. IEEE 802.3at PoE+ is the alternative.

Upgrade an S535 in minutes.

Choose the S535 induction loop kit if you are buying the door station too.

Installation & safety notice

Installation. Power the S535 off before fitting or removing the module — hot-plugging is not supported. Remove the expansion port cover, plug in the module and secure it with the shoulder screws, then mount the assembly in the S535 box made for modules.

Colour
Dark grey
Brand
Akuvox
Function
Induction loop (hearing-aid T-coil) audio
Protection
IP66 / IK08 when fitted
Connection
S535 expansion port, no extra wiring
Size
Adds 50 mm: S535 becomes 260 × 100 × 27 mm
Warranty
Australian warranty
Product Type
Door phone expansion module
Model
S535 induction loop expansion unit
Compatible with
Akuvox S535
Fixing
2 × D3×45×M2.5×6 shoulder screws
