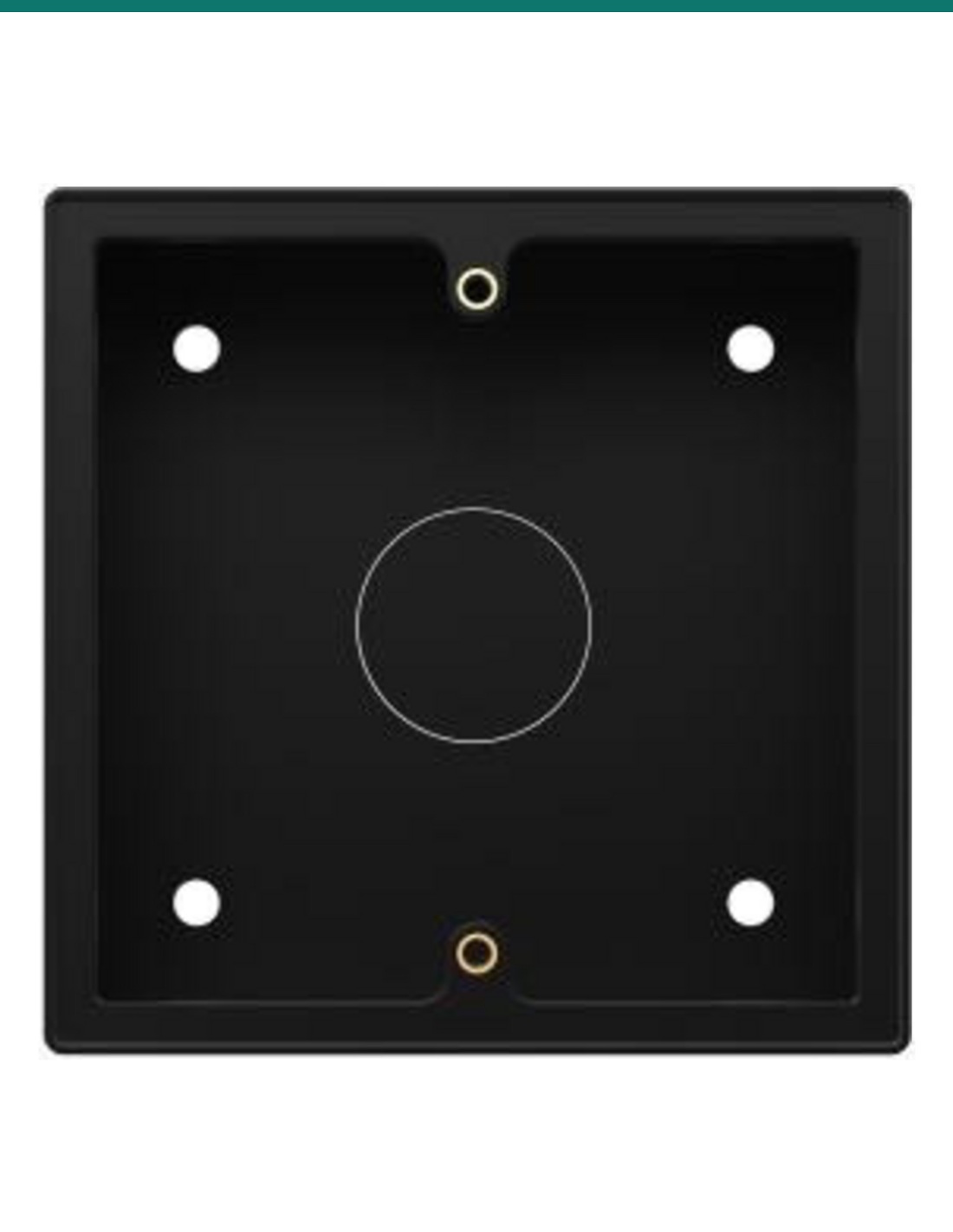

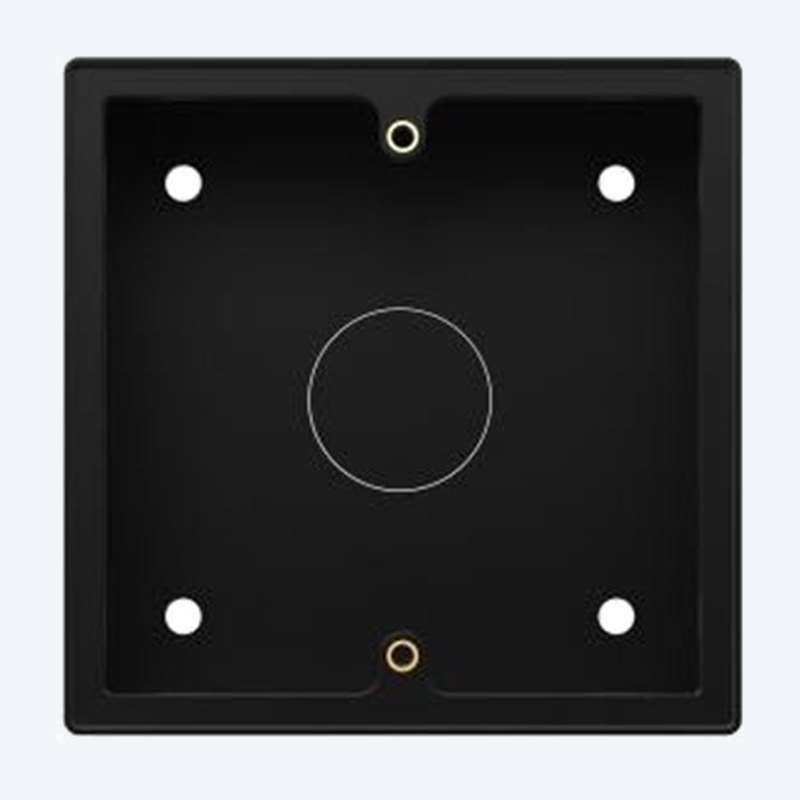

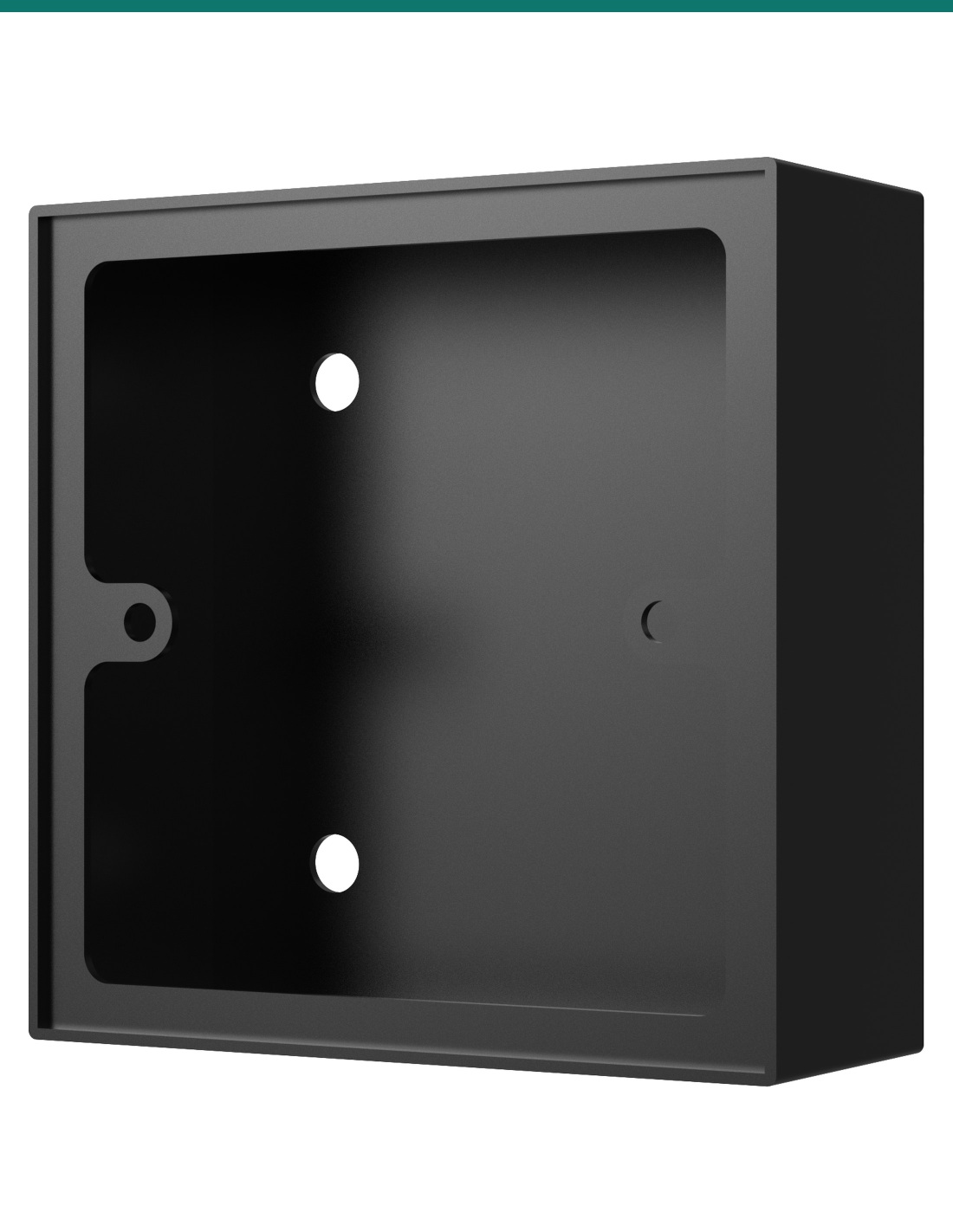

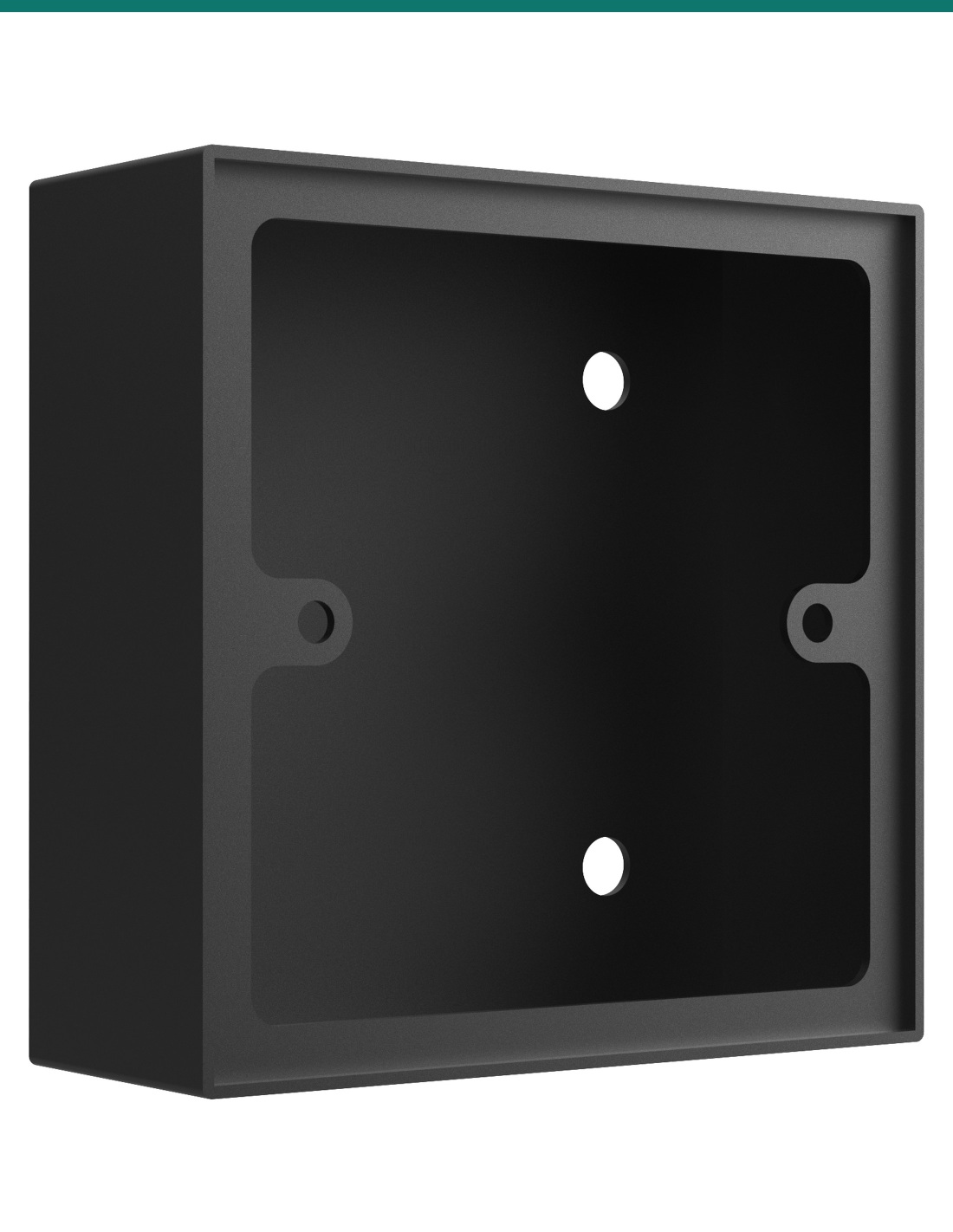

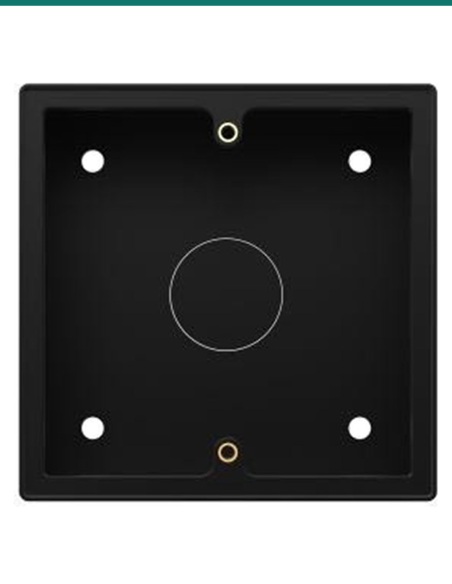

Akuvox A01 / A02 / A03 black on-wall mounting box — front

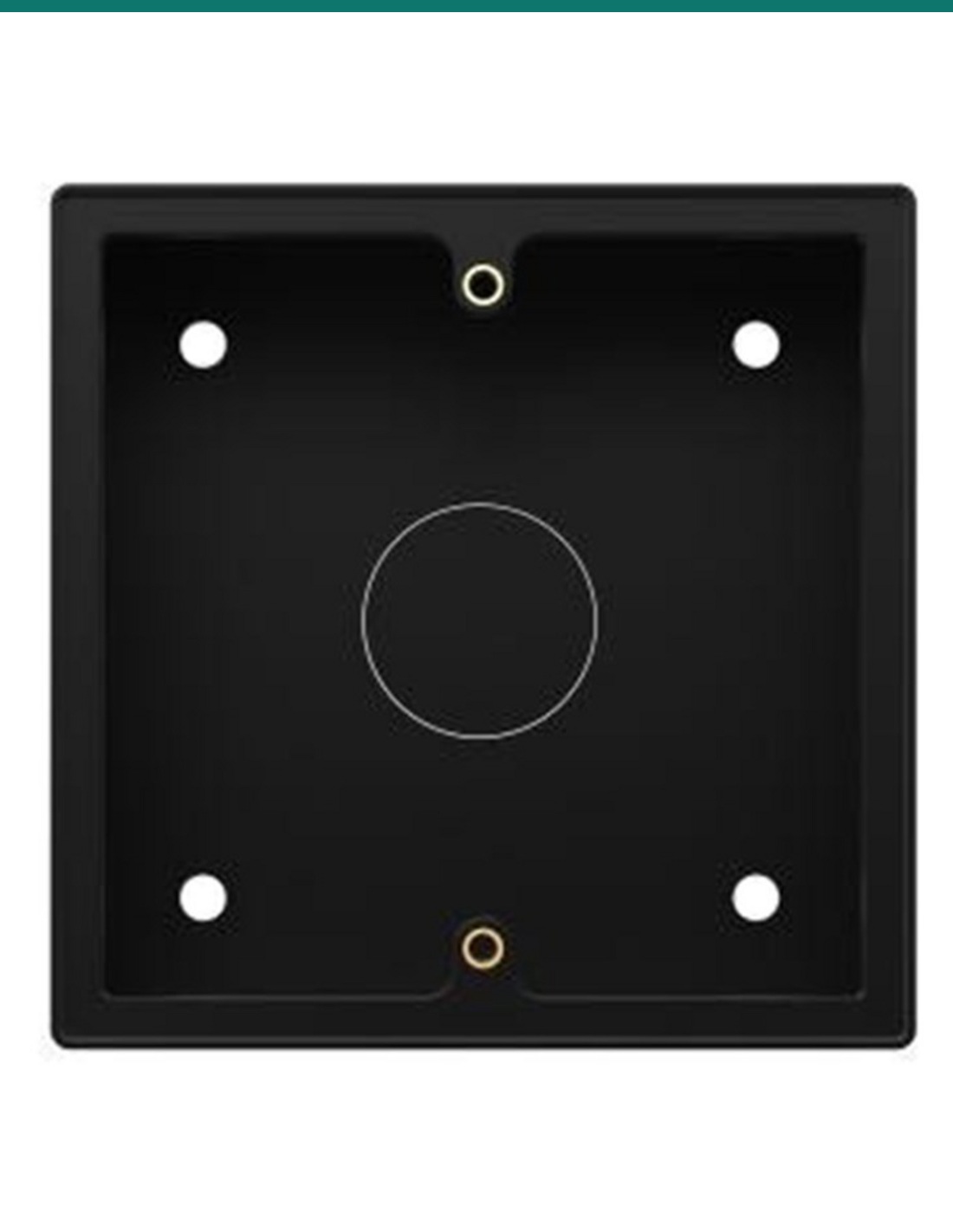

Akuvox A01 / A02 / A03 black on-wall mounting box — left three-quarter view

Akuvox A01 / A02 / A03 black on-wall mounting box — right three-quarter view

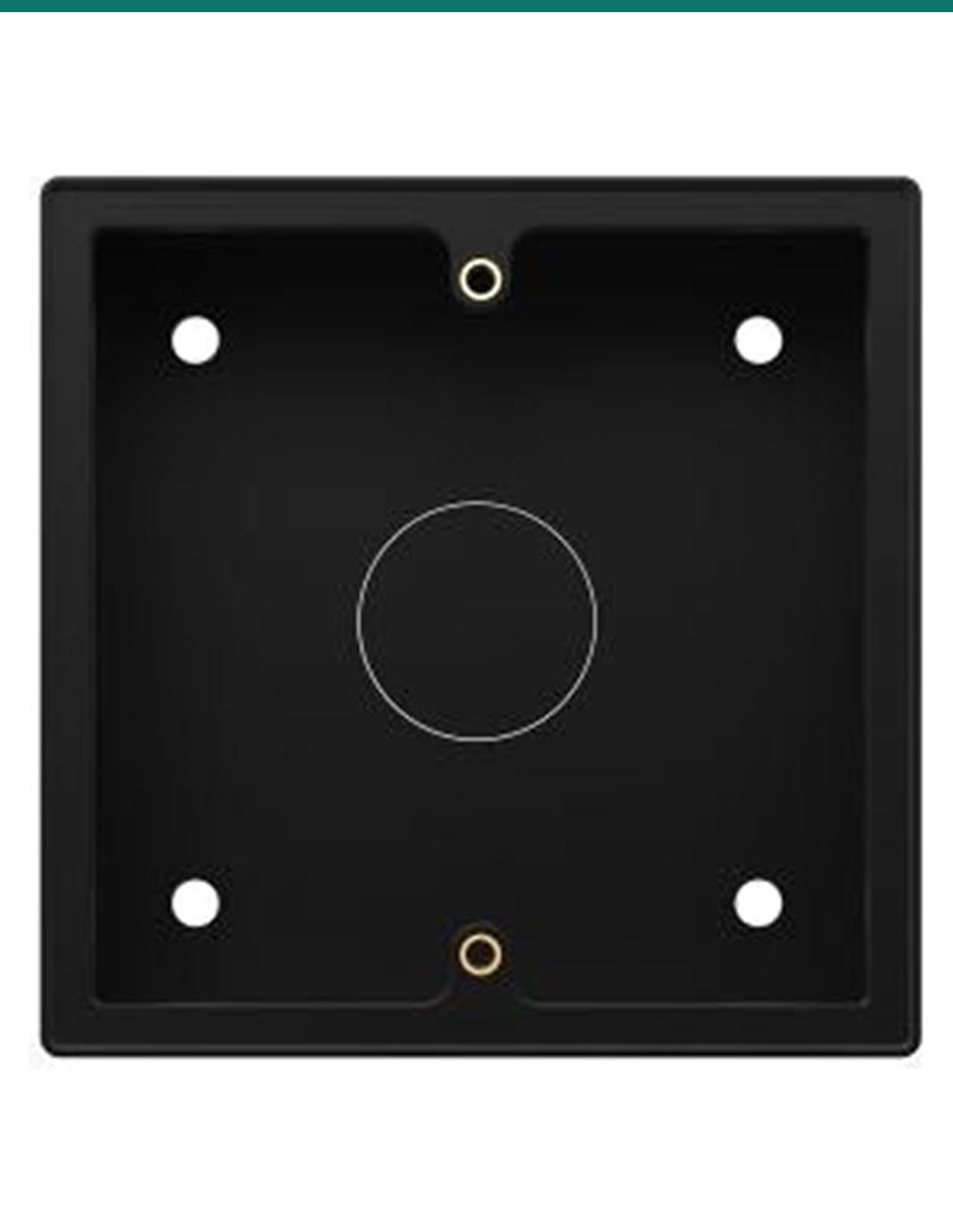

Akuvox A01 / A02 / A03 black on-wall mounting box

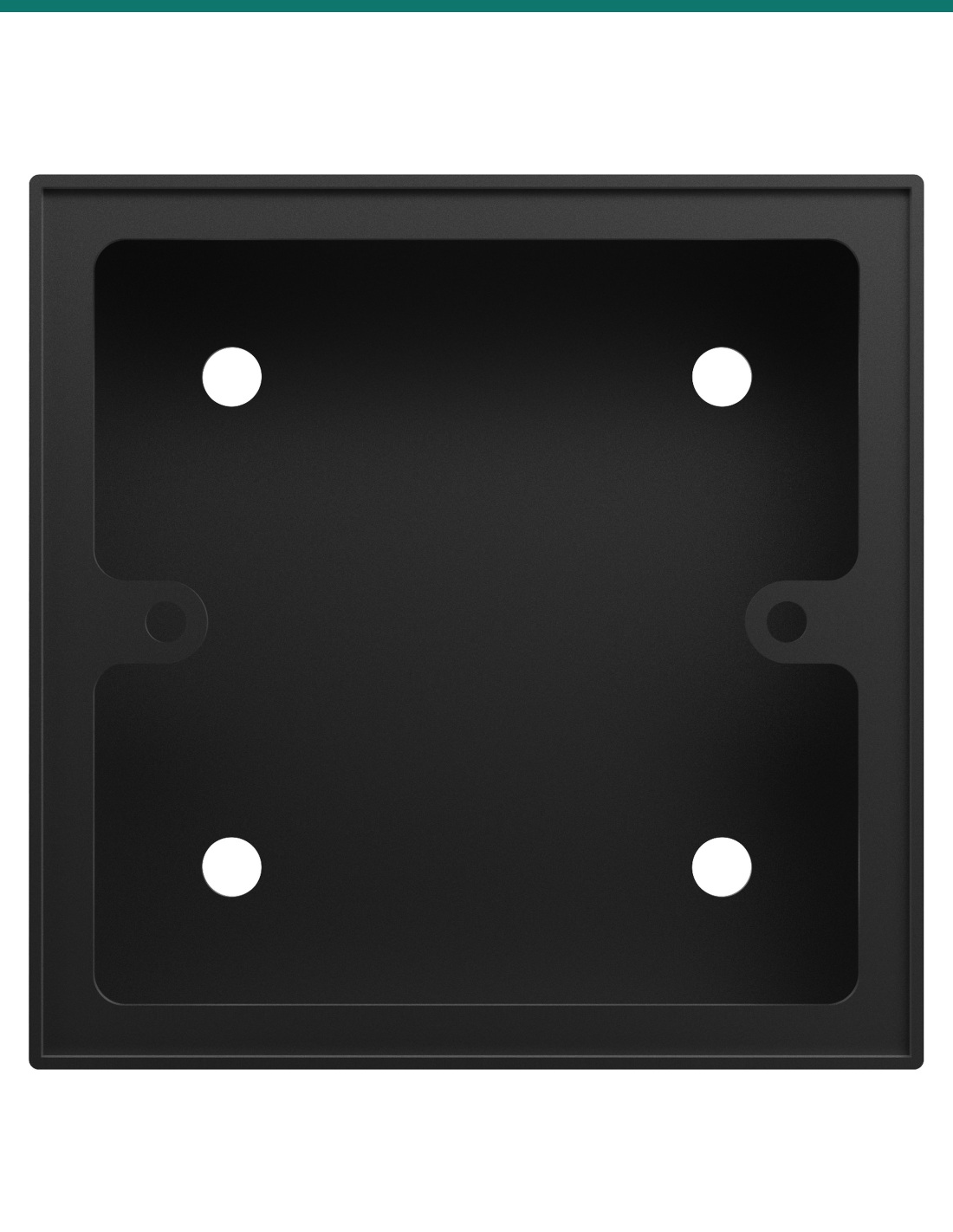

Akuvox A01 / A02 / A03 Black On-Wall Mounting Box — AK-00568P11

Name: Akuvox A01 / A02 / A03 Black On-Wall Mounting Box — AK-00568P11
Brand: Akuvox
SKU: AK-00568P11
Price: 11.5 AUD
Availability: InStock

Reference: AK-00568P11

In Stock - Ready to Ship

$ 11.50

inc-GST

or 4 interest-free payments of $2.88 with

Akuvox AK-00568P11 is the black on-wall box for the A01, A02 and A03 access control terminals. These 86 × 86 mm readers hang on an 86 junction box; where there is no box in the wall, this one fixes to the surface and gives the reader a neat, matching base. Stocked in Australia by Infront Technologies.

✓Surface-mount 86 box for Akuvox A01, A02 and A03
✓Use where no 86 flush box is built into the wall
✓Black finish to match the A0X readers (86 × 86 × 33 mm)
✓Reader screws to the box with the M4×30 screws supplied with the reader

Akuvox · A01 / A02 / A03 · On-wall box

A surface box for A0X readers.
No flush box needed.

The AK-00568P11 is Akuvox’s on-wall installation kit for the A01, A02 and A03 access terminals. Akuvox designs these readers to sit on an 86 junction box — this black box mounts on the wall surface so you can fit a reader on brick, block or finished plasterboard without cutting in.

This SKU is the on-wall box only.

You receive the black on-wall mounting box. The A01, A02 or A03 reader is sold separately and comes with its own junction-box bracket, M4×30 screws and wall fixings.

In the box

Akuvox A01 / A02 / A03 on-wall mounting box (black)

What you also need(sold separately)

Akuvox A01, A02 or A03 access control terminal
PoE switch or 12 V DC supply for the reader
Lock hardware and lock power supply

Mount the reader where the cable is.

Retrofits and glass-line partitions rarely have an 86 box in the right place. Fix this box to the wall over the cable entry, then hang the A0X reader on it exactly as you would on a flush box.

Fit

Made for the 86 × 86 mm A0X readers.

The A01, A02 and A03 share one 86 × 86 × 33 mm body and are all designed to hang on an 86 junction box, flush or on the wall.

This box gives them that base on the wall surface, in black to match the reader.

Install

Same steps as a flush box.

Mark and drill four 6 mm holes 30 mm deep, fit the anchors and fix the box with ST4×20 screws, with the cable brought into the box.

Screw the reader’s bracket to the box with the M4×30 screws, wire the reader, then hang it on the bracket and lock it with the headless screw.

At a glance

Key specs — AK-00568P11

Brand: Akuvox
Reference: AK-00568P11
Type: On-wall (surface) mounting box
Compatible with: Akuvox A01, A02 and A03 access control terminals
Format: 86 junction-box footprint (reader 86 × 86 × 33 mm)
Colour: Black
Mounting height: At least 1100 mm above floor (Akuvox guide)
Shipping weight: 0.21 kg
Warranty: Australian warranty via Infront Technologies

Pair it with

Fits the Akuvox A0X readers

Card

Akuvox A01

RFID access control terminal.

Keypad

Akuvox A02

RFID reader with keypad.

Terminal

Akuvox A03

Access control terminal in the same 86 mm body.

Answers

Common questions

Which readers does it fit?

The Akuvox A01, A02 and A03 access control terminals, which share the same 86 × 86 mm body.

Do I need it if there is already an 86 box in the wall?

No. The readers mount straight onto an existing 86 flush box. Use this box when there isn’t one.

Is the reader included?

No. This SKU is the mounting box only; the reader is sold separately with its own bracket and screws.

Is it suitable for the A08 or A05?

No. The A08S and A05C have different bodies and their own mounting boxes.

Finish A0X installs cleanly, local stock.

Order one on-wall box per A01, A02 or A03 that isn’t going on a flush 86 box. Infront Technologies stocks the readers and boxes in Australia.

Installation & safety notice

Fitting. Akuvox specifies the box be at least 1100 mm above the floor. Fix it with four ST4×20 screws and wall anchors, then fix the reader’s junction-box bracket to it with the two M4×30 screws — see the A01/A02/A03 quick guide.

Colour: Black
Brand: Akuvox
Mounting: On-wall / surface
Warranty: Australian Warranty via Infront Technologies
Product Type: On-wall (surface) mounting box
Model: A01 / A02 / A03 on-wall kit
Compatible with: Akuvox A01, A02 and A03 access control terminals
Box Format: 86 × 86 mm junction-box footprint
