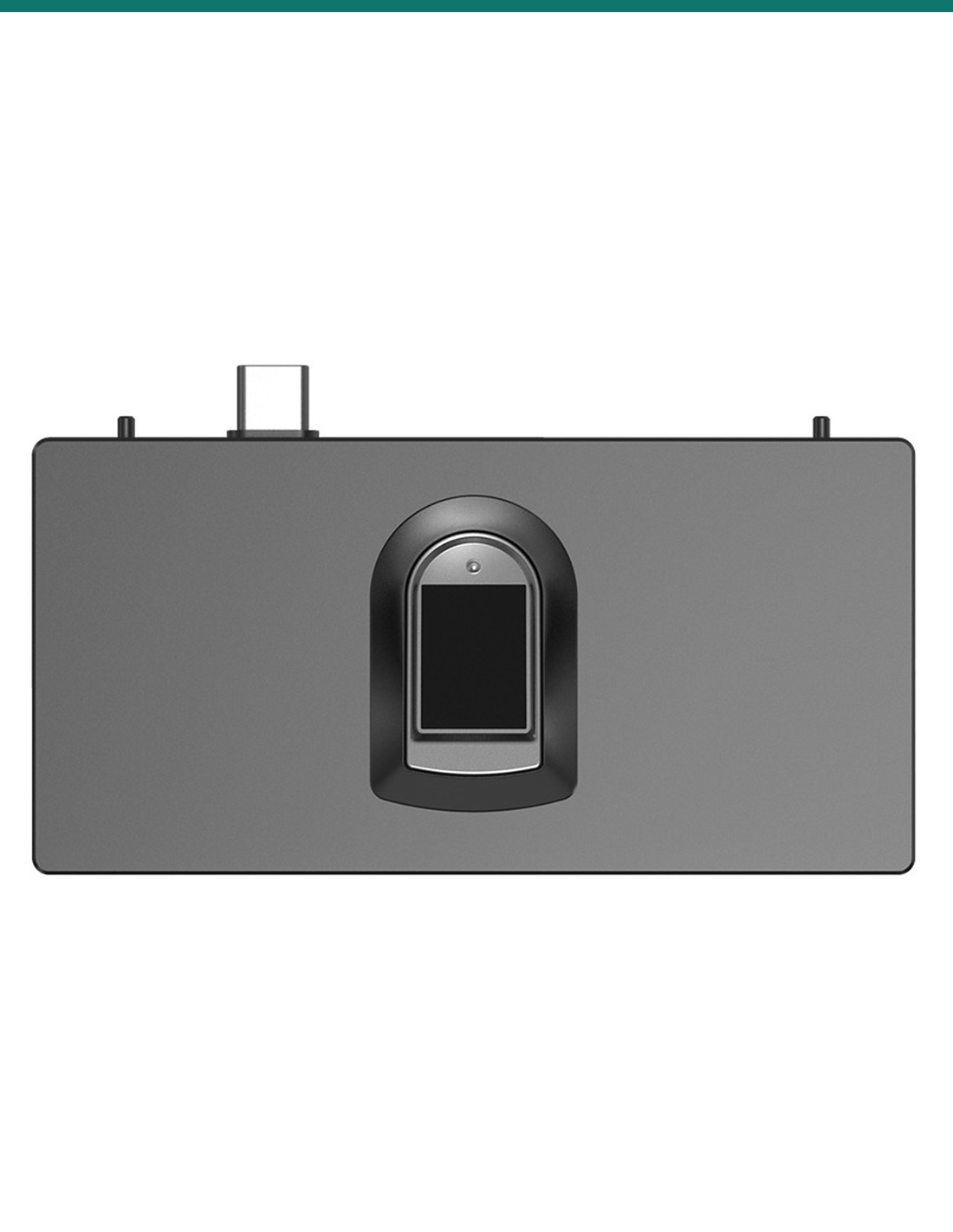

Akuvox S535 fingerprint expansion module

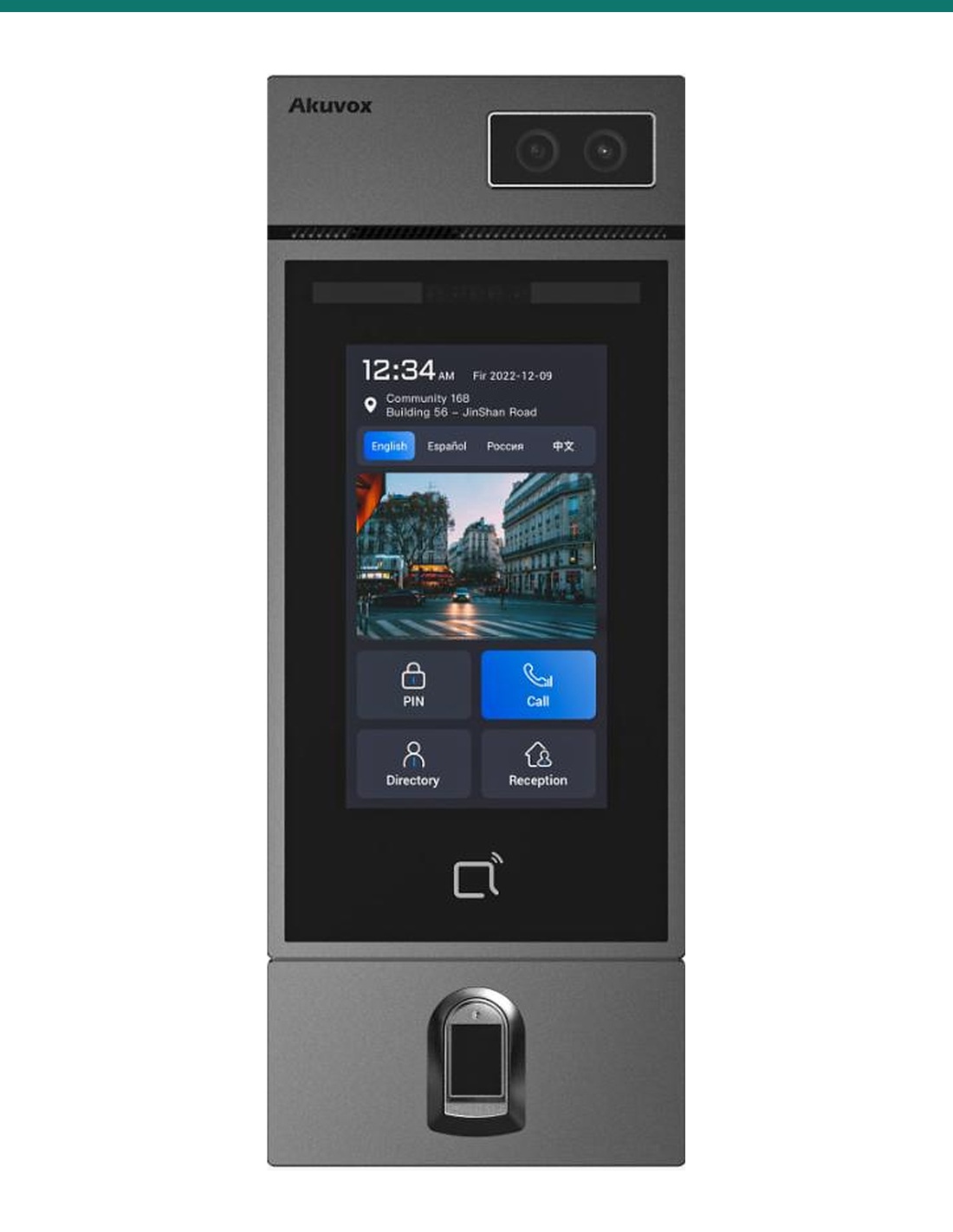

Akuvox S535 door phone with the fingerprint module fitted

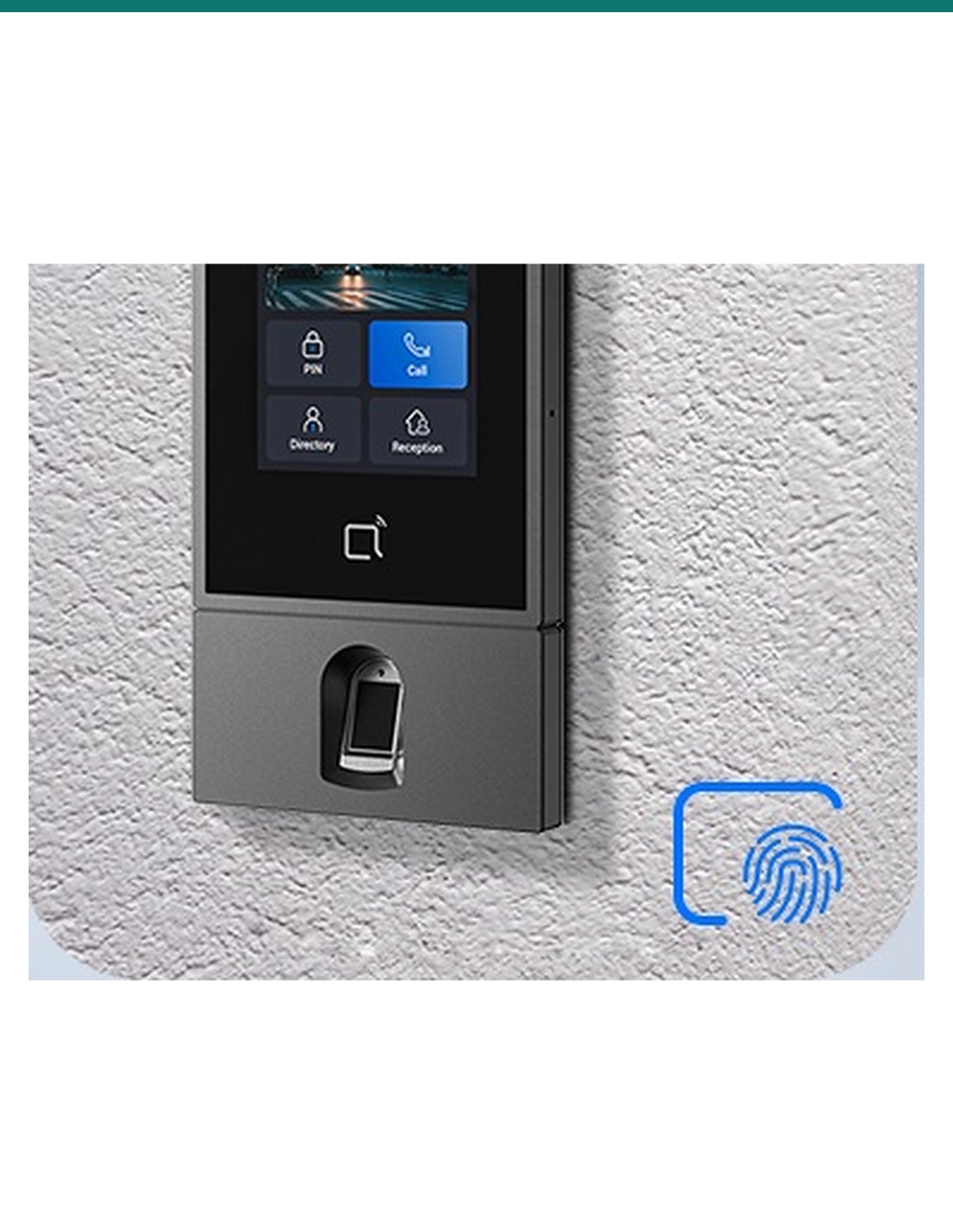

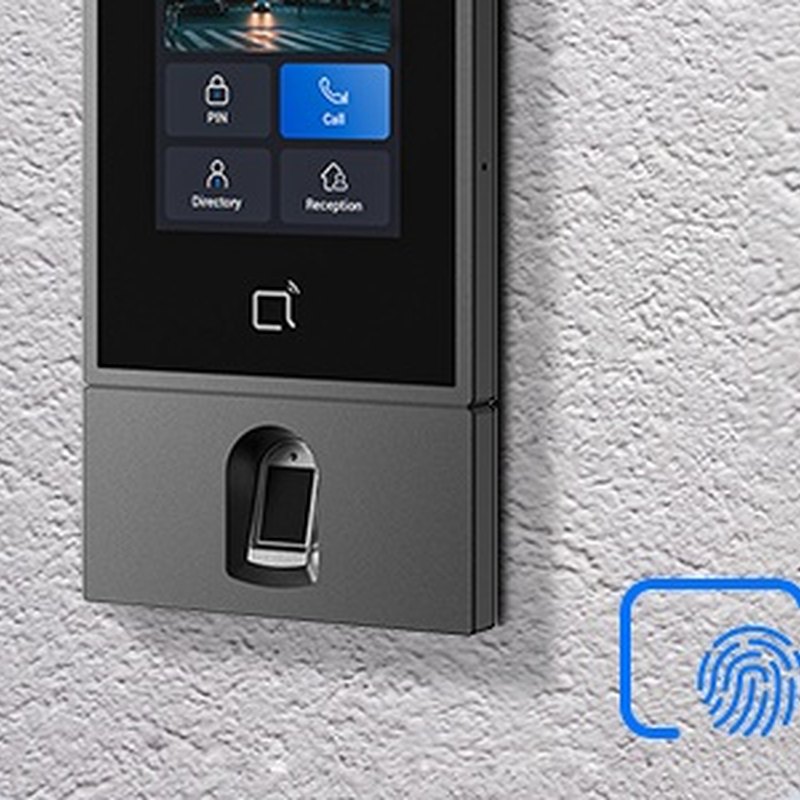

Akuvox S535 fingerprint module installed on a rendered wall

Akuvox S535 Fingerprint Expansion Module — AK-S535-F

Name: Akuvox S535 Fingerprint Expansion Module — AK-S535-F
Brand: Akuvox
SKU: AK-S535-F
Price: 303 AUD
Availability: InStock

Reference: AK-S535-F

In Stock - Ready to Ship

$ 303.00

inc-GST

or 4 interest-free payments of $75.75 with

Akuvox S535 fingerprint module adds a finger reader to the S535 facial recognition door phone. It plugs into the expansion port under the screen and stores up to 20,000 finger templates — module only, the door station is sold separately.

✓Fits the Akuvox S535 expansion port — no extra cabling
✓Up to 20,000 finger templates alongside the S535’s 20,000 faces
✓Takes the S535 plate from 210 mm to 260 mm tall
✓Use with the S535 box made for expansion modules

Akuvox · S535 · Fingerprint module

Add a finger reader to your S535.
Plug in, enrol, done.

The AK-S535-F is the fingerprint expansion unit for Akuvox’s S535 door phone. It fits the expansion port under the screen and turns the S535 into a two-biometric station — face and fingerprint — on top of its card, PIN, Bluetooth and QR entry.

This SKU is the fingerprint module only.

You receive the S535 fingerprint expansion module with its fixing screws. It needs an Akuvox S535 door station; for a new install, the S535 fingerprint kit (AK-S535-F-KIT) includes both.

In the box

Akuvox S535 fingerprint expansion module
Shoulder screws for fixing to the S535

What you also need(sold separately)

Akuvox S535 door station
S535 on-wall or in-wall box for use with a module

A second biometric for the same door.

Staff and residents who prefer not to use face entry press a finger instead. Akuvox suggests it for workplaces where the S535 also handles time and attendance.

Fingerprint

20,000 fingers, no extra wiring.

The module connects straight to the S535 expansion port, so there is no separate reader to cable or power. Fingers are enrolled at the device or through the S535 web portal.

It stores up to 20,000 finger templates and works alongside the S535’s face, card, PIN, BLE and QR credentials.

Mounting

Plan for the extra 50 mm.

With the module fitted the S535 measures 260 × 100 × 27 mm instead of 210 × 100 × 27 mm. The standard S535 box is too short.

Use the S535 in-wall or on-wall box made for expansion modules. The assembly keeps the S535’s IP66 and IK08 ratings as published on the Akuvox datasheet.

At a glance

Key specs — AK-S535-F

Brand: Akuvox
Reference: AK-S535-F
Type: Fingerprint expansion unit
Compatible with: Akuvox S535
Finger templates: 20,000
Connection: S535 expansion port
Fixing: Shoulder screws (supplied)
S535 size with module: 260 × 100 × 27 mm (H × W × D)
Protection (assembled): IP66 · IK08
Warranty: Australian warranty via Infront Technologies

Pair it with

Fits the S535

Door station

Akuvox S535

The 5-inch facial recognition door phone this module fits.

Mount

S535 box for use with modules

The taller in-wall box sized for the S535 plus one module.

Watch

See it in action

Installing the S535 with an expansion module

Answers

Common questions

Does this include the S535 door phone?

No, it is the module only. AK-S535-F-KIT includes the S535 and the fingerprint module together.

Can I fit more than one module?

No. The S535 has one expansion port, so choose fingerprint, induction loop or LTE.

Do I need a different mounting box?

Yes. The S535 with a module is 260 mm tall, so use the S535 box made for expansion modules.

Can it be fitted while the S535 is powered?

No. Akuvox requires the station to be powered off before connecting or disconnecting a module.

Upgrade an S535 in minutes.

Order the fingerprint module through Infront Technologies for Australian stock, or choose the S535 fingerprint kit if you are buying the door station too.

Installation & safety notice

Installation. Power the S535 off before fitting or removing the module — hot-plugging is not supported. Remove the expansion port cover, plug in the module and secure it with the shoulder screws, then mount the assembly in the S535 box made for modules.

Colour: Dark grey
Capacity: 20,000 finger templates
Brand: Akuvox
Connection: S535 expansion port, no extra wiring
Size: Adds 50 mm: S535 becomes 260 × 100 × 27 mm
Warranty: Australian Warranty via Infront Technologies
Product Type: Door phone expansion module
Model: S535 fingerprint expansion unit
Compatible with: Akuvox S535
