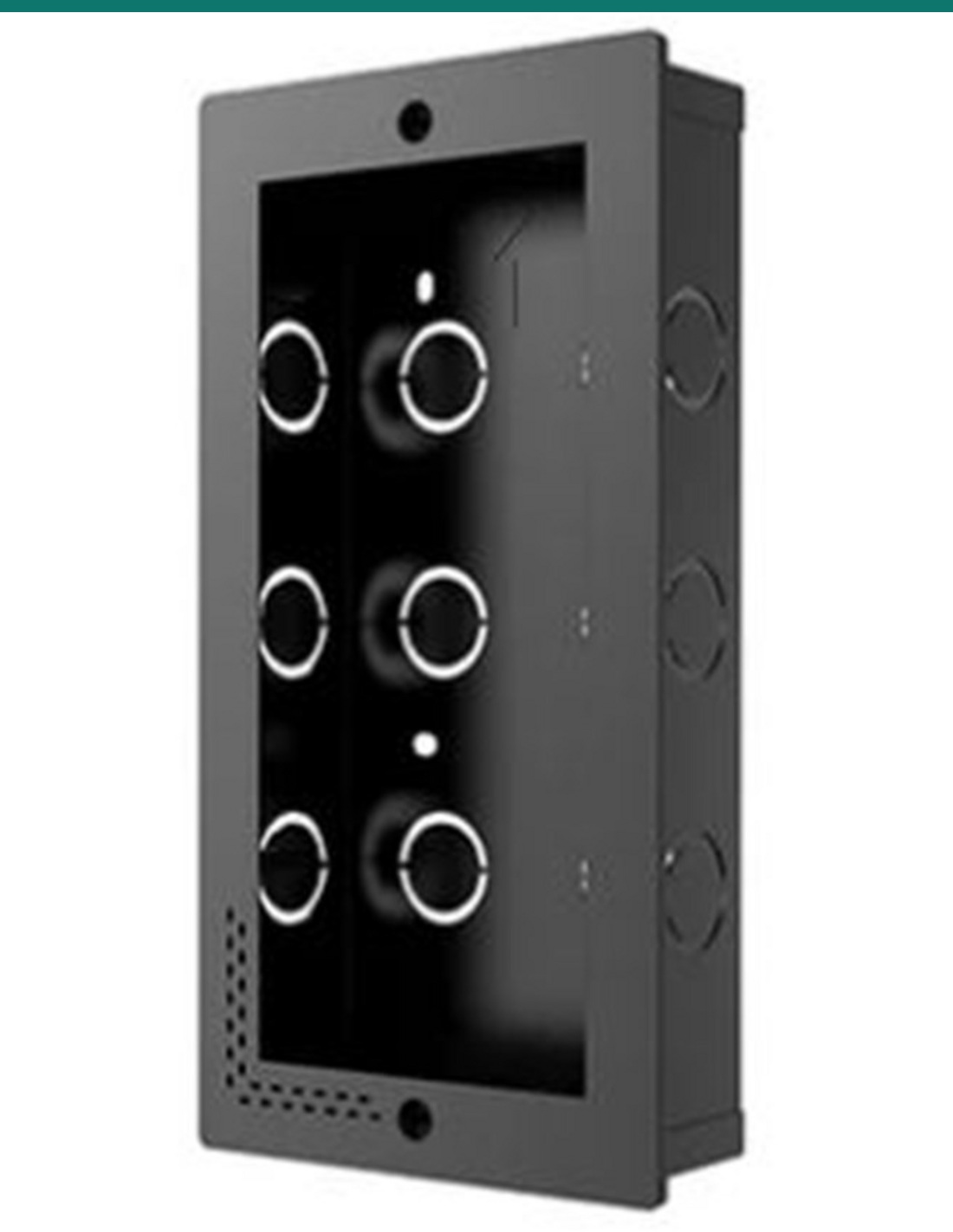

Akuvox E16 / A05 in-wall box and decoration panel — right three-quarter view

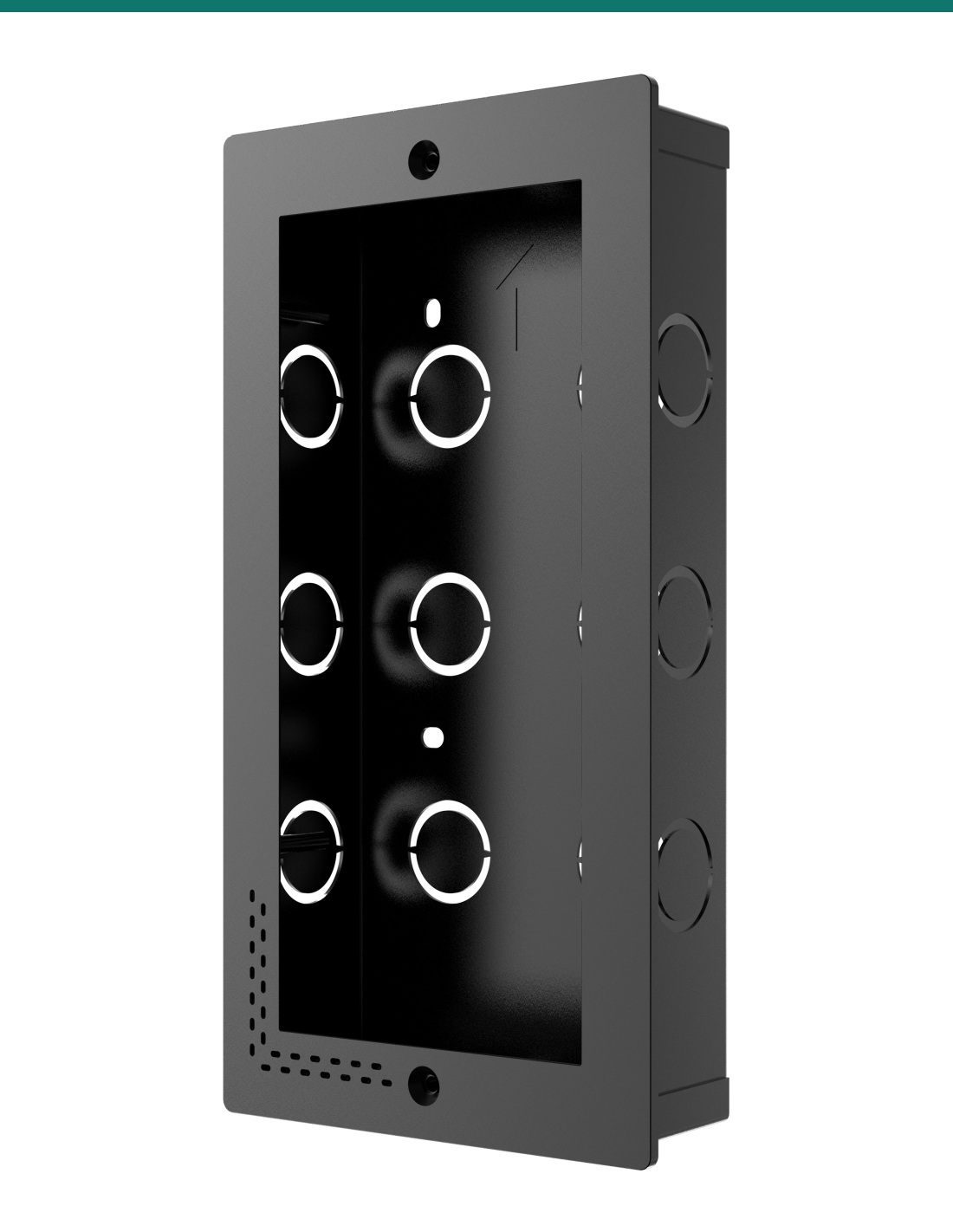

Akuvox E16 / A05 black in-wall installation kit — flush box

Akuvox E16 / A05 Black In-Wall Installation Kit for Flush Mounting — AK-E16-INWALL

AK-E16-INWALL
In Stock - Ready to Ship
$ 57.10
inc-GST

or 4 interest-free payments of $14.28 with

Akuvox AK-E16-INWALL flush-mounts the E16C facial recognition door phone or the A05C access terminal. The kit has the in-wall box, the bracket that carries the device and the trim board that frames it, plus all the screws and anchors.

  • ✓Flush-mounts the Akuvox E16C (192 × 88 mm) and A05C
  • ✓Wall cut-out 225 × 111 × 43 mm; box 223 × 109 × 40 mm
  • ✓Flush box, flush bracket and 230 × 120 mm trim panel with screws, anchors and Torx wrench
  • ✓Black finish to match the E16C and A05C fronts


Akuvox · E16 / A05 · In-wall kit

Recess the E16C into the wall.
Box, bracket and trim in one kit.

The AK-E16-INWALL is Akuvox’s flush-mounting kit for the E16 and A05 series. The E16C and A05C ship ready to surface-mount; this kit recesses them into the wall for a flatter, tidier entry.

This SKU is the in-wall installation kit.

You receive the flush box, bracket, board and fixings listed below. The E16C or A05C itself is sold separately and comes with its own wiring cover, sealing plate, rubber plugs and screws.

In the box
  • Flush-mounting box × 1
  • Flush-mounting bracket × 1
  • Flush-mounting board × 1
  • M3×8 crosshead screws × 7
  • ST4×20 crosshead screws × 4
  • Plastic wall anchors × 4
  • M4×16 Torx screws × 2
  • Torx wrench × 1
What you also need (sold separately)
  • Akuvox E16C door phone or A05C access terminal
  • PoE 802.3af switch or 12 V DC supply
  • Lock hardware and lock power supply

A flush finish at the front door.

Surface-mounted, the E16C stands proud of the wall. Flush-mounted, it sits close to the wall surface — a cleaner look on a feature wall or new-build entry.

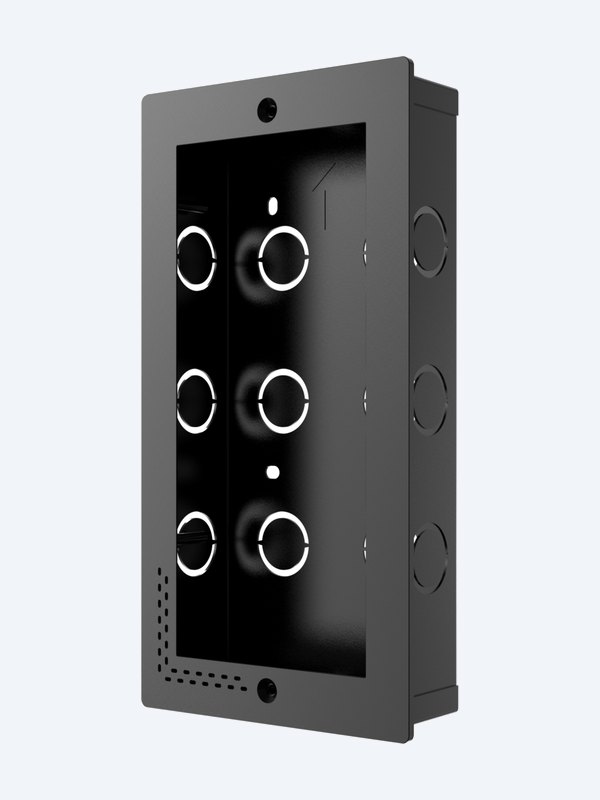

Akuvox E16 / A05 in-wall flush box

In the kit

Box, bracket and board.

The flush box goes into the wall with knock-out cable entries. The flush bracket screws to the back of the E16C or A05C, and the flush board frames the device and fixes it to the box.

Seven M3×8 screws, four ST4×20 screws with anchors, two M4×16 Torx screws and a Torx wrench are included.

Fit

For E16C and A05C.

Akuvox uses one flush-mounting guide for the E16 and A05 series, so the same kit suits the E16C facial recognition door phone and the A05C access terminal.

The E16C itself measures 192 × 88 × 23.8 mm; the box is 223 × 109 × 40 mm and needs a 225 × 111 × 43 mm opening, and the 230 × 120 mm trim panel covers the cut edge.

Pair it with

Fits the Akuvox E16C and A05C

Door phone

Akuvox E16C

5″ facial recognition SIP door phone with card reader.

Access

Akuvox A05C

Facial recognition access terminal in the same body.

Watch

See it in action

Akuvox E16 touchscreen door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which devices does it fit?

The Akuvox E16C door phone and the A05C access terminal. Akuvox covers both in one flush-mounting guide.

How big a hole do I need?

225 mm high, 111 mm wide and 43 mm deep. The box itself is 223 × 109 × 40 mm.

How much does it stand off the wall?

Only the 3 mm trim panel and the device face sit proud; the 230 × 120 mm panel covers the edge of the cut-out.

What fixings are included?

Seven M3×8 screws, four ST4×20 screws with plastic anchors, two M4×16 Torx screws and a Torx wrench.

Can I use the on-wall rain hood with this kit?

No. The on-wall rain hood is for surface-mounted installs. This kit is for flush mounting.

Is the door phone included?

No. The kit contains the box, bracket, board and fixings only.

Flush E16C and A05C installs.

Order one kit per E16C or A05C you want recessed; for surface installs with weather exposure, see the on-wall rain hood.

Installation & safety notice

Fitting. Cut a 225 × 111 × 43 mm (H × W × D) hole at the cable position. Keep the box’s edges flush with the wall and leave a gap at the bottom of the box for drainage, then fix it with four ST4×20 screws. The flush bracket and flush board are screwed to the device with the M3×8 screws, and the assembly is fixed to the box with two M4×16 Torx screws — see the Akuvox E16/A05 flush-mounting quick guide.

Colour
Black
Brand
Akuvox
Mounting
In-wall / flush
Warranty
Australian warranty
Product Type
In-wall (flush) installation kit
Model
E16 / A05 in-wall kit
Compatible with
Akuvox E16C door phone and A05C access terminal
Wall Cut-out
225 × 111 × 43 mm (H × W × D)
Contents
Flush box, flush bracket, flush board and fixings
Box Size
223 × 109 × 40 mm (H × W × D)
Trim Panel
230 × 120 × 3 mm
