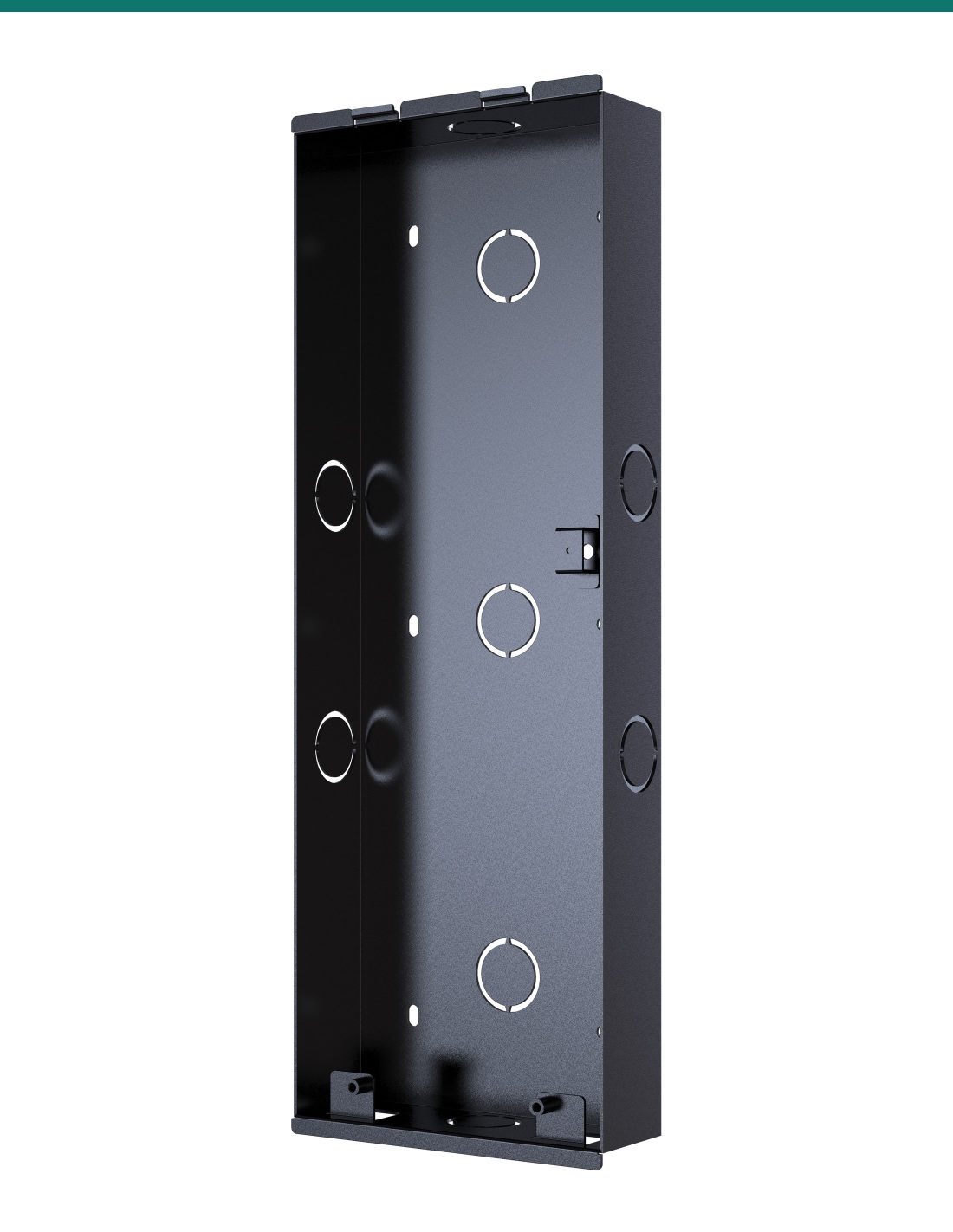

Akuvox X915 black in-wall mounting box — right three-quarter view

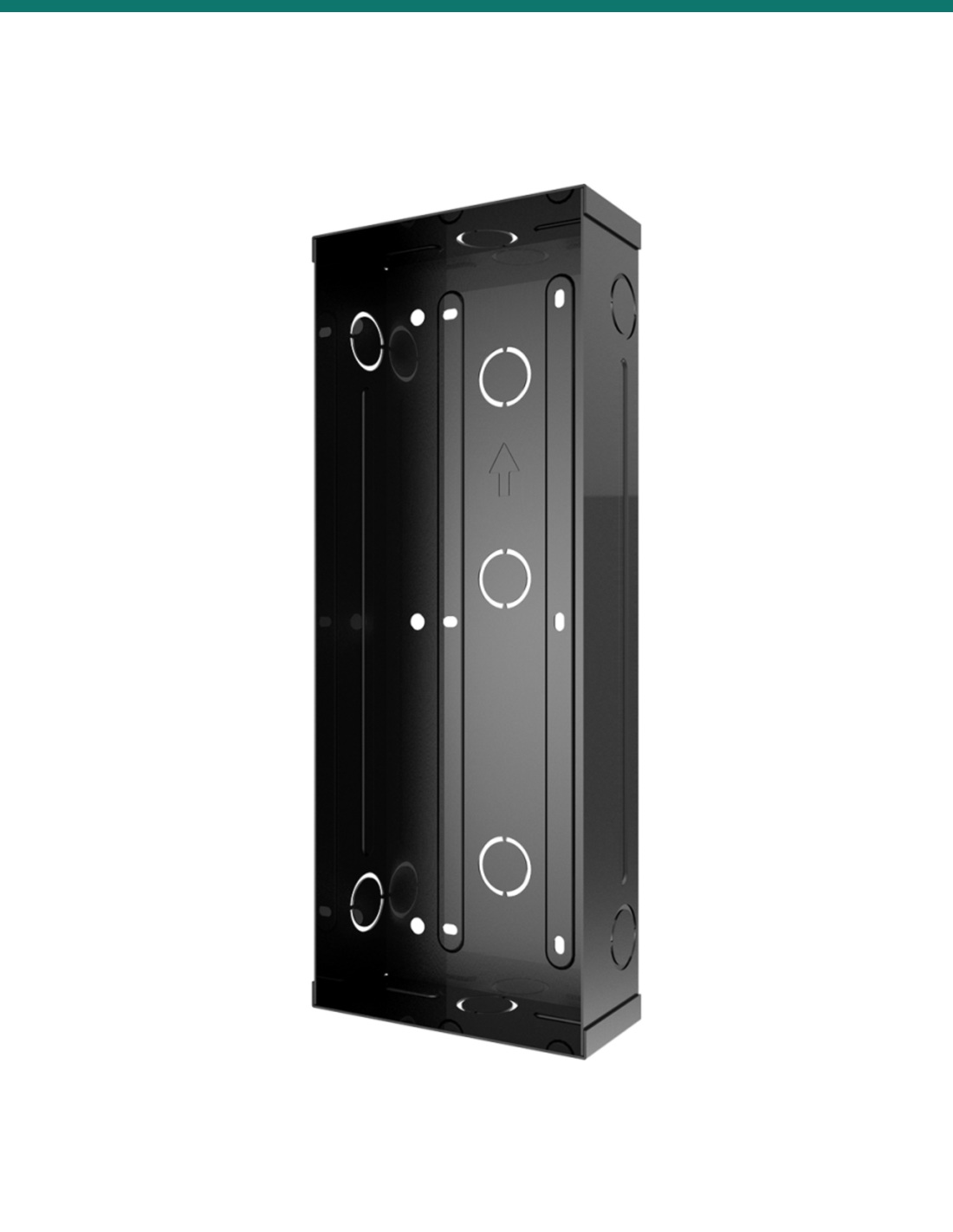

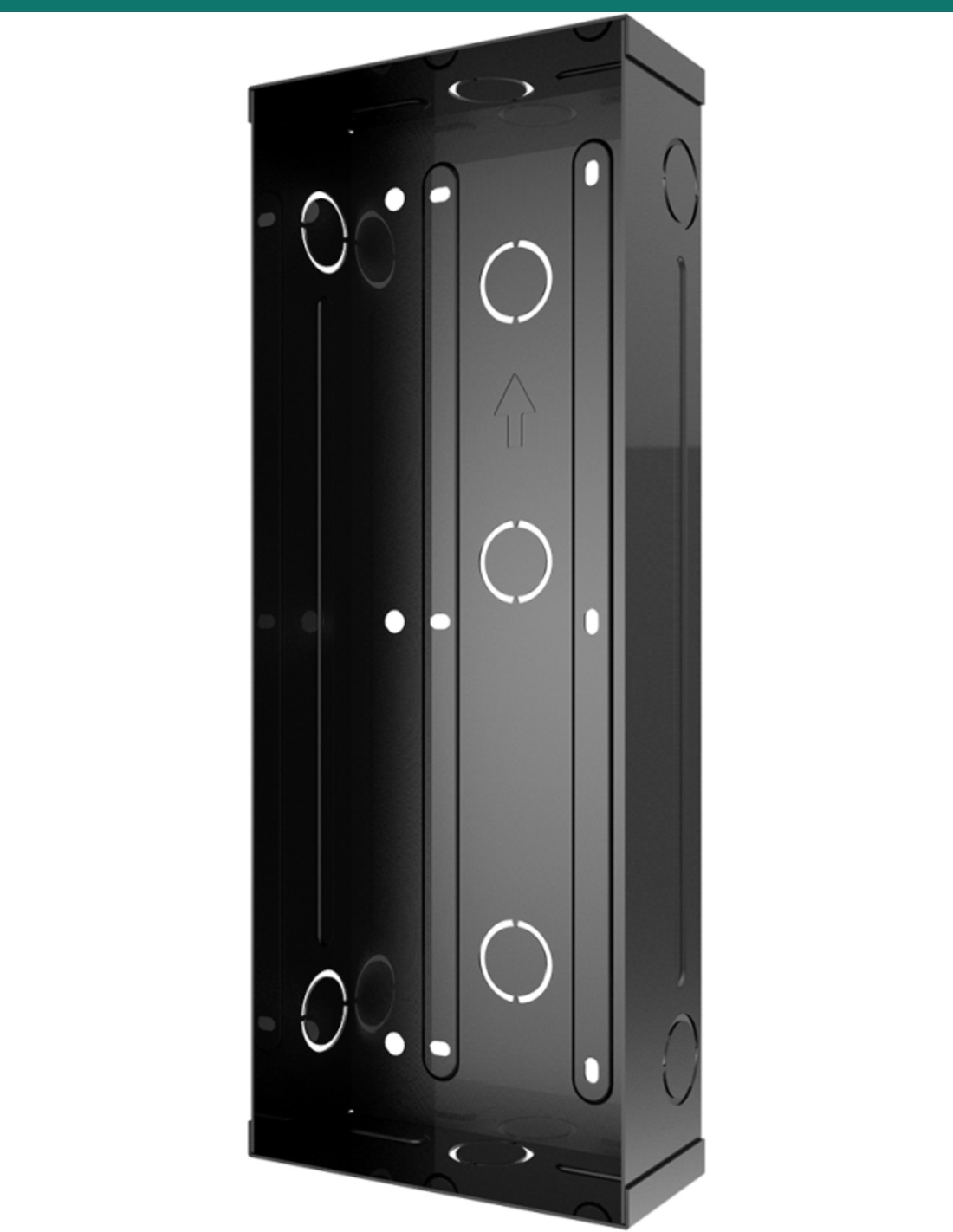

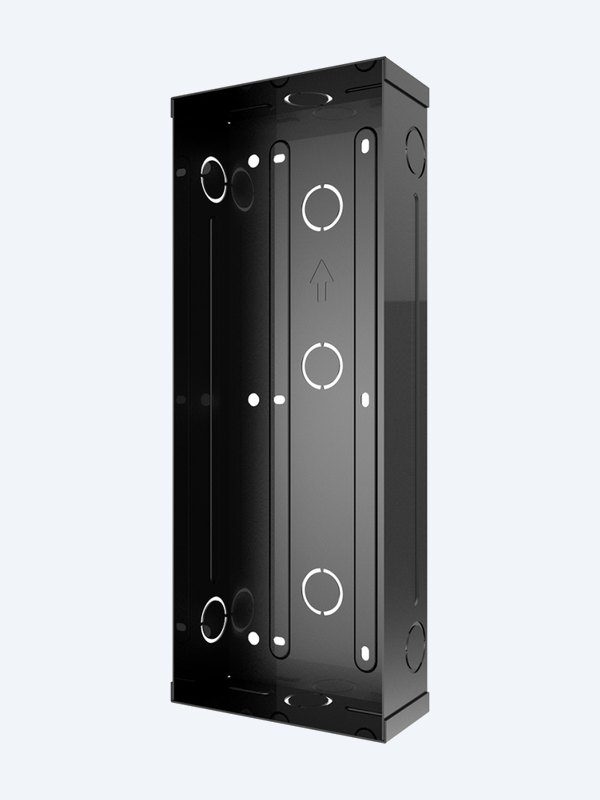

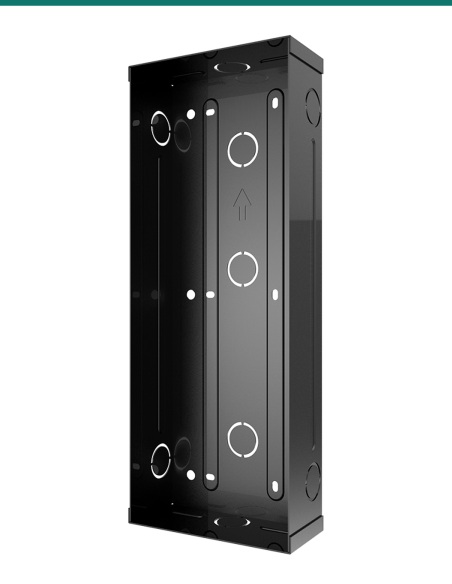

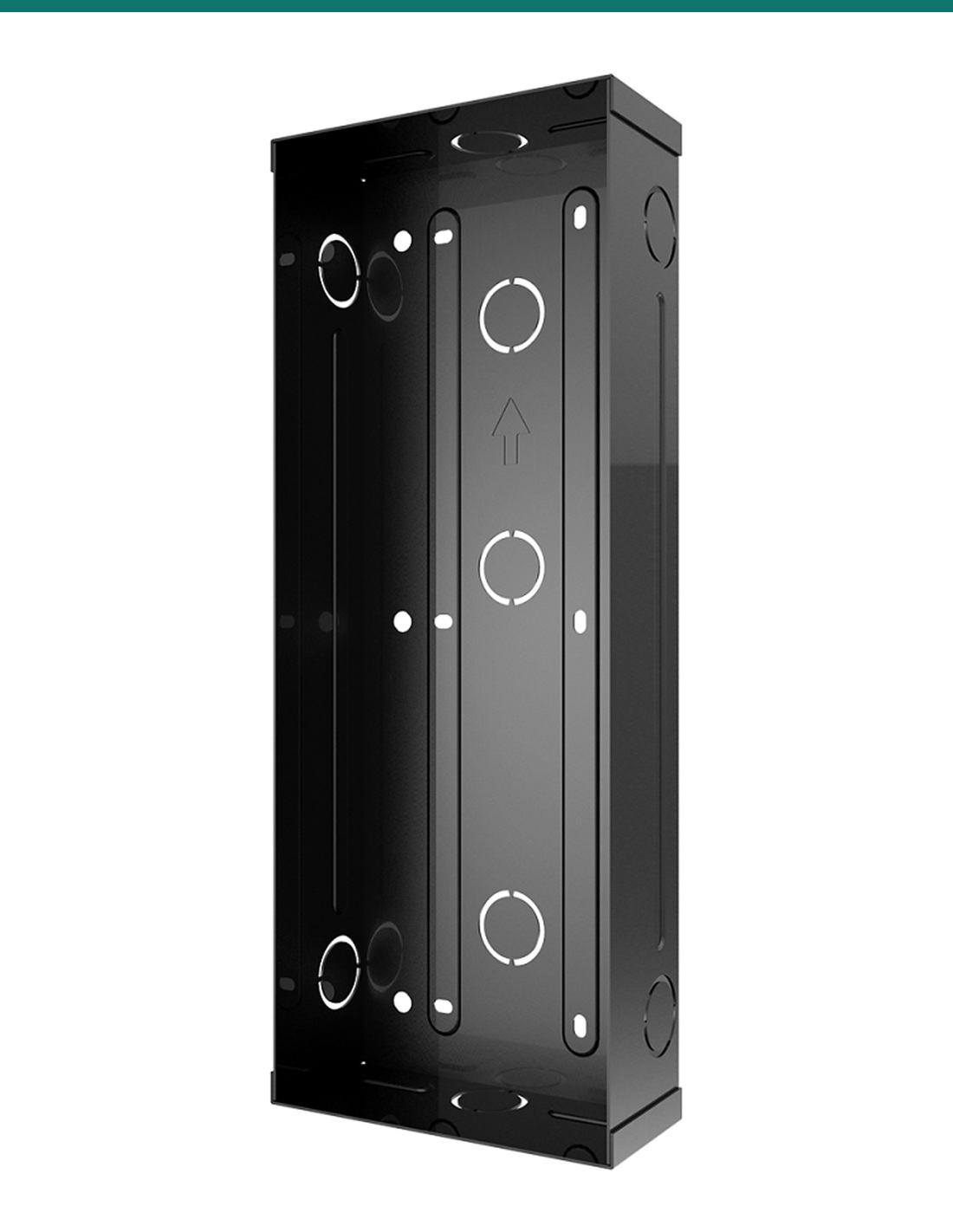

Akuvox X915 in-wall installation kit — flush-mounting box

Akuvox X915 Black In-Wall Installation Kit for X915S Door Phones — AK-X915INWALLK

Name: Akuvox X915 Black In-Wall Installation Kit for X915S Door Phones — AK-X915INWALLK
Brand: Akuvox
SKU: AK-X915INWALLK
Price: 57.1 AUD
Availability: InStock

Reference: AK-X915INWALLK

In Stock - Ready to Ship

$ 57.10

inc-GST

or 4 interest-free payments of $14.28 with

Akuvox AK-X915INWALLK is the flush-mount kit for the X915S. The door station ships without a mounting box, so every X915S needs either this in-wall kit or one of the on-wall boxes. This one recesses the 8-inch panel into the wall, with the cabling hidden in the box. Stocked in Australia by Infront Technologies.

✓Flush-mounting box, 344.6 × 119 × 40.5 mm
✓Wall cut-out 337 × 122 × 41 mm (H × W × D)
✓4 × ST4 × 20 screws and 4 plastic wall anchors included
✓For the Akuvox X915S, which ships without a mounting box

Installer drilling a wall to mount an Akuvox X915

Akuvox · X915 · In-wall installation kit

Set the X915S into the wall.
Flush-mounting box and fixings.

The AK-X915INWALLK is Akuvox’s in-wall installation kit for the X915 series: a flush-mounting box that takes the 350 × 130 mm X915S, plus the screws and anchors to fix it.

Everything to flush-mount one X915S.

You receive the flush-mounting box and fixings below. The X915S door phone, which includes its own wiring cover, terminal blocks and Torx screws, is sold separately.

In the box

Flush-mounting box
4 × ST4 × 20 crosshead screws
4 × plastic wall anchors

What you also need(sold separately)

Akuvox X915S door phone
Network cabling to the box
X915 in-wall rain cover for exposed entries

A recessed panel, wiring out of sight.

Flush-mounting sets the X915S into the wall so only the stainless steel front shows — the usual choice for new builds and masonry or rendered entry walls.

In the wall

Cut, fix, mount.

Cut a 337 × 122 × 41 mm opening, break out the round cable entries you need and press the box in so its edges sit tight against the wall. Fix it with the four ST4 × 20 screws and anchors in 6 mm holes.

If the box doesn’t sit tight to the wall, Akuvox recommends filling the gap with cement or a non-corrosive adhesive and letting it set before mounting the station.

Choose your mount

In-wall or on-wall?

The X915S comes without a mounting box. Choose this in-wall kit for a recessed finish, or the X915 on-wall kit, thick on-wall box or angle on-wall kit to surface-mount.

On an exposed entry, add the X915 in-wall rain cover.

At a glance

Key specs — AK-X915INWALLK

Brand: Akuvox
Reference: AK-X915INWALLK
Type: In-wall (flush) installation kit
Compatible with: Akuvox X915S
Contents: Flush-mounting box, 4 × ST4 × 20 screws, 4 plastic wall anchors
Box size: 344.6 × 119 × 40.5 mm (H × W × D)
Wall cut-out: 337 × 122 × 41 mm (H × W × D)
Anchor holes: 6 mm
Colour: Black
Door station size: 350 × 130 × 37.9 mm (X915S)
Shipping weight: 0.88 kg
Warranty: Australian warranty via Infront Technologies

Pair it with

Completes a flush X915S installation

Door phone

Akuvox X915S

8-inch Android face-recognition door station, supplied without a mounting box.

Weather

X915 in-wall rain cover

Black hood frame for a flush-mounted X915S.

Watch

See it in action

Mounting the X915 door phone

Answers

Common questions

Does the X915S come with a mounting box?

No. Akuvox supplies the flush-mounting box in this in-wall kit and the surface box in the on-wall kit, so order one with every X915S.

What size hole do I need?

337 × 122 × 41 mm (height × width × depth), per Akuvox’s X915 quick installation guide.

What’s included?

The flush-mounting box, four ST4 × 20 screws and four plastic wall anchors.

Can I add a rain cover?

Yes — the X915 in-wall rain cover suits flush-mounted X915S installations.

Flush-mount your X915S, local stock.

Order one in-wall kit per X915S you plan to recess, and add the in-wall rain cover where the entry faces the weather. Infront Technologies stocks the X915S and its mounts in Australia.

Colour: Black
Brand: Akuvox
Mounting: In-wall / flush
Warranty: Australian Warranty via Infront Technologies
Product Type: Flush-mounting kit
Model: X915 in-wall installation kit
Includes: Flush-mounting box, 4 × ST4 × 20 screws, 4 wall anchors
Compatible with: Akuvox X915S
Wall Cut-out: 337 × 122 × 41 mm (H × W × D)
Box Size: 344.6 × 119 × 40.5 mm (H × W × D)
