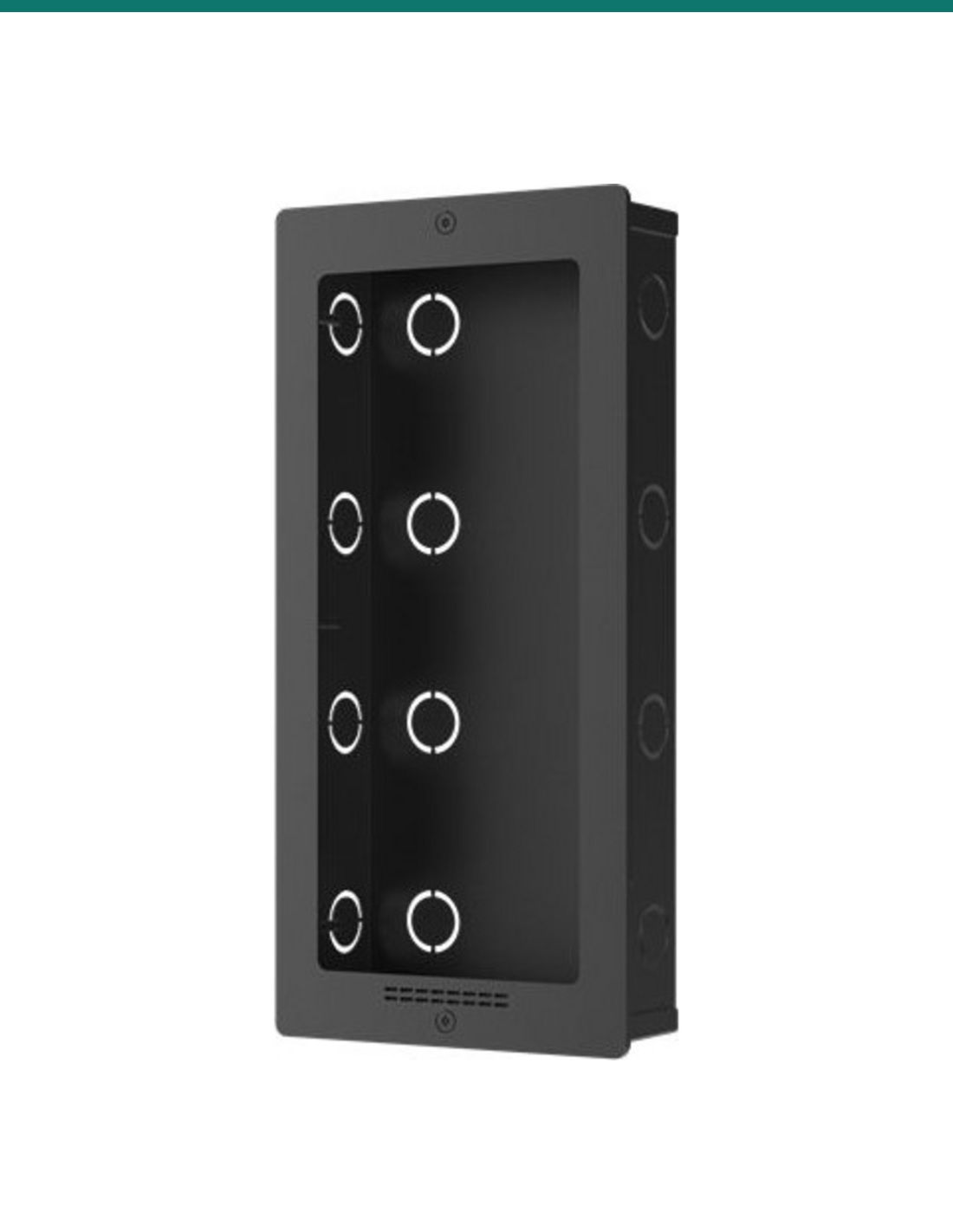

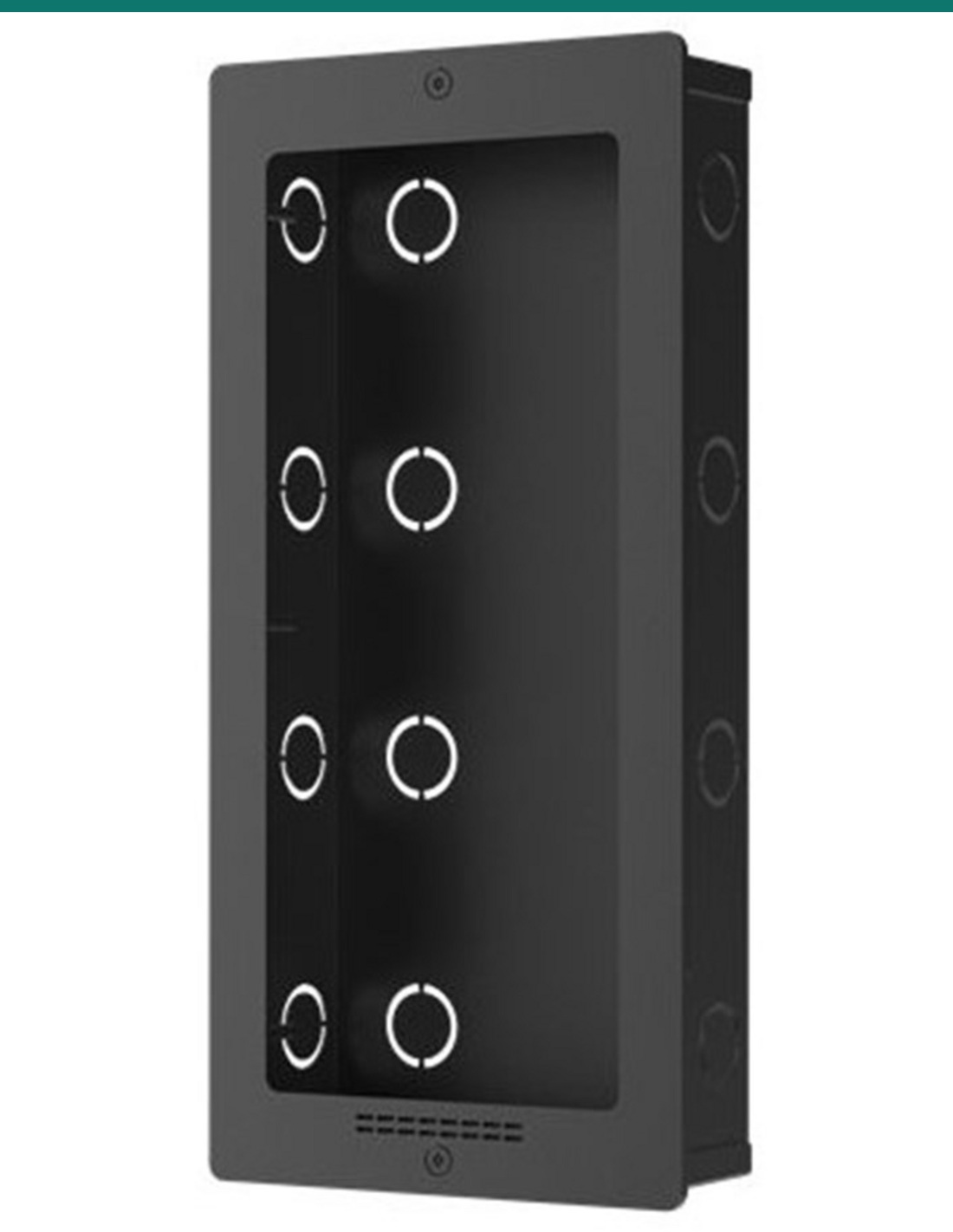

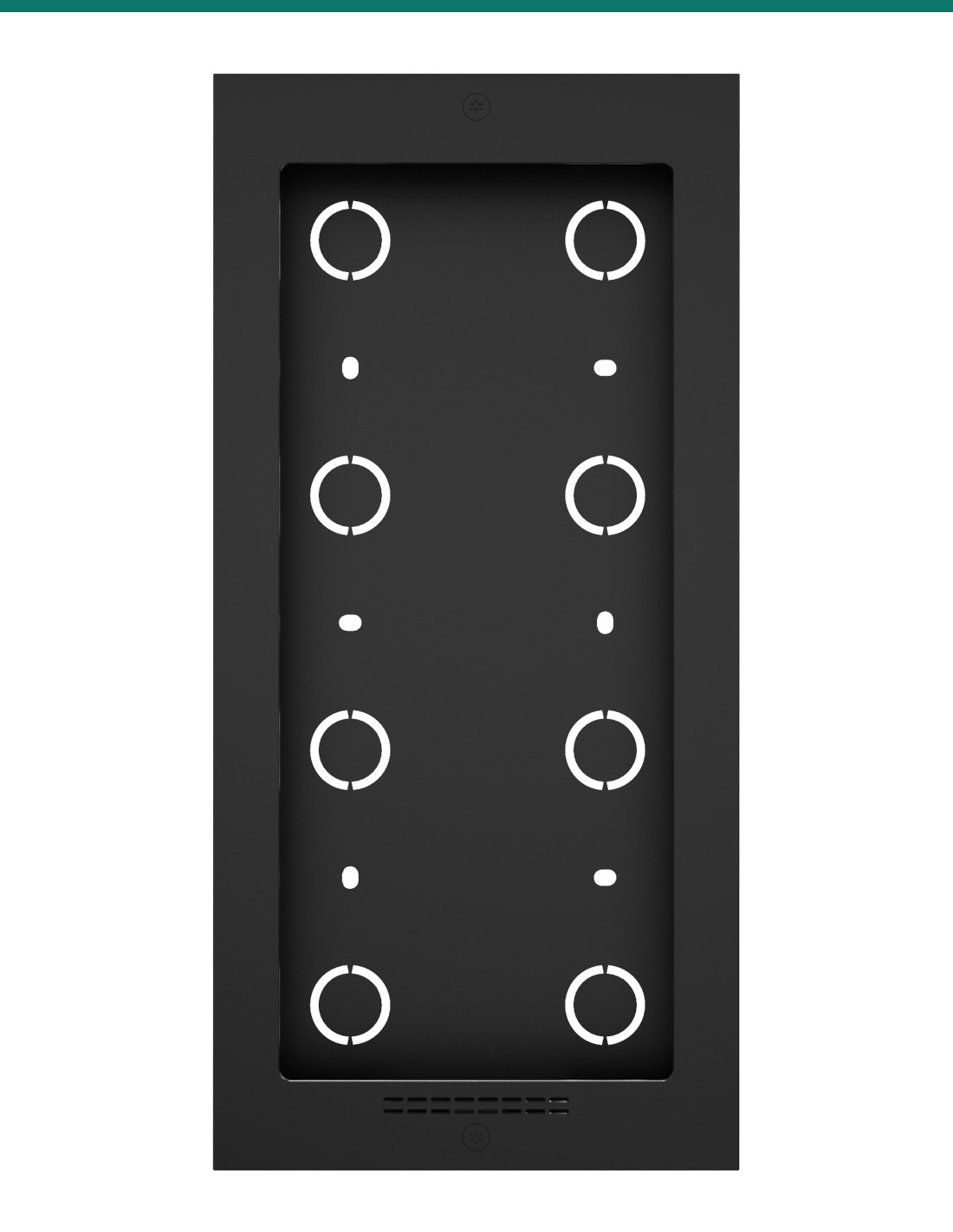

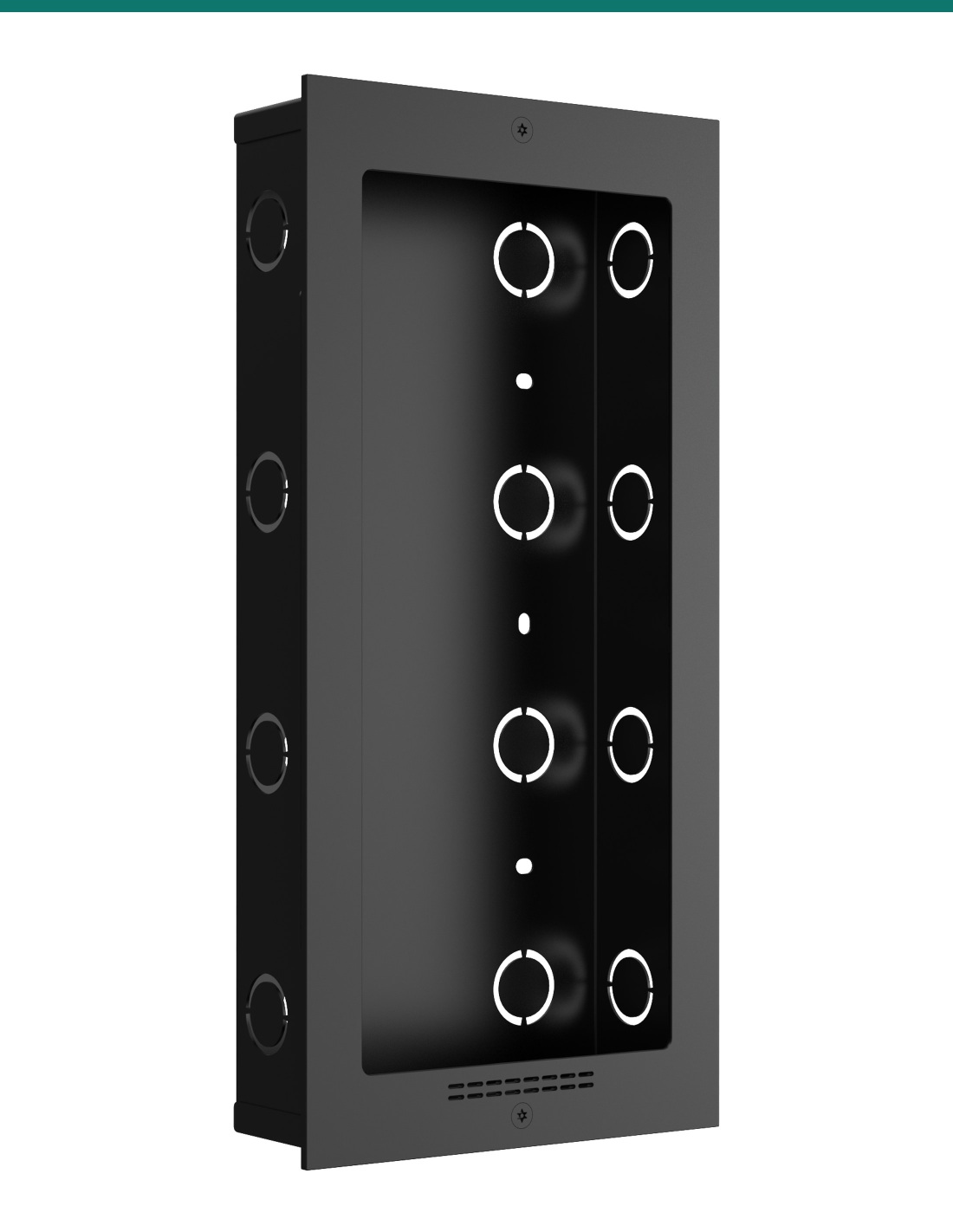

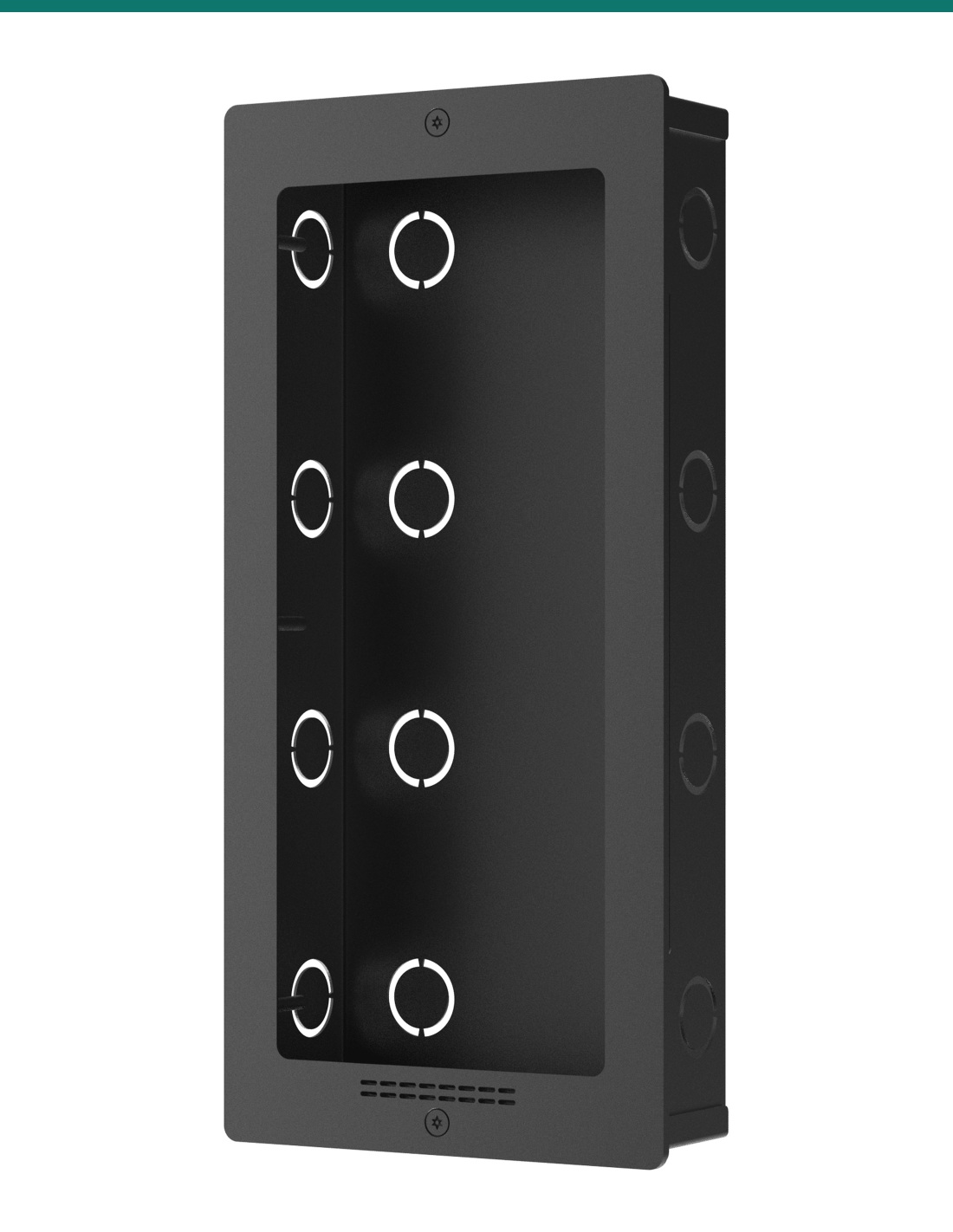

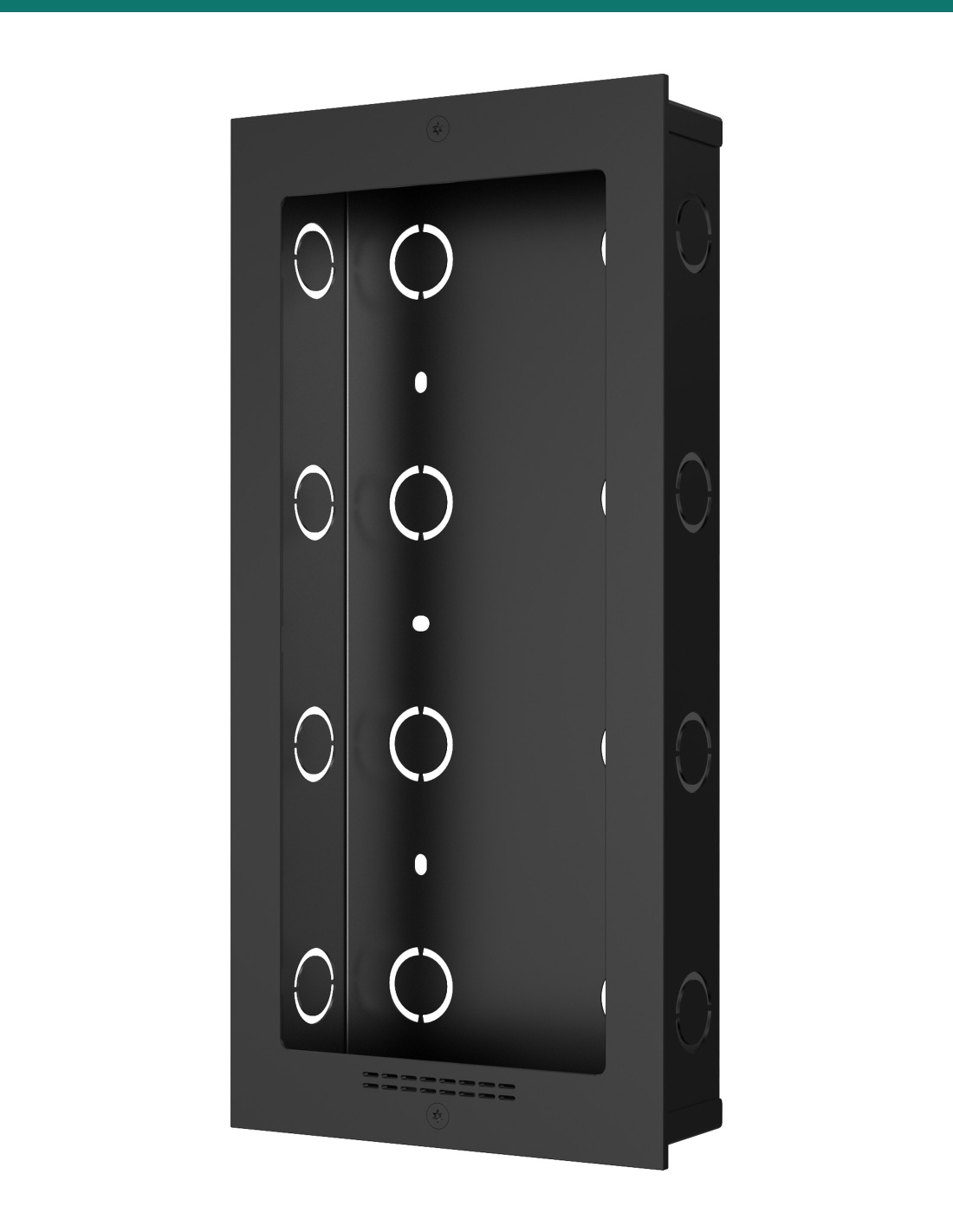

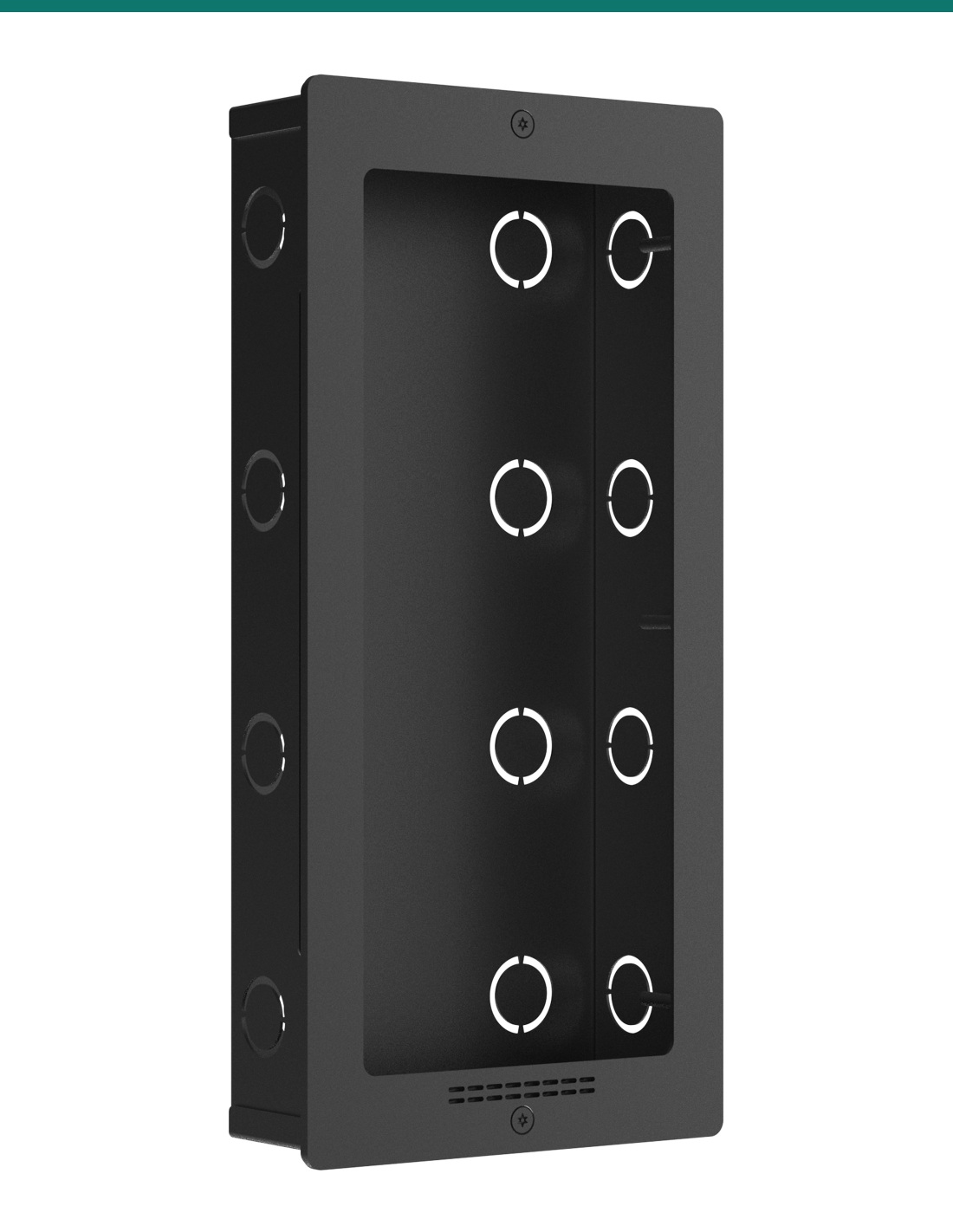

Akuvox E18 Black In-Wall Installation Kit for Flush Mounting — AK-E18INWALLK

SKU AK-E18INWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox AK-E18INWALLK flush-mounts the E18C 7″ facial recognition door phone. The kit includes the in-wall box, the bracket and the trim plate that sandwich the door phone, plus six wall anchors, screws and an Allen wrench.

  • ✓Flush-mounts the Akuvox E18C (275 × 120 × 34.6 mm)
  • ✓Wall cut-out 320 × 145 × 56 mm; box 317 × 140 × 50 mm
  • ✓Flush box, bracket and 325 × 156 mm plate with 6 × M3×8, 2 × M4×16 Torx, 6 × ST4×20 and anchors
  • ✓Black finish to match the E18C


Akuvox · E18 · In-wall kit

Recess the E18C into the wall.
Box, bracket and plate included.

The AK-E18INWALLK is Akuvox’s flush-mounting kit for the E18 series. The E18C ships for surface mounting; this kit sets it into the wall for a flatter, built-in finish.

This SKU is the in-wall installation kit.

You receive the flush box, bracket, plate and fixings listed below. The E18C door phone is sold separately.

In the box
  • Flush-mounting box × 1
  • Flush-mounting bracket × 1
  • Flush-mounting plate × 1
  • M3×8 crosshead screws × 6
  • M4×16 Torx screws × 2
  • ST4×20 crosshead screws × 6
  • Plastic wall anchors × 6
  • Allen wrench × 1
What you also need (sold separately)
  • Akuvox E18C door phone
  • PoE 802.3af switch or 12 V DC 2 A supply
  • Lock hardware and lock power supply

A built-in look for a 7″ door phone.

On a lobby wall or a new-build entry, a recessed E18C looks part of the building rather than an add-on.

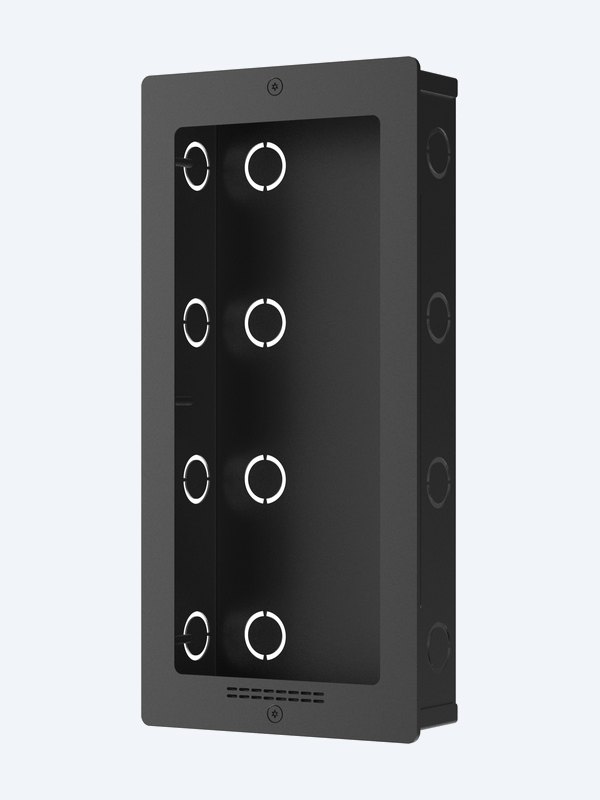

Akuvox E18 in-wall installation kit flush box

In the kit

Box, bracket and plate.

The flush box goes into the wall with knock-out cable entries. The door phone is sandwiched between the flush bracket and the flush plate, and the assembly fixes to the box.

Six M3×8 screws, two M4×16 Torx screws, six ST4×20 screws with anchors and an Allen wrench are included.

Fit

Made for the E18C.

The E18C measures 275 × 120 × 34.6 mm and supports flush or wall mounting. The box is 317 × 140 × 50 mm and needs a 320 × 145 × 56 mm wall opening; the 325 × 156 mm plate covers the cut edge.

It suits the standard E18C and the E18C with the internal LTE module fitted.

Pair it with

Fits the Akuvox E18C

Door phone

Akuvox E18C

7″ facial recognition SIP door phone with card reader and two relays.

LTE

Akuvox internal LTE module

Adds 4G to the E18C where there is no wired network.

Watch

See it in action

Akuvox E18 face recognition door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phone does it fit?

The Akuvox E18C, including E18C units with the internal LTE module fitted.

How big a hole do I need?

320 mm high, 145 mm wide and 56 mm deep. The box itself is 317 × 140 × 50 mm.

How much does it stand off the wall?

Only the 3 mm trim plate and the door phone face sit proud; the 325 × 156 mm plate covers the edge of the cut-out.

What fixings are included?

Six M3×8 screws, two M4×16 Torx screws, six ST4×20 screws with plastic anchors and an Allen wrench.

Can I add the on-wall rain hood to a flush E18C?

No. The on-wall rain hood is for surface-mounted E18C units.

Is the door phone included?

No. The kit contains the box, bracket, plate and fixings only.

Flush E18C installs.

Order one kit per E18C you want recessed; surface installs on exposed walls use the E18 on-wall rain hood instead.

Installation & safety notice

Fitting. Cut a 320 × 145 × 56 mm (H × W × D) hole at the cable position and fix the box with six ST4×20 screws and anchors. The bracket, door phone and plate are screwed together with six M3×8 screws, then the assembly is fixed to the box with two M4×16 Torx screws — see the Akuvox E18 in-wall quick guide.

Colour
Black
Brand
Akuvox
Mounting
In-wall / flush
Warranty
Australian warranty
Product Type
In-wall (flush) installation kit
Model
E18 in-wall kit
Compatible with
Akuvox E18C door phone (standard and LTE)
Wall Cut-out
320 × 145 × 56 mm (H × W × D)
Contents
Flush box, flush bracket, flush plate and fixings
Box Size
317 × 140 × 50 mm (H × W × D)
Trim Plate
325 × 156 × 3 mm
