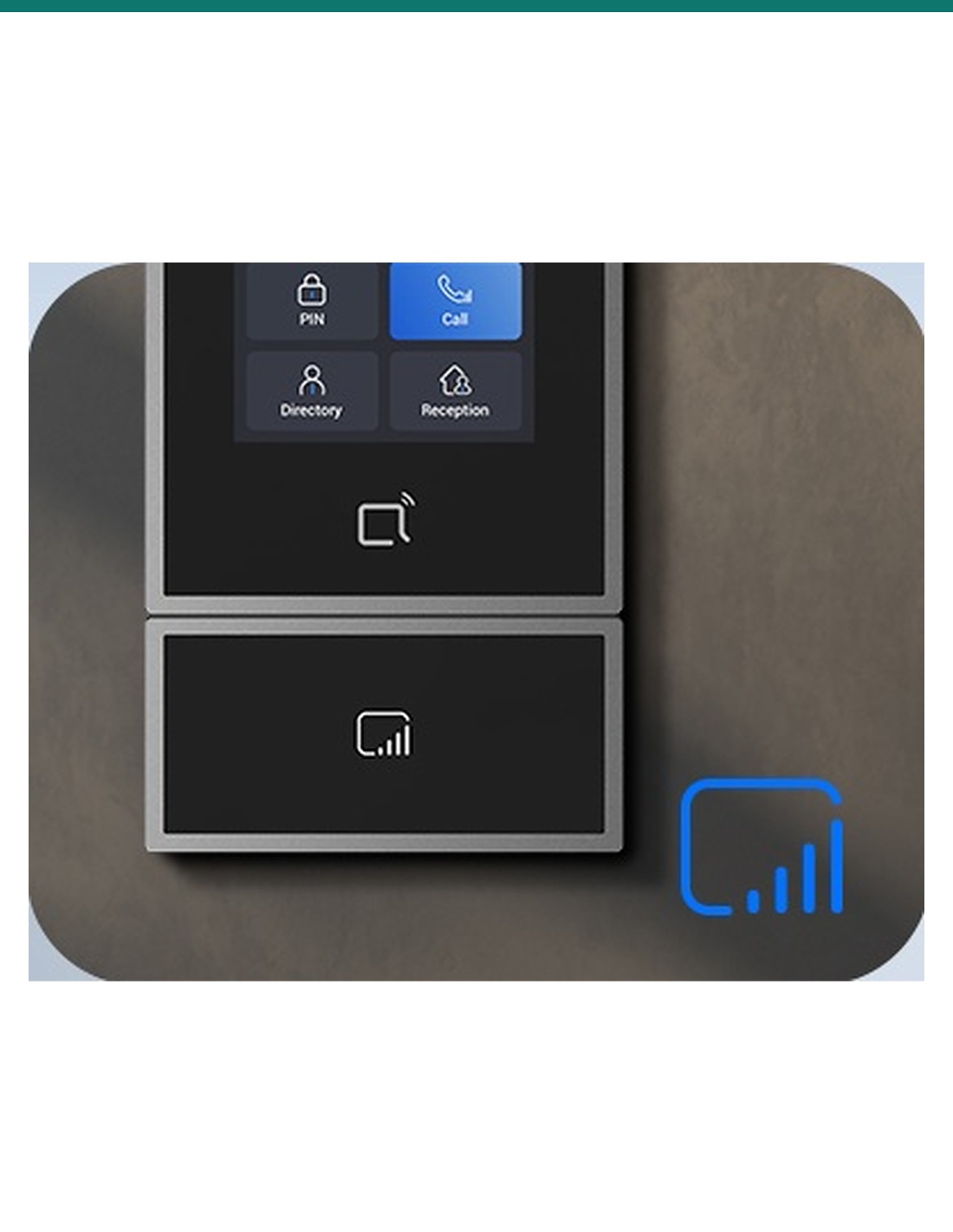

Akuvox S535 door phone with the LTE module fitted

Akuvox S535 LTE module installed at an entrance

Akuvox S535 LTE Expansion Module — AK-S535-LTE

Name: Akuvox S535 LTE Expansion Module — AK-S535-LTE
Brand: Akuvox
SKU: AK-S535-LTE
Price: 379 AUD
Availability: InStock

Reference: AK-S535-LTE

In Stock - Ready to Ship

$ 379.00

inc-GST

or 4 interest-free payments of $94.75 with

Akuvox S535 LTE module connects the S535 facial recognition door phone over LTE, for entrances where a network cable is impractical. It plugs into the expansion port under the screen — module only, the door station and SIM are sold separately.

✓Fits the Akuvox S535 expansion port — no extra cabling
✓LTE bands include B1, B3, B5, B7 and B28 for Australian networks
✓Takes the S535 plate from 210 mm to 260 mm tall
✓Use with the S535 box made for expansion modules

Akuvox · S535 · LTE module

Put your S535 on the mobile network.
4G where there is no data cable.

The AK-S535-LTE is the LTE expansion unit for Akuvox’s S535 door phone. It fits the expansion port under the screen and lets the station call residents and the SmartPlus cloud over the mobile network — Akuvox’s answer for renovating older intercom systems.

This SKU is the LTE module only.

You receive the S535 LTE expansion module with its fixing screws. It needs an Akuvox S535 door station; for a new install, the S535 LTE kit (AK-S535-LTE-KIT) includes both.

In the box

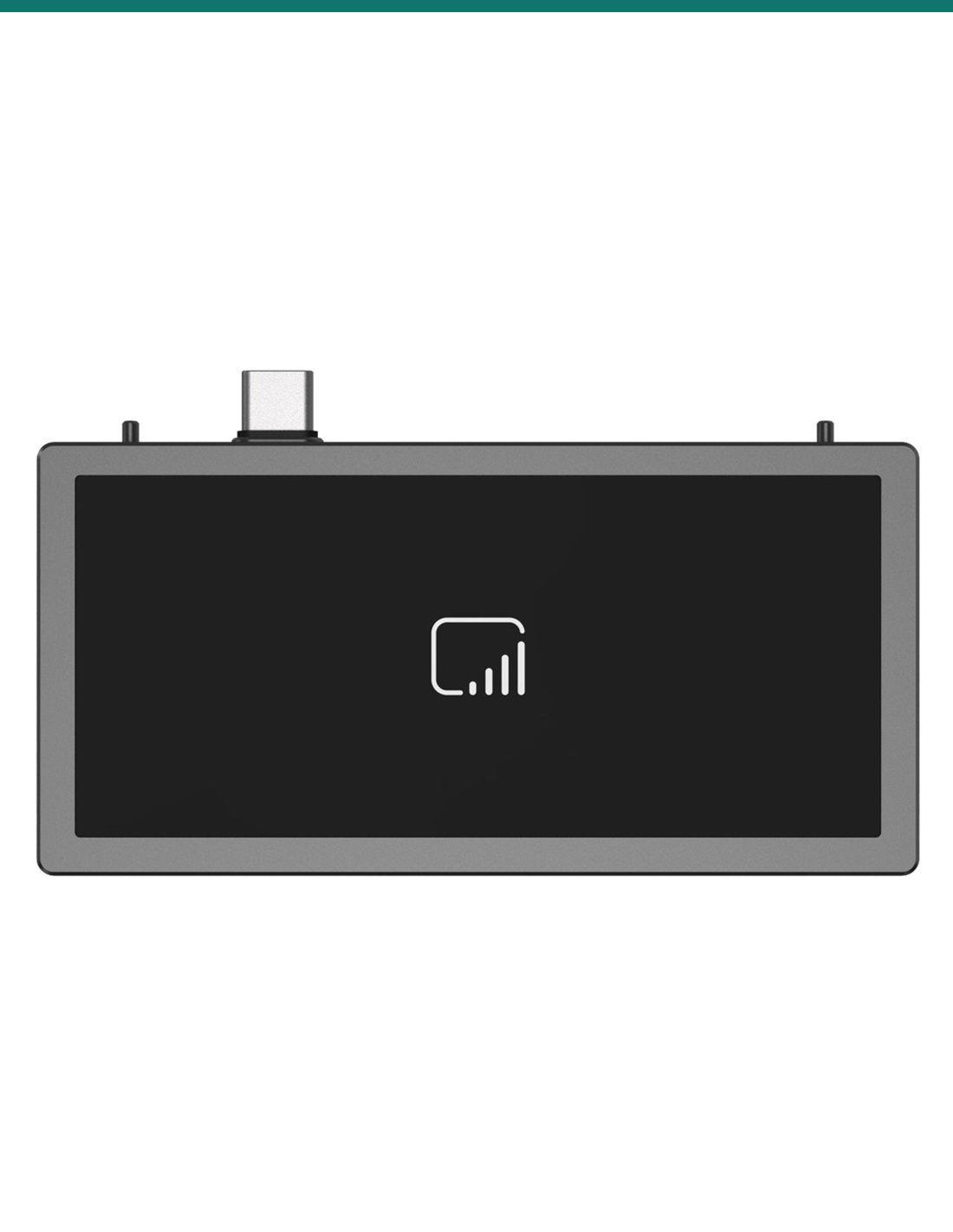

Akuvox S535 LTE expansion module
Shoulder screws for fixing to the S535

What you also need (sold separately)

Akuvox S535 door station
S535 on-wall or in-wall box for use with a module

Upgrade the entrance, keep the old cable.

Replace a tired audio panel with an S535 and connect it over 4G instead of trenching a new data cable. Residents answer on the SmartPlus app.

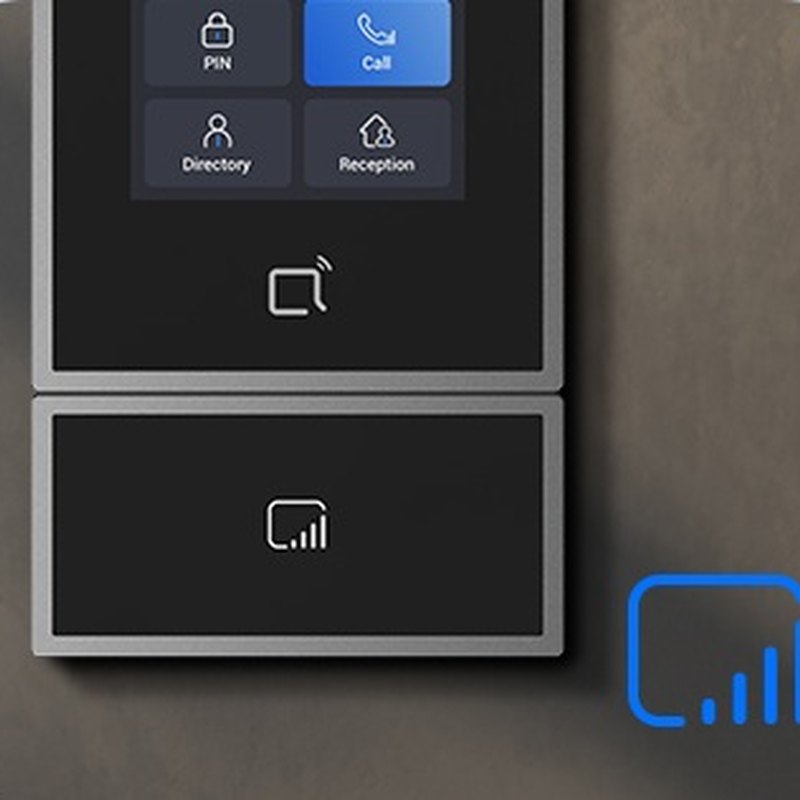

Akuvox S535 LTE module fitted under the door phone on a stone wall

LTE

A mobile connection under the screen.

The module covers LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28, LTE-TDD B38–B41 and WCDMA B1/B2/B4/B5/B6/B8/B19.

That includes the 700 MHz B28 and 1800 MHz B3 bands used in Australia. Insert a data SIM and configure LTE in the S535 web portal.

Mounting

Plan for the extra 50 mm.

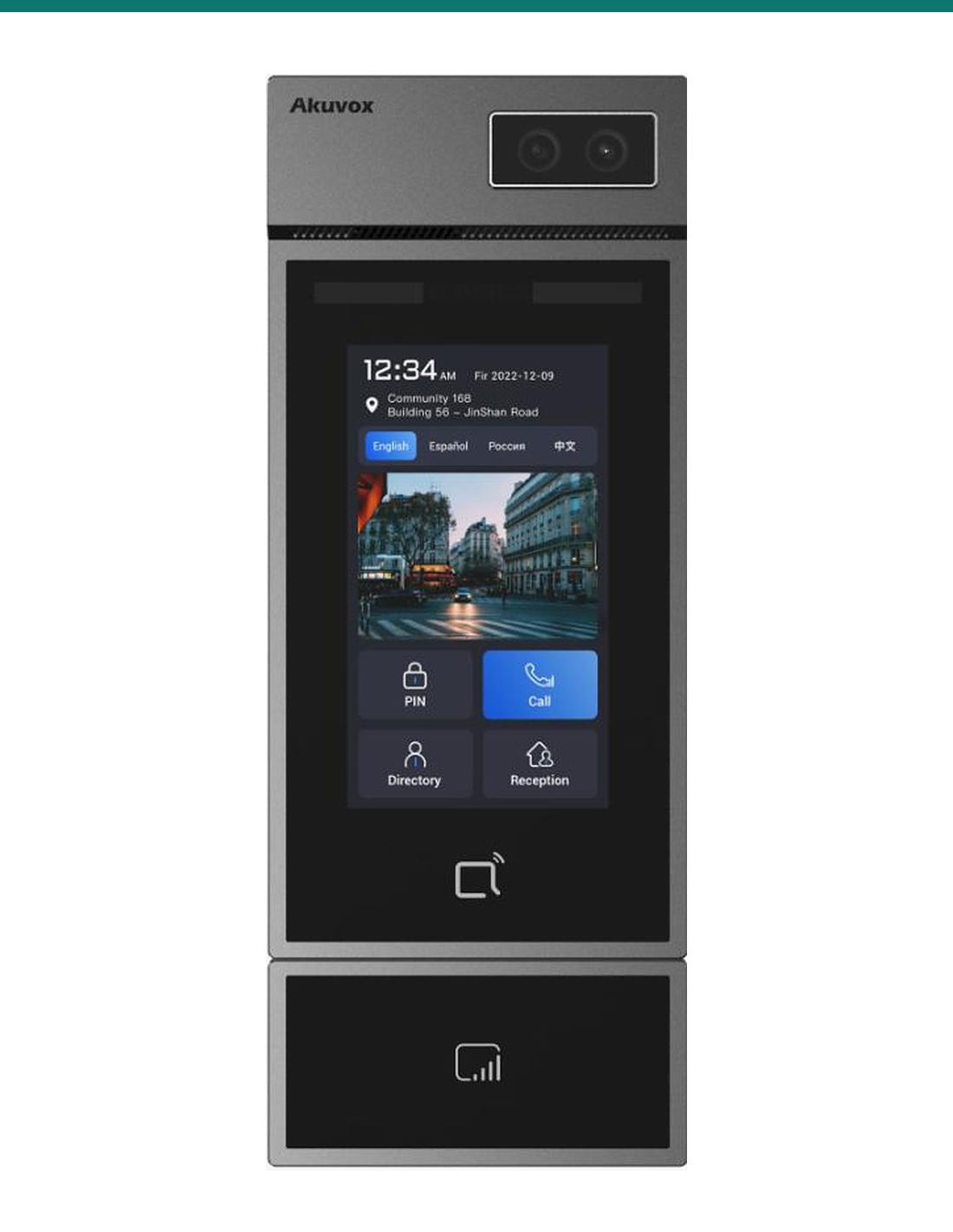

With the module fitted the S535 measures 260 × 100 × 27 mm instead of 210 × 100 × 27 mm. The standard S535 box is too short.

Use the S535 in-wall or on-wall box made for expansion modules. The assembly keeps the S535’s IP66 and IK08 ratings as published on the Akuvox datasheet.

At a glance

Key specs — AK-S535-LTE

Brand: Akuvox
Reference: AK-S535-LTE
Type: LTE expansion unit
Compatible with: Akuvox S535
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28
LTE-TDD: B38/B39/B40/B41
WCDMA: B1/B2/B4/B5/B6/B8/B19
Connection: S535 expansion port
Fixing: Shoulder screws (supplied)
S535 size with module: 260 × 100 × 27 mm (H × W × D)
Protection (assembled): IP66 · IK08
Warranty: Australian warranty via Infront Technologies

Pair it with

Fits the S535

Door station

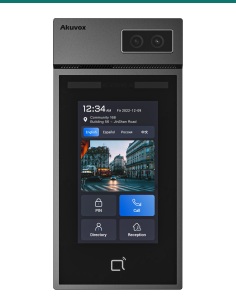

Akuvox S535

The 5-inch facial recognition door phone this module fits.

Mount

S535 box for use with modules

The taller in-wall box sized for the S535 plus one module.

Watch

See it in action

Configuring LTE on the S535

Answers

Common questions

Does this include the S535 door phone?

No, it is the module only. AK-S535-LTE-KIT includes the S535 and the LTE module together.

Is a SIM card included?

No. Supply a data SIM from the carrier of your choice and check coverage at the entrance first.

Can I fit more than one module?

No. The S535 has one expansion port, so choose fingerprint, induction loop or LTE.

Do I need a different mounting box?

Yes. The S535 with a module is 260 mm tall, so use the S535 box made for expansion modules.

Can it be fitted while the S535 is powered?

No. Akuvox requires the station to be powered off before connecting or disconnecting a module.

Upgrade an S535 in minutes.

Order the LTE module through Infront Technologies for Australian stock, or choose the S535 LTE kit if you are buying the door station too.

Installation & safety notice

Installation. Power the S535 off before fitting or removing the module — hot-plugging is not supported. Remove the expansion port cover, plug in the module and secure it with the shoulder screws, then mount the assembly in the S535 box made for modules.

Colour: Dark grey
Brand: Akuvox
Connection: S535 expansion port, no extra wiring
Size: Adds 50 mm: S535 becomes 260 × 100 × 27 mm
Warranty: Australian Warranty via Infront Technologies
Product Type: Door phone expansion module
Model: S535 LTE expansion unit
Cellular: LTE-FDD incl. B1/B3/B5/B7/B28, LTE-TDD B38–B41, WCDMA
Compatible with: Akuvox S535
