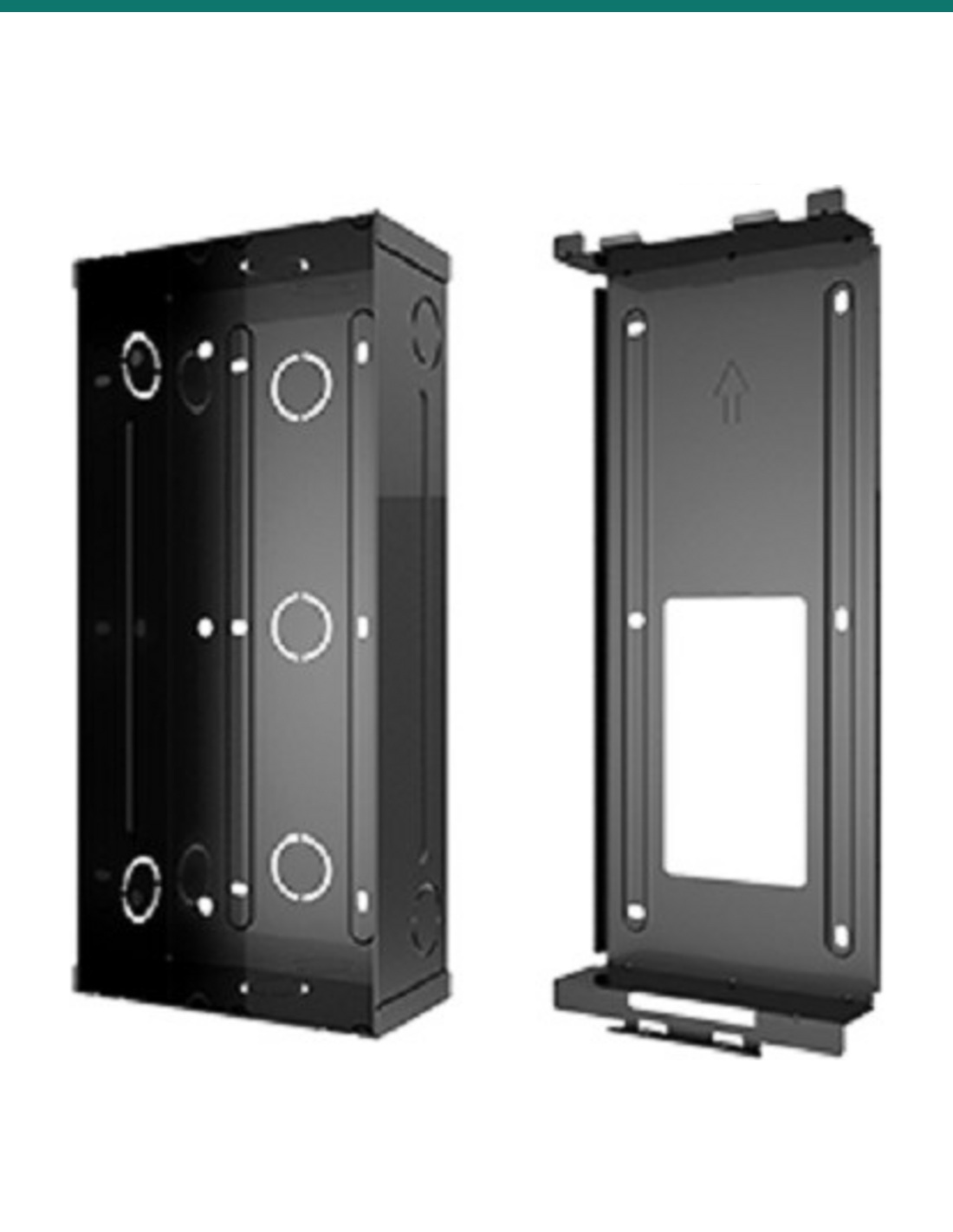

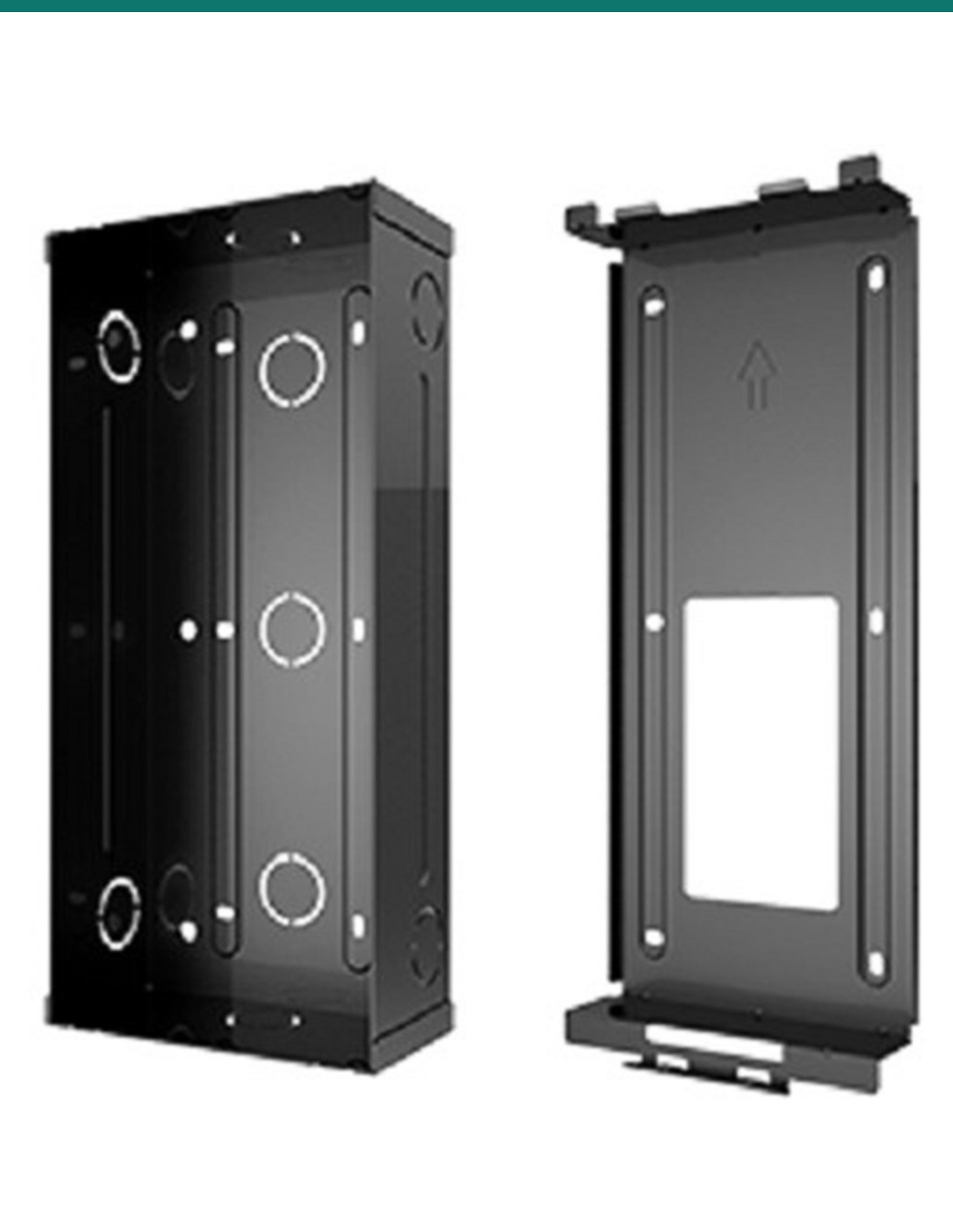

Akuvox R27 / R28 In-Wall Installation Kit with Flush Box — AK-R27R28INWALLK

SKU AK-R27R28INWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox R27 / R28 in-wall kit flush-mounts an R28A or R27 door phone. It contains the flush-mounting box that goes into the wall, the flush-mounting bracket the station hangs on, and the screws and anchors to fix them. The door phones ship without mounting hardware, so a flush install needs this kit.

  • ✓Flush-mounting box and flush-mounting bracket for R27 / R28
  • ✓Wall cut-out 262.5 × 121 × 60 mm (H × W × D)
  • ✓Six M4×10 and six ST4×20 screws with six wall anchors included
  • ✓Station hangs on the bracket and locks with its own M3×6 hex screws


Akuvox · R27 / R28 · In-wall installation kit

Flush-mount the R28.
Box, bracket and fixings.

The AK-R27R28INWALLK is the Akuvox in-wall installation kit for the R27 and R28 series. Akuvox ships the door phone without mounting hardware and packs the flush-mounting parts in this kit.

Mounting hardware only.

Everything to flush-mount one R27 or R28. The door phone and the in-wall rain cover are sold separately.

In the box
  • Flush-mounting box
  • Flush-mounting bracket
  • 6 × M4×10 crosshead screws
  • 6 × ST4×20 crosshead screws
  • 6 × plastic wall anchors
What you also need (sold separately)
  • Akuvox R28A or R27 door phone
  • A 262.5 × 121 × 60 mm wall recess with cable entry
  • Optional: R27 / R28 in-wall rain cover

A cleaner front entrance.

A recessed R28 sits close to the wall with its cabling hidden — the usual choice for apartment lobbies and new builds where the recess can be planned in.

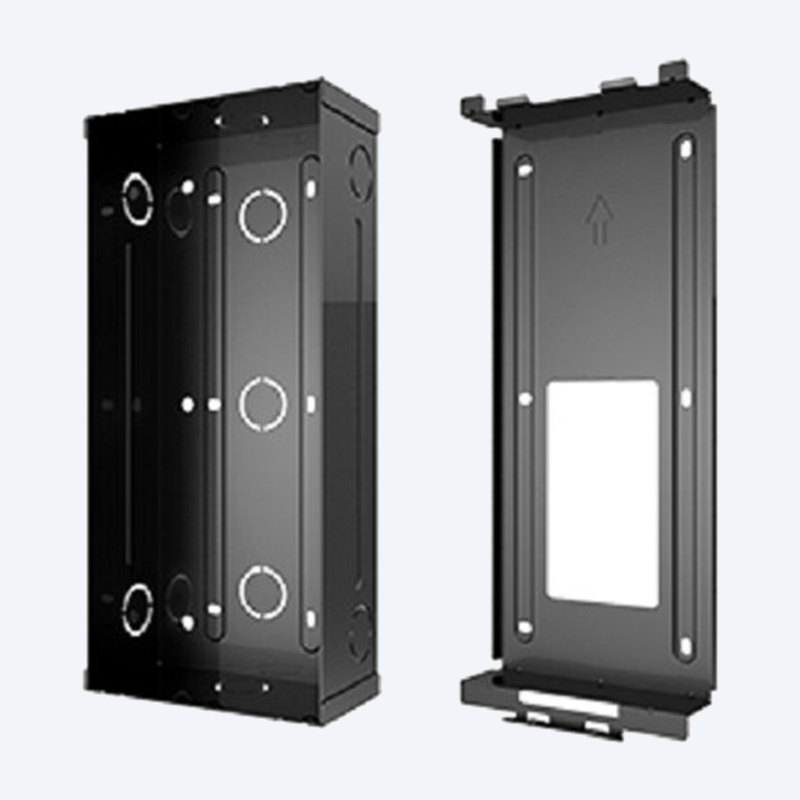

Akuvox R27 / R28 in-wall kit — box and bracket

What you get

Box plus bracket.

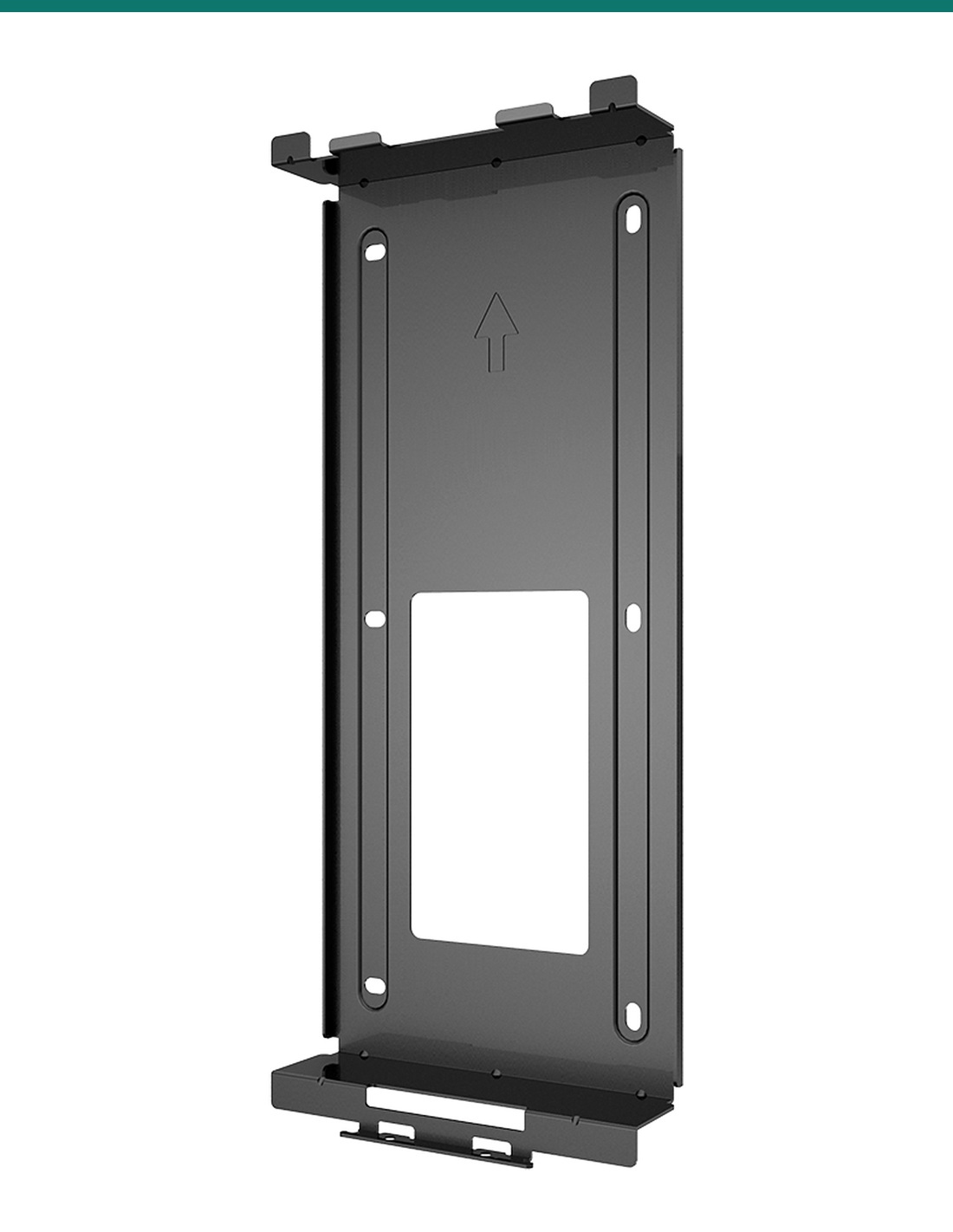

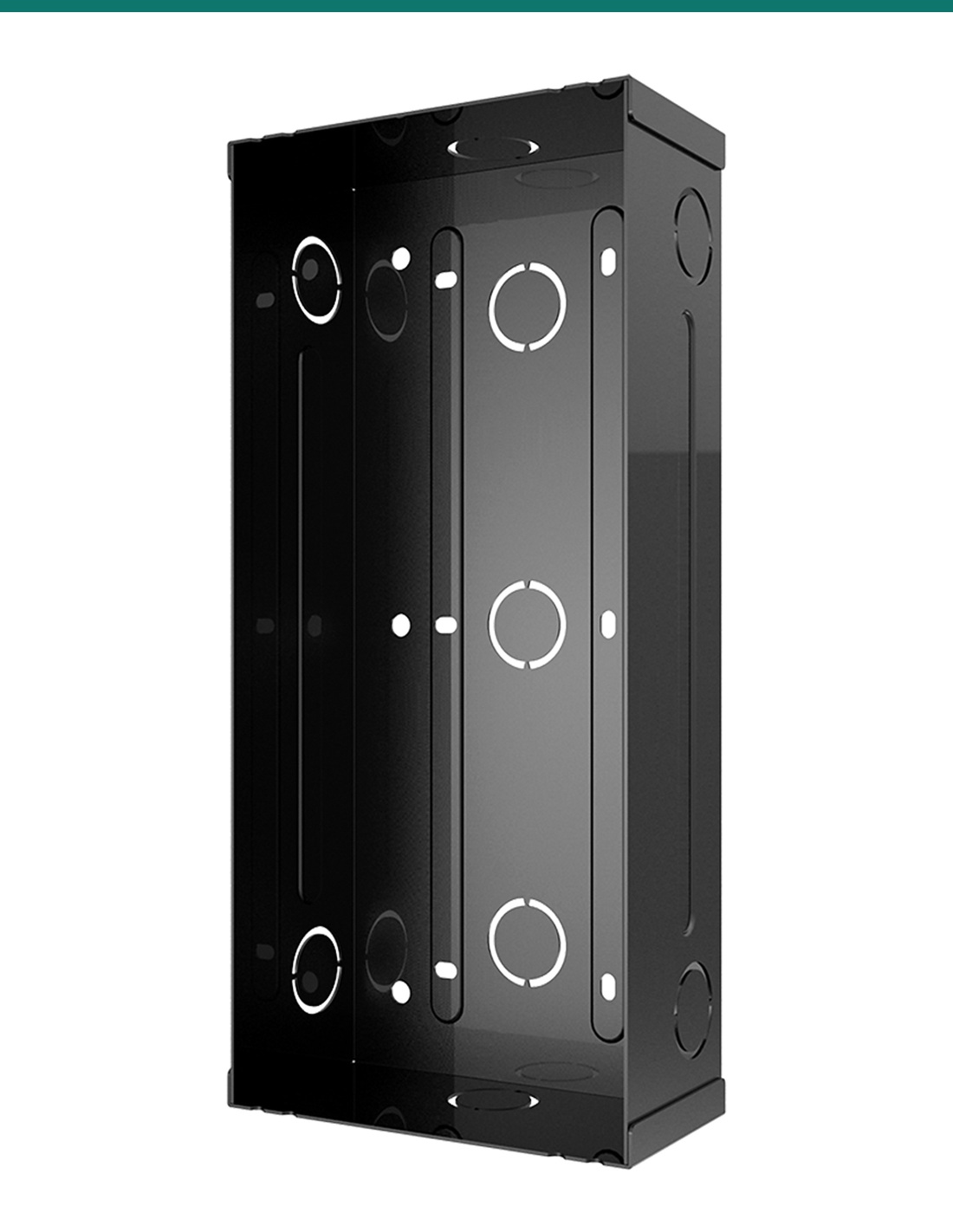

The flush-mounting box lines the wall recess; the flush-mounting bracket screws into it with M4×10 screws and carries the door phone.

The station hooks over the top of the bracket and is locked from underneath with its two M3×6 hex socket screws.

How it works

Fitting the kit.

01

Cut the recess

Cut a 262.5 × 121 × 60 mm (H × W × D) hole, slightly oversize so the cables fit.

02

Fix the box

Mark six holes through the box, drill 6 mm, fit the anchors and fix the box with six ST4×20 screws.

03

Fit the bracket

Screw the flush-mounting bracket to the box with the M4×10 screws.

04

Hang the station

Hook the door phone onto the bracket, press down and lock it with its two M3×6 hex socket screws.

Pair it with

Completes a flush R28 install

Door phone

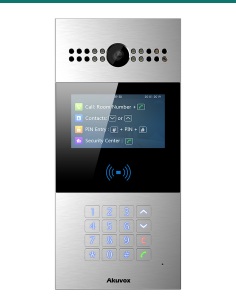

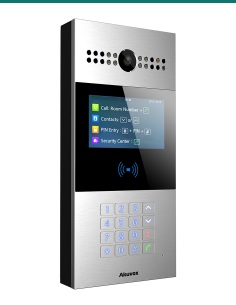

Akuvox R28A

4.3″ screen keypad door phone this kit flush-mounts.

Weather

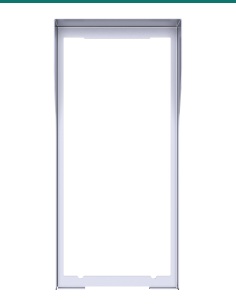

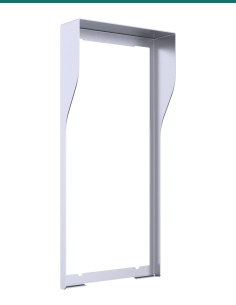

R27 / R28 in-wall rain cover

Silver hood for exposed flush installs.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the R28A come with mounting hardware?

No. Akuvox packs the wall-mounting and flush-mounting parts in separate on-wall and in-wall kits.

What size recess do I need?

Akuvox specifies 262.5 × 121 × 60 mm (H × W × D) and advises cutting it a little larger so the box and all cables fit.

Does it fit the R27?

Yes. Akuvox’s R27 and R28 quick guides list the same in-wall kit contents and recess.

How is the door phone secured?

It hooks over the top of the flush bracket and is locked from underneath with its two M3×6 hex socket screws, using the Allen key supplied with the door phone.

What mounting height does Akuvox show?

The Akuvox R27 / R28 drawings place the camera centre at 1,500 mm and the bottom of the panel at 1,259 mm above ground.

Which rain cover suits a flush install?

The silver R27 / R28 in-wall rain cover, fixed together with the bracket.

Is the door phone included?

No. The kit contains the box, bracket and fixings only.

Surface or flush — pick the kit.

For surface mounting use the R27 / R28 on-wall kit (AK-R27R28ONWALLK) instead.

Installation & safety notice

Akuvox also describes a simple install with the box set in cement or adhesive (lower vandal resistance); fill gaps with waterproof material to keep water out of the back of the door phone.

Colour
Black
Brand
Akuvox
Mounting Height
Camera centre 1,500 mm, bottom of panel 1,259 mm
Warranty
Australian warranty
Product Type
Flush-mount installation kit
Model
R27 / R28 in-wall kit
Includes
Flush-mounting box, flush-mounting bracket, 6 × M4×10, 6 × ST4×20, 6 anchors
Compatible with
Akuvox R27 and R28 series
Wall Cut-out
262.5 × 121 × 60 mm (H × W × D)
Bracket Size
278.5 × 114.5 × 34.6 mm (H × W × D)
Flush Box Size
269.5 × 122.4 × 60.5 mm (H × W × D, overall)
