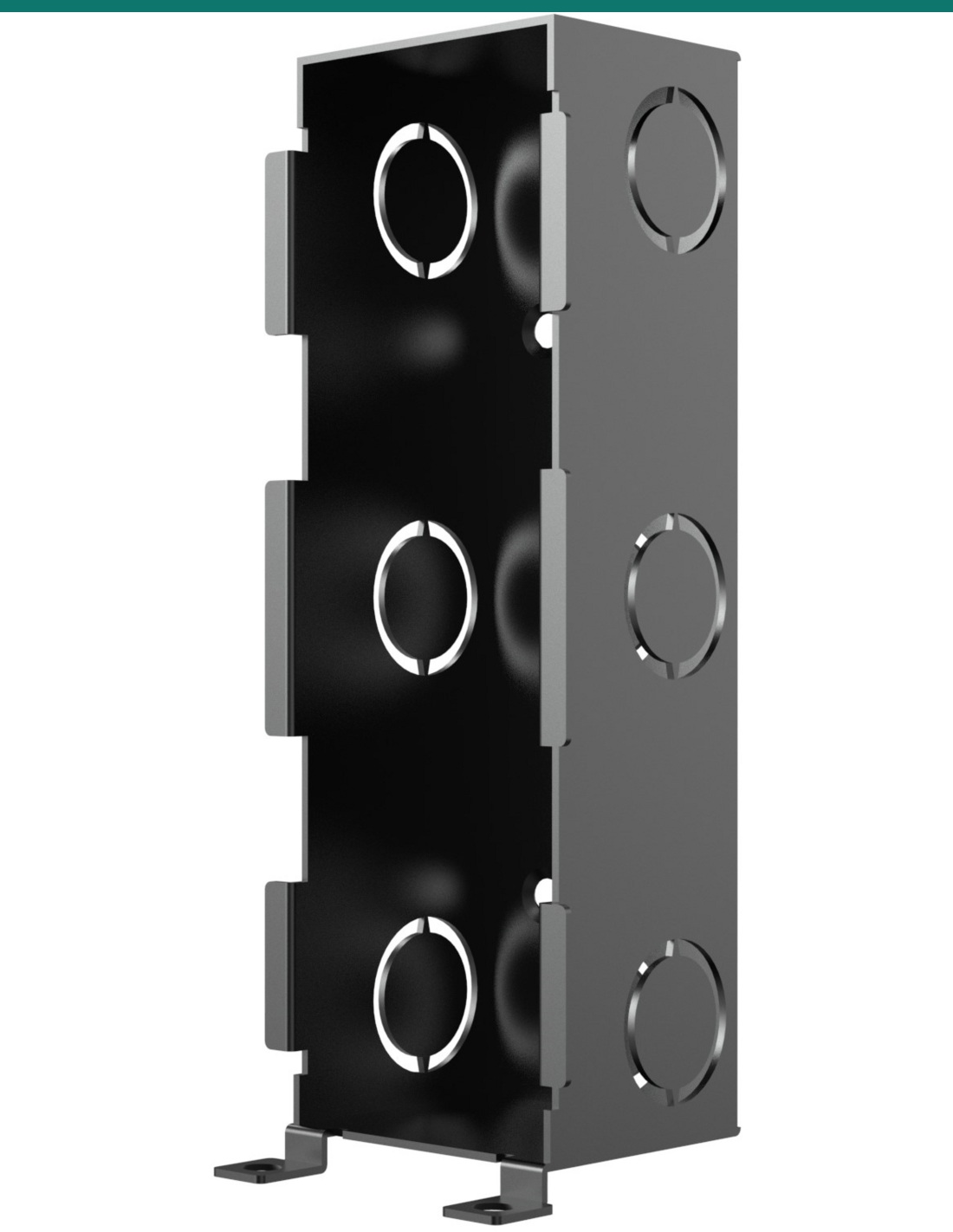

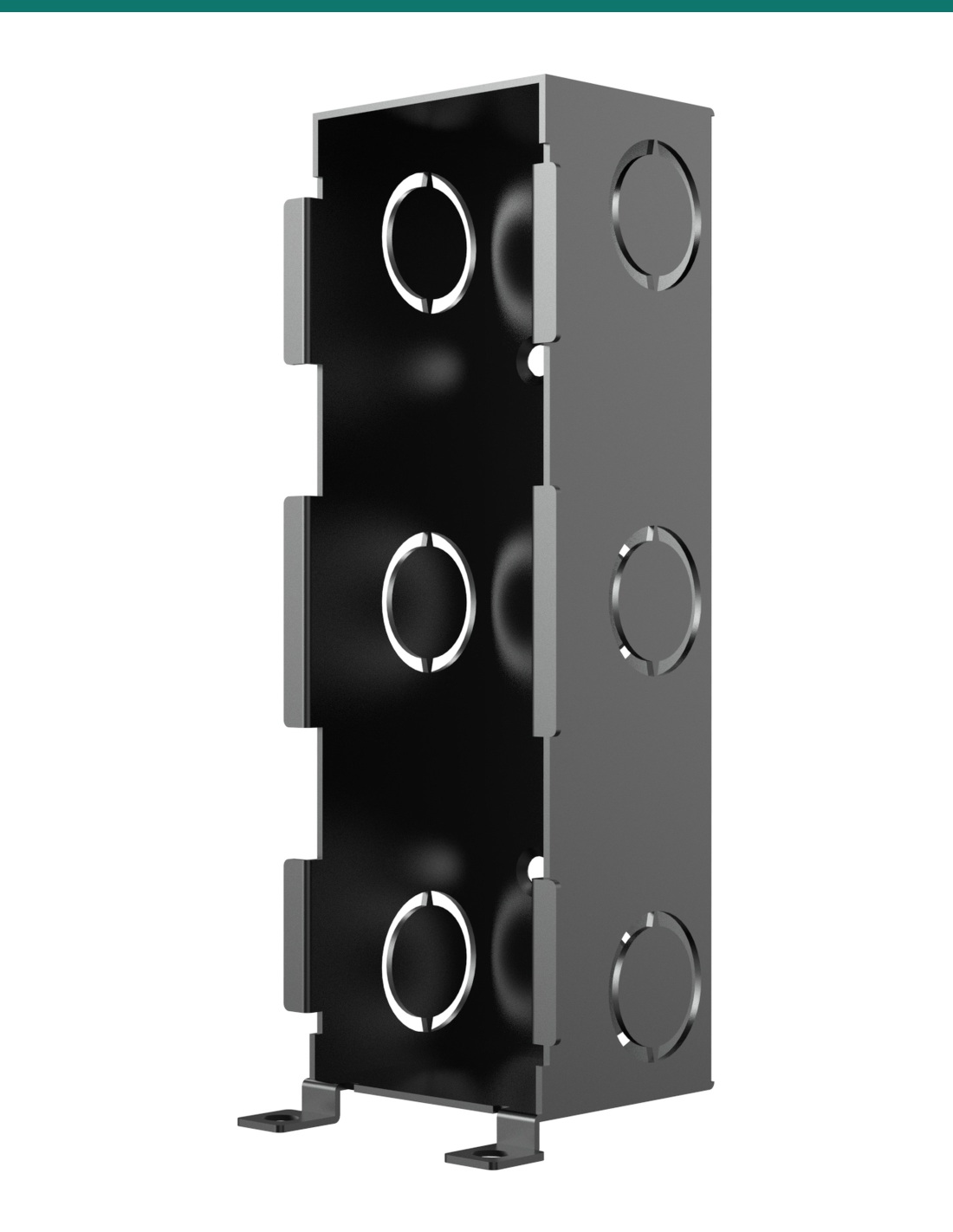

Akuvox A08S in-wall flush-mounting box — right three-quarter view
Akuvox A08S black in-wall flush-mounting box

Akuvox A08S Black In-Wall Flush-Mounting Box — AK-A08-INWALL

AK-A08-INWALL
In Stock - Ready to Ship
$ 32.20
inc-GST

or 4 interest-free payments of $8.05 with

Akuvox AK-A08-INWALL is the in-wall box that flush-mounts the slim A08S access terminal. Cut a 135 × 42 × 38 mm pocket, screw the box in and the 50 mm-wide reader sits almost flush with the wall or door frame. Fixings included.

  • ✓Flush-mounting box for the Akuvox A08S (140 × 50 × 26.7 mm)
  • ✓Wall cut-out 135 × 42 × 38 mm (H × W × D)
  • ✓Knock-out cable entries and side flaps that sit against the wall
  • ✓Includes 4 × ST4×20 screws and 4 plastic wall anchors


Akuvox · A08S · In-wall box

Sink the A08S into the wall.
A 42 mm-wide pocket is enough.

The AK-A08-INWALL is Akuvox’s flush-mounting box for the A08S slim access terminal. It recesses the reader into the wall, so a narrow door frame or mullion gets a clean, low-profile reader.

This SKU is the in-wall box and fixings.

You receive the flush-mounting box with its screws and anchors. The A08S reader is sold separately.

In the box
  • Flush-mounting box × 1
  • ST4×20 crosshead screws × 4
  • Plastic wall anchors × 4
What you also need (sold separately)
  • Akuvox A08S access control terminal
  • PoE switch or 12 V DC 1 A supply
  • Lock hardware and lock power supply

Low profile on narrow frames.

The A08S is only 50 mm wide. Flush-mounted, it suits aluminium shopfront frames, mullions and the strip of wall beside a door where a bulky reader won’t fit.

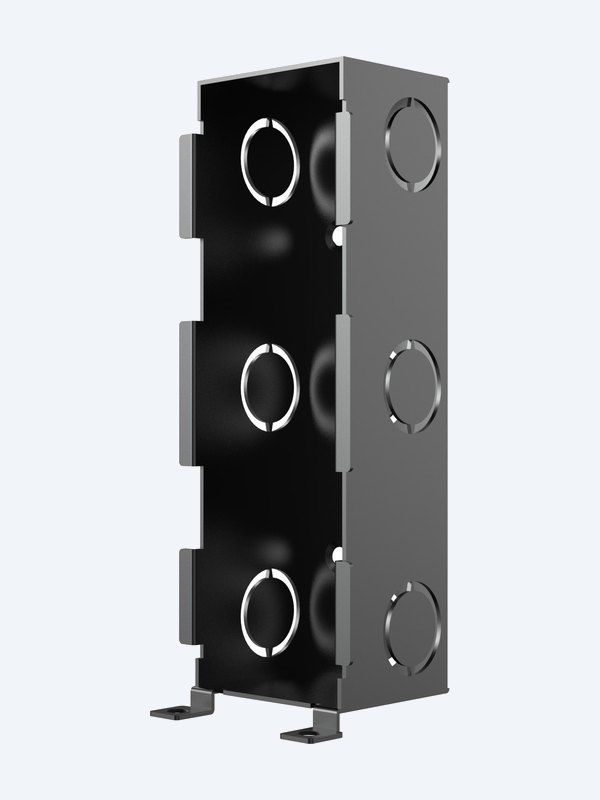

Akuvox A08S black in-wall flush-mounting box

Fit

Made for the A08S body.

The A08S measures 140 × 50 × 26.7 mm. This box recesses the reader and its wiring into the wall for a low-profile finish.

It suits both A08 versions we stock: the standard Bluetooth A08S and the HID iCLASS version.

Install

A 135 × 42 mm cut-out.

Cut the pocket 38 mm deep, offer the box up and mark its four fixing holes, then drill 6 mm holes and fit the anchors.

Feed the cables through the knock-outs, push the box in and tighten the four ST4×20 screws. Leave a drainage gap at the bottom.

Pair it with

Fits the Akuvox A08S

Reader

Akuvox A08S

Slim Bluetooth, card and app access terminal.

iCLASS

Akuvox A08S HID iCLASS

The same body with an HID iCLASS reader.

Watch

See it in action

Akuvox A08 access control terminal overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which readers does it fit?

The Akuvox A08S, including the HID iCLASS version — both use the same 140 × 50 × 26.7 mm body.

How big a hole do I need?

135 mm high, 42 mm wide and 38 mm deep. The box itself is 137 × 48 × 38 mm including its side flaps, which sit on the wall surface.

Are screws included?

Yes — four ST4×20 crosshead screws and four plastic wall anchors.

How high should the reader go?

Akuvox’s drawings show the bottom of the box at 1100 mm and the top of the panel no higher than 1240 mm above the floor.

Can I surface-mount the A08S instead?

Yes. Surface installs use the A08S wall-mounting box, which needs only a 50 × 29 mm cable hole.

Flush A08S installs.

Order one in-wall box per A08S you want recessed. For a surface install, the A08S uses its wall-mounting box instead.

Installation & safety notice

Fitting. Cut a 135 × 42 × 38 mm (H × W × D) hole at the cable position, open the box’s cable knock-outs, then fix the box with four ST4×20 screws so its side flaps sit on the wall. Leave a small gap at the bottom of the box for drainage — see the A08 quick guide.

Colour
Black
Brand
Akuvox
Mounting
In-wall / flush
Warranty
Australian warranty
Product Type
In-wall (flush) mounting box
Model
A08 in-wall kit
Compatible with
Akuvox A08S access control terminal (standard and HID iCLASS versions)
Wall Cut-out
135 × 42 × 38 mm (H × W × D)
Fixings
4 × ST4×20 screws, 4 × wall anchors
Box Size
137 × 48 × 38 mm (H × W × D) overall
Cable Entries
Knock-outs on the back and sides
