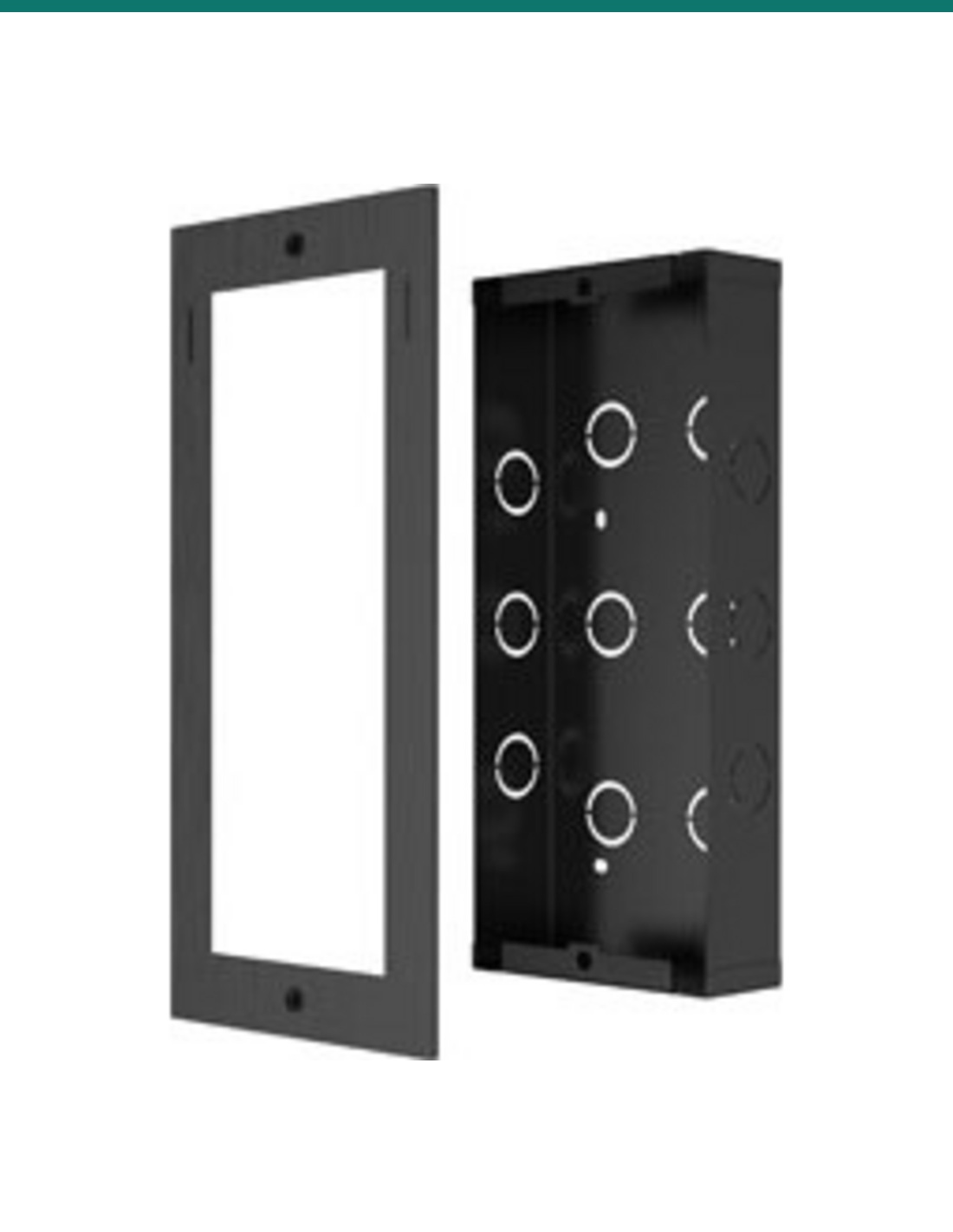

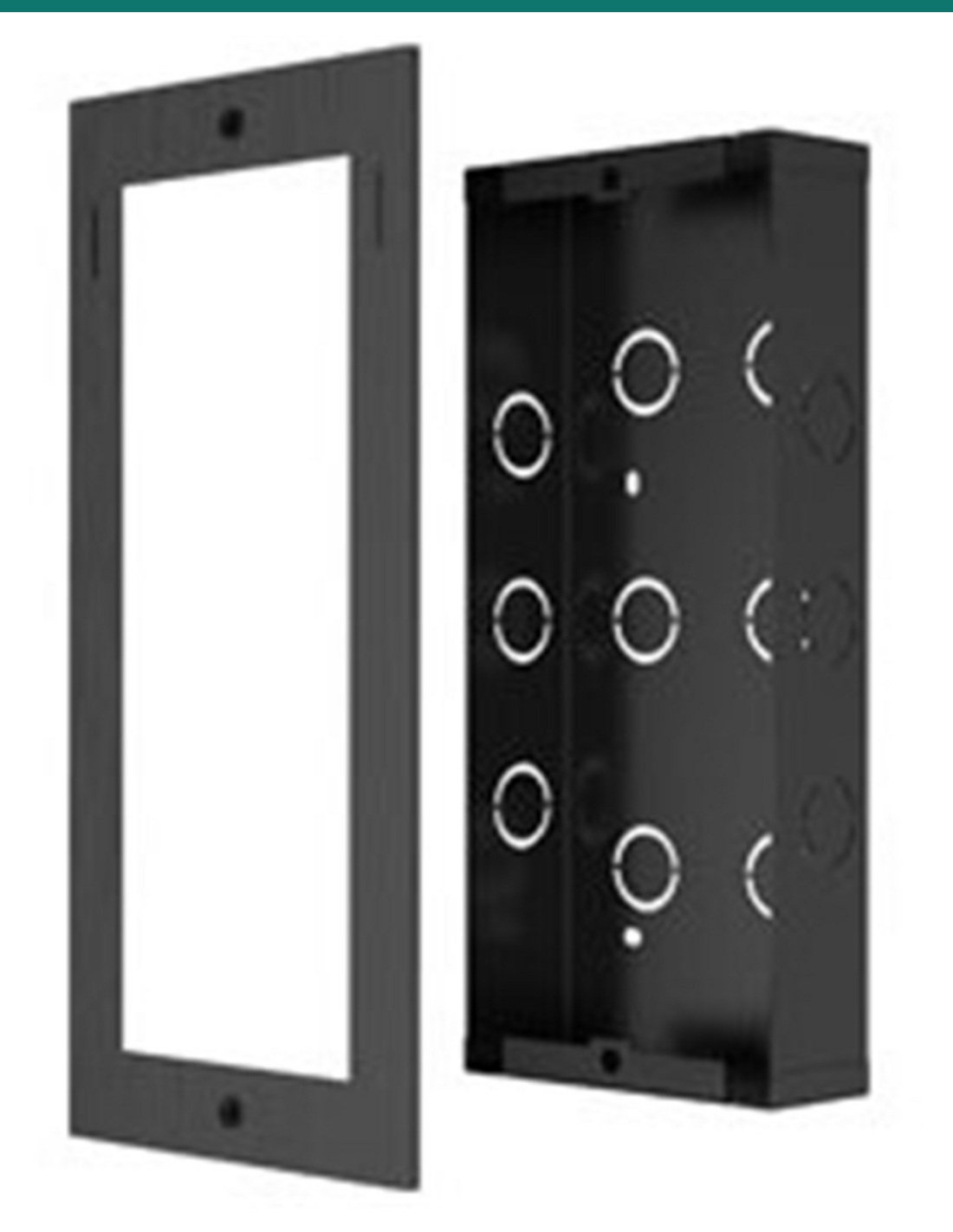

Akuvox X912 Black In-Wall Installation Kit for X912K and X912S Door Phones — AK-X912INWALLK

SKU AK-X912INWALLK In Stock - Ready to Ship
$58.00 inc GST

Akuvox AK-X912INWALLK is the flush-mount kit for the X912 door phone. It recesses an X912K or X912S into the wall so only the front panel and a slim plate sit proud, with the cabling hidden in the box. The flush-mounting box, bracket, plate and all fixings are included.

  • ✓Flush-mounting box (264 × 115.6 × 45 mm), bracket and 273 × 125.6 mm finishing plate
  • ✓Wall cut-out 265 × 116 × 45 mm (H × W × D)
  • ✓Fixings included: 4 × ST4 × 20 screws and wall anchors, 4 × M3 × 8 screws, 2 × M4 × 16 Torx screws and a Torx wrench
  • ✓Fits the X912 series: X912K and X912S


Akuvox X912 door phone at an office entrance
Akuvox · X912 · In-wall installation kit

A flush finish for the X912.
Box, bracket and plate.

The AK-X912INWALLK is Akuvox’s in-wall installation kit for the X912 series. The box goes into the wall, the door station fits into the flush-mounting bracket, and a plate finishes the edge — a recessed installation for the X912K or X912S.

Everything to flush-mount one X912.

You receive the box, bracket, plate and fixings below. The X912 door phone and cabling are sold separately.

In the box
  • Flush-mounting box
  • Flush-mounting bracket
  • Flush-mounting plate
  • 4 × ST4 × 20 crosshead screws and 4 plastic wall anchors
  • 4 × M3 × 8 crosshead screws
  • 2 × M4 × 16 Torx screws and Torx wrench
What you also need (sold separately)
  • Akuvox X912K or X912S door phone
  • Network cabling to the box
  • X912 in-wall rain cover for exposed entries

Recessed, tidy and wired out of sight.

Flush-mounting sets the X912 into the wall, with its connections and cable entries inside the box rather than behind a surface bracket — the usual choice for new builds and rendered or masonry entries.

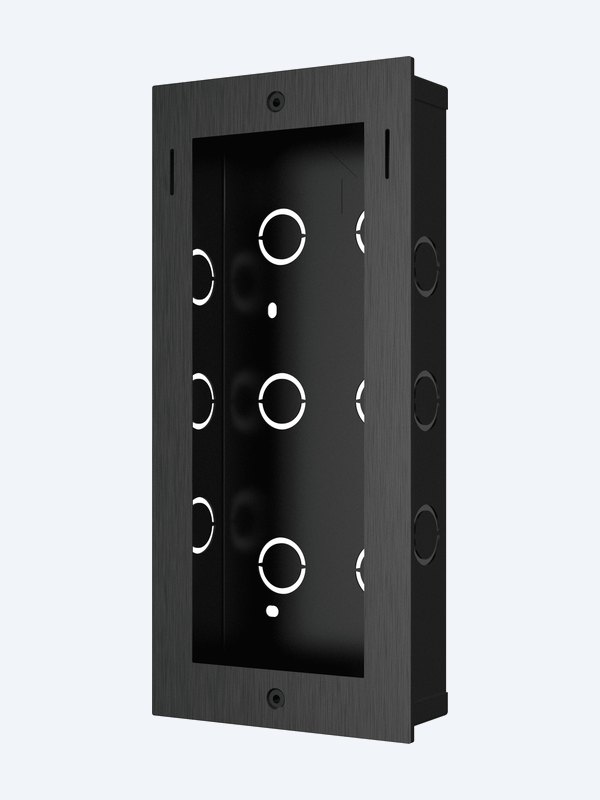

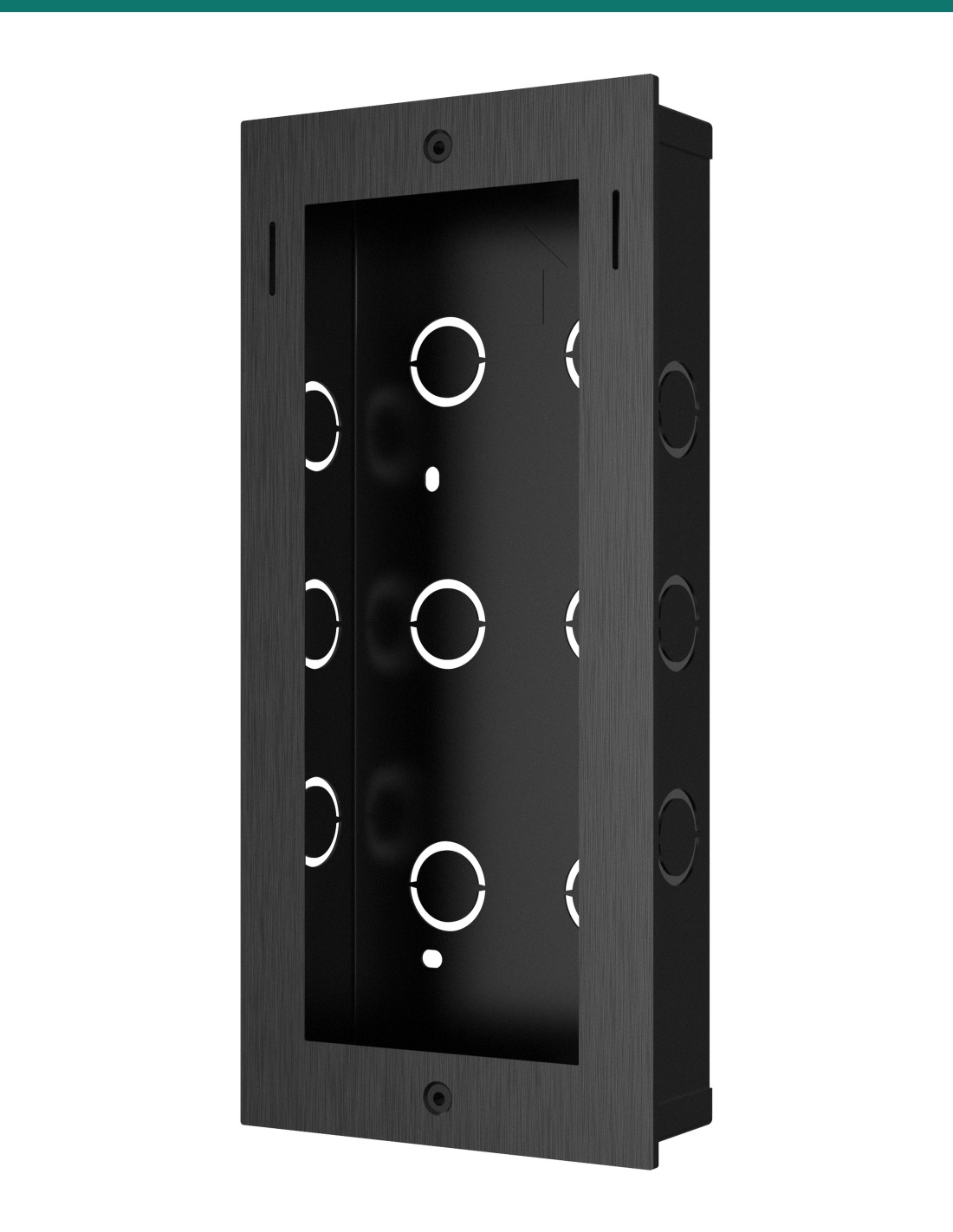

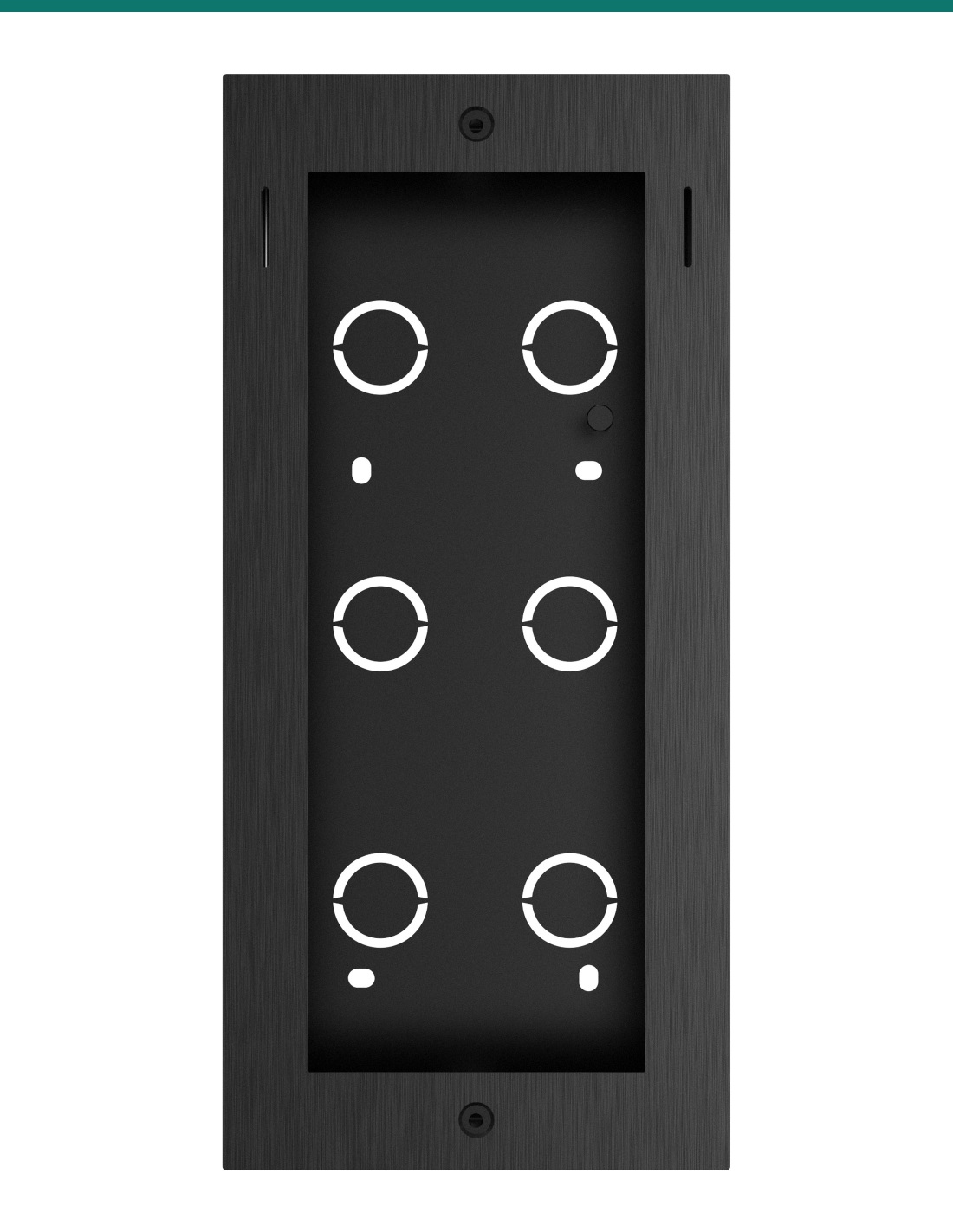

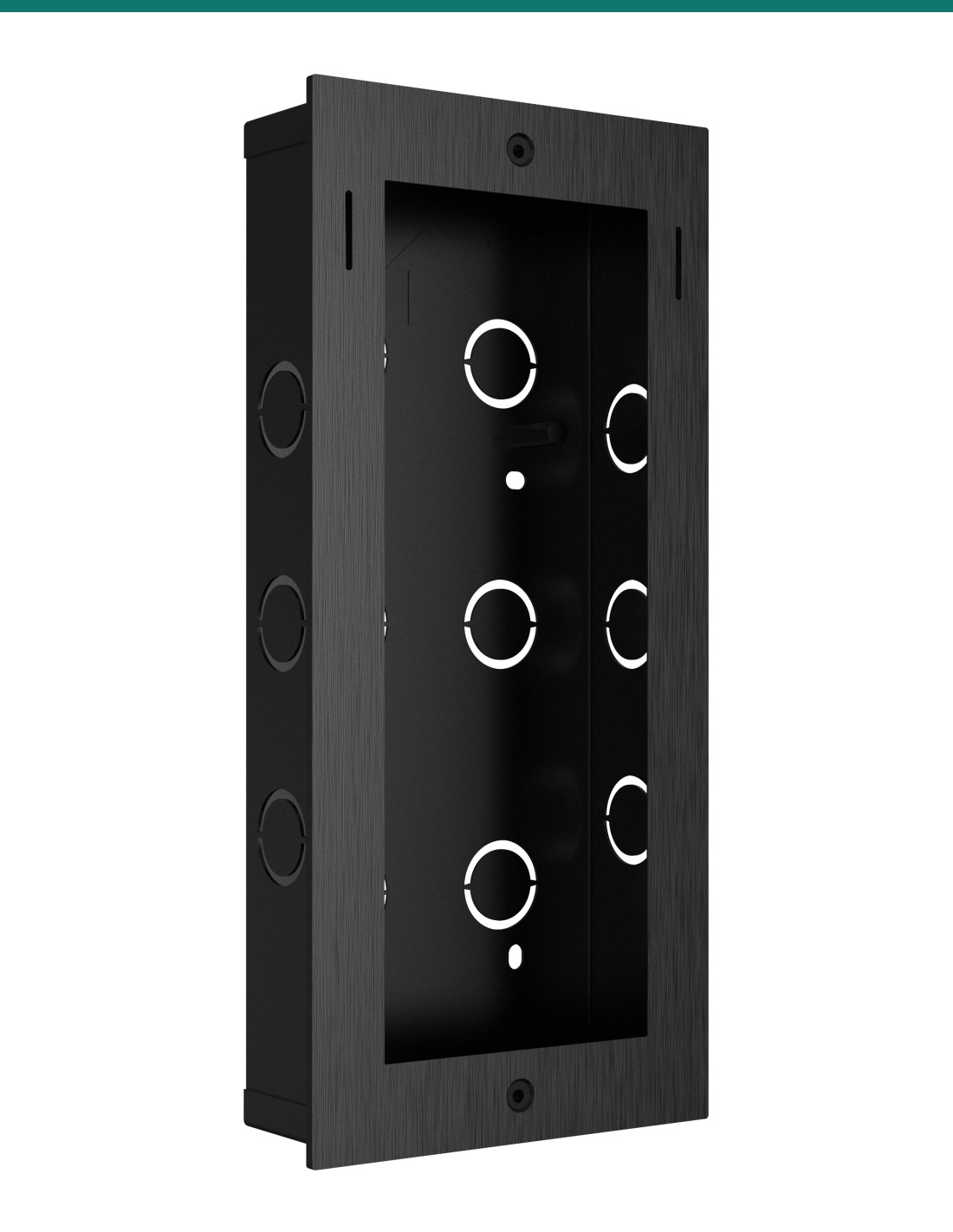

Akuvox X912 flush-mounting box

In the wall

Set the box into the wall.

Cut a 265 × 116 × 45 mm opening, knock out the cable entries you need and fix the box with four ST4 × 20 screws and wall anchors in 6 mm holes, 25 mm deep. The top of the box lines up with the wall surface.

Cables run in through the knock-outs and connect to the station inside the box.

Finish

Bracket and plate frame the station.

The X912 fits into the flush-mounting bracket, the plate fixes over it with four M3 × 8 screws, and the assembly is secured to the box with two M4 × 16 Torx screws.

On an exposed entry, the X912 in-wall rain cover fits between the bracket and the box.

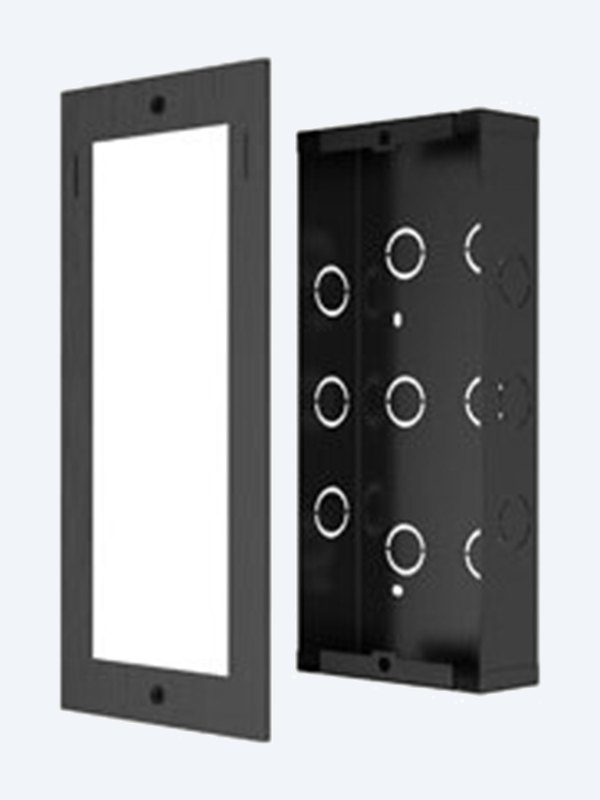

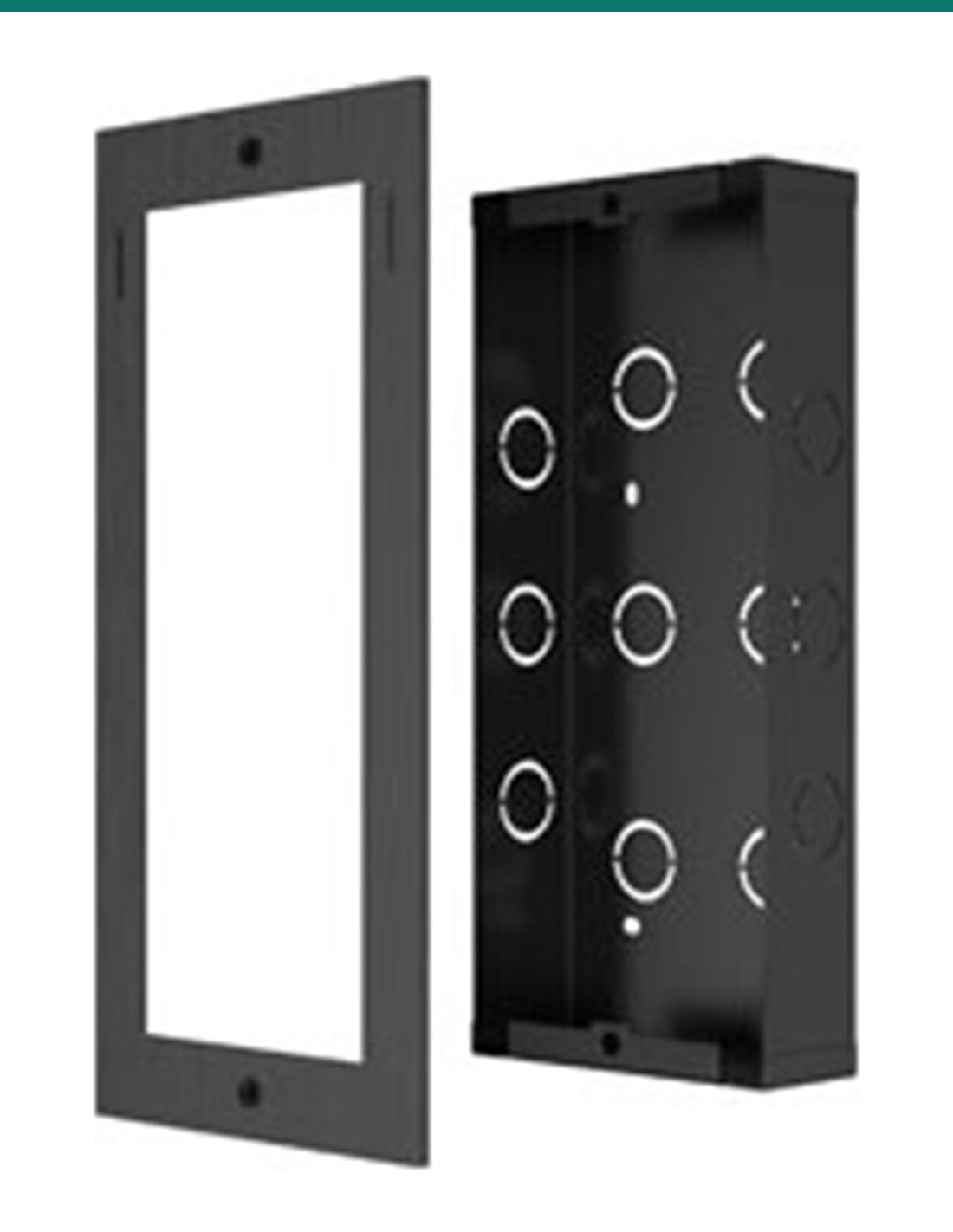

Akuvox X912 flush-mounting plate and box

Pair it with

Completes a flush X912 installation

Door phone

Akuvox X912K / X912S

Face-recognition SIP door phones with keypad; the kit fits both.

Weather

X912 in-wall rain cover

Black hood that fits with this kit on exposed entries.

Watch

See it in action

Akuvox X912 door phone overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Which door phones does it fit?

The Akuvox X912 series — X912K and X912S.

What size hole do I need?

265 × 116 × 45 mm (height × width × depth). The box itself is 264 × 115.6 × 45 mm.

How much of the wall does the finished install cover?

The finishing plate is 273 × 125.6 mm and only 3 mm thick, so the station sits almost flush.

What’s included?

The flush-mounting box, bracket and plate, four ST4 × 20 screws with wall anchors, four M3 × 8 screws, two M4 × 16 Torx screws and a Torx wrench.

Can I add a rain cover?

Yes. The X912 in-wall rain cover fits between the flush-mounting bracket and the box, fixed with the same two Torx screws.

Do I still need the bracket from the X912 box?

No. The flat wall bracket in the X912 box is for surface mounting; this kit replaces it for a flush installation.

Flush-mount your X912.

Order the in-wall kit with each X912K or X912S you plan to recess, and add the in-wall rain cover where the entry is exposed.

Colour
Black
Brand
Akuvox
Mounting
In-wall / flush
Warranty
Australian warranty
Product Type
Flush-mounting kit
Model
X912 in-wall installation kit
Plate Size
273 × 125.6 × 3 mm
Includes
Flush-mounting box, bracket, plate and fixings
Compatible with
Akuvox X912K and X912S
Wall Cut-out
265 × 116 × 45 mm (H × W × D)
Box Size
264 × 115.6 × 45 mm (H × W × D)
