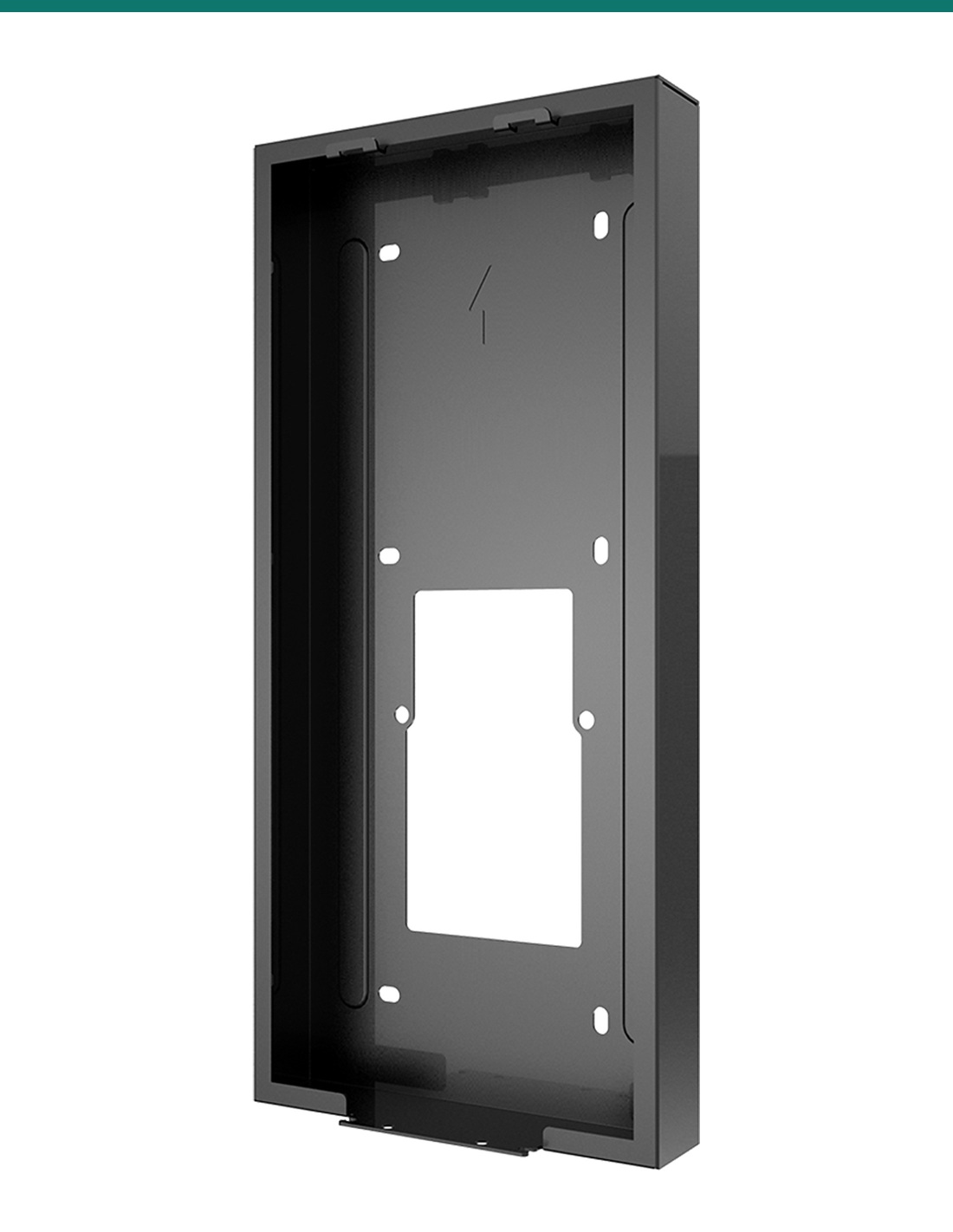

Akuvox R27 / R28 On-Wall Installation Kit with Surface Box — AK-R27R28ONWALLK

SKU AK-R27R28ONWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox R27 / R28 on-wall kit surface-mounts an R28A or R27 door phone. The wall-mounting box fixes over an 86 mm wall box or straight to the wall, and the station hangs on it and locks with its own hex screws. The door phones ship without mounting hardware, so a surface install needs this kit.

  • ✓Wall-mounting box for R27 / R28, 279.4 × 129.4 × 28 mm
  • ✓Fixes over an 86 × 86 mm wall box or directly to the wall
  • ✓Two M4×30 and six ST4×20 screws with six anchors included
  • ✓Station hangs on the box and locks with its M3×6 hex screws


Akuvox · R27 / R28 · On-wall installation kit

Surface-mount the R28.
No recess needed.

The AK-R27R28ONWALLK is the Akuvox on-wall installation kit for the R27 and R28 series — the wall-mounting box the door phone hangs on, plus its fixings.

Mounting hardware only.

Everything to surface-mount one R27 or R28. The door phone is sold separately.

In the box
  • Wall-mounting box
  • 2 × M4×30 crosshead screws
  • 6 × ST4×20 crosshead screws
  • 6 × plastic wall anchors
What you also need (sold separately)
  • Akuvox R28A or R27 door phone
  • Cable entry behind the box (86 mm wall box or hole)

Ideal for retrofits.

When the wall can’t be cut — brick, render or an existing entry — the on-wall box mounts the R28 on the surface with the cables fed in from behind.

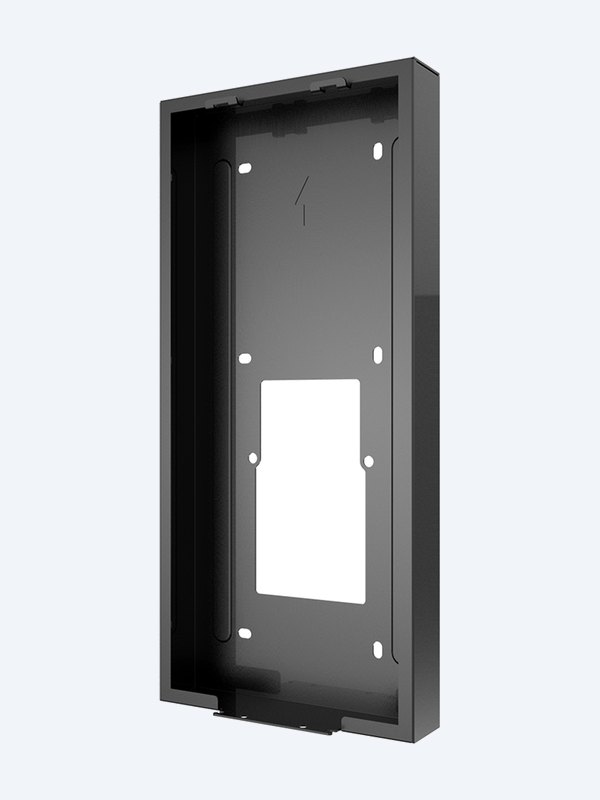

Akuvox R27 / R28 on-wall box

Fixing options

Over a wall box or straight on the wall.

With an 86 × 86 mm junction box, two M4×30 screws hold the box to it and four ST4×20 screws go into the wall. Without one, six ST4×20 screws and anchors fix it directly.

The door phone hangs on the box and is locked from underneath with its two M3×6 hex socket screws.

How it works

Fitting the kit.

01

Over a wall box

Fix the box to an 86 × 86 mm junction box with two M4×30 screws, then add four ST4×20 screws into anchors.

02

Straight to the wall

Mark the six holes, drill 6 mm, fit the anchors and fix the box with six ST4×20 screws.

03

Hang the station

Hook the door phone onto the box, press down and lock it with its two M3×6 hex socket screws.

Pair it with

Pairs with

Door phone

Akuvox R28A

4.3″ screen keypad door phone this kit surface-mounts.

Flush

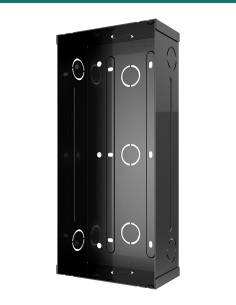

R27 / R28 in-wall kit

The alternative when the station is recessed.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the R28A come with a wall box?

No. Akuvox supplies the wall-mounting box and fixings in this on-wall kit.

Can it go over an existing junction box?

Yes — an 86 × 86 mm box, using the two M4×30 screws plus four ST4×20 screws into the wall.

Does it fit the R27?

Yes. Akuvox’s R27 and R28 quick guides list the same on-wall kit.

How far does it stand off the wall?

The box is 28 mm deep; the 31.4 mm-deep door phone fits over it.

What mounting height does Akuvox show?

The Akuvox R27 / R28 drawings place the camera centre at 1,500 mm and the bottom of the panel at 1,259 mm above ground.

Is the door phone included?

No. This SKU is the mounting box and fixings only.

Surface or flush — pick the kit.

For a recessed install use the R27 / R28 in-wall kit (AK-R27R28INWALLK).

Colour
Black
Brand
Akuvox
Mounting Height
Camera centre 1,500 mm, bottom of panel 1,259 mm
Warranty
Australian warranty
Product Type
Surface-mount installation kit
Model
R27 / R28 on-wall kit
Includes
Wall-mounting box, 2 × M4×30, 6 × ST4×20, 6 anchors
Compatible with
Akuvox R27 and R28 series
Box Size
279.4 × 129.4 × 28.0 mm (H × W × D)
