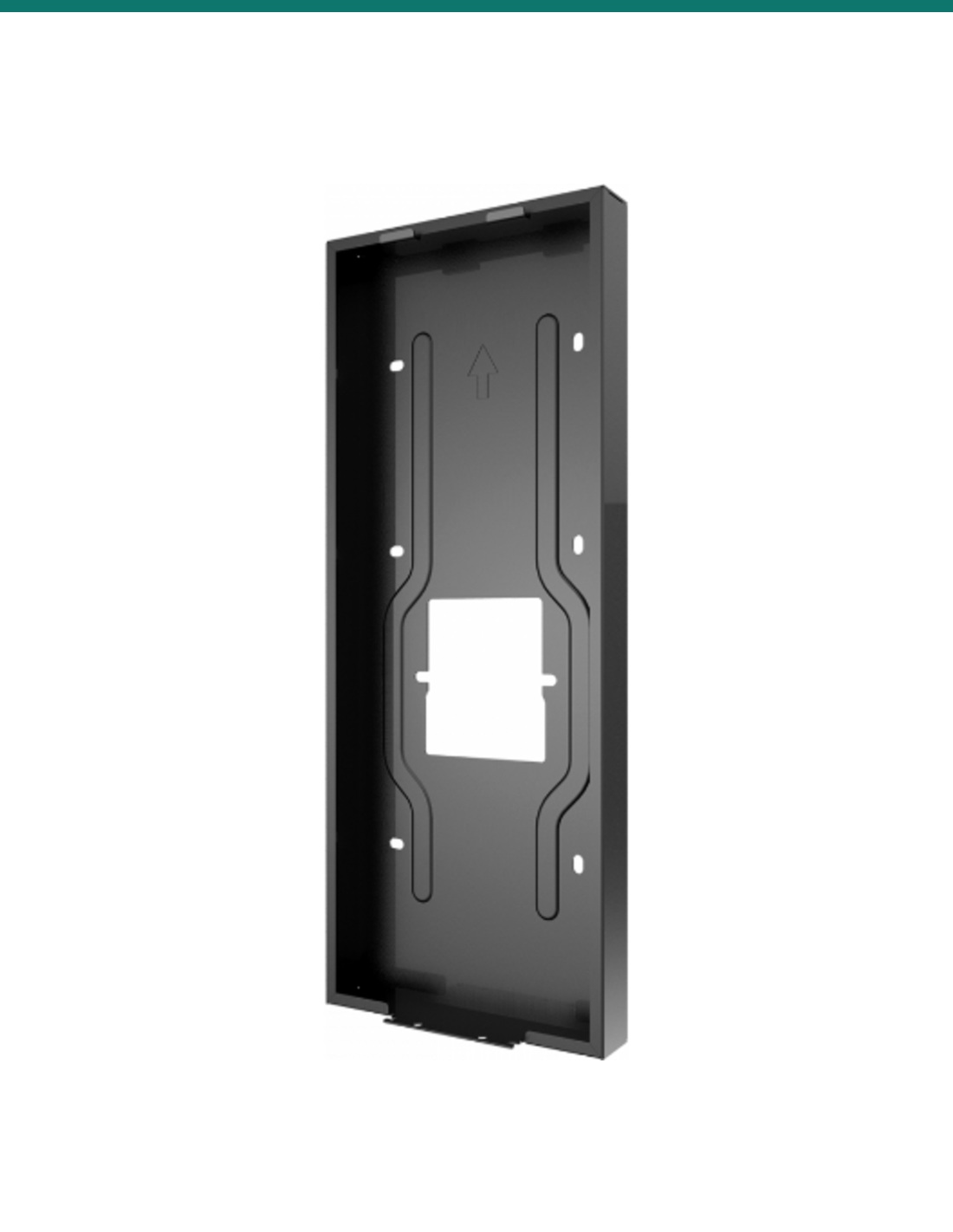

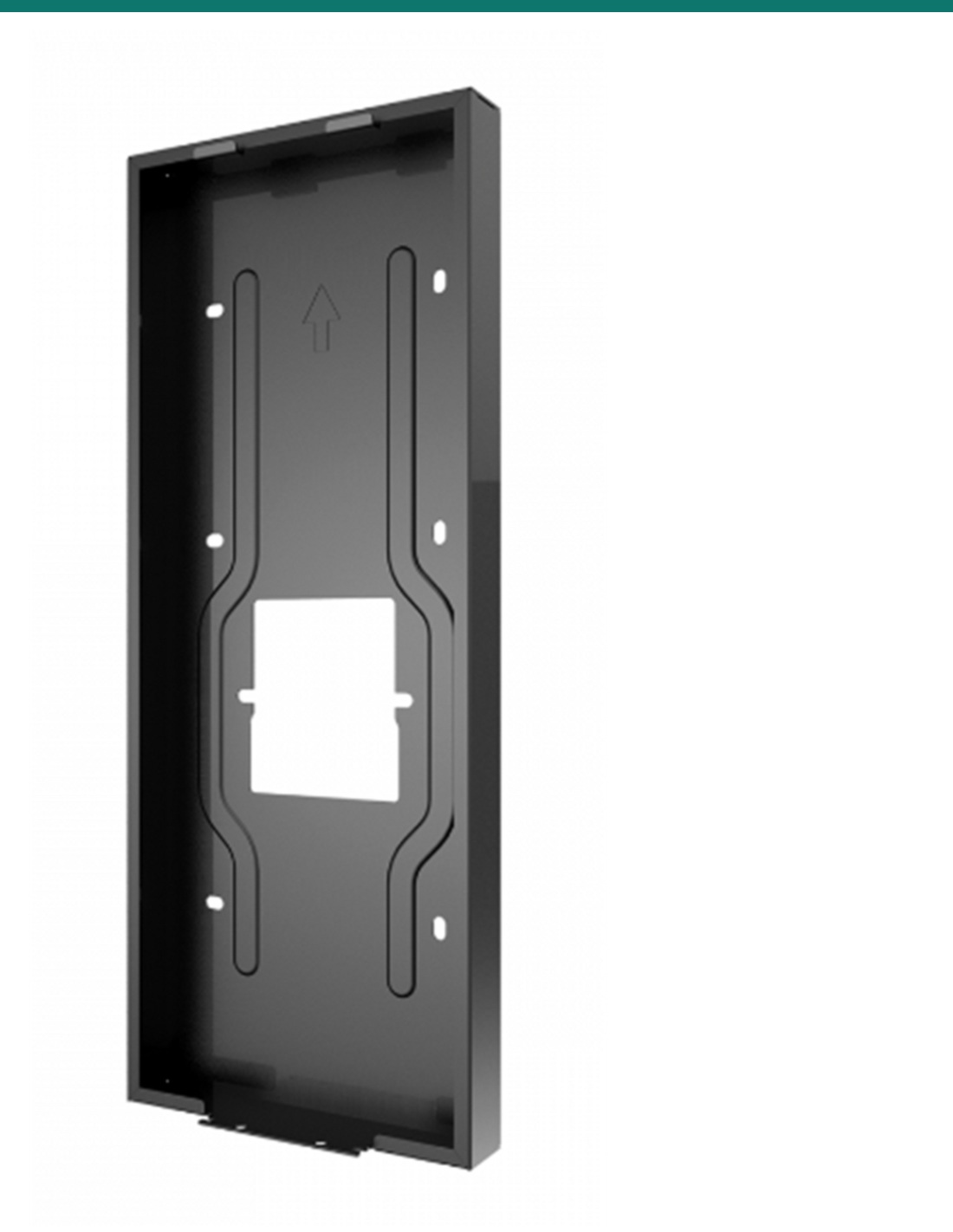

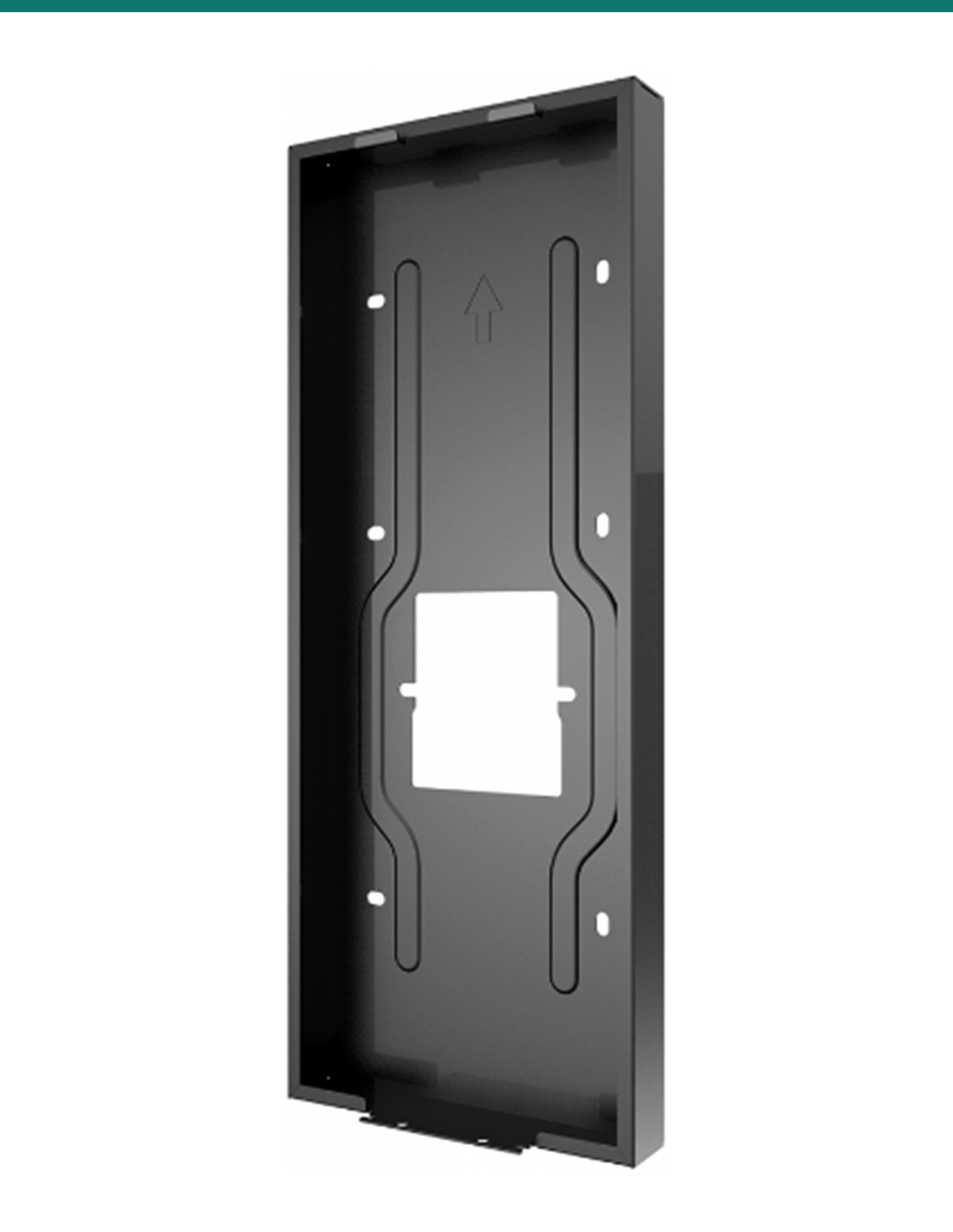

Akuvox R29 On-Wall Installation Kit with Surface Box — AK-R29ONWALLK

SKU AK-R29ONWALLK In Stock - Ready to Ship
$57.30 inc GST

Akuvox R29 on-wall kit surface-mounts an R29 series 7″ door phone. It contains the wall-mounting box, which fixes over an 86 mm wall box or straight to the wall, plus the screws and anchors. Akuvox ships the R29 without mounting hardware, so a surface install needs this kit.

  • ✓Wall-mounting box for R29 surface installs, 323.4 × 129.4 × 25 mm
  • ✓Fixes over an 86 × 86 mm junction box or directly to the wall
  • ✓Two M4×30 and six ST4×20 screws with six anchors included
  • ✓Station hangs on the box and locks with two M3×6 screws


Akuvox · R29 · On-wall installation kit

Surface-mount the R29.
No recess needed.

The AK-R29ONWALLK is the Akuvox on-wall installation kit for the R29 series. The R29 quick guide lists the wall-mounting box and its fixings as “in the On-Wall Installation Kit box”.

Mounting hardware only.

Everything to surface-mount one R29. The door phone and on-wall rain hood are sold separately.

In the box
  • Wall-mounting box
  • 2 × M4×30 crosshead screws
  • 6 × ST4×20 crosshead screws
  • 6 × plastic wall anchors
What you also need (sold separately)
  • Akuvox R29 series door phone
  • Cable entry behind the box (86 mm wall box or hole)
  • Optional: R29 on-wall rain hood

Ideal for retrofits.

Where the wall can’t be recessed, the on-wall box mounts the R29 on the surface with the cables fed in from behind.

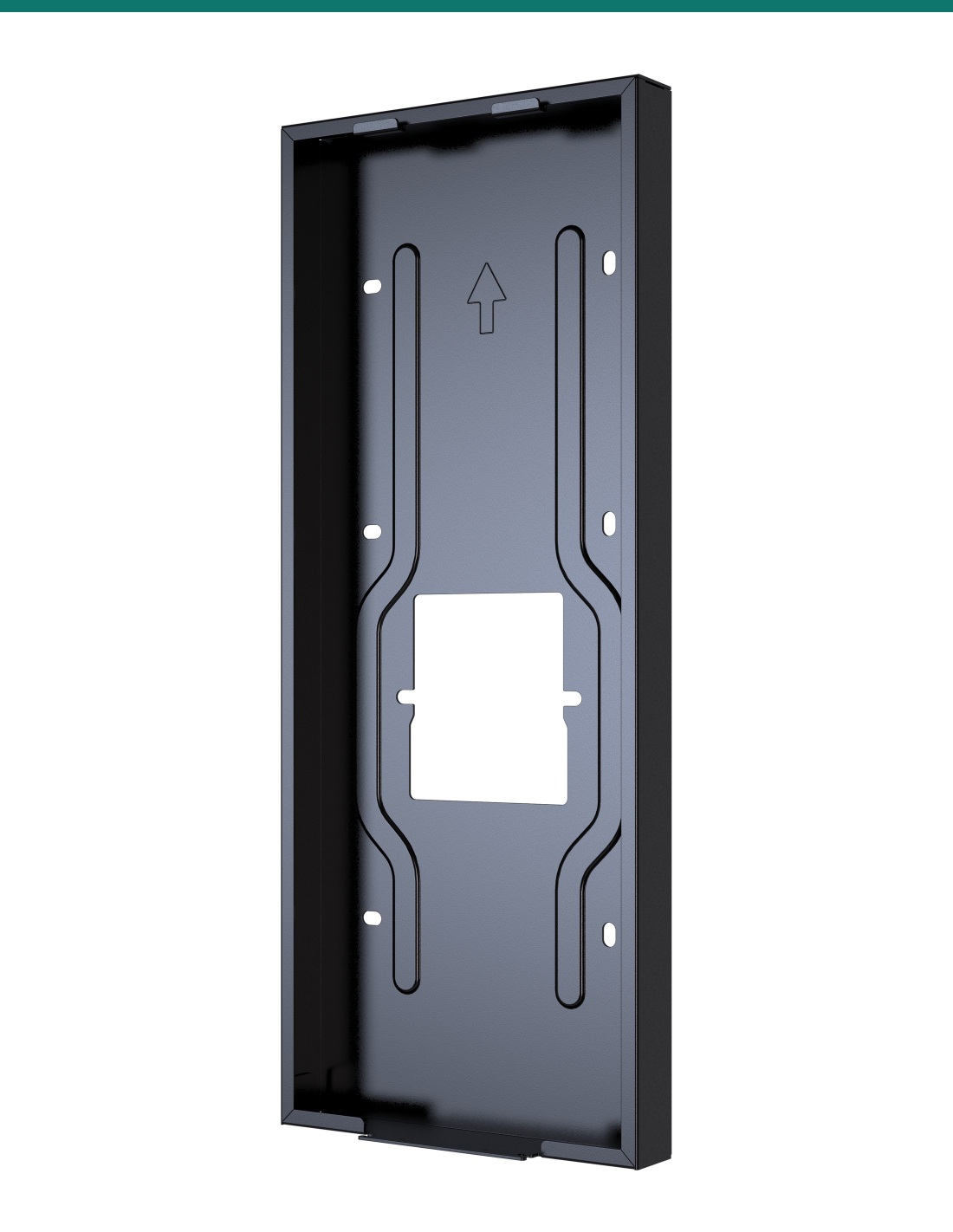

Akuvox R29 wall-mounting box

Fixing options

Over a wall box or straight on the wall.

With an 86 × 86 mm junction box, two M4×30 screws hold the box to it and four ST4×20 screws go into the wall. Without one, six ST4×20 screws and anchors fix it directly.

On exposed entries, fix the R29 on-wall rain hood together with the box using the same six screws.

How it works

Fitting the kit.

01

Over a wall box

Fix the box to an 86 × 86 mm junction box with two M4×30 screws, then add four ST4×20 screws into anchors.

02

Straight to the wall

Mark the six holes, drill 6 mm, fit the anchors and fix the box with six ST4×20 screws.

03

Hang the station

Hook the R29 onto the two square hooks at the top of the box and lock it with the two M3×6 screws underneath.

Pair it with

Pairs with

Door phone

Akuvox R29C

7″ Android facial recognition door phone.

Weather

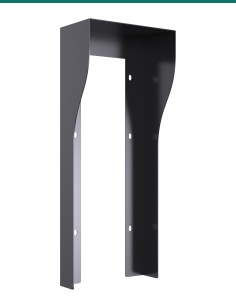

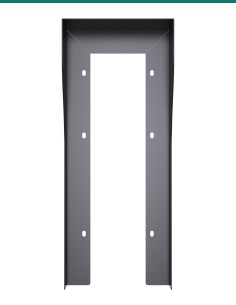

R29 on-wall rain hood

Black hood fixed together with this box.

Watch

See it in action

Installing the on-wall version of the R29 door phone
Akuvox R29C touchless door entry intercom overview

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is a wall box included with the R29?

No. Akuvox supplies the wall-mounting box and fixings in this on-wall kit.

Does it suit the R29C-L (LTE)?

Akuvox lists a separate on-wall mounting bracket for the R29C-L, so check with us before ordering for an LTE unit.

Can it go over an existing junction box?

Yes — an 86 × 86 mm box, using the two M4×30 screws plus four ST4×20 screws into the wall.

How far does it stand off the wall?

The box is 25 mm deep, widening to 32 mm at its base lip; the 27 mm-deep R29 panel sits over it.

What mounting height does Akuvox show?

The Akuvox R29 drawings place the bottom of the panel at 1,212 mm, keeping the camera centre no higher than 1,500 mm.

Is the door phone included?

No. This SKU is the mounting box and fixings only.

Surface or flush — pick the kit.

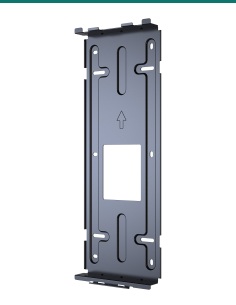

For a recessed install use the R29 in-wall kit (AK-R29INWALLK).

Installation & safety notice

Akuvox lists a separate on-wall mounting bracket for the R29C-L (LTE) version; this kit is the standard R29 wall-mounting box.

Colour
Black
Brand
Akuvox
Mounting Height
Bottom of panel 1,212 mm
Warranty
Australian warranty
Product Type
Surface-mount installation kit
Model
R29 on-wall kit
Includes
Wall-mounting box, 2 × M4×30, 6 × ST4×20, 6 anchors
Compatible with
Akuvox R29 series (R29C, R29S)
Box Size
323.4 × 129.4 × 25.0 mm (H × W × D)
Fixing Holes
87 mm apart horizontally
