Securview CVR16COM Professional Series 8 Channel 8.0MP HDCVI Digital Video Recorder
CVR16COM
4 YEARS WARRANTY!
Experience 4K / Ultra HD broadcast quality surveillance over coaxial cabling. The CVR16COM offers the first Ultra HD recording solution over coax as well as compatibility for analogue and IP inputs (up to 8.0MP).
Product Features:
• Record UHD/4K/8.0MP (3840 x 2160) at 15fps / 4.0MP at 25fps (HDCVI) and 960H at 25fps (analogue)
• Add additional IP channels up to 8.0MP resolution
• 1 x SATA port for up to 10TB total HDD capacity
• Configure remote view in seconds via QR code
• 1 x HDMI (up to UHD/4K) inputs & VGA video output
• Backup via external USB device or local network
• Remote view for iOS, Android & Windows Phone
Specifications:
| General |
| Main Processor |
Embedded Processor |
| Operating System |
Embedded Linux OS |
| Video Input |
16 channel BNC |
| Camera Configurations |
Coaxial: 16 channels up to 8.0MP/15fps (HDCVI), 960H/25fps (analogue) / Network: Add 4 channels up to 8.0MP, Max 48Mbps Incoming Bandwidth |
| Audio In/Out |
1 channel input /1 channel output, RCA |
| Two-way Talk |
Reuse channel 1 audio input/output |
| Internal HDD |
2 SATA port, up to 20TB total |
| USB Interface |
2 ports: 1x USB2.0, 1x USB3.0 |
| Auxiliary Inputs |
1 x RS485 port (for PTZ) |
| Power Supply |
12VDC/5A |
| Power Consumption |
<15W (without HDD) |
| Operating Environment |
-10 ~55°C / 10~90%RH / 86~106kpa |

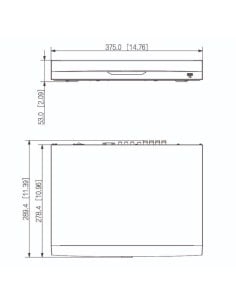

| Dimensions |
375mm x 285mm x 55mm (1U) |
| Weight |
2.35kg (without HDD) |
| Display |
| Video Output |
1 HDMI / 1 VGA |
| Display Resolution |
3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Display Split |
1 / 4 / 8 / 9 / 16 |
| OSD |
Camera title, time, video loss, camera lock, MD & recording |
| Recording |
| Maximum Resolution |
8.0MP (3840 x 2160) |
| Frame Rate (Main) |
8.0MP (1~15fps) / 4.0MP and lower (1~25fps) |
| Frame Rate (Sub) |
D1 (1~25fps) |
| Frame Rate (Third) |
|
| Video Compression |
H.264+ / H.264 |
| Bit Rate |
1 ~ 12288Kbps per channel |
| Record Modes |
Manual / Schedule (Regular, Continuous), Motion Detection, Alarm, Stop |
| Record Interval |
1~120 min (default: 60 min) / Pre: 1~30s / Post: 10~300s |
| Features |
| Alarm Input / Output |
N/A |
| Trigger Events |
Recording; PTZ; tour; alarm; push video notification; email notification; FTP upload; snapshot; internal buzzer; and screen tip overlay |
| Video Detection |
MD zones: 396 (22 x 18) / Video loss / Camera blank |
| Playback Sync |
1 / 4 / 9 |
| Search Modes |
Time/Date; Alarm, Motion detection; Exact search (to the second) |
| Intelligent Functions |
Face Detection |
| Backup Modes |
USB Device / Internal SATA burner / Network |
| Network |
| Ethernet |
1x RJ-45 port (1000M) |
| Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, SNMP, P2P |
| Max. User Access |
128 users |
| Remote View |
iOS (iPhone, iPad); Android devices, Windows Phone |
| Warranty (Years) |
4 |
