5 high bays. One carton.
Less per light.

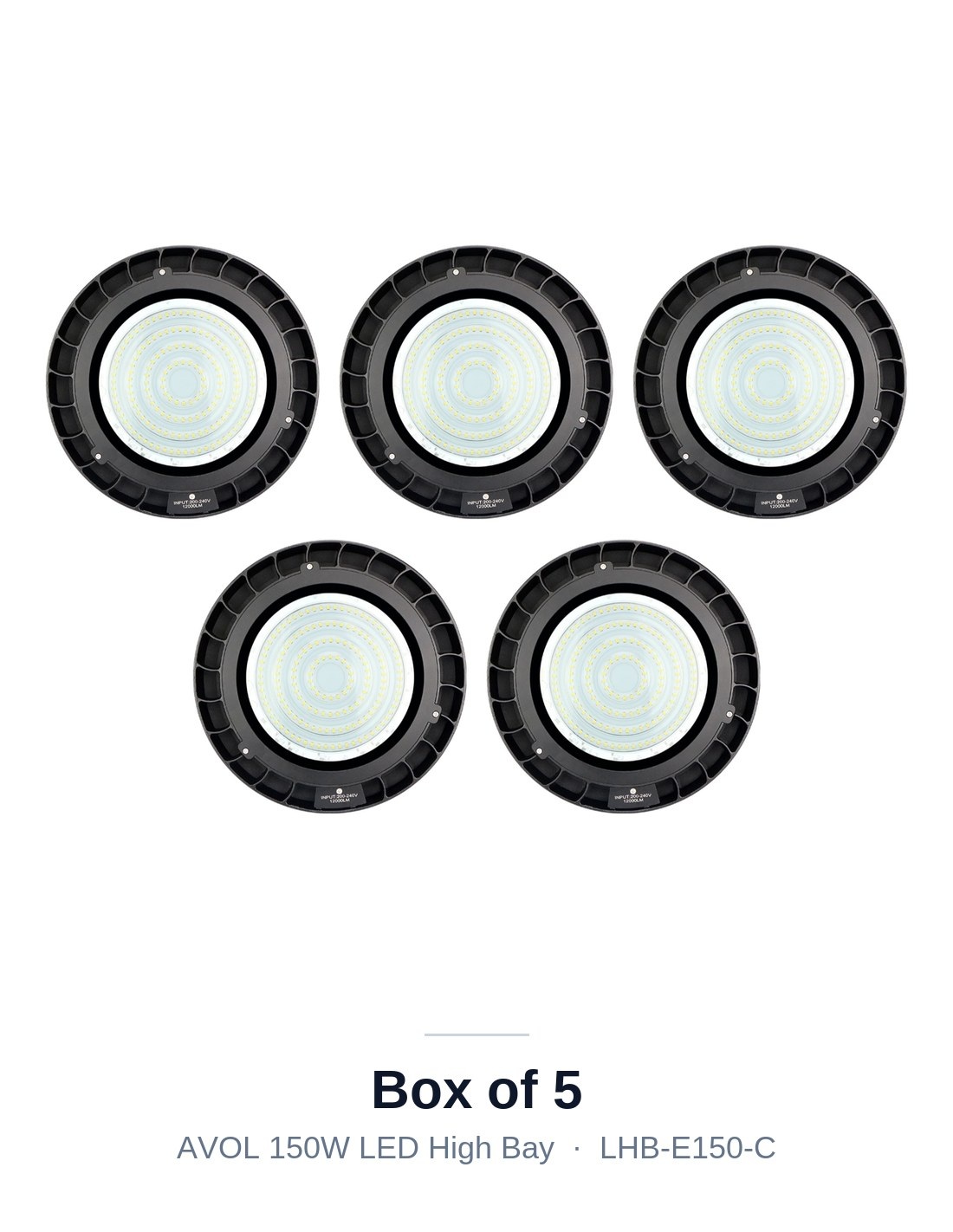

The full factory carton of 5 × AVOL LHB-E150-C — 15,000-lumen, IP65 LED high bays with the driver built in. Built for fit-outs: one order lights a whole bay, and from 20 boxes volume pricing kicks in automatically.

LIGHT · 01

Bright, efficient, cool white.

At 100 lumens per watt, the 150W model puts out 15,000 lumens. That is the kind of output that commonly replaces 250–400W metal-halide fittings, for a fraction of the running cost.

6000K cool white with CRI above 80 and a 90° beam — crisp, even working light for racking, benches and forklifts.

BUILD · 02

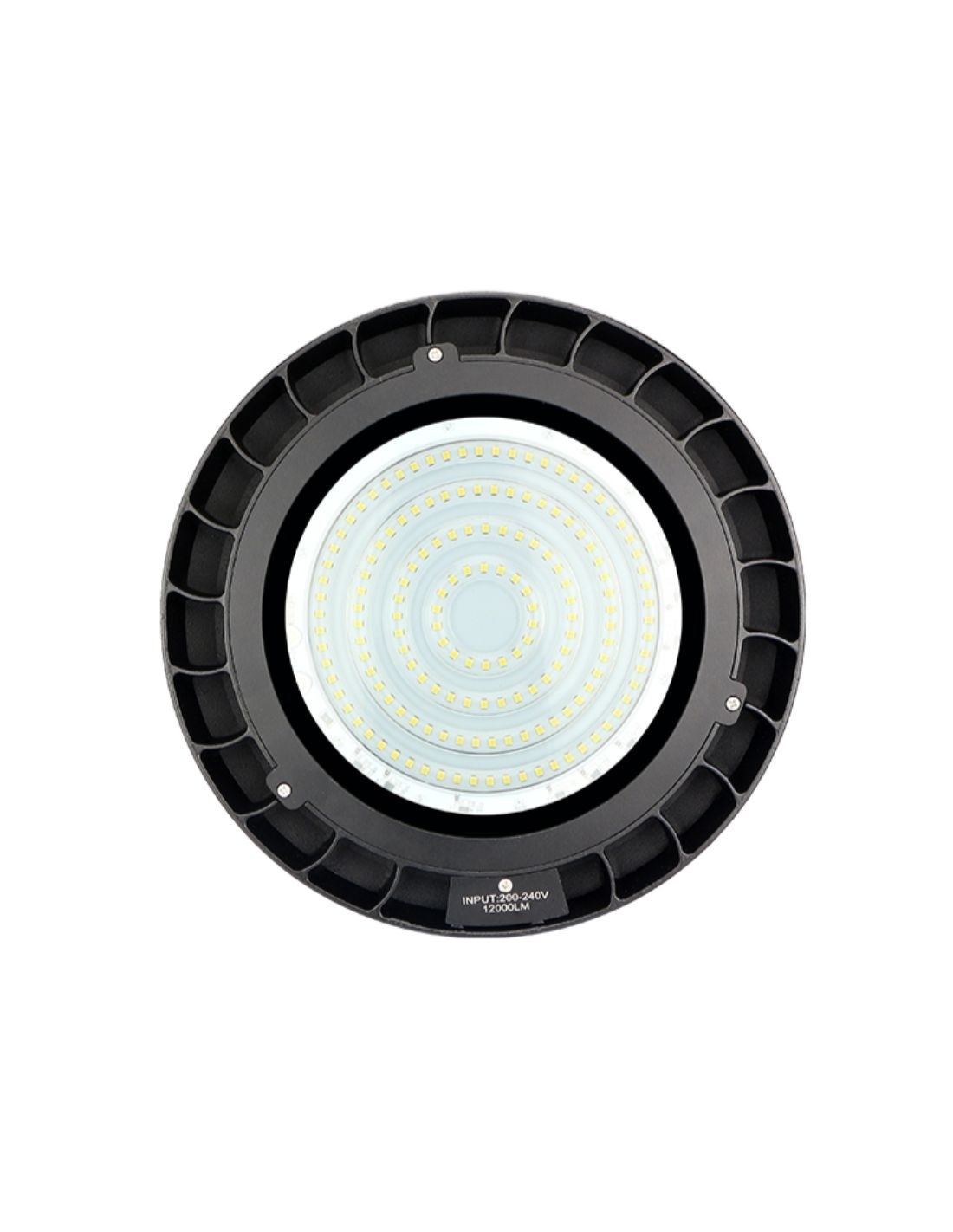

IP65 and an IK07 glass lens.

The housing is IP65, so dust and hosing are no problem, and the fitting is happy under awnings, in open-sided sheds and over loading docks. The lens is IK07 tempered glass rather than plastic, so it won’t yellow and stands up to knocks.

A finned aluminium body carries heat away from the LEDs, rated for 35,000 hours in −20° to 50°C.

INSTALL · 03

Driver on board. One cable up.

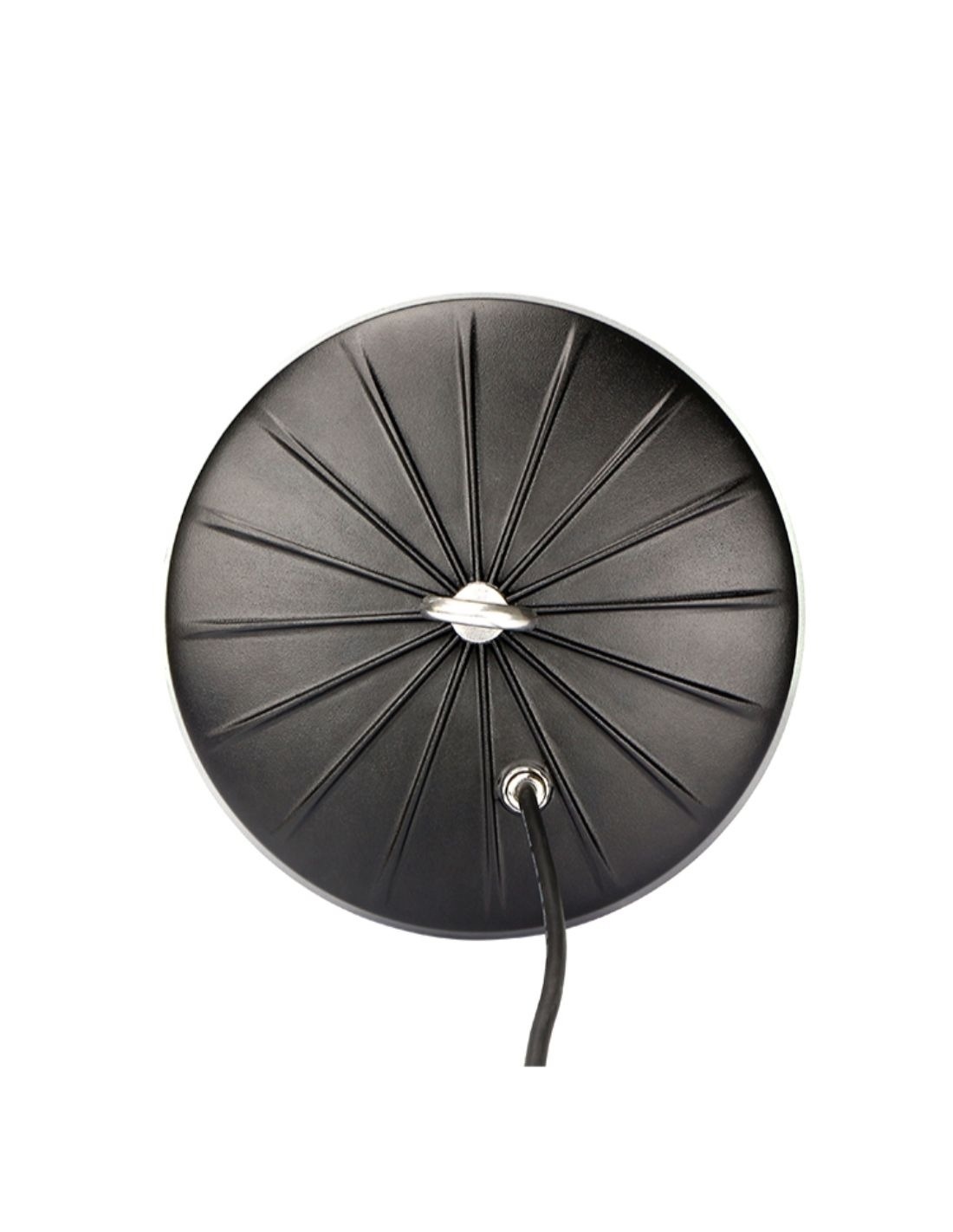

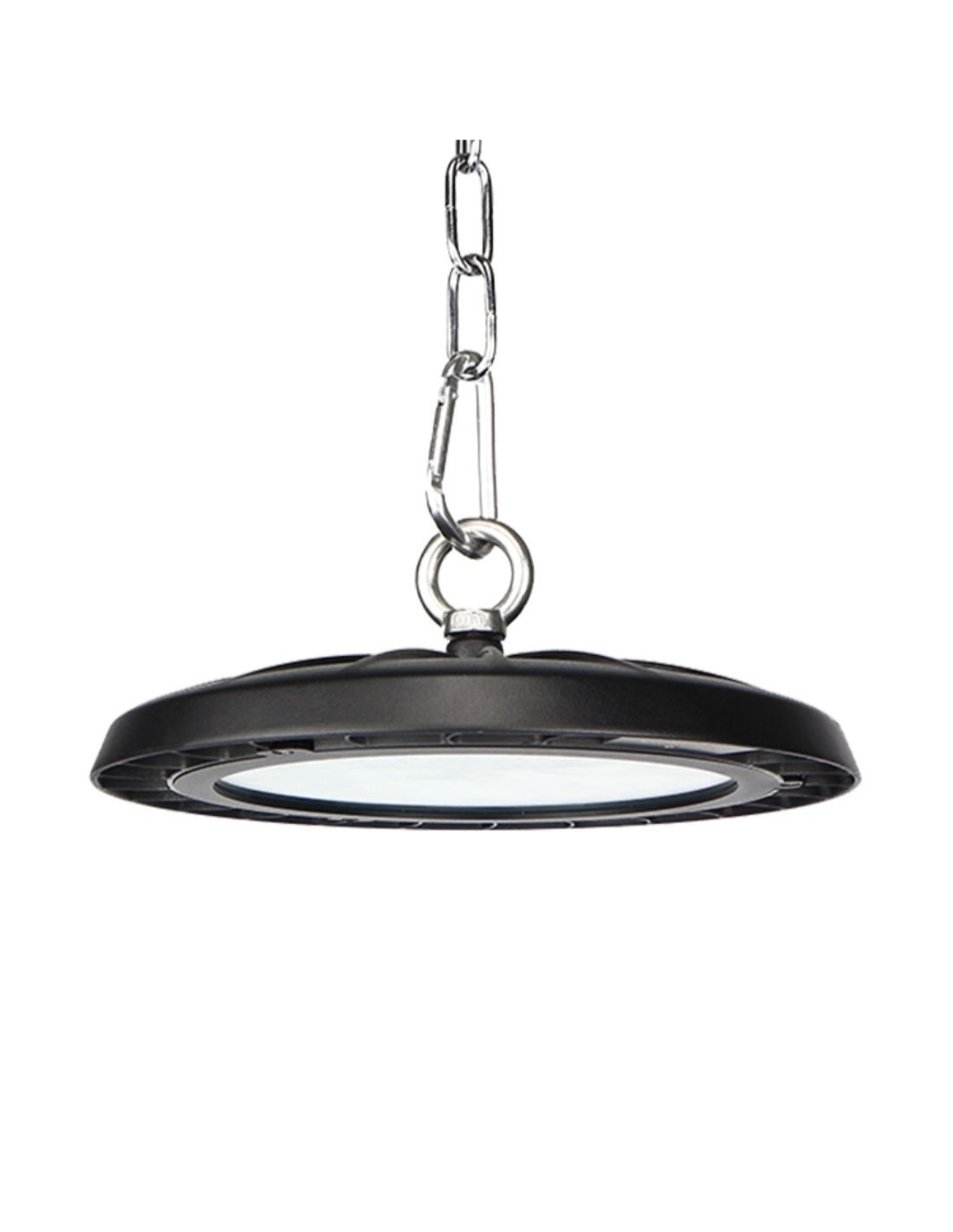

The LED driver is built into the Ø310 × 50 mm body, so there is no separate driver box to mount on the purlin — just hang it from the ring and run one lead to an IP65 junction box.

The light is hard-wired by a licensed electrician on a switched, fused circuit, with the fitting earthed. Power factor is above 0.9 on 220–240 V AC.

Choose by height

Light on the floor, one fitting.

Centre-beam light level and beam width from a single light, from the AVOL datasheet. Overlapping lights add together, so real rooms read higher.

BUY BY THE BOX

Need fewer, or the other size?

Singles are available for small jobs and spares. Every LHB-E shares the same look and 6000K colour, so 100W and 150W can sit in the same building — 150W over the high racking, 100W over the lower bays.

At a glance

Key specs — LHB-E150-C

Answers

Common questions
