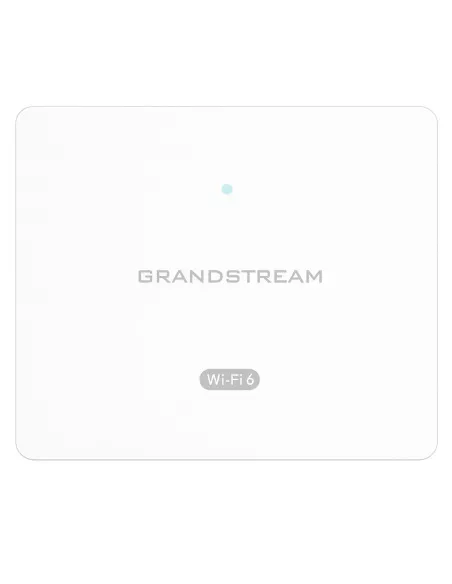

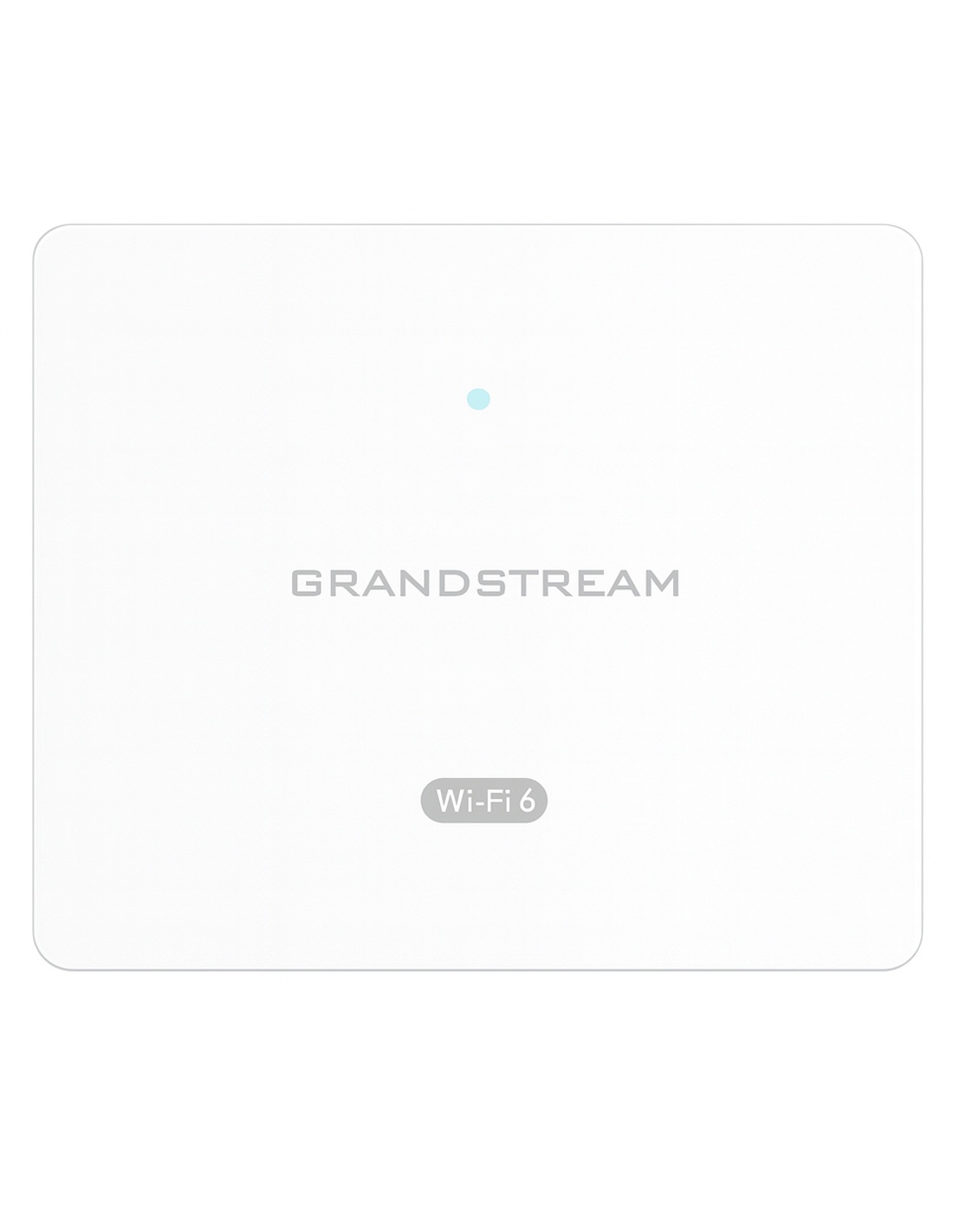

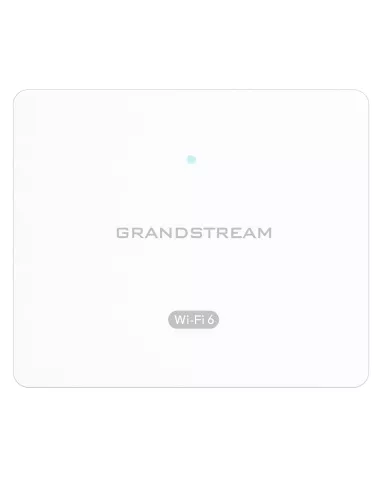

Grandstream Wi-Fi 6 AX3000 AP with Integrated Gigabit PoE Switch — GWN7604
Model GWN7604
The Grandstream GWN7604 is a compact Wi-Fi 6 AX3000 access point with an integrated 4-port Gigabit Ethernet PoE switch, ideal for small offices, shops and home offices needing reliable wireless and wired connectivity in one device.
Delivering up to 3Gbps aggregate throughput, support for up to 256 concurrent clients and dual-band 2.4/5GHz MU-MIMO, it provides strong, efficient Wi-Fi. The built-in switch includes one uplink port with PoE/PoE+ input plus PSE ports to power IP phones, cameras or other devices, simplifying cabling at the edge.
Key Features & Benefits
- AX3000 Wi-Fi 6 access point with integrated 4-port Gigabit switch.
- Up to 3Gbps aggregate throughput for busy small networks.
- Dual-band 2.4 GHz + 5 GHz with MU-MIMO for high client density.
- Up to 100 m coverage and support for 256 concurrent Wi-Fi clients.
- 1× Gigabit uplink with PoE/PoE+ input to power the AP.
- 2× Gigabit PSE ports providing PoE + data to IP phones, APs or cameras (12 W budget).
- Advanced QoS to prioritise voice, video and real-time traffic.
- Enterprise-grade security with secure boot and unique default password per device.
- Supports mesh, captive portal and cloud/on-prem management (GDMS / GWN Manager).
- Compact indoor wall-mount design for SOHO and small business deployments.
All-in-one Wi-Fi and PoE edge.
Replace a separate AP and small PoE switch with a single unit that powers IP phones, cameras and access points while delivering fast Wi-Fi 6.
Real-World Applications
Small Offices & SOHO — provide Wi-Fi 6 and PoE for IP phones, PCs and a few cameras from a single compact edge device.
Retail & Hospitality — power tills, IP handsets and cameras while offering fast Wi-Fi to staff and guests.
Branch & Remote Sites — simple, easy-to-manage Wi-Fi 6 access with integrated PoE switching managed from the cloud.
Quick Specs
| Wi-Fi Standard |
802.11a/b/g/n/ac/ax (Wi-Fi 6), AX3000 |
| Bands / Radios |
Dual-band 2.4 GHz 2×2:2 & 5 GHz 3×3:2 MU-MIMO |
| Max Wireless Throughput |
Up to 3 Gbps aggregate |
| Ethernet Ports |

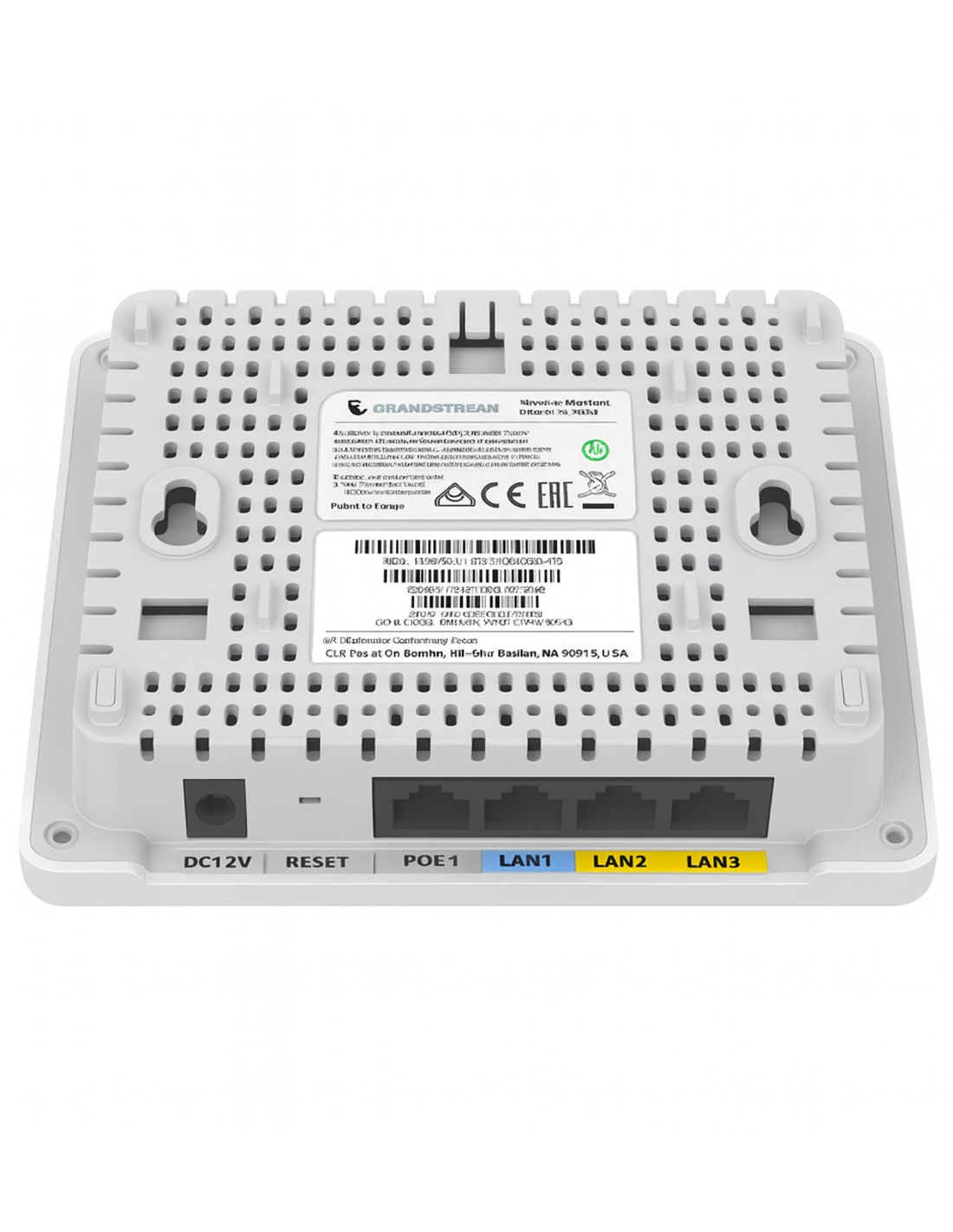

4 × Gigabit: 1× uplink (PoE/PoE+), 2× PSE PoE out, 1× LAN |
| PoE Budget / Input |
PoE/PoE+ input (802.3af/at); 12 W total PSE budget on LAN2/LAN3 |
| Coverage Range |
Up to 100 m (environment dependent) |
| Max Clients |
Up to 256 concurrent Wi-Fi clients |
| Management |
Standalone Web UI, GDMS cloud, GWN Manager on-prem |
| Security |
WPA3, secure boot, digital signatures, unique default password |
| Dimensions |
Approx. 135 × 115 × 30 mm |
| Mounting |
Indoor wall mount |
What’s in the Box
- GWN7604 Wi-Fi 6 Access Point
- Mounting kit (wall-mount hardware)
- Quick installation guide
Pick the GWN7604 when you want simple, powerful edge networking— Wi-Fi 6 performance, PoE for IP endpoints and easy cloud management in one neat box.
