10,000 lumens.
Made for high ceilings.

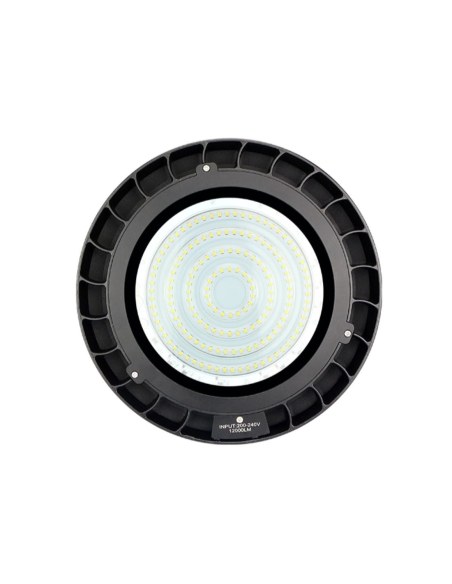

The AVOL LHB-E100-C is a 100W driver-on-board LED high bay: 100 lm/W, 6000K cool white, a 90° beam, IP65 and an IK07 tempered glass lens in a slim Ø260 × 50 mm aluminium body. Ideal for sheds, workshops, garages and smaller warehouses with ceilings around 4–6 m.

LIGHT · 01

Bright, efficient, cool white.

At 100 lumens per watt, the 100W model puts out 10,000 lumens. That is the kind of output that commonly replaces 150–250W metal-halide fittings, for a fraction of the running cost.

6000K cool white with CRI above 80 and a 90° beam — crisp, even working light for racking, benches and forklifts.

BUILD · 02

IP65 and an IK07 glass lens.

The housing is IP65, so dust and hosing are no problem, and the fitting is happy under awnings, in open-sided sheds and over loading docks. The lens is IK07 tempered glass rather than plastic, so it won’t yellow and stands up to knocks.

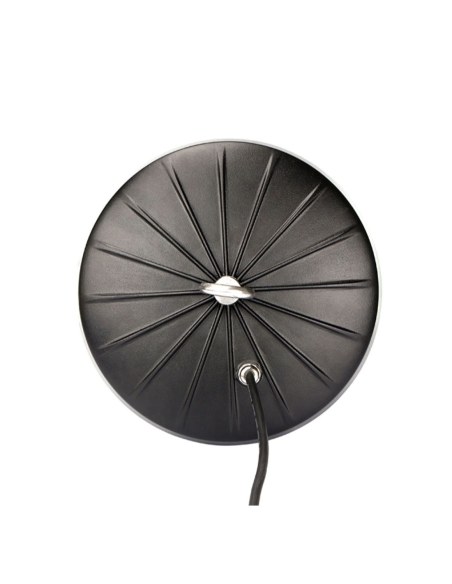

A finned aluminium body carries heat away from the LEDs, rated for 35,000 hours in −20° to 50°C.

INSTALL · 03

Driver on board. One cable up.

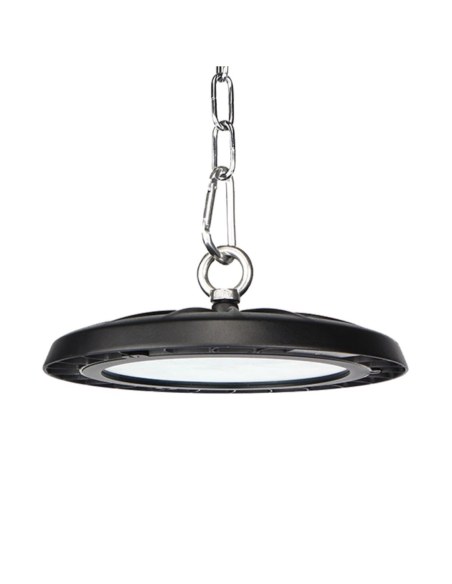

The LED driver is built into the Ø260 × 50 mm body, so there is no separate driver box to mount on the purlin — just hang it from the ring and run one lead to an IP65 junction box.

The light is hard-wired by a licensed electrician on a switched, fused circuit, with the fitting earthed. Power factor is above 0.9 on 220–240 V AC.

Choose by height

Light on the floor, one fitting.

Centre-beam light level and beam width from a single light, from the AVOL datasheet. Overlapping lights add together, so real rooms read higher.

BUY BY THE BOX

Fitting out a whole site?

The box of 10 costs less per light than singles, and from 10 boxes (100+ lights) extra volume pricing applies automatically in the cart.

At a glance

Key specs — LHB-E100-C

Answers

Common questions
