Uniview Essentials 4K Kit — 4× IPC3618LE Easy Turret + 4CH NVR501-04B-P4-IQ
UV-K404-E8W-0T
In stock $ 879.00
inc-GST
or 4 interest-free payments of $219.75 with
A complete Uniview 4K starter system: four IPC3618LE 8MP turret cameras and the NVR501-04B-P4-IQ 4-channel PoE recorder.
- ✓4 cameras: 4× IPC3618LE
- ✓4-channel NVR with 4 PoE ports (50 W)
- ✓8MP 4K cameras, smart IR up to 30 m
- ✓Smart human detection and phone alerts
- ✓No HDD or 2–8TB drive fitted
- ✓Free EZView app, 3-year warranty
Uniview kit · 4 cameras · 4 channels
Four 4K Uniview cameras, one cable each.
The straightforward way to cover a home.
Uniview Essentials 4K Kit. Four Uniview IPC3618LE 8MP turrets and the NVR501-04B-P4-IQ 4-channel PoE recorder. The recorder powers each camera down its Cat6 cable, records all four in 4K and puts them on your phone in the EZView app.
In one sentence: the UV-K404-E8W is four 8MP 4K Easy turrets with the Uniview NVR501-04B-P4-IQ 4-channel PoE NVR, with the hard drive as an option.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
Everything in the kit is matched: every camera plugs into the recorder’s PoE ports and appears automatically. Add the Cat6 cable and a screen and you are recording.
In the box
- 1 × Uniview NVR501-04B-P4-IQ 4-channel PoE NVR with power supply
- 4 × Uniview IPC3618LE-ADF28K-GM 8MP 4K Easy turret
- Mounting screws and plugs for each camera
- Quick guides
- Hard drive fitted if you choose a 2, 4, 6 or 8TB option
You also need
- A hard drive, if you choose the No HDD option
- Cat6 cable from the recorder to each camera (up to 100 m per run)
- A monitor or TV with HDMI or VGA
- Your router and internet connection, for the phone app
- Optional junction boxes for a neat, weatherproof cable entry
Front door, driveway, side and back.
Four turrets is the layout most homes start with. Each IPC3618LE sees about 113° across in 4K, switches to Smart IR out to 30 m after dark and has a built-in mic, with people detection on line crossing and intrusion so alerts are for people, not leaves.

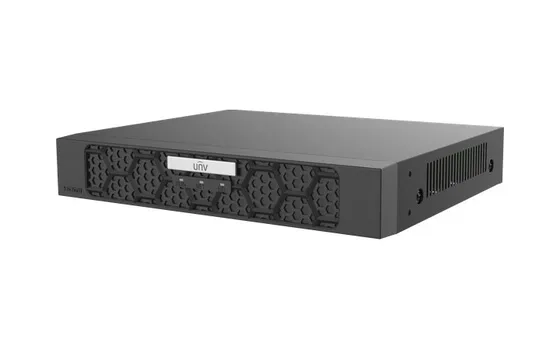

The recorder
The NVR501-04B-P4-IQ: 4 PoE ports, 50 W.
Every camera in the kit plugs into its own PoE port, which carries power and video on one Cat6 cable. The kit draws at most about 18 W of the 50 W budget. It records up to 16MP, outputs 4K on HDMI and takes one drive of up to 24TB.
Four in the kit
Uniview IPC3618LE-ADF28K-GM, 8MP 4K Easy turret.
An eyeball turret that is easy to aim, with no dome cover to catch infrared glare. 8MP 4K with 30 m Smart IR and IP67 weather rating. Smart human detection and a built-in mic come standard.
On your phone
Every camera in the free EZView app.
Scan the recorder’s QR code with the EZView app on iPhone or Android for live view, playback and alerts. No subscription and no monthly fee.
How it goes in
From the box to recording.
01
Plan the positions
Mount cameras about 2.4–3 m high, under eaves where possible, aimed at doors, gates and paths rather than open sky.
02
Run the Cat6
One cable from each camera back to the recorder, up to 100 m. Fit a junction box behind each camera for a neat, sealed join.
03
Connect the recorder
Plug the cameras into the PoE ports, the screen into HDMI and the network port into your router, then power on and follow the wizard.
04
Add the app and zones
Scan the QR code in the EZView app, then draw detection lines and zones so alerts only fire for people and vehicles.
At a glance
UV-K404-E8W
Show specs
Kit code
UV-K404-E8W
Recorder
Uniview NVR501-04B-P4-IQ, 4 channels, 4 PoE ports (50 W)
Cameras
4 × Uniview IPC3618LE-ADF28K-GM 8MP 4K Easy turret
Spare channels
None — every channel used
Camera resolution
8MP 4K
Night vision
Smart IR up to 30 m
Deterrence
Smart human detection with phone alerts
PoE power used
About 18 W of 50 W at most
Storage
No HDD standard; 2, 4, 6 or 8TB option. 1 bay, up to 24TB each
Compression
Ultra 265, H.265, H.264
Display
HDMI up to 4K, VGA up to 1080p
Network
10/100
Phone app
EZView app, iOS and Android, no fees
Warranty
3 years
Pair it with
What goes with it
Cabling
Cat6 305 m box
Solid-copper Cat6 for PoE runs of up to 100 m to each camera.
Mounting
Junction boxes
TR-JB03-I-IN for the Easy Turret: hides the cable join and seals it from the weather.
Viewing
22" CCTV monitor
A Full HD screen with HDMI and speakers, rated for 24/7 viewing.
Where it is used
Where this kit fits
Family homes
Front door, driveway, side passage and backyard.
Rentals and units
Neat white turrets that sit under an eave without fuss.
Granny flats and studios
A separate system with its own app login.
Compared with similar kits
| Essentials 4K | LightHunter 4K | Colour After Dark | |
|---|---|---|---|
| Cameras | 4 × 8MP 4K Easy turret | 4 × 8MP 4K LightHunter turret | 4 × 6MP ColorHunter turret |
| Recorder | NVR501-04B-P4-IQ | NVR501-04B-P4-IQ | NVR501-04B-P4-IQ |
| Spare channels | 0 | 0 | 0 |
| Light and sound deterrence | No | No | No |
| Night vision range | 30 m | 40 m | 30 m |
Every Uniview kit records Ultra 265, works with the EZView app and carries a 3-year warranty. Camera figures from the Uniview datasheets.
Common questions
What is the difference between this and the LightHunter kits?
The Easy-series IPC3618LE is Uniview’s value 4K turret. The LightHunter IPC3618SS adds a larger, more light-sensitive sensor, 40 m infrared and deep-learning detection that sorts people, vehicles and bikes. Both record 4K on the same recorder.
Is a hard drive included?
Choose it in the options: No HDD, or a 2, 4, 6 or 8TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive.
How many days will it record?
As a rough guide, each 4K camera recording around the clock with Ultra 265 uses about 25–40GB a day, so 4 cameras keep roughly 25–40 days on 4TB. Recording on motion, or at a lower bitrate on quiet cameras, stretches that a long way.
Is the cable included?
No, because every site needs a different length. Each camera needs its own Cat6 run of up to 100 m back to the recorder; a 305 m Cat6 box covers most homes.
Do the cameras need power points?
No. The recorder powers every camera through the Cat6 cable (PoE), so the only power point needed is at the recorder.
Can I add more cameras later?
Every channel is in use. For more cameras, step up to a kit with a larger recorder.
Can I watch it on my phone?
Yes. Connect the recorder to your router and scan its QR code in the free EZView app for live view, playback and alerts on iPhone and Android. There are no monthly fees.
Can I install it myself?
Many customers do: each camera needs one cable and the recorder finds the cameras automatically. In Australia, Cat6 run inside walls and ceilings should be installed by a registered cabler.
Will it work with cameras I already own?
Usually. ONVIF (Profile S, G or T) and RTSP cameras record on the NVR501-04B-P4-IQ, with basic motion events; smart events come from Uniview cameras.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Want to change a camera or add more? Call 1300 736 970 or email [email protected] with your layout and we will put together the right mix.
Installation and safety
Power. Use only the power supply supplied with the recorder. Power off before fitting or removing a hard drive.
Placement. Keep the recorder indoors between −10 °C and 55 °C with space around its vents, somewhere secure so a thief cannot take the footage with it. Cameras are rated IP67 for outdoor use.
Privacy. Aim cameras at your own property. Recording audio and filming neighbours or public areas are covered by state surveillance laws.
Figures. From the Uniview datasheets for each component. Uniview 3-year manufacturer warranty, handled in Australia through us.
