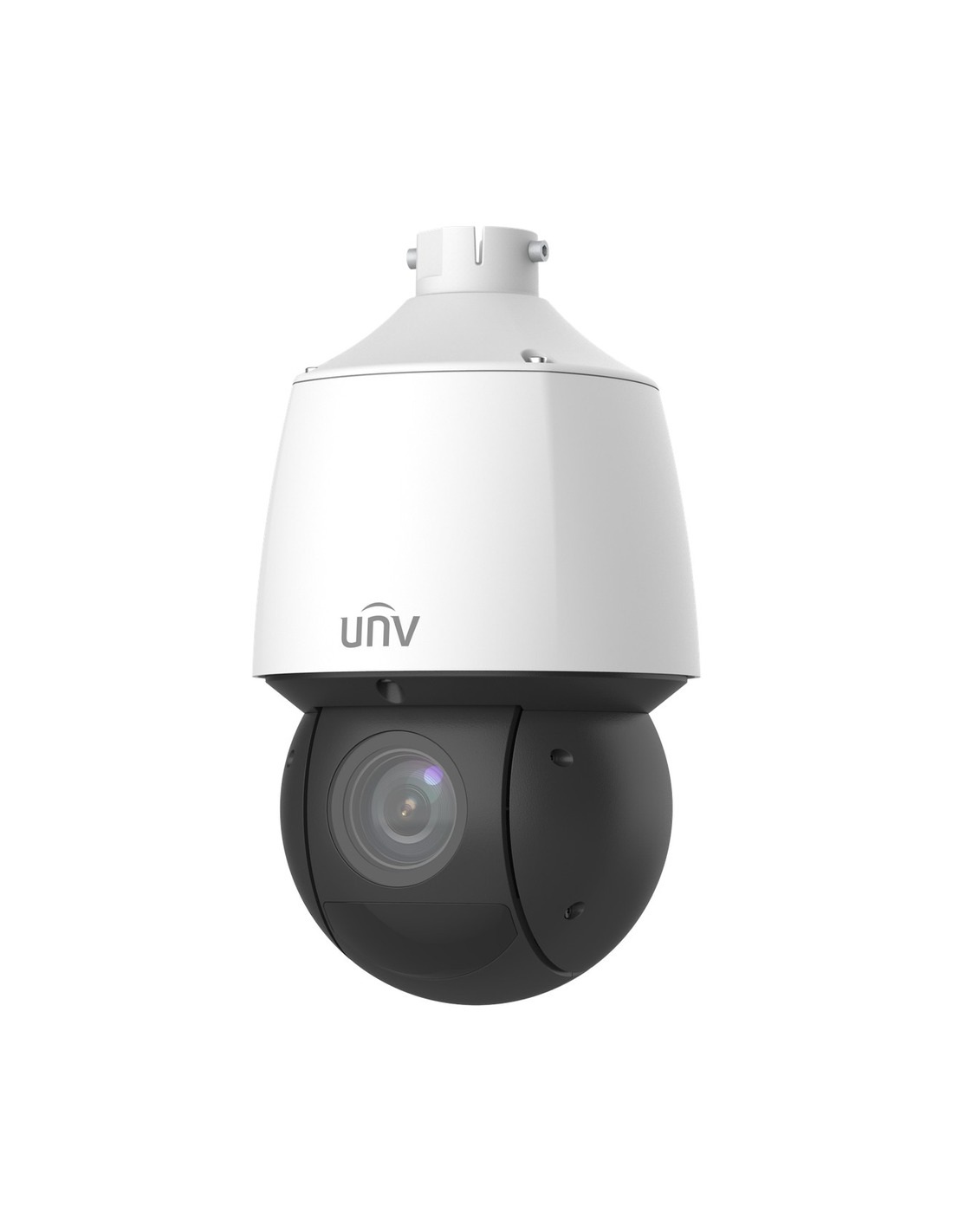

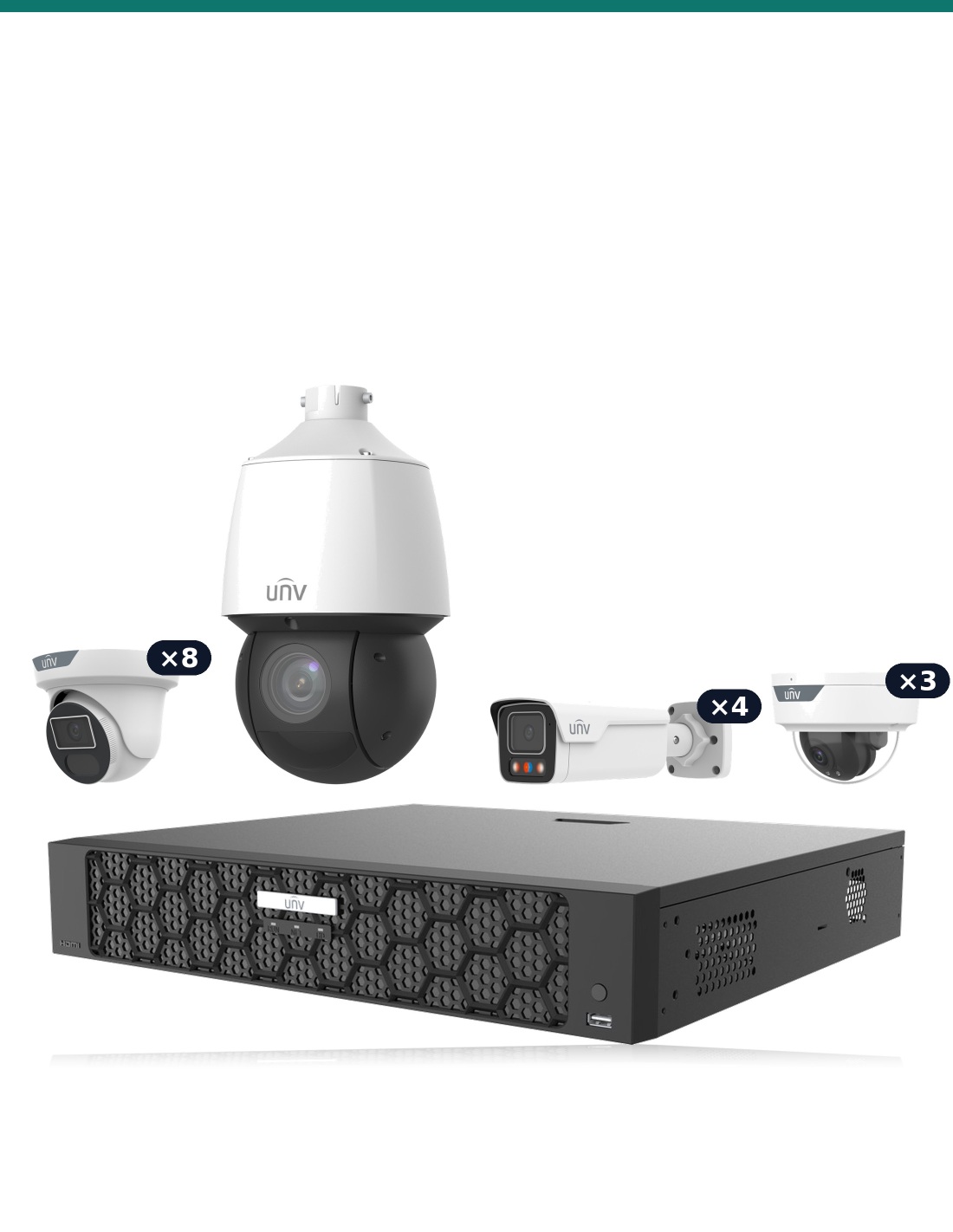

Uniview Commercial Command Kit — 1× 25× PTZ + 4× Tri-Guard Bullet + 3× Dome + 8× Turret + 32CH NVR504-32B-P16-IQ
UV-K3216-CMD-0T
In stock $ 5,599.00
inc-GST
or 4 interest-free payments of $1399.75 with
A Uniview 25× PTZ, four Tri-Guard bullets, three LightHunter domes and eight LightHunter turrets, all 8MP 4K except the 4MP PTZ, on the 32-channel NVR504-32B-P16-IQ.
- ✓16 cameras: 1× IPC6424SR, 4× IPC2B18SS, 3× IPC328SS, 8× IPC3618SS
- ✓32-channel NVR with 16 PoE ports (150 W)
- ✓4MP and 8MP 4K cameras, smart IR up to 100 m
- ✓Tri-Guard warning light, sound and two-way talk
- ✓No HDD or 2–8TB drive fitted
- ✓Free EZView app, 3-year warranty
Uniview kit · 16 cameras · 32 channels
A 25× PTZ and fifteen 4K cameras.
On a 32-channel recorder with four drive bays.

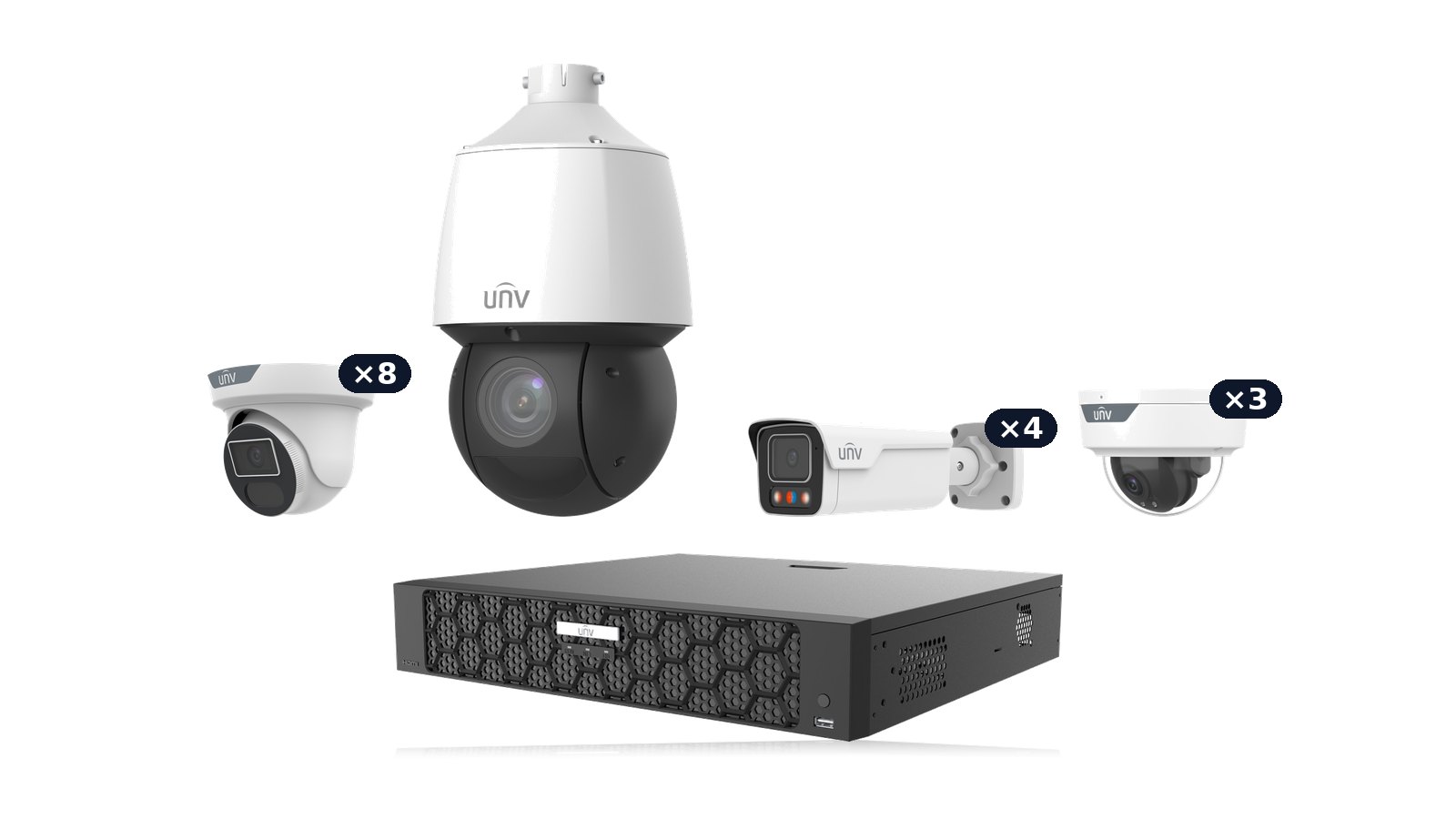

Uniview Commercial Command Kit. A Uniview IPC6424SR 25× zoom PTZ with auto tracking, four Tri-Guard IPC2B18SS bullets, three LightHunter IPC328SS domes and eight LightHunter IPC3618SS turrets, on the 32-channel NVR504-32B-P16-IQ.
In one sentence: the UV-K3216-CMD is one 4MP 25× zoom PTZ, four 8MP 4K Tri-Guard bullets, three 8MP 4K LightHunter domes and eight 8MP 4K LightHunter turrets with the Uniview NVR504-32B-P16-IQ 32-channel PoE NVR, with the hard drive as an option.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
Everything in the kit is matched: every camera plugs into the recorder’s PoE ports and appears automatically. Add the Cat6 cable and a screen and you are recording.
In the box
- 1 × Uniview NVR504-32B-P16-IQ 32-channel PoE NVR with power supply
- 1 × Uniview IPC6424SR-X25-VF-B 4MP 25× zoom PTZ
- 4 × Uniview IPC2B18SS-ADF28KMC-I1 8MP 4K Tri-Guard bullet
- 3 × Uniview IPC328SS-ADF28K-I1 8MP 4K LightHunter dome
- 8 × Uniview IPC3618SS-ADF28K-I1 8MP 4K LightHunter turret
- Mounting screws and plugs for each camera
- Quick guides
- Hard drive fitted if you choose a 2, 4, 6 or 8TB option
You also need
- A hard drive, if you choose the No HDD option
- Cat6 cable from the recorder to each camera (up to 100 m per run)
- A monitor or TV with HDMI or VGA
- Your router and internet connection, for the phone app
- Optional junction boxes for a neat, weatherproof cable entry
For sites that need to see far and grow big.
The PTZ watches the whole yard and zooms 25× onto a person or vehicle. Tri-Guards warn people off the boundary, and domes and turrets cover the buildings. The recorder takes 32 channels and four drives, so the system can double in size.

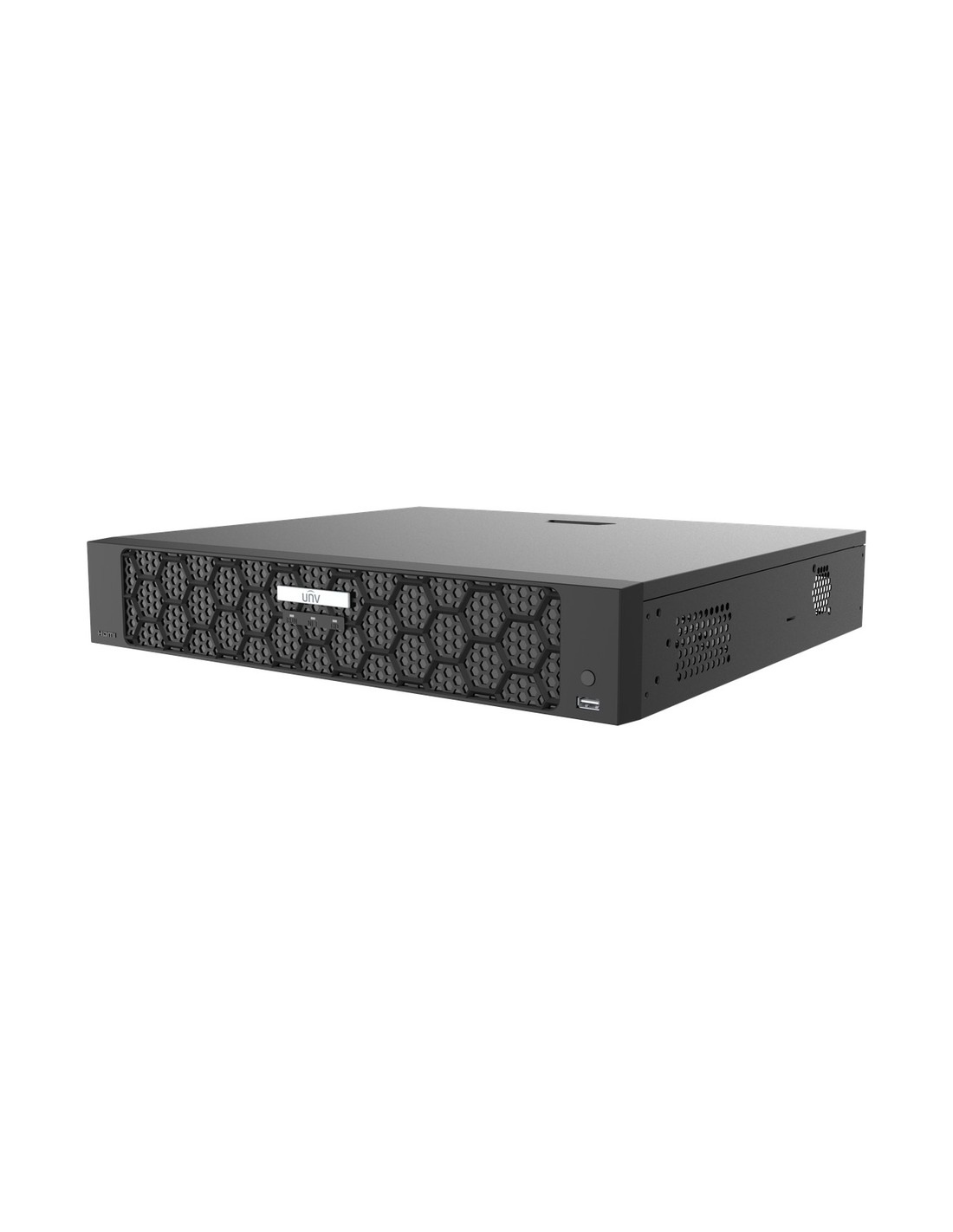

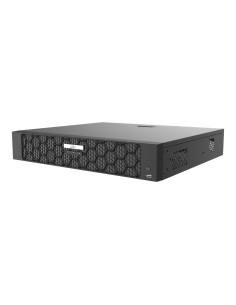

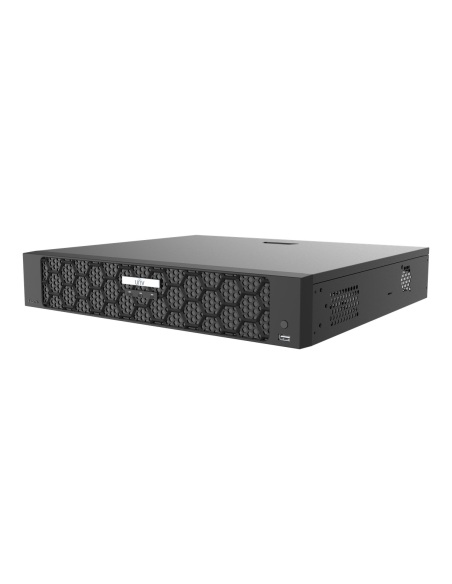

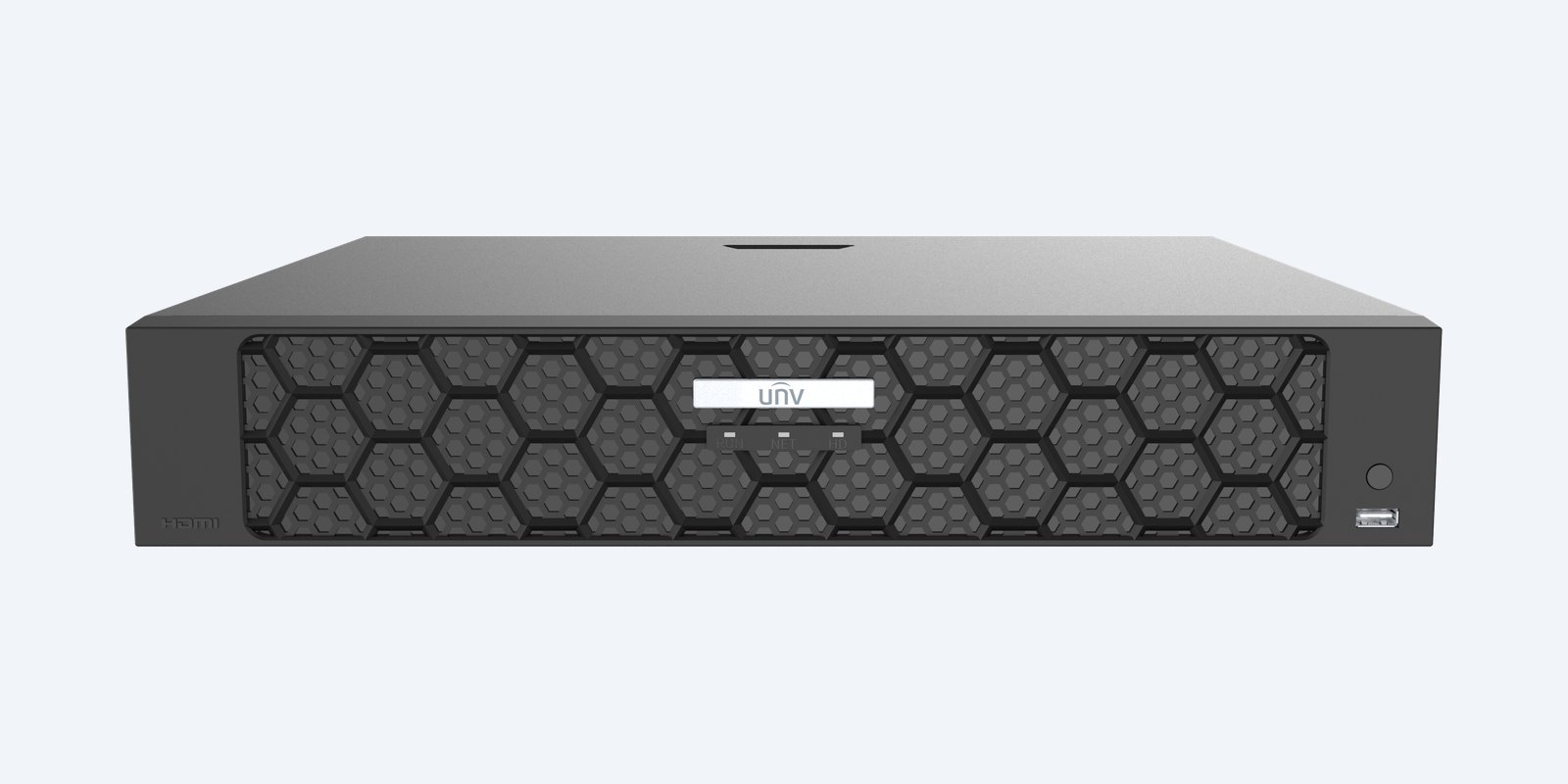

The recorder

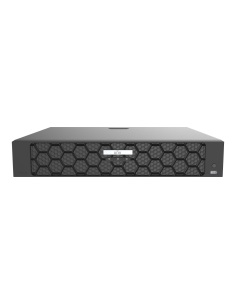

The NVR504-32B-P16-IQ: 16 PoE ports, 150 W.
Every camera in the kit plugs into its own PoE port, which carries power and video on one Cat6 cable. The kit draws at most about 138 W of the 150 W budget, and 16 channels are left for more cameras. It records up to 16MP, outputs 4K on HDMI and takes 4 drives of up to 24TB each.
One in the kit

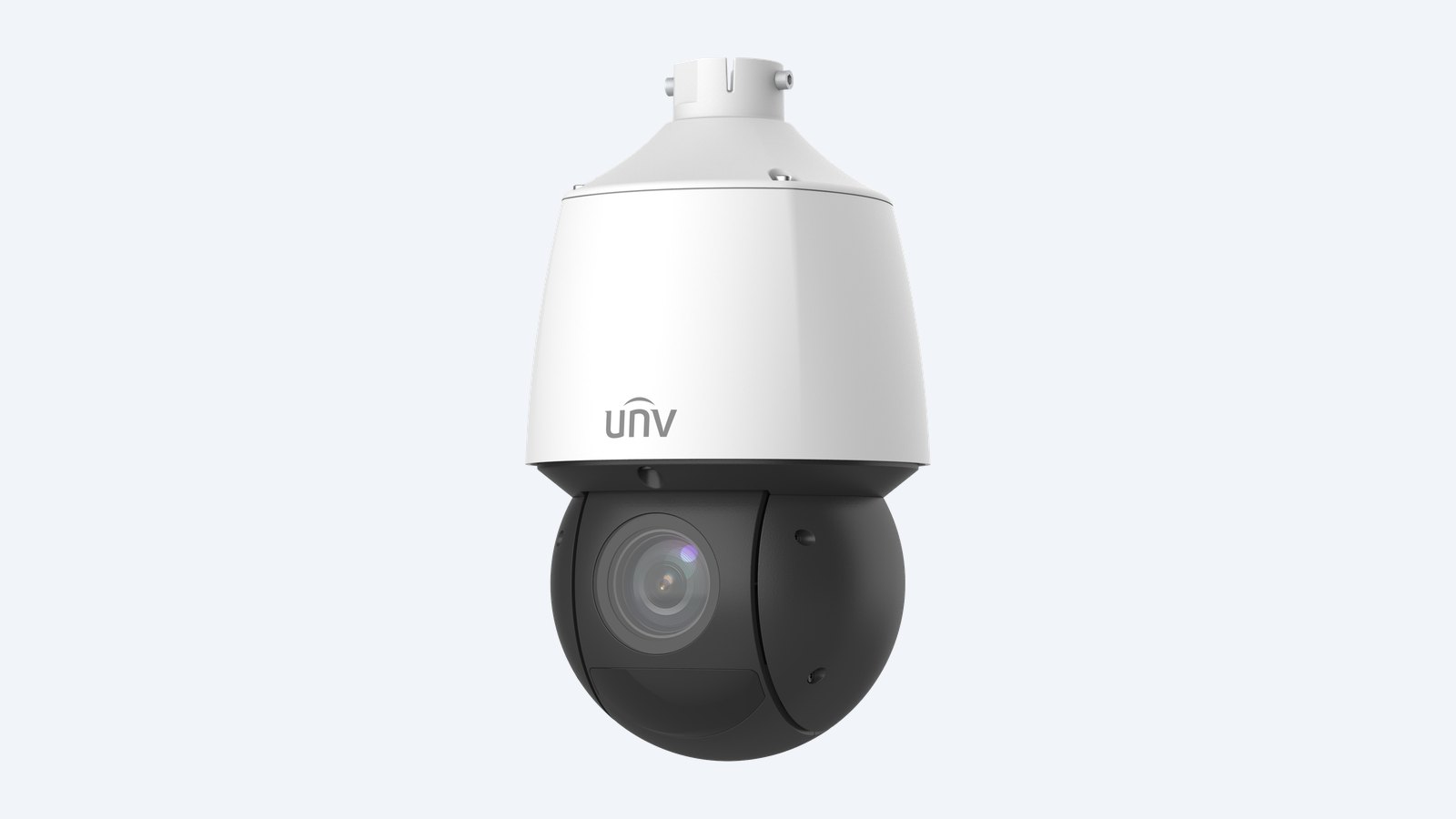

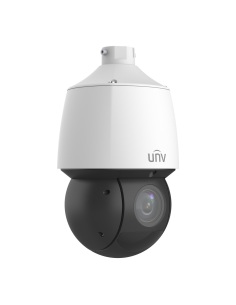

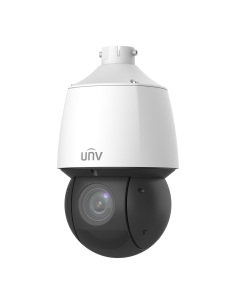

Uniview IPC6424SR-X25-VF-B, 4MP 25× zoom PTZ.
Pans 360° endlessly, zooms 25× optically and follows people and vehicles with auto tracking. 4MP with 100 m Smart IR and IP67, IK10 weather rating. Smart IR reaches 100 m, and it is IP67 and IK10 rated with 6 kV surge protection.

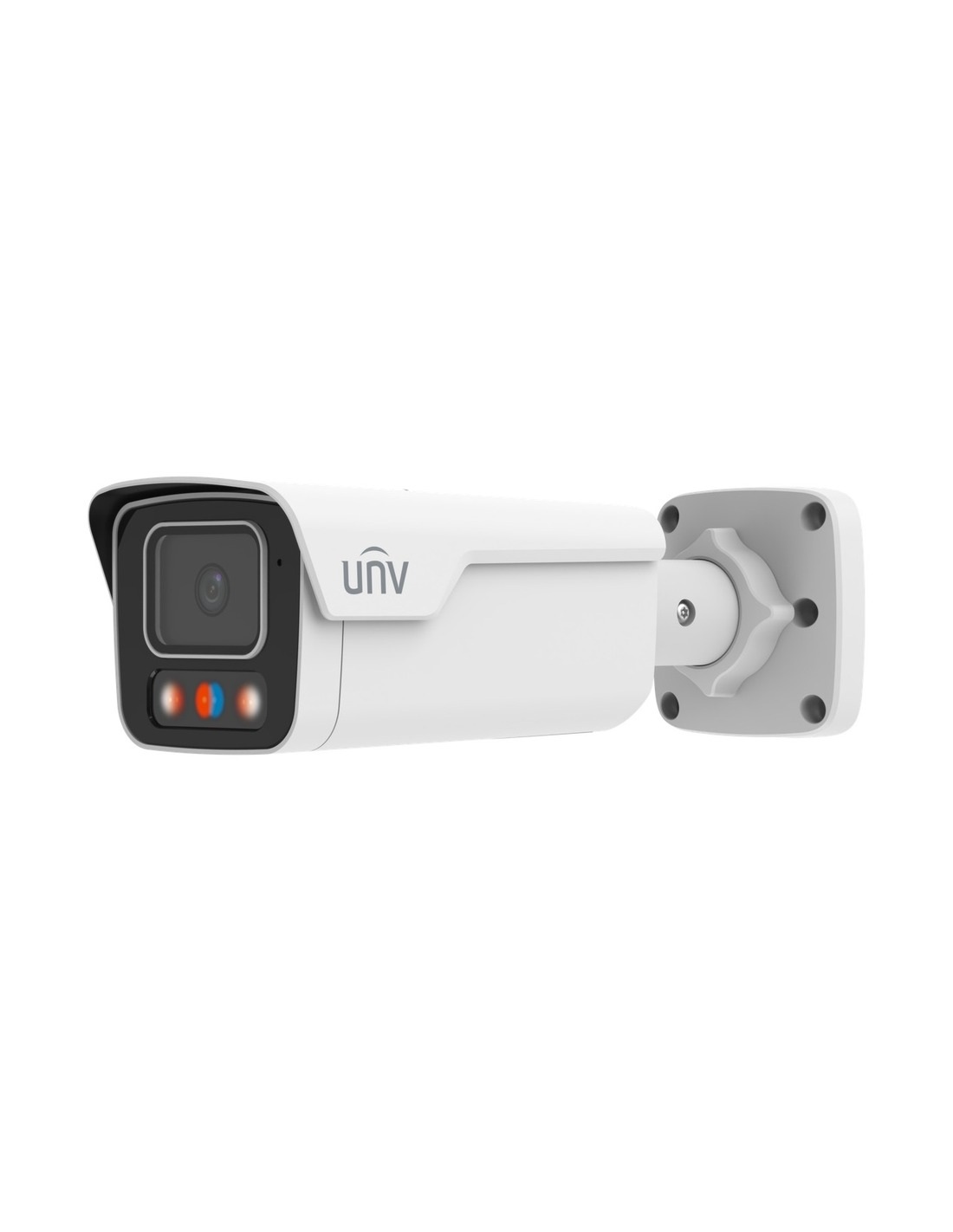

Four in the kit
Uniview IPC2B18SS-ADF28KMC-I1, 8MP 4K Tri-Guard bullet.
A visible bullet that reaches further down driveways, yards and fence lines. 8MP 4K with 40 m Smart IR and IP67 weather rating. When it detects a person or vehicle it flashes red and blue warning lights and plays a warning sound, and the built-in speaker and mic give two-way talk from the app.

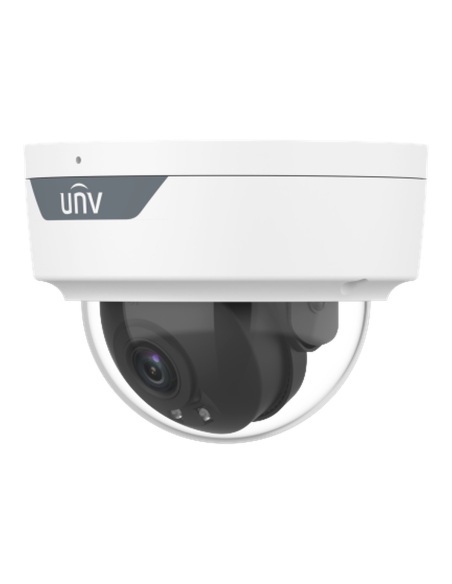

Three in the kit

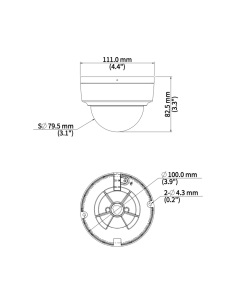

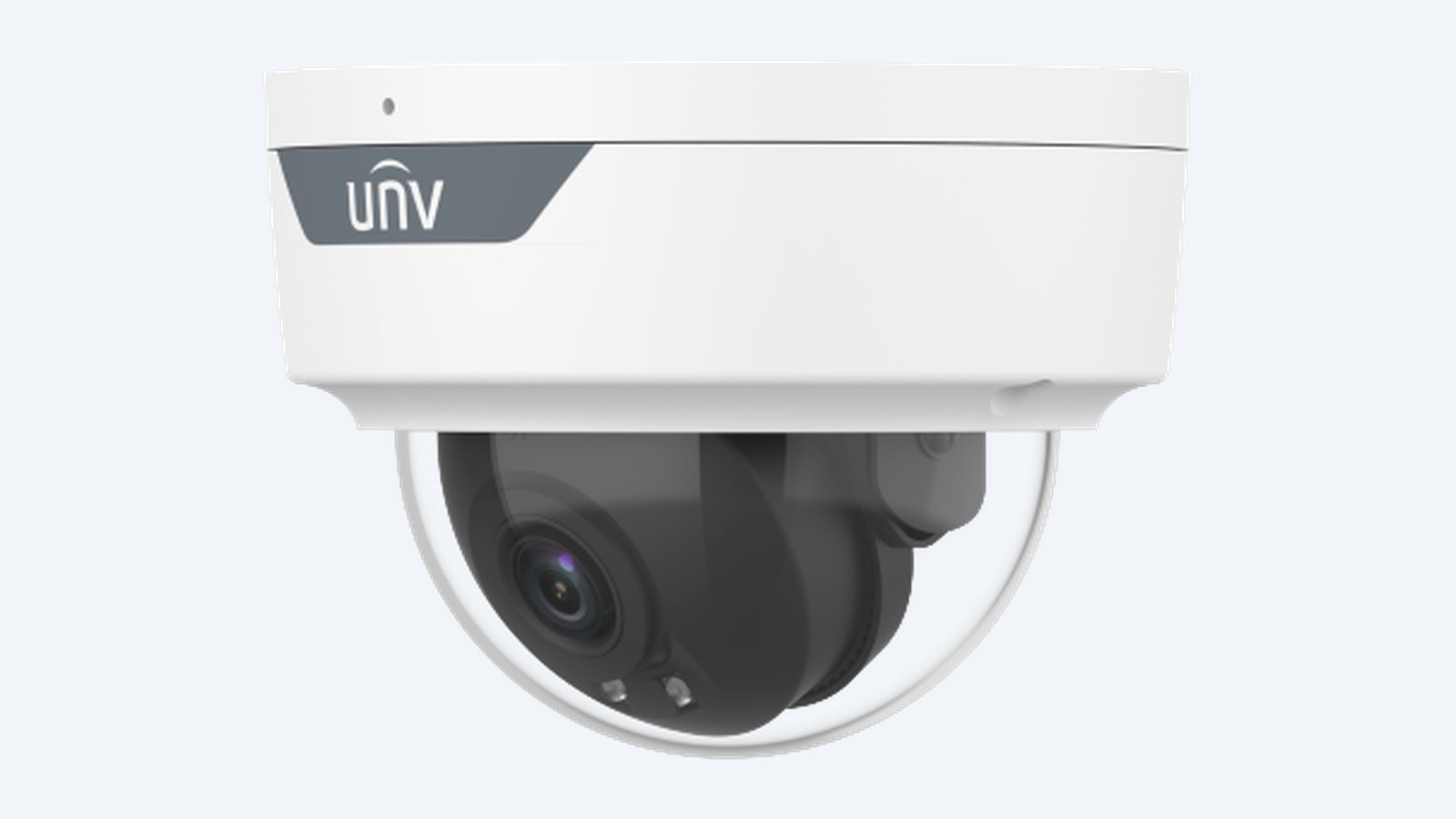

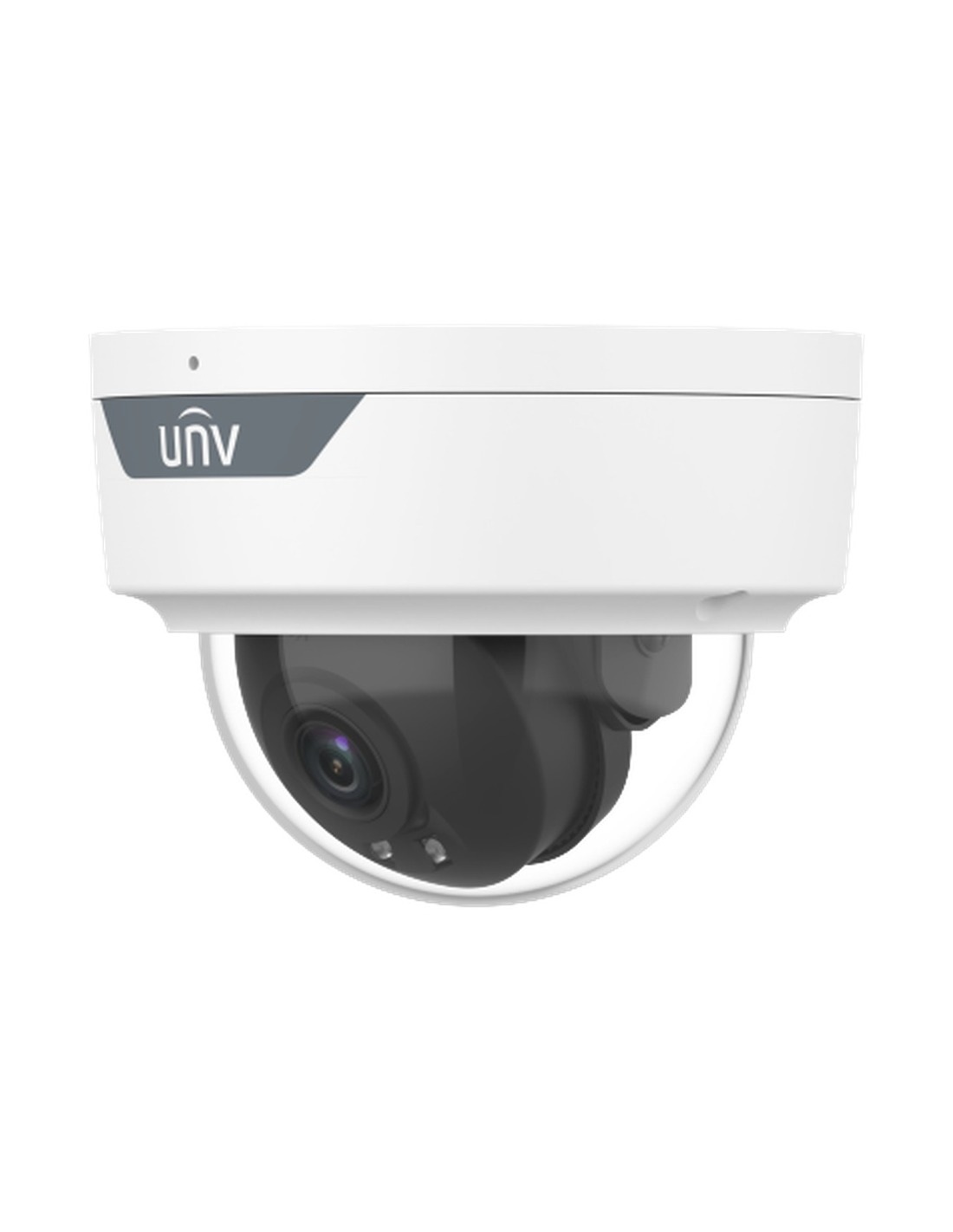

Uniview IPC328SS-ADF28K-I1, 8MP 4K LightHunter dome.
A low-profile IK10 vandal-resistant dome that stands up to knocks and tampering. 8MP 4K with 40 m Smart IR and IP67, IK10 weather rating. Smart detection sorts people, vehicles and bikes, and a built-in mic comes standard.
Eight in the kit

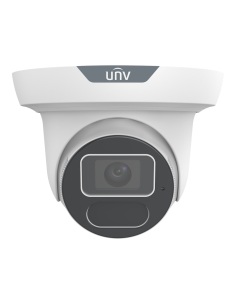

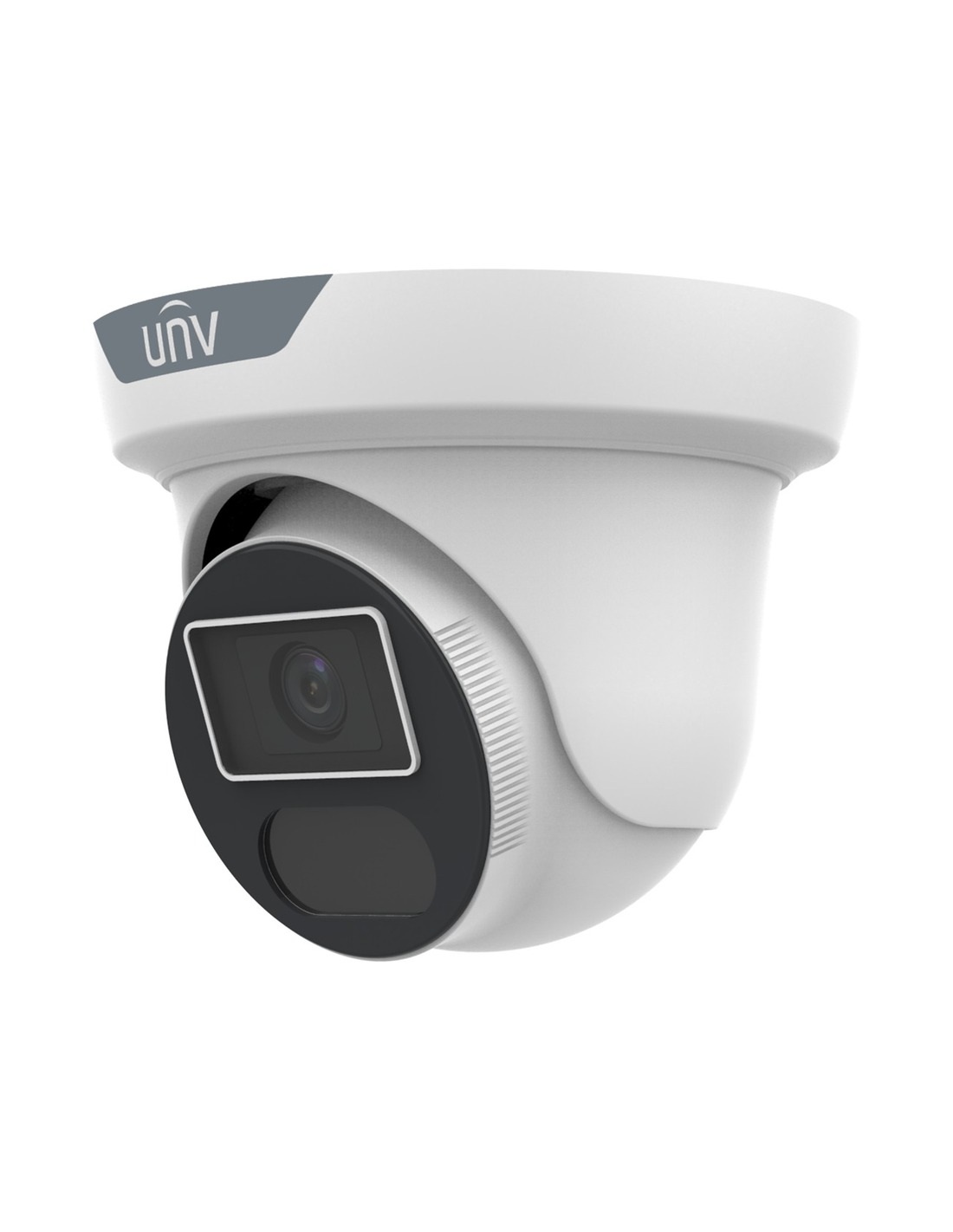

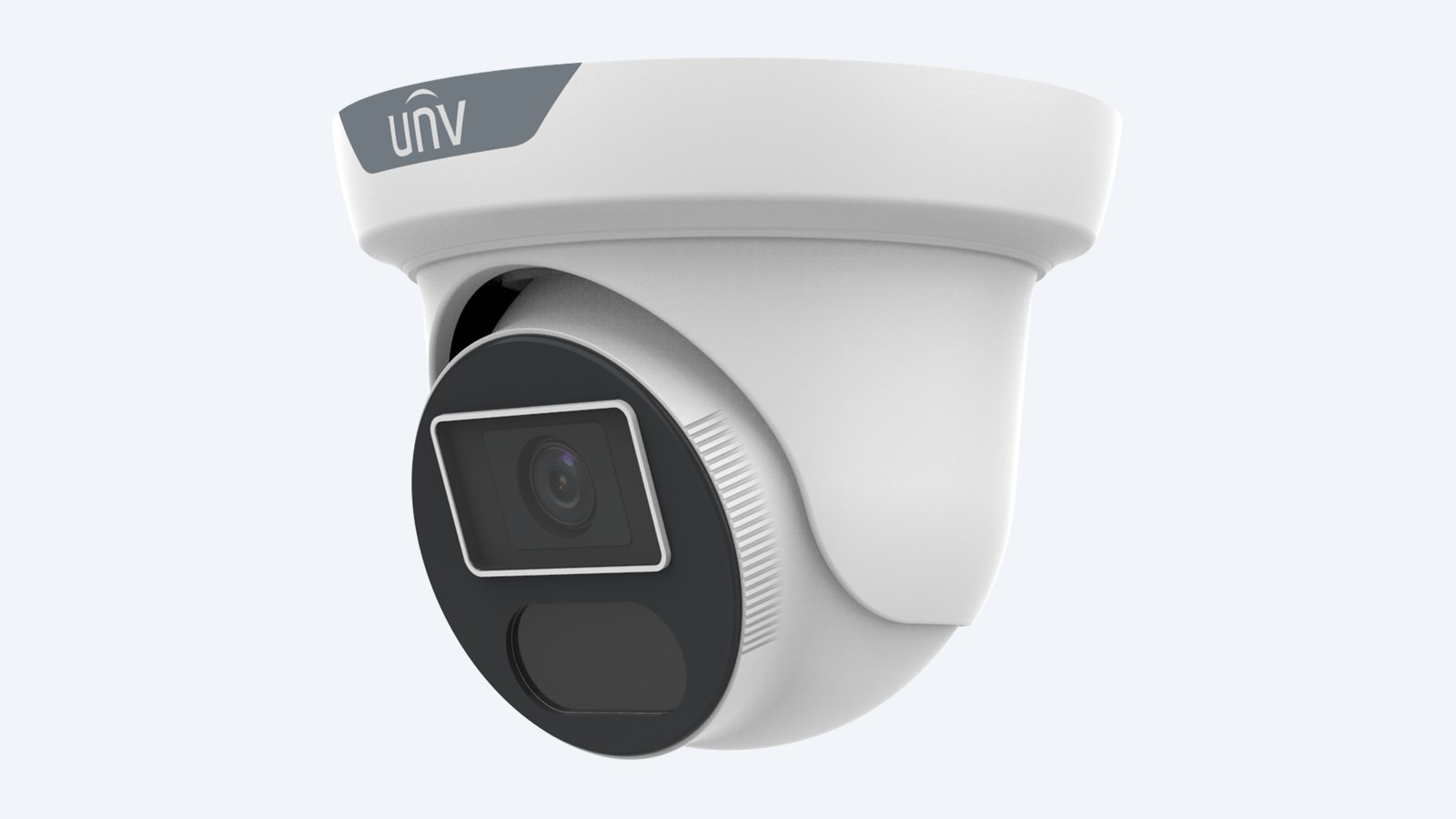

Uniview IPC3618SS-ADF28K-I1, 8MP 4K LightHunter turret.
An eyeball turret that is easy to aim, with no dome cover to catch infrared glare. 8MP 4K with 40 m Smart IR and IP67 weather rating. Its deep-learning smart detection sorts people, vehicles and bikes, and a built-in mic comes standard.
Active deterrence
Light and sound before anything happens.
Draw a line or zone in the app. When a person or vehicle crosses it, the Tri-Guard flashes its warning light and plays a warning sound, on a schedule you choose.
On your phone
Every camera in the free EZView app.
Scan the recorder’s QR code with the EZView app on iPhone or Android for live view, playback and alerts. No subscription and no monthly fee.
How it goes in
From the box to recording.
01
Plan the positions
Mount cameras about 2.4–3 m high, under eaves where possible, aimed at doors, gates and paths rather than open sky.
02
Run the Cat6
One cable from each camera back to the recorder, up to 100 m. Fit a junction box behind each camera for a neat, sealed join.
03
Connect the recorder
Plug the cameras into the PoE ports, the screen into HDMI and the network port into your router, then power on and follow the wizard.
04
Add the app and zones
Scan the QR code in the EZView app, then draw detection lines and zones so alerts and warnings only fire for people and vehicles.
At a glance
UV-K3216-CMD
Show specs
Kit code
UV-K3216-CMD
Recorder
Uniview NVR504-32B-P16-IQ, 32 channels, 16 PoE ports (150 W)
Cameras
1 × Uniview IPC6424SR-X25-VF-B 4MP 25× zoom PTZ
4 × Uniview IPC2B18SS-ADF28KMC-I1 8MP 4K Tri-Guard bullet
3 × Uniview IPC328SS-ADF28K-I1 8MP 4K LightHunter dome
8 × Uniview IPC3618SS-ADF28K-I1 8MP 4K LightHunter turret
Spare channels
16 for more cameras
Camera resolution
4MP and 8MP 4K
Night vision
Smart IR up to 100 m
Deterrence
Warning light, warning sound and two-way talk on the Tri-Guard cameras
PoE power used
About 138 W of 150 W at most
Storage
No HDD standard; 2, 4, 6 or 8TB option. 4 bays, up to 24TB each
Compression
Ultra 265, H.265, H.264
Display
HDMI up to 4K, VGA up to 1080p
Network
Gigabit
Phone app
EZView app, iOS and Android, no fees
Warranty
3 years
Pair it with
What goes with it
Cabling
Cat6 305 m box
Solid-copper Cat6 for PoE runs of up to 100 m to each camera.
Mounting
Junction boxes
TR-JB03-G-IN for the LightHunter Dome and TR-JB03-H-IN for the LightHunter Turret: hides the cable join and seals it from the weather.
Viewing
24" CCTV monitor
A Full HD screen with HDMI and speakers, rated for 24/7 viewing.
Where it is used
Where this kit fits
Industrial sites
Yards, gates, docks and buildings.
Large car parks
Entries, exits and the whole lot.
Schools and campuses
Grounds, entries and corridors.
Compared with similar kits
| Commercial Command | Business Pro 4K | Acreage Watch | |
|---|---|---|---|
| Cameras | 1 × 4MP 25× zoom PTZ, 4 × 8MP 4K Tri-Guard bullet, 3 × 8MP 4K LightHunter dome, 8 × 8MP 4K LightHunter turret | 2 × 8MP 4K Tri-Guard bullet, 4 × 8MP 4K Tri-Guard turret, 6 × 8MP 4K LightHunter dome | 2 × 8MP 4K LightHunter bullet, 1 × 4MP 5× zoom PTZ, 3 × 8MP 4K LightHunter turret |
| Recorder | NVR504-32B-P16-IQ | NVR502-16B-P16-IQ | NVR501-08B-P8-IQ |
| Spare channels | 16 | 4 | 2 |
| Light and sound deterrence | Yes | Yes | Yes |
| Night vision range | 100 m | 40 m | 80 m |
Every Uniview kit records Ultra 265, works with the EZView app and carries a 3-year warranty. Camera figures from the Uniview datasheets.
Common questions
The recorder has 16 PoE ports but 32 channels. How do I add more cameras?
All 16 cameras in the kit run from the built-in PoE ports. Cameras 17 to 32 connect through a PoE switch on the same network and record on the NVR as normal.
Is a hard drive included?
Choose it in the options: No HDD, or a 2, 4, 6 or 8TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive.
How many days will it record?
As a rough guide, each 4K camera recording around the clock with Ultra 265 uses about 25–40GB a day, so 16 cameras keep roughly 6–10 days on 4TB. Recording on motion, or at a lower bitrate on quiet cameras, stretches that a long way.
Is the cable included?
No, because every site needs a different length. Each camera needs its own Cat6 run of up to 100 m back to the recorder; a 305 m Cat6 box covers most homes.
Do the cameras need power points?
No. The recorder powers every camera through the Cat6 cable (PoE), so the only power point needed is at the recorder.
Can I add more cameras later?
Yes. There are 16 spare channels on the NVR504-32B-P16-IQ, and any Uniview camera plugs straight in. Cameras beyond its 16 PoE ports connect through a PoE switch on the network.
Can I watch it on my phone?
Yes. Connect the recorder to your router and scan its QR code in the free EZView app for live view, playback and alerts on iPhone and Android. There are no monthly fees.
Can I install it myself?
Many customers do: each camera needs one cable and the recorder finds the cameras automatically. In Australia, Cat6 run inside walls and ceilings should be installed by a registered cabler.
Will it work with cameras I already own?
Usually. ONVIF (Profile S, G or T) and RTSP cameras record on the NVR504-32B-P16-IQ, with basic motion events; smart events come from Uniview cameras.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Want to change a camera or add more? Call 1300 736 970 or email [email protected] with your layout and we will put together the right mix.
Installation and safety
Power. Use only the power supply supplied with the recorder. Power off before fitting or removing a hard drive.
Placement. Keep the recorder indoors between −10 °C and 55 °C with space around its vents, somewhere secure so a thief cannot take the footage with it. Cameras are rated IP67 for outdoor use.
Privacy. Aim cameras at your own property. Recording audio and filming neighbours or public areas are covered by state surveillance laws.
Figures. From the Uniview datasheets for each component. Uniview 3-year manufacturer warranty, handled in Australia through us.
- Mobile App
- EZView (iOS, Android)
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 32 Channels
- Brand
- Uniview
- Interoperability
- ONVIF Profile S, G, T
- Display Output
- HDMI up to 4K, VGA up to 1080p
- Active Deterrence
- Yes — warning light and sound
- Camera Resolution
- 4MP and 8MP 4K
- Warranty
- 3 years
- Product Type
- IP CCTV Kit
- Two-Way Audio
- Yes (Tri-Guard cameras)
- Model
- UV-K3216-CMD
- HDD Bays
- 4
- Night Vision
- Smart IR up to 100 m
- PoE Ports
- 16 (150 W total)
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Number of Cameras
- 16
- Recorder
- Uniview NVR504-32B-P16-IQ
UV-K3216-CMD-0T
- New
In stock
Uniview PTZ Cameras

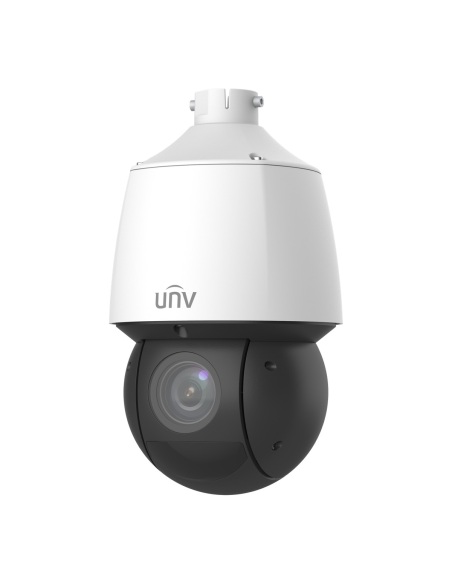

Uniview 4MP 25x PTZ Camera, 4.8-120mm, 100m Smart IR, Auto Tracking, IP67 IK10, PoE+ -...
- New
In stock
Uniview Bullet Cameras
Uniview 8MP 4K Tri-Guard Dual-Light Bullet Camera, White, Red & Blue Warning Light,...
- New
In stock
Uniview Dome Cameras
Uniview 8MP 4K Dome IP Camera, White, 2.8mm, 40m IR, Smart Intrusion, Mic, IK10 -...
- New
In stock
Uniview Turret Cameras

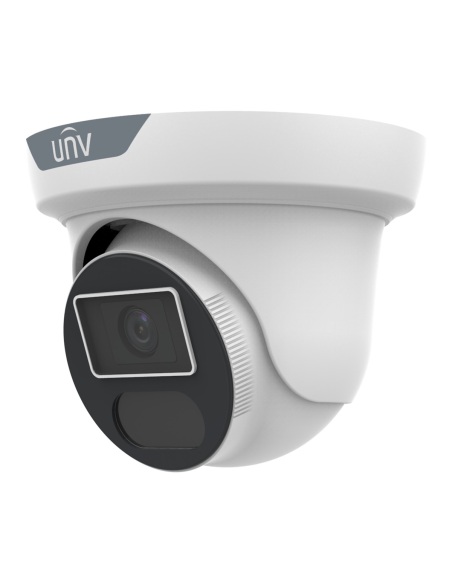

Uniview 8MP 4K LightHunter Turret IP Camera, White, 2.8mm, 40m IR, People & Vehicle...
