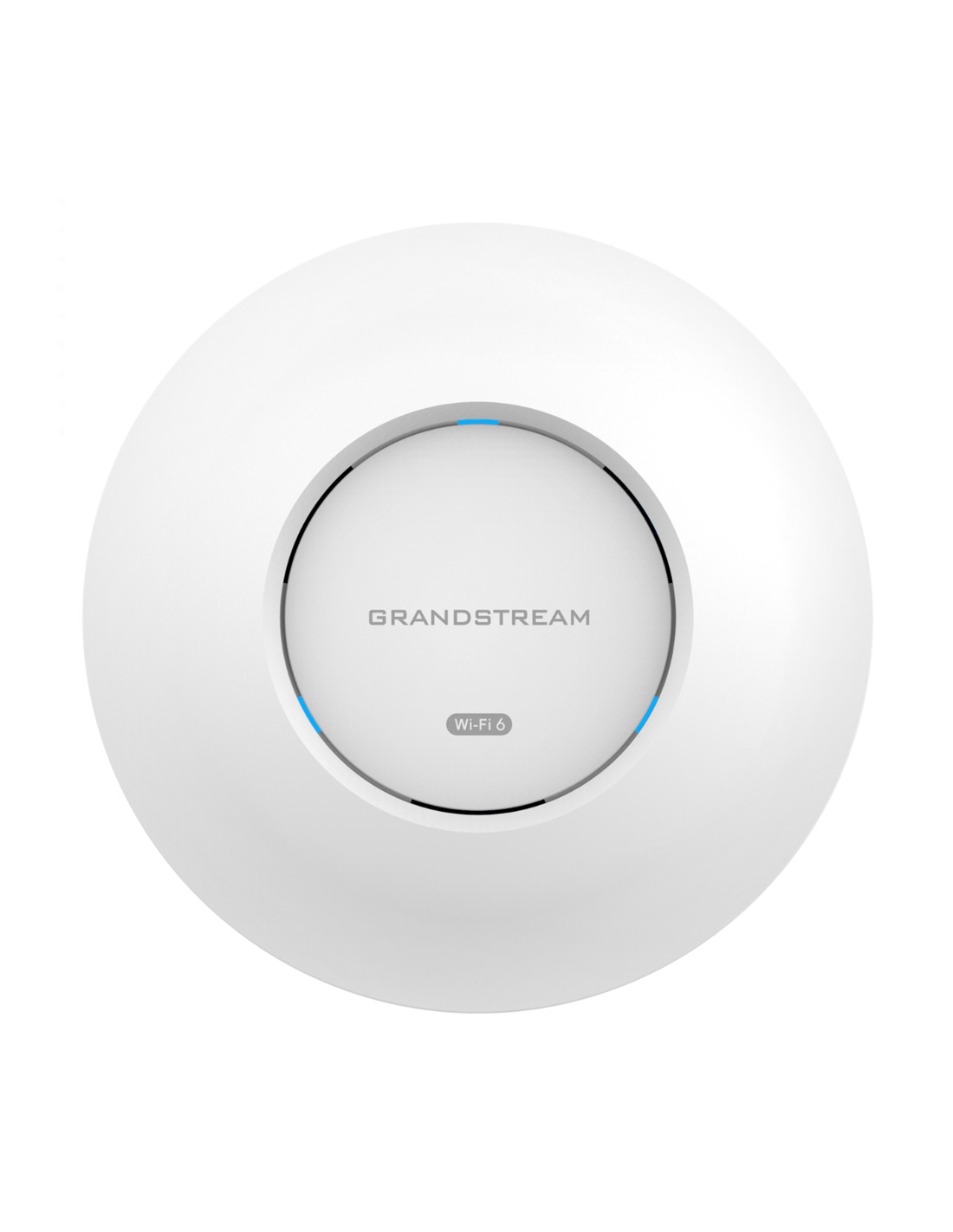

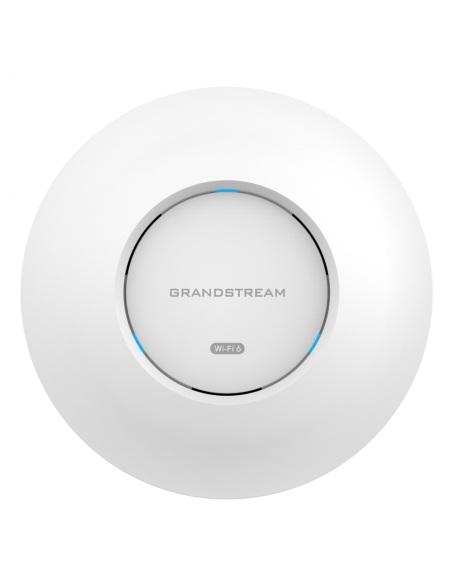

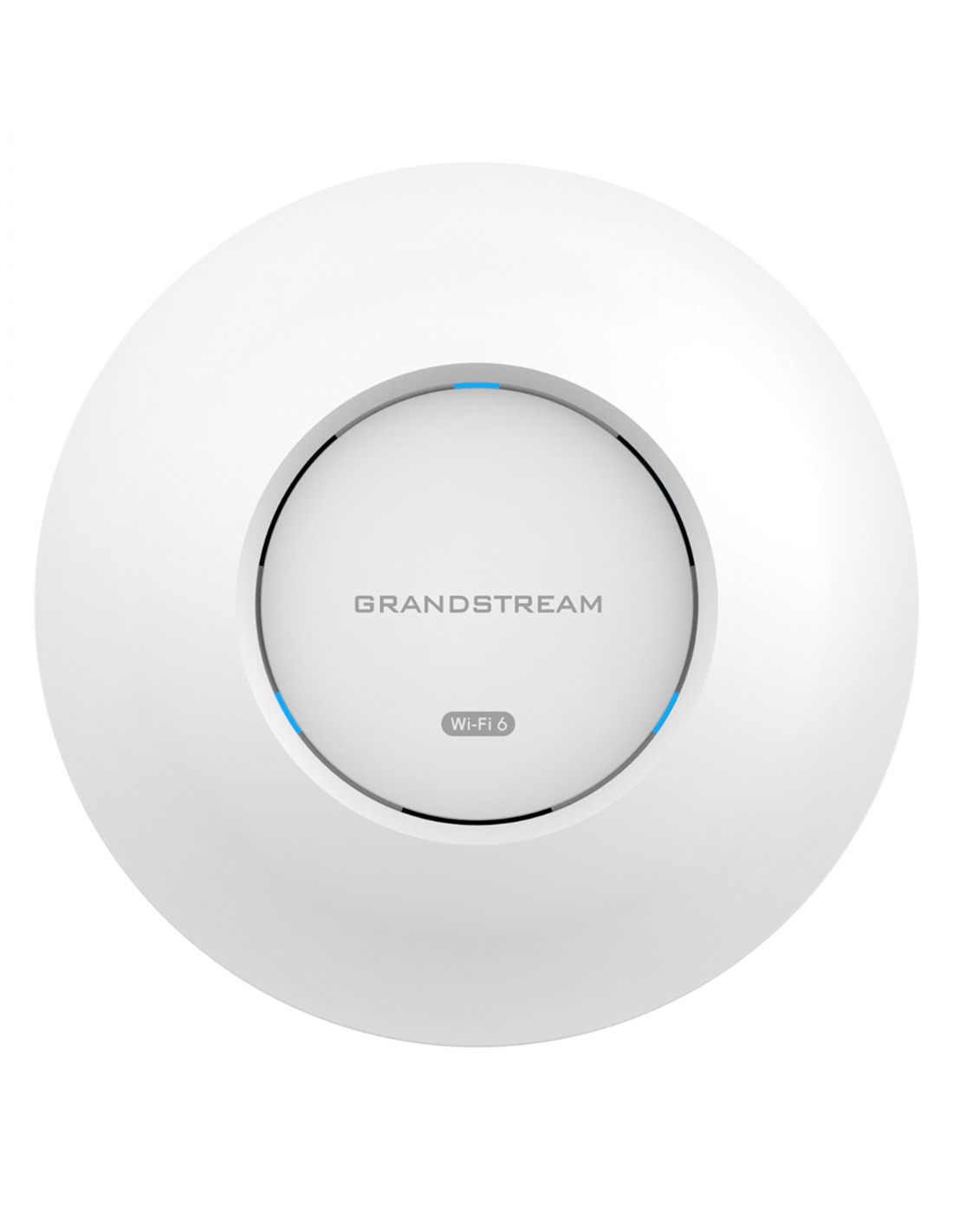

Grandstream GWN7664E | AX6000 Wi-Fi 6 AP — 4×4 MU-MIMO • 2× 2.5GbE • HE160
Model: GR-GWN7664E — 4×4 802.11ax Wi-Fi 6 Access Point with 2× 2.5GbE Ports
The GWN7664E is a powerful, enterprise-grade 802.11ax Wi-Fi 6 access point ideal for medium-to-large businesses, multi-floor buildings, residential complexes, and high-density commercial sites. It delivers AX6000-class performance with dual-band 4×4:4 MU-MIMO, OFDMA, and HE160 support to maximise throughput, efficiency, and coverage in demanding environments.
With up to 6Gbps aggregate wireless throughput, 5Gbps aggregate wired throughput, and dual 2.5GbE ports with PoE/PoE+, the GWN7664E is built for modern, high-speed LANs. It supports up to 512 concurrent Wi-Fi clients, long-range coverage, and integrates with Grandstream’s embedded controller, cloud, and on-premise management platforms for flexible deployment.
Key Features & Benefits
- AX6000 dual-band 802.11ax Wi-Fi 6 access point
- Up to 6Gbps aggregate wireless throughput
- Up to 5Gbps aggregate wired throughput
- Dual-band 4×4:4 MU-MIMO with DL/UL OFDMA and HE160
- Supports up to 512 concurrent Wi-Fi client devices
- Includes 2× 2.5GbE network ports with PoE/PoE+
- Advanced QoS for low-latency, real-time applications
- Enterprise-grade security with secure boot and signed firmware
- Embedded controller plus cloud and on-premise management options
Ideal Deployments
- Medium-to-large office and campus Wi-Fi networks
- Multi-floor buildings and dense commercial spaces
- High-density wireless for education, hospitality, and retail
- Voice-over-Wi-Fi and real-time collaboration environments
Model Quick Reference
- GWN7664E — AX6000 Wi-Fi 6 AP with 4×4:4 MU-MIMO, 6Gbps wireless, 5Gbps wired, 2× 2.5GbE ports, up to 512 clients.
Before you order:
- Confirm PoE/PoE+ power budget and switch capabilities
- Plan AP density based on user count and application mix
- Decide on management: embedded, cloud, or on-premise
- Review channel/HE160 planning for your RF environment
Design & Quote: Share your floor plans, user density, and switching details. We’ll size a GWN7664E deployment and provide a complete Wi-Fi 6 bill of materials.
Actual throughput and coverage depend on environment, interference, and client capabilities. Always verify final specifications against current product documentation.
