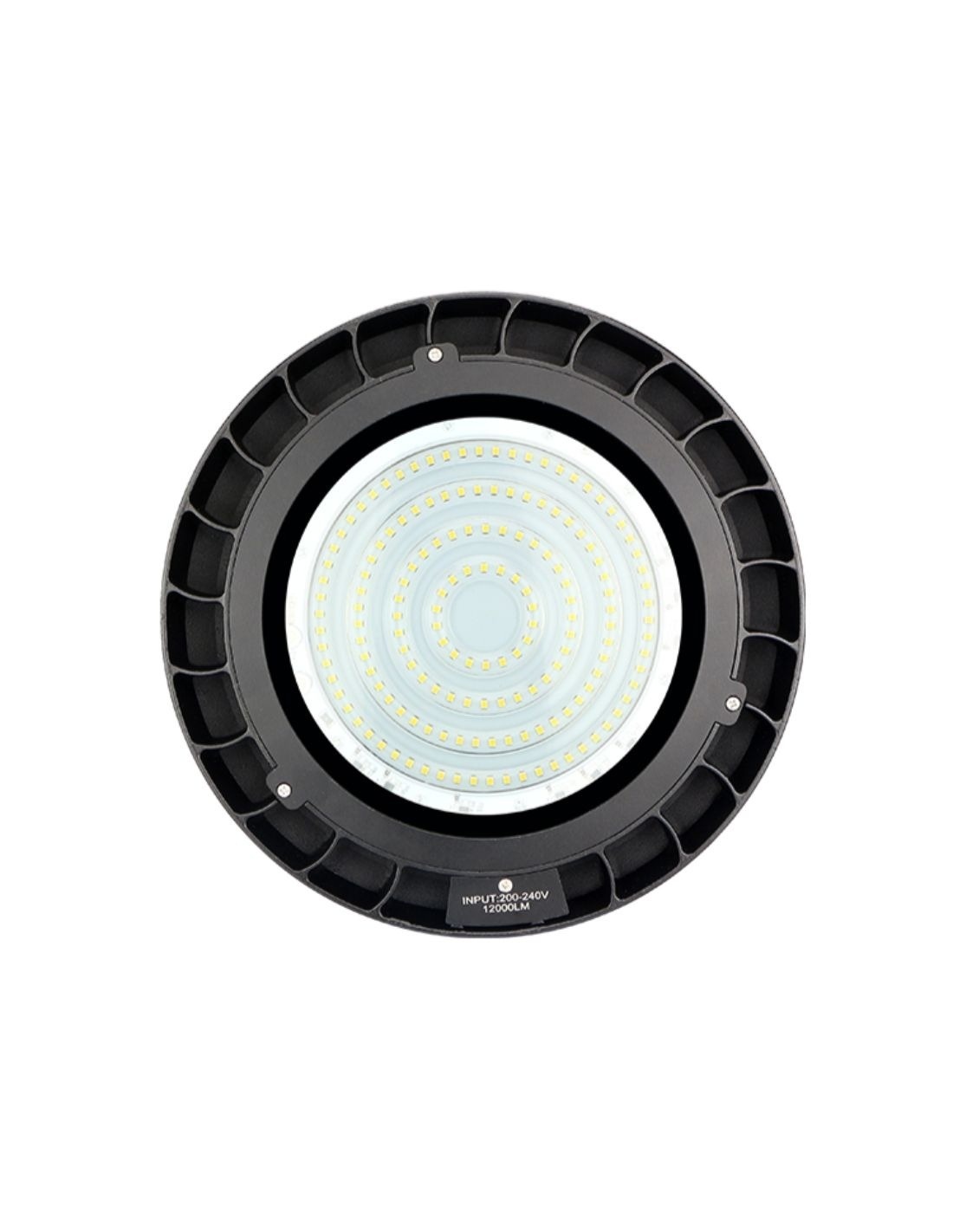

AVOL 100W LED High Bay Light - Box of 10 (6000K) - LHB-E100-C-10PK
LHB-E100-C-10PK
In Stock - Ready to Ship $ 829.00
inc-GST
or 4 interest-free payments of $207.25 with
Box of 10 AVOL 100W LED high bays — the full factory carton at a lower price per light. 10,000 lumens each, IP65, for sheds, workshops, garages and smaller warehouses.
- ✓10,000 lm at 100 lm/W · 6000K cool white · 90° beam
- ✓IP65 weather resistant · IK07 tempered glass lens
- ✓Integrated driver — slim Ø260 × 50 mm aluminium body
- ✓35,000 hour rated life · 3-year warranty
- ✓Ordering 100+ lights? Volume pricing applies automatically from 10 boxes
AVOL · LHB-E series · 100W · Box of 10
10 high bays. One carton.
Less per light.
The full factory carton of 10 × AVOL LHB-E100-C — 10,000-lumen, IP65 LED high bays with the driver built in. Built for fit-outs: one order lights a whole bay, and from 10 boxes volume pricing kicks in automatically.
ELECTRICIAN INSTALL — NO PLUG FITTED

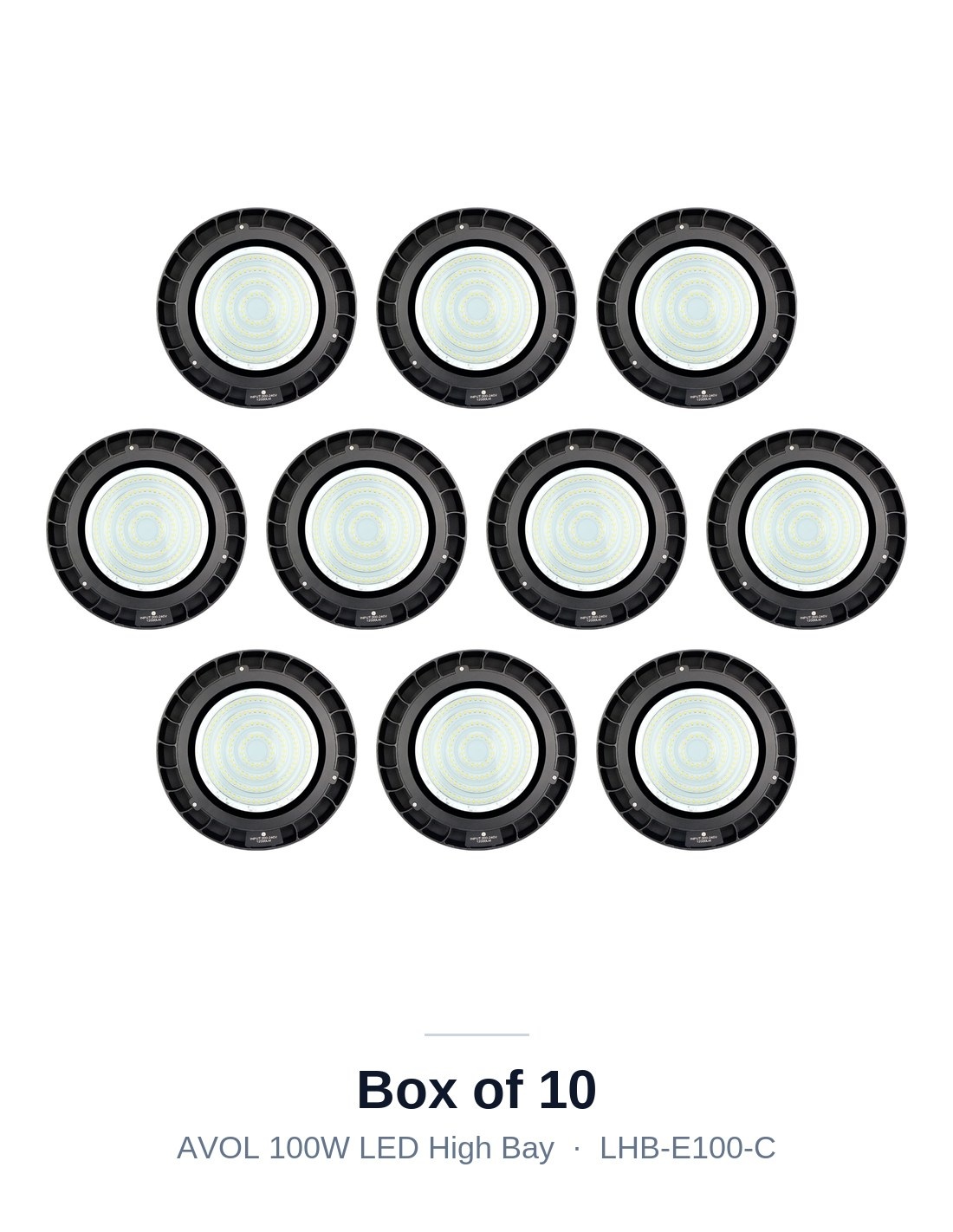

In the box
- 10 × AVOL LHB-E100-C LED high bay
- Hanging ring on each light
- Manufacturer’s carton
What you also need
- A licensed electrician
- IP65 junction box per light (not included)
- Chain or hook rated for the fitting
LIGHT · 01
Bright, efficient, cool white.
At 100 lumens per watt, the 100W model puts out 10,000 lumens. That is the kind of output that commonly replaces 150–250W metal-halide fittings, for a fraction of the running cost.
6000K cool white with CRI above 80 and a 90° beam — crisp, even working light for racking, benches and forklifts.
BUILD · 02
IP65 and an IK07 glass lens.
The housing is IP65, so dust and hosing are no problem, and the fitting is happy under awnings, in open-sided sheds and over loading docks. The lens is IK07 tempered glass rather than plastic, so it won’t yellow and stands up to knocks.
A finned aluminium body carries heat away from the LEDs, rated for 35,000 hours in −20° to 50°C.
INSTALL · 03
Driver on board. One cable up.

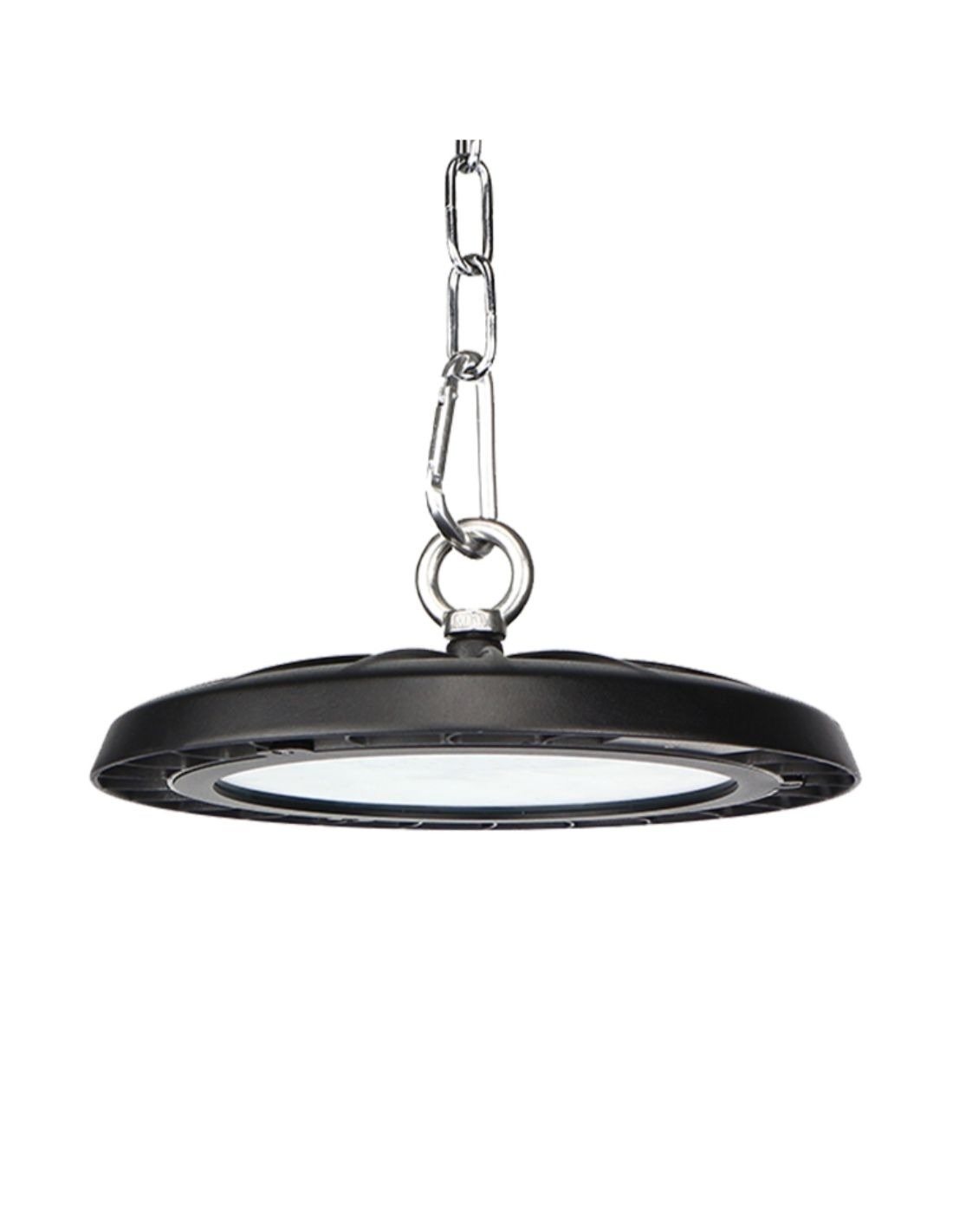

The LED driver is built into the Ø260 × 50 mm body, so there is no separate driver box to mount on the purlin — just hang it from the ring and run one lead to an IP65 junction box.
The light is hard-wired by a licensed electrician on a switched, fused circuit, with the fitting earthed. Power factor is above 0.9 on 220–240 V AC.
Choose by height
Light on the floor, one fitting.
Centre-beam light level and beam width from a single light, from the AVOL datasheet. Overlapping lights add together, so real rooms read higher.
Rule of thumb: space lights about 1–1.5× the mounting height apart. IES files available on request for a proper lighting layout.
BUY BY THE BOX
Need fewer, or the other size?
Singles are available for small jobs and spares. Every LHB-E shares the same look and 6000K colour, so 100W and 150W can sit in the same building — 150W over the high racking, 100W over the lower bays.
At a glance
Key specs — LHB-E100-C
- Brand / model
- AVOL LHB-E100-C (LHB-E series)
- In this listing
- 10 × LHB-E100-C (full carton)
- Power
- 100W
- Light output
- 10,000 lm
- Efficacy
- 100 lm/W
- Colour temperature
- 6000K cool white
- CRI
- > 80
- Beam angle
- 90°
- Input voltage
- 220–240 V AC · power factor > 0.9
- Dimmable
- No
- Connection
- Unterminated lead (H05RN-F 3G 0.75 mm²) — hard-wired by a licensed electrician
- Ingress / impact
- IP65 · IK07
- Lens
- Tempered glass
- Housing
- Aluminium, black
- Size
- Ø260 × 50 mm
- Operating temp.
- −20° to 50°C
- Rated life
- 35,000 hours
- Warranty
- 3 years — supported by Infront Technologies in Australia
Answers
Common questions
Does it plug into a power point?
No. The LHB-E is supplied with an unterminated lead (H05RN-F 3-core 0.75 mm²). A licensed electrician connects it through an IP65-rated junction box (not included) on a switched, fused circuit, and the fitting must be earthed.
100W or 150W?
As a starting point, the 100W (10,000 lm) suits ceilings around 4–6 m and the 150W (15,000 lm) suits around 6–8 m. Both have the same 90° beam, so the bigger light mainly gives you more light on the floor at height. See the light-at-height table above.
How far apart should I hang them?
A common rule of thumb is a spacing of about 1 to 1.5 times the mounting height for even light. For workplaces with a required lux level, ask us for the IES photometric file so your electrician or designer can run a lighting layout.
Can it go outside?
The fitting is IP65 with an IK07 tempered glass lens, so it handles dust, hosing and weather — under awnings, open-sided sheds, loading docks and canopies. Keep the connection inside an IP65 junction box.
Is it dimmable, or does it have a sensor?
No to both. It is a straightforward on/off fitting. For motion control, an electrician can switch a group of lights from a suitable high-bay sensor switch.
What do I get in the box?
10 × LHB-E100-C — the manufacturer’s full carton. Ordering 10 boxes or more (100+ lights)? Volume pricing is applied automatically in the cart. Need just a few? Buy single lights.
Warranty and support?
3-year warranty, supported by Infront Technologies in Australia. Compliance documents and IES files are available on request for tenders and installers.
In stock in Australia.
Genuine AVOL LHB-E high bays from Infront Technologies — singles and full boxes, volume pricing for 100+ lights, trade accounts welcome. Compliance certificates and technical documents available on request for tenders and installers.
Installation & safety notice
Licensed electrician only. This is a 240 V hard-wired fitting with an unterminated lead. In Australia it must be installed by a licensed electrician, earthed, and connected in an IP65 junction box.
Secure mounting. Hang from a fixing and chain or hook rated for the fitting’s weight. Isolate power before installing or servicing.
Specs in good faith. Figures are from the AVOL LHB-E datasheet and may change without notice. Light levels on site depend on spacing, height and surfaces.
- Dimensions
- Ø260 x 50mm
- Ingress Protection
- IP65
- Operating Environment
- -20° ~ 50°C
- Vandal Resistance
- IK07
- Power Consumption
- 100W
- Input Voltage
- 220 ~ 240VAC
- Beam Angle
- 90°
- Colour Rendering Index
- ≥ 80
- Colour Temperature
- 6000K
- Dimmable
- No
- Light Output
- 10000lm
- Luminous Efficacy
- 100lm/W
- Plug / Socket / Base
- Unterminated lead (electrician install)
- Rated Lifespan
- 35,000 hours
- Reflector / Diffuser
- Tempered glass lens
- Power Factor
- ≥ 0.9
- Pack Quantity
- 10
