Uniview Tri-Guard Fortress Kit — 8× IPC3638SS Tri-Guard Turret + 16CH NVR502-16B-P16-IQ
UV-K1608-TG8-0T
In stock $ 3,199.00
inc-GST
or 4 interest-free payments of $799.75 with
Eight Uniview Tri-Guard IPC3638SS 8MP turrets with warning lights, siren and two-way talk, on the 16-channel NVR502-16B-P16-IQ.
- ✓8 cameras: 8× IPC3638SS
- ✓16-channel NVR with 16 PoE ports (240 W)
- ✓8MP 4K cameras, smart IR up to 30 m
- ✓Tri-Guard warning light, sound and two-way talk
- ✓No HDD or 2–8TB drive fitted
- ✓Free EZView app, 3-year warranty
Uniview kit · 8 cameras · 16 channels
Eight Tri-Guards, room for eight more.
Active deterrence across a big site.

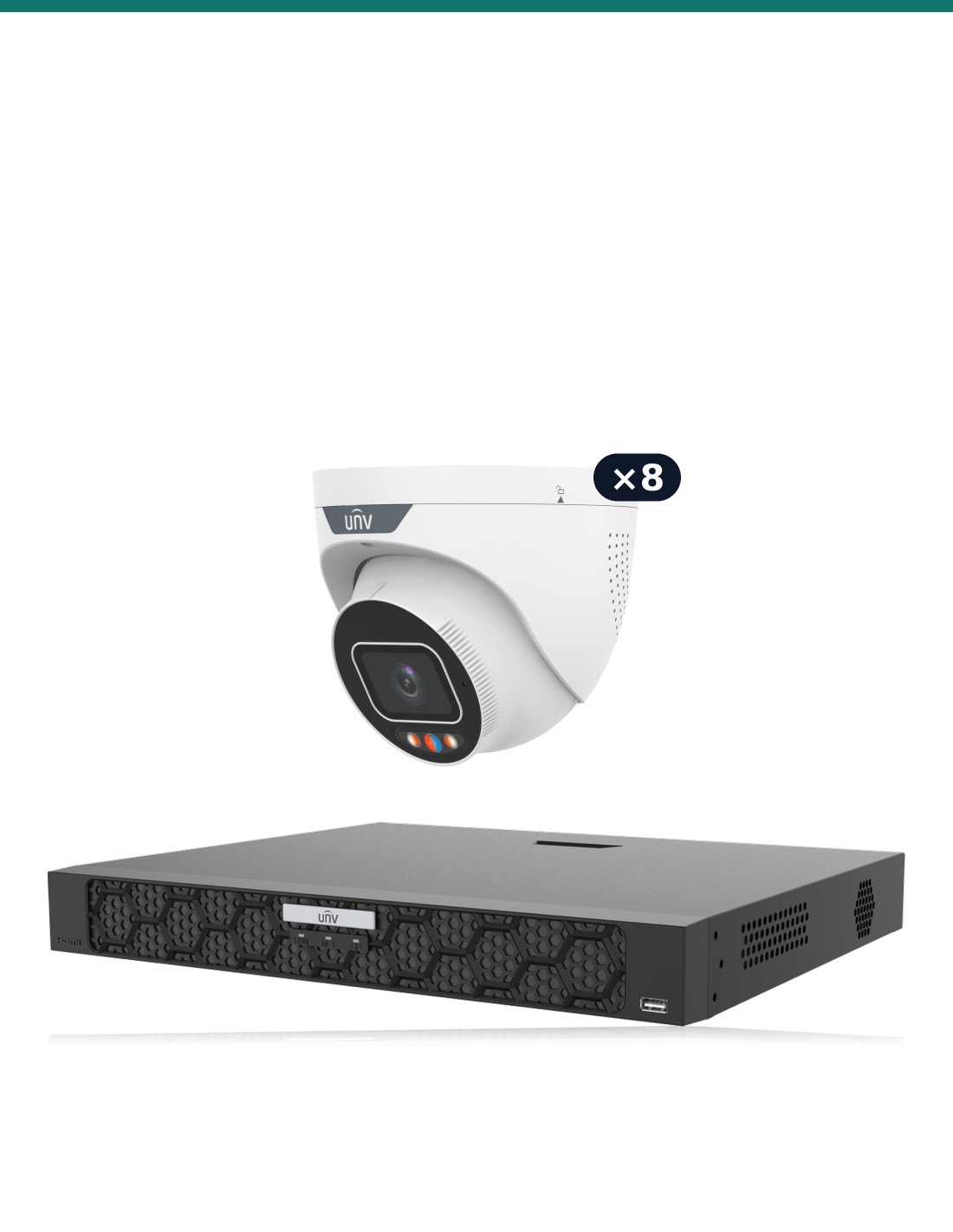

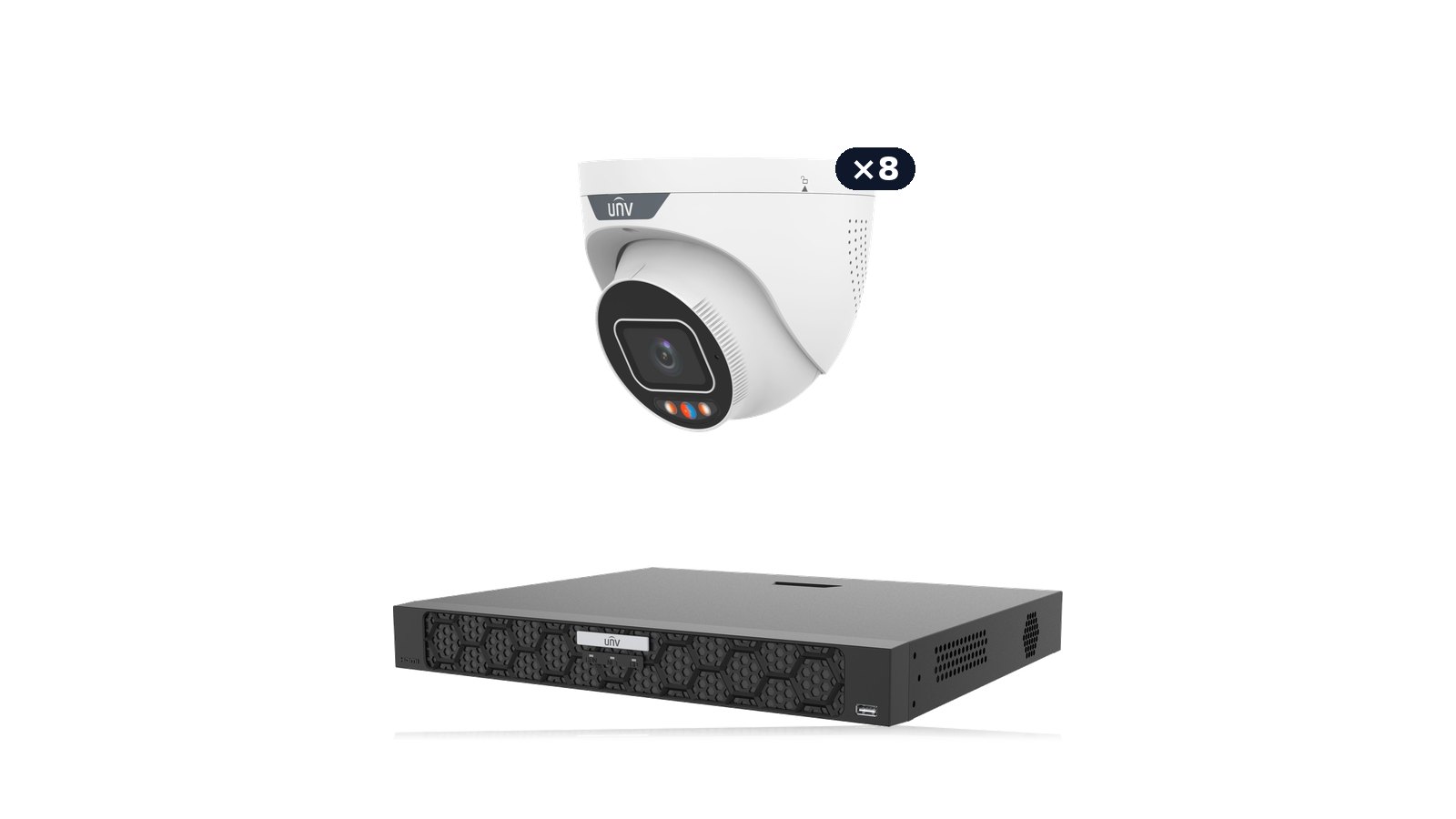

Uniview Tri-Guard Fortress Kit. Eight Uniview Tri-Guard IPC3638SS 8MP turrets on the 16-channel NVR502-16B-P16-IQ with two drive bays. Every camera warns with red and blue lights and a siren, and eight PoE ports are left for more.
In one sentence: the UV-K1608-TG8 is eight 8MP 4K Tri-Guard turrets with the Uniview NVR502-16B-P16-IQ 16-channel PoE NVR, with the hard drive as an option.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
Everything in the kit is matched: every camera plugs into the recorder’s PoE ports and appears automatically. Add the Cat6 cable and a screen and you are recording.
In the box
- 1 × Uniview NVR502-16B-P16-IQ 16-channel PoE NVR with power supply
- 8 × Uniview IPC3638SS-ADF28KMC-I1 8MP 4K Tri-Guard turret
- Mounting screws and plugs for each camera
- Quick guides
- Hard drive fitted if you choose a 2, 4, 6 or 8TB option
You also need
- A hard drive, if you choose the No HDD option
- Cat6 cable from the recorder to each camera (up to 100 m per run)
- A monitor or TV with HDMI or VGA
- Your router and internet connection, for the phone app
- Optional junction boxes for a neat, weatherproof cable entry
Built for sites that get visitors at night.
Car yards, depots and large homes attract people who test doors after dark. Eight Tri-Guards give every approach a camera that reacts first, and the recorder has the power and channels to double it.

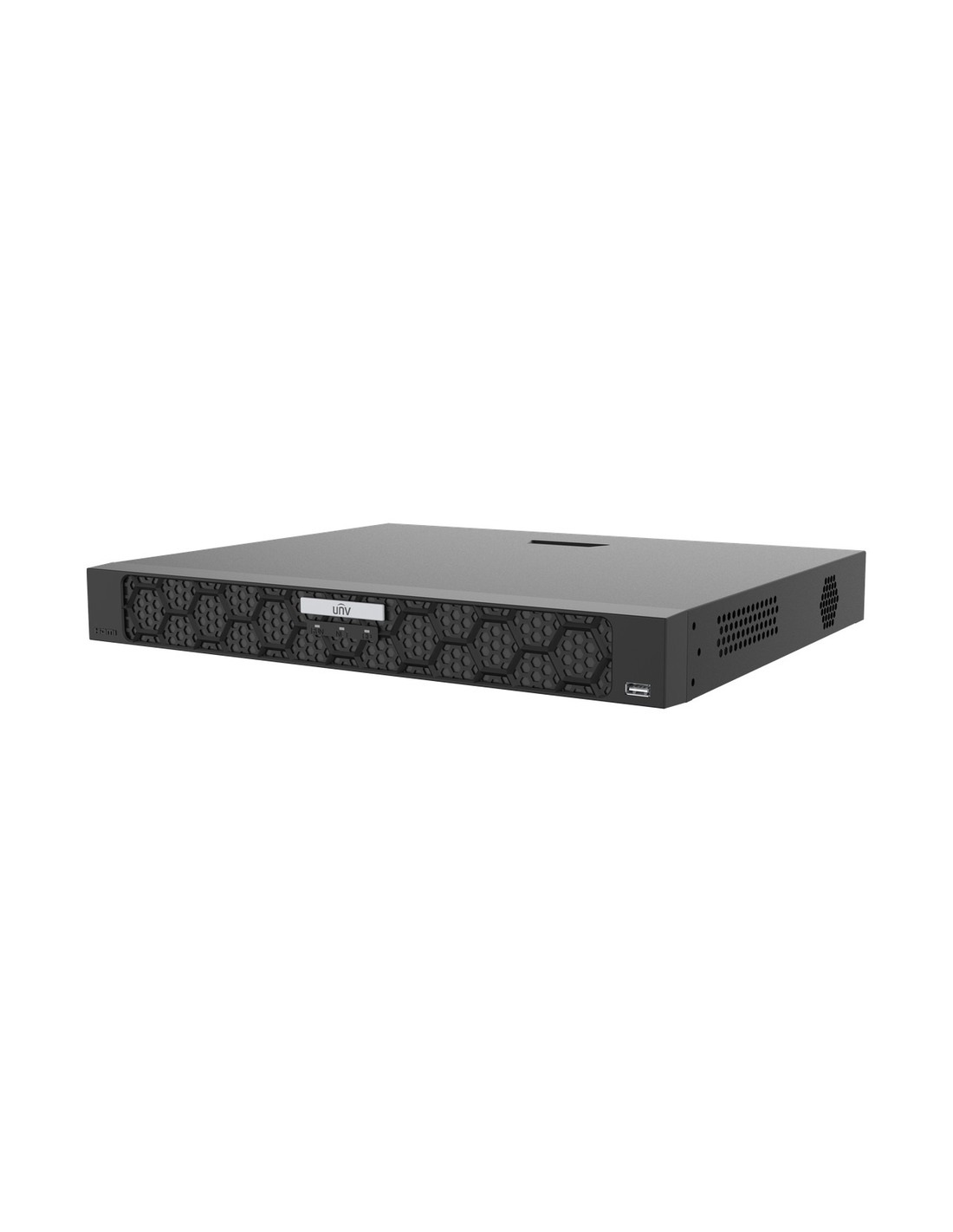

The recorder
The NVR502-16B-P16-IQ: 16 PoE ports, 240 W.
Every camera in the kit plugs into its own PoE port, which carries power and video on one Cat6 cable. The kit draws at most about 80 W of the 240 W budget, and 8 channels are left for more cameras. It records up to 16MP, outputs 4K on HDMI and takes 2 drives of up to 24TB each.

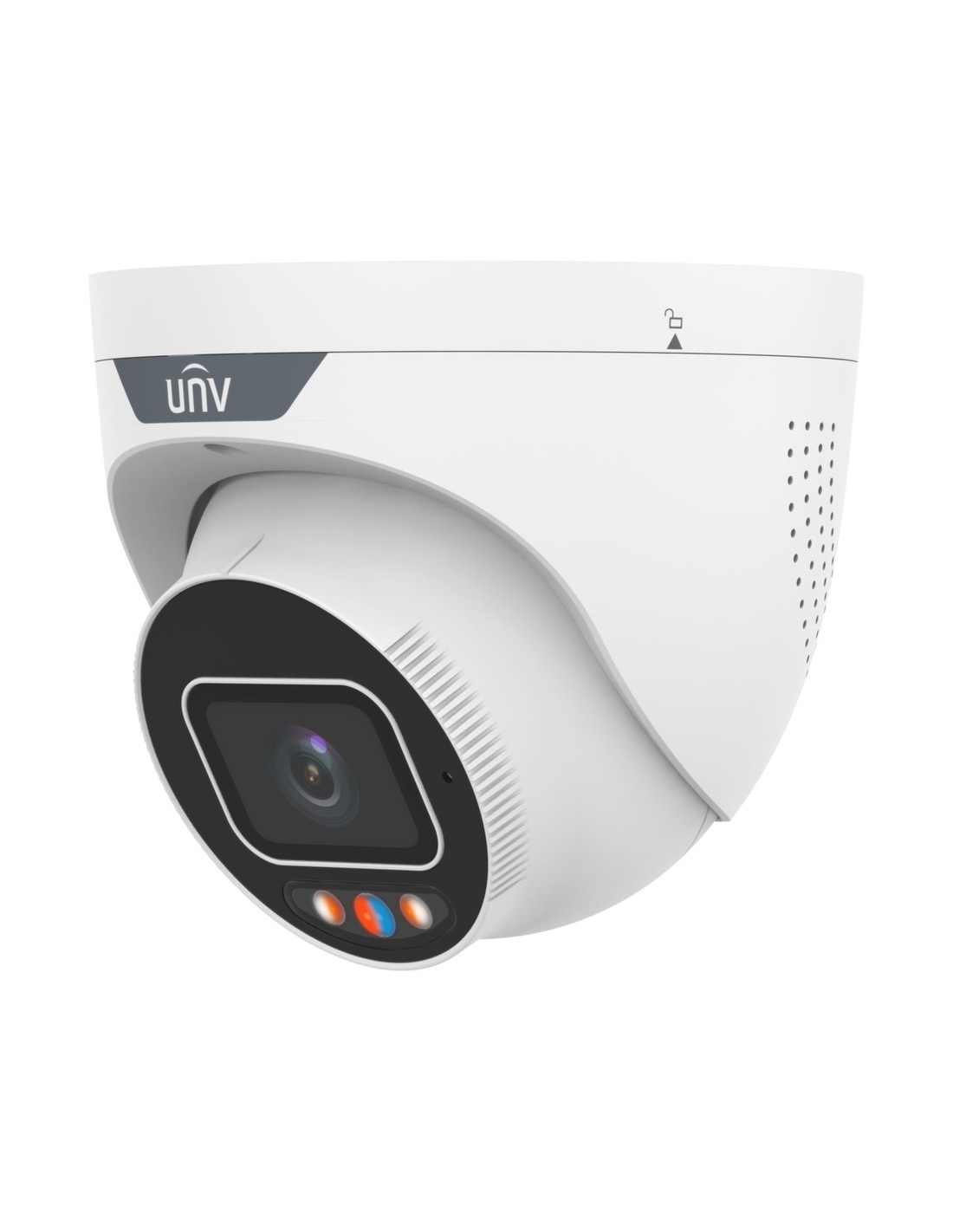

Eight in the kit
Uniview IPC3638SS-ADF28KMC-I1, 8MP 4K Tri-Guard turret.
An eyeball turret that is easy to aim, with no dome cover to catch infrared glare. 8MP 4K with 30 m Smart IR and IP67 weather rating. When it detects a person or vehicle it flashes red and blue warning lights and plays a warning sound, and the built-in speaker and mic give two-way talk from the app.
Active deterrence
Light and sound before anything happens.
Draw a line or zone in the app. When a person or vehicle crosses it, the Tri-Guard flashes its warning light and plays a warning sound, on a schedule you choose.
On your phone
Every camera in the free EZView app.
Scan the recorder’s QR code with the EZView app on iPhone or Android for live view, playback and alerts. No subscription and no monthly fee.
How it goes in
From the box to recording.
01
Plan the positions
Mount cameras about 2.4–3 m high, under eaves where possible, aimed at doors, gates and paths rather than open sky.
02
Run the Cat6
One cable from each camera back to the recorder, up to 100 m. Fit a junction box behind each camera for a neat, sealed join.
03
Connect the recorder
Plug the cameras into the PoE ports, the screen into HDMI and the network port into your router, then power on and follow the wizard.
04
Add the app and zones
Scan the QR code in the EZView app, then draw detection lines and zones so alerts and warnings only fire for people and vehicles.
At a glance
UV-K1608-TG8
Show specs
Kit code
UV-K1608-TG8
Recorder
Uniview NVR502-16B-P16-IQ, 16 channels, 16 PoE ports (240 W)
Cameras
8 × Uniview IPC3638SS-ADF28KMC-I1 8MP 4K Tri-Guard turret
Spare channels
8 for more cameras
Camera resolution
8MP 4K
Night vision
Smart IR up to 30 m
Deterrence
Warning light, warning sound and two-way talk on the Tri-Guard cameras
PoE power used
About 80 W of 240 W at most
Storage
No HDD standard; 2, 4, 6 or 8TB option. 2 bays, up to 24TB each
Compression
Ultra 265, H.265, H.264
Display
HDMI up to 4K, VGA up to 1080p
Network
Gigabit
Phone app
EZView app, iOS and Android, no fees
Warranty
3 years
Pair it with
What goes with it
Cabling
Cat6 305 m box
Solid-copper Cat6 for PoE runs of up to 100 m to each camera.
Mounting
Junction boxes
TR-JB03-H-IN for the Tri-Guard Turret: hides the cable join and seals it from the weather.
Viewing
24" CCTV monitor
A Full HD screen with HDMI and speakers, rated for 24/7 viewing.
Where it is used
Where this kit fits
Car yards and depots
Warn people off vehicles and equipment.
Large homes and estates
Every door and boundary.
Schools and clubs
After-hours grounds and buildings.
Compared with similar kits
| Tri-Guard Fortress | Tri-Guard Perimeter | Business Pro 4K | |
|---|---|---|---|
| Cameras | 8 × 8MP 4K Tri-Guard turret | 2 × 8MP 4K Tri-Guard bullet, 4 × 8MP 4K Tri-Guard turret | 2 × 8MP 4K Tri-Guard bullet, 4 × 8MP 4K Tri-Guard turret, 6 × 8MP 4K LightHunter dome |
| Recorder | NVR502-16B-P16-IQ | NVR501-08B-P8-IQ | NVR502-16B-P16-IQ |
| Spare channels | 8 | 2 | 4 |
| Light and sound deterrence | Yes | Yes | Yes |
| Night vision range | 30 m | 40 m | 40 m |
Every Uniview kit records Ultra 265, works with the EZView app and carries a 3-year warranty. Camera figures from the Uniview datasheets.
Common questions
Can I use two drives?
Yes. The NVR502-16B-P16-IQ has two drive bays. The kit options fit one drive; add a second the same size later for twice the recording time.
Is a hard drive included?
Choose it in the options: No HDD, or a 2, 4, 6 or 8TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive.
How many days will it record?
As a rough guide, each 4K camera recording around the clock with Ultra 265 uses about 25–40GB a day, so 8 cameras keep roughly 12–20 days on 4TB. Recording on motion, or at a lower bitrate on quiet cameras, stretches that a long way.
Is the cable included?
No, because every site needs a different length. Each camera needs its own Cat6 run of up to 100 m back to the recorder; a 305 m Cat6 box covers most homes.
Do the cameras need power points?
No. The recorder powers every camera through the Cat6 cable (PoE), so the only power point needed is at the recorder.
Can I add more cameras later?
Yes. There are 8 spare channels on the NVR502-16B-P16-IQ, and any Uniview camera plugs straight in.
Can I watch it on my phone?
Yes. Connect the recorder to your router and scan its QR code in the free EZView app for live view, playback and alerts on iPhone and Android. There are no monthly fees.
Can I install it myself?
Many customers do: each camera needs one cable and the recorder finds the cameras automatically. In Australia, Cat6 run inside walls and ceilings should be installed by a registered cabler.
Will it work with cameras I already own?
Usually. ONVIF (Profile S, G or T) and RTSP cameras record on the NVR502-16B-P16-IQ, with basic motion events; smart events come from Uniview cameras.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Want to change a camera or add more? Call 1300 736 970 or email [email protected] with your layout and we will put together the right mix.
Installation and safety
Power. Use only the power supply supplied with the recorder. Power off before fitting or removing a hard drive.
Placement. Keep the recorder indoors between −10 °C and 55 °C with space around its vents, somewhere secure so a thief cannot take the footage with it. Cameras are rated IP67 for outdoor use.
Privacy. Aim cameras at your own property. Recording audio and filming neighbours or public areas are covered by state surveillance laws.
Figures. From the Uniview datasheets for each component. Uniview 3-year manufacturer warranty, handled in Australia through us.
