Grandstream 4X4 802.11AX WI-FI 6 Outdoor Long Range Access Point up to 300M - GR-GWN7664ELR
Grandstream GWN7664ELR: an IP68 outdoor Wi-Fi 6 access point with 4x4:4 on both bands, up to 300 m coverage and 2.5G copper and fibre ports.
- ✓AX6000 Wi-Fi 6, 4×4:4 on 2.4 and 5 GHz
- ✓Coverage up to 300 m, 512 clients
- ✓1 × 2.5G RJ45 (PoE+) and 1 × 2.5G SFP
- ✓IP68-level, −30 °C to 60 °C
- ✓Wall or pole mount, 60° adjustment
- ✓PoE+ 802.3at, max 24 W
Description

Outdoor Wi-Fi 6 to 300 m.
4x4 on both bands, IP68.
The GWN7664ELR is a long-range outdoor access point for yards, campuses and car parks: dual-band 4x4:4 MU-MIMO, up to 6 Gbps wireless, 512 clients, and a 2.5G network port plus a 2.5G SFP port.
In one sentence: the Grandstream GWN7664ELR is an IP68 outdoor AX6000 Wi-Fi 6 access point with 4x4:4 MU-MIMO on 2.4 and 5 GHz, up to 300 m coverage, 512 clients, a 2.5G PoE+ port and a 2.5G SFP port.
Access point only. PoE+ power and cabling are separate.
This listing is one GWN7664ELR. It runs from an 802.3at PoE+ port, so it needs a PoE+ switch or injector and an outdoor-rated cable run.
- GWN7664ELR outdoor Wi-Fi 6 access point
- Mounting kits for wall or pole
- Quick installation guide
- An 802.3at PoE+ switch port or injector (up to 24 W)
- Outdoor-rated Cat5e or Cat6 cable to the access point
- An SFP module and fibre if you use the SFP port
One access point for a whole yard.
Eight internal antennas and 4x4:4 MU-MIMO with OFDMA on both bands push coverage out to 300 m in open space and serve up to 512 devices at once. The IP68-rated housing works from −30 °C to 60 °C, so it can go on an exposed wall or pole.

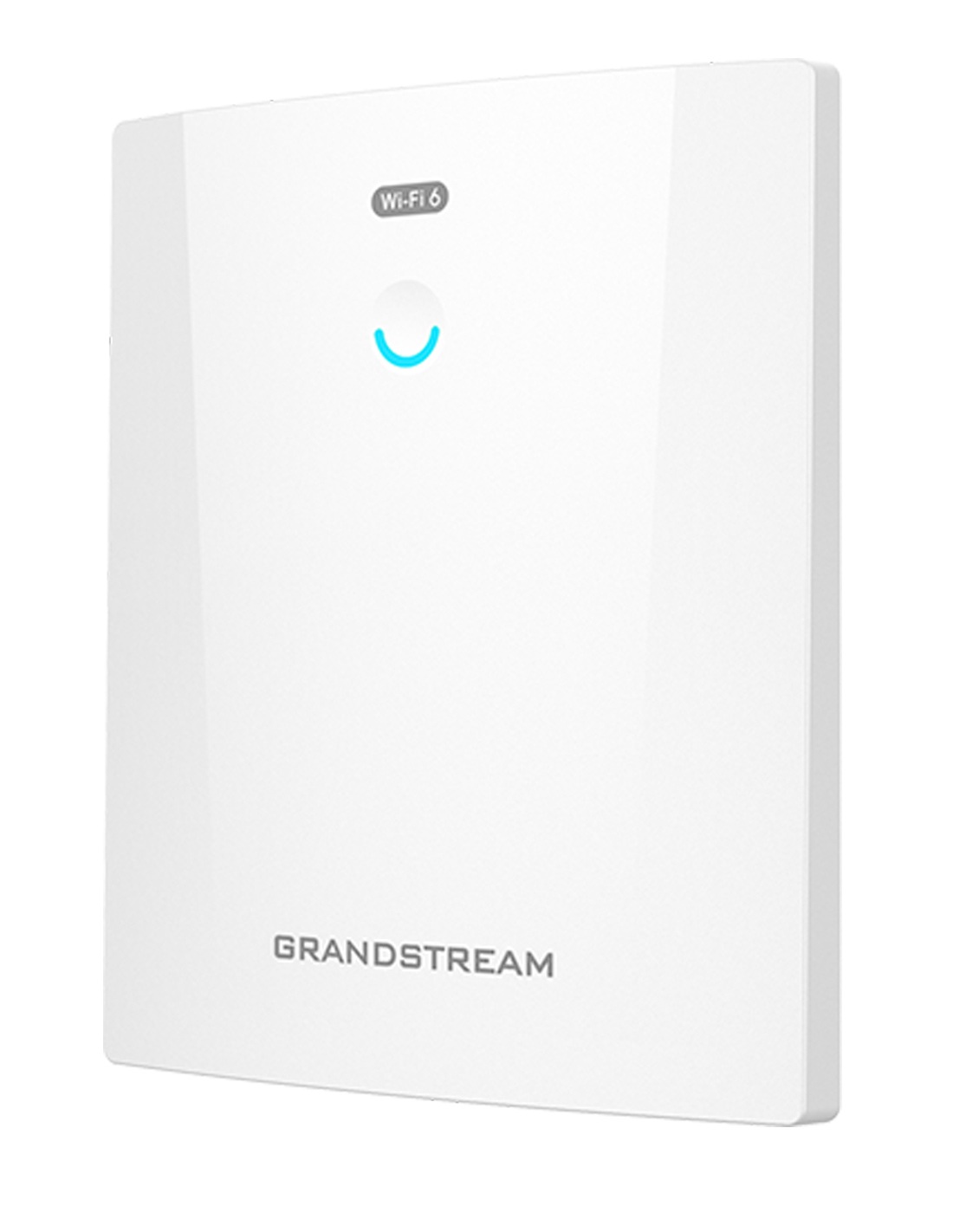

Front
Antennas inside, nothing to snap off.
Eight internal antennas: 5.5 dBi on 2.4 GHz and 6.5 dBi on 5 GHz. Up to 4804 Mbps on 5 GHz and 1147 Mbps on 2.4 GHz. The tri-colour LED shows status and helps you find the unit.

Back
Wall or pole, 60° of adjustment.
The wall and pole mounting kits come in the box and can be rotated and adjusted by 60° to aim the coverage. The unit is 260 × 310 × 59 mm and weighs 1.445 kg.

Ports
2.5G copper and 2.5G fibre.
On the underside: the 2.5G RJ45 port that also takes PoE+ power, the reset button, the SFP light and the 2.5G SFP port for a fibre uplink over longer distances.
How it goes in
From pole to Wi-Fi.
01
Plan the spot
Pick a wall or pole with a clear view of the area. Coverage is up to 300 m in open space.
02
Run the cable
Outdoor-rated Cat5e or Cat6 from an 802.3at PoE+ port, or fibre to the SFP port if the run is long.
03
Mount and aim it
Fix the included wall or pole kit, fit the access point and adjust it up to 60° towards the area to cover.
04
Set up the network
Adopt it in GWN.Cloud, GWN Manager or a GWN access point's embedded controller, then create your SSIDs.
At a glance
GWN7664ELR
Show specs
Wi-Fi standard
IEEE 802.11 b/g/n/ac/ax, Wi-Fi 6, AX6000
MIMO
4×4:4 on 2.4 GHz and 5 GHz, MU-MIMO with OFDMA
Wireless speed
5 GHz up to 4804 Mbps; 2.4 GHz up to 1147 Mbps (6 Gbps total)
Frequency bands
2.4 GHz: 2400–2483.5 MHz; 5 GHz: 5150–5850 MHz
Channel width
2.4 GHz: 20 and 40 MHz; 5 GHz: 20, 40, 80 and 160 MHz
Antennas
8 internal; 2.4 GHz 5.5 dBi, 5 GHz 6.5 dBi
Max transmit power
2.4 GHz 24.5 dBm; 5 GHz 23.5 dBm (varies by country)
Coverage
Up to 300 m, depending on the site
Clients and SSIDs
512 concurrent clients; 32 SSIDs, 16 per radio
Network ports
1 × 2.5G RJ45 (PoE+ in); 1 × 2.5G SFP
Security
WPA/WPA2-PSK, WPA/WPA2 Enterprise, WPA3; secure boot, unique certificate and random default password
QoS and protocols
802.11e/WMM, VLAN, TOS; IPv4, IPv6, 802.1Q, 802.1p, 802.1x
Management
Embedded controller for up to 50 GWN APs; GWN.Cloud; GWN Manager for up to 3,000 APs
Power
PoE+ 802.3at; max 24 W
LEDs and buttons
1 tri-colour status LED, 1 SFP LED; reset button
Weatherproofing
IP68-level
Mounting
Wall or pole, kits included, adjustable by 60°
Size and weight
260 × 310 × 59 mm; 1.445 kg
Operating range
−30 °C to 60 °C; humidity 10% to 90% non-condensing
Compliance
FCC, CE, RCM, IC
Pair it with
What this access point does not include
Power
An 802.3at PoE+ port
It needs PoE+, not plain 802.3af PoE, and draws up to 24 W. The Grandstream GWN7801P Pro gives eight PoE+ ports.
Cabling
Outdoor-rated cable
UV-stable Cat5e or Cat6 for the run to the pole or wall, within the usual 100 m Ethernet limit.
Fibre
An SFP module
Optional, for the 2.5G SFP port when the building is too far for copper. Ask us which module suits.
Management
GWN.Cloud or GWN Manager
Free from Grandstream, to run indoor and outdoor GWN access points as one network.
Where it is used
Where a long-range outdoor AP fits.
Warehouses and yards
Scanners and tablets across loading docks and storage yards.
School grounds
Playgrounds, quads and sports areas between buildings.
Hospital and business campuses
Outdoor walkways and courtyards between multi-storey buildings.
Car parks
Coverage for payment terminals and staff devices across open lots.
Hospitality
Beer gardens, pool areas and outdoor dining with guest Wi-Fi.
Farms and rural sites
Sheds and yards around the homestead, with fibre to the SFP port for long runs.
GWN7664ELR or GWN7660ELR
| GWN7664ELR (this access point) | GWN7660ELR | |
|---|---|---|
| MIMO | 4×4:4 on both bands | 2×2:2 on both bands |
| Aggregate wireless | 6 Gbps | 3 Gbps |
| Concurrent clients | 512 | 256 |
| Network ports | 2.5G RJ45 and 2.5G SFP | 1G RJ45 and 2.5G SFP |
| Bluetooth | Not listed | BLE 5.2 |
| Power | PoE+ 802.3at, max 24 W | PoE 802.3af or 802.3at, max 13 W |
| Coverage | Up to 300 m | Up to 300 m |
| Weatherproofing | IP68-level | IP68-level |
| Unit size | 260 × 310 × 59 mm | 270 × 230 × 57 mm |
Figures from Grandstream's GWN7664ELR datasheet (07.2024.01) and GWN7660ELR datasheet (10.2025 v1).
Common questions
Can the GWN7664ELR go outside?
Yes. It is built for outdoor use with IP68-level weatherproofing and runs from −30 °C to 60 °C.
How far does it reach?
Grandstream quotes up to 300 m. Trees, buildings and interference shorten that, so plan the spot with a clear view of the area.
Is a power supply included?
No. It is powered over the network cable from an 802.3at PoE+ switch port or injector, drawing up to 24 W.
Will a normal PoE (802.3af) port run it?
No. Grandstream lists 802.3at PoE+ for this model. Use a PoE+ port or injector.
How many devices can connect?
Up to 512 concurrent clients, across up to 32 SSIDs (16 per radio).
What does the SFP port do?
It takes an SFP module for a 2.5G fibre uplink, useful when the access point is further from the switch than copper cable allows.
Can it mount on a pole?
Yes. Wall and pole mounting kits come in the box, and the bracket rotates and adjusts by 60° to aim the coverage.
Do I need a controller?
No. The controller is built in and can manage up to 50 GWN access points. GWN.Cloud is free, and GWN Manager runs on your own server for up to 3,000.
Does it have Bluetooth?
Bluetooth is not listed on the GWN7664ELR datasheet. The GWN7660ELR lists BLE 5.2.
Does it support mesh?
Yes. Grandstream lists mesh networking, captive portals and advanced QoS for this model.
What is the difference from the GWN7660ELR?
The GWN7664ELR is 4x4 on both bands with 6 Gbps, 512 clients and a 2.5G RJ45 port. The GWN7660ELR is 2x2 with 3 Gbps, 256 clients, a 1G port and BLE 5.2.
Who can install the cable?
Concealed and outdoor data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Supported by InFront Technologies.
Help planning outdoor coverage, PoE+ power or a fibre uplink: call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.
Installation and safety
Low-voltage device. Powered by 802.3at PoE+ over the data cable, up to 24 W. There is no mains connection on the access point.
Cabling. Outdoor and concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. Use outdoor-rated cable and seal the entry.
Working at height. Pole and high-wall mounting needs safe access equipment. The unit weighs 1.445 kg.
What it does not do. No DC power input and no power pack, no 802.3af-only operation, and no 6 GHz (Wi-Fi 6E) radio.
Figures. From Grandstream's GWN7664ELR datasheet (07.2024.01). Coverage and speed depend on the site.
