Uniview 4MP 5x Tri-Guard PTZ Camera, 2.7-13.5mm, 40m Warm Light, Auto Tracking, Mic & Speaker - IPC6324LWH-AX5C-VG2
IPC6324LWH-AX5C-VG2
In stock $ 400.00
inc-GST
or 4 interest-free payments of $100.00 with
A compact 4MP Tri-Guard PTZ with a 5× F1.2 zoom, colour night video with 40 m warm light, auto tracking of people, smart intrusion prevention and two-way audio on one PoE+ cable.
- ✓4MP, 5× optical zoom
- ✓ColorHunter, 40 m warm light
- ✓Auto tracking of people
- ✓Mic and speaker
- ✓1024 presets, 16 patrols
- ✓PoE+ (802.3at), max 25.4 W
Uniview · Tri-Guard · 4MP · 5× PTZ
A compact PTZ
that follows people in colour.
This is the Uniview IPC6324LWH-AX5C-VG2. A compact 4MP PTZ with a 5× zoom and an F1.2 ColorHunter lens. Its warm light keeps night footage in colour to 40 m, and when someone enters a zone it turns and follows them.
In one sentence: the IPC6324LWH-AX5C-VG2 is a 4MP (2688 × 1520) Tri-Guard PTZ with a 2.7–13.5 mm F1.2 lens, 5× optical zoom, ColorHunter, 40 m warm light, auto tracking of people, smart intrusion prevention, built-in mic and speaker, 1024 presets, IP66, powered by PoE+ or 12 V DC.
Needs a PoE+ port.
One Cat6 cable carries video and power from a PoE+ switch or NVR. Uniview lists the TR-JB07-D-IN junction box, TR-CM06-D ceiling mount and TR-UP06 pole adapters for it.
In the box
- IPC6324LWH-AX5C-VG2 camera
- Waterproof cable parts
- Quick guide
You also need
- A PoE+ (802.3at) port, or a 12 V DC supply
- Cat6 cable to the camera
- TR-JB07-D-IN junction box or a TR-UP06 pole adapter, if needed
- A microSD card up to 512GB, to record on the camera
Small enough for a house, smart enough for a yard.
At 2.7 mm it sees 103.25° across, wide enough for a whole driveway. Zoom to 13.5 mm (50.14°) for the gate. Line crossing and intrusion filter people and vehicles, and auto tracking follows a person across the scene.
Design

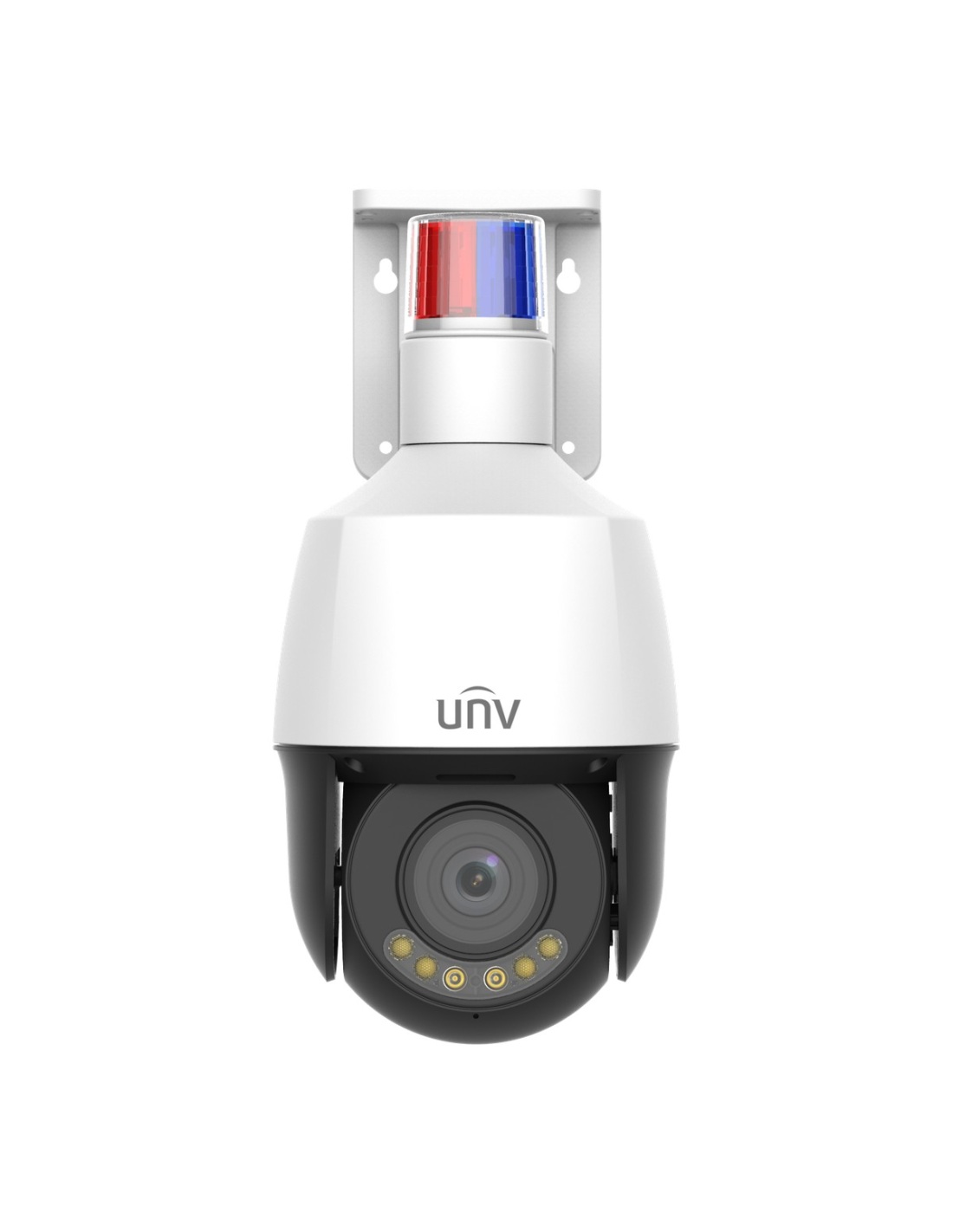

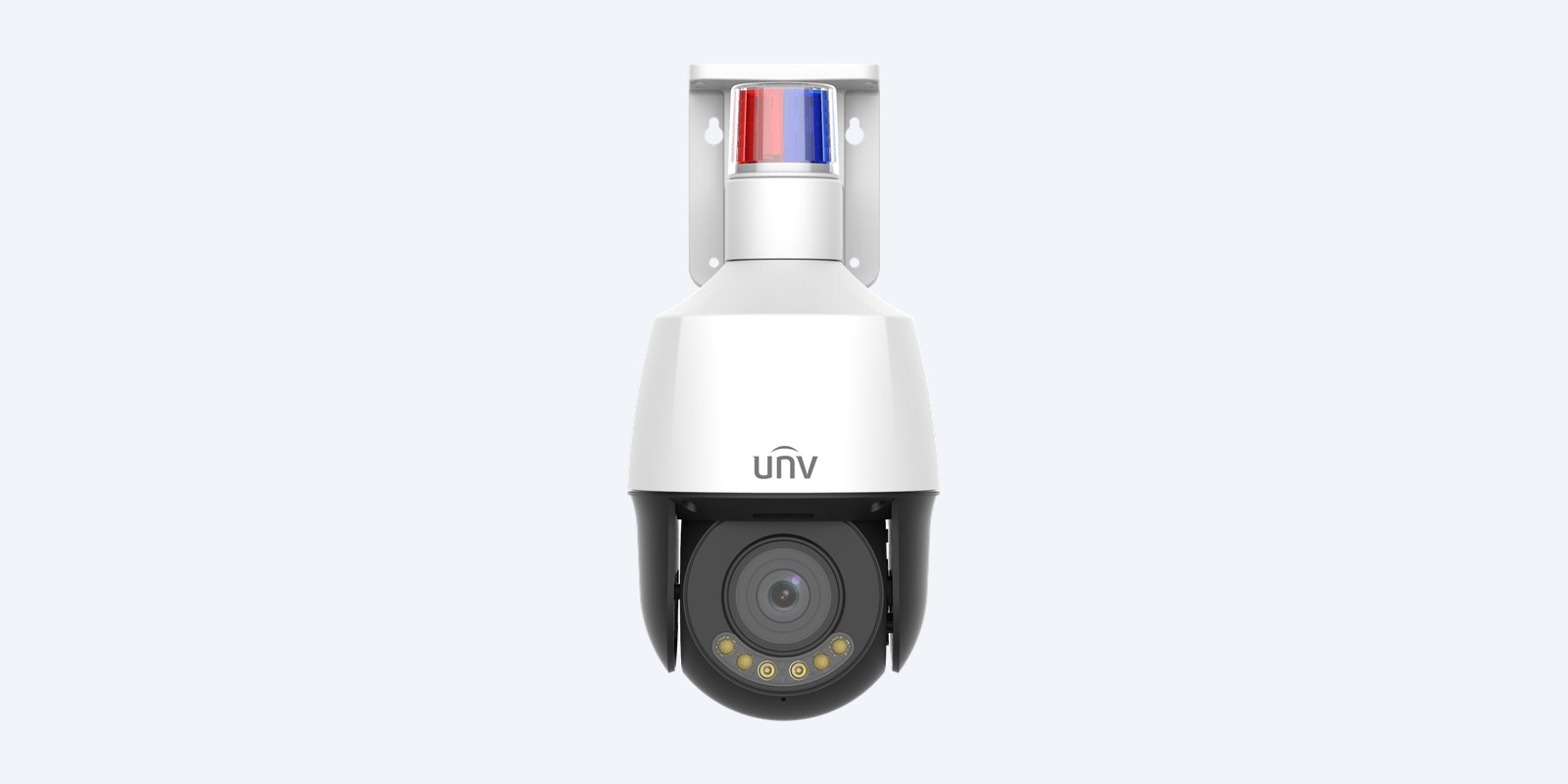

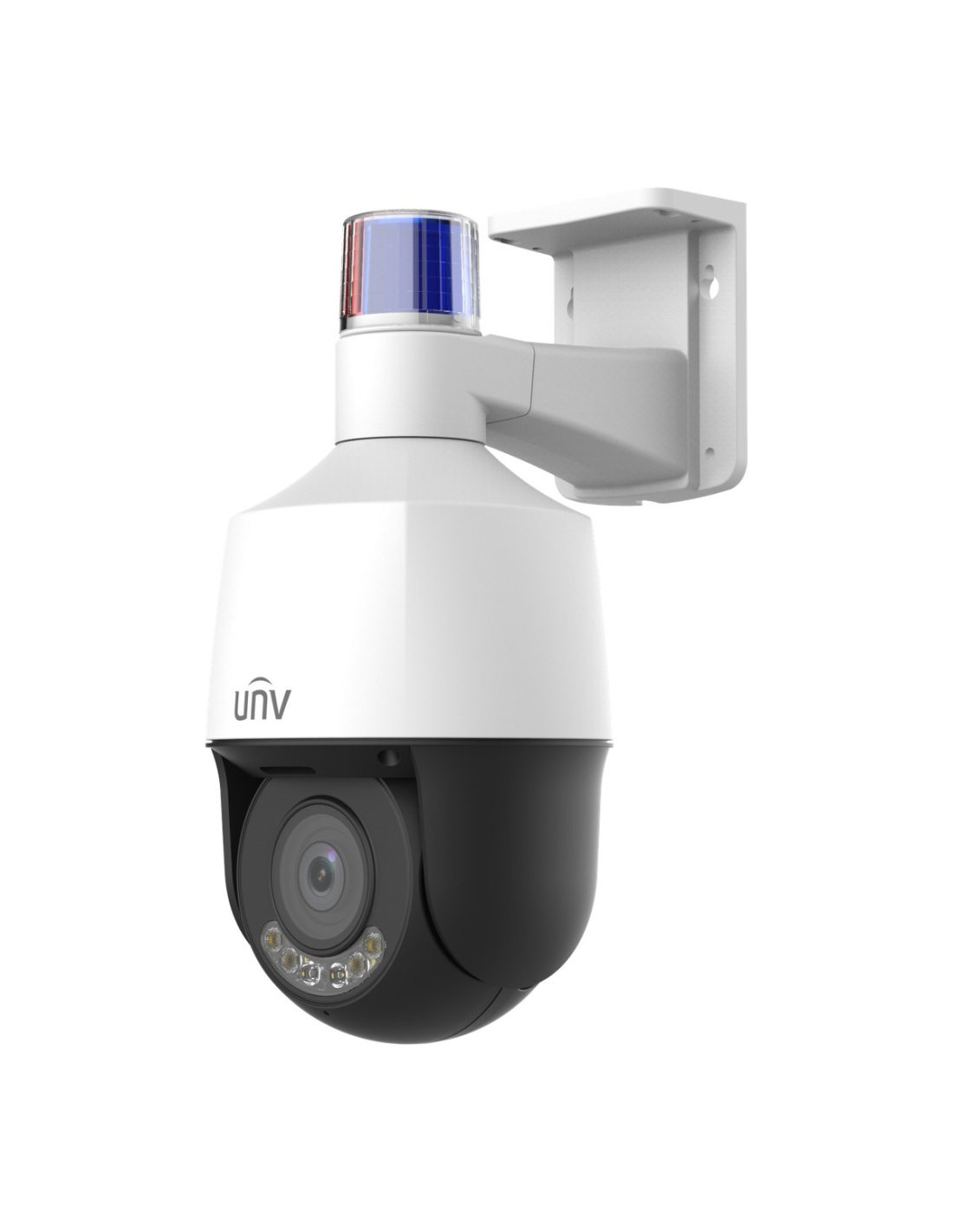

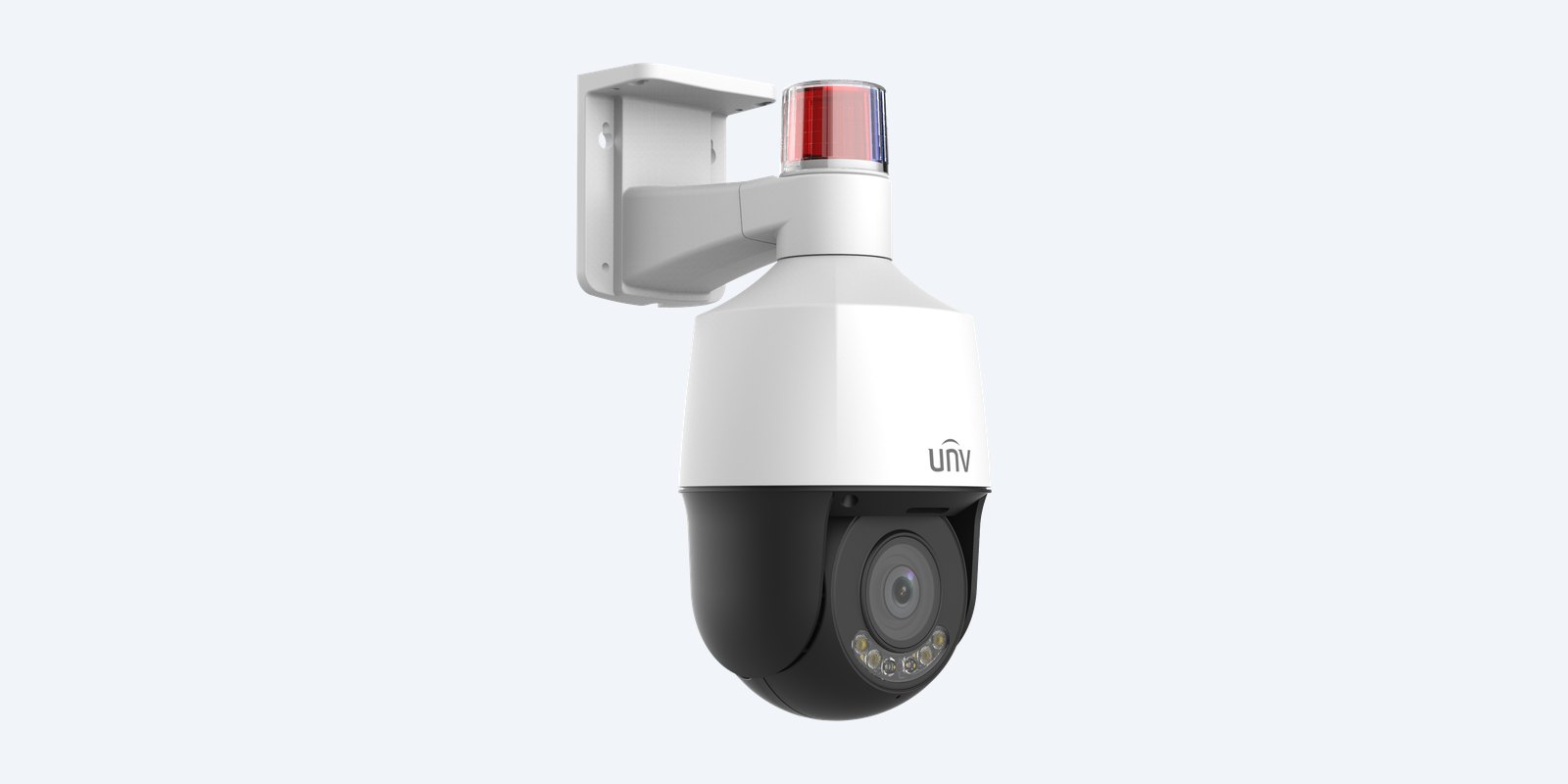

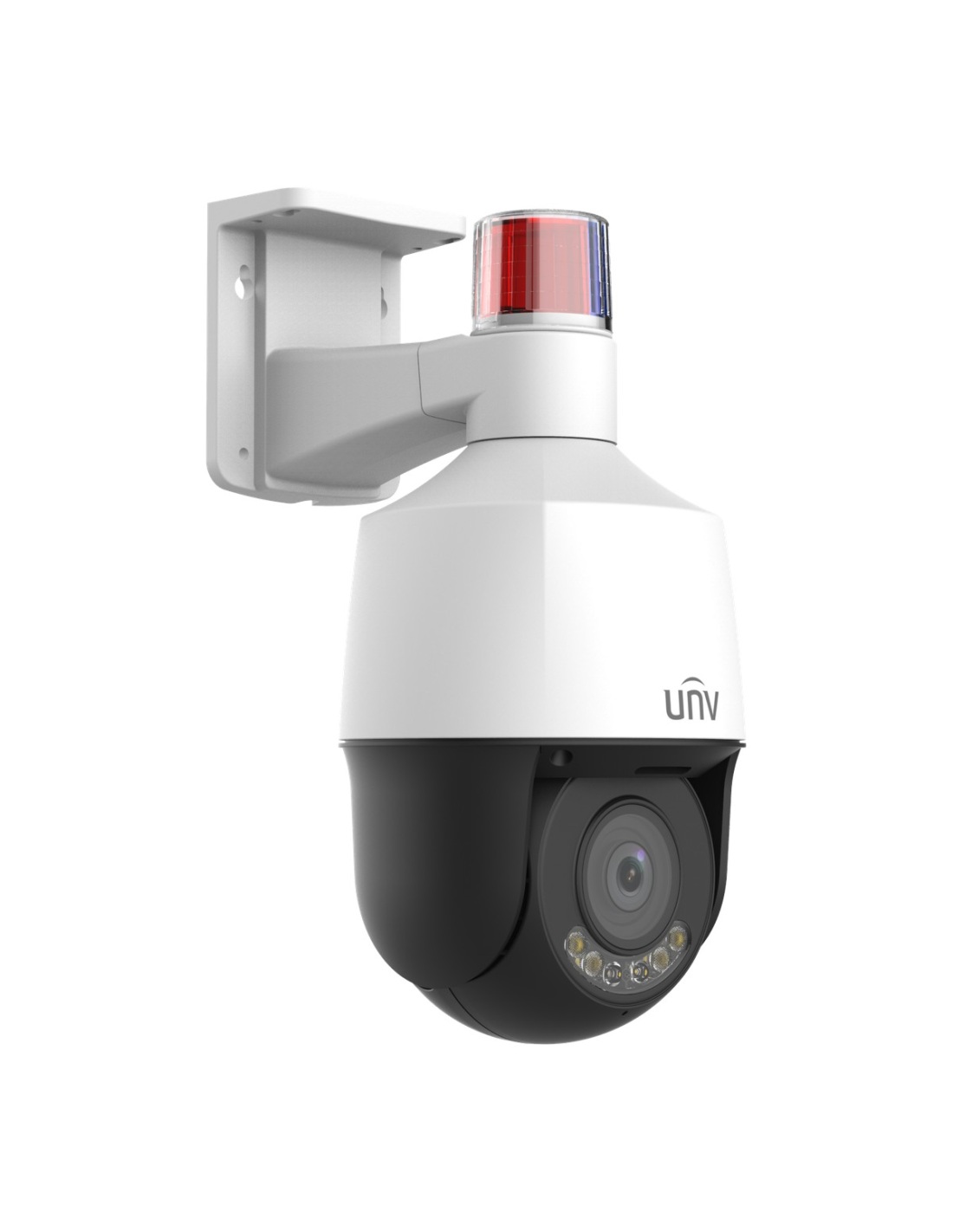

A mini PTZ on a wall bracket.
Warm light sits around the lens for colour at night. A mic and speaker are built in for two-way audio.
Movement
Pan 0–345°, tilt −10° to 100°.
Pan at up to 50°/s and tilt at up to 40°/s, with 1024 presets and 16 patrols.

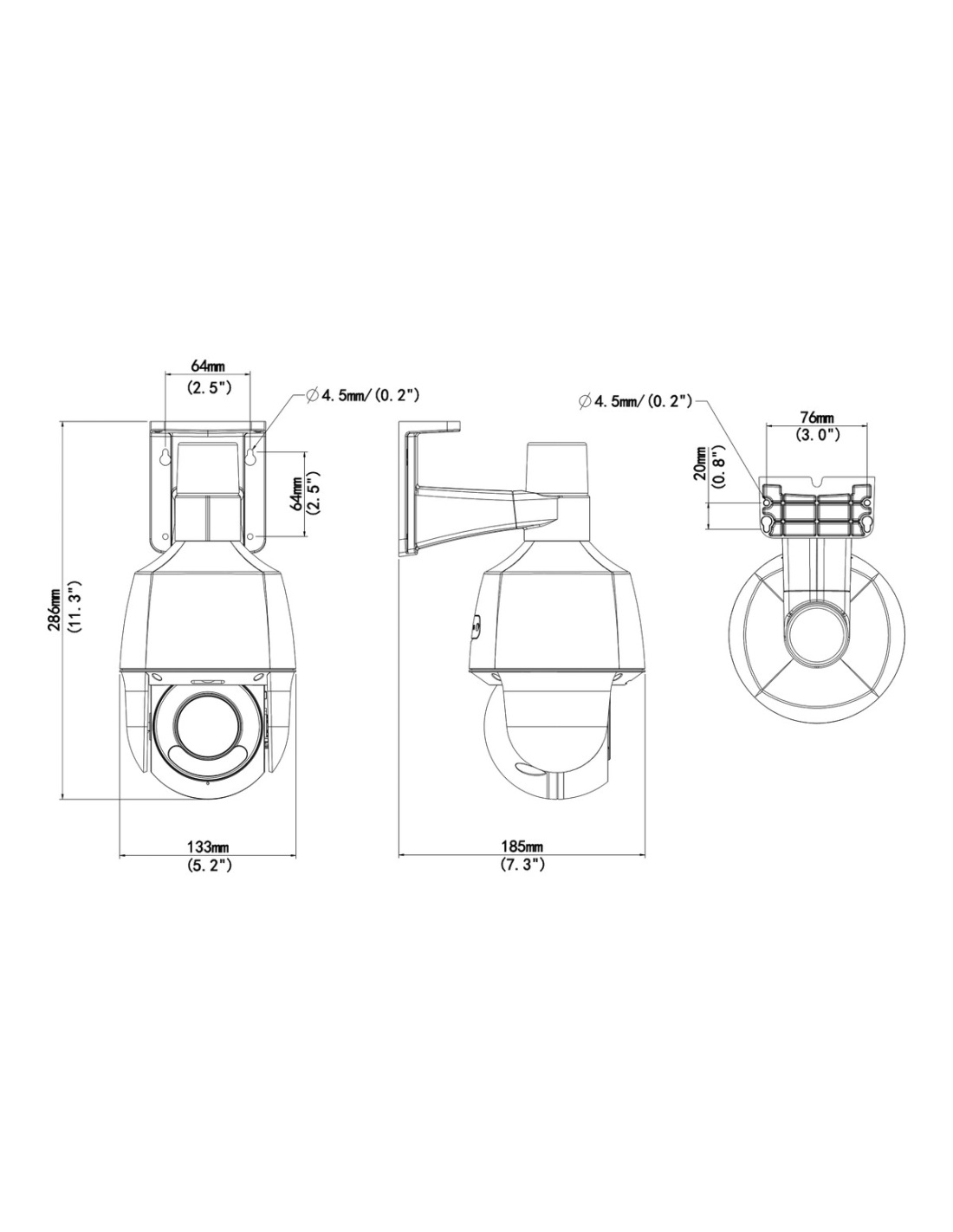

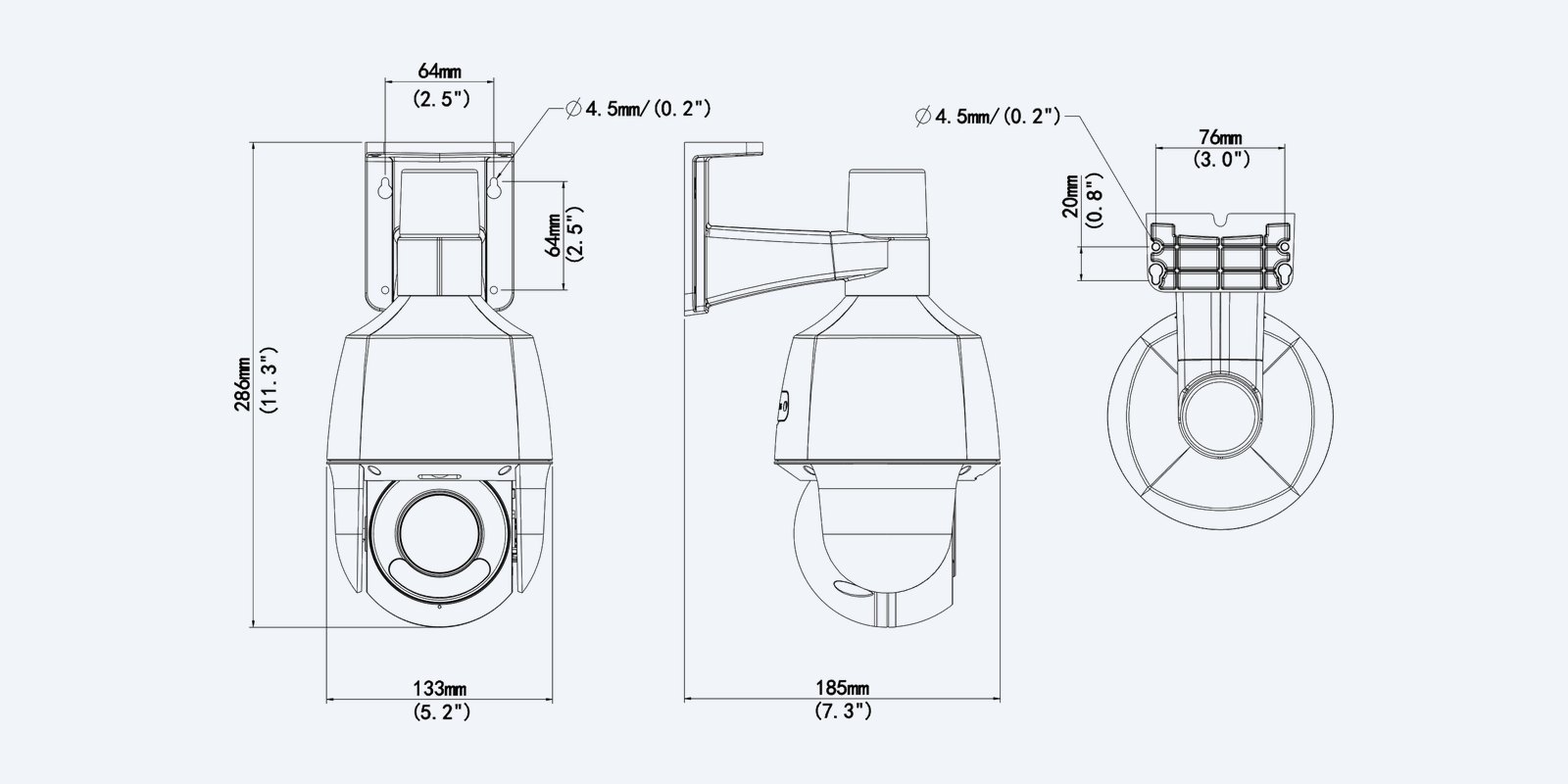

Dimensions
1.33 kg, IP66.
Working from −30 °C to 60 °C, with a heater and 2 kV surge protection.
How it goes in
From the box to patrolling.
01
Plan power and mount
Pick a high point on the wall or a pole. Check you have a PoE+ (802.3at) port.
02
Fix the bracket
Mount the bracket on a solid wall, corner or pole, run the cable through it and hang the camera. Seal the cable joint with the supplied waterproof parts.
03
Power it up
Run Cat6 to a PoE+ port on the switch or NVR, and add it to the NVR or the EZView app.
04
Set presets and rules
Save presets for the gate and driveway, draw the lines and zones, then turn on auto tracking for people.
At a glance
IPC6324LWH-AX5C-VG2
Show specs
Resolution
4MP (2688 × 1520)
Sensor
1/1.8" CMOS
Lens
2.7–13.5 mm, F1.2
Zoom
5× optical
View
103.25° to 50.14° across
Identify / recognise / detect
Identify at 4.2–20.9 m
Low light
0.0005 lux colour (ColorHunter)
WDR
120 dB true WDR
Night vision
Warm light up to 40 m for colour at night
Frame rate
30 fps at 4MP
Compression
Ultra 265, H.265, H.264, MJPEG
Smart detection
Line crossing and intrusion with human and vehicle filtering; auto tracking of people
Audio
Built-in mic and speaker; 1 audio in, 1 out
Pan and tilt
Pan 0–345° at 1–50°/s; tilt −10° to 100° at 1–40°/s
Presets and patrols
1024 presets, 16 patrols
Other connections
Alarm 1 in, 1 out
On-camera storage
microSD up to 512GB; ANR
ONVIF
Profile S, G, T
Network
1 × RJ45 10/100
Power
PoE+ (802.3at) or 12 V DC, max 25.4 W
Weather and impact
IP66, 2 kV surge, heater
Operating
−30 °C to 60 °C, ≤95% RH
Size and weight
133 × 185 × 286 mm with wall bracket, 1.33 kg
Pair it with
What goes with it
Recorder
Uniview PoE NVR
Uniview recorders add the camera over one Cat6 cable, bring in its smart events and keep weeks of footage on their hard drives.
Mounting
TR-JB07-D-IN junction box
Listed by Uniview for this camera.
Poles
TR-UP06-B-IN / TR-UP06-C-IN pole adapter
Listed by Uniview for mounting this camera on a pole.
Cabling
Cat6 cable
Solid copper Cat6 for PoE runs up to 100 m from the switch or recorder.
Where it is used
Where it fits
Homes and driveways
The whole frontage, then zoom on the gate.
Small business yards
Follow people across the yard in colour.
Farms and sheds
Patrol presets around the buildings.
Shop rear lanes
Talk to visitors through the speaker.
Uniview PTZ cameras side by side
| IPC6324LWH | IPC6434LR | IPC6424SR-B | IPC94144SFW | IPC6624SFW | IPC6828EL | |
|---|---|---|---|---|---|---|
| Resolution | 4MP | 4MP | 4MP | 4MP PTZ + 4MP fixed | 4MP, up to 60 fps | 8MP 4K |
| Optical zoom | 5× | 16× | 25× | 25× | 25× | 42× |
| Identify at full zoom | 20.9 m | 204.8 m | 247.5 m | 270 m | 240.8 m | 482.9 m |
| Night vision | 40 m warm light | 100 m IR | 100 m IR | 100 m IR, 30 m warm light | 250 m IR, 100 m warm light | 500 m laser IR |
| Auto tracking | People | People and vehicles | People and vehicles | From the fixed lens | Yes | Yes |
| Warning light and sound | Speaker | — | — | Light and speaker | Red and blue light, speaker | — |
| Power | PoE+ or 12 V, 25.4 W | PoE+ or 12 V, 23 W | PoE+ or 12 V, 21 W | PoE+ or 12 V, 24 W | PoE+ or 24 V, 21.7 W | Hi-PoE or 24 V, 67 W |
| Protection | IP66 | IP66, IK10 | IP67, IK10 | IP66 | IP67, IK10 | IP67 |
| Weight | 1.33 kg | 2.3 kg | 3.05 kg | 2.27 kg | 5.2 kg | 6.9 kg |
Model codes shortened. PoE+ is 802.3at; Hi-PoE is 802.3bt. All record to microSD up to 512GB and take 1024 presets. — means not fitted. Figures from the Uniview datasheets.
Common questions
What is Tri-Guard?
Uniview’s name for cameras that combine smart intrusion prevention, ColorHunter colour night vision and active deterrence. This PTZ has a built-in mic and speaker to talk to visitors.
What does auto tracking follow?
People. When a person is detected, the camera pans, tilts and zooms to keep them in the picture.
Is it colour at night?
Yes. With its F1.2 lens and warm light it records in colour to 40 m.
Can I talk through it?
Yes. It has a built-in mic and speaker for two-way audio from the app or the NVR.
Does it turn all the way round?
It pans 0–345°, so nearly all the way, and tilts from −10° to 100°.
What is a preset and a patrol?
A preset is a saved position with its own pan, tilt and zoom, such as the gate, the loading dock or the car park entry. A patrol moves the camera through a list of presets on a timer, so one camera keeps watch over several spots.
Does it need a bracket?
Yes. A PTZ camera is heavier than a fixed camera and needs a solid wall, corner, ceiling or pole mount. The Uniview mounts listed for it are shown under What goes with it; call us if you are not sure which one suits the site.
Will it work with my recorder?
Uniview NVRs add it and give you pan, tilt and zoom control from the recorder. Other ONVIF (Profile S, G, T) recorders can add it too; smart events and PTZ control depend on that recorder.
Can I control it from my phone?
Yes. In the Uniview EZView app you can watch live, pan, tilt and zoom, jump to presets and play back recordings.
Can it record on its own?
Yes, to a microSD card of up to 512GB. With an NVR, ANR fills any gap from the card when a network drop-out ends.
How is it powered?
By PoE+ (IEEE 802.3at) over one Cat6 cable, or a 12 V DC supply. It draws up to 25.4 W, so a standard 802.3af PoE port is not enough.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Planning a site with panoramic, PTZ or plate cameras? Call 1300 736 970 or email [email protected] with a floor plan or photos and we will suggest the models, mounts and recorder.
Installation and safety
Power. Use a PoE+ (802.3at) port or a regulated 12 V DC supply. The alarm connections are for dry contacts only.
Weather. IP66 with a heater and 2 kV surge protection, rated from −30 °C to 60 °C.
Figures. From the Uniview IPC6324LWH-AX5C-VG2 datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 133 × 185 × 286 mm with wall bracket
- Audio
- Built-in mic and speaker; 1 audio in, 1 out
- Weight
- 1.33 kg
- Operating temperature
- −30 °C to 60 °C, ≤95% RH
- Power
- PoE+ (802.3at) or 12 V DC, max 25.4 W
- Colour
- White
- Video Compression
- Ultra 265, H.265, H.264, MJPEG
- Resolution
- 4MP (2688 × 1520)
- Brand
- Uniview
- Frame Rate
- 30 fps at 4MP
- Interoperability
- Profile S, G, T
- Image Sensor
- 1/1.8" CMOS
- Lens
- 2.7–13.5 mm, F1.2
- Minimum Illumination
- 0.0005 lux colour (ColorHunter)
- Field of View
- 103.25° to 50.14° across
- Protection
- IP66, 2 kV surge, heater
- WDR
- 120 dB true WDR
- Optical Zoom
- 5× optical
- Warranty
- 3 years
- Product Type
- Tri-Guard PTZ IP Camera
- Onboard Storage
- microSD up to 512GB; ANR
- Model
- IPC6324LWH-AX5C-VG2
- Smart detection
- Line crossing and intrusion with human and vehicle filtering; auto tracking of people
- Night Vision
- Warm light up to 40 m for colour at night
- Pan / Tilt
- Pan 0–345° at 1–50°/s; tilt −10° to 100° at 1–40°/s
