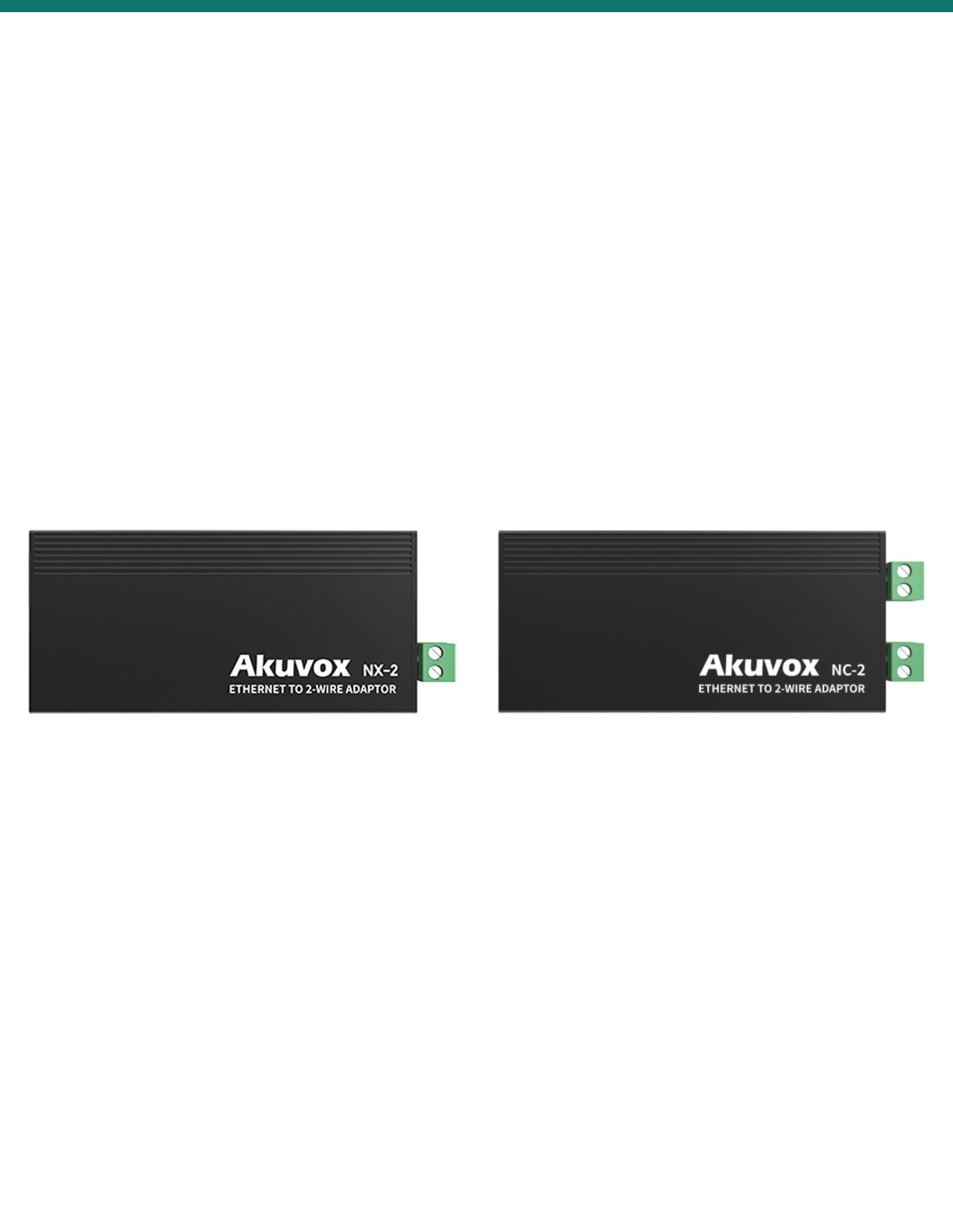

Akuvox NK-2 kit — NX-2 and NC-2 Ethernet to 2-wire adaptors

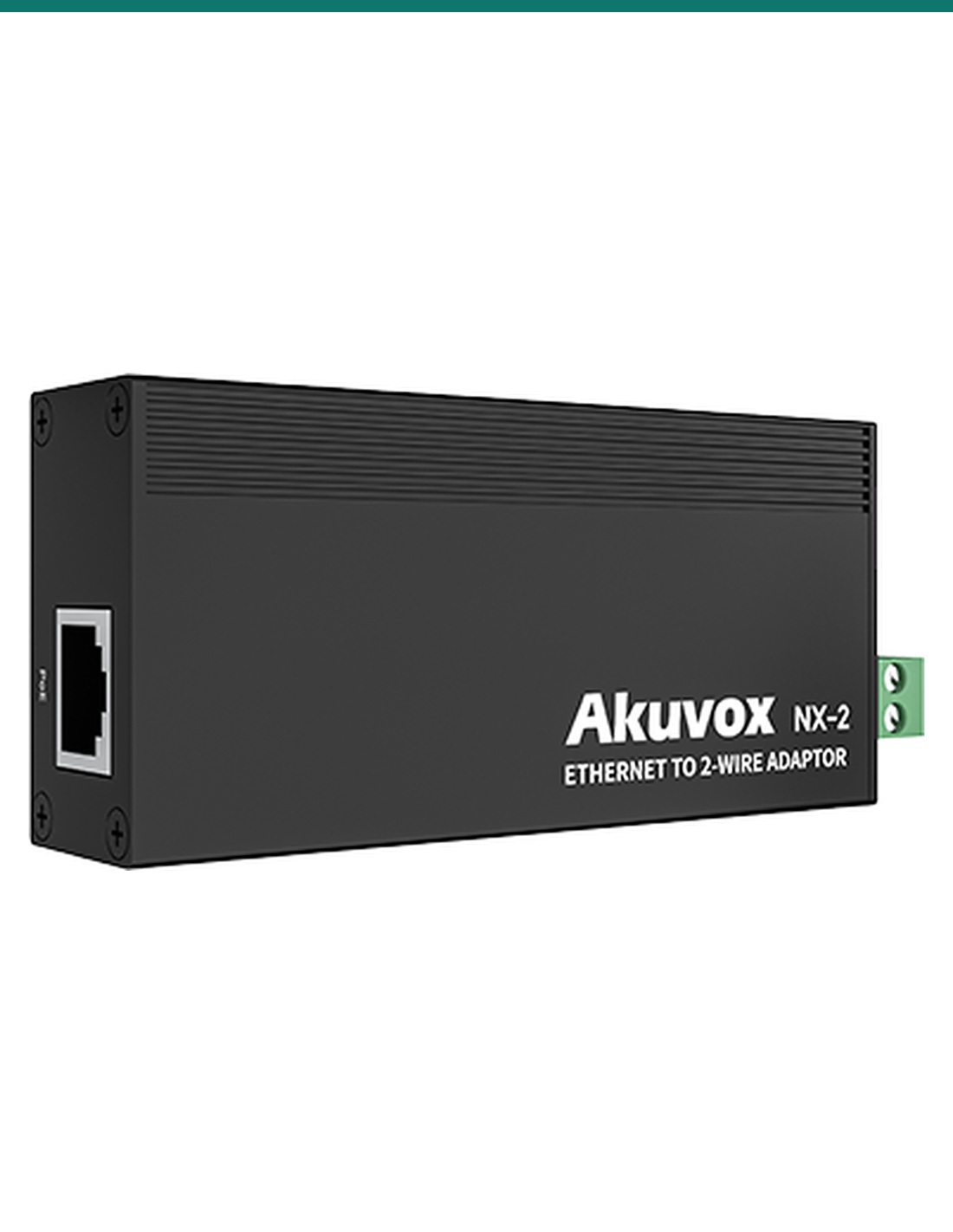

Akuvox NX-2 — RJ45 PoE input end

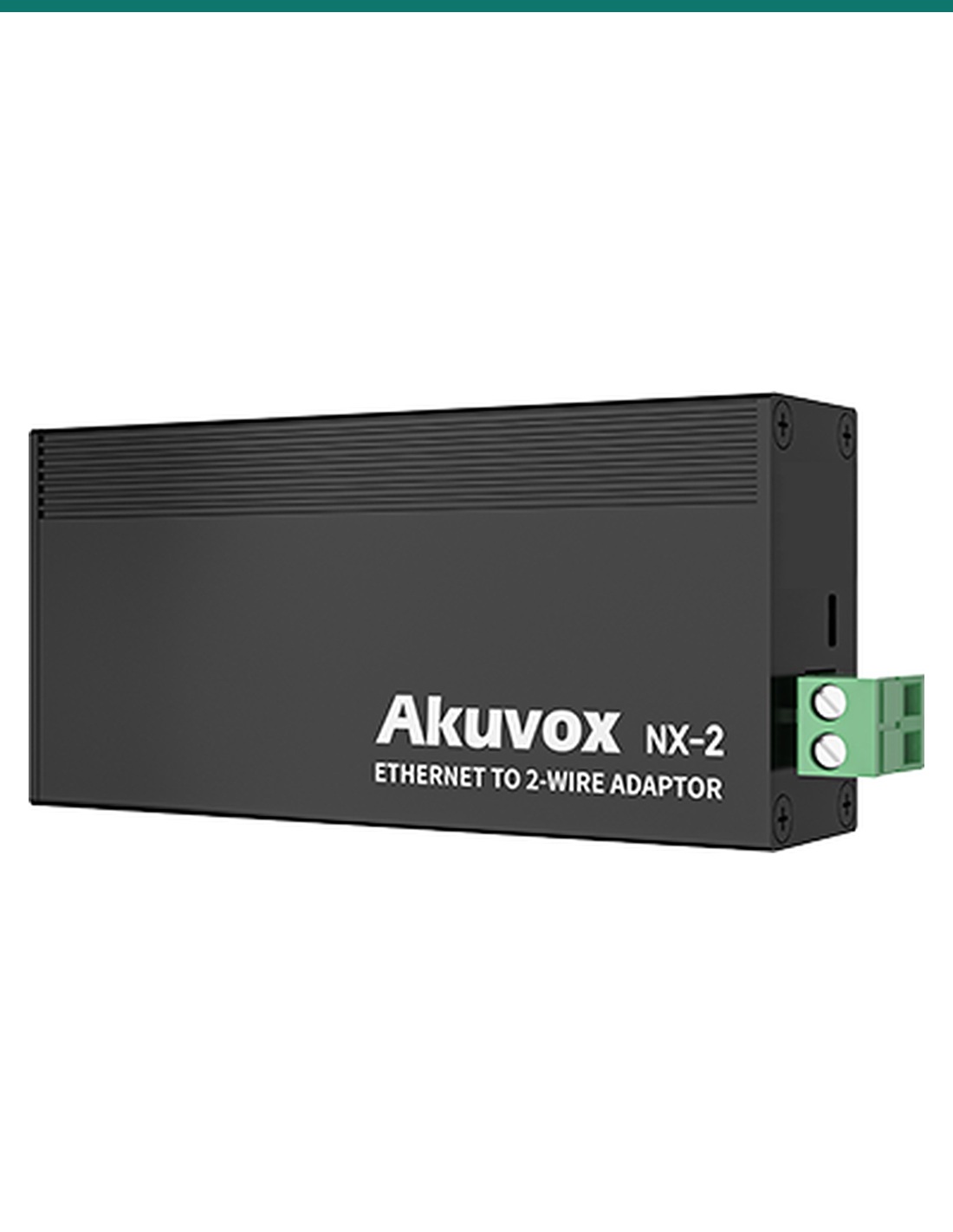

Akuvox NX-2 — 2-wire terminal end

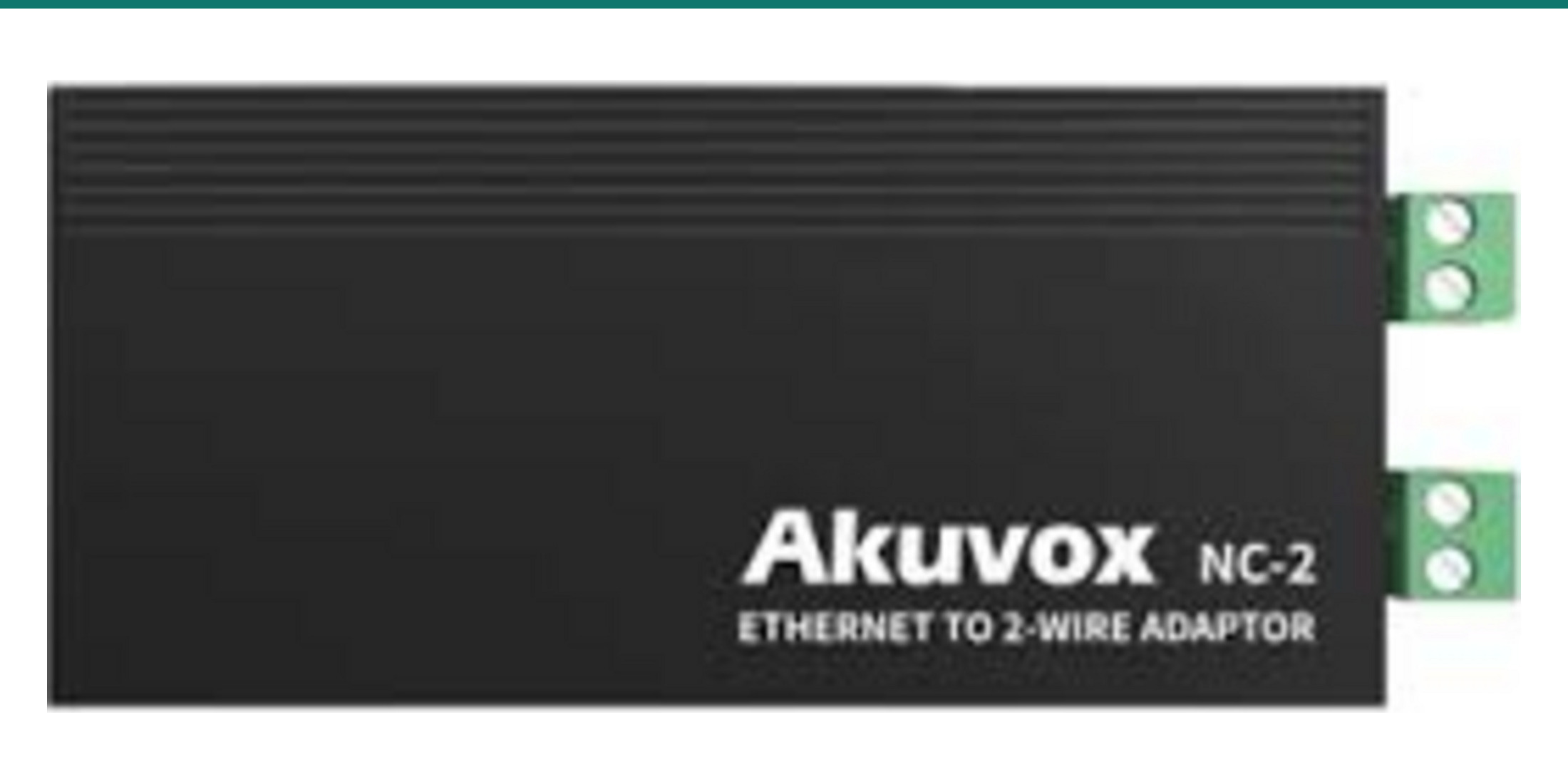

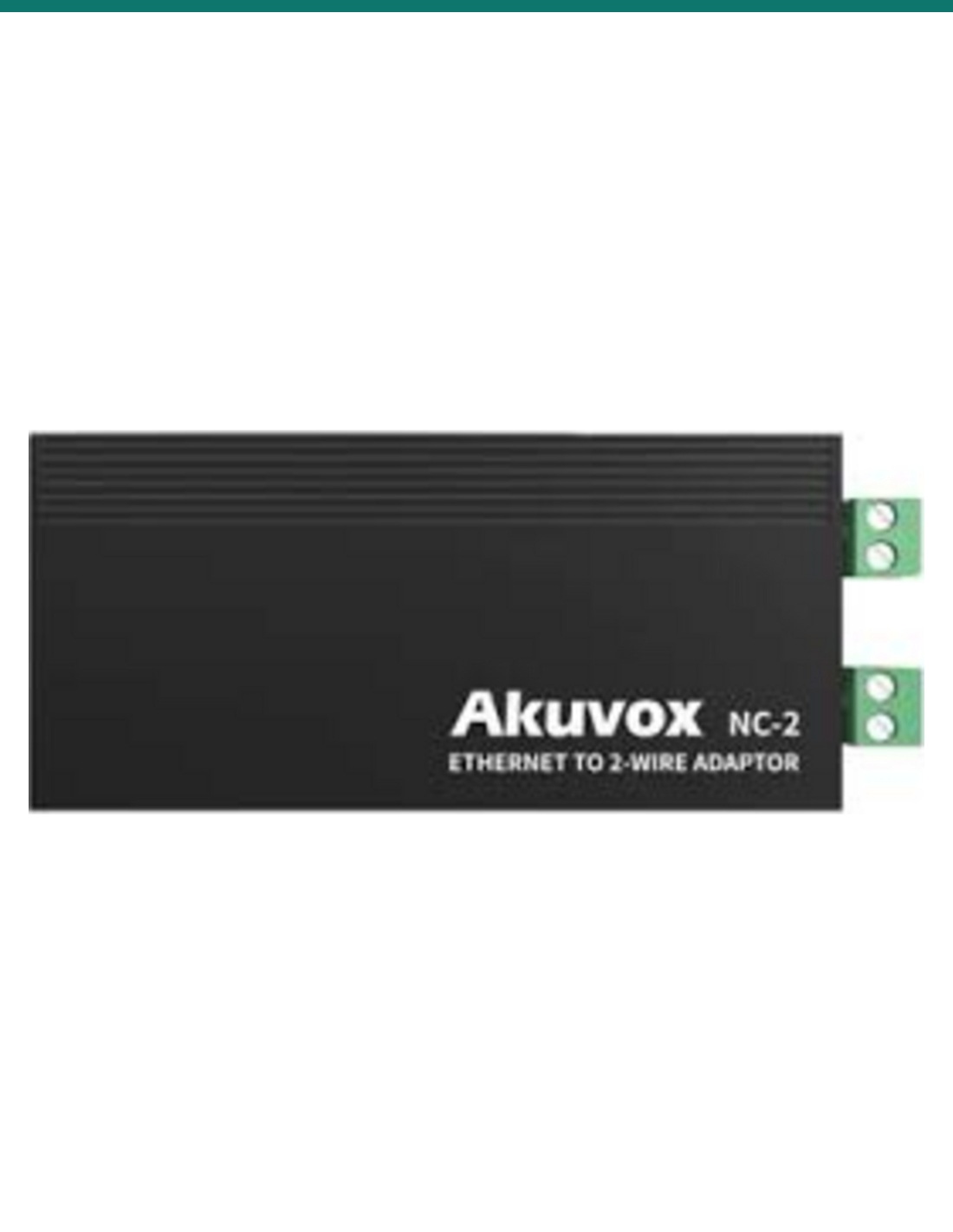

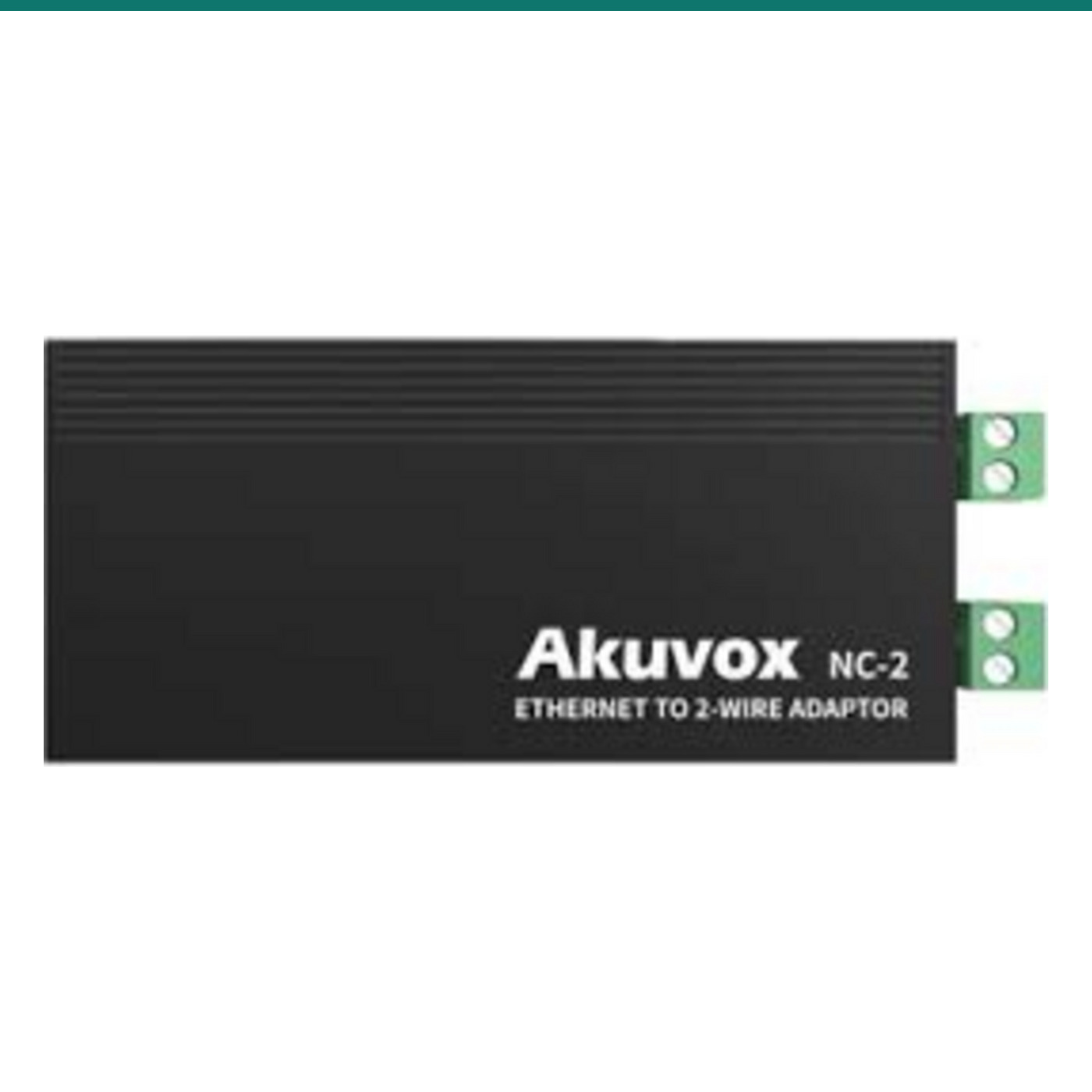

Akuvox NC-2 — 2-wire adaptor for the door phone end

Akuvox NK-2 Ethernet to 2-Wire Adaptor Kit with NX-2 and NC-2 — AK-NK-2

AK-NK-2
In Stock - Ready to Ship
$ 306.00
inc-GST

or 4 interest-free payments of $76.50 with

Akuvox NK-2 is a matched pair of Ethernet to 2-wire adaptors. The NX-2 takes Ethernet and PoE from your network, sends it down an existing two-wire intercom cable, and the NC-2 turns it back into PoE Ethernet for a standard IP door phone.

  • ✓Kit: 1 × NX-2, 1 × NC-2, 1 × Ethernet cable, 4 × double-sided tape
  • ✓NX-2: RJ45 with PoE input from your switch; NC-2: RJ45 with PoE output
  • ✓Reuses one 2-wire pair — up to 50 m (24 AWG), 150 m (20 AWG), 250 m (18 AWG)
  • ✓Each unit 113 × 48 × 25 mm, −10 °C to +50 °C

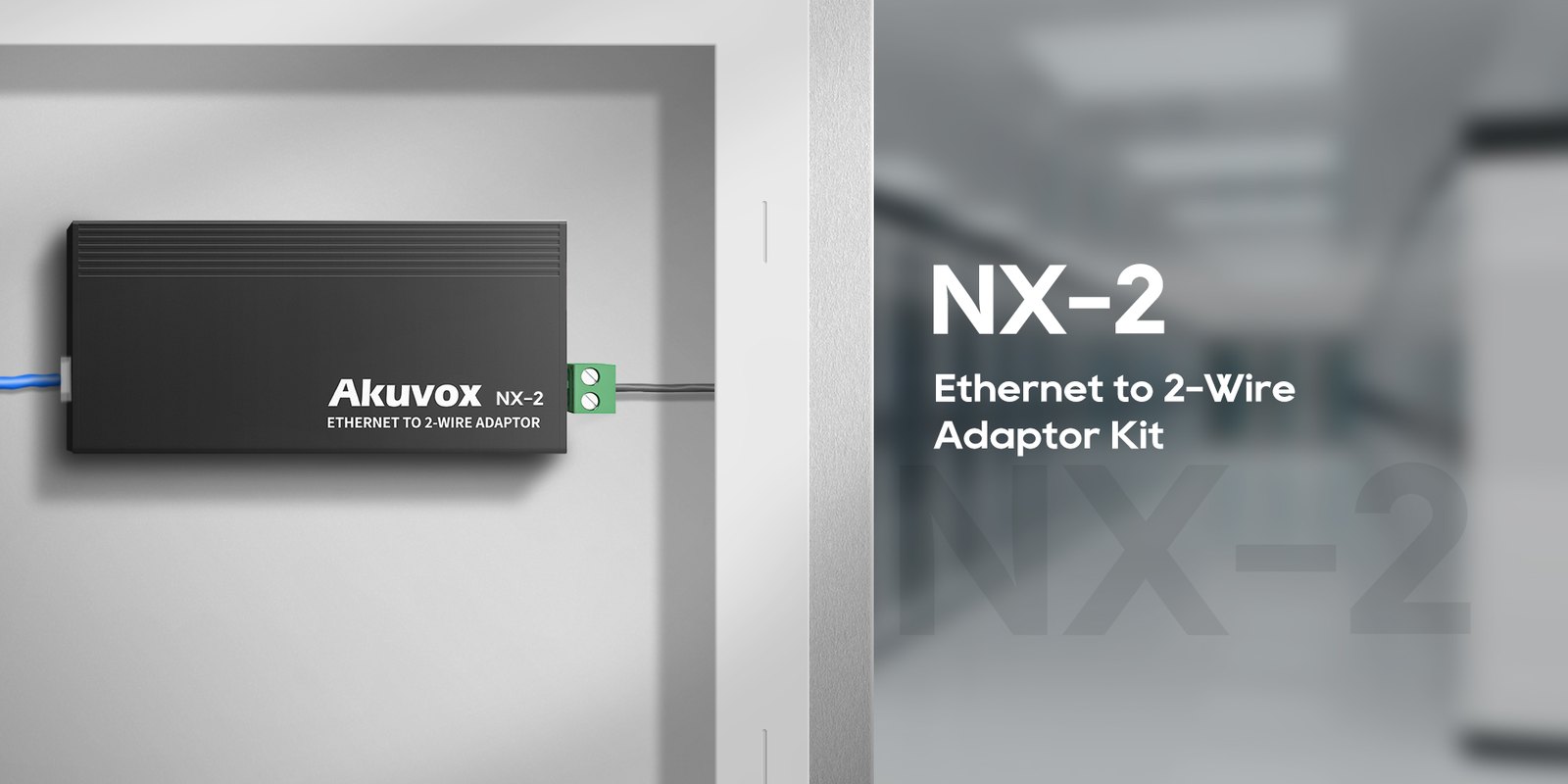

Akuvox NX-2 Ethernet to 2-wire adaptor mounted in a wall cavity
Akuvox · NK-2 · Ethernet to 2-wire adaptor kit

Put an IP door phone
on an old two-wire cable.

The AK-NK-2 is Akuvox’s 2-wire adaptor kit. Instead of buying a 2-wire door phone, keep any standard PoE IP door phone — an R20A, for example — and let the NX-2 and NC-2 carry its network and power over the analogue intercom pair already in the wall.

What’s in the kit

One NX-2 adaptor for the network end, one NC-2 adaptor for the door phone end, one Ethernet cable and four double-sided tapes for mounting. The door phone and PoE switch are not included.

In the box
  • 1 × Akuvox NX-2 Ethernet to 2-wire adaptor (network end)
  • 1 × Akuvox NC-2 Ethernet to 2-wire adaptor (door phone end)
  • 1 × Ethernet cable
  • 4 × double-sided mounting tape
What you also need (sold separately)
  • PoE switch or injector on your network for the NX-2
  • Standard PoE IP door phone, e.g. Akuvox R20A
  • One existing 2-wire pair between the two locations
  • Space in the door phone back box or wall for the NC-2

No 2-wire door phone needed.

Two-wire Akuvox door phones aren’t the only way to reuse old cabling. With this kit, any Akuvox IP door phone that runs on PoE can sit on an analogue pair.

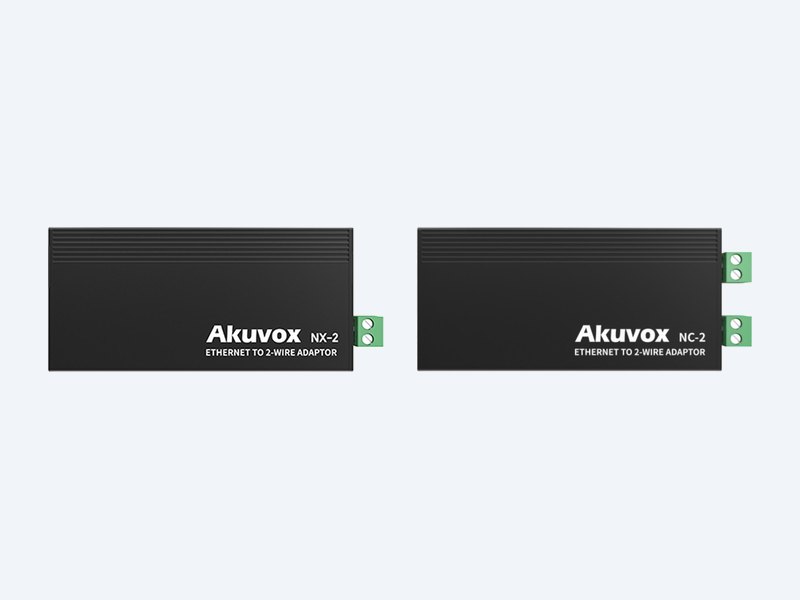

Akuvox NX-2 and NC-2 adaptors side by side

The pair

Two adaptors, one pair of wires.

The NX-2 sits at the network end, the NC-2 at the door. Between them, a single 2-wire pair replaces a Cat6 run.

Each unit is 113 × 48 × 25 mm with one 10/100 RJ45 port and one 2-wire terminal, small enough for a back box or ceiling space.

Network end

Plug the NX-2 into PoE.

Connect the NX-2 RJ45 to a PoE switch port with the supplied Ethernet cable, then land the 2-wire pair on its terminal.

At the door, the NC-2 delivers Ethernet with PoE output to the IP door phone.

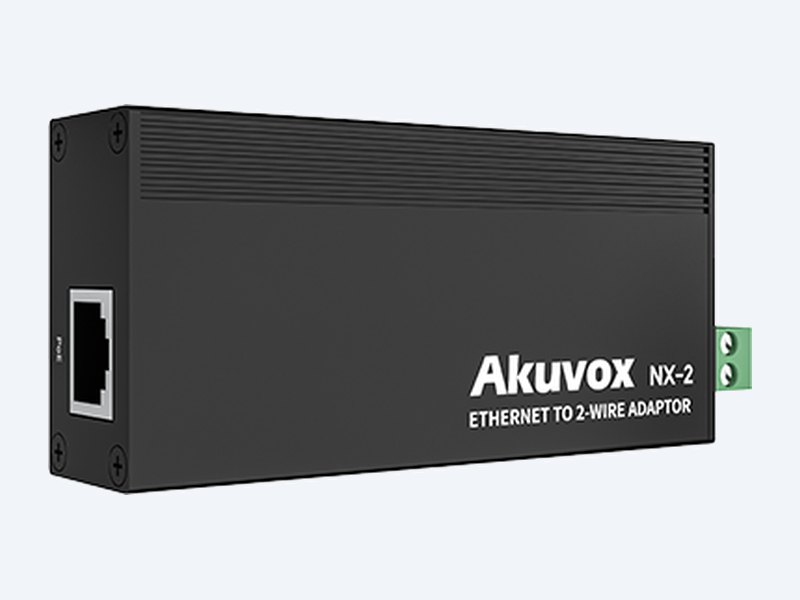

Akuvox NX-2 RJ45 PoE input

Distance

Up to 250 m on the old cable.

Akuvox’s wire table rates 50 m on 24 AWG, 150 m on 20 AWG and 250 m on 18 AWG between the power source and the door phone.

Rated −10 °C to +50 °C — install indoors or inside a weather-protected enclosure.

How it works

Wiring the pair.

01

Set Slave mode

Toggle the NC-2 mode switch to the right (Slave).

02

Network end

Connect the NX-2 to a PoE switch and land the pair on its terminal.

03

Door end

Land the pair on the NC-2 and patch its RJ45 to the door phone.

04

Mount and test

Fix both units with the tape, then confirm the door phone powers up and registers.

Pair it with

Works with

Door phone

Akuvox PoE IP door phone

Any standard PoE door phone, e.g. R20A, on the NC-2 RJ45.

Spare

Akuvox NC-2

The door-end adaptor on its own, also used with the NS-2 switch.

Multi-device

Akuvox NS-2

Six-port 2-wire switch for larger 2-wire systems.

Works with

Platforms and integrations

PoE network switches

The NX-2 takes its Ethernet and PoE from a standard PoE switch port or injector.

Standard PoE IP door phones

The NC-2 gives a PoE IP door phone, such as the Akuvox R20A, network and power at the far end of the pair.

Watch

See it in action

Akuvox 2-wire SIP video intercom overview
Wiring Akuvox 2-wire devices for an apartment building

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Do I need a 2-wire door phone with this kit?

No. The kit is for standard PoE IP door phones. Akuvox 2-wire door phones (R20A-2, R20K-2, E12S-2) connect to the pair directly and don’t need it.

What is in the box?

One NX-2, one NC-2, one Ethernet cable and four double-sided tapes for mounting.

How does it get power?

The NX-2 takes PoE from your switch. The NC-2 supplies PoE to the door phone at the other end.

How far can it run?

Akuvox rates 50 m on 24 AWG, 150 m on 20 AWG and 250 m on 18 AWG cable.

Which way should the NC-2 switch be set?

Slave mode — toggle to the right — when used with the NX-2.

Can it be mounted outdoors?

Both units are rated −10 °C to +50 °C and are not weatherproof, so mount them indoors or in a protected back box.

Can I connect more than one door phone?

The kit is a point-to-point link for one door phone. For several devices, use an NS-2 switch with an NC-2 in Slave mode on each port that needs an IP door phone.

Reuse the cable, choose any IP door phone.

Use the NK-2 for a single IP door phone on an existing pair. For several 2-wire devices, the NS-2 switch with an NC-2 in Slave mode is the multi-port option.

Installation & safety notice

Low-voltage product (SELV). The NX-2 is powered from PoE on its RJ45 input; the NC-2 provides PoE output on its RJ45 to the door phone. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Set the NC-2 mode switch to Slave (toggle right) before use.

Communication
TCP/IP
Working Temperature
−10 °C to +50 °C
Brand
Akuvox
Working Humidity
10–90%
Mounting
Double-sided tape (4 supplied)
Warranty
Australian warranty
Product Type
Ethernet to 2-wire adaptor kit
Model
NK-2 (NX-2 + NC-2)
NX-2
RJ45 10/100 with PoE input, 1 pair 2-wire
NC-2
RJ45 10/100 with PoE output, 1 pair 2-wire, 48 V input terminal
Distance
Up to 250 m on 18 AWG
Size (each)
113 × 48 × 25 mm
