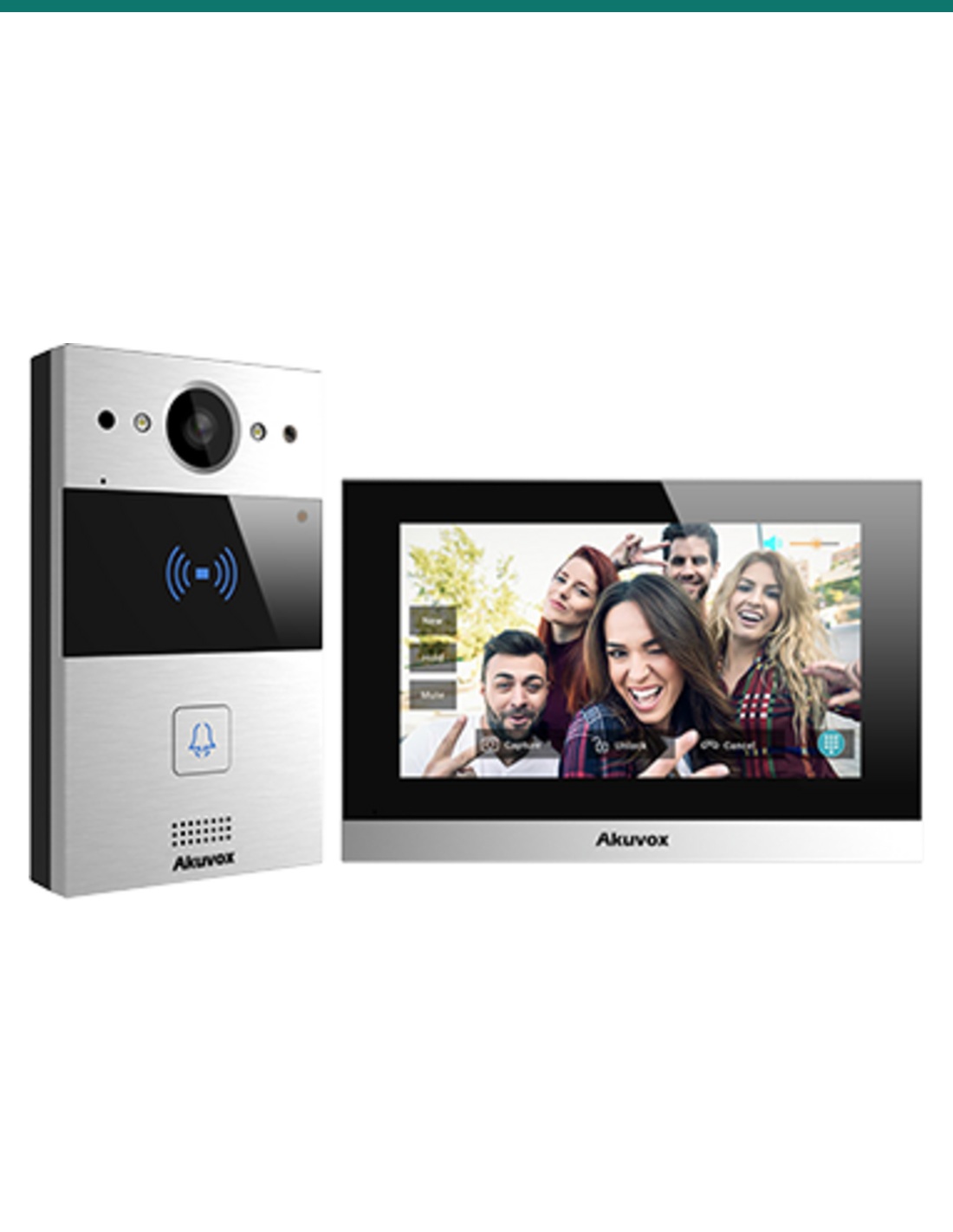

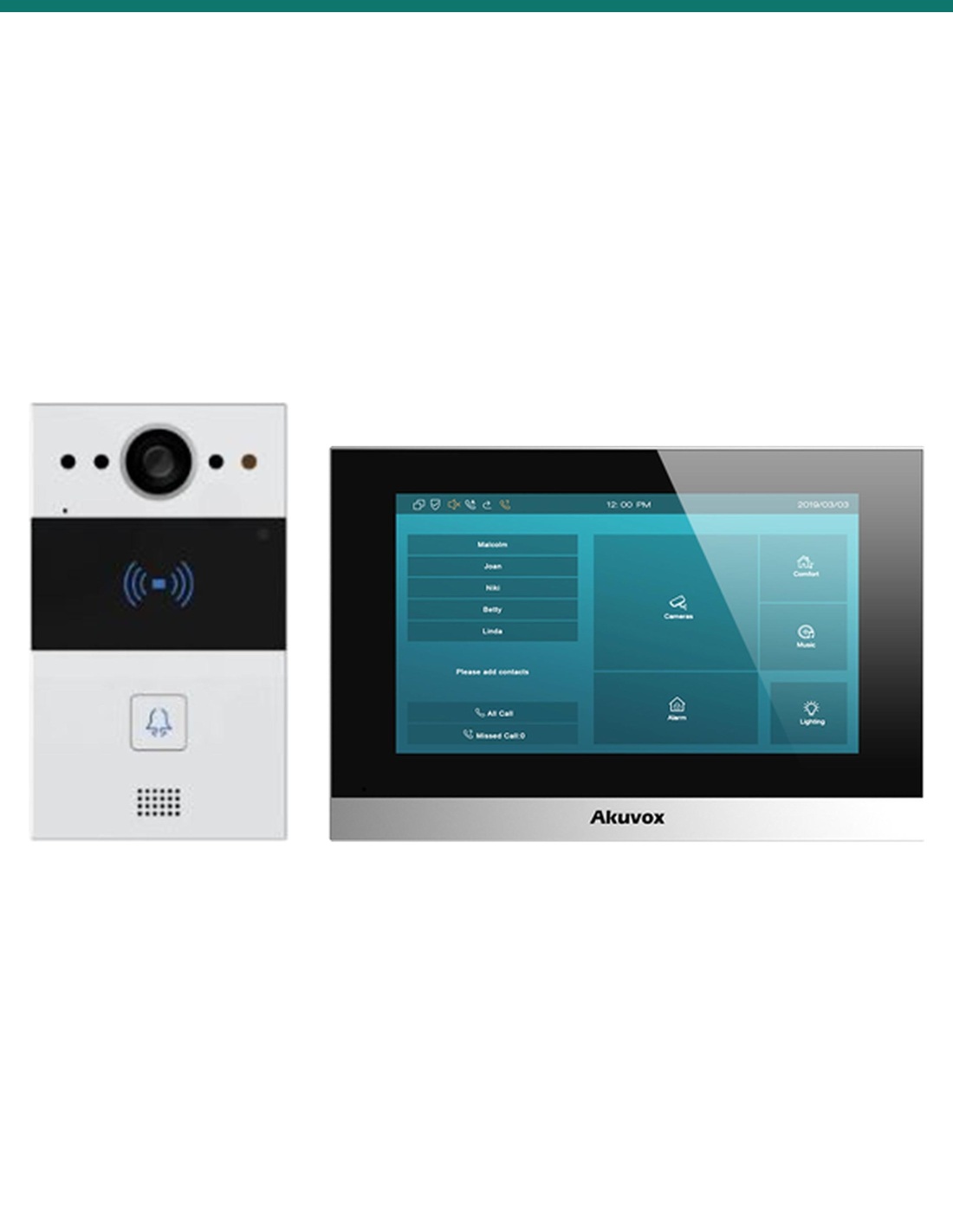

Akuvox 2-wire IP intercom kit — R20A-2 door phone and C313W-2 7-inch monitor

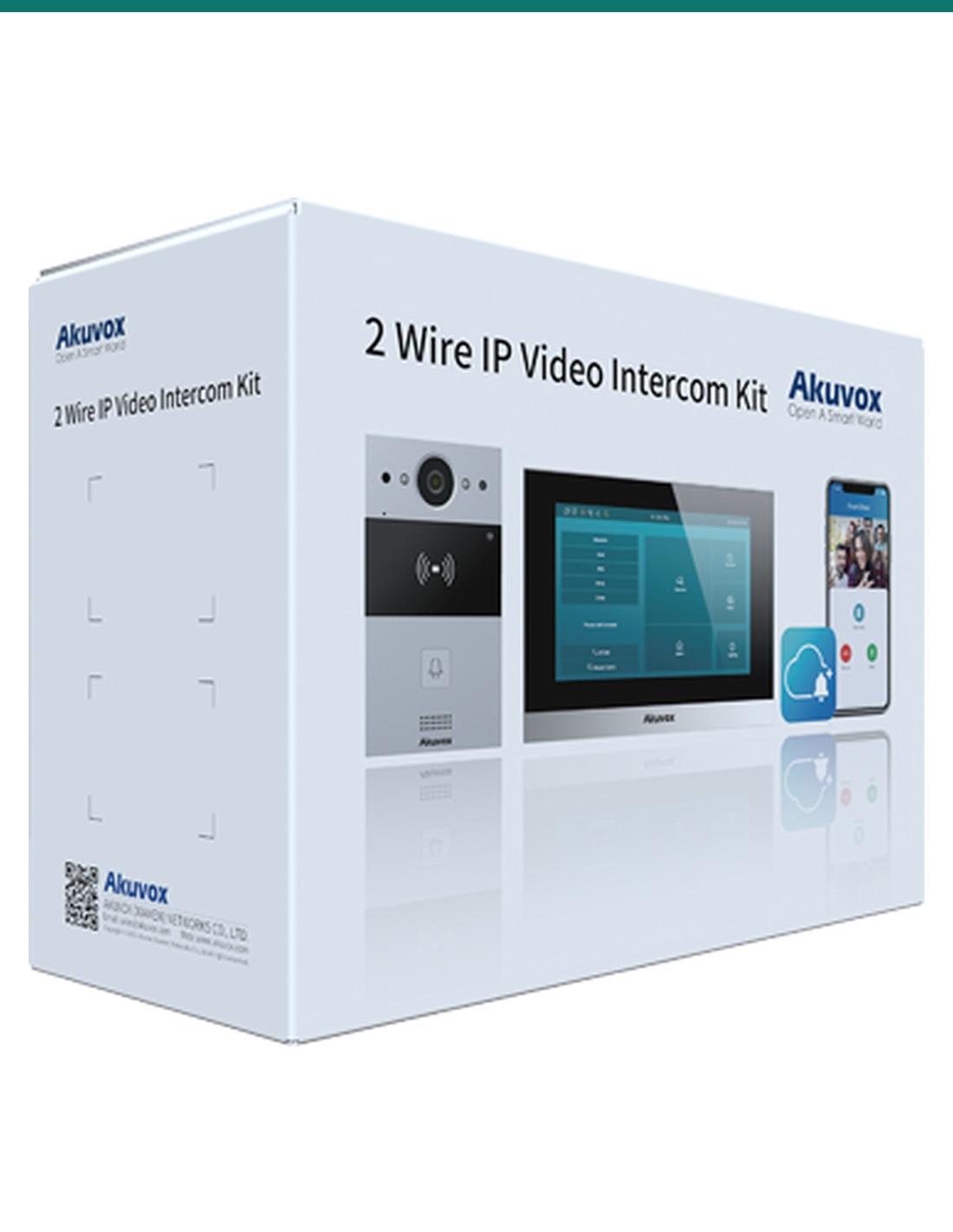

Akuvox 2 Wire IP Video Intercom Kit retail box

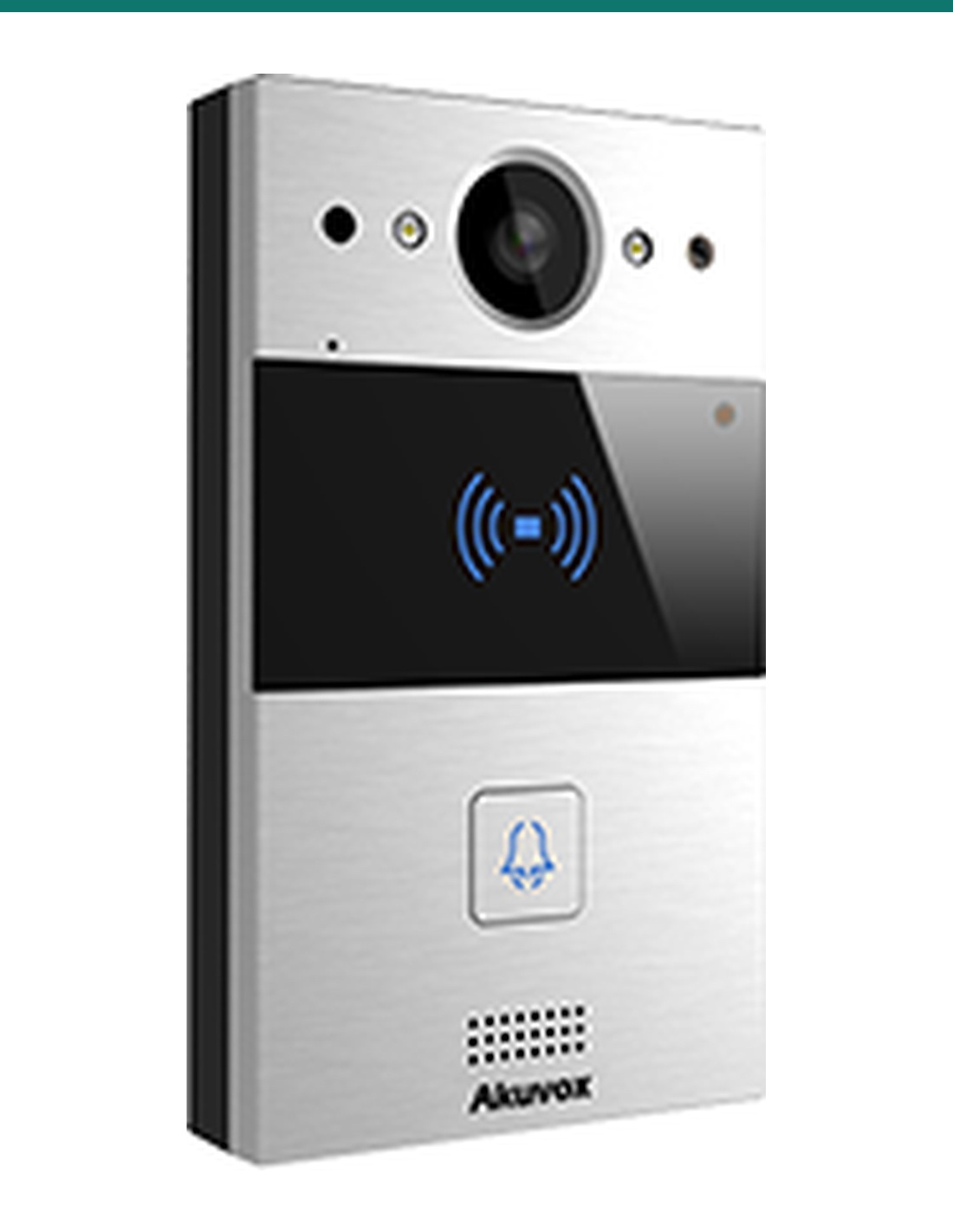

Akuvox R20A-2 2-wire door phone included in the kit

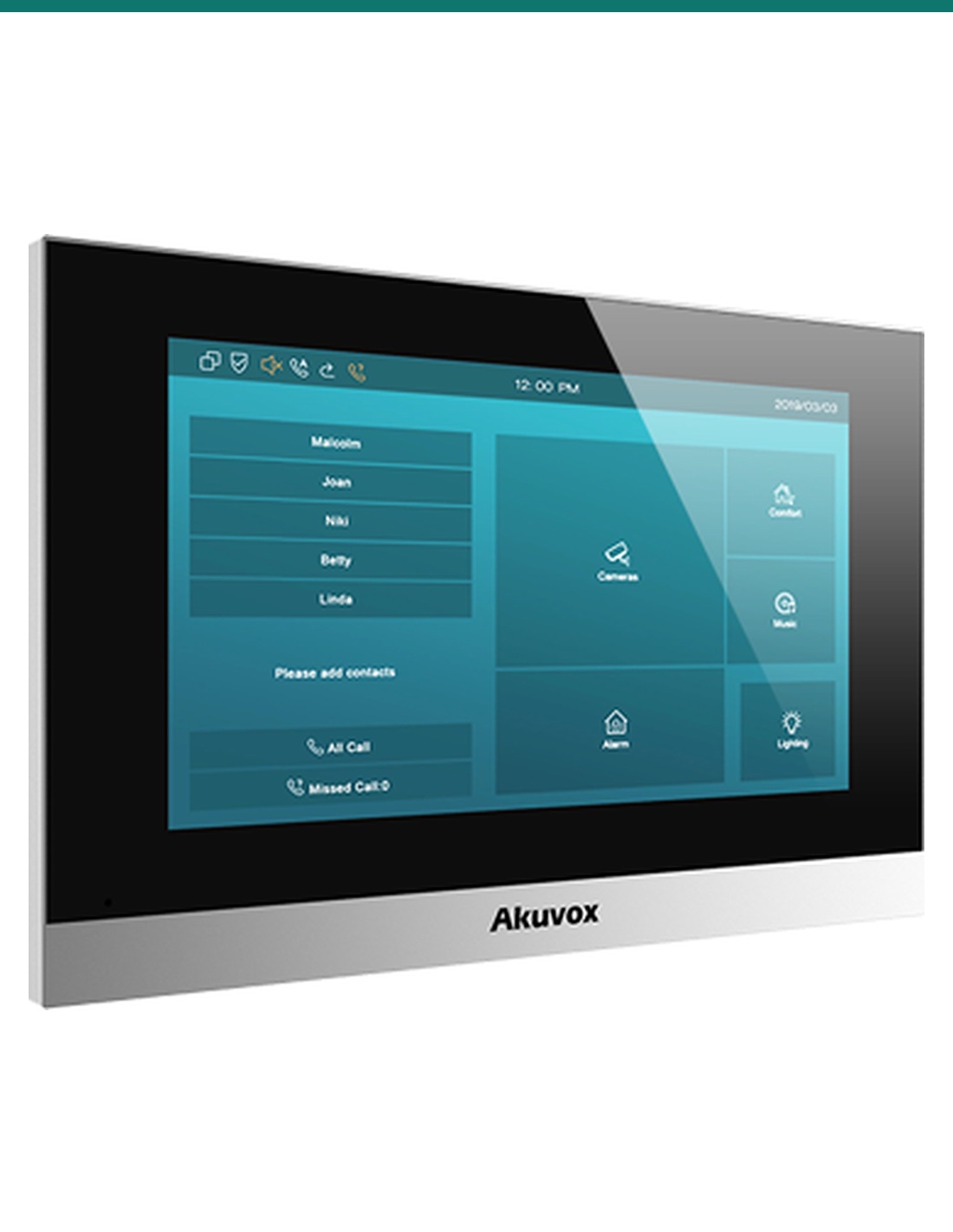

Akuvox C313W-2 7-inch 2-wire indoor monitor included in the kit

Akuvox 2-Wire IP Video Intercom Kit with R20A-2 Door Phone and C313W-2 Monitor — AK-2-WIREIPKITK

AK-2-WIREIPKITK
In Stock - Ready to Ship
$ 708.50
inc-GST

or 4 interest-free payments of $177.12 with

Akuvox 2-Wire IP Intercom Kit replaces an old analogue intercom with a smart SIP video system on the same two wires: an R20A-2 door phone, a 7″ C313W-2 touch monitor and the 24 V power adapter, with calls also reaching the SmartPlus app.

  • ✓Kit 201: 1 × R20A-2 door phone, 1 × C313W-2 monitor, 1 × 24 V power adapter
  • ✓Runs on the existing 2-wire cable — no new Cat6 to the door
  • ✓Monitor joins the home network by Wi-Fi or Ethernet for the SmartPlus app
  • ✓Card, Android NFC and app door release · IP65 door phone

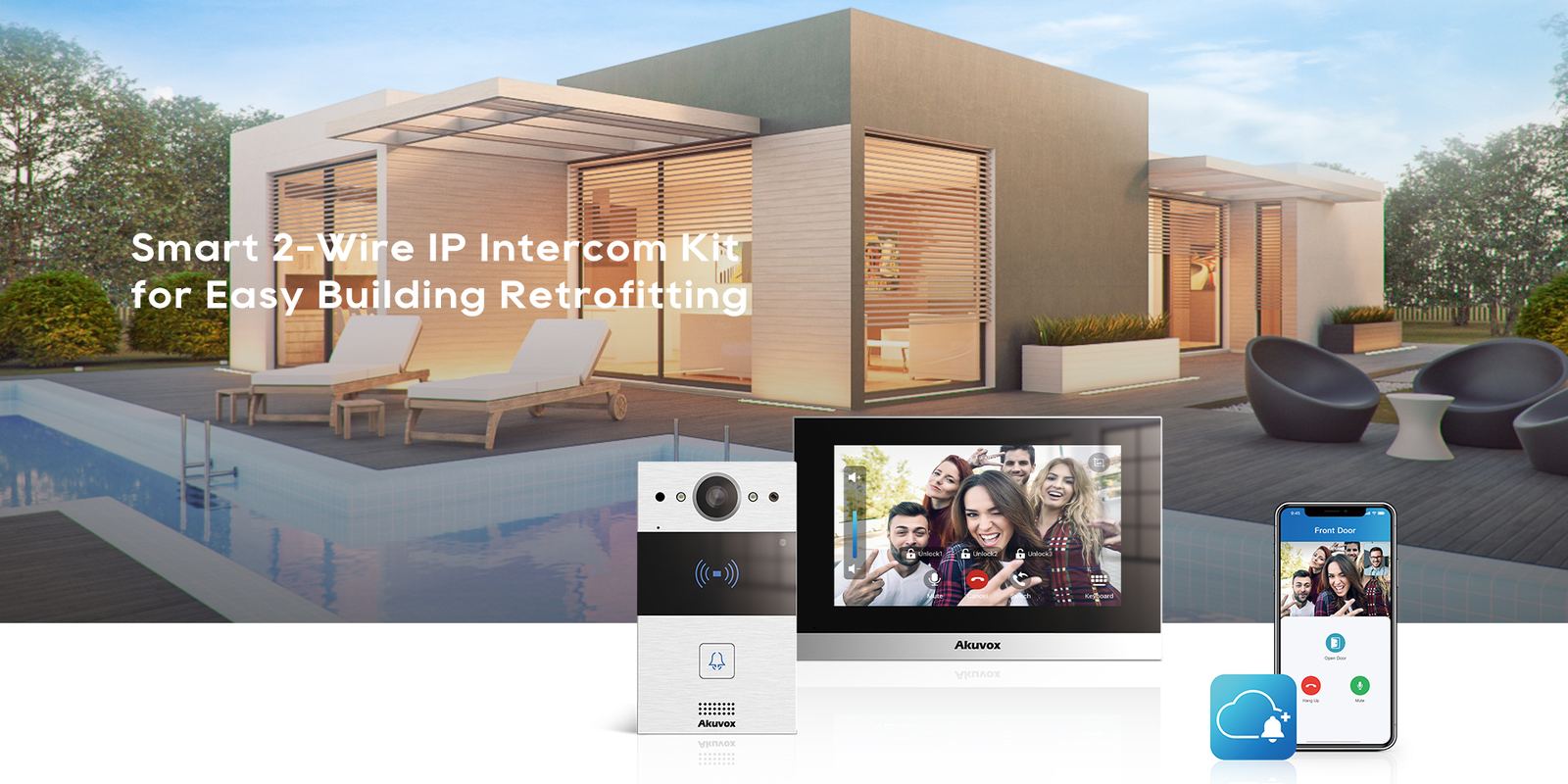

Akuvox 2-wire kit with R20A-2 door phone, C313W-2 monitor and SmartPlus app
Akuvox · 2-Wire IP Intercom Kit 201 · R20A-2 + C313W-2

Smart video intercom,
on your existing two wires.

The AK-2-WIREIPKITK is Akuvox’s 2-Wire IP Intercom Kit 201 for houses, villas and small offices. The power adapter feeds the C313W-2 monitor, and the monitor powers and talks to the R20A-2 door phone over the old intercom pair — so a full IP video upgrade needs no new cable to the door.

What’s in the kit

Akuvox 2-Wire IP Intercom Kit 201 contains one R20A-2 single-button video door phone with its wall-mounting bracket and fixings, one C313W-2 7″ indoor monitor with its wall bracket and cables, and one 24 V power adapter. Akuvox also bundles four SmartPlus app accounts with this kit. Lock hardware is not included.

In the box
  • 1 × Akuvox R20A-2 2-wire video door phone, with wall-mounting bracket and fixings
  • 1 × Akuvox C313W-2 7″ 2-wire indoor monitor, with wall bracket, cables and fixings
  • 1 × 24 V DC power adapter
  • 4 × free Akuvox SmartPlus app accounts
What you also need (sold separately)
  • The existing two-wire cable between door and monitor (or a new pair)
  • Home router or switch, by Ethernet or Wi-Fi, for app calls
  • Electric strike or maglock with its own power supply, if releasing a door
  • R20A in-wall kit or rain hood if the wall needs it

Everything for one door and one room.

Press the button at the door, answer on the 7″ monitor or your phone, and let visitors in. Residents enter by card or Android NFC. Add an NS-2 switch later to grow beyond one door and one monitor.

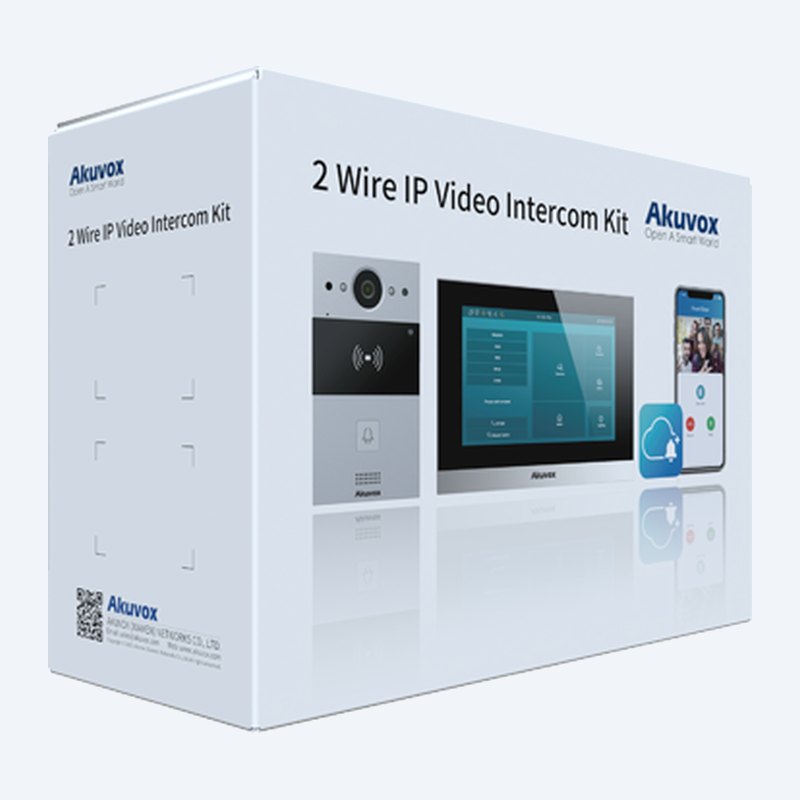

Akuvox 2 Wire IP Video Intercom Kit box

In the box

Door phone, monitor and power.

One box with the R20A-2 door phone, the C313W-2 monitor and a 24 V power adapter — the complete Akuvox 2-wire system for a single entrance.

Door phone 145 × 85 × 22 mm; monitor 200.2 × 132.2 × 27.2 mm.

Indoors

A 7″ touch monitor on the wall.

The C313W-2 shows the visitor, opens the door and also takes alarm inputs and camera feeds. It joins the home network over Wi-Fi or Ethernet.

Add more C313W-2 or S562W-2 monitors through an NS-2 for room-to-room calls.

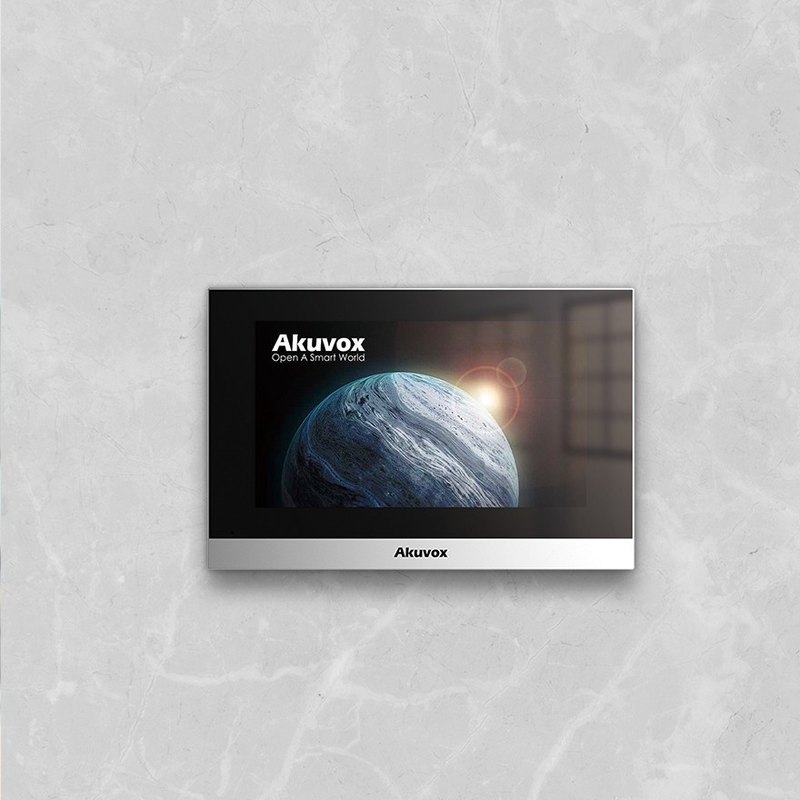

Akuvox C313W-2 silver monitor on a marble wall

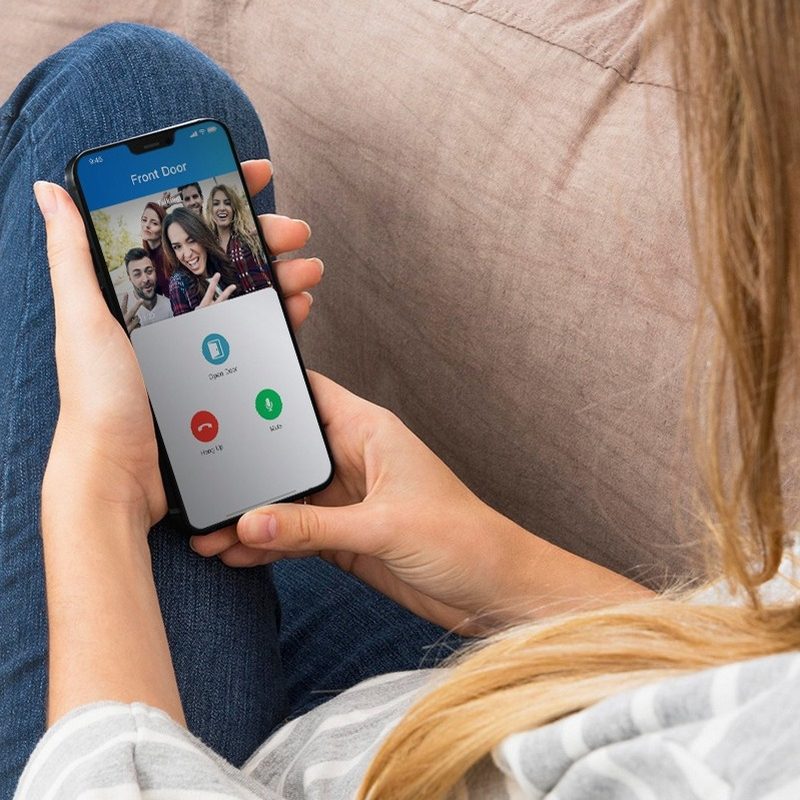

Answering a front door call on the SmartPlus app

App

Answer the door from anywhere.

With the monitor online, door calls also ring the Akuvox SmartPlus app — see the visitor, talk and unlock from your phone.

The R20A-2 also reads 13.56 MHz and 125 kHz cards and Android NFC for keyless entry.

How it works

Up and running in an afternoon.

01

Swap the door unit

Fit the R20A-2 and land the existing pair on its two-pin input.

02

Swap the handset

Mount the C313W-2 and connect the pair to a 2-wire port.

03

Power up

Connect the 24 V adapter to the monitor.

04

Go online

Join Wi-Fi or Ethernet, set up SmartPlus and test a call and unlock.

Pair it with

Grow the kit

Expand

Akuvox NS-2

Add up to six 2-wire devices — extra monitors or door phones.

Mounting

R20A in-wall kit

Flush-mount the door phone instead of surface mounting.

Credentials

13.56 MHz cards

Issue cards for keyless entry at the R20A-2.

Works with

Platforms and integrations

Akuvox SmartPlus

Four free SmartPlus accounts come with the kit for video calls, remote unlocking, live view and alarm notifications on residents’ phones.

SIP PBX

Both the R20A-2 and the C313W-2 are standard SIP endpoints, so the system can also call extensions on a SIP PBX.

NVRs over ONVIF / RTSP

The R20A-2 supports ONVIF and RTSP, so a third-party NVR on the network can record the door camera.

Wiegand and RS485 access control

The R20A-2 Wiegand port and RS485 connect a third-party access controller or reader.

Watch

See it in action

2-wire intercom kit initial setup
Akuvox 2-wire SIP video intercom overview
Wiring Akuvox 2-wire devices for a villa

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Exactly what is in the kit?

One R20A-2 2-wire video door phone, one C313W-2 7″ 2-wire indoor monitor and one 24 V DC power adapter, plus four free SmartPlus app accounts. Each device comes with its own mounting hardware.

Do I need new cable?

No — the door phone and monitor talk and share power over two wires, so an existing analogue intercom pair can be reused.

Do I need an NS-2 switch?

Not for this kit. The monitor is powered by the included adapter and powers the door phone. Add an NS-2 when you want more door phones or monitors.

Can I add more monitors or door phones later?

Yes. An Akuvox NS-2 powers and networks up to six 2-wire devices, such as extra C313W-2 or S562W-2 monitors and R20A-2 or R20K-2 door phones.

How do residents get in without calling?

Tap a 13.56 MHz or 125 kHz card, or an Android phone over NFC, on the R20A-2 — it stores up to 25,000 cards — or unlock from the SmartPlus app.

Does the app work without network cable?

Yes. The C313W-2 can connect to the home router over Wi-Fi; Ethernet is also available.

Can my NVR record the door camera?

Yes. The R20A-2 supports ONVIF and RTSP, so an ONVIF-capable NVR can add it as a camera channel.

What colour is the monitor?

Akuvox’s Kit 201 product images show the C313W-2 with a black front and silver trim; the R20A-2 has an aluminium front.

Upgrade the old intercom, keep the wiring.

This kit pairs the aluminium R20A-2 with the C313W-2. Need PIN entry or a larger monitor? Combine an R20K-2 or S562W-2 with an NS-2 switch instead.

Installation & safety notice

Low-voltage product (SELV). The included 24 V DC power adapter connects to the C313W-2 monitor, which powers the R20A-2 door phone over the 2-wire cable. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

The R20A-2 relay switches a strike or maglock; power the lock from its own supply and fit the supplied diode across DC lock coils.

Power
24 V DC power adapter (included)
Brand
Akuvox
Card Capacity
25,000 cards, 5,000 users
Network
Ethernet or Wi-Fi via the monitor
Warranty
Australian warranty
Product Type
2-wire IP video intercom kit
Card Reader
13.56 MHz and 125 kHz, NFC (Android)
Model
2-Wire IP Intercom Kit 201
Monitor Size
200.2 × 132.2 × 27.2 mm
Door Phone
Akuvox R20A-2, 1 call button, IP65
Indoor Monitor
Akuvox C313W-2, 7″ touch, Wi-Fi
Cabling
Existing 2-wire (two-pin) intercom cable
Door Phone Size
145 × 85 × 22 mm
App Accounts
4 free Akuvox SmartPlus accounts
Door Camera
2 MP, 110° (H) / 58° (V), 1080p at 30 fps
Monitor Screen
7″ 800 × 480 capacitive touch
