VIP Vision Professional 16 Channel Network Video Recorder with PoE (320Mbps)
4 YEARS WARRANTY!
The VIP Vision NVR16PRO7 is a 16 channel network video recorder, designed as an immediate and customisable high definition IP surveillance solution. It features a built-in 16 port Power over Ethernet (PoE) switch, supplying camera power, video, audio and PTZ control data across a single Ethernet cable. The NVR supports up to 320Mbps incoming bandwidth and can record beyond full HD video at a maximum resolution of 12.0MP (4000 x 3000).
Adjusting recording settings, exporting footage and live viewing camera streams are performed through an easy to use user interface. This NVR supports up to 40TB of internal storage via 4 x SATA ports and features continuous recording. This NVR is also capable of live view output in Ultra HD resolution (3840 x 2160), allowing cameras to display at their maximum resolution on compatible UHD monitors/ televisions.
Smartphone and tablet remote viewing is available for iOS (iPhone, iPad), Google Android and Microsoft Windows Phone via free applications and can be configured in seconds using the remote view QR code tool. The NVR16PRO7 can backup footage to external USB devices, eSATA devices, an internal DVD-RW burner (optional) as well as via the local network. This NVR is also available in a non-PoE version.
Record beyond Ultra HD up to 12.0MP (4000 x 3000)
Up to 320Mbps incoming bandwidth; H.265 support
10TB HDD support for up to 40TB footage storage
Remote view in seconds with setup via QR code
Native Ultra HD live view on 4K monitors via HDMI
Built-in PoE switches for easy install across the range
Backup footage via network, USB or SATA devices
Live view, playback & record via your phone/tablet
Alarm Input / Output
16 channels input / 6 channels relay output
1 x RS232 / 1 x RS485 / 1 x eSATA
USB Device / Network / eSATA Device / Internal SATA burner
16 ~ 20Mbps

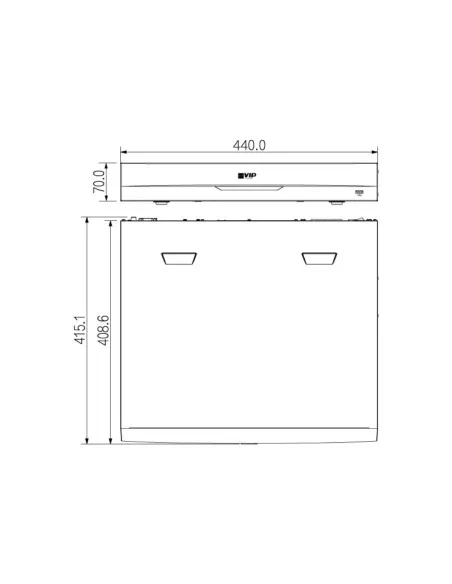

440 x 411 x 95mm
Configurable from 3840 x 2160 to 1024 x 768
1 RJ-45 port (10/100/1000M)
4 SATA ports, up to 40TB
Quad-core embedded processor
Max. User Access
Maximum Record Resolution
Configurable from 12.0MP(4000 x 3000) to CIF (352 x 288)
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P
-10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa
Camera title, Time, Video loss, Camera lock, Motion detection, Recording
NVR: 17.5W (without HDD) / PoE: Max 25.5W per port
