Datatek Vertical Wall Mount Security Cabinet - 24SECCAB

Datatek 24SECCAB Vertical Wall-Mount CCTV Security Cabinet

Name: Datatek 24SECCAB Vertical Wall-Mount CCTV Security Cabinet
Brand: Datatek
SKU: 24SECCAB
Price: 245.63 AUD
Availability: InStock

Brand: Datatek

Reference: 24SECCAB

In Stock - Ready to Ship

$ 245.63 $ 327.50 -25%

inc-GST

Ends in

Datatek 24SECCAB white hammertone wall cabinet for a 24″ monitor and 2RU NVR/DVR — dual locks, included 5-outlet PDU and two USB fans.

✓2RU gear, 240–480 mm wide, 465 mm max depth, 30 kg load
✓24″ monitor — VESA 50/75/100, downward HDMI & power
✓5-outlet PDU included; accepts a standard 19″ rack PDU
✓2× USB fans on a Y-cable · Ø50 mm grommeted knockouts
✓580 × 185 × 635 mm (W×D×H) · drop-down door with steel stays

Description
Product Details

Datatek · 24SECCAB · White

The recorder on the wall.
Not on the desk.

The Datatek 24SECCAB is a locked vertical cabinet for a 24″ monitor and 2RU NVR or DVR. White hammertone steel, dual locks, a 5-outlet PDU and two USB fans in the box. Closed size 580 × 185 × 635 mm.

CABINET ONLY — NVR, MONITOR AND USB FAN POWER ARE NOT IN THE BOX

In the box

Datatek 24SECCAB white cabinet
5-outlet PDU (24SECPDU)
2× USB cooling fans (24SECFAN) + Y-cable
2 keys, monitor brackets, cable mounts
Knockout grommets (24SECGRO)
Captive nuts & screws, wall-mounting template

What you also need

2RU / 4HDD-class NVR or DVR (not included)
Monitor up to 24″ with downward HDMI & power (not included)
USB power source for the two fans
Wall fixings rated for the install and the 30 kg load

A tidy head-end that locks.

Reception desks and cupboard shelves are where recorders grow a nest of PSUs. 24SECCAB puts the monitor on the back plane, the recorder on the drop-down door, and the leads through Ø50 mm grommets — then two locks close the job.

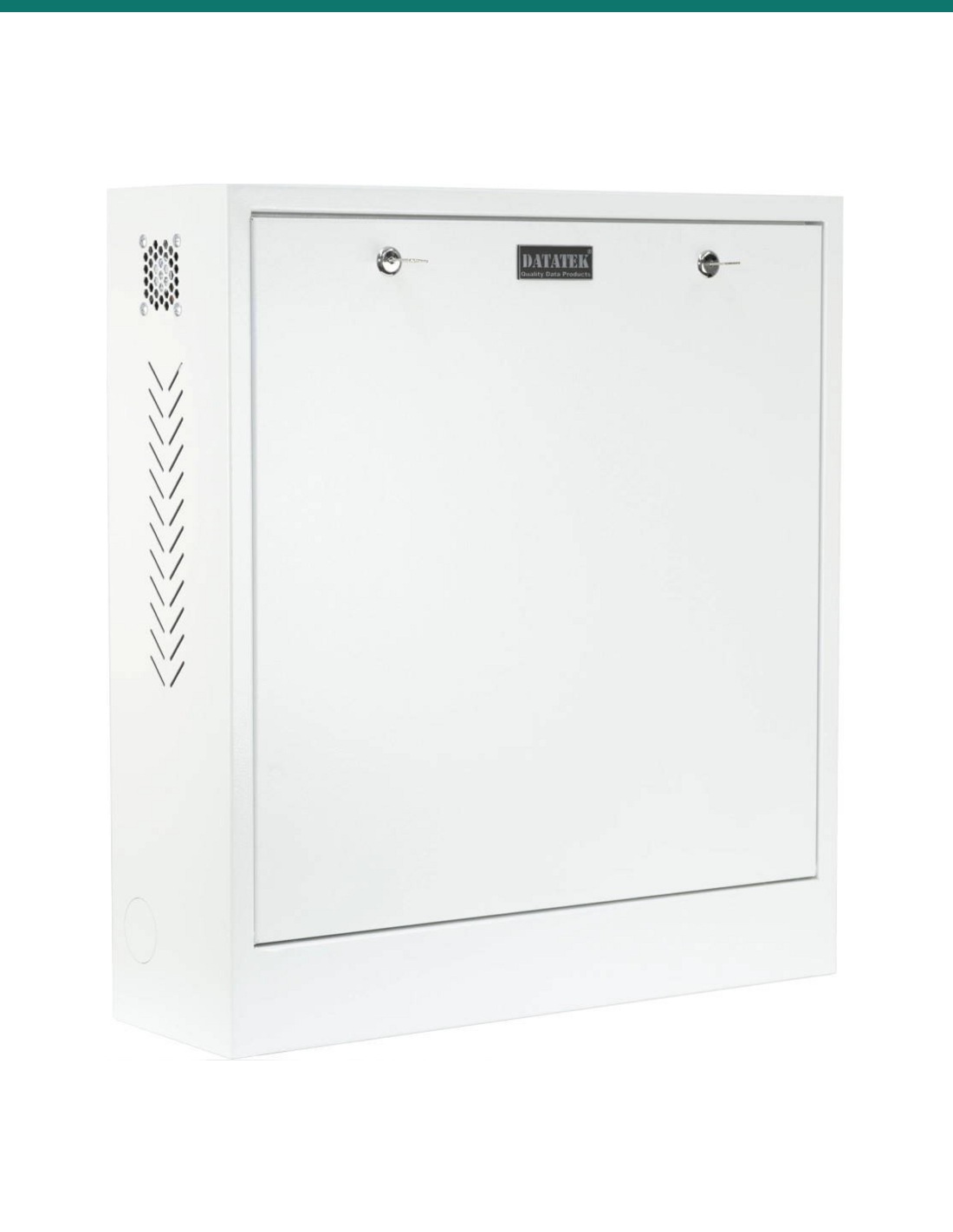

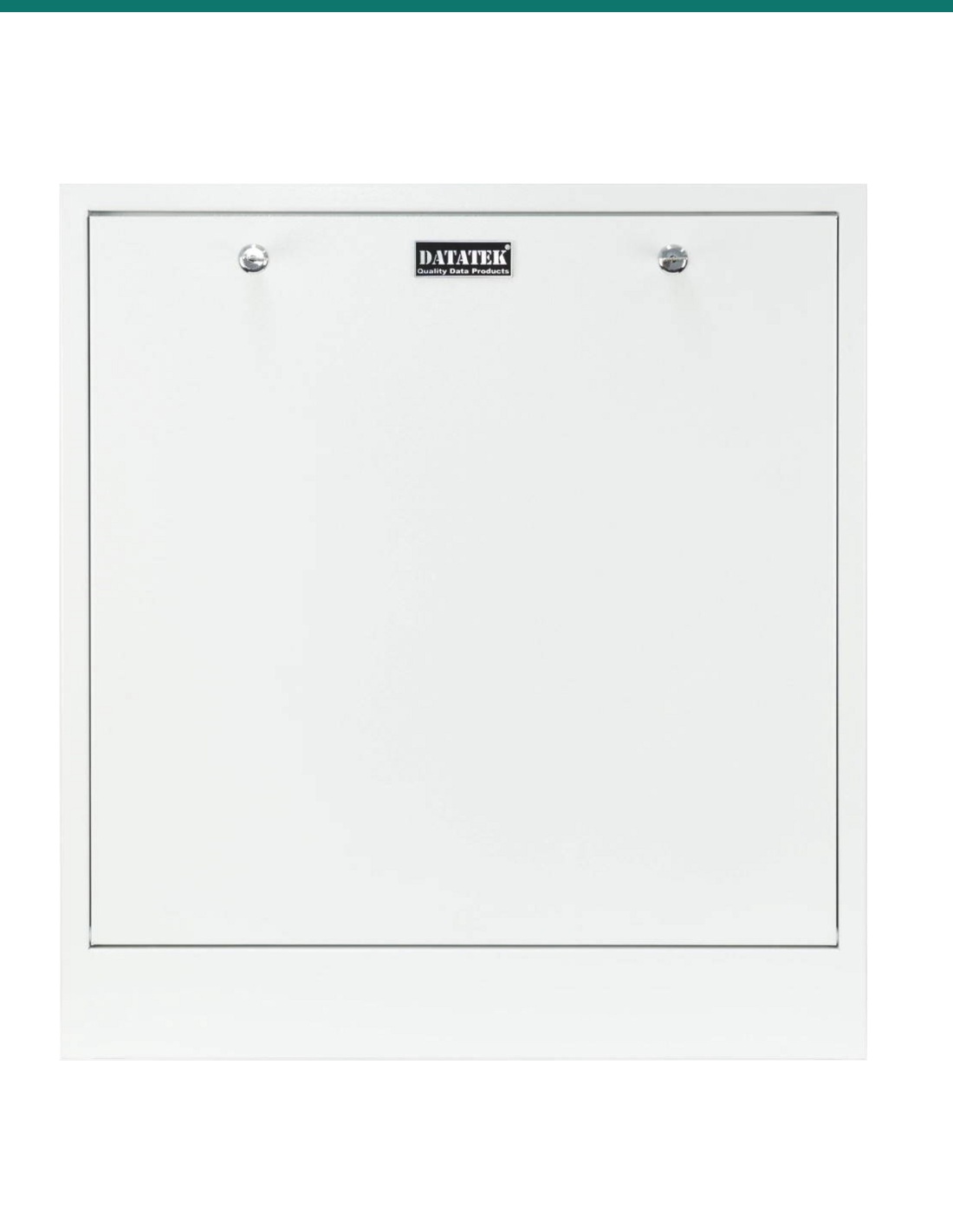

Datatek 24SECCAB closed — dual locks and Datatek badge

SECURITY · 01

Two locks. White hammertone steel.

Cold-rolled steel with a white hammertone face that Datatek rates as mark, scratch and fingerprint resistant. Dual cabinet locks at the top of the door — two keys in the kit.

This listing is the white 24SECCAB. Black is 24SECCAB-BLK, a separate model.

CAPACITY · 02

2RU recorder. 24″ on VESA.

Equipment bay is up to 2RU, 240–480 mm wide and 465 mm max depth — the class Datatek quotes for a 4HDD NVR or DVR. Load rating is 30 kg.

The back plane takes a monitor up to 24″ on VESA 50 / 75 / 100 mm, specified for downward HDMI and power so the door can close. The drop-down door is held on steel cable stays.

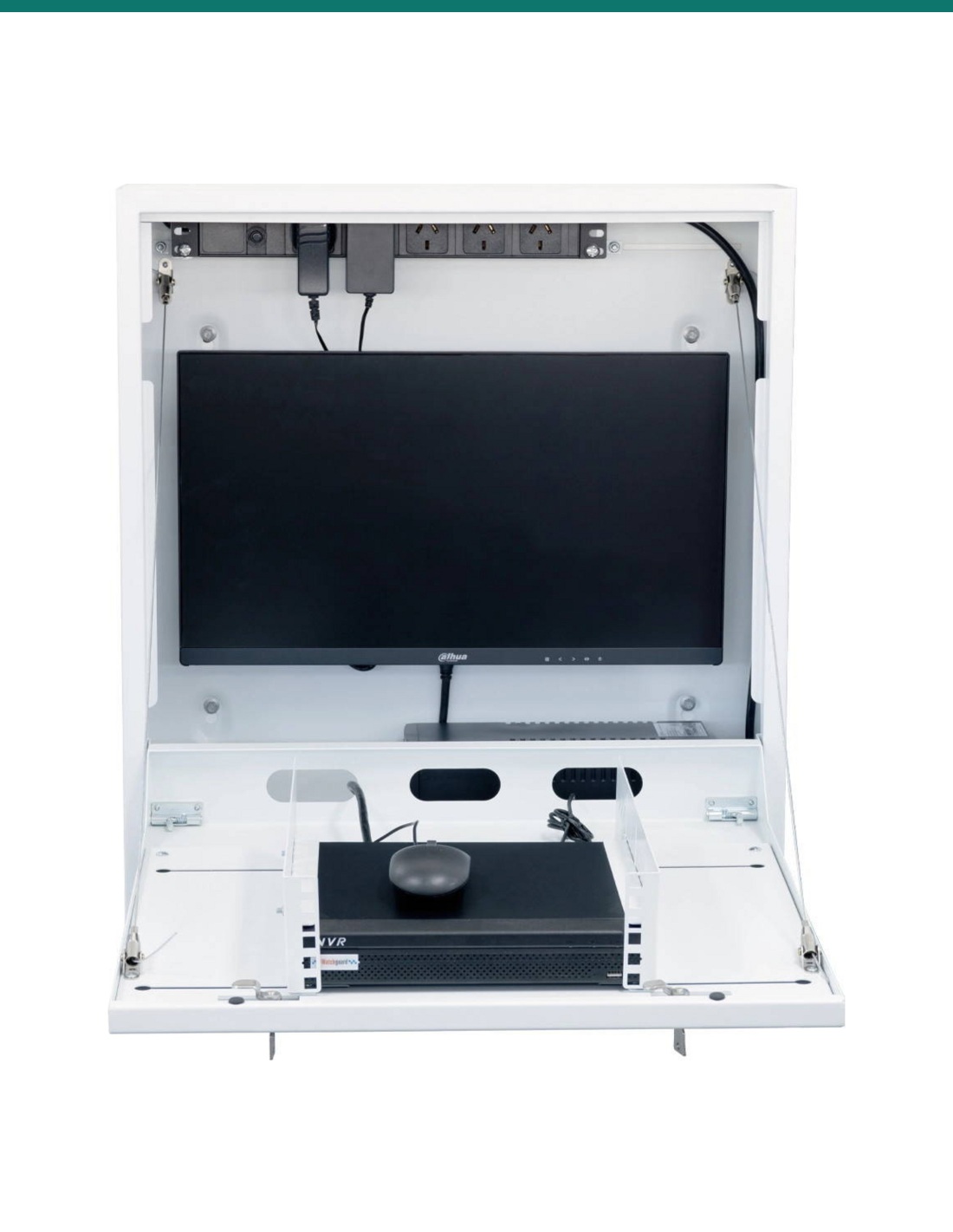

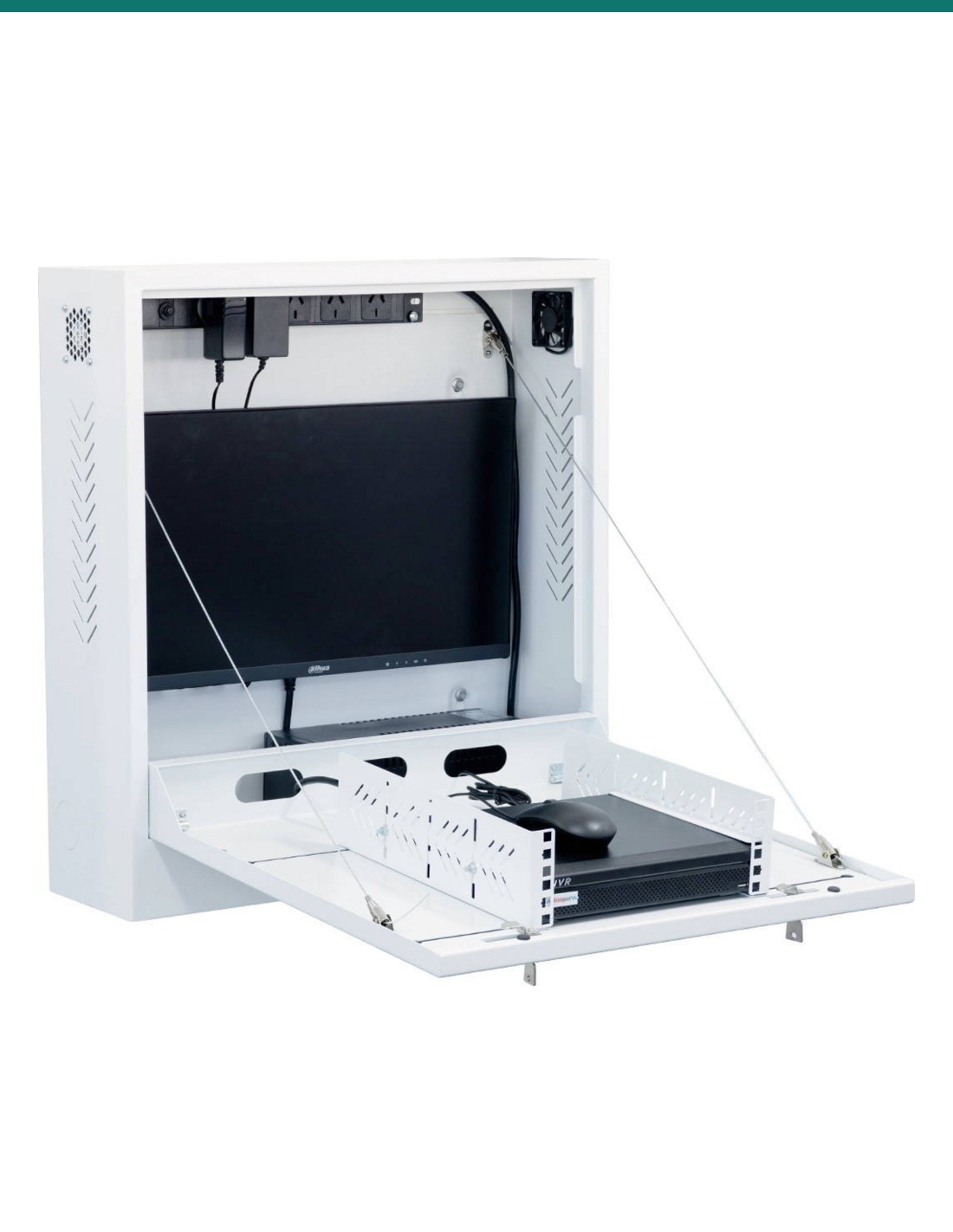

Datatek 24SECCAB open — monitor on the back plane, NVR on the drop-down door

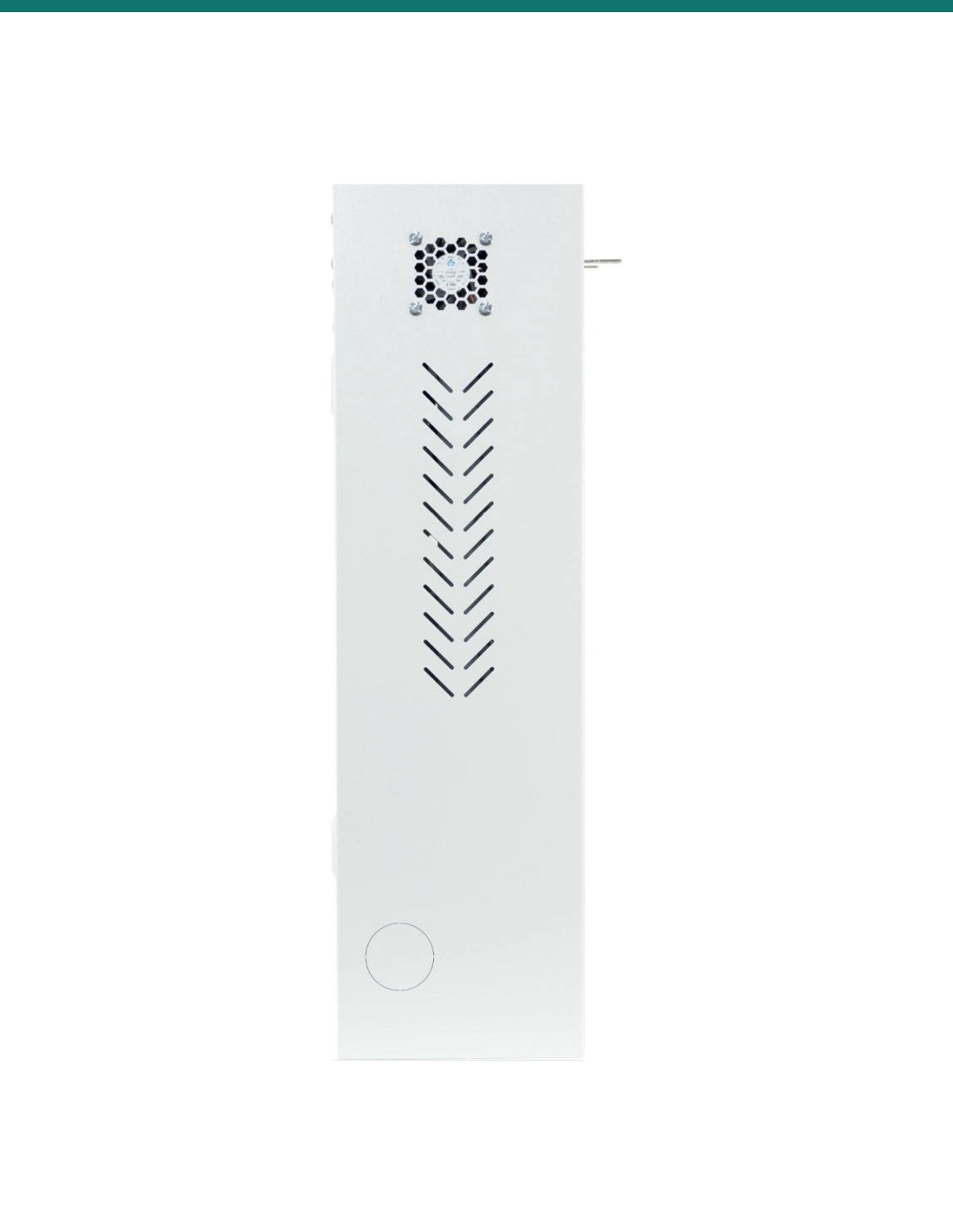

Datatek 24SECCAB side — USB cooling fan, chevron vents and cable knockout

SERVICES · 03

PDU, USB fans, Ø50 mm grommets.

A 5-outlet PDU (24SECPDU) is in the kit. If you outgrow five sockets, the cabinet is built to take a standard 19″ rack PDU.

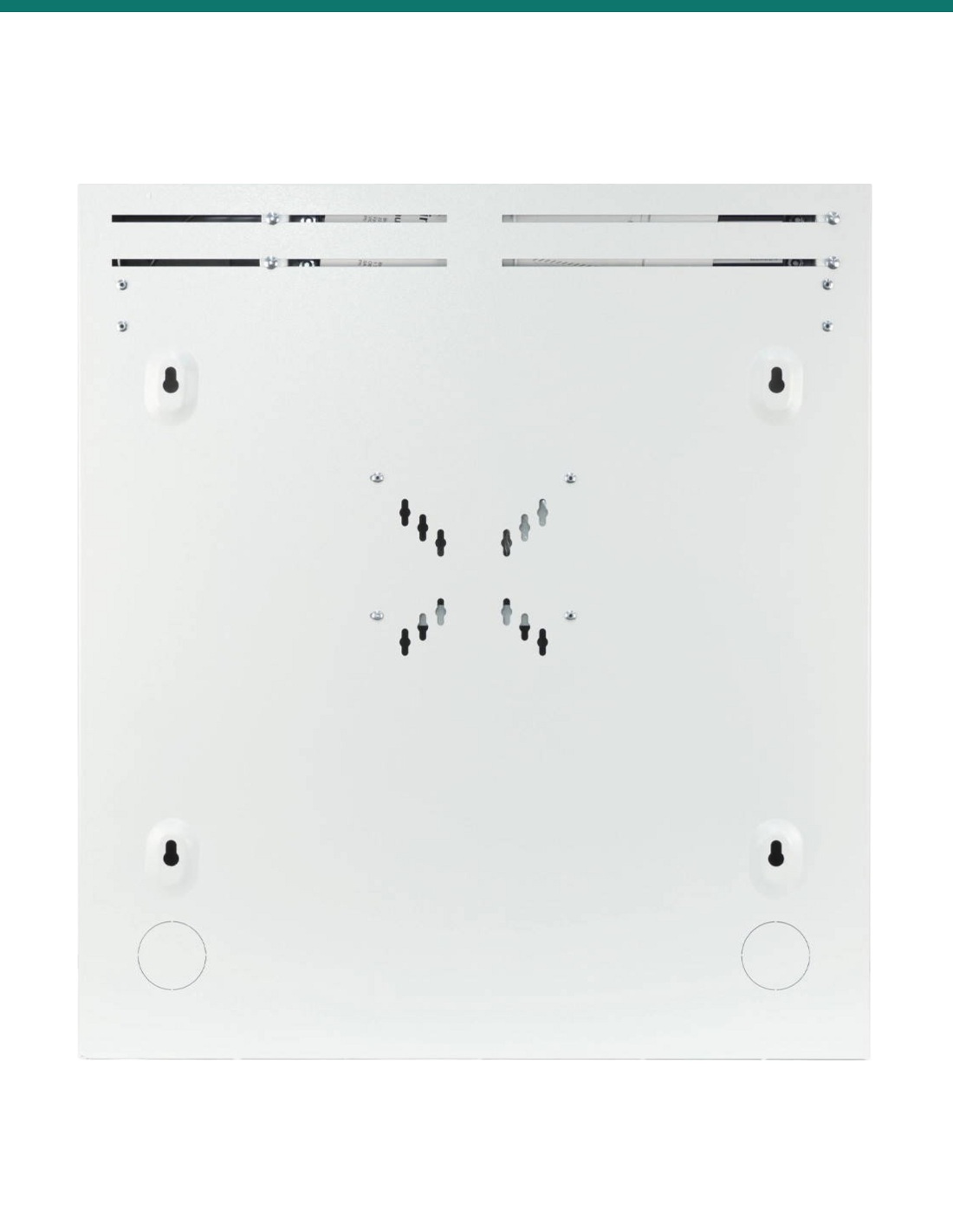

Two USB fans (24SECFAN) share a Y-cable to one USB power source. Side vents plus the fans are the cooling path. Cable entry is Ø50 mm knockouts with 24SECGRO grommets. The rear panel has keyhole slots and a VESA pattern; a wall template is in the box.

How it works

From template to first recordings.

Mark the wall

Use the supplied template. Fix through the rear keyholes into structure that will take the cabinet plus 30 kg of kit.

Hang the monitor

VESA 50/75/100 on the back plane. Choose a 24″ (max) panel whose HDMI and IEC hang downward.

Land the recorder

Captive nuts and brackets hold 2RU gear on the drop-down door. PDU at the top; fans on the Y-cable.

Grommet and lock

Bring camera and power tails through the Ø50 mm knockouts. Close the door on the steel stays and lock both barrels.

At a glance

Key specs — 24SECCAB

Brand: Datatek
Model: 24SECCAB (white)
Enclosure: Vertical wall-mount CCTV security cabinet
Equipment capacity: Up to 2RU — 240–480 mm width, 465 mm max depth (e.g. 4HDD NVR/DVR class)
Load capacity: 30 kg maximum
Monitor: Up to 24″ — VESA 50/75/100 mm, downward HDMI & power inputs
Material / finish: Cold-rolled steel, white hammertone (mark / scratch / fingerprint resistant)
Security: Dual cabinet locks (two keys in the box)
Door: Drop-down door with steel cable stays
Cable entry: Ø50 mm knockouts with protective grommets (24SECGRO)
Power: 5-outlet PDU included (24SECPDU); cabinet accepts a standard 19″ rack PDU
Cooling: 2× USB fans (24SECFAN) on a single Y-cable
Dimensions: 580 × 185 × 635 mm (W × D × H)
Finish options: White 24SECCAB (this listing). Black is 24SECCAB-BLK, a different SKU.
Warranty: 1 year — supported by Infront Technologies

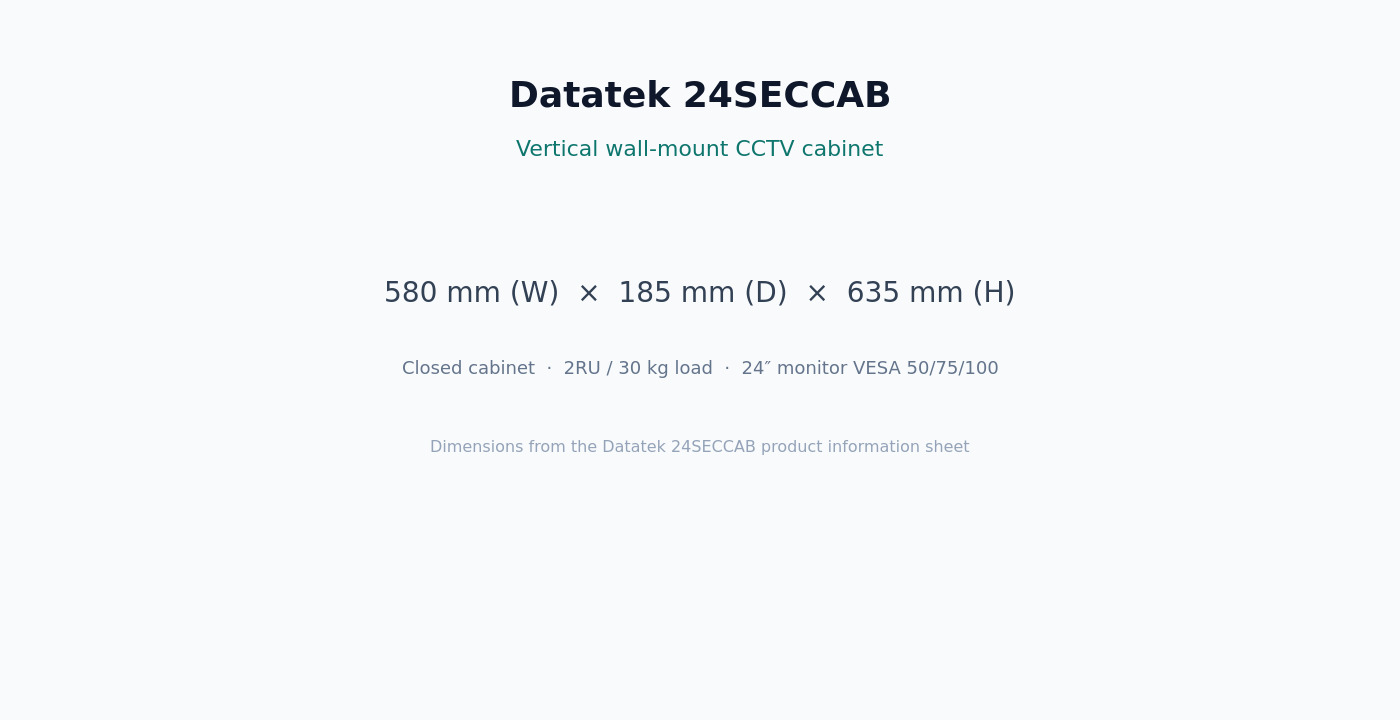

Datatek 24SECCAB dimensions 580 by 185 by 635 mm — Closed cabinet 580 × 185 × 635 mm (W × D × H) from the Datatek 24SECCAB information sheet. Product shot may differ from the actual product.

Pair it with

Typical head-end set

Recorder

2RU / 4HDD NVR or DVR

Stay inside 240–480 mm width and 465 mm depth. Measure the chassis before you order a deep 8-bay.

Display

24″ VESA monitor

Downward HDMI and power so the drop-down door clears the tails. 50/75/100 mm VESA only.

Power

USB for the fans

Both fans share one Y-cable. A USB PSU is not in the Datatek kit — use a spare USB port or a small plug pack.

More outlets

19″ rack PDU

The included 5-outlet board can be swapped for a standard 19″ rack PDU when the job grows.

Answers

Common questions

Is the NVR and monitor included?

No. 24SECCAB is the cabinet and accessory kit only. You supply the recorder, the 24″ (max) monitor and any USB power source for the fans.

What fits inside?

Datatek rates it for up to 2RU equipment 240–480 mm wide and 465 mm deep — typical 4HDD NVR/DVR class — plus a monitor up to 24″ on VESA 50/75/100 with downward HDMI and power. Maximum load is 30 kg.

Are the PDU and fans in the box?

Yes. The kit includes the 5-outlet PDU (24SECPDU) and two USB fans (24SECFAN) on a Y-cable. The cabinet will also take a standard 19″ rack PDU if you need more outlets. A USB power source for the fans is not listed in the kit.

White or black?

This listing is the white hammertone 24SECCAB. Black is a different model: 24SECCAB-BLK.

How do I mount it?

It is a vertical wall cabinet. The rear panel has keyhole slots and the box includes a wall-mounting template, captive nuts and screws. Fixings must suit the wall and the 30 kg rating — see the installation notice below.

Stocked for Australian installs.

Genuine Datatek 24SECCAB from Infront Technologies — trade pricing on the account, ships from Australia.

Installation & safety notice

Wall structure. This is a steel wall cabinet with a 30 kg load rating. Fixings and substrate must suit the combined weight of cabinet, recorder, monitor and PDU. Do not hang it on plasterboard alone unless the fixings reach studs or a rated noggin.

Mains power. The included PDU is a 240 V outlet strip. New circuits, hard-wired tails or work in a switchboard must be done by a licensed electrician. Plug-in use of the PDU in an existing GPO is the usual path on a fit-off.

Specs in good faith. Dimensions, 2RU / 30 kg / 24″ VESA figures are taken from the Datatek 24SECCAB information sheet. Confirm chassis depth before ordering a deep recorder. NVR, monitor and USB fan power are not included.
