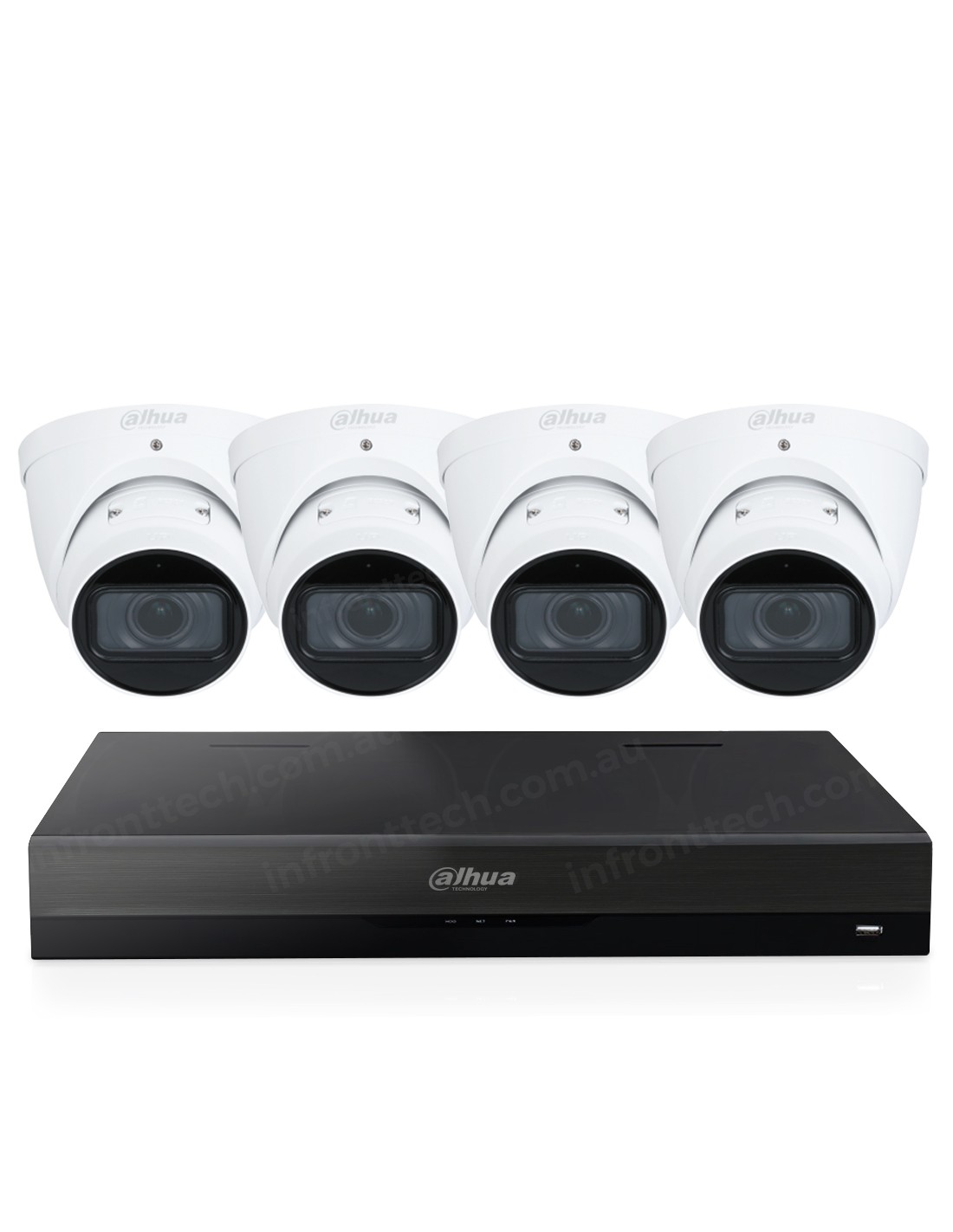

Dahua 4MP AI NVR 4Ch 2TB HDD WizSense Motorised Starlight Turret Cameras - 3X66-K4044TM-W

Dahua 4MP AI NVR 4Ch 2TB HDD WizSense Motorised Starlight Turret Cameras

3X66-K4044TM-W

The Dahua 4MP AI NVR 4Ch 2TB HDD WizSense Motorised Starlight Turret Cameras - 3X66-K4044TM-W is a top-tier security solution designed for both residential and commercial applications. This advanced system includes a 4-channel network video recorder (NVR) equipped with a 2TB hard drive, offering ample storage for high-definition video footage.

Key features:

• 4MP Resolution: Capture crystal-clear images and videos with 4-megapixel resolution, ensuring every detail is visible.
• AI-Powered: Leverage the power of artificial intelligence for smart analytics, including human and vehicle detection, enhancing the accuracy of your surveillance.
• WizSense Technology: Benefit from intelligent motion detection and real-time alerts to stay informed of any suspicious activities.
• Motorised Starlight Turret Cameras: Enjoy superior low-light performance with Starlight technology, allowing the cameras to produce clear images in near-dark conditions. The motorised lens provides flexibility in adjusting the field of view.
• 4-Channel NVR: Manage up to four cameras simultaneously, providing comprehensive coverage for your property.
• 2TB HDD: Store extensive video footage without worrying about running out of space, thanks to the large 2TB hard drive.
• User-Friendly Interface: Easy to set up and navigate, the system is designed with the user in mind, offering a seamless experience from installation to monitoring.
• This Dahua security system is ideal for those who demand high-quality, reliable, and intelligent surveillance solutions.

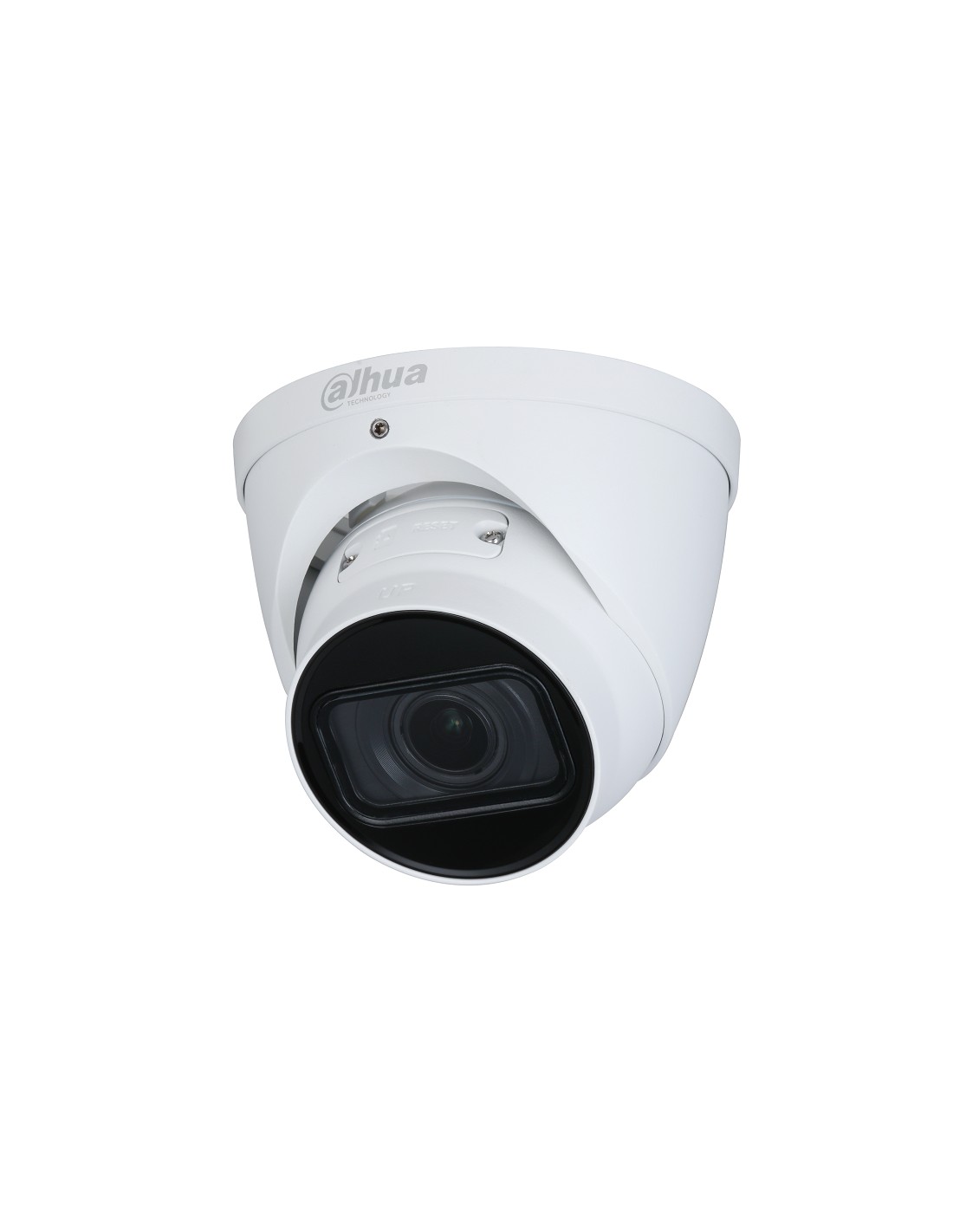

DH-IPC-HDW3466TP-ZS-AUS



Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app. Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.



Features:

• Records up to 4 Megapixel resolution.
• Supports up to 2688 × 1520 pixels resolution.
• Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
• Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
• Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection, loitering detection, people gathering and parking detection.
• Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
• Starlight technology generates clear colour images in near-complete darkness.
• Built-in Infrared LED, with a maximum range of 40 meters.
• Supports Power-Over-Ethernet (PoE) installations.
• Supports MicroSD Card Storage up to 256 Gigabytes.
• Resilient "Weather-Proof" Ingress Protection Rating (IP67).
• 3 Years Back-to-Base Manufacturer Warranty!

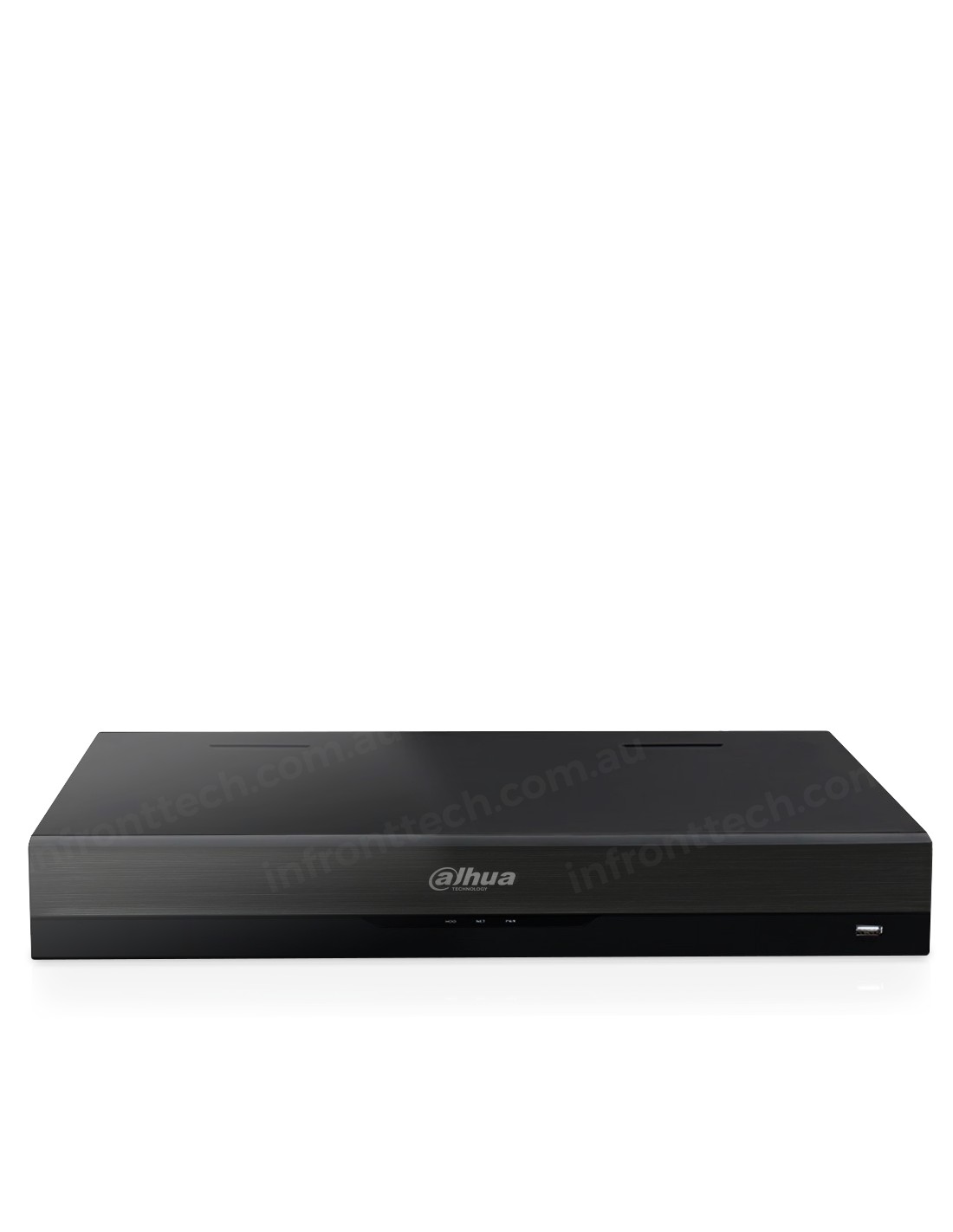

DHI-NVR4104HS-P-AI/ANZ



Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to act fast on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple, and inclusive products and solutions.

NVR4000-AI/ANZ series is a new generation of network recorders that offers powerful decoding capabilities and strong bandwidth. It features high-precision face recognition, perimeter protection, and SMD (Smart Motion Detection), which can distinguish target vehicles and humans from other types in real-time. When connected with select IPC cameras, Quick Pick technology becomes available, allowing human and vehicle targets to be easily searched for and picked out. This network recorder is not only cost-effective but also compatible with a wide variety of third-party devices, making it a great choice for small and medium-sized businesses.



Features:

• Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format.
• Access, storage or forwarding at 80 Mbps.
• Max. decoding capability: 16 × 1080p@30 fps. Supports adaptive decoding.
• AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus.
• AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map.
• Connected to third-party network cameras.
• Security baseline 2.3.



Functions:

Face Detection

Face detection is to detect if there is any human face appearing in the video. This technology adopts a deep learning algorithm to support face detection, tracking, optimization and capturing and then outputs the best face snapshot.

Face Recognition

Dahua Face Recognition technology extracts the features of captured faces and compares them with those in the face database to recognize the person's identity.

Perimeter Protection

Automatically filtering out false alarms caused by animals, rustling leaves, bright lights, etc. Enables the system to perform secondary recognition for the targets. Improving alarm accuracy.

SMD Plus

With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarms.

AI Search

Support AI search by metadata of different targets or uploading face pictures to the device and comparing them with recorded faces by similarity. Enable operators to search through multi-channels quickly and easily and long duration, efficiently find out when and where a person of interest appears.

Heat Map by Camera

Dahua heat map technology is used to display the crowd density and people's appearance probability. Export and display the crowd status in different colors. Generally, crowd status is the statistics of people's quantity in space and time dimensions.

ANPR by Camera

With a deep learning algorithm, Dahua ANPR technology can recognize the number plate information of vehicles in the image with ANPR cameras. Support blocklist/allowlist mode, searching target vehicles from recorded video.

Quick Pick

Dahua Quick Pick technology can enable users to quickly pick up the human/vehicle targets that they are interested in, which facilitates retrieval from SMD events.



Specifications:

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

AI

AI by Recorder

Face detection, face recognition, perimeter protection, and SMD Plus.

AI by Camera

Face detection; face recognition; perimeter protection; SMD Plus; ANPR; people counting; stereo analysis; heat map

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

2 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

4 channels

Face Detection

Face Attributes

Gender; age group; glasses; expressions; face mask; beard

Face Detection Performance of AI by Recorder (Number of Channels)

1 channel (up to 12 faces images/s on each channel)

Face Detection Performance of AI by Camera (Number of Channels)

4 channels

Face Recognition

Face Database Capacity

Up to 10 face databases with 200,00 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and states can be added to each face image.

Face Recognition Performance of AI by Recorder (Number of Channels)

4-channel FD (by the camera) + FR (by recorder), image stream: 12 face images/s 1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s

Face Recognition Performance of AI by Camera (Number of Channels)

4 channels

SMD Plus

SMD Plus by Recorder

4 channels: Secondary filtering for human and motor vehicles, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus by Camera

4 channels

Vehicle License Plate Comparison

ANPR by Camera (Number of Channels)

4 channels

License Plate Database Capacity

1. Create up to 20,000 plate numbers. 2. Blocklist and allowlist

Audio and Video

Access Channel

4 channels

Network Bandwidth

80 Mbps incoming, 80 Mbps recording and 80 Mbps outgoing

Resolution

16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF

Decoding Capability

AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps AI-enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps

Video Output

1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable.

Multi-screen Display

1st Screen: 1/4 2nd Screen: 1/4

Third-party Camera Access

Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon

Compression Standard

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome; IE9 and later; Firefox

Recording Playback

Multi-channel Playback

Up to 4 channels

Record Mode

General, motion detection; intelligent; alarm

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

Alarm

General Alarm

Motion detection; privacy masking; video loss; scene changing; PIR alarm; IPC external alarm

Anomaly Alarm

Camera disconnection; storage error; disk full; IP conflict; MAC conflict; login locked; and cybersecurity exception

Intelligent Alarm

Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map

Alarm Linkage

Record; snapshot; IPC external alarm output; audio; buzzer; log; preset; email

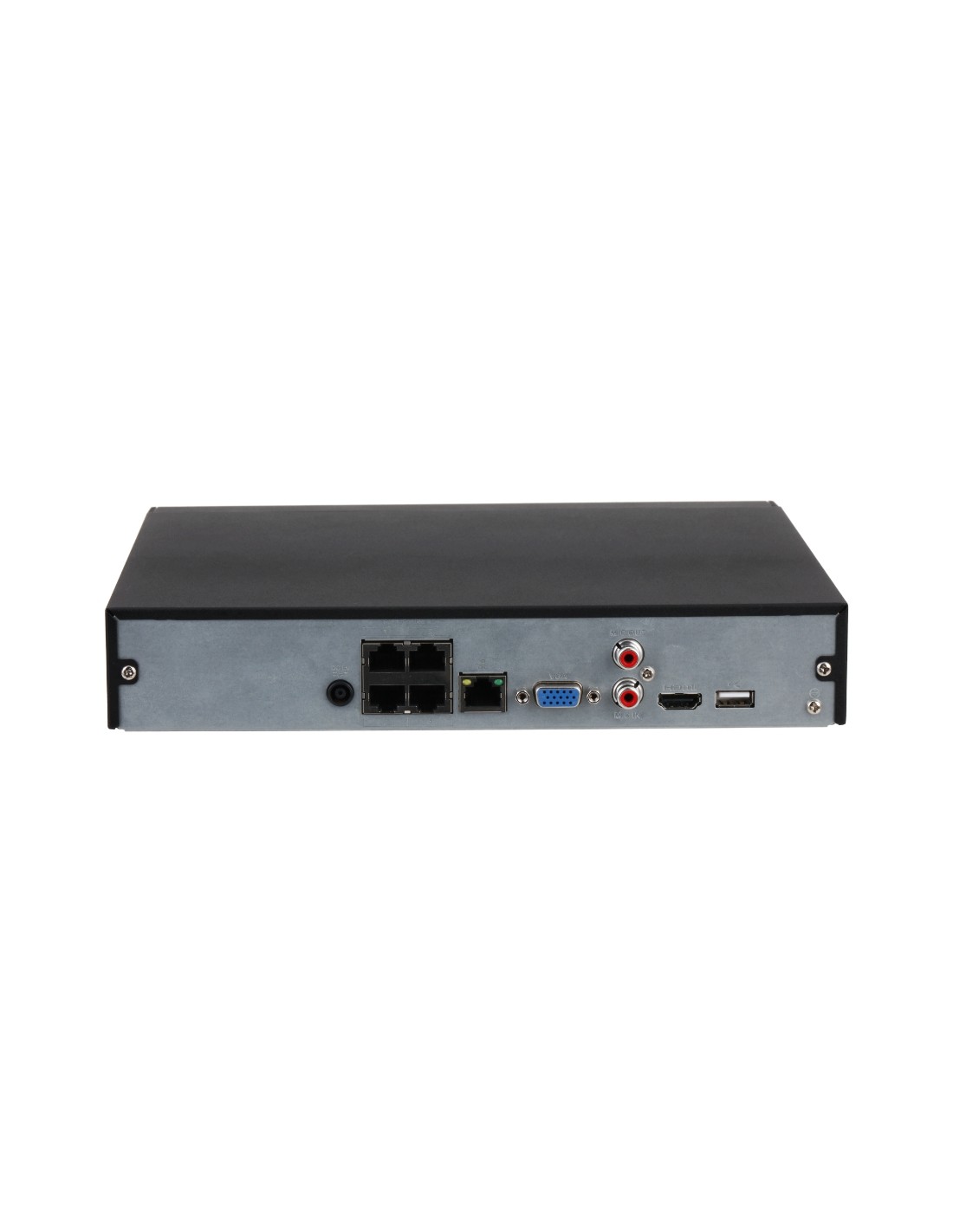

Port

Audio Input

1-channel RCA

Audio Output

1-channel RCA

HDD Interface

1 SATA port, up to 16 TB. The maximum HDD capacity varies with the environmental temperature.

USB

2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI

1

VGA

1

Network Port

1 (10/100 Mbps Ethernet port, RJ-45)

PoE Port

4 ports, 10/100 Mbps, IEEE 802.3 af/at

General

Power Supply

53 VDC, 1.226 A

Power Consumption

Total output of NVR is <10 W (without HDD) Total output power of PoE is 36W, and the maximum output power of a single port is 25.5W

Net Weight

0.86 kg (1.90 lb)

Gross Weight

1.88 kg (4.14 lb)

Product Dimensions

260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H)

Packaging Dimensions

333 mm × 89 mm × 315 mm (13.11" × 3.50" × 12.40") (W × L × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH)

Installation

Rack or desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014
