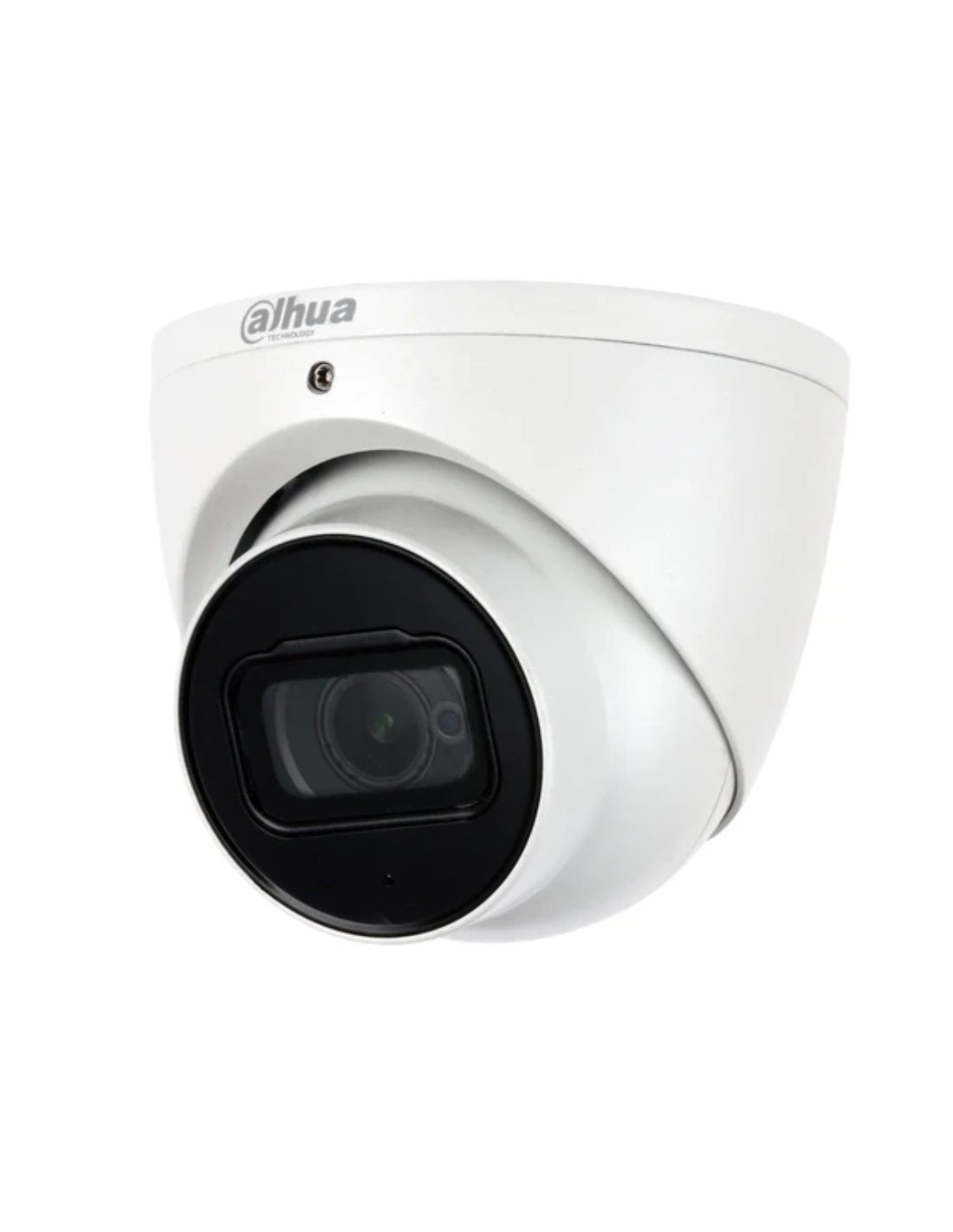

Dahua DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual Light turret. Product shot may differ from the actual product.

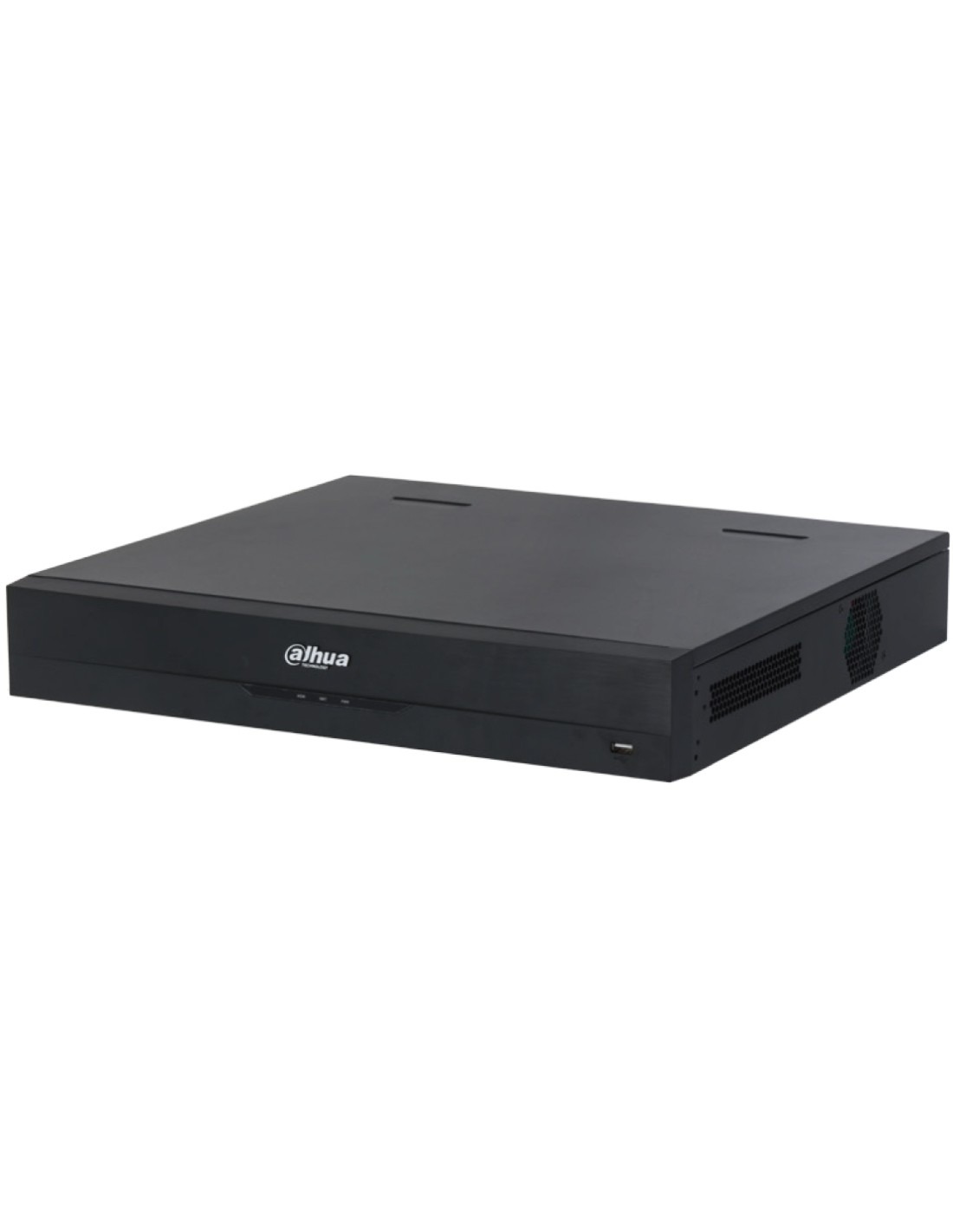

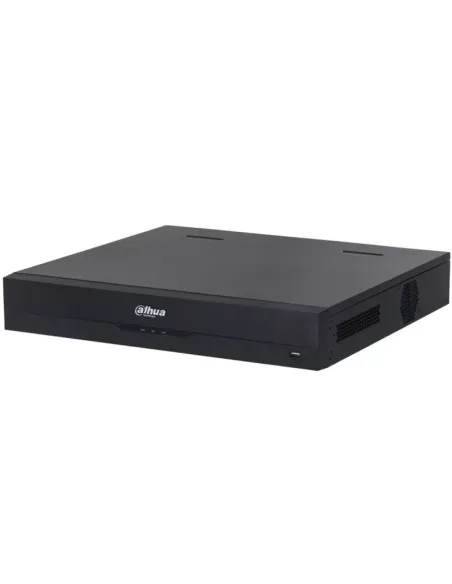

Dahua NVR4108HS-8P-AI/ANZ PoE NVR, front. Product shot may differ from the actual product.

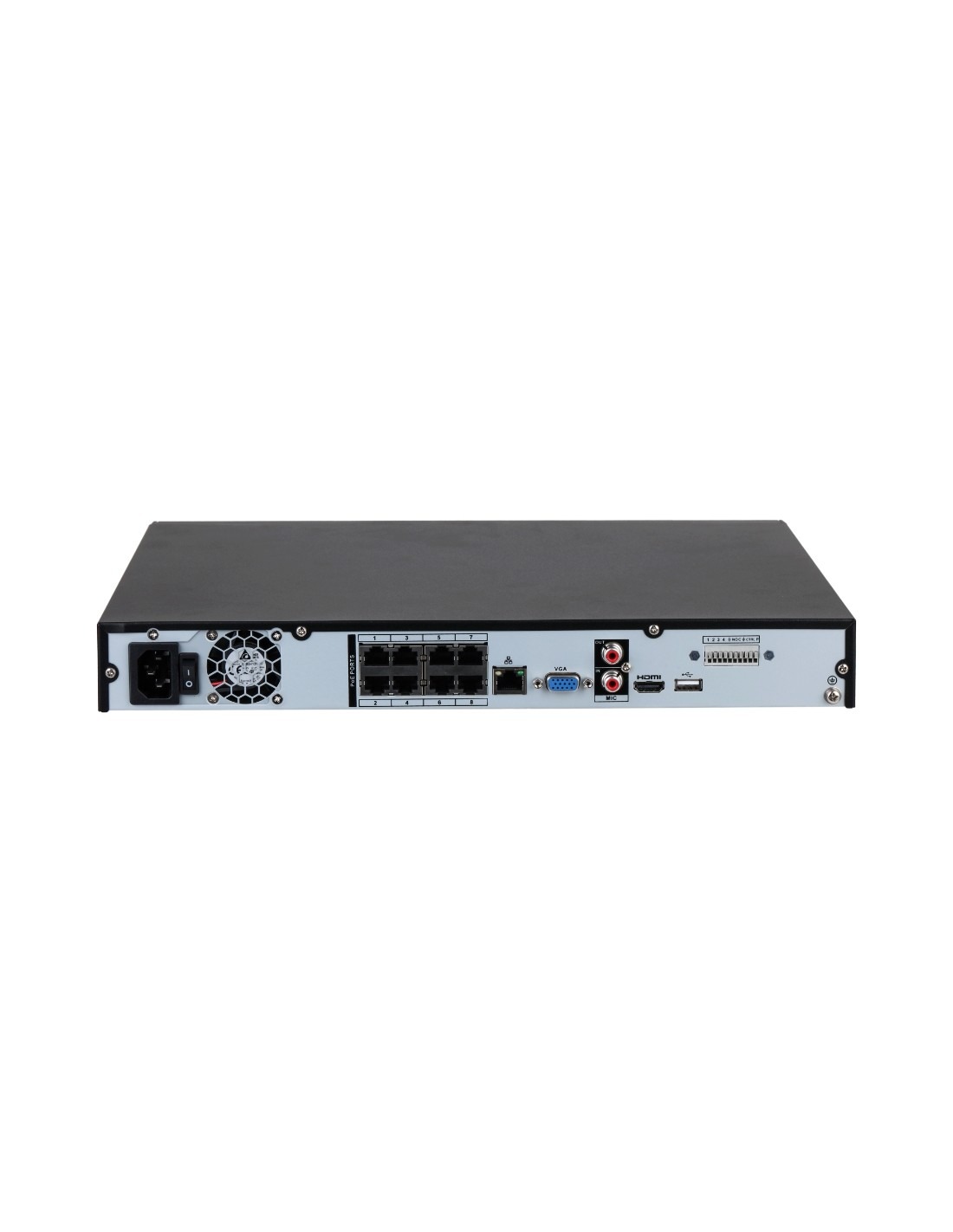

Dahua NVR4108HS-8P-AI/ANZ PoE NVR, rear panel with 8 PoE ports. Product shot may differ from the actual product.

1 / 4

Dahua 6MP Dual Light Kit — 4× HDW3667EM-S-IL-ANZ + 8CH NVR4108HS-8P-AI/ANZ

Name: Dahua 6MP Dual Light Kit — 4× HDW3667EM-S-IL-ANZ + 8CH NVR4108HS-8P-AI/ANZ
Brand: Dahua Australia
SKU: DH-K6084T
Price: 909 AUD
Availability: InStock

SKU DH-K6084T-0T In Stock - Ready to Ship

$909.00 inc GST

A complete 8-channel Dahua kit with 4× HDW3667EM-S-IL-ANZ 6MP turrets and a PoE WizSense NVR. Infrared until a person or vehicle is confirmed, then warm light for colour evidence.

✓4× 6MP turrets, 2.8 mm, 110° view
✓Smart Dual Light — 30 m IR and 30 m warm light
✓SMD 4.0 human and vehicle detection
✓8-channel PoE NVR, 4K HDMI, optional HDD

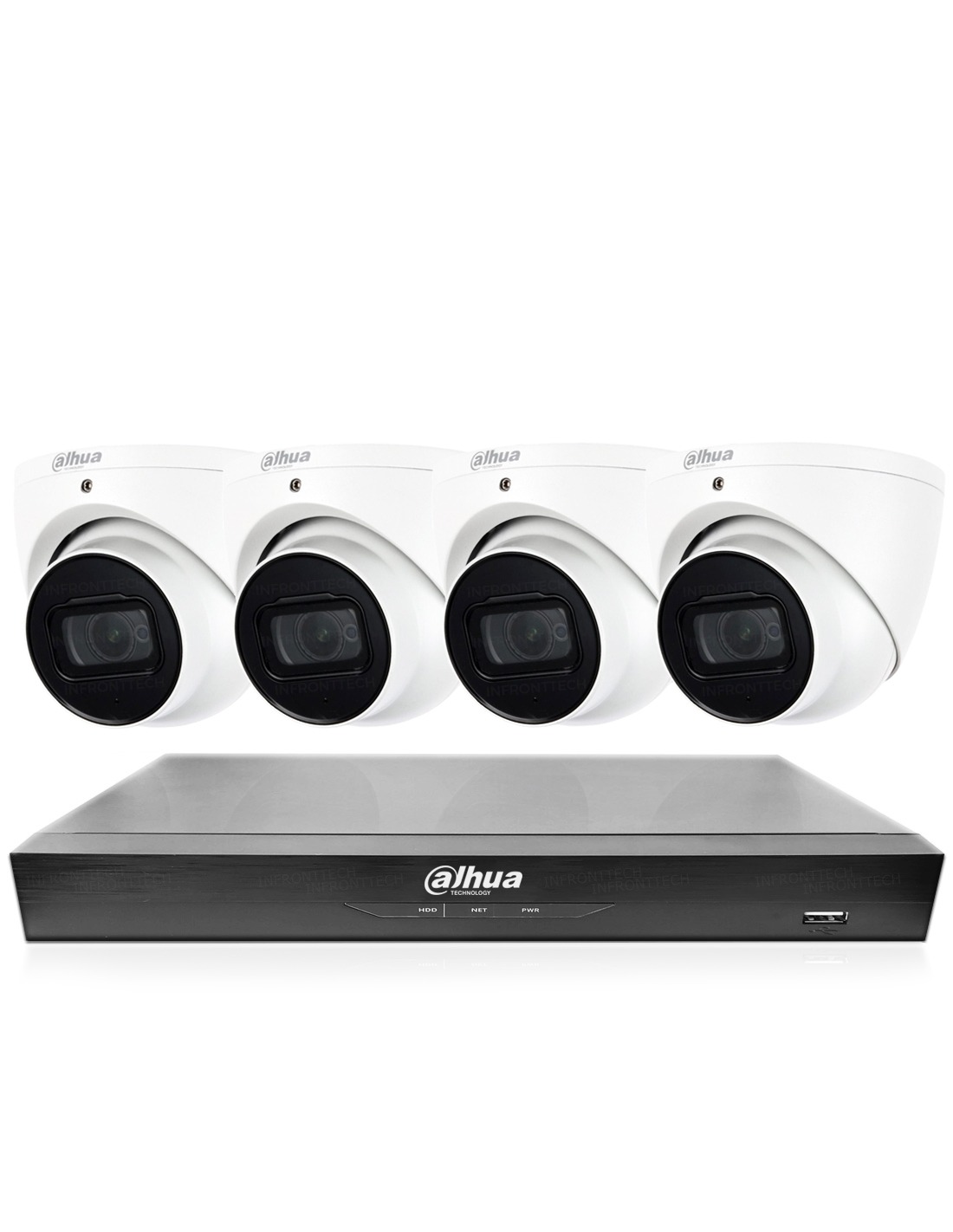

DH-K6084T kit contents — 4× HDW3667EM-S-IL-ANZ and NVR4108HS-8P-AI/ANZ, shown at true relative size. Product shot may differ from the actual product.

Dahua · WizSense · Smart Dual Light

8 channels. 4 cameras.
Colour when it counts.

4× DH-IPC-HDW3667EM-S-IL-ANZ 6MP turrets and an NVR4108HS-8P-AI/ANZ — the current dual-light replacement for the discontinued HDW3666EMP-S-AUS.

THIS IS A COMPLETE CAMERA + NVR KIT — HDD IS AN OPTIONAL UPGRADE.

Cameras power from the recorder’s PoE ports. Recording needs a SATA drive: pick a fitted HDD at checkout, or supply your own if you choose No HDD. Cabling and a monitor are not in the carton.

In the box

4× DH-IPC-HDW3667EM-S-IL-ANZ Smart Dual Light turrets (white)
1× DHI-NVR4108HS-8P-AI/ANZ PoE NVR (no HDD unless selected)
NVR power lead

What you also need (sold separately)

Cat 5e / Cat 6 cable to each camera
A SATA surveillance HDD if you keep the No HDD option
A HDMI/VGA monitor for local setup (optional)
ACMA-registered cabler for any concealed runs

Unsure on HDD size or camera count? Contact us before ordering — we will confirm the mix so nothing is missing on install day.

The quiet turret that turns the lights on for evidence.

Earlier versions of this kit used the IR-only HDW3666EMP-S-AUS. This listing ships its successor, DH-IPC-HDW3667EM-S-IL-ANZ: 6MP (3288 × 1850, 16:9), 2.8 mm F1.4, Smart Dual Light, SMD 4.0 and a built-in mic, in an IP67 metal turret. IR reach is 30 m (the old model was rated 50 m); in return you get warm light for colour footage when a person or vehicle is detected.

The recorder still has 4 spare PoE channels if you add cameras later.

Dahua DH-IPC-HDW3667EM-S-IL-ANZ turret — Product shot may differ from the actual product.

Dual Light · 6MP

IR until a target is real. Warm light for colour.

DH-IPC-HDW3667EM-S-IL-ANZ — 6MP 3288 × 1850 from a 1/2.7″ CMOS sensor, 2.8 mm F1.4 lens with a wide 110° H / 58° V / 132° D view.

Smart Dual Light uses a multi-core IR + warm module, 30 m each. The scene stays infrared until SMD 4.0 classifies a person or vehicle, then warm light so clothing and vehicles are recorded in colour. Built-in microphone; no speaker.

Dahua NVR4108HS-8P-AI/ANZ PoE NVR — Product shot may differ from the actual product.

Recorder

PoE in the recorder. 4K on the HDMI.

This kit is built around the DHI-NVR4108HS-8P-AI/ANZ — 8 IP channels, 8 PoE ports, 4K HDMI and VGA, 1× SATA (up to 20 TB), WizSense AI with Quick Pick people/vehicle search. Cameras plug straight into the back-panel PoE ports.

View on a local monitor or in DMSS on iOS and Android. H.265 keeps the camera streams light on the drive you choose at checkout. AcuPick attribute search needs a Dahua NVR5-series recorder — the cameras support it if you upgrade later.

How it works

Four steps from carton to live view.

Mount the turrets

Fix each IP67 turret under an eave or to a wall. 3-axis adjustment; “UP” mark on the housing.

One cable per camera

Run Cat 5e/6 into a PoE port on the NVR. The recorder powers the camera.

Fit a drive if needed

If you did not buy a fitted HDD, install a surveillance SATA disk in the NVR before first recording.

View on DMSS or HDMI

Add the NVR in DMSS, or connect HDMI for a local 4K monitor. SMD events classify people and vehicles.

At a glance

Verified kit facts

Kit reference: DH-K6084T
Cameras: 4× DH-IPC-HDW3667EM-S-IL-ANZ (2.8 mm turret)
Camera sensor: 6MP 1/2.7″ CMOS, 3288×1850 @ 25/30 fps
Lens / FOV: 2.8 mm F1.4 · 110° H / 58° V / 132° D
Illumination: Smart Dual Light, 30 m IR + 30 m warm light
Audio: Built-in microphone (one-way)
Camera power: PoE 802.3af or 12 VDC, max 9.5 W on PoE
Camera size / weight: Φ122 × 105.5 mm, 0.53 kg
AI (camera): SMD 4.0, tripwire & intrusion (human/vehicle), AI SSA; AcuPick-capable with NVR5+
Camera rating: IP67 metal · −40 °C to +60 °C
NVR: DHI-NVR4108HS-8P-AI/ANZ
PoE ports: 8 PoE · 4 used / 4 spare
Local view: HDMI 4K + VGA
HDD: 1× SATA (up to 20 TB) · choose a fitted drive at checkout (or No HDD)
App: DMSS (iOS / Android) · Smart PSS Lite
Warranty: Australian warranty via Infront Technologies

Camera figures from the Dahua HDW3667EM-S-IL-ANZ datasheet; recorder figures from the Dahua NVR4108HS-8P-AI/ANZ datasheet. Product shot may differ from the actual product.

Common questions

Before you order

Is this a complete working system?

You receive the cameras and the PoE NVR. Plug the cameras into the NVR’s PoE ports, add a SATA drive if you did not select one at checkout, and view on a monitor or the DMSS app. Cabling, a spare drive and a monitor are sold separately.

What replaced the HDW3666EMP-S-AUS?

Dahua superseded that IR turret with the DH-IPC-HDW3667EM-S-IL-ANZ — same 6MP 2.8 mm turret class, plus Smart Dual Light (IR + warm light to 30 m), SMD 4.0 and AI SSA. The kit reference stays the same.

Does this turret have a speaker or siren?

No. It has a built-in microphone only. For a siren, strobe and two-way talk look at our Dahua TiOC kits.

Does this kit support AcuPick search?

Not AcuPick out of the box. The cameras are AcuPick-capable, but AcuPick attribute search needs a Dahua NVR5-series recorder. This kit ships a WizSense NVR4-class recorder with Quick Pick, which still jumps straight to people and vehicle events.

What HDD should I choose?

A hard drive is required for recording — the No HDD option ships the recorder empty. Use a surveillance-rated SATA drive. As a rough guide for 4× continuous 6MP streams: 4 TB ≈ about 2.7 weeks, 8 TB ≈ about 5.3 weeks, 10 TB ≈ about 6.7 weeks (bitrate and scene activity vary — treat it as an estimate, not a guarantee). Motion-only recording stretches any drive several times further.

Can I add more cameras later?

Yes — this kit leaves 4 spare PoE ports on the NVR4108HS-8P-AI/ANZ. Extra cameras are sold separately and plug into those ports.

Is it rated for Australian weather?

The turrets are IP67 metal, −40 °C to +60 °C. The NVR is an indoor appliance — keep it in a dry, ventilated cupboard or rack.

Do the cameras need a 240 V electrician?

The cameras are PoE SELV devices powered by the NVR. The NVR plugs into a standard 10 A GPO. Concealed Cat 6 is customer cabling (AS/CA S009) and needs an ACMA-registered cabler.

Genuine Dahua, specified for this site.

Shipped Australia-wide by Infront Technologies. Local support from a team that designs, installs and maintains professional CCTV every day.

Installation & safety notice

Mixed-voltage kit. The HDW3667EM-S-IL-ANZ cameras are low-voltage (SELV) PoE 802.3af / 12 VDC devices — no 240 V inside the turret. The NVR is a mains-powered desktop/rack appliance that plugs into a standard 10 A GPO. No electrician is required to power the NVR from an existing outlet.

When a licensed tradesperson is required. Concealed Cat-6 is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. A new GPO or rack-side mains work is the licensed electrician’s job.

Specifications in good faith. Specs, images, firmware and bundled accessories may change without notice; verify against the latest manufacturer datasheet. Product appearance and packaging may differ from marketing imagery.

By placing an order you confirm the product is fit for your intended use and that any concealed cabling will be performed by an appropriately licensed tradesperson. Infront Technologies does not accept liability for incorrect site preparation or misuse outside the manufacturer’s specifications.

Audio: Built-in microphone (one-way)
Resolution: 6MP (3288 × 1850)
Brand: Dahua
Lens: 2.8 mm fixed, F1.4
HDD: 1× SATA (up to 20 TB) (optional fitted drive at checkout)
AI: SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
Sensor: 1/2.7″ CMOS
Camera Model: 4× DH-IPC-HDW3667EM-S-IL-ANZ
Field of View: 110° H / 58° V / 132° D (2.8 mm)
Channels: 8 IP / 8 PoE
How many Camera Cables are included?: This Kit does NOT include Camera Cables
Warranty: Australian Warranty via Infront Technologies
Camera Count: 4
Kit Type: IP CCTV kit (cameras + PoE NVR)
Night Vision: 30 m IR + 30 m warm light
Camera Protection: IP67
Camera Power: PoE or 12 VDC
NVR: NVR4108HS-8P-AI/ANZ
Local Display: HDMI 4K + VGA
App: DMSS
Operating Temperature (camera): −40 °C to +60 °C
NVR Search: Quick Pick (NVR4 WizSense); AcuPick on NVR5+
